Elektro-Automatik EA-ELR 10000 3U User manual

© EA Elektro-Automatik in 2022, this information is subject to change without notice 33200820_manual_elr_10000_3u_15kw_en_02
EA-ELR 10000 3U
Programmable Electronic DC Loads
with Energy Recovery
MANUAL

© EA Elektro-Automatik in 2022, this information is subject to change without notice 233200820_manual_elr_10000_3u_15kw_en_02
TABLE OF CONTENTS
1. General
1.1 About this document 5
1.1.1 Retention and use 5
1.1.2 Copyright 5
1.1.3 Validity 5
1.1.4 Symbols and warnings in this document 5
1.2 Warranty 5
1.3 Limitation of liability 5
1.4 Disposal of equipment 6
1.5 Product key 6
1.6 Intended usage 7
1.6.1 Symbols and warnings on the device 7
1.7 Safety 8
1.7.1 Safety notices 8
1.7.2 Responsibility of the operator 9
1.7.3 Requirements to the user 9
1.7.4 Responsibility of the user 9
1.7.5 Alarm signals 10
1.7.6 Functionality test 10
1.8 Technical Data 11
1.8.1 Approved operating conditions 11
1.8.2 General technical data 11
1.8.3 Specific technical data 12
1.8.4 Views 17
1.8.5 Control elements 20
1.9 Construction and function 21
1.9.1 General description 21
1.9.2 Block diagram 21
1.9.3 Scope of delivery 22
1.9.4 Accessories 22
1.9.5 Options 22
1.9.6 The control panel (HMI) 23
1.9.7 USB port (rear side) 26
1.9.8 Interface module slot 26
1.9.9 Analog interface 27
1.9.10 “Share BUS” connector 27
1.9.11 “Sense” connector (remote sensing) 27
1.9.12 Master-Slave bus 28
1.9.13 Ethernet port 28
2. Installation & commissioning
2.1 Transport and storage 29
2.1.1 Transport 29
2.1.2 Packaging 29
2.1.3 Storage 29
2.2 Unpacking and visual check 29
2.3 Installation 29
2.3.1 Safety procedures before installation and use29
2.3.2 Preparation 29
2.3.3 Installing the device 31
2.3.4 Connection to AC supply 32
2.3.5 Connection to DC sources 35
2.3.6 Grounding of the DC terminal 36
2.3.7 Connection of remote sensing 37
2.3.8 Installation of an interface module 38
2.3.9 Connection of the analog interface 39
2.3.10 Connection of the Share bus 39
2.3.11 Connection of the USB port (rear side) 39
2.3.12 Initial commission 39
2.3.13 Commission after a firmware update or a long
period of non-use 39
3. Operation and application
3.1 Important notes 40
3.1.1 Personal safety 40
3.1.2 General 40
3.2 Operating modes 40
3.2.1 Voltage regulation / Constant voltage 40
3.2.2 Current regulation / constant current / current
limiting 41
3.2.3 Power regulation / constant power / power
limiting 41
3.2.4 Resistance regulation / constant resistance 41
3.2.5 Dynamic characteristics and stability criteria 41
3.3 Alarm conditions 43
3.3.1 Power Fail 43
3.3.2 Overtemperature 43
3.3.3 Overvoltage protection 43
3.3.4 Overcurrent protection 43
3.3.5 Overpower protection 43
3.3.6 Share bus fail 44
3.4 Manual operation 45
3.4.1 Switching the device on 45
3.4.2 Switching the device off 45
3.4.3 Configuration via the menu 45
3.4.4 Adjustment limits 53
3.4.5 Changing the operating mode 53
3.4.6 Manual adjustment of set values 54
3.4.7 Switching the DC input on or off 55
3.4.8 Recording to USB stick (logging) 55
3.4.9 The quick menu 56
3.4.10 The graph 57
3.5 Remote control 58
3.5.1 General 58
3.5.2 Control locations 58

© EA Elektro-Automatik in 2022, this information is subject to change without notice 333200820_manual_elr_10000_3u_15kw_en_02
3.5.3 Remote control via a digital interface 58
3.5.4 Remote control via the analog interface 60
3.6 Alarms and monitoring 64
3.6.1 Definition of terms 64
3.6.2 Device alarm and event handling 64
3.7 Locking the control panel (HMI) 67
3.8 Locking the adjustment limits and user pro-
files 67
3.9 Loading and saving user profiles 68
3.10 The function generator 69
3.10.1 Introduction 69
3.10.2 General 69
3.10.3 Method of operation 70
3.10.4 Manual operation 70
3.10.5 Sine wave function 71
3.10.6 Triangular function 72
3.10.7 Rectangular function 72
3.10.8 Trapezoidal function 73
3.10.9 DIN 40839 function 73
3.10.10 Arbitrary function 74
3.10.11 Ramp function 78
3.10.12 IU table function (XY table) 79
3.10.13 Battery test function 80
3.10.14 MPP tracking function 83
3.10.15 Remote control of the function generator 85
3.11 Other applications 86
3.11.1 Parallel operation in master-slave (MS) 86
3.11.2 Series connection 90
3.11.3 SEMI F47 90
4. Service and maintenance
4.1 Maintenance / cleaning 91
4.1.1 Battery replacement 91
4.2 Fault finding / diagnosis / repair 91
4.2.1 Firmware updates 91
4.2.2 Trouble-shooting device problems 92
5. Contact and support
5.1 General 93
5.2 Contact options 93
The part of this document that deals with the handling of features on the control panel is only valid for devices
with firmwares “KE: 3.02”. “HMI: 3.02” and “DR: 1.0.2.20” or higher.

© EA Elektro-Automatik in 2022, this information is subject to change without notice 433200820_manual_elr_10000_3u_15kw_en_02

© EA Elektro-Automatik in 2022, this information is subject to change without notice 533200820_manual_elr_10000_3u_15kw_en_02
1. General
1.1 About this document
1.1.1 Retention and use
This document is to be kept in the vicinity of the equipment for future reference and explanation of the operation of the device.
This document is to be delivered and kept with the equipment in case of change of location and/or user.
The most recent issue of this document can be found online, on our website.
1.1.2 Copyright
Modication and partial or complete usage of this PDF document for other purposes as intended are forbidden and breach
may lead to legal process.
1.1.3 Validity
This manual is valid for the following equipment and its variants:
Model Model Model Model
EA-ELR 10080-170 3U EA-ELR 10200-140 3U EA-ELR 10080-510 3U EA-ELR 11500-30 3U
EA-ELR 10200-70 3U EA-ELR 10360-80 3U EA-ELR 10200-210 3U EA-ELR 12000-20 3U
EA-ELR 10360-40 3U EA-ELR 10500-60 3U EA-ELR 10360-120 3U
EA-ELR 10500-30 3U EA-ELR 10750-40 3U EA-ELR 10500-90 3U
EA-ELR 10750-20 3U EA-ELR 11000-30 3U EA-ELR 10750-60 3U
EA-ELR 10080-340 3U EA-ELR 11500-20 3U EA-ELR 11000-40 3U
1.1.4 Symbols and warnings in this document
Warning and safety notices as well as general notices in this document are shown in a box with a symbol as follows. The
symbols are also valid, where placed, also to mark specic spots on the device:
Symbol for a life threatening danger (electric shock hazard)
Symbol for risk (of damage to the equipment). If placed on the device it requests the user to read the
operating guide prior to start operation.
Symbol for general safety notices (instructions and damage protection bans) or important information
for operation
Symbol for general notices
1.2 Warranty
EA Elektro-Automatik guarantees the functional competence of the applied technology and the stated performance param-
eters. The warranty period begins with the delivery of free from defects equipment.
Terms of guarantee are included in the general terms and conditions (TOS) of EA Elektro-Automatik.
1.3 Limitation of liability
All statements and instructions in this manual are based on current norms and regulations, up-to-date technology and our
long term knowledge and experience. The manufacturer accepts no liability for losses due to:
• Usage for purposes other than designed
• Use by untrained personnel
• Rebuilding by the customer
• Technical changes
• Use of not authorized spare parts
The actual delivered device(s) may differ from the explanations and diagrams given here due to latest technical changes or
due to customized models with the inclusion of additionally ordered options.

© EA Elektro-Automatik in 2022, this information is subject to change without notice 633200820_manual_elr_10000_3u_15kw_en_02
1.4 Disposal of equipment
A piece of equipment which is intended for disposal must, according to European laws and regulations (ElektroG, WEEE) be
returned to the manufacturer for scrapping, unless the person operating the piece of equipment or another, delegated person
is conducting the disposal. Our equipment falls under these regulations and is accordingly marked with the following symbol:
The device contains a Lithium battery cell. Disposal of that battery follows the above stated rule or specic
local regulations.
1.5 Product key
Decoding of the product description on the label, using an example:
EA-ELR 10 080 -510 3U
Construction (only stated on type label):
3U = 19” frame with 3 units of height
Maximum current of the device in Ampere
Maximum voltage of the device in Volt (“10080” = 80 V)
Series: 10 = Series 10000
Type identication:
ELR = Electronic Load Recovery

© EA Elektro-Automatik in 2022, this information is subject to change without notice 733200820_manual_elr_10000_3u_15kw_en_02
1.6 Intended usage
The equipment is intended to be used only as a variable voltage and current source or only as a variable current sink. Fur-
thermore it’s only intended to be used installed and operated in suitable equipment (19” rack or similar), together with a rigid,
non-retractable AC supply connection.
Typical application for a voltage source is DC power supply to any relevant user, including when used as battery charger to
test charge various battery types, and for current sinks the replacement of an ohmic resistor by an adjustable electronic DC
load in order to load relevant voltage and current sources of any type.
• Claims of any sort due to damage caused by non-intended usage will not be accepted
• All damage caused by non-intended usage is solely the responsibility of the operator
1.6.1 Symbols and warnings on the device
Decal Explanation
DANGER
RISK OF ELECTRIC
SHOCK
Disconnect all sources of
supply prior to servicing.
!This warning is primarily related to the reconguration of the device on the DC termi-
nal which, for safety reasons, requires to also cut the device from AC (external main
switch). The same applies to disconnection and reconnection of the AC terminal.
Capacitors on DC, stor-
ing voltage! Discharge
for 10 sec then ground
before working.
DANGER
!Even after disconnection of the DC terminal from an external source there can still be
dangerous voltage potential present between the DC terminal poles and/or between
DC and the enclosure. For safety reasons the DC terminal must be short-circuited
after the capacitors have been discharged and it must also be grounded, i. e. con-
nected to PE.
WARNING
ELECTRICAL
HAZARDS
Authorized personnel
only.
!There can always be a voltage potential on metallic, openly touchable parts on
electrical devices, though the voltage level may not be hazardous. Caution is still
advisable, as these potential can still cause mild electrical shocks or sparking.
WARNING
Read and understand the operat-
ing guide before using this device.
Non-adherence of the instructions
in the operating guide can result
in serious injury or death.
!This is valid for any use of the device.

© EA Elektro-Automatik in 2022, this information is subject to change without notice 833200820_manual_elr_10000_3u_15kw_en_02
1.7 Safety
1.7.1 Safety notices
Mortal danger - Hazardous voltage
• Electrical equipment operation means that some parts accessible on the outside of the device can be
under high voltage. Therefore all parts under voltage must be covered during operation! This basically
applies to all models.
• The DC terminal is isolated from the AC input and not connected to ground internally. Hence there can
be dangerous potential between the DC poles and PE, for instance caused by a connected external
source application. Due to charged capacitors this could even be true if the DC input or the device
are already switched off.
• Do not insert any object, particularly metallic, through the ventilator slots!
• For every reconguration on the AC or DC terminals, specically those which can have a dangerous
voltage potential, the device must be cut completely from the AC supply (main switch on the distant
end of the AC cable); it doesn’t suce to only use the power switch on the front
• Always follow 5 safety rules when working with electric devices:
• Disconnect completely
• Secure against reconnection
• Verify that the system is dead
• Carry out earthing and short-circuiting
• Provide protection from adjacent live parts
• Avoid any use of liquids near the equipment. Protect the device from wet, damp and condensation.
• Do not connect external power sources with reversed polarity to the DC terminal! The equipment will be
damaged, even when completely powered off.
• Never connect external power sources to the DC terminal that can generate a higher voltage than the
rated voltage of the device!
• Never insert a network cable which is connected to Ethernet or its components into the master-slave
sockets on the rear side of the device!
• The equipment must only be used as intended
• The equipment is only approved for use within the connection limits stated on the product label.
• ESD regulations must be applied when plugging interface cards or modules into the relative slot
• Interface cards or modules may only be attached or removed after the device is switched off. It’s not
necessary to open the device.
• Always congure the various protecting features against overcurrent, overvoltage etc. for sensitive loads
to what the target application requires!
• Always make sure that the energy recovery can feed back the inverted energy and that it does not switch
to isolated operation. For situations of isolated operation a supervision device (grid protection) has to
be installed
• It’s not allowed to run the device on AC sources such as generators or UPS equipment. It must only be
connected to a power grid!
• When controlling the device manually on the HMI while it’s connected to any controlling unit (PLC, PC
etc.) via any analog or digital interface, that controlling unit could take over remote control anytime; for
safety reasons it’s recommended to block remote control by activating the so-called local mode (also
see “3.4. Manual operation” and “3.4.3. Conguration via the menu” )

© EA Elektro-Automatik in 2022, this information is subject to change without notice 933200820_manual_elr_10000_3u_15kw_en_02
1.7.2 Responsibility of the operator
Operator is any natural or legal person who uses the equipment or delegates the usage to a third party, and is responsible
during its usage for the safety of the user, other personnel or third parties.
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations. Alongside the
warning and safety notices in this manual the relevant safety, accident prevention and environmental regulations must also
be applied. In particular the operator has to
• be acquainted with the relevant job safety requirements
• identify other possible dangers arising from the specic usage conditions at the work station via a risk assessment
• introduce the necessary steps in the operating procedures for the local conditions
• regularly control that the operating procedures are current
• update the operating procedures where necessary to reect changes in regulation, standards or operating conditions.
• dene clearly and unambiguously the responsibilities for operation, maintenance and cleaning of the equipment.
• ensure that all employees who use the equipment have read and understood the manual. Furthermore the users are to be
regularly schooled in working with the equipment and the possible dangers.
• provide all personnel who work with the equipment with the designated and recommended safety equipment
Furthermore, the operator is responsible for ensuring that the device is at all times technically t for use.
1.7.3 Requirements to the user
Any activity with equipment of this type may only be performed by persons who are able to work correctly and reliably and
satisfy the requirements of the job.
• Persons whose reaction capability is negatively inuenced by e.g. drugs, alcohol or medication may not operate the equipment.
• Age or job related regulations valid at the operating site must always be applied.
Danger for unqualied users
Improper operation can cause person or object damage. Only persons who have the necessary training,
knowledge and experience may use the equipment.
The group of people allowed to operate the equipment is additionally limited to:
Delegated persons: these are persons who have been properly and demonstrably instructed in their tasks and the attendant
dangers.
Qualied persons: these are persons who are able through training, knowledge and experience as well as knowledge of the
specic details to carry out all the required tasks, identify dangers and avoid personal and other risks.
1.7.4 Responsibility of the user
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations. Alongside the
warning and safety notices in this manual the relevant safety, accident prevention and environmental regulations must also
be applied. In particular the users of the equipment:
• must be informed of the relevant job safety requirements
• must work to the dened responsibilities for operation, maintenance and cleaning of the equipment
• before starting work must have read and understood the operating manual

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1033200820_manual_elr_10000_3u_15kw_en_02
1.7.5 Alarm signals
The equipment offers various possibilities for signaling alarm conditions, however, not for danger situations. The signals may
be optical (on the display as text or via LED), acoustic (piezo buzzer) or electronic (pin/status output of an analog interface).
All alarms will cause the device to switch off the DC input. For details about the different alarms refer to section “3.3. Alarm
conditions” .
The meaning of the signals is as follows:
Signal OT
(OverTemperature)
• Overheating of the device
• DC input will be switched off
• Non-critical
Signal OVP / SOVP
(OverVoltage)
• Overvoltage shutdown of the DC input due to high voltage coming onto the device
• Critical! The device and/or the source could be damaged
Signal OCP
(OverCurrent)
• Shutdown of the DC input due to excess of the preset limit
• Non-critical, protects the source from feeding excessive current
Signal OPP
(OverPower)
• Shutdown of the DC input due to excess of the preset limit
• Non-critical, protects the source from feeding excessive power
Signal PF
(Power Fail)
• DC input shutdown due to AC undervoltage or defect in the AC section
• Critical on overvoltage! AC section could be damaged
Signal MSP
(Master-Slave Pro-
tection)
• DC input shutdown due to communication problems on the master-slave bus
• Non-critical
Signal SF
(Share Bus Fail)
• DC input shutdown due to signal distortion on the Share bus
• Non-critical
1.7.6 Functionality test
The operator of the device must decide when to check the device for correct functionality, by whom and how often. The when
could either be before every use or after it has been relocated or recongured or perhaps in a dened interval.
Should the set values not be adjustable as instructed below it could simply be due to adjustment limits
interfering. See “3.4.4. Adjustment limits”. When reaching a limit when adjusting value, the device would
indicate in the display.
The test procedure would always be like this:
1. Disconnect all cables (Sense, Share bus, analog interface, USB), except for AC
2. Connect an external DC source that can at least deliver as much current and voltage as the rating of the device under
test (DUT) and set it to 10% UNom current of the DUT and full
3. Connect a suitable ampere meter (shunt, current transducer) in line with or around one of the DC cables
4. Switch the device on, adjust a current of 10% INom while the voltage set value is set to 0 and the power set values to
maximum. Then switch the DC input on and measure the current with the ammeter and compare. Also check what the
actual current on the display shows.
5. Repeat the same thing at 100% UNom.
6. Should the external DC source be adjustable in current, limit the current to 90% INom of the DUT while setting the
voltage to 102% UNom of the DUT. Add a voltage multimeter on the DC input.
7. On the DUT, adjust 10% UNom and measure with the multimeter on the DC input to verify the adjusted voltage is met.
Also check what the actual current on the display shows.
8. Repeat the same thing at 90% or 100% UNom.
Only if the current and voltage are supplied by the device as adjustable in the range of 0-100% FS, the device can be consid-
ered as correctly operational.

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1133200820_manual_elr_10000_3u_15kw_en_02
1.8 Technical Data
1.8.1 Approved operating conditions
1. 8 .1.1 Ambiance
The allowed ambient temperature range for operation is 0 °C (32 °F) to 50 °C (122 °F). During storage or transport, the allowed
range extends to -20 °C (-4 °F) to 70 °C (158 °F). In case water condensation occurred due to transport, the device must be
acclimatized prior to operation for at least 2 hours, ideally in a place with good air circulation.
The device is intended to be operation in dry rooms. It must not be exposed or operated to extreme dust, high air humidity,
danger of explosion and aggressive chemicals polluting the air. The operating position isn’t arbitrary (see “2.3.3. Installing
the device” ),but in any case it requires a sucient air circulation. The device is allowed to be operated in altitude up to 2000
m (approx. 6,560 ft) above sea level. Technical specications (here: ratings), when given with tolerance, are valid for a unit
warmed up for at least 30 minutes and for an ambient temperature of 23 °C (73 °F). Specications without tolerance are
typical values from an average device.
1.8.1.2 Cooling
Power dissipated inside the device heats up air circulating through the device. With the air-cooled versions a fan at the end
of an air ow channel,in which a cooling block is placed, pulls the air through the device. Entry is on the front, exhaust at the
back. Depending on the internal temperature, the fan speed is automatically regulated up or down, whereas a certain minimum
speed is maintained because some internal components even heat up when the device is idle.
Dust in the air can obstruct the air ow with time, thus it’s important to keep the air ow unimpeded at least outside of the device
be leaving sucient room behind it. Since it’s usually installed inside cabinets, the cabinet doors are required to be meshed.
At the same time, the ambient temperature should be kept at low levels, perhaps by external means such as an air condition.
Should the device heat up internally and the cooling block temperature exceed 80 °C (160 °F), the device will protect itself
from overheating by automatically switching off the power stage. It could then only continue to operate and switch the power
stage on again after cooling down for some time.
1.8.2 General technical data
Display: Color TFT touch screen with gorilla glass, 5”, 800pt x 480pt, capacitive
Controls: 2 rotary knobs with pushbutton function, 1 pushbutton

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1233200820_manual_elr_10000_3u_15kw_en_02
1.8.3 Specic technical data
General speci cations
AC input
Voltage, Phases Range 1: 208 V,
±
10%, 3ph AC (with DC input power derating to 3 / 6 / 9 kW)
Range 2: 380 - 480 V, ±10%, 3ph AC
Frequency 45 - 65 Hz
Power factor ca. 0.99
Leakage current <5 mA
Inrush current @400 V: ca. 40 A per phase
Overvoltage category 2
DC input static
Load regulation CV ≤0.05%FS(0 - 100% load, constant input voltage and constant temperature)
Line regulation CV ≤0.01%FS(208 V - 480 V AC +10% input voltage, constant load and constant temperature)
StabilityCV ≤0.02%FS(during 8 h of operation, after 30 minutes of warm-up, at constant input voltage, load and temperature)
Temperaturecoefficient CV ≤30ppm/°C(after 30 minutes of warm-up)
Compensation (remote sense) ≤5%UNominal
Load regulation CC ≤0.1%FS(0 - 100% load, constant input voltage and constant temperature)
Line regulation CC ≤0.01%FS(208 V - 480 V AC +10% input voltage, constant load and constant temperature)
StabilityCC ≤0.02%FS(during 8 h of operation, after 30 minutes of warm-up, at constant input voltage, load and temperature)
Temperaturecoefficient CC ≤50ppm/°C(after 30 minutes of warm-up)
Load regulation CP
≤0.3%FS
(0 - 100% load, constant input voltage and constant temperature)
Load regulation CR ≤0.3%FS+0.1%FSofcurrent(0 - 100% load, constant input voltage and constant temperature)
Protective functions
OVP Overvoltage protection,adjustable0-110%UNominal
OCP Overcurrent protection,adjustable0-110%INominal
OPP Overpower protection,adjustable0-110%PNominal
OT Overtemperature protection (DCinputshutsdownincaseofinsufficientcooling)
DC input dynamic
Rise time 10 - 90% CC ≤2ms
Fall time 90 - 10% CC ≤2ms
Display accuracy
Voltage ≤0.05%FS
Current ≤0.1%FS
Insulation
AC input to DC input 3750 Vrms (1 minute, creepage distance >8 mm) *1
AC input to case (PE) 2500 Vrms
DC input to case (PE) Dependingonthemodel,seemodeltables
DC input to interfaces 1000 V DC (models up to 360 V rating), 1500 V DC (models from 500 V rating)
Interfaces digital
Built-in, galvanically isolated USB,Ethernet(100MBit)forcommunication,1xUSBhostfor data acquisition
Optional, galvanically isolated CAN,CANopen,RS232,ModBusTCP,Profinet,Profibus,EtherCAT,Ethernet
Interface analog
Built-in, galvanically isolated 15poleD-Sub
Signal range 0 - 10 V or 0 - 5 V (switchable)
Inputs U,I,P,R,remote control on/off, DC input on/off, resistance mode on/off
Outputs MonitorUandI,alarms,referencevoltage,DCinputstatus,CV/CCregulationmode
AccuracyU/I/P/R 0-10V:≤0.2%,0-5V:≤0.4%
*1Modelswith80VDCratinghavereinforcedinsulationwhileallothermodelsfrom200VDCratinghavebasicinsulation

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1333200820_manual_elr_10000_3u_15kw_en_02
General speci cations
Device con guration
Parallel operation Upto64unitsofanypowerclassinseries10000,withMaster-slavebusandSharebus
Safety and EMC
Safety
EN 61010-1
IEC 61010-1
UL61010-1
CSAC22.2No61010-1
BSEN61010-1
EMC
EN 55011, class B
CISPR11,class B
FCC 47 CFR Part 15B, unintentional radiator, class B
EN 61326-1 include tests according to:
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
Safetyprotectionclass 1
Ingress Protection IP20
Environmental conditions
Operating temperature 0-50°C(32-122°F)
Storagetemperature -20-70°C(-4-158°F)
Humidity ≤80%relativehumidity,non-condensing
Altitude ≤2000m(≤6,600 ft)
Pollution degree 2
Mechanical construction
Cooling Forcedairflowfromfronttorear(temperaturecontrolledfans)
Dimensions(WxHxD) Enclosure:19“x3Ux668mm(26.3in)
Total:19“x3Uxmin.777mm(30.6in)
Weight 5kWunit:18kg(40lb) 10kWunit:25.4kg(56lb) 15kWunit:32.8kg(72lb)

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1433200820_manual_elr_10000_3u_15kw_en_02
Technical speci cations ELR 10080-170 ELR 10200-70 ELR 10360-40 ELR 10500-30 ELR 10750-20
DC input
Voltage range 0 - 80 V 0 -200 V 0 - 360 V 0 - 500 V 0 - 750 V
UMin for IMax 0.5 V 2 V 2 V 2.2 V 2.5 V
Current range 0 - 170 A 0 - 70 A 0 - 40 A 0 - 30 A 0 - 20 A
Power range 0 - 5000 W
(0 - 3000 W) *2
0 - 5000 W
(0 - 3000 W) *2
0 - 5000 W
(0 - 3000 W) *2
0 - 5000 W
(0 - 3000 W) *2
0 - 5000 W
(0 - 3000 W) *2
Resistance range 0.016Ω-26Ω 0.1Ω-160Ω 0.3Ω-520Ω 0.6Ω-1000Ω 1.2Ω-2200Ω
Input capacitance 7790μF 2520μF 393μF 180μF 180μF
Efficiency(upto) 94.5% *1 94.5% *1 95.5% *1 95.5% *1 95.5% *1
Insulation
Negative DC pole <-> PE ±600 V DC ±1000 V DC ±1000 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +600 V DC +1000 V DC +1000 V DC +2000 V DC +2000 V DC
Article number 33200828 33200829 33200830 33200831 33200832
*1 At 100% power and 100% input voltage
*2 In AC voltage depending DC power derating mode

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1533200820_manual_elr_10000_3u_15kw_en_02
Technical speci cations ELR 10080-340 ELR 10200-140 ELR 10360-80 ELR 10500-60 ELR 10750-40
DC input
Voltage range 0 - 80 V 0 -200 V 0 - 360 V 0 - 500 V 0 - 750 V
UMin for IMax 0.5 V 2 V 2 V 2.2 V 2.5 V
Current range 0 - 340 A 0 - 140 A 0 - 80 A 0 - 60 A 0 - 40 A
Power range 0 - 10000 W
(0 - 6000 W) *2
0 - 10000 W
(0 - 6000 W) *2
0 - 10000 W
(0 - 6000 W) *2
0 - 10000 W
(0 - 6000 W) *2
0 - 10000 W
(0 - 6000 W) *2
Resistance range 0.008 Ω-13Ω 0.05 Ω-80Ω 0.15 Ω-260Ω 0.3 Ω-500Ω 0.6 Ω-1100Ω
Input capacitance 15980μF 5040μF 786μF 360μF 360μF
Efficiency(upto) 94.5% *1 94.5% *1 95.5% *1 95.5% *1 95.5% *1
Insulation
Negative DC pole <-> PE ±600 V DC ±1000 V DC ±1000 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +600 V DC +1000 V DC +1000 V DC +2000 V DC +2000 V DC
Article number 33200833 33200834 33200835 33200836 33200837
*1 At 100% power and 100% input voltage
*2 In AC voltage depending DC power derating mode
Technical speci cations ELR 11000-30 ELR 11500-20
DC input
Voltage range 0 - 1000 V 0 - 1500 V
UMin for IMax 4 V 5 V
Current range 0 - 30 A 0 - 20 A
Power range 0 - 10000 W
(0 - 6000 W) *2
0 - 10000 W
(0 - 6000 W) *2
Resistance range 1.2 Ω-2000Ω 2.6 Ω-4500Ω
Input capacitance 90μF 90μF
Efficiency(upto) 95.5% *1 95.5% *1
Insulation
Negative DC pole <-> PE ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +2000 V DC +2000 V DC
Article number 33200838 33200839
*1 At 100% power and 100% input voltage
*2 In AC voltage depending DC power derating mode

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1633200820_manual_elr_10000_3u_15kw_en_02
Technical speci cations ELR 10080-510 ELR 10200-210 ELR 10360-120 ELR 10500-90 ELR 10750-60
DC input
Voltage range 0 - 80 V 0 -200 V 0 - 360 V 0 - 500 V 0 - 750 V
UMin for IMax 0.5 V 2 V 2 V 2.2 V 2.2 V
Current range 0 - 510 A 0 - 210 A 0 - 120 A 0 - 90 A 0 - 60 A
Power range 0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
Resistance range 0.006 Ω-9Ω 0.03 Ω-50Ω 0.1 Ω-180Ω 0.2 Ω-330Ω 0.4 Ω-750Ω
Input capacitance 23970μF 7560μF 1179μF 540μF 540μF
Efficiency(upto) 94.5% *1 94.5% *1 95.5% *1 95.5% *1 95.5% *1
Insulation
Negative DC pole <-> PE ±600 V DC ±1000 V DC ±1000 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +600 V DC +1000 V DC +1000 V DC +2000 V DC +2000 V DC
Article number 33200820 33200821 33200822 33200823 33200824
*1 At 100% power and 100% input voltage
*2 In AC voltage depending DC power derating mode
Technical speci cations ELR 11000-40 ELR 11500-30 ELR 12000-20
DC input
Voltage range 0 - 1000 V 0 - 1500 V 0 - 2000 V
UMin for IMax 5.6 V 5.6 V 7.2 V
Current range 0 - 40 A 0 - 30 A 0 - 20 A
Power range 0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
0 - 15000 W
(0 - 9000 W) *2
Resistance range 0.8 Ω-1300Ω 1.7 Ω-3000Ω 3.5 Ω-5300Ω
Input capacitance 131μF 60μF 60μF
Efficiency(upto) 95.5% *1 95.5% *1 95.5% *1
Insulation
Negative DC pole <-> PE ±1500 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +2000 V DC +2000 V DC +2000 V DC
Article number 33200825 33200826 33200827
*1 At 100% power and 100% input voltage
*2 In AC voltage depending DC power derating mode

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1733200820_manual_elr_10000_3u_15kw_en_02
1.8.4 Views

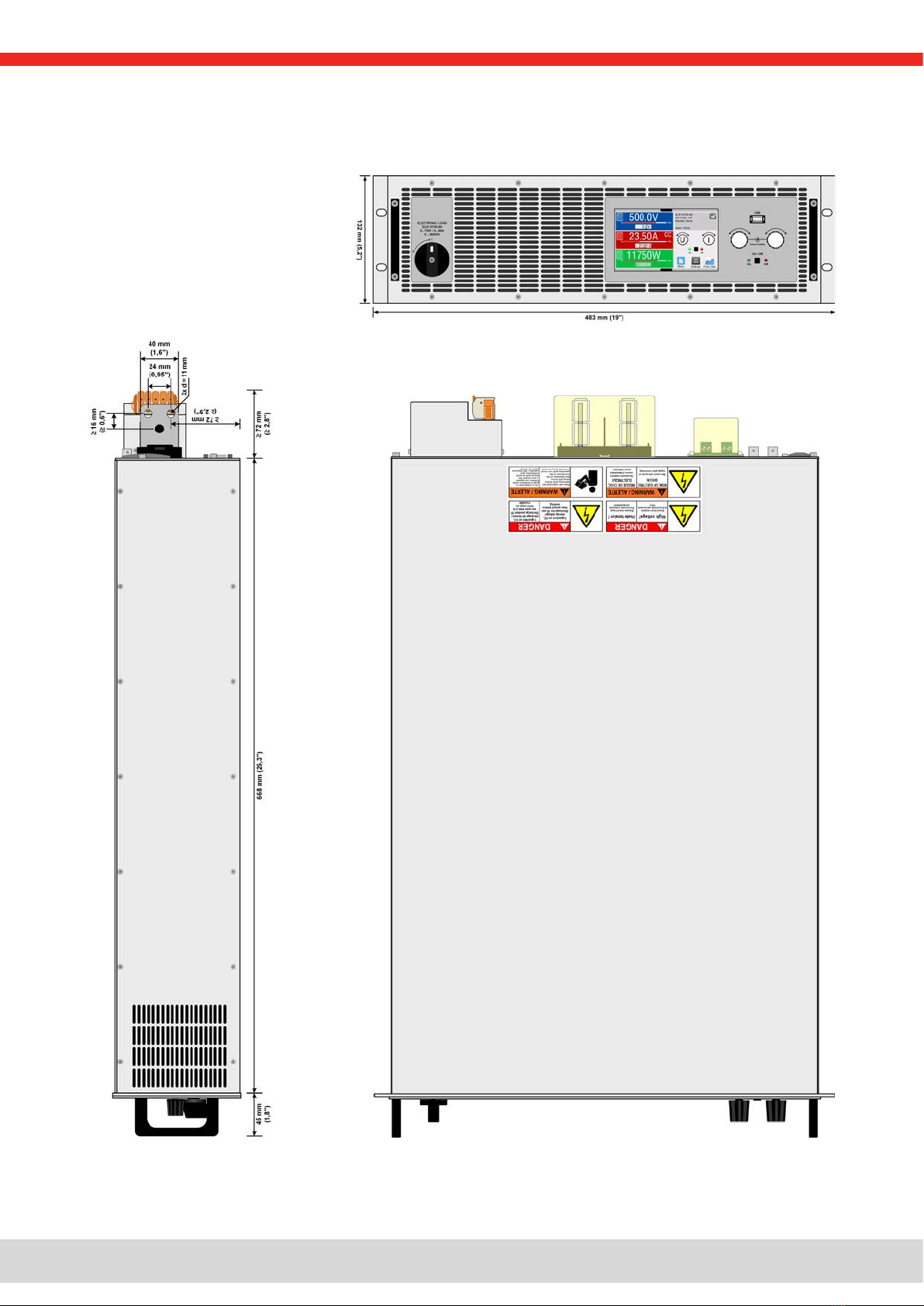

1.8.4.1 Technical drawings ELR 10000 3U ≤200 V

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1833200820_manual_elr_10000_3u_15kw_en_02

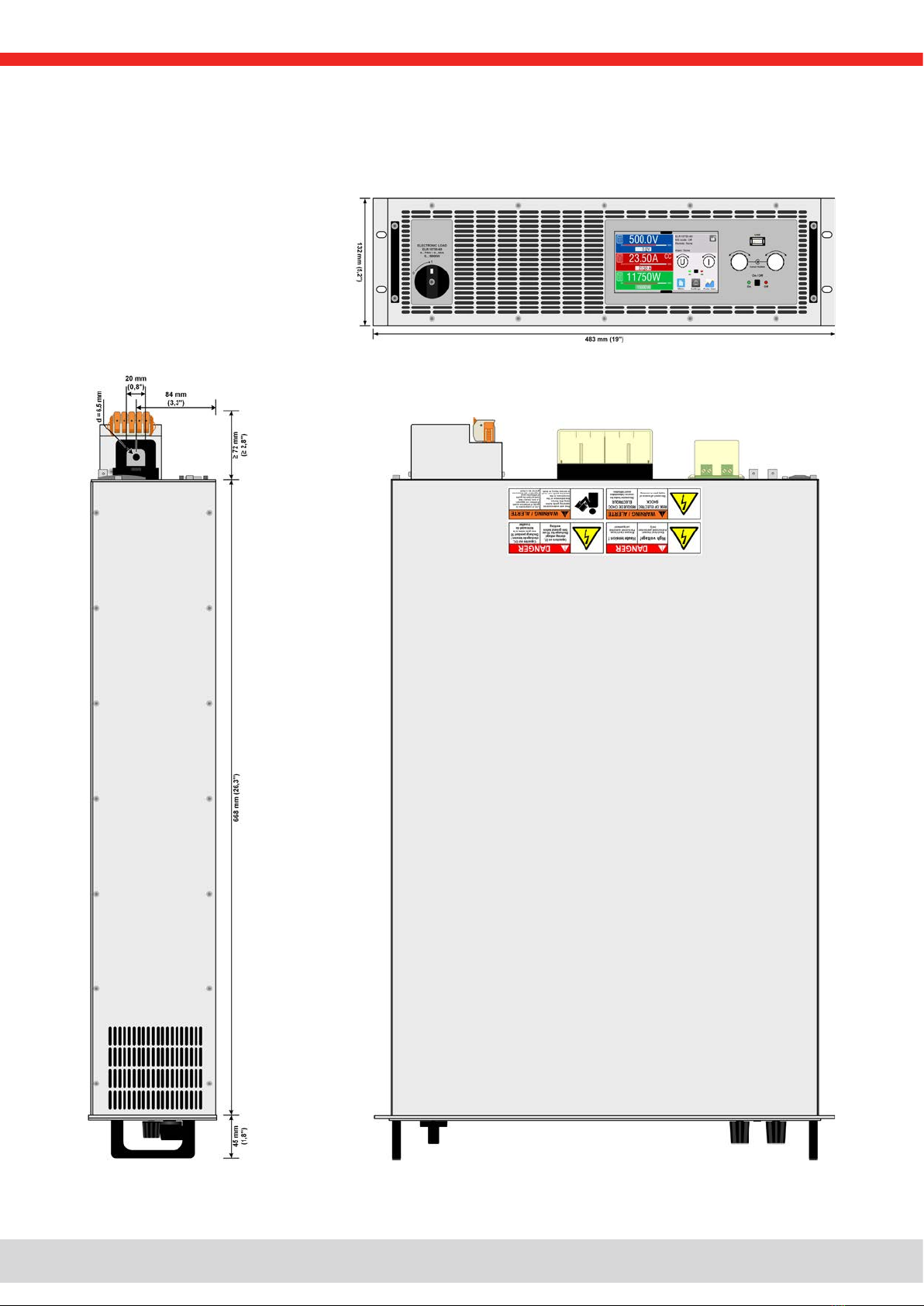

1.8.4.2 Technical drawings ELR 10000 3U ≥360 V

© EA Elektro-Automatik in 2022, this information is subject to change without notice 1933200820_manual_elr_10000_3u_15kw_en_02

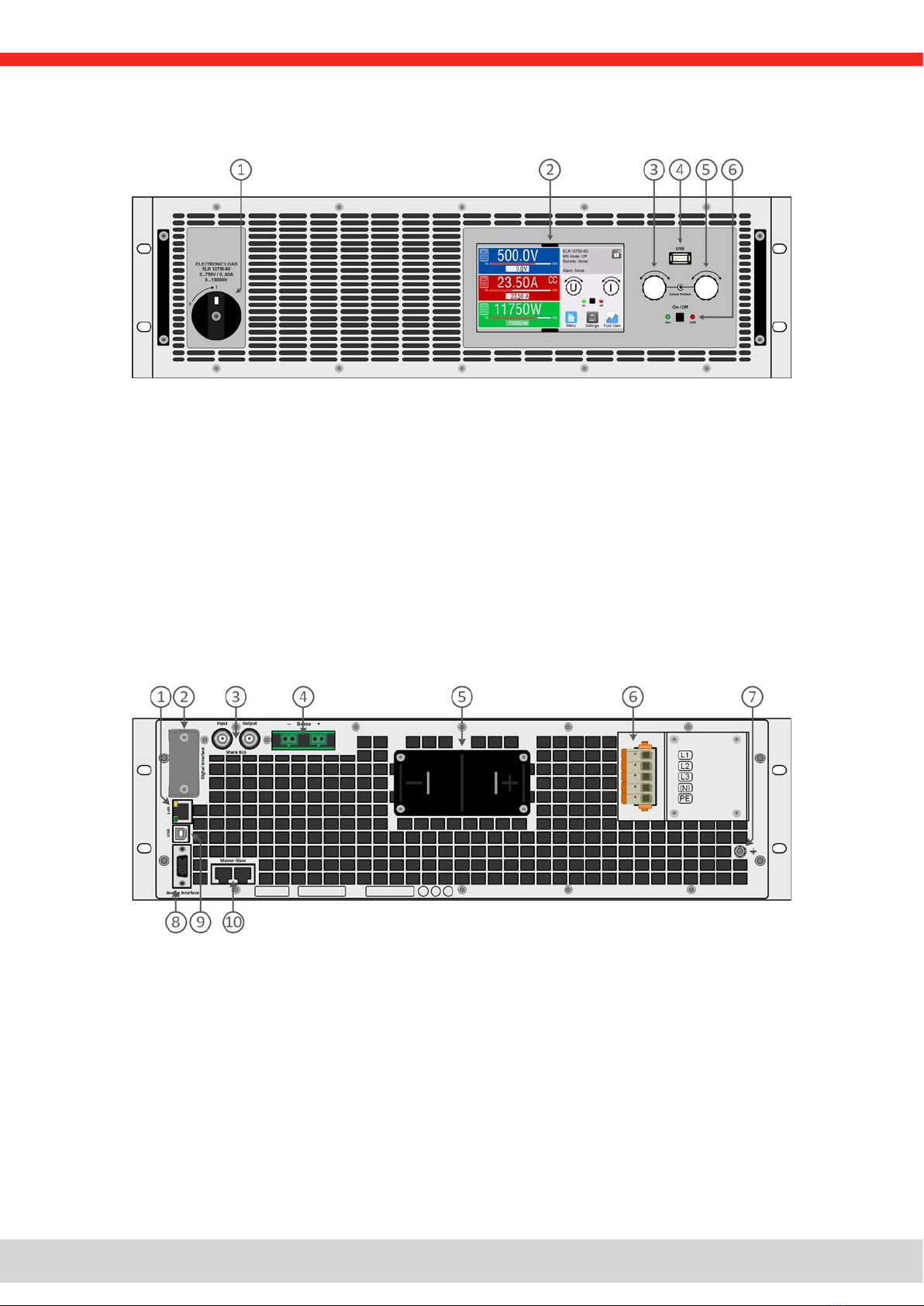

1.8.4.3 Front Panel Description ELR 10000 3U
1.8.4.4 Rear Panel Description ELR 10000 3U
1. Power switch
2. TFT control interface, interactive operation and display
 3.Rotaryknobwithpush-buttonaction,forsettingsandcontrol
 4.USBhost,usesUSBsticksfordataloggingandsequencing
 5.Rotaryknobwithpush-buttonaction,forsettingsandcontrol
 6.On/Offpush-buttonwithLEDstatusdisplay
1. Ethernet interface
2.Slotforinterfaces
3.Sharebusconnectorstosetupasystemforparallelconnection
4. Remote sense connectors
5.DCoutputterminal(copperblades)
6. AC input connector
7. Grounding connection screw (PE)
8. Connector (DB15 female) for isolated analog programming, monitor and other functions
9.USBinterface
10.Master-Slavebusconnectorstosetupasystemforparallelconnection

© EA Elektro-Automatik in 2022, this information is subject to change without notice 2033200820_manual_elr_10000_3u_15kw_en_02
1.8.5 Control elements

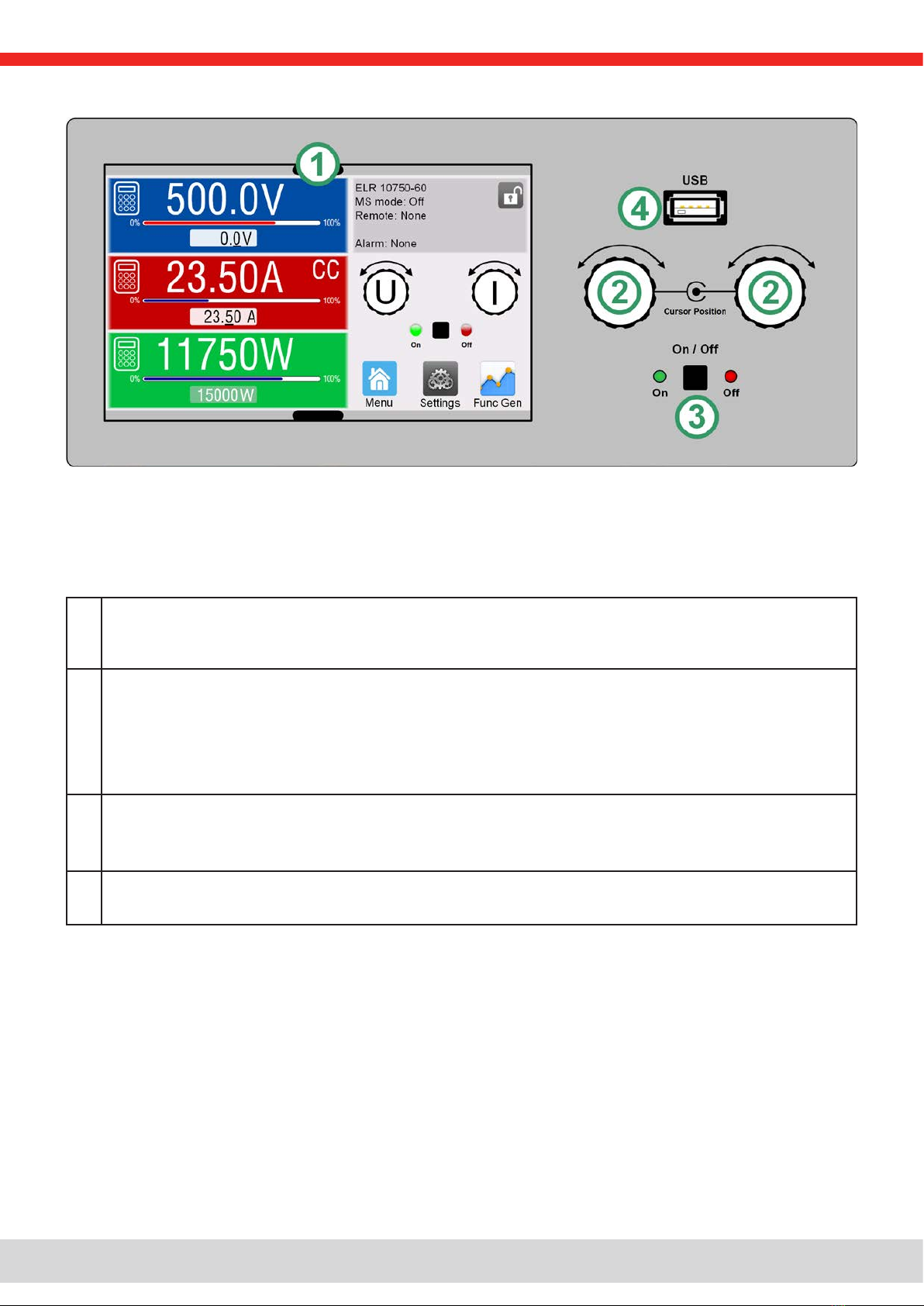

Figure 1- Control Panel
Overview of the elements on the control panel
For a detailed description see section “1.9.6. The control panel (HMI)”.
(1)
Touchscreen display
Used for selection and adjustment of set values, call of menus, as well as display of actual values and status. The
touchscreen can be operated with the ngers or with a stylus.
(2)
Rotary knob with push button function
Left knob (turn): voltage set value adjustment
Left knob (push): shift the decimal position (cursor) of the voltage set value
Right knob (turn): current, power or resistance set value adjustment
Right knob (push): shift the decimal position (cursor) of the currently assigned value
(3)
On/Off Button for DC input
Used to toggle the DC input between on and off, also used to start a function run. The LEDs “On” and “Off” indicate the
state of the DC input, no matter if the device is manually controlled or remotely.
(4) Port for USB sticks
For the connection of standard USB sticks. See section “1.9.6.5. USB port (front side)” for more details.
