Installation and Adjustment
KNX DALI L4 bc 16 A
Actuator for DALI Light Control
Item number 70580

1 Contents
Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany
Actuator KNX DALI L4 bc 16 A • from application 1.0
Status: 18.05.2020 • Subject to technical changes. Errors excepted.
1. Description ........................................................................................... 3
1.1. Scope of delivery ...................................................................................................... 3
1.2. Technical data ........................................................................................................... 4
2. Installation and commissioning ........................................................... 4
2.1. Installation notes ...................................................................................................... 4
2.2. Device connection and design ................................................................................ 6
2.2.1. Insulation properties of the clamp groups ................................................. 7
2.2.2. Connection example ..................................................................................... 8
2.3. Notes on mounting and commissioning ................................................................ 8
2.4. Buttons and LEDs for the output channels ............................................................ 9
3. Addressing of the device at the bus .................................................... 9
4. Disposal ............................................................................................... 9
5. Transmission protocol ....................................................................... 10
5.1. List of all communication objects ......................................................................... 10
6. Setting the parameters ...................................................................... 19
6.1. Behaviour on power failure/ restoration of power .............................................. 19
6.2. General settings ..................................................................................................... 19
6.3. DALI Bus A / B / C / D .............................................................................................. 20
6.3.1. General ........................................................................................................ 20
6.3.2. Brightness control ....................................................................................... 21
6.3.3. Colour control ............................................................................................. 23
6.3.4. Scenes ......................................................................................................... 24

2 Clarification of signs
This manual is amended periodically and will be brought into line with new software
releases. The change status (software version and date) can be found in the contents footer.
If you have a device with a later software version, please check
www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to-
date version of the manual is available.
Clarification of signs used in this manual
Installation, inspection, commissioning and troubleshooting of the device
must only be carried out by a competent electrician.
Safety advice.
Safety advice for working on electrical connections, components,
etc.
DANGER! ... indicates an immediately hazardous situation which will lead to
death or severe injuries if it is not avoided.
WARNING! ... indicates a potentially hazardous situation which may lead to
death or severe injuries if it is not avoided.
CAUTION! ... indicates a potentially hazardous situation which may lead to
trivial or minor injuries if it is not avoided.
ATTENTION! ... indicates a situation which may lead to damage to property if it is
not avoided.
ETS In the ETS tables, the parameter default settings are marked by
underlining.

3 Description
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
1. Description
The Actuator KNX DALI L4 bc 16 A is an interface between KNX bus system and
DALI lighting system (Digital Addressable Lighting Interface). The interface has four
channels for DALI lighting control, each of which can control up to 64 DALI devices
(electronic ballasts). Control is via broadcast message, i.e. all participants on a channel
are switched/dimmed simultaneously. Each channel can be set separately.
Each channel has a switched relay contact through which the DALI devices can be
switched completely de-energised (no standby). The KNX DALI L4 bc 16 A supplies
the DALI bus voltage, no external DALI bus voltage supply is required.
With the KNX DALI L4 bc 16 A, the colour and colour temperature (Tunable White)
can be set for DALI EVGs with device type 8. Both colour settings can be controlled by
scenes, relative or absolute dimming.
In addition to normal operation, the KNX DALI L4 bc 16 A has a night mode and a
staircase lighting function with prewarning function (and both in combination).
Buttons on the device allow direct manual switching and dimming of the connected
DALI EVGs even without bus voltage. The LEDs indicate whether the relay is open or
closed (upper LEDs) and whether the lamp is on or off after a DALI command (lower
LEDs). The DALI EVGs can be controlled by the ETS with the buttons for commission-
ing on site without KNX power supply and without prior configuration.
Functions:
•Interface between KNX bus system and DALI lighting system
•4 channels, each of which can control up to 64 DALI participants. Each channel
can be set separately and has one switching output (230 V AC) and two DALI
bus terminals
•Broadcastoperation: all DALI participants of a channel are controlled with a
common signal, whereby individual addressing is not possible
• Switch panel with 8 buttons and status LEDs
• Minimum switch-on delay from relay to relay: When several channels are
switched on simultaneously, this ensures that the switch-on current of the
EVGs is distributed over time (and thus limited)
• Colour temperature control (Tunable White), RGB/RGBW colour control, HSV
colour control
• Scene recalls
• Status feedback
• Timer function
Configuration is made using the KNX software ETS. The product file can be down-
loaded from the Elsner Elektronik website on www.elsner-elektronik.de in the “Ser-
vice” menu.
1.1. Scope of delivery
•Actuator

4 Installation and commissioning
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
1.2. Technical data
The product is compliant with the provisions of EU Directives.
2. Installation and commissioning
2.1. Installation notes
Installation, testing, operational start-up and troubleshooting should
only be performed by an electrician.
DANGER!
Risk to life from live voltage (mains voltage)!
There are unprotected live components within the device.
• VDE regulations and national regulations are to be followed.
• Ensure that all lines to be assembled are free of voltage and take
precautions against accidental switching on.
Casing Plastic
Colour White
Assembly Series installation on mounting rail
IP rating IP 20
Dimensions approx. 107 x 88 x 60 (W x H x D, mm), 6 modules
Weight approx. 270 g
Ambient temperature Operation -20…+45°C, storage -55…+90°C
Ambient humidity max. 95% RH, avoid condensation
Operating voltage 230V AC, 50 Hz
Power consumption Standby: below 1.5 W
all 4 relays closed and all 4 DALI buses consume 128 mA
each: max. 15 W
Power on bus: 10 mA
Outputs 4x switching output 230 V AC, 16 A, 165 A/20 ms, 490 A/1.5
ms (electronic ballast)
4x DALI for max. 64 participants (18 V typical, max. 128 mA
each)
Maximum load Each terminal contact may be loaded with a maximum of
16 A.
Data output KNX +/- Bus plug-in terminal
BCU type own microcontroller
PEI type 0
Group addresses max. 254
Assignments max. 254
Communication objects 165

5 Installation and commissioning
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
• Do not use the device if it is damaged.
• Take the device or system out of service and secure it against
unintentional use, if it can be assumed, that risk-free operation is no
longer guaranteed.
The device is only to be used for the intended purpose described in this manual. Any
improper modification or failure to follow the operating instructions voids any and all
warranty and guarantee claims.
After unpacking the device, check it immediately for possible mechanical damage. If it
has been damaged in transport, inform the supplier immediately.
The device may only be used as a fixed-site installation; that means only when assem-
bled and after conclusion of all installation and operational start-up tasks and only in
the surroundings designated for it.
Elsner Elektronik is not liable for any changes in norms and standards which may occur
after publication of these operating instructions.

6 Installation and commissioning
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
2.2. Device connection and design
Fig. 1
1 Label field
2 Programmable LED (BUS) and programmable buttons (PRG)
3 Bus terminal socket (KNX +/-)
4 Network LED (power)
Channel A (corresponding to B, C, D):
5 LED "relay" Channel A:
LED on: Relay closed
LED off: Relay open
6 "Switch on/brighter" button Channel A
7 "Switch off/darker" button Channel A
8 LED "lamp" Channel A:
LED on: Switched on (DALI)
LED off: Switched off (DALI)
9 Connections switching output Channel A
10 Connections DALI Bus A
3
5
6
1 2
7
48
9 10

7 Installation and commissioning
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
The Actuator KNX DALI L4 bc 16 A is installed on a DIN rail (in-line installation on
top-hat rail). The connection to the KNX data bus is made via a KNX connection termi-
nal and is insulated according to the requirements of SELV circuits. In addition, the de-
vice is connected to the mains voltage, which is also used to switch the DALI devices.
The KNX DALI L4 bc 16 A supplies the DALI bus voltage via the DALI bus terminals
(DA) at the same potential.
When installing and laying the cables for the KNX connection,
the regulations and standards governing SELV current circuits
must be observed!
The physical address is assigned by the ETS. There is a button with a control LED for
this on the actuator.
2.2.1. Insulation properties of the clamp groups
The Actuator KNX DALI L4 bc 16 A is assigned to Overvoltage category III and Pol-
lution degree 2 or 3 according to EN60664-1. According to this classification,
between 250 V power cables and FELV 4 kV surge voltage resistance and
between 250 V power cables and FELV 6 kV surge voltage resistance
must be provided. This provision must be observed during the installation.
With single insulation, there may be
a voltage of 400 V AC at pollution degree 2 and
a voltage of 250 V AC at pollution degree 3 between two channels.
Neighbouring clamp groups must not be assigned mixed voltag-
es, as they are only single insulated against each other.
Fig. 2 Insulation properties of the clamp groups
Insulation 6 kV (increased insulation)
Insulation 4 kV (single insulation)
Note: all 4 DALI buses have the same potential

8 Installation and commissioning
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
2.2.2. Connection example
2.3. Notes on mounting and commissioning
Device must not be exposed to water (rain). This could result in the electronic being
damaged. A relative air humidity of 95% must not be exceeded. Avoid bedewing.
After the operating voltage has been applied, the device will enter an initialisation
phase lasting a few seconds. During this phase no information can be received or sent
via the bus.
Nr. 70580
KNX DALI L4 bc 16A
KNX-Lichtregler
LN
Netz
LN
DA
+
DA
-
A
DA
+
DA
-
B
DA
+
DA
-
C
DA
+
DA
-
D
L‘BL‘AL‘CL‘D
L‘
A
L‘
B
L‘
C
L‘
D
DA
DA
N
L‘‘
EVG
Mains
(230 V AC)

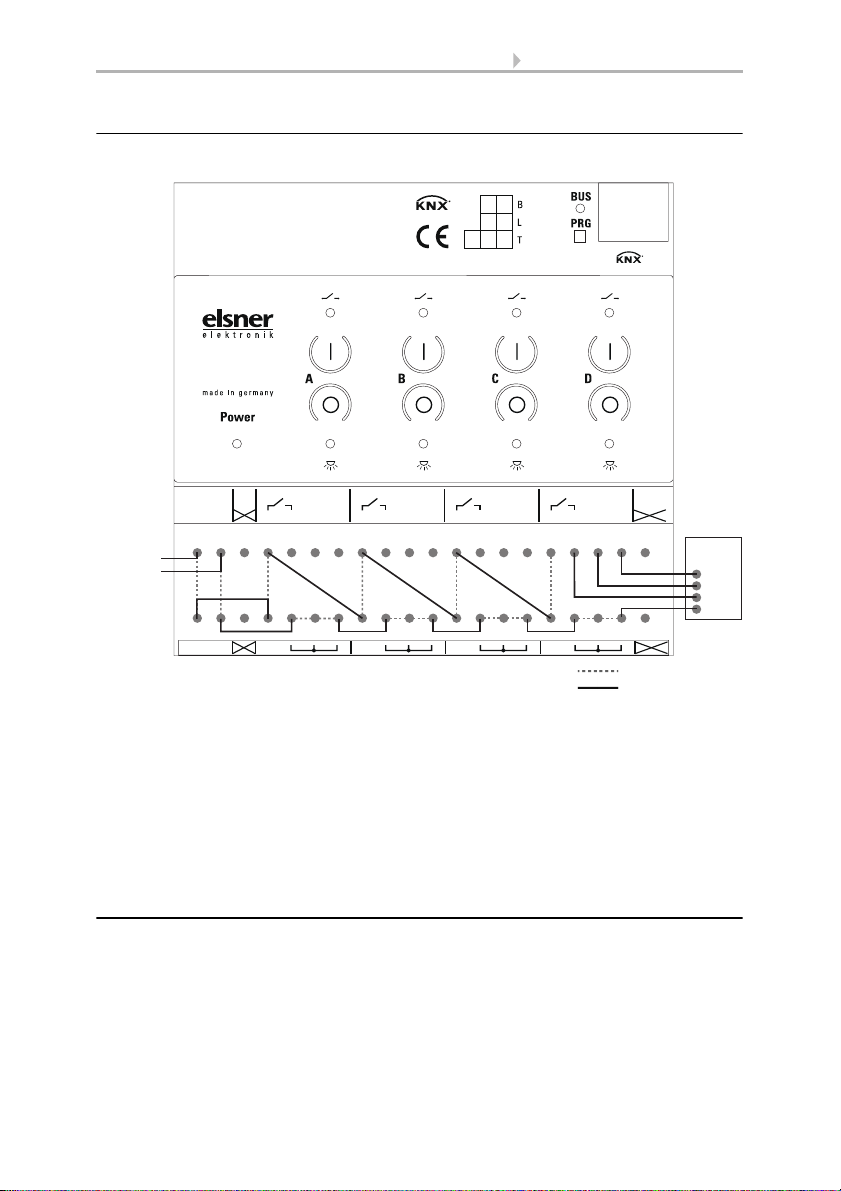

Fig. 3:
Connection example for electronic enhanced voltage generators for output D (out-
puts A, B and C correspondingly).
The connection of the switching output L'' is only required if the DALI devices on the
corresponding channel are to be completely de-energised.
Each terminal contact may be loaded with a maximum of 16 A.
internally bridged
Cables

9 Addressing of the device at the bus
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
The DALI EVGs can be controlled by the ETS with the buttons for commissioning on
site without KNX power supply and without prior configuration. After the ETS down-
load, only the channels active in the ETS still function.
2.4. Buttons and LEDs for the output channels
The buttons on the devices can be deactivated in the ETS (active when delivered).
Buttons
LEDs
Behaviour of the LEDs of the output channels
3. Addressing of the device at the bus
The device is supplied with the bus address 15.15.255. You can program another ad-
dress into the ETS by overwriting the 15.15.255 address or by teaching via the pro-
gramming button.
4. Disposal
After use, the device must be disposed of or recycled in accordance with the legal reg-
ulations. Do not dispose of it with the household waste!
Button Keystroke DALI command
top short (<1 s) Activate
top long (<1 s) dim brighter
bottom short (<1 s) Switch off
bottom long (<1 s) dim darker
LED On/Off Meaning
top (relay) On Relay closed
top (relay) Off Relay open
bottom (light) On Switched on (DALI)
bottom (light) Off Switched off (DALI)

10 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
5. Transmission protocol
5.1. List of all communication objects
Abbreviations Flags:
R Read
WWrite
C Communication
T Transmit
UUpdate
No Text Func-
tion
Flags DPT type Size
0 Software version readable R-C- [217.1]
DPT_Version
2 Bytes
1 DALI A bus fault Output --CT [1.2] DPT_Bool 1 Bit
2 DALI B bus fault Output --CT [1.2] DPT_Bool 1 Bit
3 DALI C bus fault Output --CT [1.2] DPT_Bool 1 Bit
4 DALI D bus fault Output --CT [1.2] DPT_Bool 1 Bit
10 DALI A on/off Input -WC- [1.1]
DPT_Switch
1 Bit
11 DALI A status on/off Output --CT [1.1]
DPT_Switch
1 Bit
12 DALI A switch-on value % Input/
Output
RWCT [5.1]
DPT_Scaling
1 Byte
13 DALI A dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
14 DALI A brightness setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
15 DALI A brightness status % Output --CT [5.1]
DPT_Scaling
1 Byte
16 DALI A night mode Input -WC- [1.3]
DPT_Enable
1 Bit
17 DALI A night mode status Output --CT [1.3]
DPT_Enable
1 Bit
18 DALI A night mode brightness
setpoint %
Input -WC- [5.1]
DPT_Scaling
1 Byte
19 DALI A night mode brightness
setpoint % status
Output --CT [5.1]
DPT_Scaling
1 Byte
20 DALI A staircase mode Input -WC- [1.3]
DPT_Enable
1 Bit
21 DALI A staircase light status Output --CT [1.3]
DPT_Enable
1 Bit

11 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
22 DALI A colour temperature
dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
23 DALI A colour temperature
setpoint %
Input -WC- [5.1]
DPT_Scaling
1 Byte
24 DALI A colour temperature
setpoint Kelvin
Input -WC- [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
25 DALI A colour temperature status
Kelvin
Output --CT [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
26 DALI A red setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
27 DALI A green setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
28 DALI A blue setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
29 DALI A white setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
30 DALI A red setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
31 DALI A green setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
32 DALI A blue setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
33 DALI A white setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
34 DALI A red status % Output --CT [5.1]
DPT_Scaling
1 Byte
35 DALI A green status % Output --CT [5.1]
DPT_Scaling
1 Byte
36 DALI A blue status % Output --CT [5.1]
DPT_Scaling
1 Byte
37 DALI A white status % Output --CT [5.1]
DPT_Scaling
1 Byte
38 DALI A RGB setpoint % Input -WC- [232.600]
DPT_Colour_RG
B
3 Bytes
No Text Func-
tion
Flags DPT type Size

12 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
39 DALI A RGB status % Output --CT [232.600]
DPT_Colour_RG
B
3 Bytes
40 DALI A RGBW setpoint % Input -WC- [251.600]
DPT_Colour_RG
BW
6 Bytes
41 DALI A RGBW status % Output --CT [251.600]
DPT_Colour_RG
BW
6 Bytes
42 DALI A RGB colour tone setpoint ° Input -WC- [5.3] DPT_Angle 1 Byte
43 DALI A RGB colour saturation
setpoint %
Input -WC- [5.1]
DPT_Scaling
1 Byte
44 DALI A RGB colour tone setpoint
dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
45 DALI A RGB colour saturation
setpoint dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
46 DALI A RGB colour tone status ° Output --CT [5.3] DPT_Angle 1 Byte
47 DALI A RGB colour saturation
status %
Output --CT [5.1]
DPT_Scaling
1 Byte
48 DALI A scenario Input -WC- [18.1]
DPT_SceneCont
rol
1 Byte
49 DALI A front control block Input -WC- [1.3]
DPT_Enable
1 Bit
50 DALI B on/off Input -WC- [1.1]
DPT_Switch
1 Bit
51 DALI B brightness setpoint % Output --CT [1.1]
DPT_Switch
1 Bit
52 DALI B switch-on value % Input/
Output
RWCT [5.1]
DPT_Scaling
1 Byte
53 DALI B night mode brightness
setpoint %
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
54 DALI B brightness status % Input -WC- [5.1]
DPT_Scaling
1 Byte
55 DALI B status on/off Output --CT [5.1]
DPT_Scaling
1 Byte
56 DALI B dimming Input -WC- [1.3]
DPT_Enable
1 Bit
57 DALI B night mode status Output --CT [1.3]
DPT_Enable
1 Bit
No Text Func-
tion
Flags DPT type Size

13 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
58 DALI B night mode Input -WC- [5.1]
DPT_Scaling
1 Byte
59 DALI B night mode brightness
setpoint % status
Output --CT [5.1]
DPT_Scaling
1 Byte
60 DALI B staircase mode Input -WC- [1.3]
DPT_Enable
1 Bit
61 DALI B staircase light status Output --CT [1.3]
DPT_Enable
1 Bit
62 DALI B colour temperature
setpoint Kelvin
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
63 DALI B colour temperature status
Kelvin
Input -WC- [5.1]
DPT_Scaling
1 Byte
64 DALI B colour temperature
setpoint %
Input -WC- [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
65 DALI B colour temperature
dimming
Output --CT [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
66 DALI B blue setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
67 DALI B white setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
68 DALI B white setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
69 DALI B RGB colour tone status ° Input -WC- [5.1]
DPT_Scaling
1 Byte
70 DALI B blue setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
71 DALI B red setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
72 DALI B green setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
73 DALI B RGB colour saturation
setpoint dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
74 DALI B red status % Output --CT [5.1]
DPT_Scaling
1 Byte
No Text Func-
tion
Flags DPT type Size

14 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
75 DALI B green status % Output --CT [5.1]
DPT_Scaling
1 Byte
76 DALI B blue status % Output --CT [5.1]
DPT_Scaling
1 Byte
77 DALI B RGB colour saturation
status %
Output --CT [5.1]
DPT_Scaling
1 Byte
78 DALI B red setpoint % Input -WC- [232.600]
DPT_Colour_RG
B
3 Bytes
79 DALI B green setpoint % Output --CT [232.600]
DPT_Colour_RG
B
3 Bytes
80 DALI B RGB colour saturation
setpoint %
Input -WC- [251.600]
DPT_Colour_RG
BW
6 Bytes
81 DALI B RGB colour tone setpoint
dimming
Output --CT [251.600]
DPT_Colour_RG
BW
6 Bytes
82 DALI B white status % Input -WC- [5.3] DPT_Angle 1 Byte
83 DALI B RGB setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
84 DALI B RGB status % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
85 DALI B RGBW setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
86 DALI B RGBW status % Output --CT [5.3] DPT_Angle 1 Byte
87 DALI B RGB colour tone setpoint ° Output --CT [5.1]
DPT_Scaling
1 Byte
88 DALI B scenario Input -WC- [18.1]
DPT_SceneCont
rol
1 Byte
89 DALI B front control block Input -WC- [1.3]
DPT_Enable
1 Bit
90 DALI C on/off Input -WC- [1.1]
DPT_Switch
1 Bit
91 DALI C brightness setpoint % Output --CT [1.1]
DPT_Switch
1 Bit
92 DALI C switch-on value % Input/
Output
RWCT [5.1]
DPT_Scaling
1 Byte
93 DALI C night mode brightness
setpoint %
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
No Text Func-
tion
Flags DPT type Size

15 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
94 DALI C brightness status % Input -WC- [5.1]
DPT_Scaling
1 Byte
95 DALI C status on/off Output --CT [5.1]
DPT_Scaling
1 Byte
96 DALI C dimming Input -WC- [1.3]
DPT_Enable
1 Bit
97 DALI C night mode status Output --CT [1.3]
DPT_Enable
1 Bit
98 DALI C night mode Input -WC- [5.1]
DPT_Scaling
1 Byte
99 DALI C night mode brightness
setpoint % status
Output --CT [5.1]
DPT_Scaling
1 Byte
100 DALI C staircase mode Input -WC- [1.3]
DPT_Enable
1 Bit
101 DALI C staircase light status Output --CT [1.3]
DPT_Enable
1 Bit
102 DALI C colour temperature
setpoint Kelvin
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
103 DALI C colour temperature status
Kelvin
Input -WC- [5.1]
DPT_Scaling
1 Byte
104 DALI C colour temperature
setpoint %
Input -WC- [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
105 DALI B colour temperature
dimming
Output --CT [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
106 DALI C blue setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
107 DALI C white setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
108 DALI C white setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
109 DALI C RGB colour tone status ° Input -WC- [5.1]
DPT_Scaling
1 Byte
110 DALI C blue setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
111 DALI C red setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
No Text Func-
tion
Flags DPT type Size

16 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
112 DALI C green setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
113 DALI C RGB colour saturation
setpoint dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
114 DALI C red status % Output --CT [5.1]
DPT_Scaling
1 Byte
115 DALI C green status % Output --CT [5.1]
DPT_Scaling
1 Byte
116 DALI C blue status % Output --CT [5.1]
DPT_Scaling
1 Byte
117 DALI C RGB colour saturation
status %
Output --CT [5.1]
DPT_Scaling
1 Byte
118 DALI C red setpoint % Input -WC- [232.600]
DPT_Colour_RG
B
3 Bytes
119 DALI C green setpoint % Output --CT [232.600]
DPT_Colour_RG
B
3 Bytes
120 DALI C RGB colour saturation
setpoint %
Input -WC- [251.600]
DPT_Colour_RG
BW
6 Bytes
121 DALI C RGB colour tone setpoint
dimming
Output --CT [251.600]
DPT_Colour_RG
BW
6 Bytes
122 DALI C white status % Input -WC- [5.3] DPT_Angle 1 Byte
123 DALI C RGB setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
124 DALI C RGB status % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
125 DALI C RGBW setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
126 DALI C RGBW status % Output --CT [5.3] DPT_Angle 1 Byte
127 DALI C RGB colour tone setpoint ° Output --CT [5.1]
DPT_Scaling
1 Byte
128 DALI C scenario Input -WC- [18.1]
DPT_SceneCont
rol
1 Byte
129 DALI C front control block Input -WC- [1.3]
DPT_Enable
1 Bit
No Text Func-
tion
Flags DPT type Size

17 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
130 DALI D on/off Input -WC- [1.1]
DPT_Switch
1 Bit
131 DALI D brightness setpoint % Output --CT [1.1]
DPT_Switch
1 Bit
132 DALI D switch-on value % Input/
Output
RWCT [5.1]
DPT_Scaling
1 Byte
133 DALI D night mode brightness
setpoint %
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
134 DALI D brightness status % Input -WC- [5.1]
DPT_Scaling
1 Byte
135 DALI D status on/off Output --CT [5.1]
DPT_Scaling
1 Byte
136 DALI D dimming Input -WC- [1.3]
DPT_Enable
1 Bit
137 DALI D night mode status Output --CT [1.3]
DPT_Enable
1 Bit
138 DALI D night mode Input -WC- [5.1]
DPT_Scaling
1 Byte
139 DALI D night mode brightness
setpoint % status
Output --CT [5.1]
DPT_Scaling
1 Byte
140 DALI D staircase mode Input -WC- [1.3]
DPT_Enable
1 Bit
141 DALI D staircase light status Output --CT [1.3]
DPT_Enable
1 Bit
142 DALI D colour temperature
setpoint Kelvin
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
143 DALI D colour temperature status
Kelvin
Input -WC- [5.1]
DPT_Scaling
1 Byte
144 DALI D colour temperature
setpoint %
Input -WC- [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
145 DALI D colour temperature
dimming
Output --CT [7.600]
DPT_Absolute_
Colour_Temper
ature
2 Bytes
146 DALI D blue setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
147 DALI D white setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
148 DALI D white setpoint dimming Input -WC- [5.1]
DPT_Scaling
1 Byte
No Text Func-
tion
Flags DPT type Size

18 Transmission protocol
Actuator KNX DALI L4 bc 16 A • Version: 18.05.2020 • Technical changes and errors excepted
149 DALI D RGB colour tone status ° Input -WC- [5.1]
DPT_Scaling
1 Byte
150 DALI D blue setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
151 DALI D red setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
152 DALI D green setpoint dimming Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
153 DALI D RGB colour saturation
setpoint dimming
Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
154 DALI D red status % Output --CT [5.1]
DPT_Scaling
1 Byte
155 DALI D green status % Output --CT [5.1]
DPT_Scaling
1 Byte
156 DALI D blue status % Output --CT [5.1]
DPT_Scaling
1 Byte
157 DALI D RGB colour saturation
status %
Output --CT [5.1]
DPT_Scaling
1 Byte
158 DALI D red setpoint % Input -WC- [232.600]
DPT_Colour_RG
B
3 Bytes
159 DALI D green setpoint % Output --CT [232.600]
DPT_Colour_RG
B
3 Bytes
160 DALI D RGB colour saturation
setpoint %
Input -WC- [251.600]
DPT_Colour_RG
BW
6 Bytes
161 DALI D RGB colour tone setpoint
dimming
Output --CT [251.600]
DPT_Colour_RG
BW
6 Bytes
162 DALI D white status % Input -WC- [5.3] DPT_Angle 1 Byte
163 DALI D RGB setpoint % Input -WC- [5.1]
DPT_Scaling
1 Byte
164 DALI D RGB status % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
165 DALI D RGBW setpoint % Input -WC- [3.7]
DPT_Control_Di
mming
4 Bit
166 DALI D RGBW status % Output --CT [5.3] DPT_Angle 1 Byte
No Text Func-
tion
Flags DPT type Size
