USER MANUAL
EMLI22080540
E-Lumen X SERIES
EAGLE EYE Installation and Operation manual
IP68
CM
Intertek
4004062
SAA

EAGLE EYE LIGHT
Installation and Operation Manual
TABLE OF
CONTENTS
PAGE
2
....
2
4
....
....
P1 CONTENT
7
....
1. IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS.
2. PRODUCT INTRODUCTION
3. LIGHT SPECIFICATION
3.1 Electrical
3.2 Dimensions
3.2.1 EAG18
3.2.2 Light Intensive Chart
3.3 Color mode
4. INSTALLATION
4.1 Wiring diagram
5. LAMP INSTALLATION
6. MAINTENANCE AND TROUBLE SHOOTING
7. SPARE PART LIST
8. TERM OF THE WARRANTY
5
....
9
....
3
....
8
....

1. IMPORTANT SAFETY AND INSTALLATION INSTRUCTION
Please read the manual carefully before commencing installation. This manual important information about the correct
installation and operation of Eagle eye lights.
1. Only a qualified electrician is allowed to carry out the installation of this product.
2 Avoid direct contact with electrical power.
3 Respect all regulations in effect to prevent accidents.
4 All units are required to be disconnected from the main electricity before any maintenance.
5 For safety and proper installation, ensure that those parts supplied with the products are used.
6 Never handle with wet hands and feet.
7 This unit is designed for use only when fully submerged in freshwater, connecting with a safety transformer.
8 This product should be installed according to your local electrical installation ordinance and regulation.
9 Due to the corrosive nature of unbalanced pool chemicals, please keep your pool water acid-base balanced before
installation, and ensure the longevity of these lights.
10 If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufactory or this
service agent, or a similarly qualified person to avoid a hazard.
11 Check that there is enough cable behind the light to allow for servicing above water, preferably at ground-level poolside.
12 Never operate this underwater light for more than 1 minute unless it is submerged in water.
13 Your light requires cleaning at any time, be sure to a mild detergent or other ways that don’t damage the light.
14 Maximum Depth for light installation at 1.2 meters.
15 Maximum water Temperature Range for light operation 0 ~ 25 C.
16 The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall
be replaced.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
IMPORTANT SAFETY AND INSTALLATION INSTRUCTION P2
2. PRODUCT INTRODUCTION
EAGLE EYE is a slim high efficiency LED light with powerful 18W output. The nicheless design allows installing the light to 1.5
inch/50mm PVC pipes, suction fittings, or wall conduits. An easy-change lens cover provides a handy option for switching the
lighting effects. Eagle eye has built in Basic on/off Mode and Colortouch Mode for colour control which are fully operated
under 50Hz and 60Hz input voltage frequency. Both mode are compatable with all Emaux E-Lumen X series. The light has
individual RGB colour, warm white and cool white LEDs which provides 15 different colour mode for you to choose.

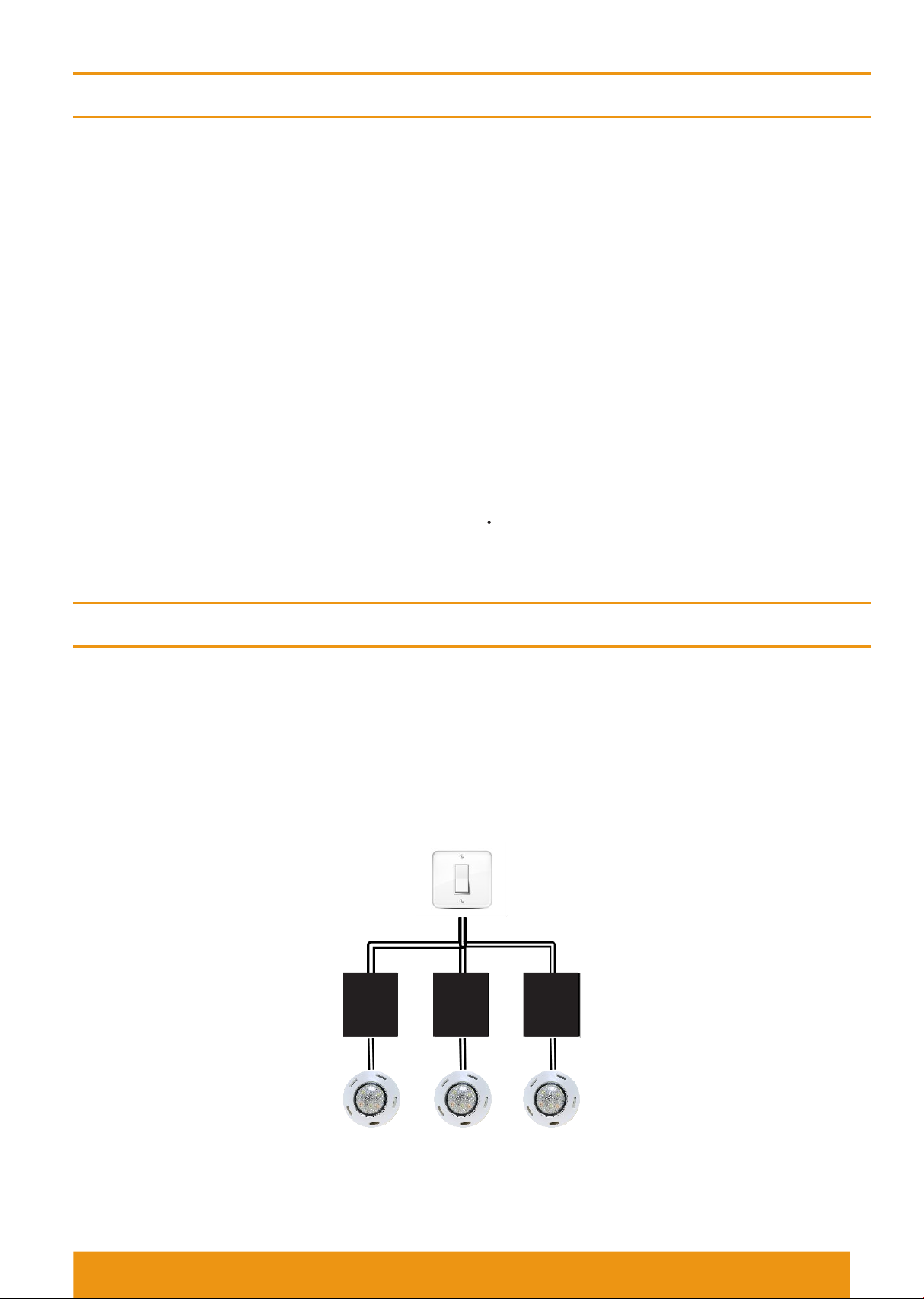

2.1 BASIC ON/OFF MODE
2.2 COLORTOUCH MODE
It needs to cooperate with ColorTouch Control Box to pick up color and adjust brightness directly. Without this control box, it
will be self-determine to basic mode when 12VAC power is connected.
When the light is direct connected to transformer, use main switch on/off to change color.
110-220Vac
to 12Vac
Transformer
110-220Vac
to 12Vac
Transformer
110-220Vac
to 12Vac
Transformer

P3 LIGHT SPECIFICATION
3. LIGHT SPECIFICATION
3.1 Electrical
Operation Voltage Range: AC 11V to 15V (12V typical)
LED Color: RGB, Warm White (3000K) and Cool white (6500K)
Operation Frequency: 50 / 60 Hz
Max Power Rating: 18W
Mode of operation: NO/OFF Mode and ColorTouch Mode
There are six different installation types for Eagle Eye:
EAG18
1) PVC Conduit
2) Vinyl pool / Fiberglass Pool (with EM2836A/E)
3) Panel Pool / Timber Pool (with EM2836A/E)
4) Concrete Pool (with EM2831A/E)
5) Concrete Pool with Conduit (with EM2831A/E+EM2841)
6) Concrete Pool + liner (with EM2831A/E+ EM2841)
3.2 Dimensions
3.2.1 EAG18
*AC main switch
Zone 2 Zone 1
220-240Vac
to 12Vac
Transformer
110-220Vac
to 12Vac
Transformer
110-220Vac
to 12Vac
Transformer
Zone 2
Transformer
Zone 1
Transformer
3.2.2 Light Intensive Chart
60mm
191mm

INSTALLATION P4
3.3 Color mode
4. INSTALLATION
1. It is recommended to install a light every 20m, the approximate exposure area of each unit.
2. Lights should be installed in the direction that they will not shine directly into the house.
3. For training or competition pools, lights must be installed on the side to prevent swimmers from seeing any glare.
4. Nothing should be placed on the pool side directly above the lights for ease of future maintenance.
5. Cables connect between each Eagle eye and transformer must be at least 1mm² (AWG18) and the distance between them
must not exceed 150ft (50m); otherwise the lights will not function properly.
6. Qualified electrician should take the responsibility to decide wire which can fulfil operating condition for this light when
more than one Eagle eye is connect to transformer.
4.1 Wiring diagram
NO.
1
2
3
4
5
6
7
8
NO.
9
10
11
12
13
14
15
Mode Mode
Cool White
Green
Blue
Green+Blue
Red+Green
Red+Green+Blue
Mode A: Blue+Gradual Red
Mode B: Green+Gradual Red
Mode C: Blue+Gradual Green
Mode D: RGB Color Sequence
Mode E: RGB Color Sequence
Mode F: Auto Color Change
Mode G: RGB Color Sequence
Mode H: Rapid Auto Color Change
Warm White
ColorTouch Mode
Basic ON/OFF mode
Zone 1
Power cord
Zone 2
Power cord
AC Mains
Power cord
ColorTouch Control Box PCB
2

P5 LAMP INSTALLATION
5. LAMP INSTALLATION
1) Concrete Pool with PVC conduit
3) Panel Pool / Timber Pool (with EM2836A/E)
5 Concrete Pool with Conduit with EM2831A/E+EM2841)
2) Vinyl pool / Fiberglass Pool (with EM2836A/E)
4) Concrete Pool (with EM2831A/E)
6) Concrete Pool + liner (with EM2831A/E+ EM2841)
POOL FINISH
15mm MAX( )
10mm MIN( )
50mm
MINIMUM
CONCRETE
COVERAGE CONCRETE THICKNESS
Junction Box
PVC pipe
SOIL
450mm(MIN)
WATER LINE
TO
TRANSFORMER
BREAK CONDUITS
ABOVE WATERLINE
G1.5A Screwthread EM2831 ( )
Junction Box BREAK CONDUITS
ABOVE WATERLINE
PVC pipe
TO
TRANSFORMER
Rubber ring
G1.5A Screwthread EM2836( )
1.5"/GB50 PVC Pipe
450mm(MIN)
WATER LINE
Junction Box BREAK CONDUITS
ABOVE WATERLINE
PVC pipe
TO
TRANSFORMER
Rubber ring
Rubber ring
Liner
1.5"/GB50 PVC Pipe
G1.5A Screwthread EM2836 ( )
450mm(MIN)
WATER LINE
POOL FINISH
15mm MAX( )
10mm MIN( )
120mm
MINIMUM
CONCRETE
COVERAGE
CONCRETE
THICKNESS
Junction Box
PVC pipe
SOIL
450mm(MIN)
WATER LINE
TO
TRANSFORMER
BREAK CONDUITS
ABOVE WATERLINE
Conduit EM2841( )
G1.5A Screwthread EM2831( )
1.5"/GB50 PVC Pipe
POOL FINISH
15mm MAX( )
10mm MIN( )
120mm
MINIMUM
CONCRETE
COVERAGE
CONCRETE THICKNESS
Junction Box
PVC pipe
SOIL
450mm(MIN)
WATER LINE
TO
TRANSFORMER
BREAK CONDUITS
ABOVE WATERLINE
Conduit EM2841 ( )
G1.5A Screwthread
1.5"/GB50 PVC Pipe
Liner
Rubber ring
Rubber ring
POOL FINISH
15mm MAX( )
10mm MIN( )
50mm
MINIMUM
CONCRETE
COVERAGE
CONCRETE THICKNESS
Junction Box
PVC pipe
SOIL
450mm(MIN)
WATER LINE
TO
TRANSFORMER
BREAK CONDUITS
ABOVE WATERLINE
1.5"/GB50 PVC Pipe
Installation Steps:
PVC Pipe
Concrete/ Panel/ Timber/ Vinyl pool / Fiberglass Pool
1) PVC pipe: Prepare the correct Front fitting unit (A:
PN10, B: PN16, 1.5” Class 12/15)
1) Prepare the correct Front fitting unit
A
B

LAMP INSTALLATION P6
PVC Pipe
Concrete/ Panel/ Timber/ Vinyl pool / Fiberglass Pool
2) Pipe diamemter should matech with Front fitting unit
and assemble with the rubber ring if necessary (the
rubber ring can improve the feeting for the light to pipe)
2) Install Screwthread body (Concrete pool) or Install
Screwthready body (Opening Hole 60mm)
3) Run the cord (with Eagle eye connector) though the conduit to the transformer of junction box location and then
remove the protective cap.
4) Make sure two O-ring are well assemble, then Connect the light and cord together and turn clockwise to lock.
5) Wrap the cord and insert the light into conduit directly.
Concrete Pool with Conduit
Concrete Pool+Liner
Concrete Pool
Panel Pool
Timber Pool Vinyl Pool Fiberglass Pool
Rubber ring
Rubber ring
O-Ring
.

P7 MAINTENANCE AND TROUBLESHOOTING
PVC Pipe
Concrete/ Panel/ Timber/ Vinyl pool / Fiberglass Pool

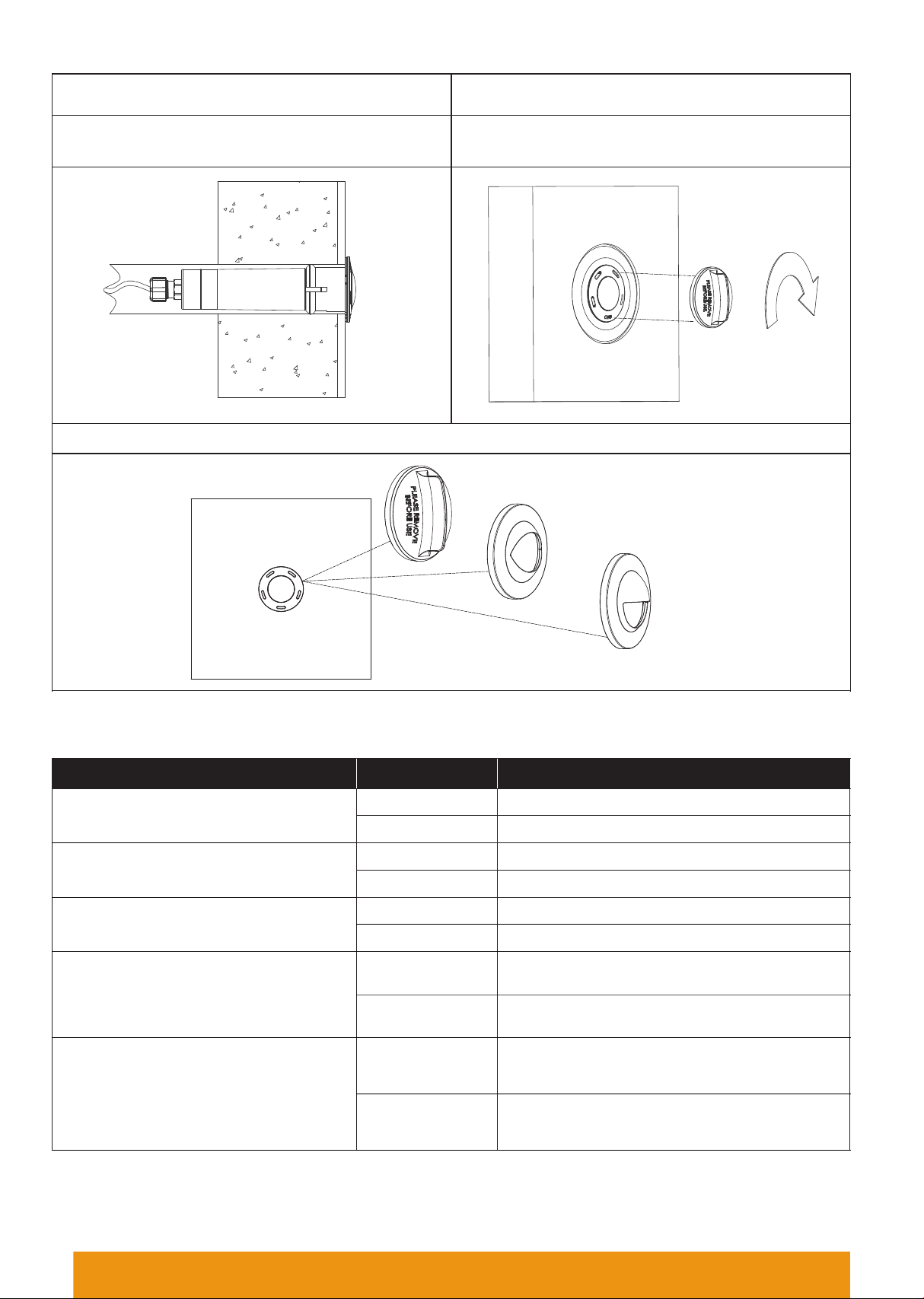

6) Insert the light fully into the conduit (conduit)
6) Use the protective cover to tighten the light into
Screwthread body
7) Cover the protective cover to protect the light or cover the “eagle eye” or “moon” over the light for shadow effect.
Installation accessories:
Pool type
Emaux Part number
Item
Vinyl pool / Fiberglass Pool (with EM2836A/E)
91601516
EM2836A TS 1.5” Solvent
91601517
EM2836E TS 50mm Solvent
Panel Pool / Timber Pool (with EM2836A/E)
91601516
EM2836A TS 1.5” Solvent
91601517
EM2836E TS 50mm Solvent
Concrete Pool (with EM2831A/E)
91601508
EM2831A 1.5” Solvent
91601509
EM2831E 50mm Solvent
Concrete Pool with Conduit with
EM2831A/E+EM2841
91601508
91602501
EM2831A 1.5” Solvent
Conduit EM2841 1.5”/50mm Solvent
91601509
91602501
EM2831E 50mm Solvent
Conduit EM2841 1.5”/50mm Solvent
Concrete Pool with liner (with EM2831A/E+
EM2841)
91601508
111000007
91602501
EM2831A 1.5” Solvent
Rubber ring D93Xd59X1.5(x2pcs)
Conduit EM2841 1.5”/50mm Solvent
91601509
111000007
91602501
EM2831E 50mm Solvent
Rubber ring D93Xd59X1.5( )
Conduit EM2841 1.5”/50mm Solvent
x2pcs
Please contact Emaux distributor to order

REPLACEMENT PARTS P8
Trouble
Possible solution
The light brightness dimmed
Check the voltage output from transformer
Check the brightness control if ColorTouch control box is connected
Check connections between the light and transformer and control box.
Contact qualified electrician to test
The light does not light up
Check fuse
Check the voltage output from transformer
Check connections between the light and transformer and control box
Contact qualified electrician to test
7. SPARE PART LIST
Item NO.
Part No.
Description
Qty
1
440650009
Protective cover
1
2
440650011
Half Moon cover
1
3
440650010
Eagle Eye cover
1
4
440650006
Sleeve A(for 50mm PVC Pipe PN10)
1
5
440650007
Sleeve B(for 50mm PVC Pipe PN16,1.5 inch
CLASS 12/CLASS 15)
1
6
E043005
Sleeve (for EM2831A E,EM2836A E TS)/ /
1
7
111040091
Rubber ring
1
8
E043006
12 LEDs Light Body 18W Color(EAGLE EYE)
1
9
E043007
(E043001)
Adapter 2.5m cable
(Adapter 7ft cable)
1
E043008
(E043002)
Adapter 15.5m cable
(Adapter 50ft cable)
1
E043009
(E043003)
Adapter 30.5m cable
(Adapter 100ft cable)
1
E043010
(E043004)
Adapter 46m cable
(Adapter 150ft cable)
1
6. MAINTENANCE AND TROUBLESHOOTING
1. Do not leave the light on longer than 1 minute when the light is not in water.
2. Before switching on the light, check whether the sealing O-ring and screw tightening for the water prove functional and
whether the circuit boxes are running properly.
3. This unit does not need any kind of maintenance. If it is not working properly, please contact EMAUX authorized dealer
where you purchase the unit from.
4. Warranty will be voided if the Emaux Eagle eye underwater light was dismantled by unauthorized personnel.
5. Do not remove the light protection cap before the Eagle Eye starts operation.
1
2
3
4
5
6
8
9
7

P9 TERM OF THE WARRANTY
8. TERM OF THE WARRANTY
As the original purchaser of this equipment has purchased from Emaux Water Technology Co Ltd, through an Authorized
International Distributor or Dealer, warrants its products free from defects in material and workmanship under normal use
during the warranty period. The warranty period begins on the day of purchase and extends only to the original
purchaser.
It is not transferable to anyone who subsequently purchases the product from you. It excludes all expendable parts.
During the warranty period, EMAUX authorized reseller will repair or replace defective parts with new parts or, at the
option of EMAUX serviceable used parts that are equivalent or superior to new parts in performance.
This Limited Warranty extends only to products purchased from Emaux Authorized resellers. This limited warranty does
not extend to any product that has been damaged or rendered defective
(a) As a result of an accident, misuse, or abuse.
(b) As a result of an act of God.
(c) By operation outside the usage parameters stated herein.
(d) By the use of parts not manufactured or sold by Emaux.
(e) By modification of the product.
(f) As a result of war or terrorist attack. Or
(g) As a result of service by anyone other than Emaux Authorized reseller or authorized agent.
EXCEPT AS EXPRESSLY OUTLINED IN THIS WARRANTY, EMAUX MAKES NO OTHER WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE EMAUX
EXPRESS DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY
BE IMPOSED BY LAW ARE LIMITED TO THE TERM OF THIS EXPRESS LIMITED WARRANTY.

YOUR PREMIER SUPPLIER
www.emauxgroup.com
EMAUX WATER TECHNOLOGY CO., LTD
