EMS PIEZON 150 User manual

操作手册
OPERATION INSTRUCTIONS
Piezon®Systems
工作尖
PIEZON CLASSIC INSTRUMENTS
医疗器械注册证编号：见产品标签
产 品 标 准 编 号：见 注 册 证 附 件
FB-572_CN_rev_C_Piezon instruments.indd 1 14/08/2018 12:10:45

4
2
1
3
FB-572_CN_rev_C_Piezon instruments.indd 2 14/08/2018 12:10:45

组件
1 SystemBox ¼ DIN
2 SystemBox ½ DIN
3 专用扳手
4 工作尖（典型显示）
包装清单显示本系统包括有哪些工作尖和附件。 要完成
整个系统的组装，可能需要单独订购工作尖和附件，或
通过 EMS 经销商完成整个系统。
COMPONENTS
1 SystemBox ¼ DIN
2 SystemBox ½ DIN
3 CombiTorque®
4 Instruments (typical shown)
The packing list shows what instruments and accesso-
ries are included in this system. To complete this set, in-
struments and accessories may be ordered individually
or by set through your EMS dealer.
FB-572_CN_rev_C_Piezon instruments.indd 3 14/08/2018 12:10:45

A
P
PS
Scaling
FB-572_CN_rev_C_Piezon instruments.indd 4 14/08/2018 12:10:47

工作尖的尺寸
所有的尺寸单位为毫米
Instrument dimensions
All dimensions are in millimeters
FB-572_CN_rev_C_Piezon instruments.indd 5 14/08/2018 12:10:47

DEAR CUSTOMERS,
Thank you for buying a new EMS Piezon system. It meets the highest quality and safety standards.
Indications
EMS offers a wide range of Piezon ultrasound instruments for use in dentistry with an EMS Piezon
ultrasound unit. Long thin instruments allow for easy access to periodontal pockets and interproximal
areas. Piezon instruments are available for the following indications:
Scaling
• Removal of supragingival calculus
• Removal subgingival calculus
Contraindications
EMS recommends not to treat patients with a cardiac pacemaker or a debrillator with this product.
The functionality of these devices may be affected by the high frequencies of the ultrasonic oscillations.
FB-572_CN_rev_C_Piezon instruments.indd 6 14/08/2018 12:10:47

亲爱的客户:
感谢您购买新的 EMS Piezon 系统。 本系统符合最高的质量和安全标准。
指示
EMS 提供一系列在牙科中配合 EMS Piezon 超声波洁牙机使用的 Piezon 超声波工作尖。 长簿型工作尖
可以方便地接触到牙周袋和邻间区域。 Piezon 工作尖适用于以下情况：
洗牙
• 清除龈上牙结石
• 清除牙龈下牙结石
禁忌症
EMS 建议不要用本产品给装有心脏起搏器或自动减颤器的患者进行治疗。 这些设备的功能可能会
受到超声波振动高频率的影响。
FB-572_CN_rev_C_Piezon instruments.indd 7 14/08/2018 12:10:47

The illustrations in these instructions represent generic components; however these instructions
apply to the Piezon CLASSIC range of instruments (unless otherwise specied).
The markings on the instruments indicate their type as listed in this manual.
These ranges of Piezon instruments must not be used with an EMS Piezon Master Surgery
®
unit.
The EMS Piezon family includes several specic CombiTorque. It is mandatory to always use the
correct CombiTorque with the corresponding instruments and handpiece. The CombiTorque are easily
identied by their body color as follows:
• Yellow CombiTorque ......Piezon CLASSIC
• Blue CombiTorque ..........Piezon SURGERY
Make sure that only compatible components are used for installation and removal of the instruments
to avoid damaging this equipment.
PIEZON CLASSIC
FB-572_CN_rev_C_Piezon instruments.indd 8 14/08/2018 12:10:48

PIEZON CLASSIC
这些说明中的示意图代表通用组件；但这些说明适用于 Piezon CLASSIC 系列工作尖（除非另有
规定）。
工作尖上的标志表示其在本手册中所列的类型。
这些系列的 Piezon 工作尖不得配合 EMS Piezon Master Surgery
®
装置使用。
EMS Piezon 系列包括多个特定 专用扳手。 配合相应的工作尖和洁牙手柄必须使用正确的 专用扳
手。 通过如下所述的机身颜色可以方便地识别 专用扳手：
• 黄色 专用扳手 ..................Piezon CLASSIC
• 蓝色 专用扳手 ..................Piezon SURGERY
务必只使用兼容的组件来安装和卸下工作尖以避免对设备造成损坏。
FB-572_CN_rev_C_Piezon instruments.indd 9 14/08/2018 12:10:49

These operating instructions are to ensure the correct installation and use of this product.
Please read these operating instructions carefully as they explain all the most important details and
procedures. Please pay special attention to the safety precautions.
Always keep this document close at hand.
To prevent injury to people and damage to property, please heed the corresponding directives. They
are marked as follows:
Danger
Risk of patient or user injury
Caution
Risk of damage to the device or environmental harm
Please note
Useful additional information and hints
Prohibited
Authorized
Instructions concerning the components of the system are provided separately in the relative
instructions for use. Read the instruction manuals delivered with each of the components before using
this product. Do not hesitate to contact your local EMS dealer for further information.
Note that the English version of this manual is the master from which translations derive. In case of any
discrepancy, the binding version is the English text.
We would be pleased to answer your questions or listen to your suggestions. We do, of course, provide
support in case of technical problems. Please call your approved EMS repair center or dealer directly.
We wish you lots of success!
EMS
ABOUT THIS MANUAL
Technical modications
EMS reserves the right to modify the technique, accessories, operating instructions or contents of the
set due to technical or scientic improvements.
FB-572_CN_rev_C_Piezon instruments.indd 10 14/08/2018 12:10:50

关于本手册
这些操作说明旨在确保正确安装和使用本产品。
请仔细阅读这些操作说明，其中包含了所有最重要的详细信息和程序。 请特别注意安全注意事项。
请始终将本文档放在手边。
为了预防人身伤害和财产损坏，请注意相应的指示。 指示的标记如下：
危险
可能会对患者或用户造成人身伤害
注意
可能会损坏设备或对环境造成损害
请注意
其他有用的信息和提示
禁止
允许
在相关使用说明书中单独提供有关系统组件的说明。 在使用本产品前，请阅读随每个组件附带的
说明书。 请随时联系当地 EMS 经销商了解详情。
请注意，本手册的译文是根据英文版手册翻译而来。 如有任何分歧，应以英文版为准。
我们将乐意解答您的问题或听取您的建议。 当然，如果遇到技术问题，我们将为您提供支持。 请直接致
电准许的 EMS 维修中心或经销商。
希望您使用顺利！
EMS
技术修改
EMS 保留随着技术或科学的进步而对技术、附件、套件操作说明或内容进行修改之权利。
FB-572_CN_rev_C_Piezon instruments.indd 11 14/08/2018 12:10:51

CONTENTS
General hints.................................................... 2
Bacteria reduction in the spray .................... 4
Attaching the instruments ................................ 6
Working technique ........................................... 8
Scaling ........................................................... 10
Instrument A for universal scaling ............. 13
Instrument perio P...................................... 15
Instrument perio slim PS............................ 17
Cleaning, disinfecting and sterilizing ............. 18
Instrument disassembly and cleaning ....... 20
Handpiece disassembly and cleaning ....... 22
Wear and maintenance.................................. 24
Safety precautions ......................................... 26
Storing the product ........................................ 28
Product disposal ............................................30
Warranty.........................................................30
Accessories.................................................... 30
EMS customer service................................... 32
Symbols .........................................................34
Technical data................................................ 35
Troubleshooting ............................................. 36
FB-572_CN_rev_C_Piezon instruments.indd 12 14/08/2018 12:10:51

目录
工作尖的尺寸 ..................................................... 5
所有的尺寸单位为毫米 ................................... 5
通常提示 ........................................................... 3
喷射冲洗减少细菌 ......................................... 5
安装工作尖 ........................................................ 7
操作技术 ........................................................... 9
洗牙 ................................................................ 11
适用于普通洗牙的A型工作尖....................... 13
P型工作尖 ................................................... 15
纤细型PS型工作尖 ...................................... 17
清 洁 、消 毒 和 灭 菌 ............................................ 19
工作尖拆卸和清洁 ....................................... 21
洁牙手柄拆卸和清洁.................................... 23
磨损和维护保养............................................... 25
安全注意事项 .................................................. 27
产品储存 ......................................................... 29
产品报废 ......................................................... 31
保修 ................................................................ 31
附件 ................................................................ 31
EMS 客户服务.................................................33
符号 ................................................................34
技术数据 ......................................................... 35
故障排除 ......................................................... 37
FB-572_CN_rev_C_Piezon instruments.indd 13 14/08/2018 12:10:51

2
135°C

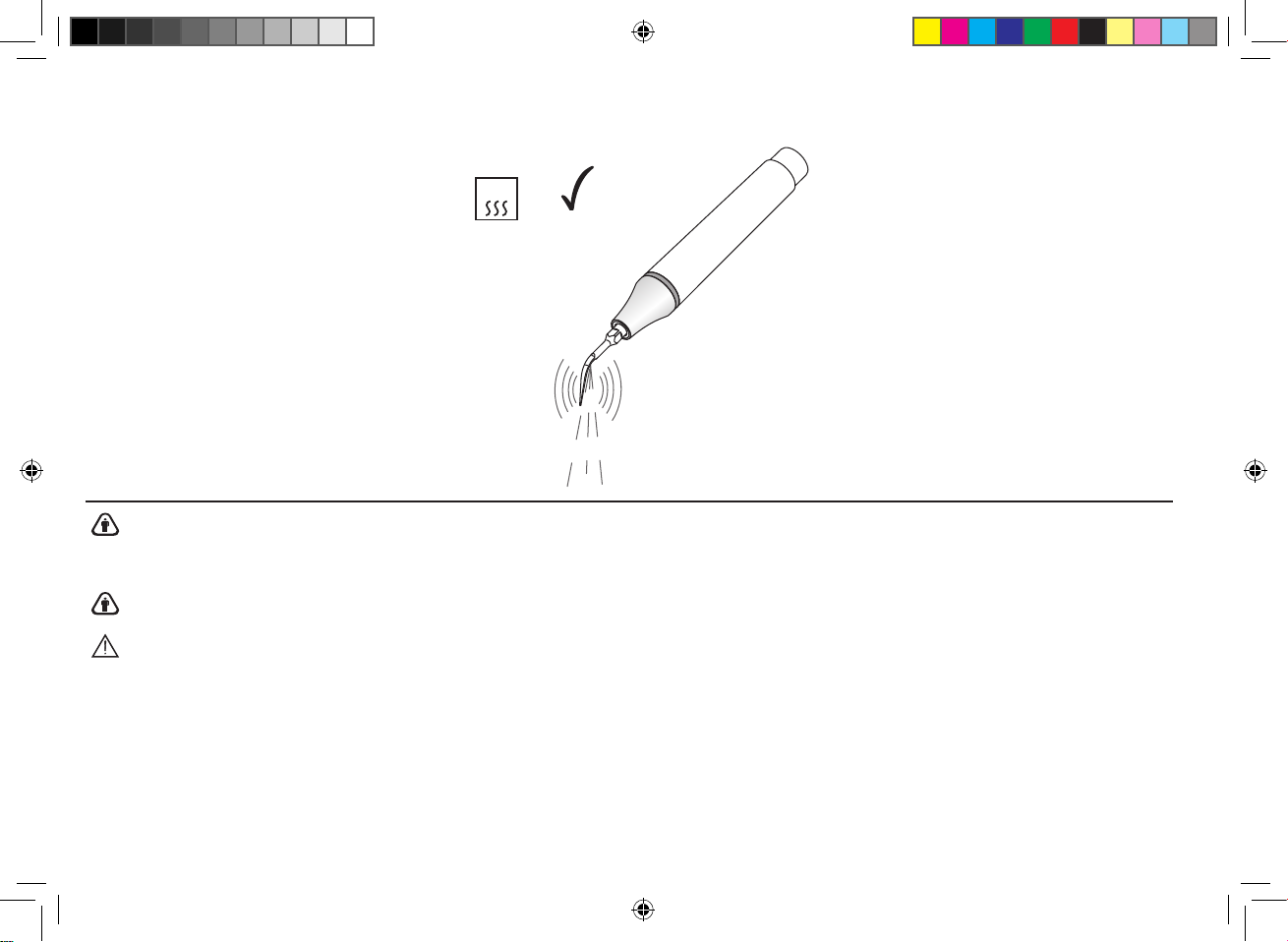

GENERAL HINTS
Make sure to always sterilize handpieces and instruments before use. Non-sterile handpieces
and instruments may cause bacterial or viral infections. Please conform to the recommendations of
the "Reprocessing Instructions" manual delivered with your product regarding procedure of cleaning,
disinfecting and sterilizing of the components.
Never work dry with Piezon instruments (unless otherwise specied). The tip of the instrument
immediately heats up when used dry. Always make sure there is enough irrigation.
Do not use the instruments on metal or ceramic restorations, neither on prosthesis units as they
might be damaged (unless otherwise specied).
FB-572_CN_rev_C_Piezon instruments.indd 2 14/08/2018 12:10:51

3
C°
通常提示
在使用前务必对洁牙手柄和工作尖进行灭菌处理。 未经灭菌的洁牙手柄和工作尖可能会造成细菌
和病毒感染。 有关组件清洁、灭菌和消毒的程序，请遵照随产品附带的“治疗前说明”手册。
切勿在无喷水情况下使用 Piezon 工作尖（除非另有规定）。 无喷水情况下使用时，工作尖的尖
端很快就会温度升高。 务必确保有足够的冲洗。
不要将工作尖用于金属、烤瓷修复体或者假牙装置，以免造成损坏（除非另有规定）。
FB-572_CN_rev_C_Piezon instruments.indd 3 14/08/2018 12:10:52

4
Oscillating or rotating dental instruments produce a spray of irrigation. The bacterial count in the spray
can be truly reduced by using the ready-for-use BacterX® pro* solution (0.2% chlorhexidine) in the EMS
Piezon unit.
Rinsing the patient's mouth prior to treatment with BacterX®pro* is strongly recommended.
Used daily in your EMS Piezon unit, BacterX®pro* reduces the bacterial count in the irrigation lines of
the unit.
* BacterX® pro is available in specic countries only
Bacteria reduction in the spray
FB-572_CN_rev_C_Piezon instruments.indd 4 14/08/2018 12:10:53

5
振动式或旋转式工作尖会产生冲洗喷射。 通过在 EMS Piezon 装置中使用现成的 BacterX® pro* 溶剂
（0.2% 洗必太）可以大大减少喷射水流中的细菌数。
强烈建议在用 BacterX® pro* 治疗之前，冲洗患者的口腔。
每天在 EMS Piezon 装置中使用，BacterX® pro* 可以减少装置冲洗管中的细菌数。
* BacterX® pro 仅在特定国家/地区提供
喷射冲洗减少细菌
FB-572_CN_rev_C_Piezon instruments.indd 5 14/08/2018 12:10:53

6

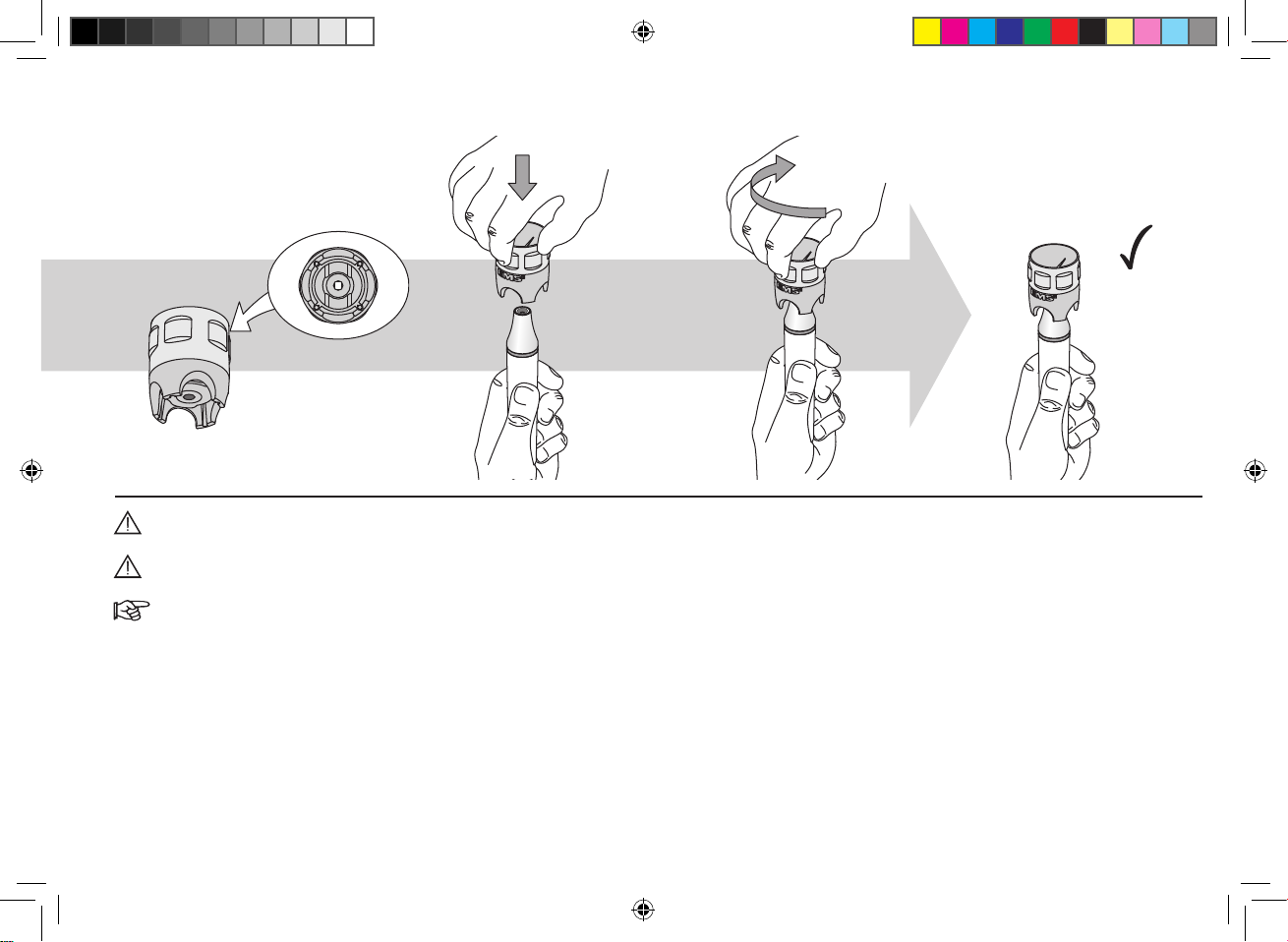

ATTACHING THE INSTRUMENTS
Blow dry the connections to remove eventual presence of liquid to ensure a proper electrical contact.
Never blow compressed air in the irrigation connections as this will irremediably damage internal parts.
Only use the CombiTorque to tighten the EMS instrument on the handpiece to the correct torque.
Once the instrument is screwed all the way in, give an extra quarter of a turn to obtain the required torque.
The EMS CombiTorque combines a torque wrench and an individual le holder. It ensures an instal-
lation according to specications, an organized storage and a safeguard against injuries or contamination.
FB-572_CN_rev_C_Piezon instruments.indd 6 14/08/2018 12:10:54

7
安装工作尖
将连接处吹干，清除任何液体残留，以确保电气接触正确。 切勿在冲洗连接处吹压缩空气，以免
对内部零件造成永久性损坏。
只使用 专用扳手 以正确的转矩在洁牙手柄上拧紧 EMS 工作尖。 在工作尖被径直拧入后，再额外
转动1/4圈以获得必要的转矩。
EMS 专用扳手 将转矩扳手和单独的持针器结合在一起。 它可以确保安装符合规范，储存有条理，
并防止造成人身伤害和污染。
FB-572_CN_rev_C_Piezon instruments.indd 7 14/08/2018 12:10:54

8
WORKING TECHNIQUE
EMS Piezon instruments vibrate in a controlled back and forth oscillation. During treatment, always
hold the instrument tangentially to the tooth surface. Move the handpiece similarly to a paintbrush while
applying a light lateral pressure.
For a given power setting, long and thin instruments deliver less clinical power, meaning a more gentle
treatment for the patient. Shorter instruments can be selected when a higher clinical power is needed.
Do not direct the instrument straight to the enamel surface. Never point the tip of the instrument
to the tooth surface (unless otherwise specied).
FB-572_CN_rev_C_Piezon instruments.indd 8 14/08/2018 12:10:55
