Englefield MILANO Alcove User manual

1233816-A02-G 14/02/2018
INSTALLATION
INSTRUCTIONS
SHOWER
Engleeld
MILANO
TM
Alcove
Note: Tapware not included.
Englefield has a history
of making superb showers
and their popularity is
testament to their quality
and affordability.
It’s the details that Englefield
cares about - from pioneer-
ing the latest technology, to
innovative design, it’s all to
make your showering
experience the very best it
can be.

Page 1
Before installing the shower please read these instructions carefully to familiarise
yourself with the required tools, materials and installation sequences. Please leave these
instructions for the consumer after installation. Refer to the separate care and maintenance
guide for important care and cleaning information.
Ensure that the shower tray and wall, if applicable, are completely finished prior to
installing your shower door and return. Follow all warnings, cautions and instructions
contained in this guide.
1. ENGLEFIELD strongly recommends that a minimum of TWO persons install this
enclosure due to the weight of the door panels.
2. Toughened safety glass cannot be cut. Risk of injury or product damage.
3. Wear protective footwear when lifting panels.
4. Wear safety glasses when drilling.
1. The wall retainers must be installed onto a waterproof, vertical and flat wall surface.
Failure to do so will result in an unsatisfactory seal, which may cause property damage.
The wall inclination (out of squareness) is recommended to be out by no more than
+/- 4mm/m.
2. Please install this door onto an ENGLEFIELD Quick - Fit Low Profile
shower tray only, unless installing directly onto tiled walls and floor.
®
3. Care must be taken when drilling into walls and floors to avoid any hidden pipes or
wires.
4. It is the responsibility of the INSTALLER to ensure that the installation complies with
council and or local authority bylaws.
INSTALLATION INSTRUCTIONSMILANO Alcove
BEFORE YOU BEGIN
SAFETY
!
!ATTENTION
Instructions, drawings, and diagrams contained in this manual present information available at the time of printing.
changes without further notice.

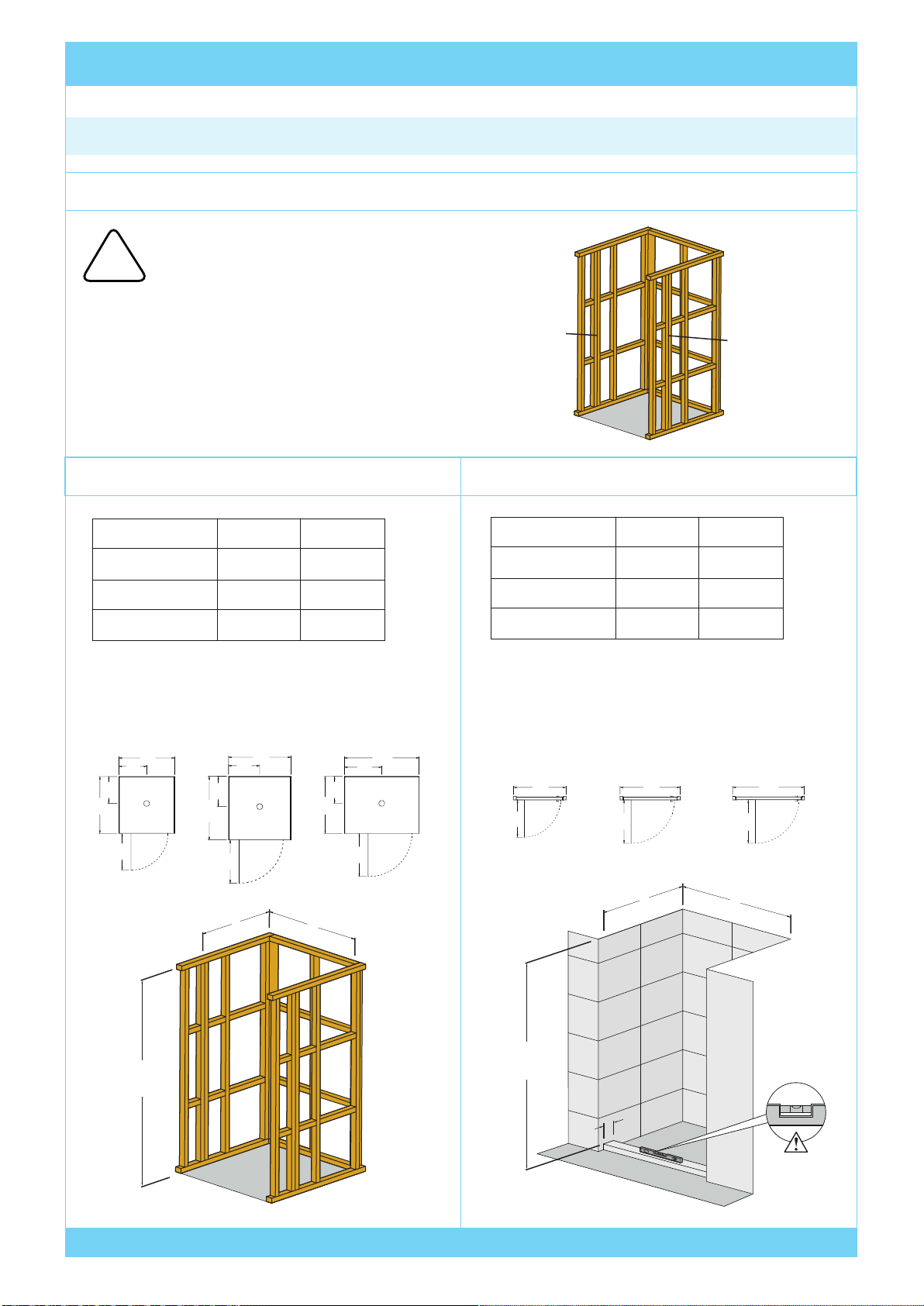

CONSTRUCTION REQUIREMENTS
Due to the weight of the glass
panels Englefield strongly
recommends fixing the wall
retainers to double studs for
all installation types (as below).
!ATTENTION
Page 2
AB
CD
Size
For acrylic tray with acrylic or tiled wall For tile floor and tile wall - Finished surfaces
Wall Framing
Dim ‘A’
900 x 900 900
1000 x 1000 1000
Dim ‘B’
884
+2
-0
984
1200 x 900 900 1184
Size Dim ‘C’
900 x 900 N/A
1000 x 1000 N/A
Dim ‘D’
856
+5
-0
956
1200 x 900 N/A 1156
NOTE: This setup allows for the use of standard
10mm wall board. A thicker wall board could make
the recess too narrow for the door system.
Finished /tiled hob to be:
1) Minimum 70mm wide.
2) 1-2ofall front to back is acceptable.
3) Level (+/-0mm) left or right.
Double
studs Double
studs
70 min
± 0 mm
956 1156
1182
591
692
900
680
426
Milano ALC 10x10Milano ALC 9x9 Milano ALC 12x9
Milano ALC 10x10Milano ALC 9x9 Milano ALC 12x9
692
982
491
441
2005mm
Min Height
1000
680
476
856
882
900
580
592
426
1935mm
Min Height
INSTALLATION INSTRUCTIONSMILANO Alcove

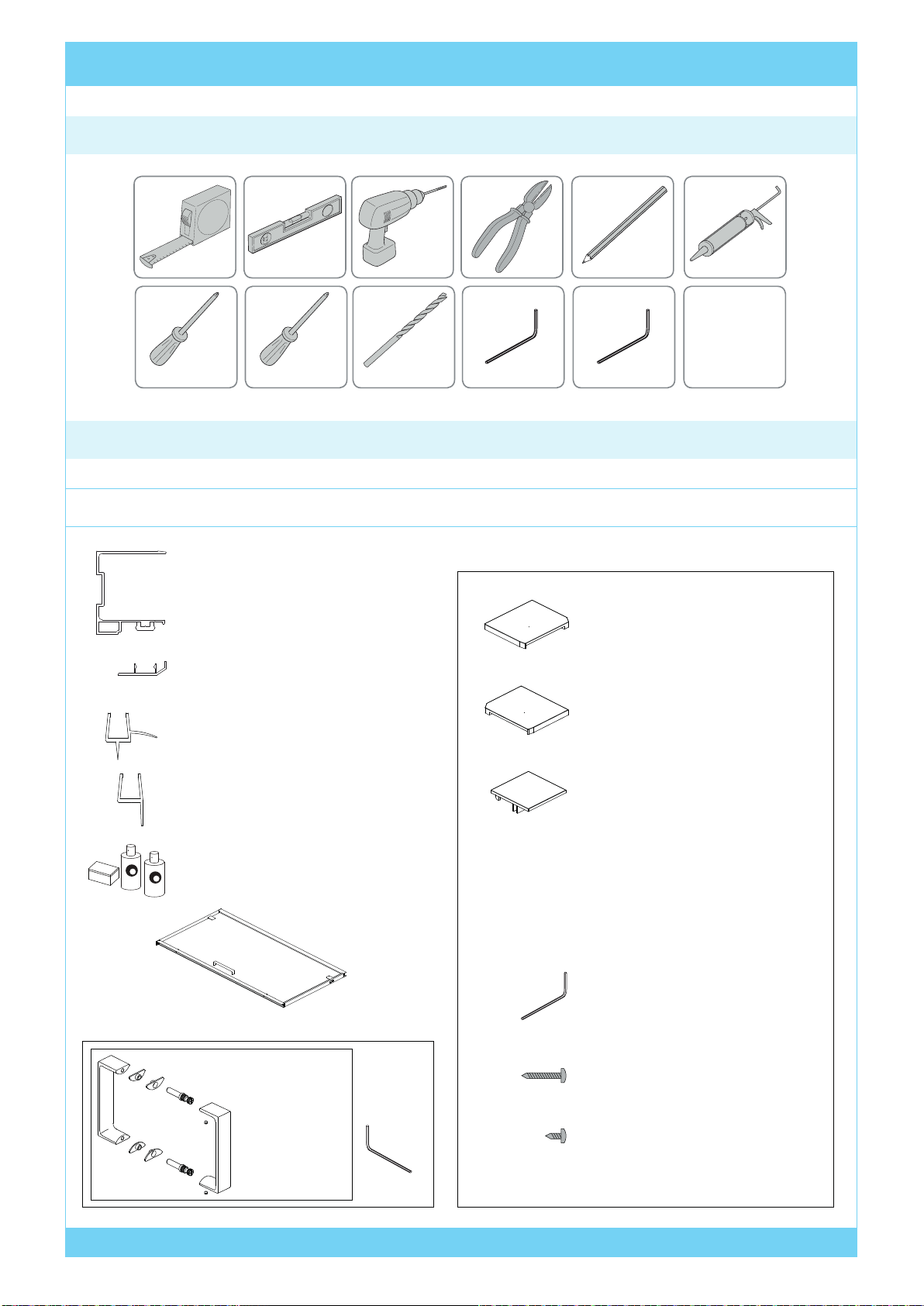

TOOLS AND MATERIALS REQUIRED
3.0 mm 2.5 mm
Supplied Supplied
N0. 1 Square 3.0 mm Phillips
Door Pack
PARTS IDENTIFICATION
Page 3
Extrusion - Door wall retainer
Door Panel
Extrusion - Door drip seal
Hardware Pack
PAN screw - ST 3.5 x 35mm
x 2
x 1
Extrusion - Door edge seal
(1200 x 900 only)
x 1
x 1
x 8
x 2
x 1
x 1
x 2 Extrusion - Wall retainer cover
PAN screw - ST 3.5 x 9mm
Cover - Door wall retainer (LH)
Cover - Door wall retainer (RH)
Cover - Door extrusion
x 1 Allen key - 3mm
x 8
Door Handle Assembly
Door Handle Pack
x 1 x 1
Allen key
- 2.5mm
Glass Aftercare pack
x 1
INSTALLATION INSTRUCTIONSMILANO Alcove

!ATTENTION
Acrylic Tray: For tray installation refer to the instructions supplied with the tray.
Acrylic Wall: For wall installation refer to the instructions supplied with the wall.
- Proceed to Section 2 - Door and return installation.
Acrylic Tray: For tray installation please refer to the instructions supplied with the tray.
Tiled Wall:
Failure to install the complete door system before tiling may mean the door system
will not fit on the shower tray due to the tile thickness.
- Proceed to Section 2 - Door and return installation.
The complete door system MUST be installed onto the waterproof
membrane PRIOR TO WALL TILING.
- The door and return can be installed directly onto the wall and floor tiles.
(Refer to construction requirements).
- Proceed to Section 2 - Door and return installation.

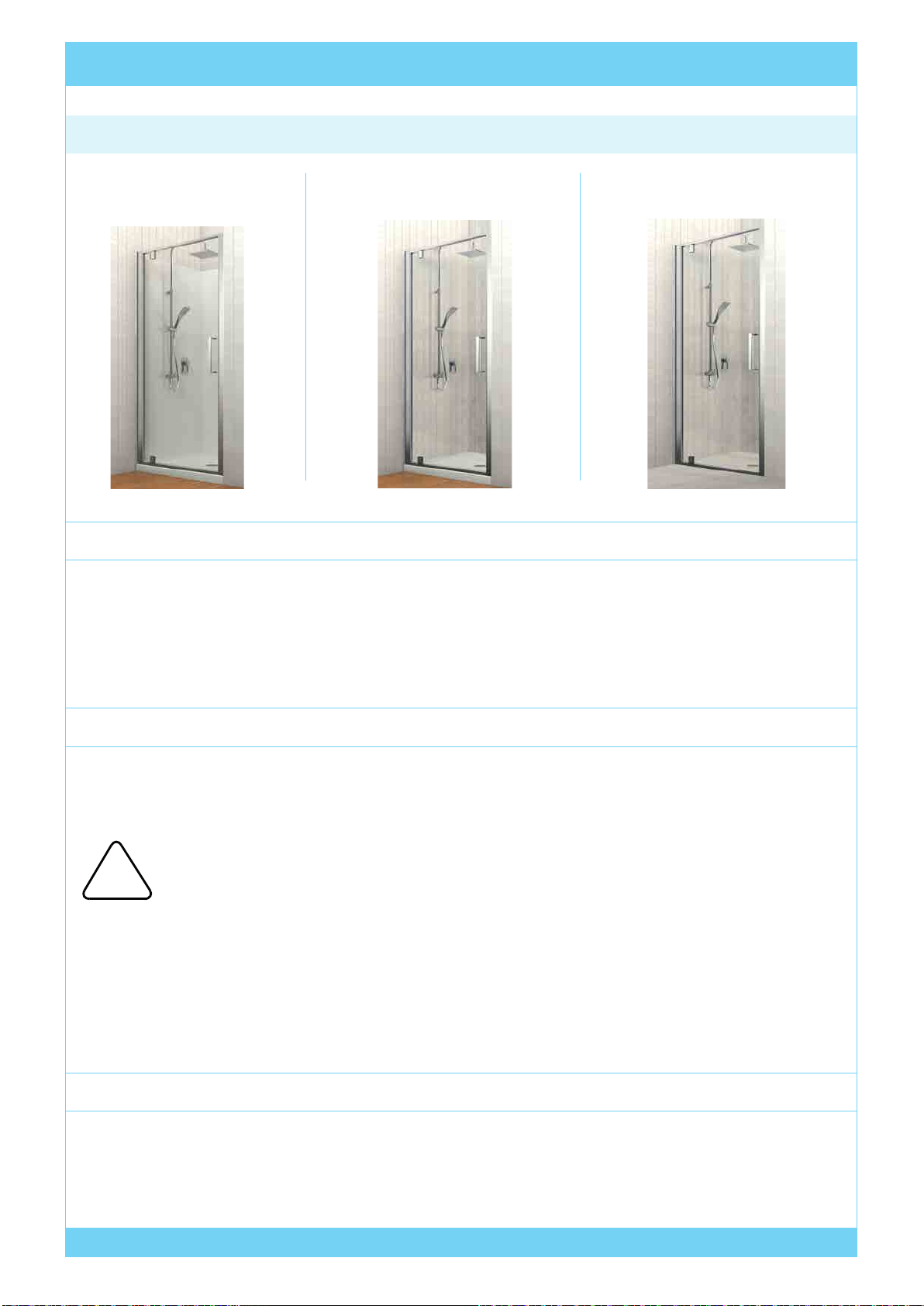

OPTION 1
Acrylic Wall & Tray OPTION 2 Tiled Wall & Acrylic Tray
OPTION 3
Tiled Wall & Floor
1 - INSTALLATION - Options
OPTION 1 - Acrylic Tray & Acrylic Wall
OPTION 2 - Acrylic Tray & Tiled Wall
Page 4
OPTION 3 - Tiled Wall & Floor
INSTALLATION INSTRUCTIONSMILANO Alcove

(e) Apply sealant (not supplied) around screw
holes on rear side of wall retainer.
± 0 mm
3 mm
LH opening RH opening
x4

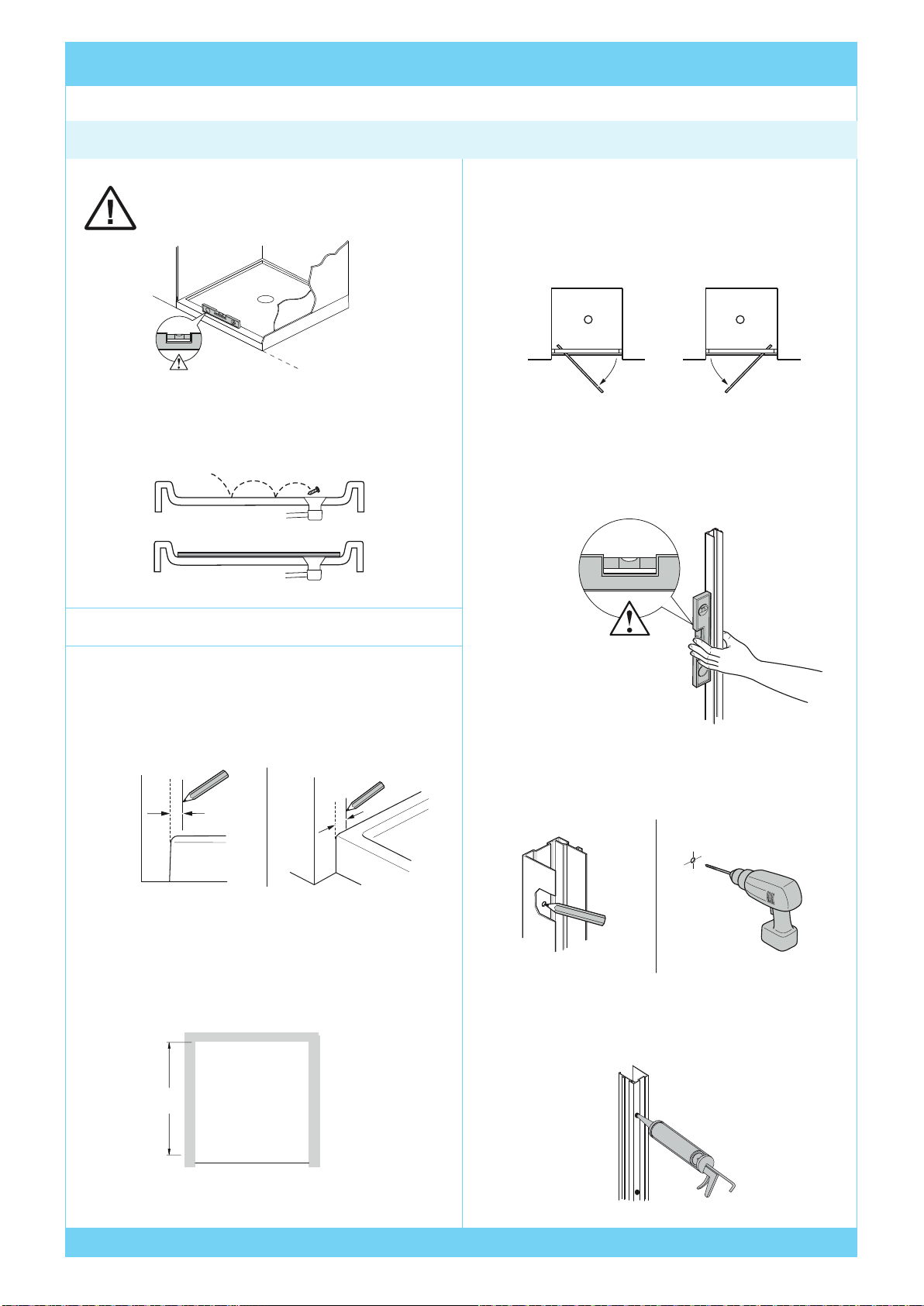

2.1 Wall Retainers and Door
Caution: Ensure tray or tiled floor is
level & walls are vertical & square.
(a) Mark the locations of the wall retainers.
For tray base option:
- Mark 10mm in from top edge of tray.
For tiled floor option:
- Mark from back wall to outer edge
of both retainers with your preferred
dimension ‘A’.
(c) Position a wall retainer on ‘hinge side’
wall with flat side facing outwards. Use a
level to make sure it is upright. (This is
critical to ensure correct operation of the
door).
(b) This shower is reversible. Please
choose which side you would like the
door to open from.
(d) Mark position of fixing holes, then
remove wall retainer and drill holes
using an appropriate 3mm drill bit
(not supplied).
LH opening shown
Tip: Cover the waste to prevent the loss of
small parts. If installing onto a tray protect
the tray surface during installation.
2 - INSTALLATION
Page 5
10 mm
10 mm
x4
± 0 mm
A
INSTALLATION INSTRUCTIONSMILANO Alcove

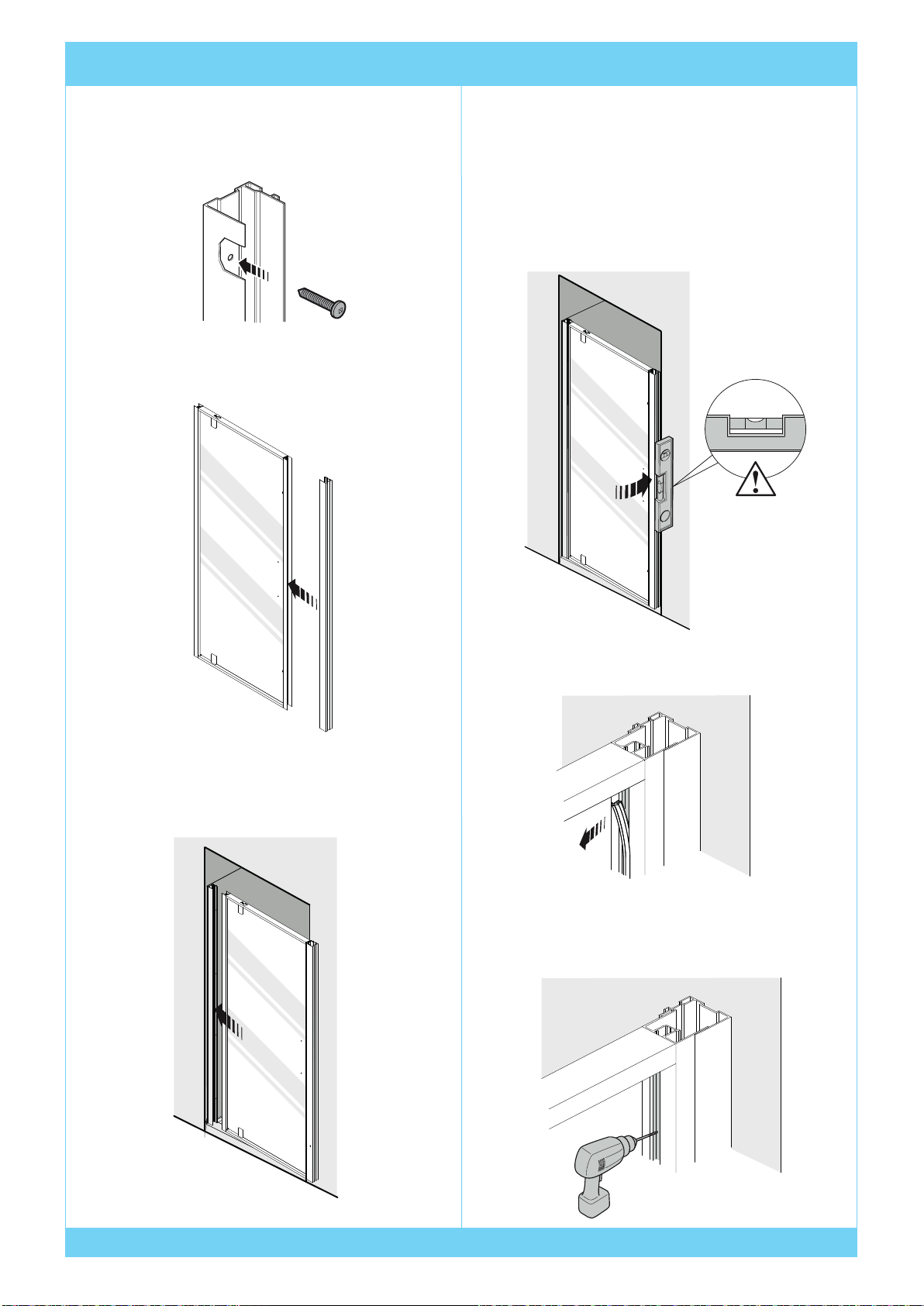

(f) Fix wall retainer to hinge side wall using
4 screws (supplied).
x 4
PAN ST 35mm
(g) Fit other wall retainer onto non-hinge side
of door assembly and hold in place.
(h) Slot door assembly into hinge side wall
retainer. NOTE: Be careful not to scratch
the extrusions during this process.
(i) Rotate door assembly so that non-hinge
side wall retainer slides into position.
Ensure that the non-hinge side wall
retainer is plumb & aligned with the
hinge side wall retainer.
(j) Open shower door and remove seal on
non-hinge side.
Page 6
(k) Open door and drill holes in wall retainer
through existing door frame holes using
an appropriate 3mm drill bit (not supplied).
3 mm
x4
INSTALLATION INSTRUCTIONSMILANO Alcove
± 0 mm

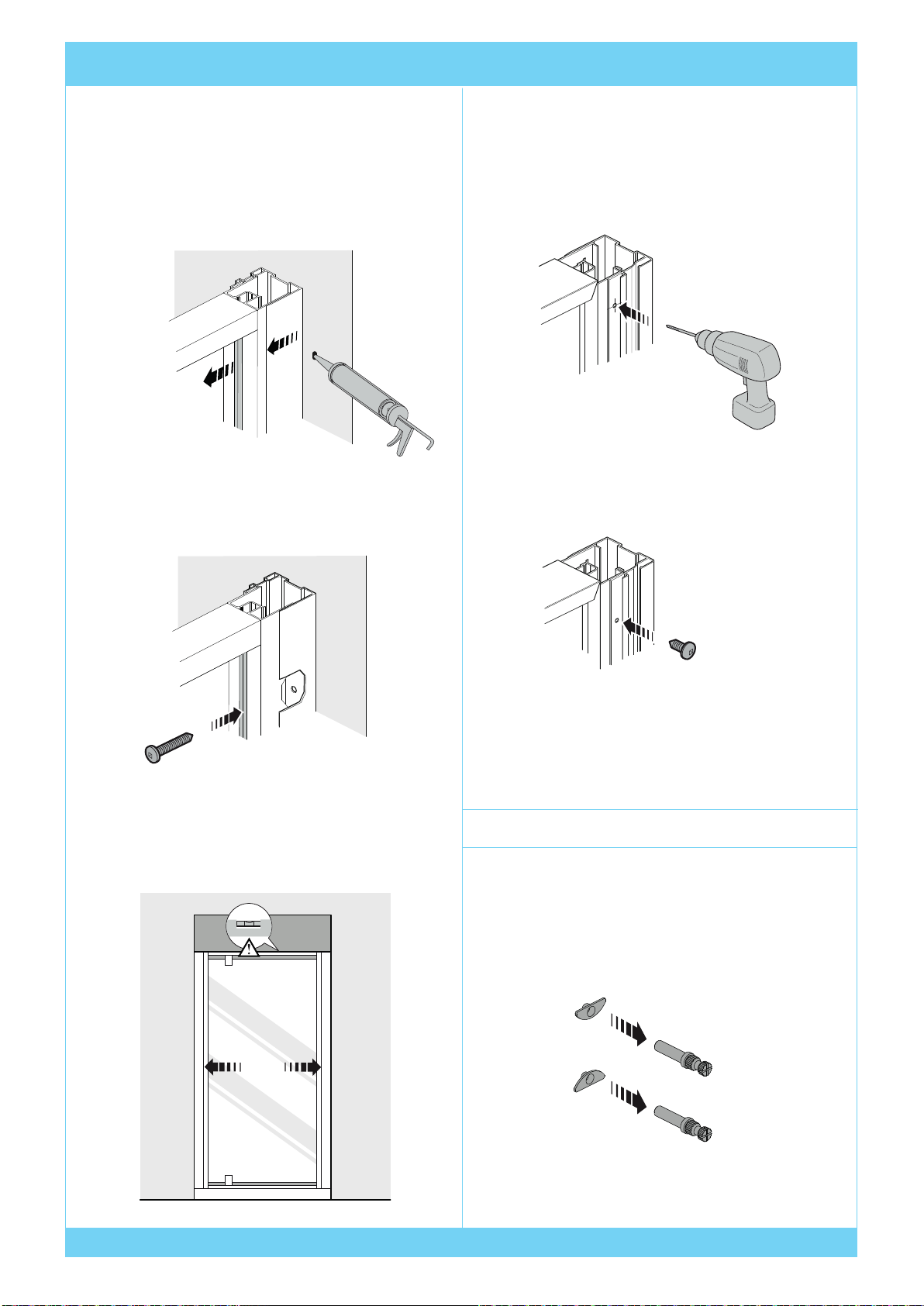

(m) Fix wall retainer to non-hinge side wall
using 4 screws (supplied) and replace seal.
(n) Centre door assembly inside of wall
retainers and make sure it is level.
x 4
PAN ST 35mm
(l) Move door assembly and non-hinge side
wall retainer as far towards the hinge
side as possible and apply sealant
(not supplied) to screw holes.

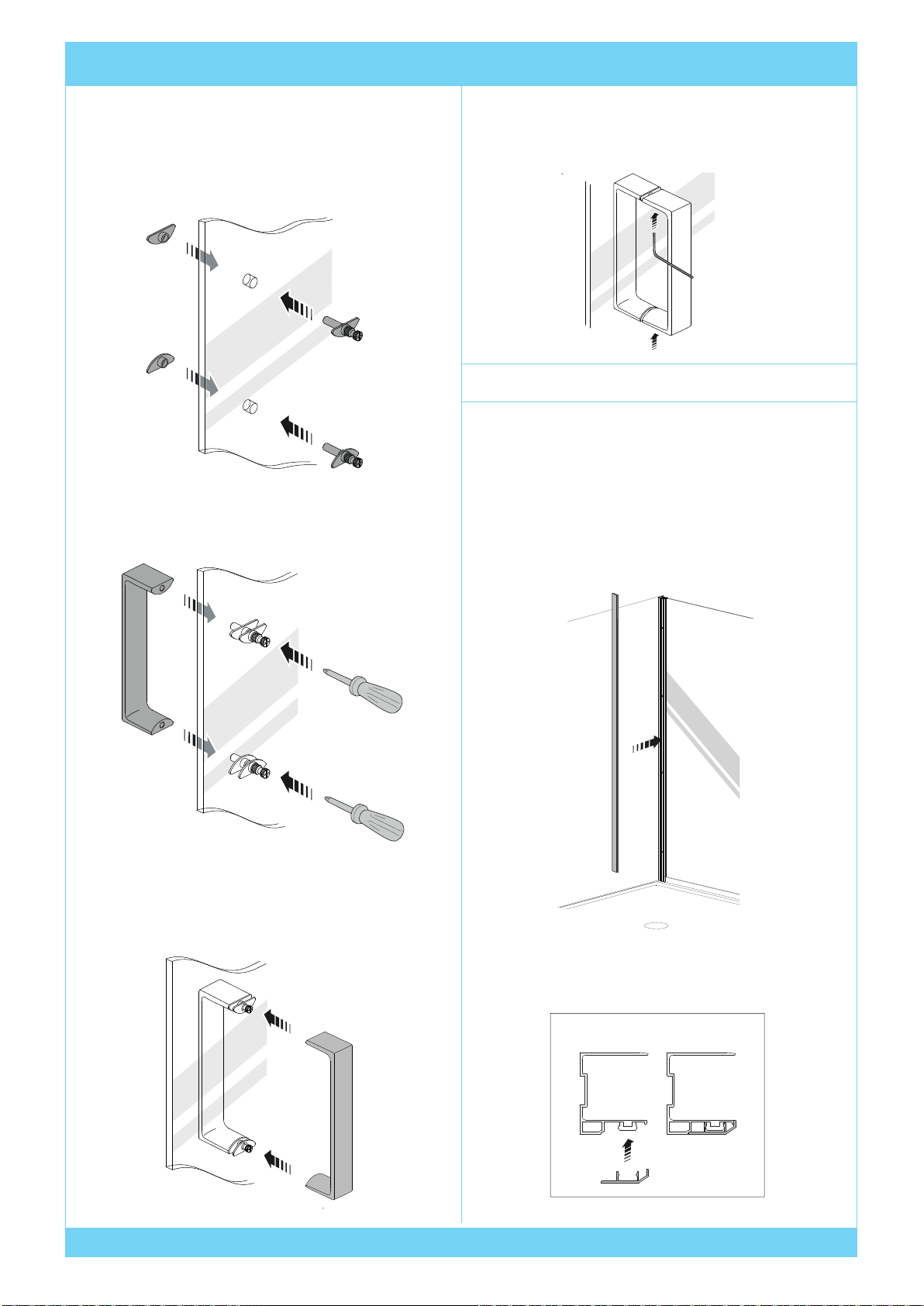

(a) Place a clear plastic washer onto
threaded side of each spline.
Note orientation.
Page 7
2.2 Door Handles
± 0 mm
(p) Fix extrusion to wall retainer with
pan screws (supplied).
(e) Repeat steps (o) and (p) for other
wall retainer.
x 4
PAN ST 9mm
(o) Drill 4 x 3mm holes from inside shower
enclosure in door extrusion through
pre-drilled holes in wall retainer.
3 mm
x4
INSTALLATION INSTRUCTIONSMILANO Alcove

Page 8
2.3 Covers & Caps
(b) Insert splines into holes in glass door
from inside of shower and place a
second clear plastic washer onto each
spline. Note orientation.
(c) Screw splines tightly into handle.
(d) Slide second handle onto splines.
Grub screw holes must face down.
(e) Tighten inside handle grub screws
using allen key (supplied).
2.5mm
Profile
(a) Install retainer cover panel on wall
retainer. Place cover against retainer,
then firmly push inwards over clip to
If necessary place a piece of wood
secure in position.
against the cover and tap gently with a
soft hammer.
Wall retainer
INSTALLATION INSTRUCTIONSMILANO Alcove

(c) Place 2 caps on top of each wall retainer.
Note orientation as caps are handed.
Apply a small bead of silicone to secure
if necessary.
Page 9
(a) Cut drip seal to length and press fit onto
bottom of door on both sides of hinge.
Ensure seals are flush with sides of
hinge and edges of glass. Notch end of
seal to allow space for vertical door seal.
2.4 Seal installation
2.4.1 Drip seals
Notch in
end of seal
(a) Door glass position can be adjusted at
the hinges.
2.5 Hinge adjustment
Right hand side Left hand side
View from inside of shower
2.4.2 Door edge seal (1200 x 900 only)
(a) Cut door edge seal to length and notch
bottom end of seal to allow space for
horizontal door seal. Press fit onto edge
of door (Seal flap must be on inside
of shower).
Profile
Notch in
Flap must be on
inside of shower
end of seal
Profile
(b) Repeat step (a) for the other door wall
retainer.
INSTALLATION INSTRUCTIONSMILANO Alcove

Page 10

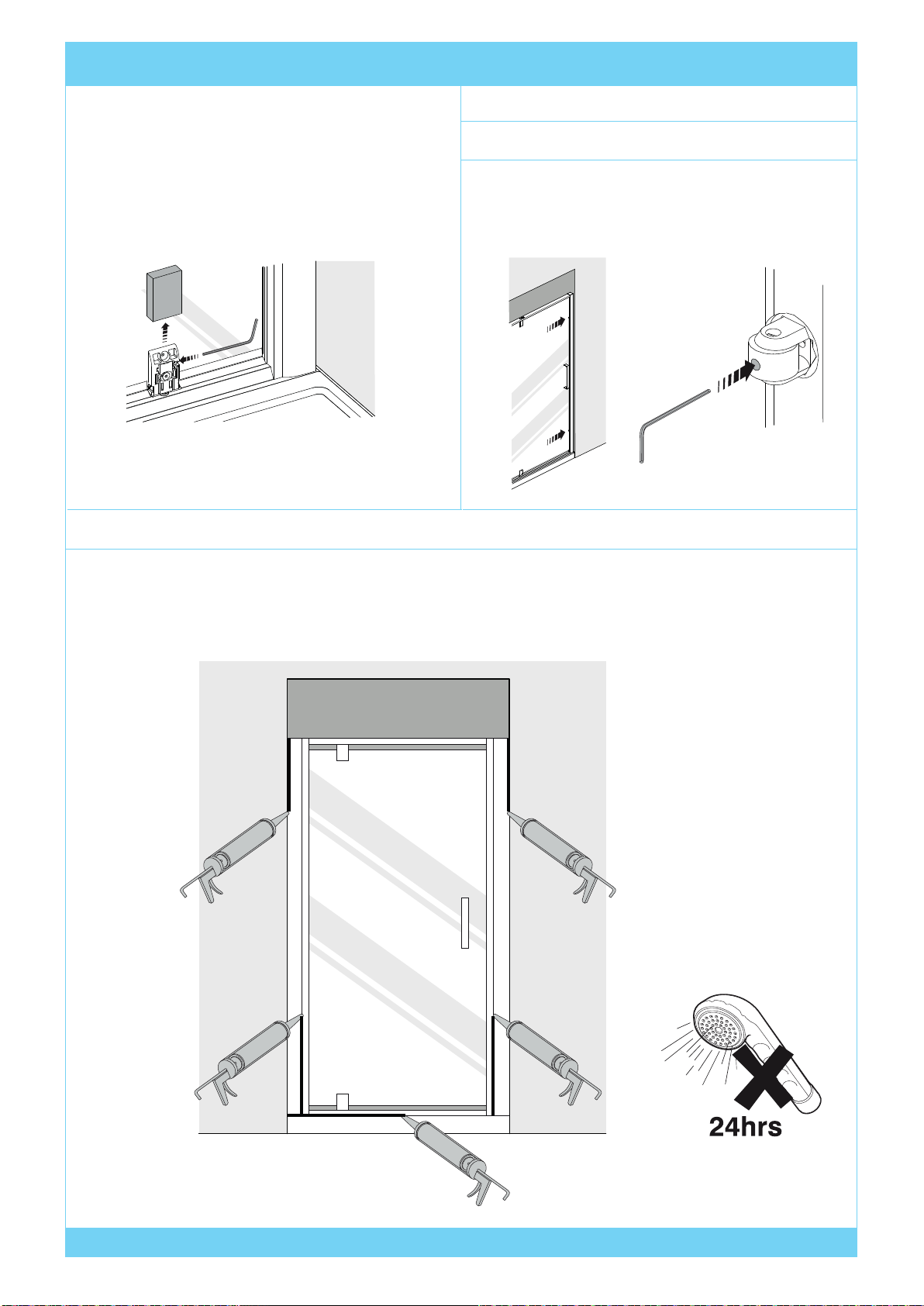

(b) To adjust hinge slide off hinge cover
and turn screw located in the hinge
with allen key. (a) Adjust catch force by turning screw
through roller with allen key.
2.6 Door roller Catch adjustment
2.5mm
2.7 Shower Sealing
3.0mm
200mm up 200mm up
Entire
length
Entire
length
Entire
length
(a) Apply sealant (supplied) in accordance with the sealant manufacturers instructions
along the outside surfaces of the door frame only. Allow the sealant to cure for 24
hours before use.
INSTALLATION INSTRUCTIONSMILANO Alcove

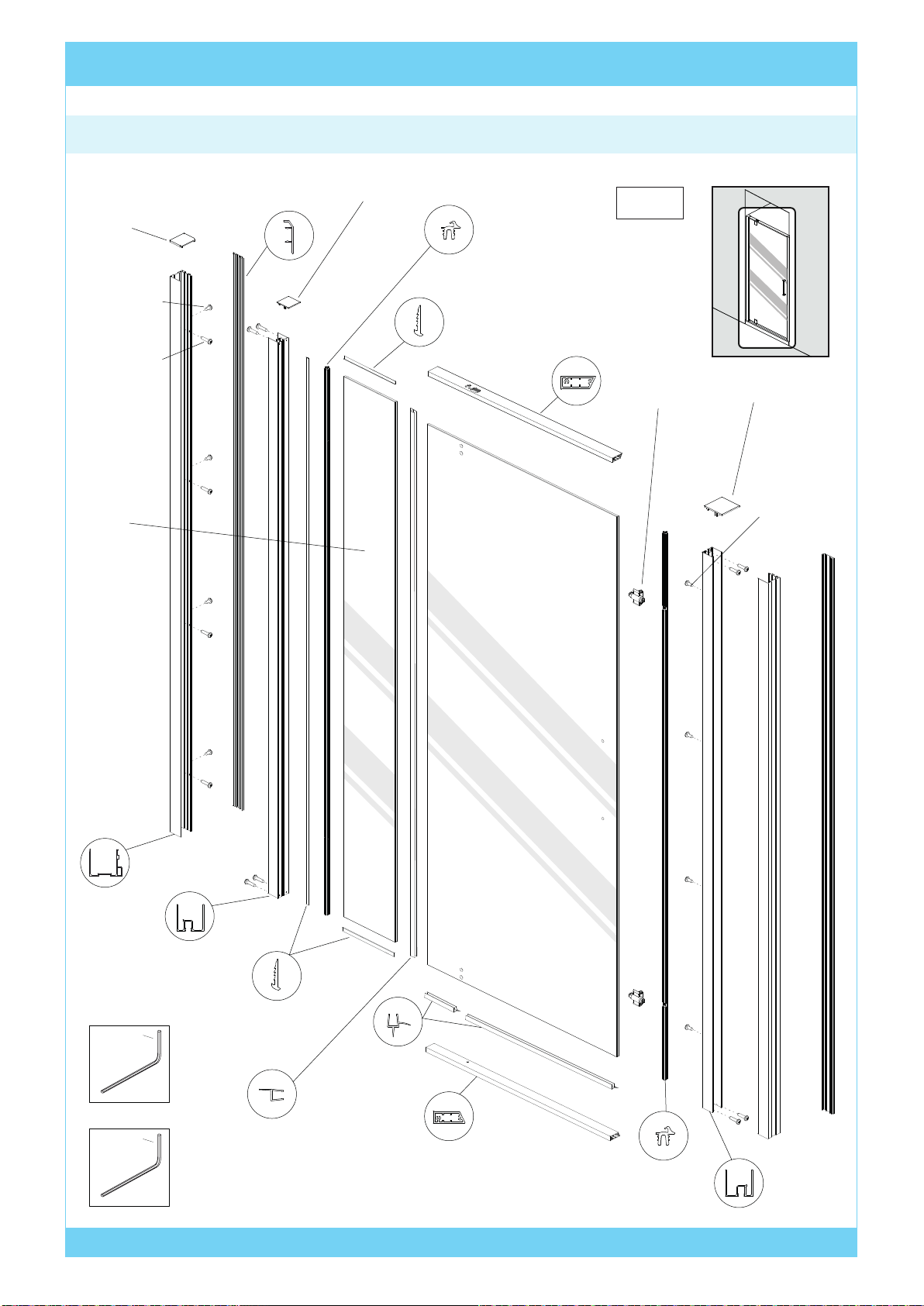

SPARE PARTS
Page 11
Door
Cap
Wall retainer
1291624-L
1291624-R
Screw
PAN ST3.5 x 9mm
1218007
Cap
Door frame
1203357
Glass
Fixed panel
1275435
(1200 only)
Extrusion
Door frame
1203375-SHP
Extrusion
Top sill
1203380-B-SHP (1000)
1203382-B-SHP (900)
1203378-B-SHP (1200 x 900)
Roller Catch
Top or bottom
1203397
Seal
Door hinge side
1203414
(900 & 1000 only)
Seal
Door drip
1210597
Seal
Door edge
1210498
(1200 only) Extrusion
Bottom sill
1203380-T-SHP (1000)
1203382-T-SHP (900)
1203378-T-SHP (1200 x 900)
Seal (notched)
Door catch side
1203418 Extrusion
Door corner post
1203374-SHP
Screw
PAN ST3.5 x 35mm
1108382
Cap
Door frame
1203357
Screw
PAN ST 3.9 x 12mm
1203404
Allen Key
3mm
1095457
Allen Key
2.5mm
1157853
Seal
Glazing gasket
1157883
(1200 only)
Seal
Glazing gasket
1157883
(1200 only)
Extrusion
Wall retainer cover
1270107-N-SHP
Extrusion
Wall retainer
1270108-N-SHP
INSTALLATION INSTRUCTIONSMILANO Alcove

Page 12

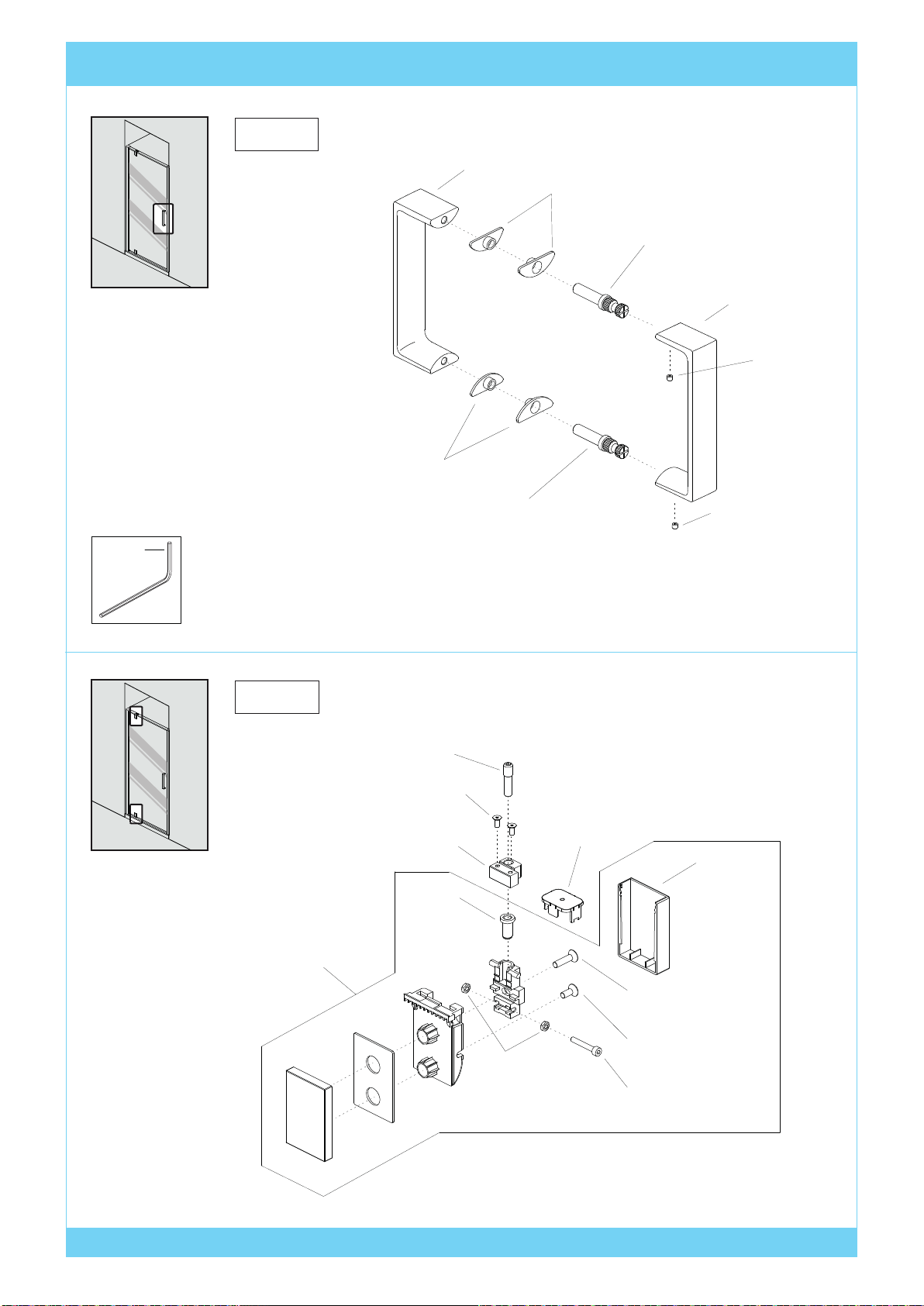

Hinges
Hinge Assembly
1203392-SHP
Allen Key
2.5mm
1157853
Pin
Hinge
1203394
Screw
Hinge base
1102118
Base
Hinge pin
1203393
Bush
Hinge pin
1203388
Cover
Hinge inner
1203387-SHP
Screw
CSK M5 X 20 HEX SS
1203390
Screw
CSK M5 X 14 HEX SS
1203389
Screw
CAP M4 X 25 HEX SS
1203391
Nut
M4 SS
1142858
Cover
Door sill
1203396
Handle
- Assembly with Dual handles
1210600-SHP
Handle
Screw
Connector
1203354-SHP
Screw
Connector
1203354-SHP
Gasket
1203355-SHP
Gasket
1203355-SHP
Handle
Grub Screw
M5 x 4 Hex
1210530
Grub Screw
M5 x 4 Hex
1210530
INSTALLATION INSTRUCTIONSMILANO Alcove

INSTALLATION INSTRUCTIONSMILANO Alcove
CONTACT AND WARRANTY INFORMATION
NEW ZEALAND
KOHLER NZ LTD
- For warranty and other information, please visit our website.
- For contact information, please refer to the Home Owner’s Guide.
Please refer to the Home Owner’s Guide for cleaning instructions.
CLEANING AND MAINTENANCE INSTRUCTIONS
www.englefield.co.nz
AUSTRALIA
KOHLER CO.
www.englefield.com
