Englefield VALENCIA ELITE User manual

Note: Tapware and accessories not included.
SHOWER | VALENCIA ELITE Round Pivot
Page 1 www.englefield.co.nz1371378-A02-H October 2023

Before installing the shower please read these instructions carefully to familiarise
yourself with the required tools, materials and installation sequences. Please leave these
instructions for the consumer after installation. Refer to the separate care and maintenance
guide for important care and cleaning information.
Ensure that the shower tray and wall, if applicable, are completely finished prior to
installing your shower door and return. Follow all warnings, cautions and instructions
contained in this guide.
1. ENGLEFIELD strongly recommends that a minimum of TWO persons install this
enclosure due to the weight of the door panels.
2. Toughened safety glass cannot be cut. Risk of injury or product damage.
3. Wear protective footwear when lifting panels.
4. Wear safety glasses when drilling.
1. The wall retainers must be installed onto a waterproof, vertical and flat wall surface.
Failure to do so will result in an unsatisfactory seal, which may cause property damage.
The wall inclination (out of squareness) is recommended to be out by no more than
+/- 4mm/m.
2. Please install this door onto an ENGLEFIELD Quick - Fit shower tray only, unless
installing directly onto tiled walls and floor.
®
3. Care must be taken when drilling into walls and floors to avoid any hidden pipes or
wires.
4. It is the responsibility of the INSTALLER to ensure that the installation complies with
council and or local authority bylaws.
SAFETY
!
!ATTENTION
Instructions, drawings, and diagrams contained in this manual present information available at the time of printing.
changes without further notice.
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 2 www.englefield.co.nz
BEFORE YOU BEGIN:
1371378-A02-H October 2023

3.0 mm
2.0 mm - supplied
#1
Square
Drive
& Phillips
2 x Wall
Channels
2 x Rails
2 x Seal Packs
(5 seals in total)
2 x Corner
Covers
1 x Door
2 x Fixed Panels
(1 hinge side &
1 handle side)
1 x Fittings Kit
(contents on pg 3)
1 x Handle Kit
(contents on pg 3)
!
ATTENTION
Short section of drip
strip may be packed
with different seals.
Do not discard.
2 x Wall
Finishing Strips
Page 3 www.englefield.co.nz
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS

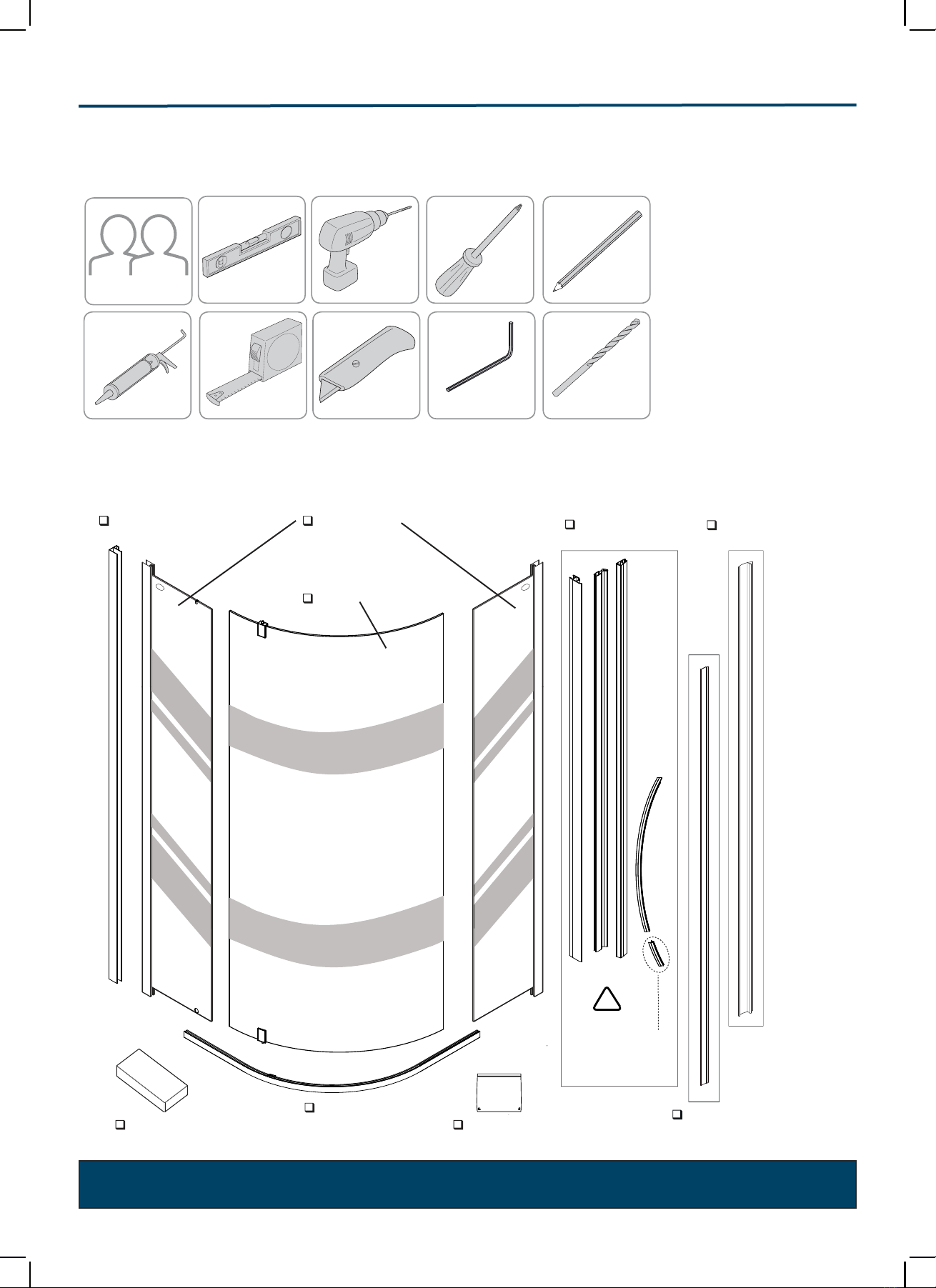

TOOLS AND MATERIALS REQUIRED:
PARTS IDENTIFICATION:
1371378-A02-H October 2023

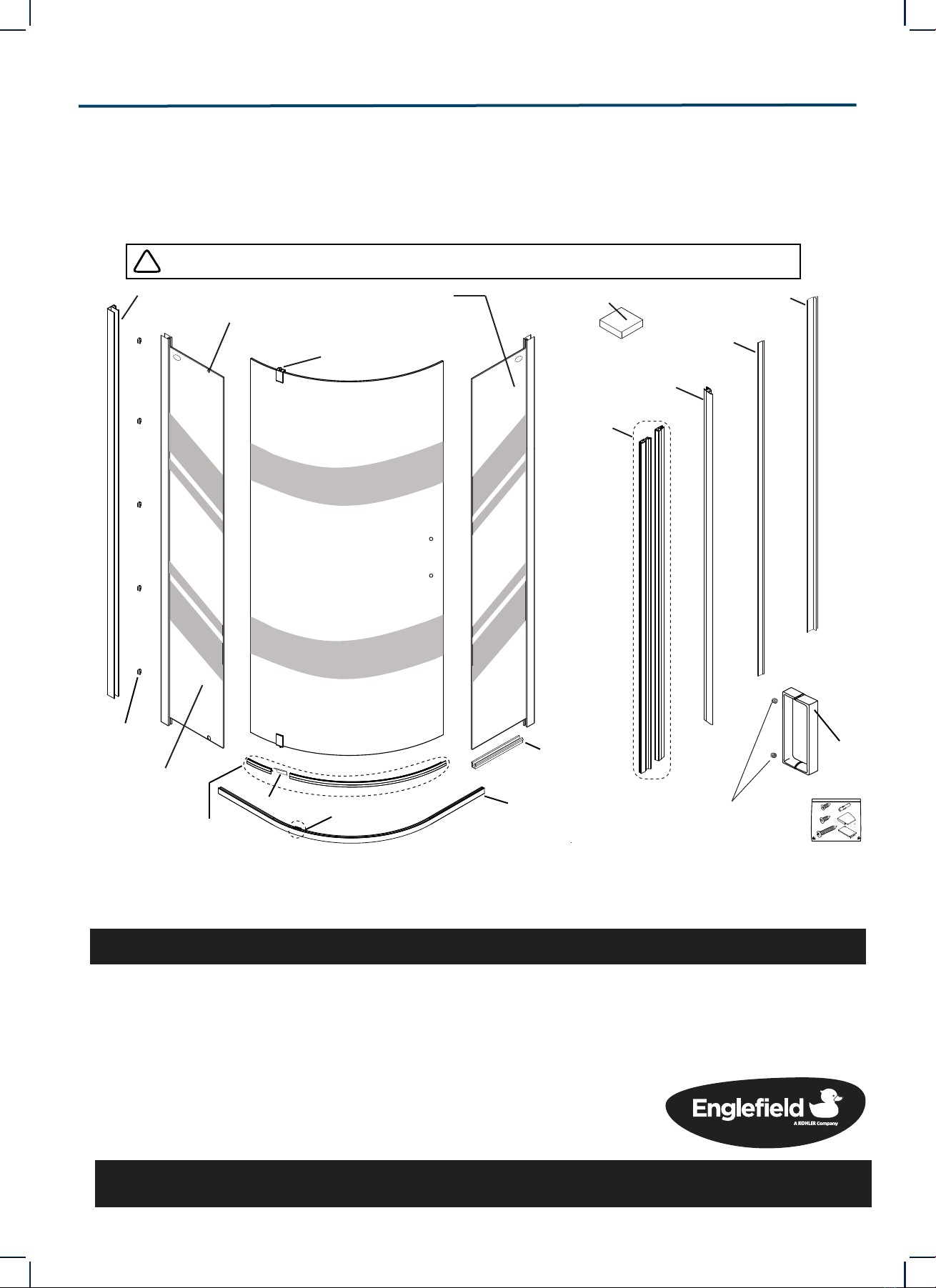

1 x Fittings Kit
1 x Handle Kit
Handle Assembly
4x Cover Caps
8x Retainer Screws
16x Fixing Screws
Hex Key
8x Wall Plugs
1x Hex Key
3mm
2x ST4*8 Screws
2x Pivot Sleeve
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 4 www.englefield.co.nz1371378-A02-H October 2023

Due to the weight of the glass panels Englefield strongly recommends
constructing double studs (as below) to fix the wall retainers to.
!ATTENTION
A
Double
studs
Double
studs
B
Size Dim ‘A’
900 x 900 900
1000 x 1000 1000
Dim ‘B’
900
1000
CONSTRUCTION REQUIREMENTS:
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 5 www.englefield.co.nz1371378-A02-H October 2023

Tray: For tray installation refer to the instructions supplied with the tray.
Wall: For wall installation refer to the instructions supplied with the wall.
- Proceed to Door and Return Installation.
- The door and return can be installed directly onto the wall and floor tiles.
- Proceed to Door and Return Installation.
OPTION 1 - Acrylic Wall & Tray
OPTION 2 - Tiled Wall & Acrylic Tray
OPTION 3 - Tiled Wall & Floor
Tray: For tray installation please refer to the instructions supplied with the tray.
Wall:
- The vertical wall retainers MUST be installed onto the waterproof membrane PRIOR TO
WALL TILING. If possible the complete door system should be installed onto the
waterproof membrane prior to wall tiling.
CAUTION: Failure to install the wall retainers first may
mean the door system may not fit on the shower tray
due to the tile thickness.
- If not installing the complete door system prior to tiling,
install the wall retainers and tiles. The retainer cover
extrusion can be inserted after tiling - there is no need
to leave a tiling gap. Refer to image.
- Proceed to Door and return installation.
Tile up to
retainer
INSTALLATION - OPTIONS:
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 6 www.englefield.co.nz1371378-A02-H October 2022

1
Caution: Ensure tray or tiled floor is
level & walls are vertical & square.
For tray base option:
- Mark 10mm in from top edge of tray.
For tiled base option:
- Mark from finished wall to outer edge
of retainer.
Tip: Cover the waste to prevent the loss of
small parts. If installing onto a tray protect
the tray surface during installation.
10 mm
10 mm
B
A
(a) Mark the locations of the wall retainers.
± 0 mm ± 0 mm
900 x 900
1000 x 1000
875 875
975 975
ASize B
INSTALLATION:
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 7 www.englefield.co.nz1371378-A02-H October 2023

2
± 0 mm
3 mm
x4
10 mm
x4

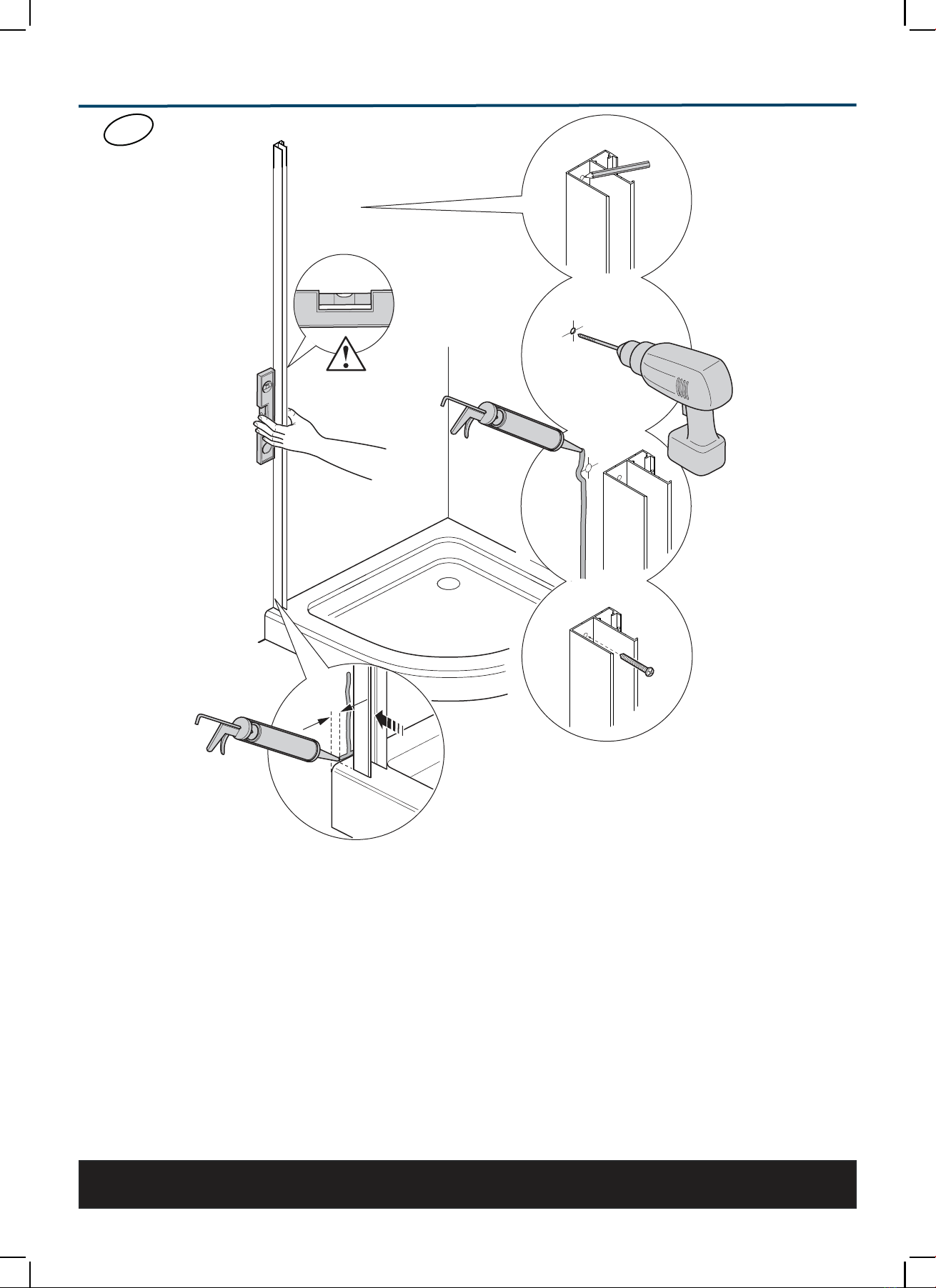

(a) Position the wall channels on the wall. The flange with pre-drilled holes should face
inside the shower enclosure. Using a level, make sure that the channel is upright.
Mark the position of the fixing holes down the centre of the channel, then remove
the channel.
Drill with a 3mm bit. For other types of wall structure, alternative fixings may be
required (not supplied).
(b)
(c)
Apply silicone sealant along the length of the wall and at the bottom where the wall
channel will be placed, including the top of the tray.
(d)
Position the wall channels on the wall and install the fixing screws.
(e)
Fully tighten the fixing screws, making sure that the wall channels are upright.
(f)
Repeat the process for the other wall channel.
(g)
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 8 www.englefield.co.nz
1371378-A02-H October 2023

3
(a)
(b)
Place one of the curved rails onto the floor and insert the notched glass panel, making
sure the glass locates correctly into the seal.
Install the fixing screws to secure the glass panel frame to the bottom rail.
Note! The enclosure is reversible to allow for left or right hand door opening.
!
The handle will be on the opposite side to the pivot point.
The notched glass and rail pivot blocks determine the door handing.
Ensure the return panels and rails are correctly oriented to match.
Logo badge on
outside of shower
(CleanLess ® glass
protection to inside)
Glass notch & pivot block must be on same side.
Swap rails around to match.
Pivot point at the left end indicates that the
handle will be on the right hand side.
Caution!
This process requires two persons.
Assemble outside the shower area.
!
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 9 www.englefield.co.nz
1371378-A02-H October 2023

4
!
(b)
(c)
Install the fixing screws to secure the glass panel frame to the bottom rail.
(a) Insert the second glass panel into the lower rail, making sure the glass locates
correctly into the seal.
(d)
(e)
Place the top curved rail in position, making sure that it locates correctly over the
glass panels
Install the fixing screws to secure the glass panel frames to the top rail.
Retighten all the screws, making sure that the whole assembly is secure and square.
Note! Do not fix the ST4*8 screw into the top rail at this stage.
Logo badge on
outside of shower
(CleanLess ® glass
protection to inside)
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 10 www.englefield.co.nz1371378-A02-H October 2023

5
(a)
(b)

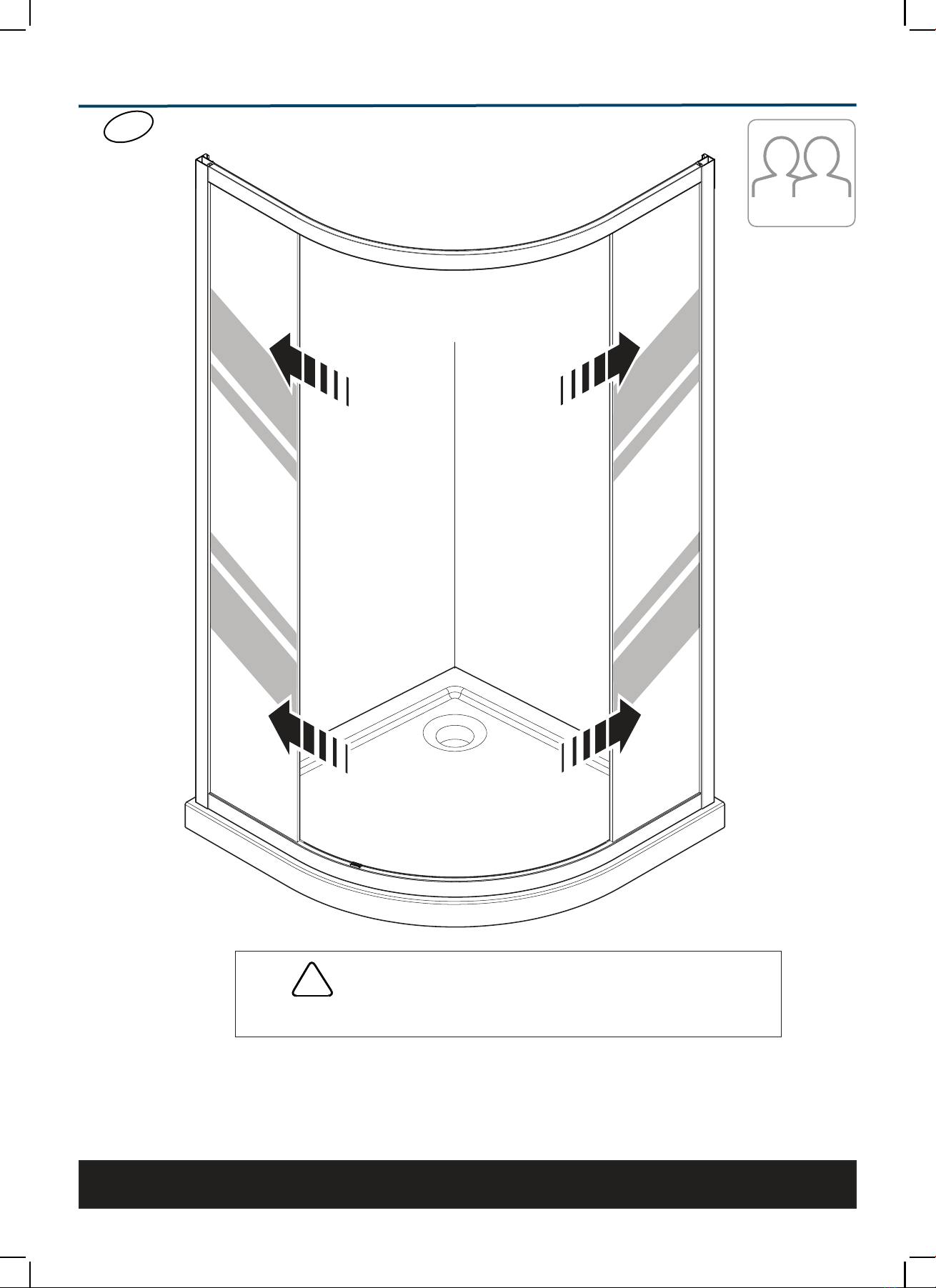

Lift the shower assembly into position and fit the upright frame posts into the fixed
wall channels on both sides of the enclosure.
Centralise the enclosure within the wall channels and make sure everything is level.
Note! This process requires two persons.
Make sure the enclosure is kept parallel when lifting into place.
!
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 11 www.englefield.co.nz1371378-A02-H October 2023

6
Ø 3 mm
x4
x4
± 0 mm
(b) Insert the retainer screws into one wall channel and tighten.
(c) Repeat the process for the other wall channel.

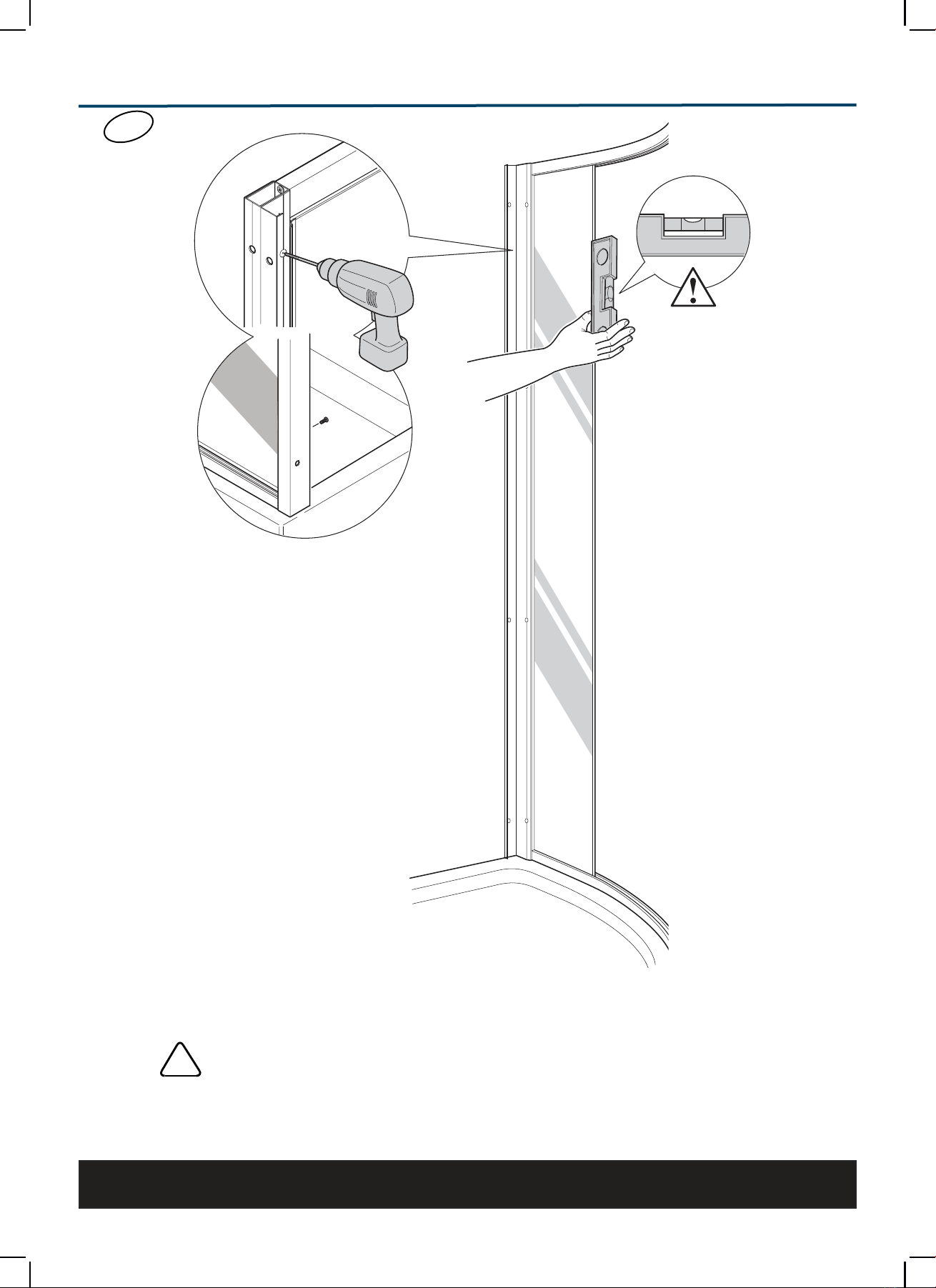

(a) From the inside of the shower enclosure, drill four 3mm holes in the door frame.
The hole locations are centre marked on the inside of the wall channel.
Caution! Take care not to drill all the way through or damage the shower.
!
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 12 www.englefield.co.nz1371378-A02-H October 2023

VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 13 www.englefield.co.nz1371378-A02-H October 2023
7
ST4*8
screw
(a) Insert pivot sleeve into the pivot block on rail, carefully lift the door panel,
locate the bottom pivot pin into the pivot sleeve.
(b) Install pivot sleeve onto top pivot pin, lift the top rail up until the door hinge pivot pin
can be fitted into top rail pivot block.
(c) Fix the ST4*8 screw into the return panel tightening bracket from the top side of rail.

8

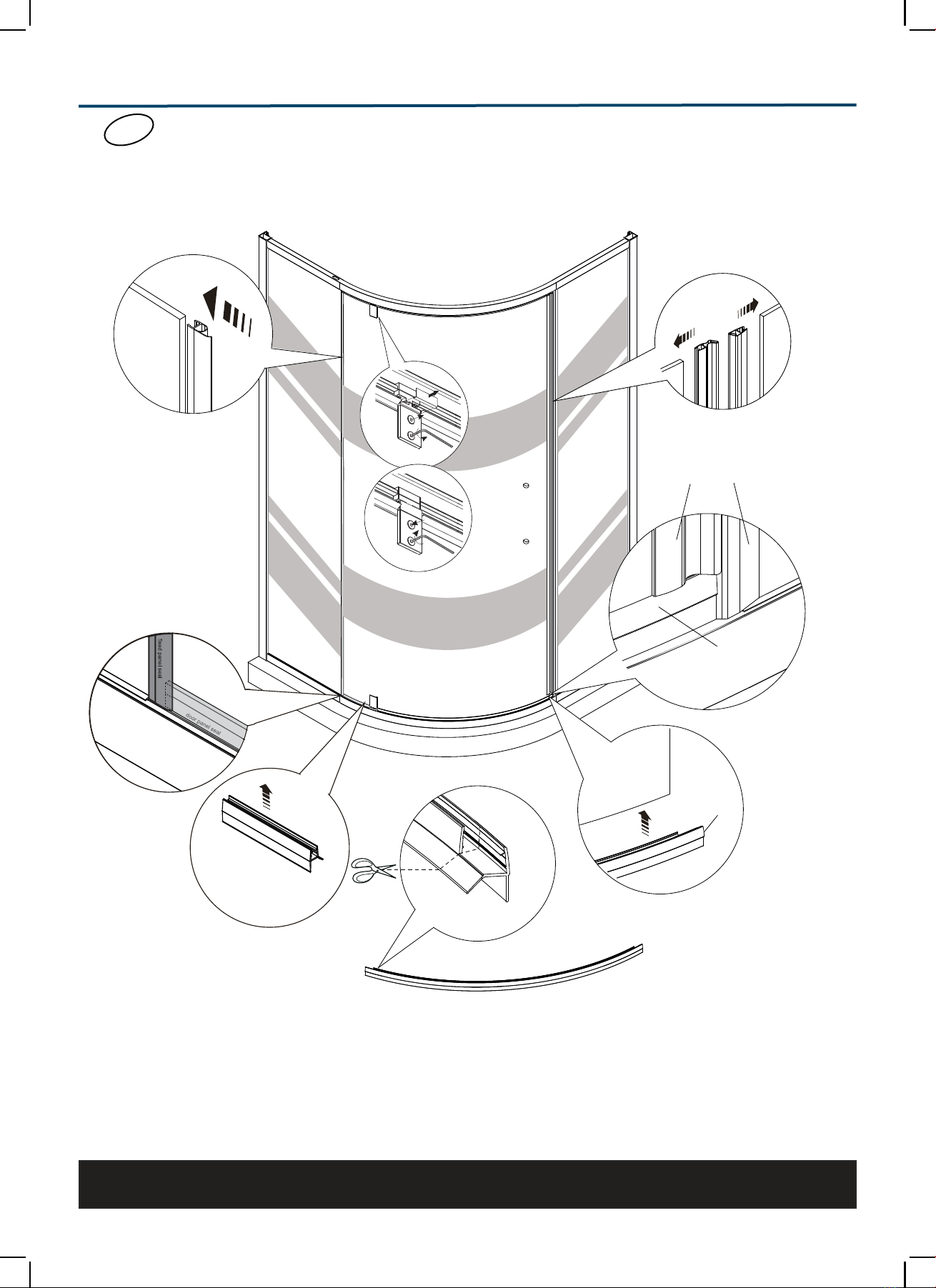

Door Seal
Door Seal
Magnetic Strip
Door
Door Seal
inside
outside
Fixed
Panel
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
Page 14 www.englefield.co.nz1371378-A02-H October 2023

9
Page 15 www.englefield.co.nz1371378-A02-H October 2023
24hrs
full length full length
(a)
Install the door handle, ensuring that the grub screws are on the underside.
(b)
Apply sealant along the outside surfaces of the enclosure. Do not seal from inside.
Fit the caps to the top of the extrusions. Add silicone or modify caps to fit if required.
(c)
Install the wall finishing strips, if desired.
(d)
Allow the silicone sealant to cure for 24 hours before use.
Installation complete.
(e)
wall board
retainer
channel
silicone
silicone or
adhesive
finishing
strip wall
liner
200mm up
200mm up
full length
fixed
panel
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS

Please refer to our website for cleaning instructions
PVC Seal
1460023
VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS
SPARE PARTS:
CLEANING AND MAINTENANCE INSTRUCTIONS
Wall Retainer
1278347-**
Top Rail Fixing Bracket
(Glass Grommet + Screw)
1456550
Horizontal Rail
900mm Top (left hinge): 1382124-**
900mm Bottom (left hinge): 1382125-**
1000mm Top (left hinge): 1382126-**
1000mm Bottom (left hinge): 1382127-**
Horizontal Seal
1382122
Mag Seals
(pair)
1382121
Door (glass only)
1382120
Fixed Panel
(Hinge Side)
1382116-** (900mm)
1382117-** (1000mm)
Rondo Pivot Hinge
1365838-**
Fixed Panel
(Handle Side)
1382118-** (900mm)
1382119-** (1000mm)
Fittings Kit
1382123-**
Retainer Clip
1278349
** Colour code must be specified when ordering
Rondo Pivot Block
1376827-**
Rail Seal
1382130 (900mm)
1382131 (1000mm)
Retainer Cover
1278348-**
Finishing Strip
1315530-**
Glass Aftercare Kit
98945A-NA
Handle Assembly
1365840-**
Vertical Seal
(fixed panel)
1376826
