EPC EPC9106 User manual

Development Board
EPC9106
Quick Start Guide
150 W/8 Ω Class-D Amplier
Revision D

QUICK START GUIDE Demonstration System EPC9106
2 | | EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017

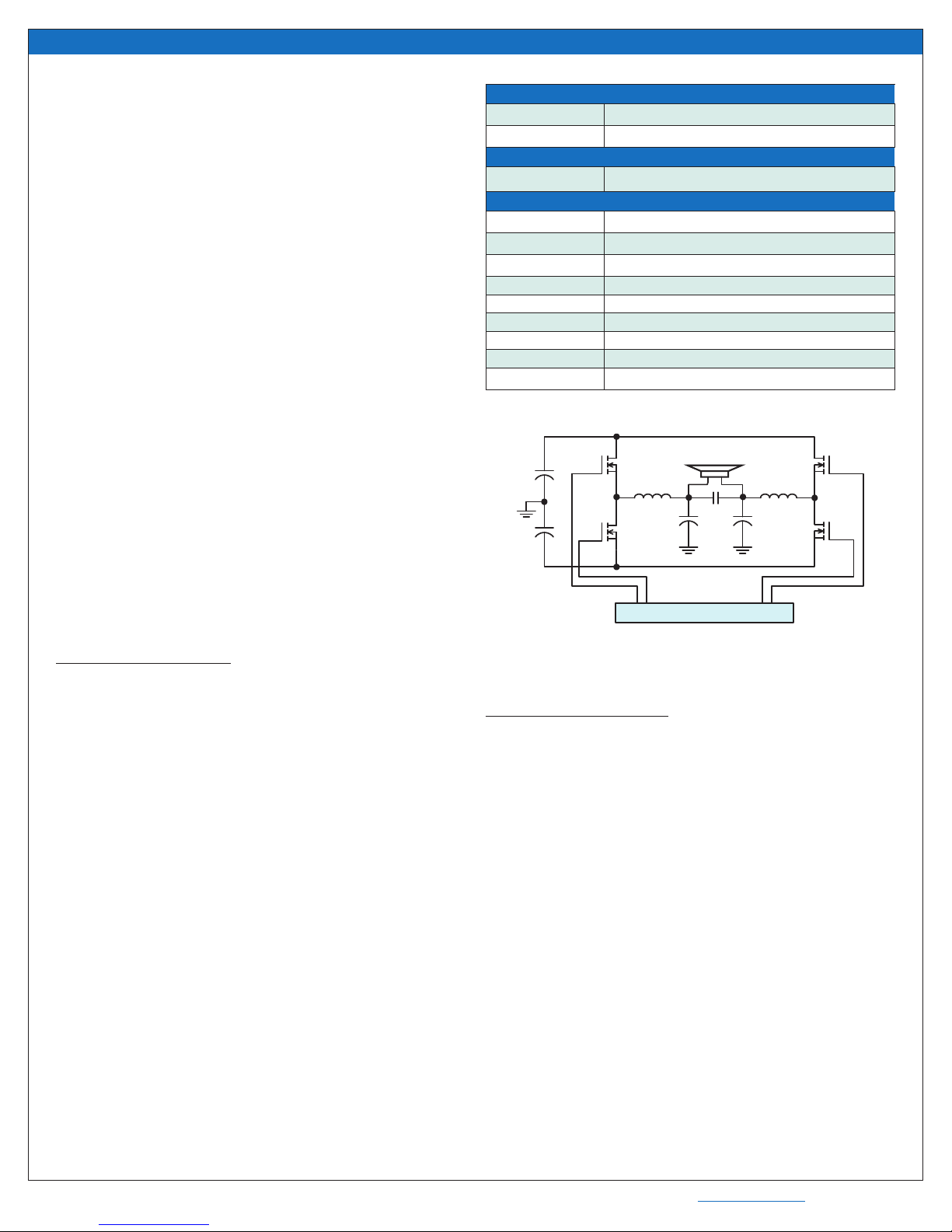

DESCRIPTION
The EPC9106 demonstration board is a reference design for a 150 W /
8 Ω Class D audio amplier. The demonstration board uses a
Bridge-Tied-Load (BTL) design, composed of four ground-referenced
Half-Bridge Output Stages. This architecture and topology allows
scalability and expandability.
The EPC9106 reference design has demonstrated 96% eciency at
150 W / 8 Ω, and 92% eciency at 250 W / 4 Ω.
The EPC9106 demonstration board features the EPC2016C
enhancement mode (eGaN®) eld eect transistor (FET), as well as
the Texas Instruments LM5113 gate driver.
A complete block diagram of the circuit is given in figure 1. For more
information on the EPC2016C eGaN FET please refer to the datasheet
available from EPC at www.epc-co.com. The datasheet should be read
in conjunction with this quick start guide.
QUICK START PROCEDURE
The EPC9106 demonstration system is easy to set up to evaluate the
performance of the EPC2016C eGaN FET in a Class D audio amplifier
application. Refer to figure 2 for proper connection and measurement
setup before following the testing procedures.
The EPC9106 can be operated using one of two alternative methods:
a. High Performance Setup
b. Lower Performance Setup
a. High Performance Setup
1. Connect the left/right analog inputs to the balanced analog input
XLR connectors
2. Connect the left/right analog input cables to the audio source
(pre-amp)
a. Use a CD/DVD player with a high-performance pre-amp
3. Turn the master volume control fully counter-clockwise
(minimum volume)
4. Connect the high-voltage power supply
5. Bring up both “+”and “–” power supply rails simultaneously
(use a tracking power supply). Both channel LEDs will remain RED
until ±20 V is reached.
6. Adjust high voltage power supply rails to around ±27 VDC
7. Connect left and right outputs to the loudspeaker of choice
NOTE: While both loudspeaker outputs are ground-referenced, neither is connected
to ground. DO NOT CONNECT EITHER OF THESE LOUDSPEAKER OUTPUTS TO ANY
SYSTEM OR TEST EQUIPMENT GROUND!!
8. Play audio source
9. Adjust master volume control to appropriate listening level
Analog Audio Input
Balanced Input Dierential XLR x 2, 2 VRMS Sensitivity
Unbalanced Input Single-ended RCA Phone x 2, 2 VRMS Sensitivity
Power Supply
Bipolar Power Supply ±20 VDC to ±30 VDC
Audio Performance
THD+N 0.003% 8 Ω, 1 kHz, 5 W Power
THD+N 0.005% 8 Ω, 1 kHz, 15 W Power
THD+N 0.006% 8 Ω, 1 kHz, 50 W Power
THD+N 0.03% 8 Ω, 1 kHz, Full Power
THD+N <0.03% 8 Ω, 20 Hz-20 kHz, -9 dB
Frequency Response 20 Hz – 20 kHz, ±0.5 dB, 8 Ω
SNR/DNR 107.8 dB (Unweighted), 110 dB (A-weighted)
Power Output (8 Ω) 150 WRMS Continuous
Power Output (4 Ω) 250 WRMS Continuous
Figure 1: Block diagram of single channel of EPC9106.
+HV
-HV
Input Processing & Drivers
b. Lower Performance Setup
1. Connect the left/right analog inputs to the unbalanced analog
input RCA phono connectors
2. Connect the left/right analog input cables to the audio source
a. Use a CD/DVD player with analog audio outputs
b If you use an MP3 player (or iPod), only use wave les,
or PCM audio – DO NOT USE MP3 les for demo!)
3. Turn the master volume control fully counter-clockwise
(minimum volume)
4. Connect the high-voltage power supply
5. Bring up both “+”and “–” power supply rails simultaneously
(use a tracking power supply). Both channel LEDs will remain RED
until ±20 V is reached.
6. Adjust high voltage power supply rails to around ±27 VDC
(use a tracking power supply)
7. Connect left and right outputs to the loudspeaker of choice
NOTE: While both Loudspeaker Outputs are Ground-Referenced, Neither is con-
nected to Ground. DO NOT CONNECT EITHER OF THESE LOUDSPEAKER OUTPUTS TO
ANY SYSTEM OR TEST EQUIPMENT GROUND!!
8. Play audio source
9. Adjust master volume control to appropriate listening level

QUICK START GUIDE Demonstration System EPC9106
EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017 | | 3

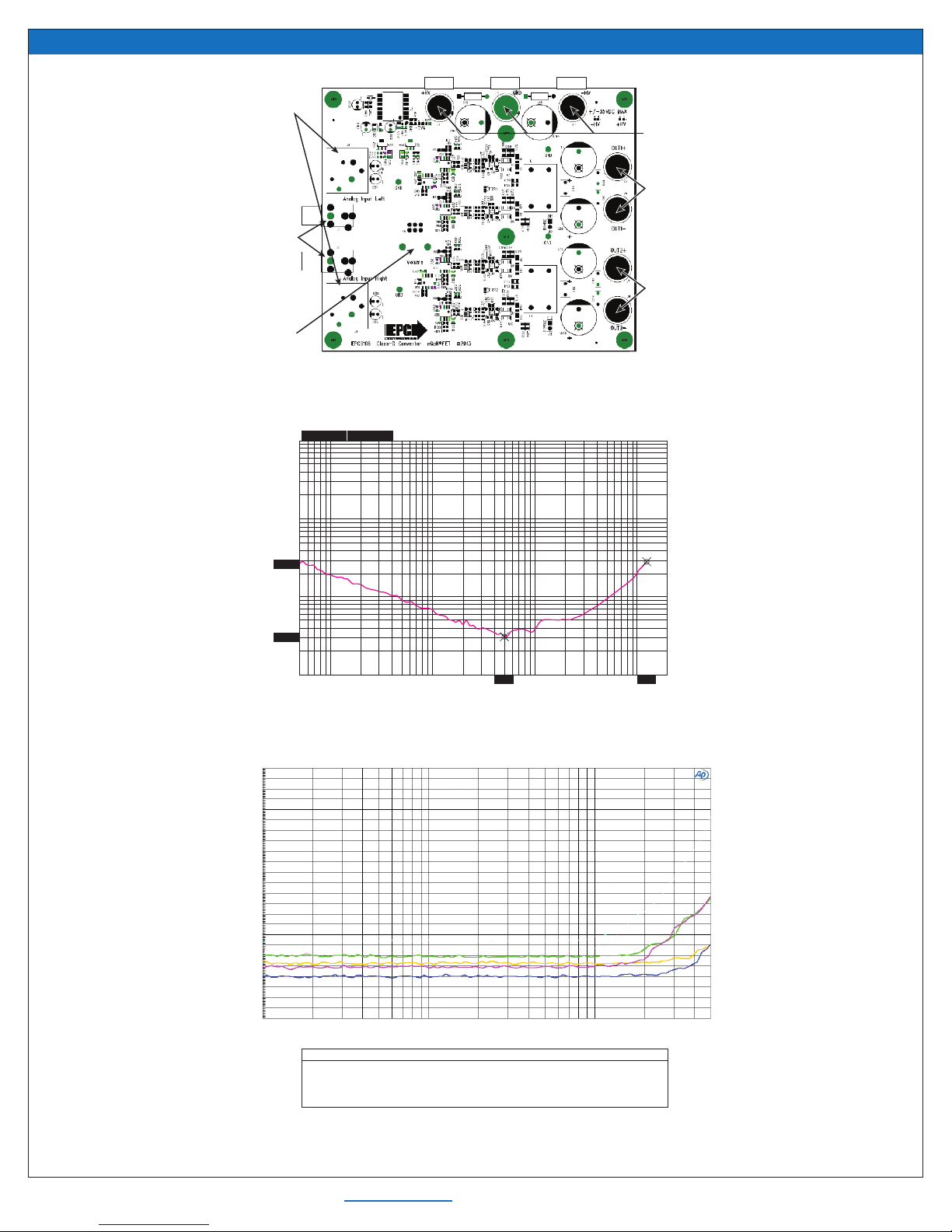

Figure 2: Proper connection and measurement setup.
Right Channel Output
Master Volume Control
Unbalanced Audio Input
(RCA Phono)
Balanced Audio Input
(XLR)
Left Channel Output
+/–27 V
DC
Power Supply
Use a dual tracking supply
Ground+27 V
DC
-27 V
DC
Figure 3:THD+N vs Power at 1 kHz, ± 27V, 8 Ω.
Figure 4: Noise oor ref to 168W (36.6VRMS), ± 27V, 8 Ω.
1
0.5
0.2
0.1
0.05
%
0.02
0.01
0.005
0.002
0.001 60m 100m 200m 500m 1 2
W
10 20
dx = 120.3 W
0.02767
0.00306
5.079 125.4
dy = 0.02461 %
dBr A
1m 2m 5m 10m 20m 50m 100m
Vms
Sweep Trace Color Line Style Thick Data Axis Comment
3 1 Green Solid 1 AnalyzerTHD+N Ampl A Left Pot Unity, Un-Wtd, -104.9dBr
5 1 Yellow Solid 1 AnalyzerTHD+N Ampl A Left Pot -6dB, Un-Wtd, -106.4dBr
11 1 Magenta Solid 1 AnalyzerTHD+N Ampl A Left Pot Unity, A-Wtd, -107.8dBrA
13 1 Blue Solid 1 AnalyzerTHD+N Ampl A Left Pot -6dB, A-Wtd, -109.9dBrA
-60
-65
-70
-75
-80
-85
-90
-95
-100
-105
-110
-115
-120

QUICK START GUIDE Demonstration System EPC9106
4 | | EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017
THERMAL CONSIDERATIONS
With this high eciency, the EPC9106 design allows for the complete
removal of any classical or historical heat sink requirement. This
elimination of the heat sink also reduces the potential contribution to
radiated EMI/EMC emissions. However, care must be taken to not exceed
the absolute maximum die temperature of 150°C and stay within the
constraints of the other components within the circuit.
NOTE. The EPC9106 demonstration board does not have any thermal protection on board.
Power block, no heatsink, eGaN FETs.
Figure 6: Amplier eciency vs. output power at 4 Ω.Figure 5: Amplier eciency vs.output power at 8 Ω.
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
0
Amplifier Efficiency at 8 ohms (%)
1 3 5 8 11 15 20 26 32 38 45 53 62 71 81 91 102 114 126 139 152 0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1
Amplifier Efficiency at 4 ohms (%)
2 6 10 16 22 30 40 50 62 75 89 105 121 139 159 179 201 224 247 267

QUICK START GUIDE Demonstration System EPC9106
EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017 | | 5
Table 1 : Bill of Material
Item Qty Reference Part Description Manufacturer / Part #
1 10 C1, C9, C37, C70, C78, C106, C140, C143,
C163, C164 CAP CER 10 µF 50 V X5R 1206 Taiyo Yuden, UMK316BBJ106ML-T
2 67
C2, C3, C8, C10, C14, C20, C28, C29, C30,
C38, C39, C41, C43, C54, C55, C56, C57,
C58, C59, C60, C62, C63, C64, C65, C71,
C72, C77, C79, C83, C87, C97, C98, C99,
C107, C108, C110, C116, C123, C124, C125,
C126, C127, C128, C129, C131, C132, C133,
C134, C139, C142, C146, C147, C153, C154,
C157, C159, C165, C184, C185, C186, C187,
C188, C189, C190, C191, C192, C193
CAP, CER, 0.1µF, 50V, 10%, X7R, 0603 Kemet, C0603C104K5RACTU
3 7 C4, C73, C148, C151, C155, C156, C160 CAP CER 10 µF 10 V 10% X7R 0805 Taiyo Yuden, LMK212B7106KG-TD
4 2 C5, C74 CAP, CERAMIC, 100 µF, 6.3 V, 20%, X5R,
1206 Taiyo Yuden, JMK316BJ107ML-T
5 16 C6, C15, C16, C23, C35, C40, C42, C66, C75,
C84, C85, C92, C104, C109, C111, C136 CAP CER 100 pF 50 V 1% NP0 0603 AVX Corporation, 06035A101FAT2A
6 6 C7, C36, C76, C105, C141, C144 CAP ALUM 1000 µF 50 V 20% RADIAL Nichicon, UPW1H102MHD
7 4 C11, C21, C80, C88 CAP AL ELECT, 22 µF, 16 V, 20%, RADIAL,
5x11MM Nichicon, UPW1C220MDD
8 8 C12, C19, C34, C47, C81, C91, C103, C114 CAP, CER, 1000 pF, 100 V, 5%, NPO, 0603 Murata Electronics North America,
GRM-1885C2A102JA01D
9 4 C13, C17, C82, C86 CAP FILM 1000 pF 50 VDC 0805 Panasonic, ECH-U1H102JX5
10 4 C18, C69, C90, C138 CAP, CER, 0.033 µF, 100 V, 10%, X7R, 1210 AVX Corporation, 12101C333KAT2A
11 4 C22, C68, C89, C137 CAP, CER, 0.68 µF, 100 V, 10%, X7R, 1210 Murata Electronics North America,
GRM-32CR72A684KA01L
12 8 C25, C33, C52, C67, C95, C102, C121, C135 CAP FILM 100 pF 16 VDC 0603 Panasonic, ECH-U1C101GX5
13 7 C26, C49, C94, C118, C145, C152, C167 CAP CER 1 µF 25 V 10% X7R 0603 Taiyo Yuden, TMK107B7105KA-T
14 4 C27, C53, C96, C122 CAP, FILM 100 pF, 16 V 0603 DNP
15 2 C32, C101 CAP, CER, 100 pF, 50 V, 5%, NP0, 0603 Kemet, C0603C101J5GACTU
16 4 C44, C50, C115, C119 CAP, MET POLY FILM, 0.47 µF, 100 VDC,
5%, RADIAL Kemet, R82EC3470DQ70J
17 4 C45, C51, C112, C120 CAP, CER, 3300 pF, 100 V, 5%, NPO, 0805 TDK Corporation, C2012C0G2A332J
18 2 C46, C113 CAP, MET POLY FILM, 0.22 µF, 100 VDC,
5%, RADIAL Kemet, R82EC3220AA70J
19 3 C149, C150, C161 CAP, AL ELECT, 100 µF, 10 V, 20%, RADIAL,
5X15MM Nichicon, UPW1A101MDD6
20 2 C158, C166 CAP, CER, 0.01 µF, 50 V, 10%, X7R, 0603 Kemet, C0603C103K5RACTU
21 1 C162 CAP CER 0.033 µF 50 V 10% X7R 0603 Samsung, CL31B333KBCNNNC
22 4 C168, C171, C174, C177 CAP, CER, 0.22 µF, 100 V, 20%, X7S, 0805 TDK Corporation, C2012X7S2A224M
23 4 C169, C172, C175, C178 CAP, CER, 0.01 µF, 100 V, 10%, X7R, 0805 TDK Corporation, C2012X7R2A103KT5
24 4 C170, C173, C176, C179 CAP, CER, 2200 pF, 100 V, 10%, X7R, 0805 TDK Corporation, C2012X7R2A222K
25 4 C180, C181, C182, C183 CAP, CER, 47 pF, 50 V, 5%, COG, 0805 Kemet, C0805C470J5GACTU
26 8 D1, D5, D8, D11, D14, D17, D20, D23 DIODE SCHOTKY 100 V 2 A SOD-123FL Micro Commercial, SL210PL-TP
27 14 D2, D4, D7, D9, D13, D15, D19, D22, D27,
D28, D29, D30, D31, D32
DIODE, ZHCS400, SCHOTTKY BARR, 40 V,
400 MA, SOD-323 Zetex Semiconductors, ZHCS400
28 8 D3, D6, D10, D12, D16, D18, D21, D24 DIODE SCHOTTKY 40 V 150 MW SOD-523 Diodes Inc, SDM03U40-7
29 2 D25, D26 DIODE, 1N4003, 1 AMP, 200 V, DO-41 Fairchild Semiconductor, 1N4003
30 2 D35, D37 DIODE ZENER 39 V 200 MW SOD323 Diodes Inc, BZT52C39S-7-F
31 2 D36, D38 DIODE ZENER 18 V 200 MW SOD323 ON Semiconductor, MM3Z18VT1G
32 4 D39, D40, D41, D42 DIODE ZENER 5.1 V 200 MW SOD323 ON Semiconductor, MM3Z5V1T1G
33 4 D43, D44, D45, D46 DIODE ZENER 27 V 300 MW SOD323 NXP Semiconductors, BZX384-B27, 115
34 2 J1, J5 Jack, Phono RCA, w/Switch, R/A, PCB
Mount Keystone Electronics, 972
35 2 J2, J6 XLR Connectors 3P FEMALE HORIZ PIN 1
& GRD SEPARATE Neutrik, NC3FAH2
36 4 J3, J7, J9, J11 JACK, BINDING BANANA, INSUL, RED Keystone Electronics, 7006
37 3 J4, J8, J10 JACK, BINDING BANANA, INSUL, BLACK Keystone Electronics, 7007
38 2 J12, J13 CONN, HDR, 2x1, 0.100, GOLD FLASH FCI, 68001-202HLF

QUICK START GUIDE Demonstration System EPC9106
6 | | EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017
Table 1 : Bill of Material (continued)
Item Qty Reference Part Description Manufacturer / Part #
39 2 LED1, LED2 LED, SMT, RED, 10 mcd, 10 mA, 1.8 V, 0603 Lite-On, LTST-C190CKT
40 2 LED3, LED4 LED, Green, TSS TYPE, 0603, 5 mA,
12 mcd, 2.9 Vfd Panasonic, LNJ326W83RA
41 1 LED5 LED, Pure Blue, TSS TYPE, 0603, 5 mA,
12 mcd, 2.9 Vfd Panasonic, LNJ926W8CRA
42 2 L1, L2 INDCTR, SHLD, 15 µH, 20%, Dual, 12.5 A Sagami, 7W15B-150M-R
43 1 L3 INDUCTOR/XFRMR 27.4 µH 0.29 A SMD Cooper Bussmann, VPH1-0190-R
44 6 Q1, Q7, Q17, Q18, Q22, Q24 XSTR, FMMT593, PNP, 100 V, 1 A, SOT-23 Diodes Inc, FMMT53TA
45 8 Q2, Q3, Q5, Q6, Q8, Q9, Q11, Q12 TRANS GAN 100 V 11 A BUMPED DIE EPC, EPC2016C
46 7 Q4, Q10, Q19, Q20, Q21, Q23, Q25 XSTR, FMMT493, NPN, 100 V, 1 A, SOT-23 Diodes Inc, FMMT493TA
47 4 Q13, Q14, Q15, Q16 XSTR, MBT2907A, PNP, 60 V, 500 MA,
SOT-23 Diodes Inc, MMBT2907A-7-F
48 4 R1, R32, R56, R86 RES 0.022 Ω 2 W 1% 2512 TE Connectivity, RLP73M3AR022FTDF
49 10 R2, R8, R33, R57, R62, R87, R129, R132,
R135, R138 RES, 4.99 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF4991V
50 12 R3, R4, R13, R14, R58, R59, R67, R68,
R142, R146, R147, R150 RES, 10.0 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1002V
51 1 R5 POTROTARY 10 K Ω AUDIO 14 MM DUAL Alps, RK09L12D0A1T
52 12 R6, R17, R28, R31, R43, R53, R60, R70,
R82, R85, R97, R107 RES, 100 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1000V
53 8 R7, R11, R35, R55, R61, R65, R89, R109 RES, 100 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1003V
54 4 R9, R36, R63, R90 RES, 22.1 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF2212V
55 4 R12, R41, R69, R95 RES, 15.0 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1502V
56 4 R15, R42, R66, R96 RES, 750 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF7503V
57 8 R16, R22, R44, R50, R71, R77, R98, R105 RES, 2.2, 1%, 1/10 W, 0603 Panasonic, ERJ-3RQF2R2V
58 8 R19, R37, R38, R46, R73, R91, R92, R100 RES, 2.21 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF2211V
59 8 R20, R47, R74, R101, R128, R131, R134,
R137 RES, 562, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF5620V
60 4 R21, R49, R75, R103 RES, 18.2 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1822V
61 5 R25, R79, R123, R149, R152 RES, 1 K, 1%, 1/16 W, 0603 Panasonic, ERJ-3EKF1001V
62 6 R26, R80, R130, R133, R136, R139 RES, 681, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF6810V
63 14 R27, R30, R81, R84, R121, R140, R141,
R143, R144, R145, R148, R151, R153, R154 RES, 49.9 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF4992V
64 2 R29, R83 RES, 1 K, 1%, 1/10 W, 0805 Panasonic, ERJ-6ENF1001V
65 4 R34, R54, R88, R108 RES, 7.5 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF7501V
66 4 R40, R48, R94, R102 RES, 10.0 K, 1%, 1/8 W, 0805 Panasonic, ERJ-6ENF1002V
67 8 R110, R111, R112, R113, R114, R115,
R116, R117 RES, 3.32 K, 1%, 1 W, 2512 Vishay/Dale, CRCW25123K32FKEG
68 2 R118, R119 RES, 0, JMP, 1/10 W, 0603 Panasonic, ERJ-3GEY0R00V
69 1 R120 RES 806 Ω 1/10 W 1% 0603 SMD Panasonic, ERJ-3EKF8060V
70 1 R122 RES, 7.87K, 1%, 1/16 W, 0603 Panasonic, ERJ-3EKF7871V
71 4 R124, R125, R126, R127 RES, 680, 1%, 1/8 W, 0805 Panasonic, ERJ-6ENF6800V
72 4 R155, R160, R161, R166 RES, 200, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF2000V
73 4 R156, R159, R162, R165 RES, 18.7 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1872V
74 4 R157, R158, R163, R164 RES, 1.82 K, 1%, 1/10 W, 0603 Panasonic, ERJ-3EKF1821V
75 4 R167, R168, R169, R170 RES, 10.0 K, 1%, 1/8 W, 0805 Panasonic, ERJ-6ENF1002V
76 2 U1, U17 IC, LM1117, 5 V REG, 800 MA, SOT-223 STMicroelectronics, LD1117S50CTR
77 4 U2, U11, U18, U25 IC GATE AND 2-INPUT SGL SOT-23-5 Fairchild Semiconductor, NC7SZ08M5X
78 4 U3, U4, U7, U20 IC, NJM4580E, OP AMP, DUAL, SOIC8-150 NJR, NJM4580E
79 4 U5, U13, U21, U27 IC COMP GRND-SENSNG LOWPWR SOIC8 Linear Technology, LT1671CS8#PBF
80 4 U6, U12, U19, U26 IC GATE DRVR HALF BRDG 5 A 12S MD Texas Instruments, LM5113TME/NOPB
81 4 U8, U14, U22, U28 IC, LM4562, OP AMP, DUAL, SOIC8-150 Texas Instruments, LM4562MA/NOPB
82 4 U9, U15, U23, U29 IC GATE NOR 2-INPUT SGL SOT-23 Fairchild Semiconductor, NC7SZ02M5X
83 4 U10, U16, U24, U30 IC, NC7SZ04, UHSINVERTER, SOT23-5 Fairchild Semiconductor, NC7SZ04M5X
84 1 U31 IC, 78L05, 5 V REG, 100 mA, SOT89 STMicroelectronics, L78L05ACUTR
85 1 U32 IC, 79L05, -5 V REG, +5 V, 100 mA, SOT-89 STMicroelectronics, L79L05ACUTR
86 1 U33 IC REG BUCK SYNC ADJ 20TSSOP Texas Instruments, LM3102MH/NOPB
87 4 X1, X2, X3, X4 Test Point, PCB, Thru-Hole, Black Keystone Electronics, 5011

QUICK START GUIDE Demonstration System EPC9106
EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017 | | 7
VCC = (-HV + 5) V
Ch1 Out + Ch1 Out -
From OV/UV Detect
7VF
+HV
-HV +5V
-5V
SW1+
nERR1
nERR1
nERR1
-HV1
+HV1
IN-1+
nERR1
nERR1
+HV1 -HV1
IN-1-
IN-1+
IN-1-
OUT1+
SW1-
-HV1 +HV1
-HV1
+HV1
OUT1-
7VF +HV
-HV
+5V
-5V
nERR1
7VF +HV -HV +5V -5V
+5V
-5V
-HV1
+HV
-HV1
-HV1
-HV1
VCC1
VCC1
-HV1
-HV1
-5V
+5V
-HV1
-HV1
-HV1
VCC1
VCC1 VCC1
VCC1
7VF
-HV1
-HV1
-HV1
-HV1
-HV1
VCC1
VCC1
-HV1
-5V
-HV1
+5V
-HV1
-HV1
-HV1
VCC1 VCC1
-HV1
VCC1
-HV1
VCC1
-HV1 -HV1
+5V +5V
-HV
+HV
+HV
D9 ZHCS400 SOD-323
2 1
D44 BZX384-B27 27V SOD-323
2 1
C170 2200pF 100VDC 0805
R50 2.2 0603
C28 0.1uF 0603
D5 SL210PL-TP SOD123FL
2 1
R44 2.2 0603
J4
BLACK
C14 0.1uF 0603
C45 3300pF 100V 0805
C63 0.1uF 0603
C16
100pF
0603
R37 2.21K 0603
R160 200 0603
+
C36 1000uF 50V PW Series
R28 100 0603
C33 100pF 0603
R47 562 0603
C65 0.1uF 0603
R129 4.99K 0603
C52 100pF 0603
C57 0.1uF 0603
C54 0.1uF 0603
C42
100pF
0603
D10
SDM03U40 SOD-523
21
J1 2
1
3
C180 47pF 0805
C27 DNP 0603
D6
SDM03U40 SOD-523
2
1
U14C
LM4562
4 8
C56 0.1uF 0603
C20 0.1uF 0603
R132 4.99K 0603
R30
49.9K 0603
R17 100 0603
C171 0.22uF 100VDC 0805
D2 ZHCS400 SOD-323
2 1
D43 BZX384-B27 27V SOD-323
2 1
D1 SL210PL-TP SOD123FL
2 1
C58 0.1uF 0603
U3C
NJM4580E
4 8
+
C5 100uF 6.3V 1206
+
C21
22uF
16V
PW Series
R16 2.2 0603
C37 10uF 1206 50V
R26 681 0603
C66
100pF
0603
R9 22.1K 0603
C59 0.1uF 0603
R155 200 0603
+ -
U7A
NJM4580E
3
2
1
Q2 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
R33 4.99K 0603
R48 10K 0805 R167 DNP 0805
U8C
LM4562
4 8
+ -
U4A
NJM4580E
3
2
1
C13 1000pF 0805
R159 18.7K 0603
R3 10K 0603
C41 0.1uF 0603
Q23
FMMT493TA
SOT-23NPN
1
23
R25 1K 0603
CW
R5A
POT-10K-DUAL
1
2
3
C169 0.01uF 100VDC 0805
C30 0.1uF 0603
R40 10K 0805
LED1 RED LED LED0603
21
C25 100pF 0603
C32 100pF 0603
C60 0.1uF 0603
C39 0.1uF 0603
+
C11
22uF
16V
PW Series
C191 0.1uF 0603
R38 2.21K 0603
C68 0.68uF 100VDC 1210
C47
1000pF
0603
R22 2.2 0603
R32 0.022 2512 1W
VCC
GND
N/C
U16
NC7SZ04
2
3
4
5
1
R130 681 0603
D29 ZHCS400 SOD-323
21
C29 0.1uF 0603
Q3 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
J3
RED
C19
1000pF
0603
U1
LM1117-5V
SOT-223
GND
1
TAB 4
VIN
3
VOUT 2
+ -
U8A
LM4562
3 2
1
R156 18.7K 0603
J12
12
Q4 FMMT493TA SOT-23 NPN
1
2 3
D39 MM3Z5V1T1G 5.1V SOD-323
2 1
C17 1000pF 0805
R27 49.9K 0603
C69 0.033uF 100VDC 1210
R20 562 0603
R133 681 0603
C34 1000pF 100V 0603
R8 4.99K 0603
C10 0.1uF 0603 50VDC
VCC
GND
N/C
U10
NC7SZ04
2
3
4
5
1
Q1 FMMT593TA SOT-23 PNP
1
23
U6
LM5113TME
12-BUMP-USMD
HI
B4
LI
A4
HOL D1
HOH D2
HB D3
HS C1
LOL A1
LOH B1
VSS
A2
VDD C4
VDD A3
HS D4
Q6 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
R168 DNP 0805
C18 0.033uF 100VDC 1210
C35
100pF
0603
R7 100K 0603
Q22
FMMT593TA
SOT-23PNP
1
23
C67 100pF 0603
+ -
U4B
NJM4580E
5
6
7
R2 4.99K 0603
GND
VCC
U9
NC7SZ02
2
34
51
+ -
U3A
NJM4580E
3
2
1
C64 0.1uF 0603
R42 750K 0603
R46 2.21K 0603
D12
SDM03U40 SOD-523
2
1
R35
100K
0603
C172 0.01uF 100VDC 0805
C1 10uF 1206 50V
C181 47pF 0805
R15 750K 0603
C168 0.22uF 100VDC 0805
Q13 MMBT2907A SOT23 PNP
1
23
R13 10K 0603
GND
VCC
U2
NC7SZ08
1 2 3 4
5
L1B 15uH
7W15B
3 4
C190 0.1uF 0603
R31 100 0603
C2 0.1uF 0603 50VDC
R158 1.82K 0603
C46 0.22uF FILM 100VDC
C51 3300pF 100V 0805
C55 0.1uF 0603
C49 1uF 0603 25VDC
C15
100pF
0603
R54 7.5K 0603 R34 7.5K 0603
U4C
NJM4580E
4 8
CASE
R5C
POT-10K-DUAL
78
R14 10K 0603
MH
MH CASE
J2NC3FAH2
1
3
2
4
5
6
R43 100 0603
R53 100 0603
D40 MM3Z5V1T1G 5.1V SOD-323
2 1
R55 100K 0603
C184 0.1uF 0603
R4 10K 0603
C9 10uF 1206 50V
C44 0.47uF FILM 100VDC
U5
LT1671
V+
1
IN+
2
IN-
3
V-
4LATCH 5
GND 6
QOUT 7
QOUT 8
R125 680 0805
R157 1.82K 0603
D30 ZHCS400 SOD-323
21
R29 1K 0805
U13
LT1671
V+
1
IN+
2
IN-
3
V-
4LATCH 5
GND 6
QOUT 7 QOUT 8
Q14 MMBT2907A SOT23 PNP
1
23
C23
100pF
0603
C4 10uF 0805 10V
R12 15.0K 0603
C185 0.1uF 0603 D8
SL210PL-TP SOD123FL
2 1
U12
LM5113TME
12-BUMP-USMD
HI
B4
LI
A4
HOL D1
HOH D2
HB D3
HS C1
LOL A1
LOH B1
VSS
A2
VDD C4
VDD A3
HS D4
D11 SL210PL-TP SOD123FL
2 1
Q5 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
R19 2.21K 0603
R36 22.1K 0603
R131 562 0603
+ -
U14A
LM4562
3 2
1
D4 ZHCS400 SOD-323
2 1
GND
VCC
U11
NC7SZ08
1 2 3 4
5
C62 0.1uF 0603
C22 0.68uF 100VDC 1210
R11 100K 0603
R128
562 0603
C3 0.1uF 0603
C53 DNP 0603
R1 0.022 2512 1W
C12 1000pF 0603
R41 15.0K 0603
R21 18.2K 0603
R49 18.2K 0603
R6 100 0603
GND
VCC
U15
NC7SZ02
2
34
51
C43 0.1uF 0603
R124 680 0805
C6
100pF
0603
C173 2200pF 100VDC 0805
C40
100pF
0603
D3
SDM03U40 SOD-523
2
1C26
1uF 0603 25VDC
+ -
U14B
LM4562
5 6
7
C50 0.47uF FILM 100VDC
+ -
U8B
LM4562
5 6
7
+
C7 1000uF 50V PW Series
D7 ZHCS400 SOD-323
2 1
L1A 15uH
7W15B
1 2
C8 0.1uF 0603
C38 0.1uF 0603 50VDC

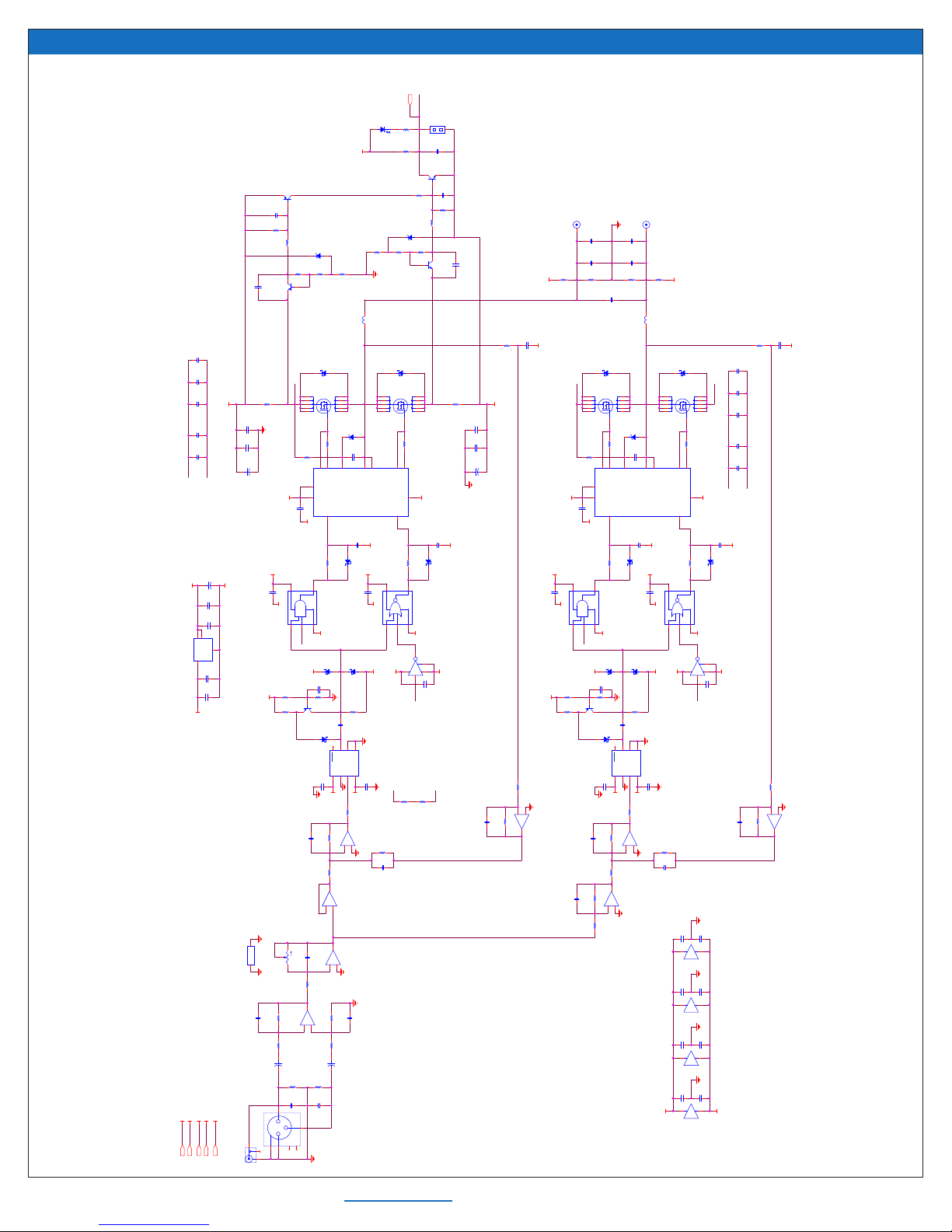

Figure 7a: Demonstration board EPC9106 schematic, channel 1.

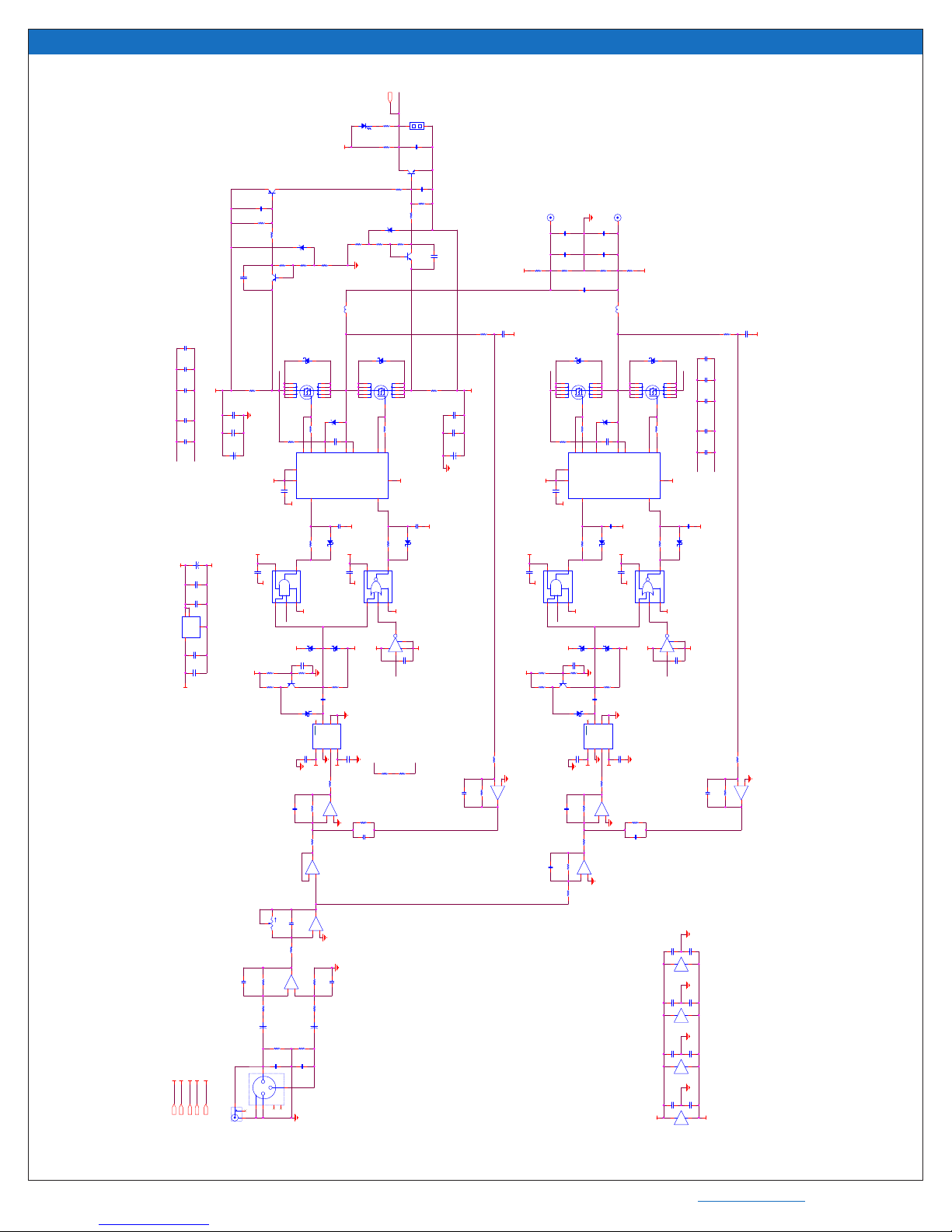

QUICK START GUIDE Demonstration System EPC9106
8 | | EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017
VCC = (-HV + 5) V
Ch2 Out - Ch2 Out +
From OV/UV Detect
7VF +HV -HV +5V
-5V
nERR2
nERR2
+HV2
nERR2
nERR2
+HV2
-HV2
SW2-
IN-2+
IN-2- IN-2+ IN-2-
-HV2
+HV2
-HV2
+HV2
SW2+
nERR2
-HV2
OUT2-
OUT2+
7VF +HV
-HV
+5V
-5V
nERR2
7VF +HV -HV +5V -5V
+5V
-5V
-HV2
-HV2
-HV2
-HV2
VCC2
VCC2
-HV2
-HV2
-HV2
-HV2
-HV2
VCC2
VCC2 VCC2
7VF
-HV2
-HV2
-HV2
-HV2
-HV2
VCC2
VCC2
-HV2
-HV2
-HV2
-HV2
-HV2
VCC2 VCC2
-HV2
VCC2
-HV2
VCC2
-HV2 -HV2
+5V
-5V
+5V
-5V
+5V
+5V
+HV
-HV
VCC2
+HV
+HV
C193 0.1uF 0603
R164 1.82K 0603
C187 0.1uF 0603
R65 100K 0603
U21
LT1671
V+
1
IN+
2
IN-
3
V-
4LATCH 5
GND 6
QOUT 7
QOUT 8
C75
100pF
0603
Q9 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
GND
VCC
U25
NC7SZ08
1 2 34
5
C109
100pF
0603
C107 0.1uF 0603 50VDC
Q10 FMMT493TA SOT-23 NPN
1
2 3
D22 ZHCS400 SOD-323
2 1
R136 681 0603
C78 10uF 1206 50V
R73 2.21K 0603
C126 0.1uF 0603
+ -
U28A
LM4562
3 2
1
C71 0.1uF 0603 50VDC
R109 100K 0603
Q11 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
R77 2.2 0603
R101 562 0603
R100 2.21K 0603
R69 15.0K 0603
C138 0.033uF 100VDC 1210
C113 0.22uF FILM 100VDC
U27
LT1671
V+
1
IN+
2
IN-
3
V-
4LATCH 5
GND 6
QOUT 7 QOUT 8
+
C74 100uF 6.3V 1206
Q8 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
C82 1000pF 0805
Q12 EPC2016C
1
2 3
4 5
6 7
8 9
10 11
R162 18.7K 0603
C131 0.1uF 0603
C81 1000pF 0603
D18
SDM03U40 SOD-523
2
1
R96 750K 0603
C110 0.1uF 0603
D19 ZHCS400 SOD-323
2 1
MH
MH CASE
J6NC3FAH2
1
3
2
4
5
6
C175 0.01uF 100VDC 0805
U26
LM5113TME
12-BUMP-USMD
HI
B4
LI
A4
HOL D1
HOH D2
HB D3
HS C1
LOL A1
LOH B1
VSS
A2
VDD C4
VDD A3
HS D4
Q24
FMMT593TA
SOT-23PNP
1
23
C101 100pF 0603
R126 680 0805
R138 4.99K 0603
R137 562 0603
J7
RED
C116 0.1uF 0603
C95 100pF 0603
C111
100pF
0603
C118 1uF 0603 25VDC
R163 1.82K 0603
R74 562 0603
R88 7.5K 0603
R63 22.1K 0603
C102 100pF 0603
+ -
U22B
LM4562
5 6
7
R58 10K 0603
U20C
NJM4580E
4 8
R170 DNP 0805
+
C80
22uF
16V
PW Series
D45 BZX384-B27 27V SOD-323
2 1
C129 0.1uF 0603
CW
R5B
POT-10K-DUAL
4
5
6
C92
100pF
0603
R57 4.99K 0603
R84 49.9K 0603
C136
100pF
0603
D20 SL210PL-TP SOD123FL
2 1
R91 2.21K 0603
C114
1000pF
0603
D16
SDM03U40 SOD-523
2
1
R135 4.99K 0603
+
C76 1000uF 50V PW Series
R98 2.2 0603
J13
12
C137 0.68uF 100VDC 1210
C90 0.033uF 100VDC 1210
C178 0.01uF 100VDC 0805
R60 100 0603
C127 0.1uF 0603
R75 18.2K 0603
D23 SL210PL-TP SOD123FL
2 1
C132 0.1uF 0603
U22C
LM4562
4 8
U17
LM1117-5V
SOT-223
GND
1
TAB 4
VIN
3
VOUT 2
D14 SL210PL-TP SOD123FL
2 1
C94 1uF 0603 25VDC
U28C
LM4562
4 8
+ -
U7B
NJM4580E
5
6
7
+ -
U22A
LM4562
3
2
1
R62 4.99K 0603
C115 0.47uF FILM 100VDC
R67 10K 0603
C84
100pF
0603
GND
VCC
U23
NC7SZ02
2
34
51
R79 1K 0603
C87 0.1uF 0603
C183 47pF 0805
C106 10uF 1206 50V
R87 4.99K 0603
R81 49.9K 0603
L2B 15uH
7W15B
3 4
C99 0.1uF 0603
GND
VCC
U29
NC7SZ02
2
34
5
1
C135 100pF 0603
C97 0.1uF 0603
R139 681 0603
R83 1K 0805
D24
SDM03U40 SOD-523
2
1
D21
SDM03U40 SOD-523
2
1
L2A 15uH
7W15B
1 2
J5 2
1
3
R59 10K 0603
C125 0.1uF 0603
C177 0.22uF 100VDC 0805
R95 15.0K 0603
C134 0.1uF 0603
C120 3300pF 100V 0805
D17 SL210PL-TP SOD123FL
2 1
D42 MM3Z5V1T1G 5.1V SOD-323
2 1
C103 1000pF 100V 0603
R102 10K 0805
LED2 RED LED LED0603
21
R107 100 0603
VCC
GND
N/C
U24
NC7SZ04
2
3
4
5
1
D46 BZX384-B27 27V SOD-323
2 1
R71 2.2 0603
C176 2200pF 100VDC 0805
C192 0.1uF 0603
Q25
FMMT493TA
SOT-23NPN
1
23
C104
100pF
0603
C128 0.1uF 0603
D31 ZHCS400 SOD-323
21
C186 0.1uF 0603
Q15 MMBT2907A SOT23 PNP
1
23
+
C88
22uF
16V
PW Series
C85
100pF
0603
R166 200 0603
J8
BLACK
C86 1000pF 0805
VCC
GND
N/C
U30
NC7SZ04
2
3
4
5
1
R86 0.022 2512 1W
R127 680 0805
+ -
U3B
NJM4580E
5
6
7
Q7 FMMT593TA SOT-23 PNP
1
23
R97 100 0603
C124 0.1uF 0603
R82 100 0603
C122 DNP 0603
C77 0.1uF 0603
R66 750K 0603
C174 0.22uF 100VDC 0805
R134 562 0603
R89 100K 0603
C70 10uF 1206 50V
Q16 MMBT2907A SOT23 PNP
1
23
+
C105 1000uF 50V PW Series
+ -
U20B
NJM4580E
5
6
7
C73 10uF 0805 10V
C79 0.1uF 0603 50VDC
D32 ZHCS400 SOD-323
21
D41 MM3Z5V1T1G 5.1V SOD-323
2 1
C133 0.1uF 0603
R61 100K 0603
R68 10K 0603
D13 ZHCS400 SOD-323
2 1
R90 22.1K 0603
R169 DNP 0805
+ -
U20A
NJM4580E
3
2
1
R92 2.21K 0603
C96 DNP 0603
R103 18.2K 0603
U7C
NJM4580E
4 8
R56 0.022 2512 1W
C72 0.1uF 0603
GND
VCC
U18
NC7SZ08
1 2 3 4
5
R80 681 0603
C119 0.47uF FILM 100VDC
+ -
U28B
LM4562
5 6
7
R70 100 0603
R161 200 0603
C121 100pF 0603
C108 0.1uF 0603
R94 10K 0805
C182 47pF 0805
R105 2.2 0603
C83 0.1uF 0603
U19
LM5113TME
12-BUMP-USMD
HI
B4
LI
A4
HOL D1
HOH D2
HB D3
HS C1
LOL A1
LOH B1
VSS
A2
VDD C4
VDD A3
HS D4
R85 100 0603
C91
1000pF
0603
R108 7.5K 0603
C98 0.1uF 0603
C123 0.1uF 0603
D15 ZHCS400 SOD-323
2 1
R165 18.7K 0603
C89 0.68uF 100VDC 1210
C179 2200pF 100VDC 0805
C112 3300pF 100V 0805
Figure 7b: Demonstration board EPC9106 schematic, channel 2.

QUICK START GUIDE Demonstration System EPC9106
EPC – EFFICIENT POWER CONVERSION CORPORATION | WWW.EPC-CO.COM | COPYRIGHT 2017 | | 9
Figure 7c: Demonstration board EPC9106 schematic, power supplies.
High Voltage Power Input
+35Vdc GND -35Vdc
Ground Clips
+HV -HV
PVUPVO
-5V
-7VA
+5V
+HV
+7VA
GND +HV
+HV-
7VF
nERR1
nERR2
+5V
-5V
+HV
-HV
7VF
nERR1
nERR2
+5V
-5V
-HV
+HV
+HV
+7VA
+HV -HV
7VF
-HV
+HV
+HV -HV
D27 ZHCS400 SOD-323
2 1
R116 3.32K 2512
R146 10K 0603
C162 0.033uF 1206
R145 49.9K 0603
C154 0.1uF 0603
R143 49.9K 0603
C165 0.1uF 0603 50VDC
R119
0-Ohm
R113 3.32K 2512
R121 49.9K 0603
C152 1uF 0603 25VDC
Q20
FMMT493TA
SOT-23 NPN
1
2 3
R140 49.9K 0603
R141 49.9K 0603
C139
0.1uF 0603 50VDC
R142 10K 0603
R120 806 0603
R147 10K 0603
Q18
FMMT593TA
SOT-23 PNP
1
23
C167 1uF 0603 25VDC
R114 3.32K 2512
D38 MM3Z18VT1G 18V SOD-323
2 1
Q17
FMMT593TA
SOT-23 PNP
1
23
X2
C140
10uF 1206 50V
L3 IND-VP1-0190
4
1
5
2
3
6
9
12
7
10
11
8
R152
1K
0603
R122 7.87K 0603
+
C161 100uF 10V PW Series
R112 3.32K 2512
R110 3.32K 2512
J11
RED
C164 10uF 1206 50V
R111 3.32K 2512
+
C141 1000uF 50V PW Series
R115 3.32K 2512
D36 MM3Z18VT1G 18V SOD-323
2 1
C157 0.1uF 0603
D25 1N4003 DO-41
LED3 GRN LED LED0603
21
D26 1N4003
DO-41
C143 10uF 1206 50V
D37 BZT52C39S-7-F 39V SOD-323
2 1
X1
C142 0.1uF
0603
50VDC
D35 BZT52C39S-7-F 39V SOD-323
2 1
C188 0.1uF 0603 50VDC
C158 0.01uF 0603 50V
R118
0-Ohm
Q21
FMMT493TA
SOT-23 NPN
1
2 3
C146 0.1uF 0603
R151 49.9K 0603
C160 10uF 0805 10V
C189 0.1uF 0603 50VDC
X3
R123 1K 0603
Q19
FMMT493TA
SOT-23 NPN
1
2 3
C156 10uF 0805 10V
LED4 GRN LED LED0603
2 1
R148 49.9K 0603
U31
78L05 SOT89
GND
2
Vin
3Vout 1
TAB
4
J10
BLACK
C147 0.1uF 0603
D28 ZHCS400 SOD-323
2 1
C155 10uF 0805 10V
R150 10K 0603
C148 10uF 0805 10V
+
C149 100uF 10V PW Series
+
C144 1000uF 50V PW Series
U33
LM3102
NC
1
SW
2
SW
3
VIN
4
VIN
5
BST
6
AGND
7
SS
8
NC
9
NC
10 GND 11
NC 12
FDBK 13
EN 14
RON 15
VCC 16
PGND 17
PGND 18
NC 19 NC 20
PAD
21
U32
79L05 SOT89
GND 1
Vin
2Vout 3
Tab
4
C145 1uF 0603 25VDC
J9
RED
R153 49.9K 0603
C1660.01uF
0603
R117 3.32K 2512
+
C150 100uF 10V PW Series
C151 10uF 0805 10V
LED5 Blue LED LED0603
21
R144 49.9K 0603
C153 0.1uF 0603
X4
R154 49.9K 0603
R149
1K
0603
C163 10uF 1206 50V
C159 0.1uF 0603 50VDC

Demonstration Board Notication
The EPC9106 board is intended for product evaluation purposes only and is not intended for commercial use. Replace components on the Evaluation Board only with those parts shown on the parts
list (or Bill of Materials) in the Quick Start Guide. Contact an authorized EPC representative with any questions.
This board is intended to be used by certied professionals, in a lab environment, following proper safety procedures. Use at your own risk.
As an evaluation tool, this board is not designed for compliance with the European Union directive on electromagnetic compatibility or any other such directives or regulations. As board builds are
at times subject to product availability, it is possible that boards may contain components or assembly materials that are not RoHS compliant. Ecient Power Conversion Corporation (EPC) makes
no guarantee that the purchased board is 100% RoHS compliant.
TheEvaluation board (or kit)is for demonstrationpurposesonly andneitherthe Board northis QuickStart Guide constitute a salescontract or createanykindof warranty, whether express orimplied,
as to the applications or products involved.
Disclaimer: EPC reserves the right at any time, without notice, to make changes to any products described herein to improve reliability, function, or design. EPC does not assume any liability arising
out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights, or other intellectual property whatsoever, nor the rights of others.
EPC Products are distributed through Digi-Key.
www.digikey.com
For More Information:
Please contact [e-mail]
or your local sales representative
Visit our website:
www.epc-co.com
Sign-up to receive
EPC updates at
bit.ly/EPCupdates
or text“EPC”to 22828
