ETAS XETK-S31.0 User manual

ETAS XETK-S31.0
Emulator Probe for MPC57xx and
EMU57xx MCU Family
User Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stipu-
lated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2021 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
XETK-S31.0 -User Guide R09 EN -07.2021

ETAS Contents
Contents
XETK-S31.0 -User Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Identifications on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.5 Taking the Product Back and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.6 CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.7 UKCA Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.8 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.9 Declarable Substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.10 Use of Open Source Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 ECU Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.3 XETK Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.5 ECU Voltage Supervisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.6 Data Emulation and Data Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.7 JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.8 Trigger Modes: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.9 Pinless Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.9.1 Startup Handshake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.9.2 XETK Trigger Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.10 Timer Triggering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.11 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.12 Pull CalWakeUp until Startup Handshake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.1 Connection to the ECU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents

ETAS Contents
XETK-S31.0 -User Guide 4
5.2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.2.1 XETK Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.2.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 XETK Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.2 Configuration Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.1 ETAS Compatible Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.2 PC with one Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.3 Software Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.2 Data Emulation and Measurement Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2.1 Data Emulation Memory and Microcontroller Support . . . . . . . . . . . . . . . 33
7.2.2 Measurement Data Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4 XETK Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.5 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.6 Test Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.7 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.8 JTAG Timing Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.8.1 JTAG Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.8.2 JTAG Timing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.9 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.9.1 ECU Interface Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7.9.2 ECU Interface Connector CON2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
7.10 Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.10.1 ECU Interface Connector CON2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.10.2 VDDSTBY_SENSE Connector CON3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.10.3 Power Supply Connector CON4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.11 Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7.11.1 Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7.11.2 Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8 Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1 ECU Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.1 CBAM230 Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.2 CBAM240 Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.1.3 CBAM271 Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.2 Combined Interface and Power Supply Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.3 PC Interface Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8.3.1 CBE200-3 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8.3.2 CBAE200 Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8.4 ETAS Module Interface Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.4.1 CBE230 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.4.2 CBAE330 Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.5 Power Supply Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.5.1 Cable K70.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

ETAS Contents
XETK-S31.0 -User Guide 5
8.5.2 Cable KA50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.6 ECU Interface Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.6.1 XETK - ECU Adapter ETAM2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.6.2 XETK - ECU Adapter ETAM3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.6.3 XETK - ECU Adapter ETAM5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.1 XETK-S31.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.2 XETK - ECU Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.3 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.4 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.4.1 ECU Adapter Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.4.2 Combined ECU Adapter and Power Supply Cables . . . . . . . . . . . . . . . . . . 51
9.4.3 Ethernet Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.4.4 Power Supply Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10 Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

ETAS About this Document
XETK-S31.0 -User Guide 6
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided.
WARNING
indicates a hazardous situation of medium risk, which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk, which may result in minor or mod-
erate injury if not avoided.
NOTICE
indicates a situation, which may result in damage to property if not avoided.

ETAS About this Document
XETK-S31.0 -User Guide 7
1.3 Typographical Conventions
Hardware
1.4 Presentation of Supporting Information
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 8
2 Basic Safety Notices
This chapter contains information about the following topics:
• General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . 8
• Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Identifications on the Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Taking the Product Back and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• UKCA Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
• RoHS Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Declarable Substances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Use of Open Source Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
2.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Incorrect operation or
operation by users without sufficient qualification may lead to injuries or death
or property damages.
General Safety at Work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
2.3 Intended Use
An ETK is an electronic component that is installed in a vehicle control unit
(ECU) to read data from the ECU or write data to the ECU.
Application Area of the Product
This product was developed and approved for automotive applications. For use
in other application areas, please contact your ETAS contact partner.
NOTE
Carefully read the documentation (Product Safety Advice and this User
Guide) that belongs to the product prior to the startup.

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 9
Requirements for Operation
The following requirements are necessary for safe operation of the product:
• Use the product only according to the specifications in the correspond-
ing User Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Do not apply any voltages to the connections of the product that do not
correspond to the specifications of the respective connection.
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the prod-
uct.
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply system.
• Ensure that the connections of the power supply are easily accessible.
• The module does not have an operating voltage switch.
– Switch on the product by connecting the power supply cable with the
power supply or by switching on the power supply.
– Switch off the product by disconnecting it from the power supply or
by switching off the power supply.
Potential Equalization
DANGER
Connect the power cord only with a vehicle battery or with a lab power sup-
ply! A connection to power outlets is prohibited.
- Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the power
cord.
- Never apply force to insert a plug into a socket. Ensure that there is no con-
tamination in and on the connection, that the plug fits the socket, and that you
correctly aligned the plugs with the connection.
- Do not use the product in a wet or damp environment.
- Do not use the product in potentially explosive atmospheres.
- Keep the surfaces of the product clean and dry.
CAUTION
Danger from inadvertent current flow!
Depending on the design, the shield of the Ethernet cables can be connected
with the housing of the module. Install the products only on components with
the same electrical potential or isolate the products from the components.

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 10
Requirements for the technical State of the Product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Maintenance and Cleaning
The product is maintenance-free. Use a lightly moistened, soft, lint-free cloth
for cleaning the product. Ensure that no moisture can enter. Never spray clean-
ing agents directly onto the product. Do not user any sprays, solvents or abra-
sive cleaners which could damage the product.
Transport and Installation
CAUTION
The ETK can be damaged or destroyed!
Some components of the ETK board may be damaged or destroyed by elec-
trostatic discharges. Please keep the ETK in its storage package until it is
installed.
The board should only be taken from its package, configured, and installed at
a work place that is protected against static discharge.
CAUTION
During installation and removal, ECU and ETK must be in a de-eenergized
state!
CAUTION
Risk of short circuiting the internal signals of the ETK!
When you mount the ETK to the ECU, you must ensure that the screws and
washers used will not penetrate the ETK printed circuit board.
CAUTION
Differences in case ground potentials can cause high currents to flow
through the shields of the cables that connect various system modules.
Ensure that the module mounting surfaces are at the same electrical poten-
tial or insulate the modules from their mounting surfaces.

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 11
Cabling
Use exclusively ETAS cables at the connections of the product! Adhere to the
maximum permissible cable lengths! Observe the assignment of the cables to
the connectors! Detailed information about cabling is located in the ETK User
Guides.
2.4 Identifications on the Product
Fig. 2-1Adhesive Label (Example: Label for XETK-S14.0)
The following symbols are used for identifications of the product:
Symbol Description
The User Guide must be read prior to the startup of the
product!
Symbol for WEEE, see chapter 2.5 on page 12
Marking for CE conformity, see chapter 2.6 on page 12
Marking for UKCA conformity, see chapter 2.7
on page 12
Symbol for China RoHS, see chapter on page 13
Symbol for China RoHS, see chapter on page 13
Symbol for electrostatic sensitive components
XETK-S14.0A Product designation (example)
F00K 110 722 Order number of the product (example)
SN: yyxxxxx Serial number (7-digit)
XXXX/YY Product version
ZZZZ Year of manufacture
ETAS GmbH,
PO Box 300220,
70442 Stuttgart,
Germany
Manufacturer's address

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 12
2.5 Taking the Product Back and Recycling
The European Union has passed a directive called Waste Electrical and Elec-
tronic Equipment, or WEEE for short, to ensure that systems are setup through-
out the EU for the collection, treating and recycling of electronic waste.
This ensures that the devices are recycled in a resource-saving way represent-
ing no danger to health or the environment.
Fig. 2-2WEEE-Symbol
The WEEE symbol (see Fig. 2-2 on page 12) on the product or its packaging
shows that the product must not be disposed of as residual garbage.
The user is obliged to collect the old devices separately and return them to the
WEEE take-back system for recycling. The WEEE directive concerns all ETAS
devices but not external cables or batteries.
For more information on the ETAS GmbH Recycling software, contact the ETAS
sales and service locations.
2.6 CE Conformity
With the CE mark attached to the product or its packaging, ETAS confirms that
the product corresponds to the product-specific, applicable directives of the
European Union.
The CE Declaration of Conformity for the product is available upon request.
2.7 UKCA Conformity
With the UKCA mark attached to the product or its packaging, ETAS confirms
that the product corresponds to the product-specific, applicable standards and
directives of Great Britain.
The UKCA declaration of conformity for the product is available on request.
NOTE
For symbols and product information one or several adhesive labels can be
used.

ETAS Basic Safety Notices
XETK-S31.0 -User Guide 13
2.8 RoHS Conformity
European Union
The EU Directive 2011/65/EU limits the use of certain dangerous materials for
electrical and electronic devices (RoHS conformity).
This product does not contain any of the restricted substances specified in the
EU Directive 2011/65/EU or exceeds the maximum concentrations stipulated
therein. For individual electronic components used in our products, there are
currently no equivalent alternative substances, which is why we make use of
the exceptions 7A and 7C-I in Annex III of this Directive.
ETAS confirms that the product corresponds to this directive which is applica-
ble in the European Union.
China
ETAS confirms that the product meets the product-specific applicable guide-
lines of the China RoHS (Management Methods for Controlling Pollution
Caused by Electronic Information Products Regulation) applicable in China
with the China RoHS marking affixed to the product or its packaging.
2.9 Declarable Substances
European Union
Some products from ETAS GmbH (e.g. modules, boards, cables) use compo-
nents with substances that are subject to declaration in accordance with the
REACH regulation (EU) no.1907/2006.
Detailed information is located in the ETAS download center in the customer
information "REACH Declaration" (www.etas.com/Reach). This information is
continuously being updated.
2.10 Use of Open Source Software
The product uses Open Source Software (OSS). This software is installed in the
product at the time of delivery and does not have to be installed or updated by
the user. Reference shall be made to the use of the software in order to fulfill
OSS licensing terms. Additional information is available in the document "OSS
Attributions List" at the ETAS website www.etas.com.

ETAS Introduction
XETK-S31.0 -User Guide 14
3 Introduction
This chapter contains information about the following topics:
• Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
• Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1 Applications
The XETK-S31.0 is an emulator probe for the Freescale MPC57xx and for the
STMicroelectronics EM57xx microcontroller family. It is a typical serial XETK
designed for use with the JTAG portion of the Nexus debug interface (IEEE/
ISTO 5001).
Fig. 3-1XETK-S31.0
The XETK-S31.0 supports the standard full duplex 100Base-T Ethernet inter-
face and can be connected directly or via ES51x/ES59x/ES600 modules to the
PC. No additional ETAS modules are required for the access to the ECU. The
XETK-S31.0 can be used for rapid prototyping applications (bypass) as well as
for measurement and calibration applications.
NOTE
For supported MPC57xx microcontrollers, refer to chapter 7.1.3 on page 31.
XETK-S31.0
XETK ECU interface connector 10 pin SAMTEC
XETK power supply connector 6 pin MOLEX
Power supply for ED devices (VDDS-
BRAM)
min. 1.25 V
SBRAM sense Yes, on board or external sense
Pinless triggering Yes
Timer triggering Yes

ETAS Introduction
XETK-S31.0 -User Guide 15
3.2 Features
• Measurement interface:
– 3.3 V JTAG output levels, 5.0 V tolerant JTAG input
– Configurable JTAG interface clock speed: 20 MHz, 40 MHz, 50 MHz
– Pinless startup protocol for XETK recognition and data acquisition
triggering
• Calibration:
– Microcontroller capability of internal Flash emulation can be used
– XETK powers Emulation Device RAM (for calibration purpose)
– Supports “Start on Any Page”
• Supports special coldstart mechanism (“Calibration Wake Up”):
– Calibration Wake Up: Wake up mechanism to wake up the power sup-
ply of the ECU via the Calibration Wake up pin
– Pull CalWakeUp until Startup Handshake: duration of the Wake up
mechanism is configurable
• ECU flashing via XETK
– Braindead flashing under ProF control
• Permanent storage of configuration in EEPROM
• Fast Ethernet Interface:
– Direct connection to PC
– Open XCP on Ethernet Protocol
– Supports a variety of standard applications
• “ETK Drivers and Tools” update to support ETAS software tools (INCA,
XCT)
• Firmware update (programming of the logic device) through HSP soft-
ware service packs; removal of XETK or ECU is not necessary
• Mounting possibilities inside or on top of ECU
• Temperature range suitable for automotive application
For more technical data on the XETK-S31.0 consult the chapter “Technical
Data” on page 30.
NOTE
The max. allowed JTAG clock depends on the core frequency of the micro-
controller. Max. clock speed is typically 1/4 of the core frequency.

ETAS Hardware Description
XETK-S31.0 -User Guide 16
4 Hardware Description
This chapter contains information about the following topics:
• Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• ECU Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
• XETK Ethernet Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
• ECU Voltage Supervisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
• Data Emulation and Data Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . 20
• JTAG Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Trigger Modes: Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Pinless Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Timer Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
• Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
• Pull CalWakeUp until Startup Handshake. . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1 Architecture

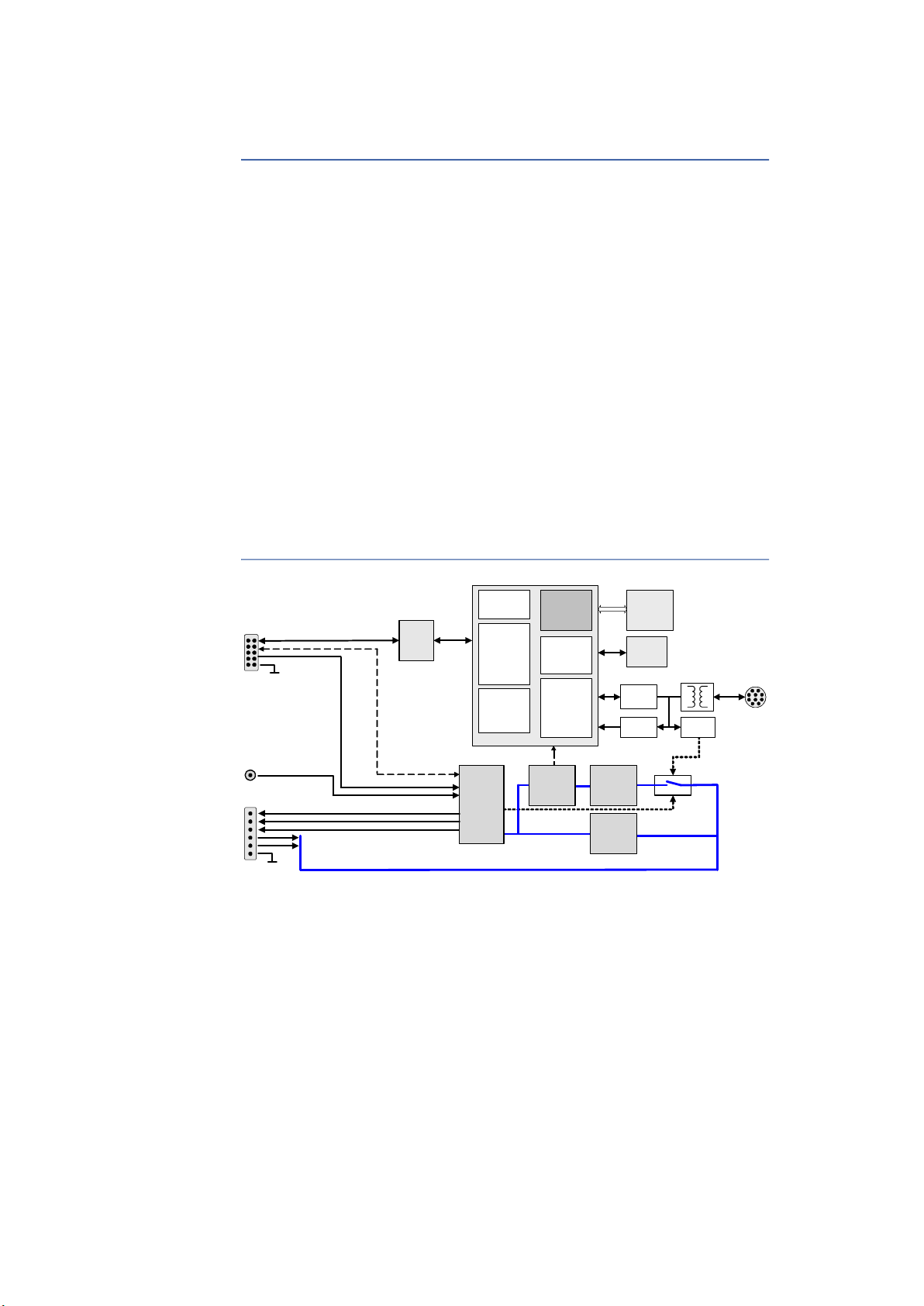

Fig. 4-1 shows the block diagram of the XETK-S31.0.
Fig. 4-1XETK-S31.0 Architecture
While the microcontroller accesses the program data (not the program code)
out of the data emulation memory provided by the microcontroller, the content
of the data emulation memory can simultaneously be modified by the calibra-
tion and development system through the XETK Ethernet interface. This pro-
cess enables adjustments of parameters, characteristic lines and maps
through the calibration and development system. Using an additional measure-
ment data memory area, the ECU microcontroller can provide data to the cali-
bration and development system by buffering the data (DISTAB13 or
DISTAB17) and triggering the XETK to read the data via JTAG. The XETK then
reads, buffers, processes and sends this measured data to the PC.
XCP on
Ethernet
Interface
SRAM
System
Functions
Trigger
Unit
100
MBit/s
Automatic
Power On
Power Supply Sense Ports
ECU Reset
DMA
MCU
Core
Ethernet
MAC
Flash
Loader
ECU
Access
Unit
Data
Flash
ECU -
Connector
Time
Sync.
Traffic
Detection
Ethernet
Phy
I/O -
Buffers
FPGA
Power -
Connector
Sense -
Port
JTAG / DAP
ECU VDDPR
ECU
Reset &
Power
Control
Power
Supply
Monitoring
Power
Supply
3.0 ... 36V
Standby
Power
Supply
3.0 ... 36V +U-Batt
UBATT1
UBATT2
ECU Power Supply (2x)
CALWAKEUP

ETAS Hardware Description
XETK-S31.0 -User Guide 17
If no additional measurement data memory is available, the XETK-S31.0 can
alternatively read the data to be measured directly from the microcontroller’s
memory. This process is Triggered Direct Measurement (TDM) with DISTAB13
or DISTAB17.
The 100 Mbit/s XETK Ethernet interface provides communication with the PC.
4.2 ECU Interface
The XETK-S31.0 is connected via connectors CON2 and CON4 to the ECU with
two adapter cables (refer to Fig. 4-2 on page 17). The pin definition depends on
the application and the microcontroller type. In general the ECU interface con-
sists of
• 1 ECU voltage line, which is not used for XETK power supply, but only for
detection of the ECU status, therefore the power consumption on this
line is negligible (refer to chapter 4.4 on page 19)
• 1 Reset line which allows the XETK to control the system reset of the
ECU
• 1 Reset line which allows the XETK to monitor the system reset of the
ECU
• 5 Debug line interfaces for the communication between the XETK-S31.0
and the microcontroller
• 2 ground lines for proper shielding of the ECU interface lines.
Fig. 4-2Location of the ECU Interfaces
ETK Connector Description
CON1 XETK Ethernet interface (ETAS module or PC)
CON2 ECU Interface
CON3 ECU EDRAM Sense port
CON4 Power supply
CON4CON1 CON2
CON3

ETAS Hardware Description
XETK-S31.0 -User Guide 18
4.3 XETK Ethernet Interface
The XETK Ethernet interface can be directly connected to the PC via CON1
(refer to Fig. 4-3). No additional ETAS module is required for the access to the
ECU.
The interface is a standard full duplex 100Base-TX Ethernet interface using the
XCP protocol. The XETK Ethernet interface is integrated in the ETAS IP world
with automatic IP management and supports the open automotive "Universal
Measurement and Calibration" standard "XCP on Ethernet" (TCP/IP, UDP/IP).
The open XCP on Ethernet interface allows for connecting to the XETK-S31.0
with third party application softw are.
Fig. 4-3Location of the XETK Ethernet Interface connector (CON1)
NOTE
The XETK Ethernet interface is not compatible with the ETK interfaces in
modules like e.g. ES910, ES590, ES591, ES592, ES593-D, ES595, ES1232-A.
The XETK Ethernet interface is compatible with the Ethernet interface of the
ES88x/ES89x/ES910 module and the Ethernet interfaces of the ES51x/
ES592/ ES593-D/ ES595/ ES600 modules.
NOTE
Please see chapter 7.1.2 on page 30 for additional information regarding PC
requirements for the Ethernet interface.
CON1

ETAS Hardware Description
XETK-S31.0 -User Guide 19
4.4 Power Supply
The XETK-S31.0 requires a permanent power supply. It is typically powered
directly from the car battery. The input voltage may vary between 4.3 V and
36 V. In case of higher input voltages to the XETK, additional voltage protection
is required. The XETK-S31.0 will also accept voltage dips down to 3 V, for a
maximum duration of 15ms (for additional details of low voltage operation, see
ISO standard 16750)
From the input battery voltage, switch-mode power supplies provide all neces-
sary voltages on the XETK-S31.0. The power supply of the ECU is not affected
by the XETK-S31.0. An automatic switch ensures that the power supply of the
XETK-S31.0 is automatically switched on and off when the XETK enters and
leaves its standby (sleep) mode.
The XETK-S31.0 is supplied with power through the connector CON4.
Fig. 4-4Location of the XETK-S31.0 Power Supply Connectors
4.5 ECU Voltage Supervisor
The ECU voltage (VDDP) is monitored by the XETK to recognize whether the
ECU is switched on or off. Additionally the ECU RAM standby voltage (VDDS-
BRAM) is monitored to determine if the standby RAM content is still valid.
These two signals are only used for monitoring therefore the load current is
negligible.
The XETK-S31.0 provides two possibilities to supply and supervise the ECU
RAM standby voltage:
A The XETK-S31.0 monitors the VDDSBRAM supply on board the XETK.
The microcontroller’s standby power supply pin must be connected to
the XETK pin VDDSBRAM.
B At the through-hole solder pad CON3 the XETK-S31.0 can additionally
monitor the VDDSBRAMsense voltage if it is provided by the ECU. The
microcontroller’s standby power supply pin must be connected to the
XETK pin VDDSBRAMsense. The microntroller’s standby power supply
may be provided by the ECU or by the XETK.
NOTE
The XETK-S31.0 only allows switching between reference page and working
page if there is a valid voltage at the sense pin and the working page has been
initialized by the calibration and development system.
CON4CON1 CON2
CON3

ETAS Hardware Description
XETK-S31.0 -User Guide 20
4.6 Data Emulation and Data Measurement
The XETK-S31.0 is a serial XETK using JTAG as the primary microcontroller
interface. Typical of all serial (X)ETKs, the RAM used for data emulation and
data measurement is not accessible by the XETK until the microcontroller is
powered up and the startup handshake is performed.
Serial XETKs use the ETAS two page concept, consisting of both a Reference
and a Working page.
The Reference Page is located in the ECU flash and can not be modified by a
simple write access. All changes to the Reference Page must be done via Flash
programming.
The Working Page is located within the microcontroller's ED RAM. The Working
Page may be a portion of or the entire size of the ED RAM. The ED RAM used
for the emulation of calibration data must not be used by the ECU software
directly as general purpose RAM. It is recommended that the ED RAM is perma-
nently powered by the XETK or ECU. The XETK/INCA has the complete control
over the RAM used as Working Page and it's contents. When enabling data
emulation, the XETK establishes a basic start-up configuration of the data in
the Working Page by copying the corresponding data in the Flash to the emula-
tion space.
To enable calibration, the Working Page must be activated. The process of
switching from the Reference Page to the Working Page and vice versa is
known as page switching.
The XETK-S31.0 supports Protocol Based page switching for all supported
microcontrollers. Page switching is done in microcontroller software by switch-
ing the overlay memory on (Working Page) and off (Reference Page) using
microcontroller overlay registers. The XETK-S31.0 does not directly control the
microcontroller overlay registers. Instead the XETK-S31.0 and microcontroller
software use a simple communication method with a shared mailbox in RAM.
The XETK uses this mailbox to request and monitor page switching; the micro-
controller software is responsible to service this mailbox and perform the page
switches. Using an overlay modification description, also in RAM, the XETK pro-
vides the necessary information of how the overlay registers need to be modi-
fied to realize the page switch which is requested.
The XETK-S31.0 can access both the Reference Page and the Working Page,
regardless of which is active from the microcontroller’s point of view.
Another important restriction is that no access to the memory is possible, while
the ECU is not running. To enable a cold start measurement in spite of this
restriction, the cold start measurement procedure is defined to give the user
the feeling of a parallel XETK.
