ETAS ES5352.1 User manual

ES5352.1 Signal Conditioning Board
User’s Guide

2
Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in rela-
tion to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license. Using
and copying is only allowed in concurrence with the specifications stipulated in
the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2015-2018 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
V1.0.0 R04 EN - 11.2018

ES5352.1 Signal Conditioning Board - User’s Guide 3
Contents
ETAS Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Basic Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.1 Labeling of Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.2 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2.3 Requirements for Users and Duties for Operators. . . . . . . . . . . . . . . 8
1.2.4 Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Identifications on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.1 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3.3 KC Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.4 Product Return and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.5 Declarable Substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.6 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.6.1 Using this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.1 Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.3 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.4 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4.1 Assembling the DC/DC Converters . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4.2 Assembling the Piggybacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.4.3 Assembling the ES5352.1 Signal Conditioning Board in the
ES5300.1-A Housing and in the ES5300.1-B Housing . . . . . . . . . . 20
2.4.4 Inserting the ES5352.1 Signal Conditioning Board into a Slot. . . . . 21
2.5 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5.1 Configuring the Input Voltage of the DC/DC Converters . . . . . . . . 22
2.5.2 Configuring the I2C Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

ES5352.1 Signal Conditioning Board - User’s Guide4
Contents ETAS
3 Pin Assignment and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Backplane Connector (CO200) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 D-Sub62 (CO100) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.3 Piggyback Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.1 "CO300" Connector (Piggyback 1) . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.2 "CO301" Connector (Piggyback 1) . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3.3 "CO306" Connector (Piggyback 2) . . . . . . . . . . . . . . . . . . . . . . . . 30
3.3.4 "CO307" Connector (Piggyback 2) . . . . . . . . . . . . . . . . . . . . . . . . 31
3.4 Connectors on the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.4.1 C0101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.4.2 C0102. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.4.3 C0103. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.4.4 C0104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.4.5 C0105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4 Technical Data and Norms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.1 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.2 Fulfilled Standards and Norms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6 ETAS Contact Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

ES5352.1 Signal Conditioning Board - User’s Guide 5
ETAS Introduction
1 Introduction
This User’s Guide describes the ES5352.1 Signal Conditioning Board.
This chapter contains information on the following topics:
• "Features" on page 6
• "Basic Safety Instructions" on page 8
• "Identifications on the Product" on page 13
• "CE Marking" on page 13
• "RoHS Conformity" on page 13
• "KC Marking" on page 14
• "Product Return and Recycling" on page 14
• "Declarable Substances" on page 14
• "About this Manual" on page 14
CAUTION!
Some components of the ES5352.1 Signal Conditioning Board can be
damaged or destroyed by electrostatic discharges. Leave the plug-in
board in its transport packaging until it is installed.
Only remove, configure and install the ES5352.1 at a workplace that
is protected against electrostatic discharges.

ES5352.1 Signal Conditioning Board - User’s Guide6
Introduction ETAS
1.1 Features
The ES5352.1 Signal Conditioning Board is used to accommodate two modules
for signal conditioning (example: PB1652LAMBDA.1-B Signal Conditioning for
Lambda Sensor Simulation).

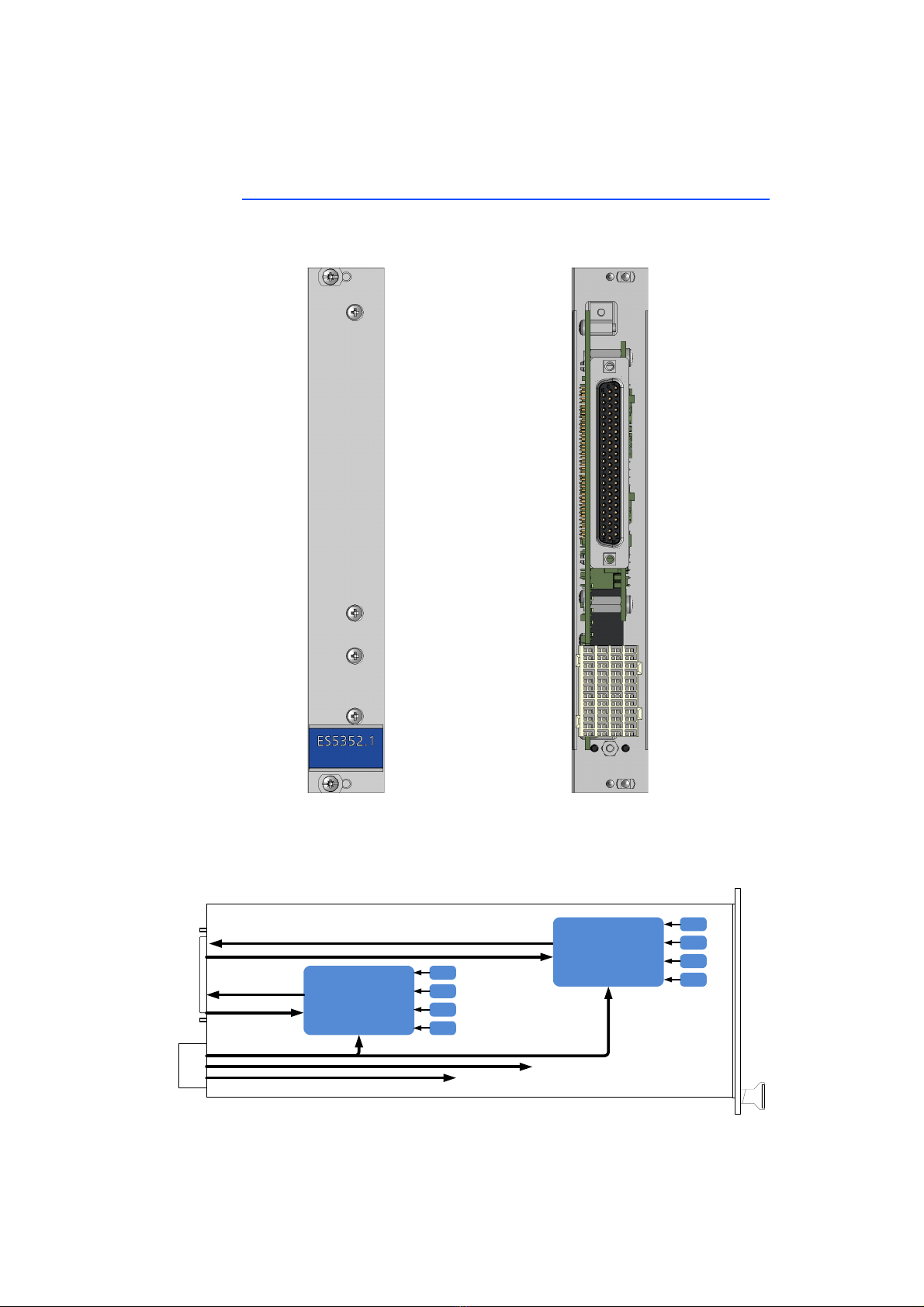

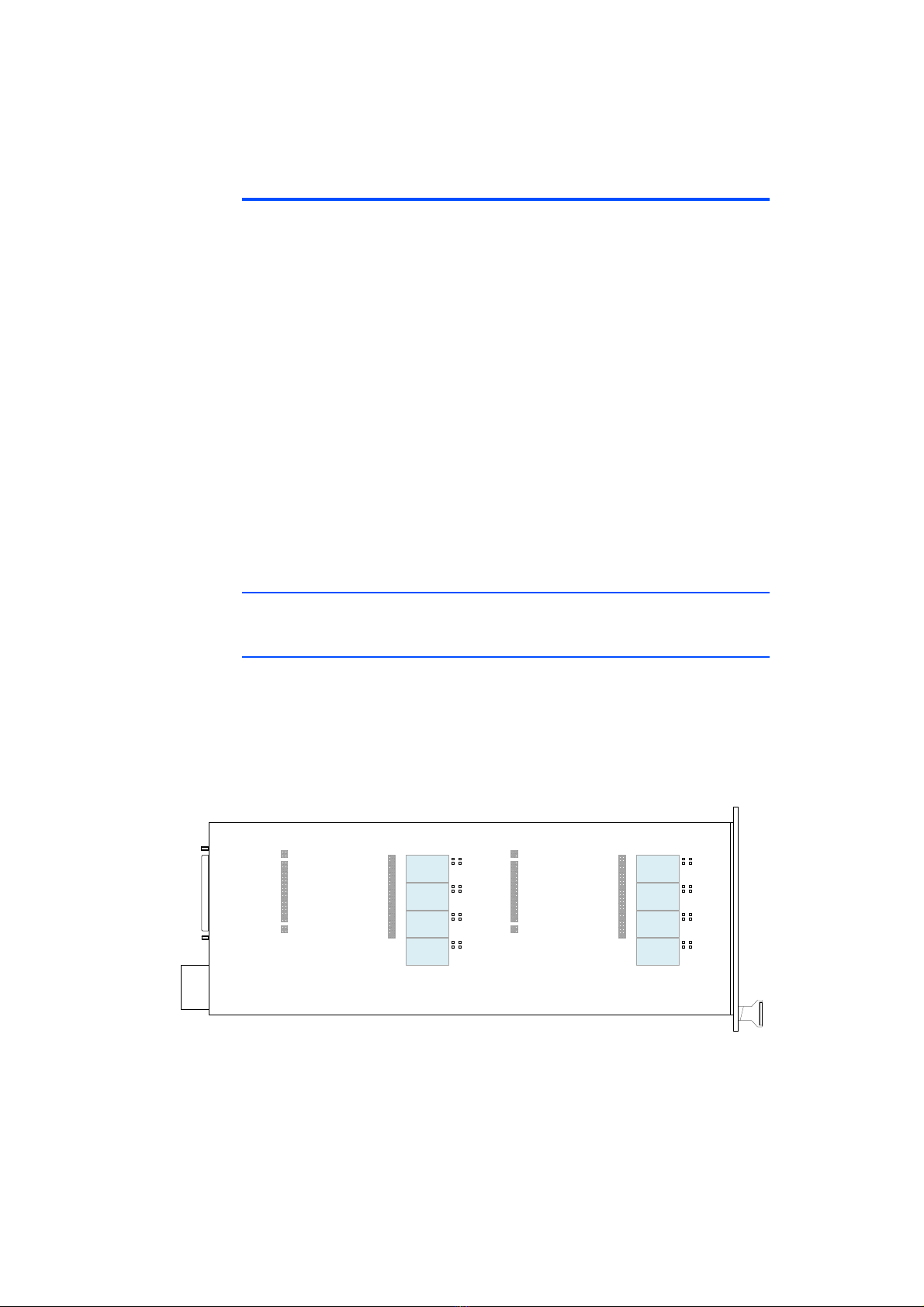

Fig. 1-1 Front Panel and Plug-In Side of the ES5352.1 Signal Conditioning
Board
The function units of the ES5352.1 Signal Conditioning Board are shown in the
following block diagram:
Fig. 1-2 Block Diagram
Module 1
PB1_OUT1..15
PB1_IN1..9
PB2_OUT1..15
Module 2
PB2_IN1..9
DC/DC
DC/DC
DC/DC
DC/DC
SPI
DC/DC
DC/DC
DC/DC
DC/DC
I2C
Battery Nodes BN_B_0..5

ES5352.1 Signal Conditioning Board - User’s Guide 7
ETAS Introduction
The 9 input and 15 output signals of each of the piggybacks are routed over the
62-pin D-Sub connector.
To supply power to the piggybacks, up to four DC/DC converters can be installed
per module on the ES5352.1 Signal Conditioning Board. These are either sup-
plied with +5 V or +12 V from the backplane.

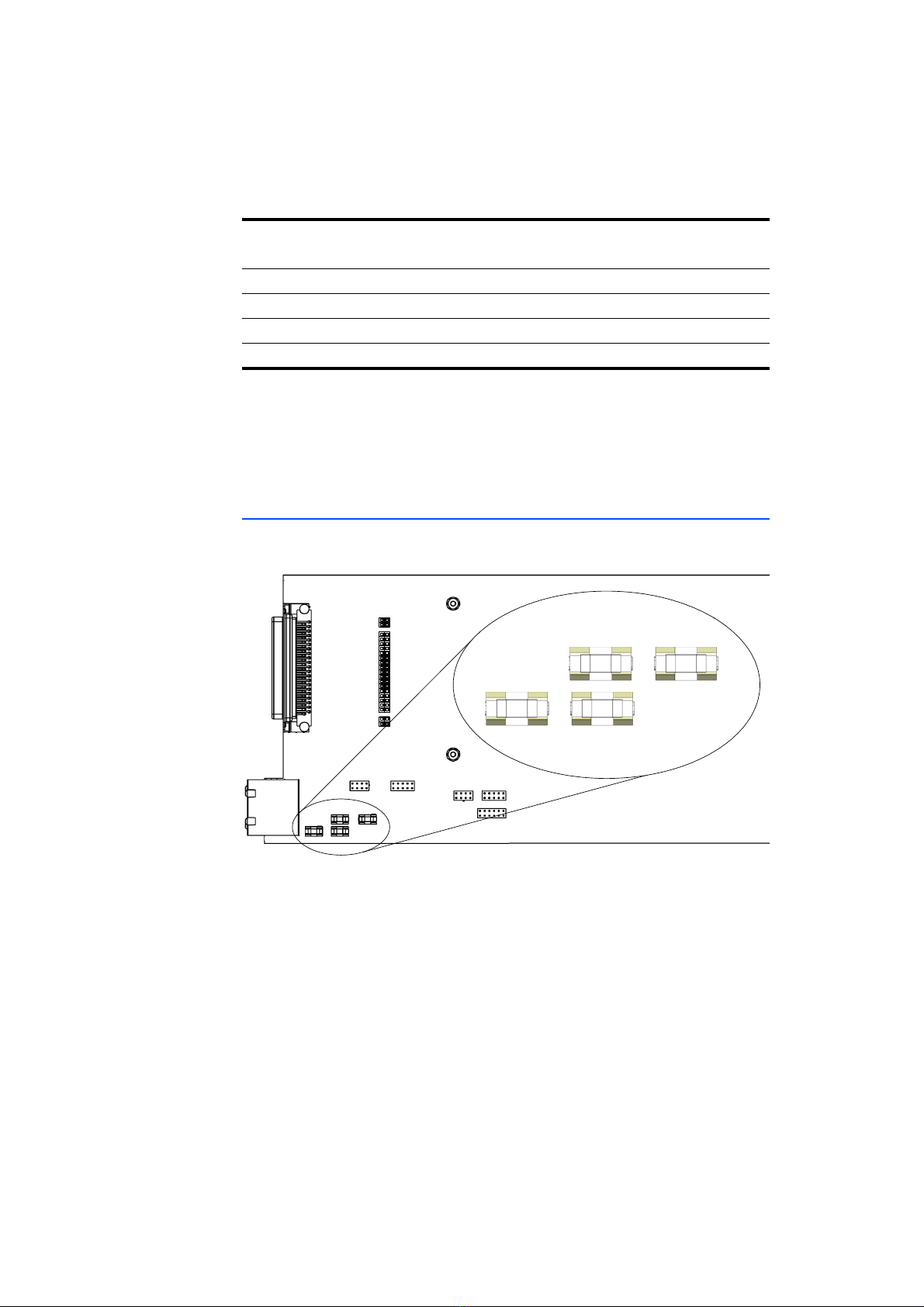

There are fuses on the ES5352.1 to protect the backplane voltages.
CAUTION!
There is no protective circuitry for the inputs and outputs on the
ES5352.1 Signal Conditioning Board! If required, the customer must
provide this on the relevant piggyback.

ES5352.1 Signal Conditioning Board - User’s Guide8
Introduction ETAS
1.2 Basic Safety Instructions
Please adhere to the safety instructions in this manual to avoid injury to yourself
and others as well as damage to the device.
1.2.1 Labeling of Safety Instructions
The safety instructions contained in this manual are shown with the standard
danger symbol shown below:
The following safety instructions are used. They provide extremely important
information. Please read this information carefully.
1.2.2 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the follow-
ing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from improper
handling, unintended use or non-observance of the safety precautions.
1.2.3 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualifications and experience for this product. Improper use or use by
a user without sufficient qualification can put life at risk or cause damage to
health or property.
The system integrator is responsible for the safety of systems that use the
product!
General Safety at Work
Follow the existing regulations for work safety and accident prevention. All appli-
cable regulations and laws regarding operation must be strictly adhered to when
using this product.
CAUTION!
indicates a low-risk danger which could result in minor or less serious
injury or damage if not avoided.
WARNING!
indicates a possible medium-risk danger which could lead to serious
or even fatal injuries if not avoided.
DANGER!
indicates a high-risk, immediate danger which could lead to serious
or even fatal injuries if not avoided.
Note
The User's Guide must be read prior to the startup of the product!

ES5352.1 Signal Conditioning Board - User’s Guide 9
ETAS Introduction
1.2.4 Intended Use
Application Area of the Product
The ES5352.1 Signal Conditioning Board is a plug-in board for the ES5300.1-A
Housing and the ES5300.1-B Housing for accommodating two modules for sig-
nal conditioning.
The ES5352.1 Signal Conditioning Board consists of:
• Two slots for signal conditioning modules,
• One SPI interface to the ES5300.1-A Housing or to the ES5300.1-B Hous-
ing for configuring modules,
•OneI
2C interface for reading board data,
• One output interface to the ECU,
• One digital interface for signals to battery node control,
• Piggyback power supply - up to four DC/DC converters per module are
required for this purpose.
The ES5321.2 must only ever be used in the ETAS ES5300 system housing
intended for this purpose and must not be operated as a stand-alone unit.
The intended use of the ES5321.2 in an ES5300.1-A Housing or ES5300.1-B
Housing is:
• Use as a component in industrial lab facilities or at industrial workplaces.
• Use as a hardware interface for ECUs in a hardware-in-the-loop test sys-
tem.
• Use in conjunction with ETAS software that supports the ES5300.1-A
Housing and the ES5300.1-B Housing.
• Use as an interface in conjunction with software programs that operate
the standardized, documented and open APIs from ETAS software prod-
ucts.
The ES5352.1 Signal Conditioning Board is not intended to be used:
• Within a vehicle on the road.
• As part of a life support system.
• As part of a medical application.
• In applications where misuse can lead to injuries or damages.
• In environments in which conditions prevail that fall outside the specified
ranges (see "Ambient Conditions" on page 35),
• With signal conditioning that falls outside the specified ranges (see "Volt-
ages, Currents and Power Consumption" on page 35).

ES5352.1 Signal Conditioning Board - User’s Guide10
Introduction ETAS
Requirements for the Technical State of the Product
The product is designed in accordance with state-of-the-art technology and rec-
ognized safety rules. The product must only be operated in a technically flawless
state, in accordance with its intended purpose and in a safety-conscious and
hazard-aware manner under consideration of the documentation regarding the
product. If the product is not used in accordance with its intended purpose, its
product safety may be impaired.
Requirements for Operation
The following requirements are necessary for safe operation:
• Use the product only according to the specifications in the corresponding
User's Guide. If the product is used in any other way, product safety is no
longer ensured.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical Safety and Power Supply
Observe the regulations applicable at the operating location concerning electrical
safety as well as the laws and regulations concerning work safety.
Power Supply
The product is powered by the ES5300.1-A Housing or the ES5300.1-B Housing
via the PCIe backplane connector.
The electrical connection is made via the backplane connector CO200.
Insulation Requirements for lab power supplies to circuits connected to the HiL-
System:
• The power supply to live circuitry must be safely isolated from the supply
voltage. For example, use a car battery or a suitable lab power supply.
• Only use lab power supplies with dual protection for the supply network
(with double/reinforced insulation (DI/RI)). Lab power supplies that comply
with IEC/EN 60950 or IEC/EN 61010 meet this requirement.
• The lab power supply must be approved for use at a height of 2000 m and
in ambient temperatures of up to 40 °C.
WARNING!
Fire Hazard!
Only use fuses that comply with the specification in the User's Guide
for the product. Never bridge defective fuses!
Failure to observe the fuse specification can lead to excess currents,
short circuits and fires.
CAUTION!
There is no protective circuitry for the inputs and outputs on the
ES5352.1 Signal Conditioning Board! If required, the customer must
provide this on the relevant piggyback.

ES5352.1 Signal Conditioning Board - User’s Guide 11
ETAS Introduction
De-energizing the plug-in board
Switch off the ES5300.1-A Housing or the ES5300.1-B Housing and external
power supplies and unplug the power plug and other connectors attached to the
plug-in board. Wait at least three minutes before removing the plug-in board.
Approved Cables
The signal lines must not exceed a maximum length of 3 m.
Requirements for the installation location
Requirements for ventilation
Transport and Installation
To avoid damages to the hardware from electrostatic discharge, please observe
the following precautionary measures:
WARNING!
Fire hazard!
Use only approved cables for creating cable assemblies (e.g. for con-
necting the ECU and external loads). The cables used must, in partic-
ular, be suitable for the currents, voltages and temperatures which
occur and must be flameretardant in accordance with one of the fol-
lowing standards
IEC60332-1-2, IEC60332-2-2, UL2556/UL1581VW-1!
WARNING!
This is class A equipment. This equipment can cause radio interfer-
ence in residential areas. Should that be the case, the operator may
be requested to institute reasonable measures.
CAUTION!
The air circulation inside the ES5300.1-A Housing and the ES5300.1-
B Housing can be ensured only if all free slots are covered with front
plates. Otherwise, it may lead to overtemperatures and trip the over-
temperature protection of the ES5300.1-A or the ES5300.1-B.
For this reason, install front plates in all free slots!
CAUTION!
Some components of the ES5352.1 can be damaged or destroyed by
electrostatic discharges. Leave the plug-in board in its transport pack-
aging until it is installed.
Only remove, configure and install the ES5352.1 at a workplace that
is protected against electrostatic discharges.

ES5352.1 Signal Conditioning Board - User’s Guide12
Introduction ETAS
Connecting / Disconnecting Devices
To avoid injuries and hardware damages, please observe the following precau-
tionary measures:
• Do not apply any voltages to the connections of the ES5352.1 that do not
correspond to the specifications of the respective connection. The exact
specification of the I/O hardware is located in the manuals of the corre-
sponding boards.
• Do not connect or disconnect any devices while the ES5300.1-A Housing,
the ES5300.1-B Housing or connected devices are switched on. First,
switch off the ES5300.1-A Housing or the ES5300.1-B Housing by shut-
ting down the real-time PC and by activating the On/Off switch at the
rear, then unplug the power plug.
• When plugging in connectors, ensure that they are inserted straight and
no pins are bent.
Maintenance
The device does not require maintenance.
Repairs
If an ETAS hardware product needs to be repaired, return the product to ETAS.
Cleaning
The product is not expected to require cleaning.
CAUTION!
In order to prevent damage to the plug-in board and the LABCAR
Housing and thereby also avoid damage to property or health,
observe the installation instructions and information contained in the
relevant User's Guide.
CAUTION!
If cards (e.g. for startup or calibration) are unlocked but not com-
pletely removed from the housing, they have to be pulled out far
enough that the distance between the respective card and the back-
plane of the housing is at least 1 cm! Otherwise, contacts may be
established between the cards and lead to their destruction.

ES5352.1 Signal Conditioning Board - User’s Guide 13
ETAS Introduction
1.3 Identifications on the Product
The following symbols are used for identifying the product:
Observe the information in the chapter "Technical Data and Norms"
on page 35.
1.3.1 CE Marking
ETAS confirms that the product meets the product-specific applicable European
Directives with the CE marking affixed to the product or its packaging. The CE
Declaration of Conformity for the product is available upon request.
1.3.2 RoHS Conformity
European Union
The EU Directive 2002/95/EU limits the use of certain dangerous materials for
electrical and electronic devices (RoHS conformity).
ETAS confirms that the product corresponds to this directive which is applicable
in the European Union.
China
ETAS confirms that the product meets the product-specific applicable guidelines
of the China RoHS (Management Methods for Controlling Pollution Caused by
Electronic Information Products Regulation) applicable in China with the China
RoHS marking affixed to the product or its packaging.
Symbol Description
Before using the product, carefully read the User’s Guide!
Identification for CE conformity,
see "CE Marking" on page 13
Identification for China RoHS,
see "RoHS Conformity" on page 13
Identification for conformity with WEEE directive,
see "Product Return and Recycling" on page 14
Marking for KCC Conformity,
see "KC Marking" on page 14

ES5352.1 Signal Conditioning Board - User’s Guide14
Introduction ETAS
1.3.3 KC Marking
With the KC mark attached to the product and its packaging, ETAS confirms that
the product has been registered in accordance with the product-specific KCC
guidelines of the Republic of Korea.
1.4 Product Return and Recycling
The European Union (EU) has passed a directive called Waste Electrical and Elec-
tronic Equipment, or WEEE for short, to ensure that systems are set up through-
out the EU for the collection, treatment and recycling of electronic waste.
This ensures that the devices are recycled in a resource-saving way representing
no danger to health or the environment.
Fig. 1-3 WEEE Symbol
The WEEE symbol on the product or its packaging shows that the product must
not be disposed of as residual garbage.
The user is obliged to collect the old devices separately and return them to the
WEEE take-back system for recycling.
The WEEE Directive concerns all ETAS devices but not external cables or batteries.
For more information on the ETAS GmbH Recycling Program, contact the ETAS
sales and service locations (see "ETAS Contact Addresses" on page 39).
1.5 Declarable Substances
European Union
Some products from ETAS GmbH (e.g. modules, boards, cables) use components
with materials that are subject to declaration in accordance with the REACH reg-
ulation (EU) no.1907/2006.
Detailed information is located in the ETAS download center in the customer
information "REACH Declaration" (www.etas.com/Reach). This information is
continuously being updated.
1.6 About this Manual
This manual consists of the following chapters:
• "Introduction" on page 5
This chapter
• "Features and Functions" on page 17
This chapter describes the features and functions of the components of
the ES5352.1 Signal Conditioning Board.
• "Pin Assignment and Connections" on page 25
This section describes the various connectors of the ES5352.1 Signal Con-
ditioning Board.

ES5352.1 Signal Conditioning Board - User’s Guide 15
ETAS Introduction
• "Technical Data and Norms" on page 35
This chapter contains the technical data on the ES5352.1 Signal Condi-
tioning Board. In addition, fulfilled standards and norms are listed.
1.6.1 Using this Manual
Representation of Information
All activities to be carried out by the user are shown in what we call a "Use-
Case" format, i.e. the target to be achieved is defined briefly in the title and the
individual steps necessary to achieve this target are then listed. The information
is displayed as follows:
Target definition
Any introductory information...
1. Step 1
Possibly an explanation of step 1...
2. Step 2
Possibly an explanation of step 2...
Any concluding remarks...
Concrete example:
To create a new file
If you want to create a new file, no other file may be open.
1. Select File → New.
The "Create file" dialog box appears.
2. Enter a name for the file in the "File name" field.
The file name must not exceed 8 characters.
3. Click OK.
The new file is created and saved under the name specified. You can now work
with the file.
Typographic Conventions
The following typographic conventions are used:
Select File →Open. Menu commands are shown in boldface/
blue.
Click OK. Buttons are shown in boldface/blue.
Press <ENTER>. Keyboard commands are shown in angled
brackets in block capitals.

ES5352.1 Signal Conditioning Board - User’s Guide16
Introduction ETAS
Important notes for the user are shown as follows:
The "Open File" dialog box
appears.
Names of program windows, dialog boxes,
fields etc. are shown in quotation marks.
Select the file setup.exe. Text in drop-down lists, program code, as
well as path and file names are shown in
the Courier font.
A conversion between the file types
logical and arithmetic is not possi-
ble.
Content markings and newly introduced
terms are shown in italics.
Note
Important note for the user.

ES5352.1 Signal Conditioning Board - User’s Guide 17
ETAS Features and Functions
2 Features and Functions
This chapter describes the features and functions of the components of the
ES5352.1 Signal Conditioning Board.
• "Power Supply" on page 17
• "Fuses" on page 18
• "Assembly" on page 19
– "Assembling the DC/DC Converters" on page 19
– "Assembling the Piggybacks" on page 20
– "Assembling the ES5352.1 Signal Conditioning Board in the
ES5300.1-A Housing and in the ES5300.1-B Housing" on page 20
– "Inserting the ES5352.1 Signal Conditioning Board into a Slot"
on page 21
• "Configuration" on page 22
– "Configuring the Input Voltage of the DC/DC Converters" on page 22
– "Configuring the I2C Addresses" on page 23
2.1 Scope of Supply
You can find the scope of supply in chapter "Ordering Information" on page 37
2.2 Power Supply
To supply the piggybacks with power, up to four DC/DC converters per module
can be accommodated on the ES5352.1 Signal Conditioning Board. Their pri-
mary function is voltage stabilization and galvanic isolation.
The output voltages DC1 - DC4 of the converters are connected with the con-
nector strip CO301 or C307 (see ""CO301" Connector (Piggyback 1)"
on page 29 and ""CO307" Connector (Piggyback 2)" on page 31) and can thus
be used to supply power to a piggyback.
Fig. 2-1 Position of the DC/DC Converters on the ES5352.1 Signal Condition-
ing Board
CO300
CO301
IC300
IC301
IC302
IC303
IC306
IC304
IC303
IC307
CO306
CO307

ES5352.1 Signal Conditioning Board - User’s Guide18
Features and Functions ETAS
Refer to the following table for the assignment of the DC/DC converters to the
signals at the connectors.
Tab. 2-1 Assignment of the DC/DC Converters to Signals at Connectors
The converters are fed with voltages from the backplane (see "Configuring the
Input Voltage of the DC/DC Converters" on page 22). The
TRACO POWER TEN 3 Series is one example of a usable type of DC/DC con-
verter.
2.3 Fuses
There are four fuses on the ES5352.1 Signal Conditioning Board to protect the
backplane voltages.
Fig. 2-2 Position of the Fuses on the ES5352.1
CO301 Connector CO307 Connector
Slot Signal Slot Signal
IC300 PB1_DC1_xxx IC306 PB2_DC1_xxx
IC301 PB1_DC2_xxx IC304 PB2_DC2_xxx
IC302 PB1_DC3_xxx IC305 PB2_DC3_xxx
IC303 PB1_DC4_xxx IC307 PB2_DC4_xxx
FU204 FU201
FU200FU202

ES5352.1 Signal Conditioning Board - User’s Guide 19
ETAS Features and Functions
The specification of the fuses is as follows:
Tab. 2-2 Fuses
2.4 Assembly
This section contains details of how to assemble the necessary components:
• "Assembling the DC/DC Converters" on page 19
• "Assembling the Piggybacks" on page 20
• "Assembling the ES5352.1 Signal Conditioning Board in the ES5300.1-A
Housing and in the ES5300.1-B Housing" on page 20
• "Inserting the ES5352.1 Signal Conditioning Board into a Slot"
on page 21
2.4.1 Assembling the DC/DC Converters
The DC/DC converter type Traco TEN 3-1222 is suitable for supplying power to
the piggybacks.
For a PB1652LAMBDA.1-B module in slot 1, IC300 and IC301 must be assem-
bled; for slot 2, IC306 and IC304 must be assembled (see Fig. 2-1 on page 17).
For configuring the power supply, the solder bridges BR301 and BR303 and/or
BR308 and BR310 must be soldered in to suit slot use (see "Configuring the
Input Voltage of the DC/DC Converters" on page 22).
Fuse Type Specification Protection of
(voltage)
FU200 NANO2® Slo-Blo®
Fuse 452/454 Series
T 3 A VCC12
(+12 V)
FU201 NANO2® Slo-Blo®
Fuse 452/454 Series
T 3 A VCC3_3
(+3.3 V)
FU202 NANO2® Slo-Blo®
Fuse 452/454 Series
T 1 A VCC5
(+5 V)
FU204 NANO2® Slo-Blo®
Fuse 452/454 Series
T 0.5 A VSS12
(-12 V)
WARNING!
Fire Hazard!
Only use fuses that comply with the specification in the User's Guide
for the product. Never bridge defective fuses!
Failure to observe the fuse specification can lead to excess currents,
short circuits and fires.
Note
Use lead-free solder! Ensure that there is not too much heat at the contacts –
too much heat can damage the converters and the board!

ES5352.1 Signal Conditioning Board - User’s Guide20
Features and Functions ETAS
2.4.2 Assembling the Piggybacks
Place the pin strips of the module onto the contact strips of the ES5352.1 Signal
Conditioning Board so they correspond to each other, i.e. interrupted pin strip to
interrupted contact strip and continuous pin strip to continuous contact strip.
The piggybacks are secured on the spacers with two M3 x 6 screws (see Fig. 2-3).

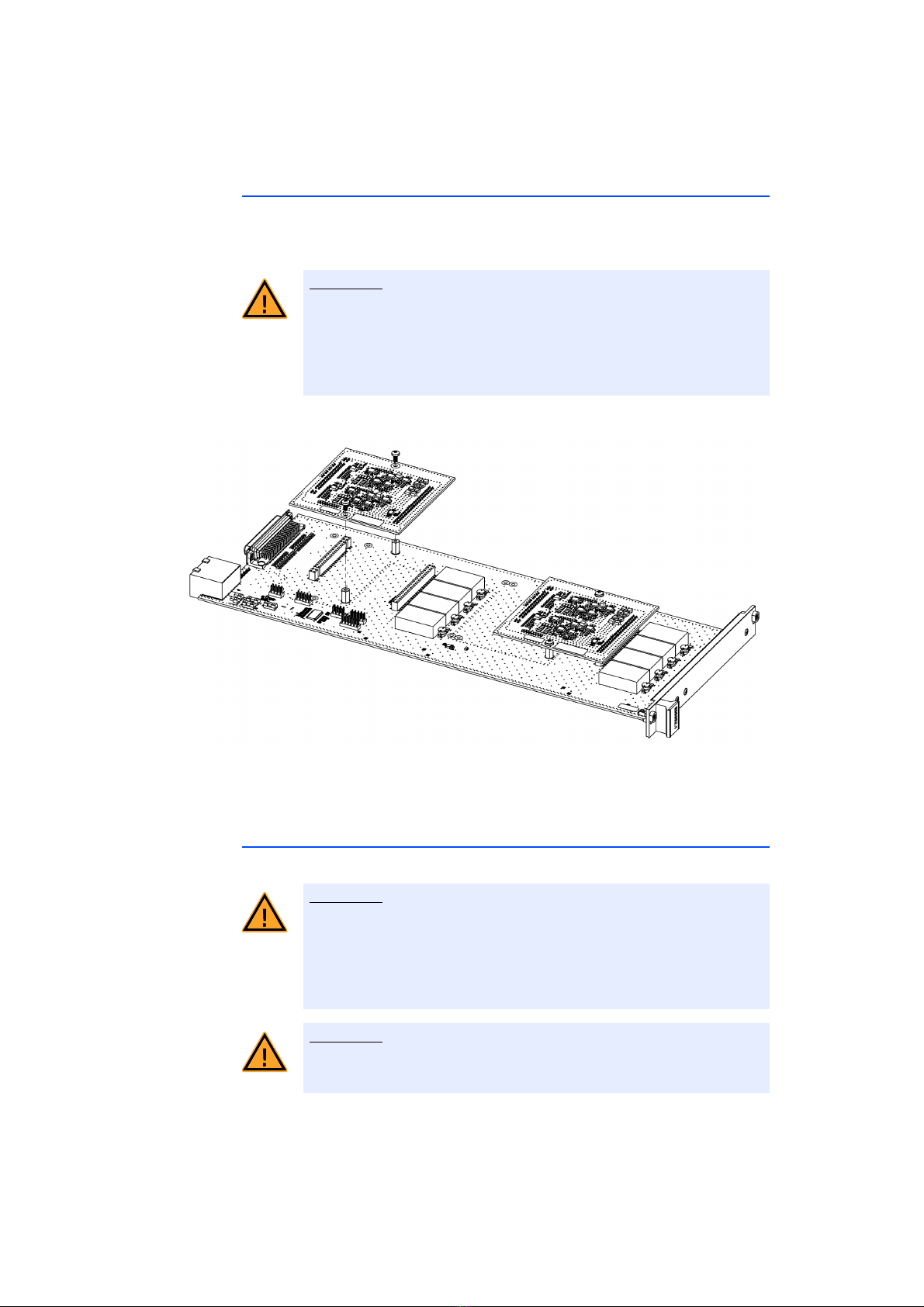

Fig. 2-3 Assembling the Piggybacks
The connectors are designed for 100 cycles of operation.
2.4.3 Assembling the ES5352.1 Signal Conditioning Board in the
ES5300.1-A Housing and in the ES5300.1-B Housing
Before you start, ensure you have ESD-compliant conditions at your workplace.
CAUTION!
If the contact pins of the piggyback are not positioned exactly over
the contact strip, these could be bent and the piggyback thus dam-
aged.
Before pushing the module into the contact strips, check the position
is absolutely right!
CAUTION!
Some components of the ES5352.1 Signal Conditioning Board can be
damaged or destroyed by electrostatic discharges. Leave the plug-in
board in its transport packaging until it is installed.
Only remove, configure and install the ES5352.1 at a workplace that
is protected against electrostatic discharges.
CAUTION!
Do not install any boards while the ES5100.1 Desktop Housing is
powered on!
