Event Lighting M1S190W User manual

SPOT MOVING HEAD
M1S190W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au

2
www.event-lighting.com.au
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
•CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.

3
www.event-lighting.com.au

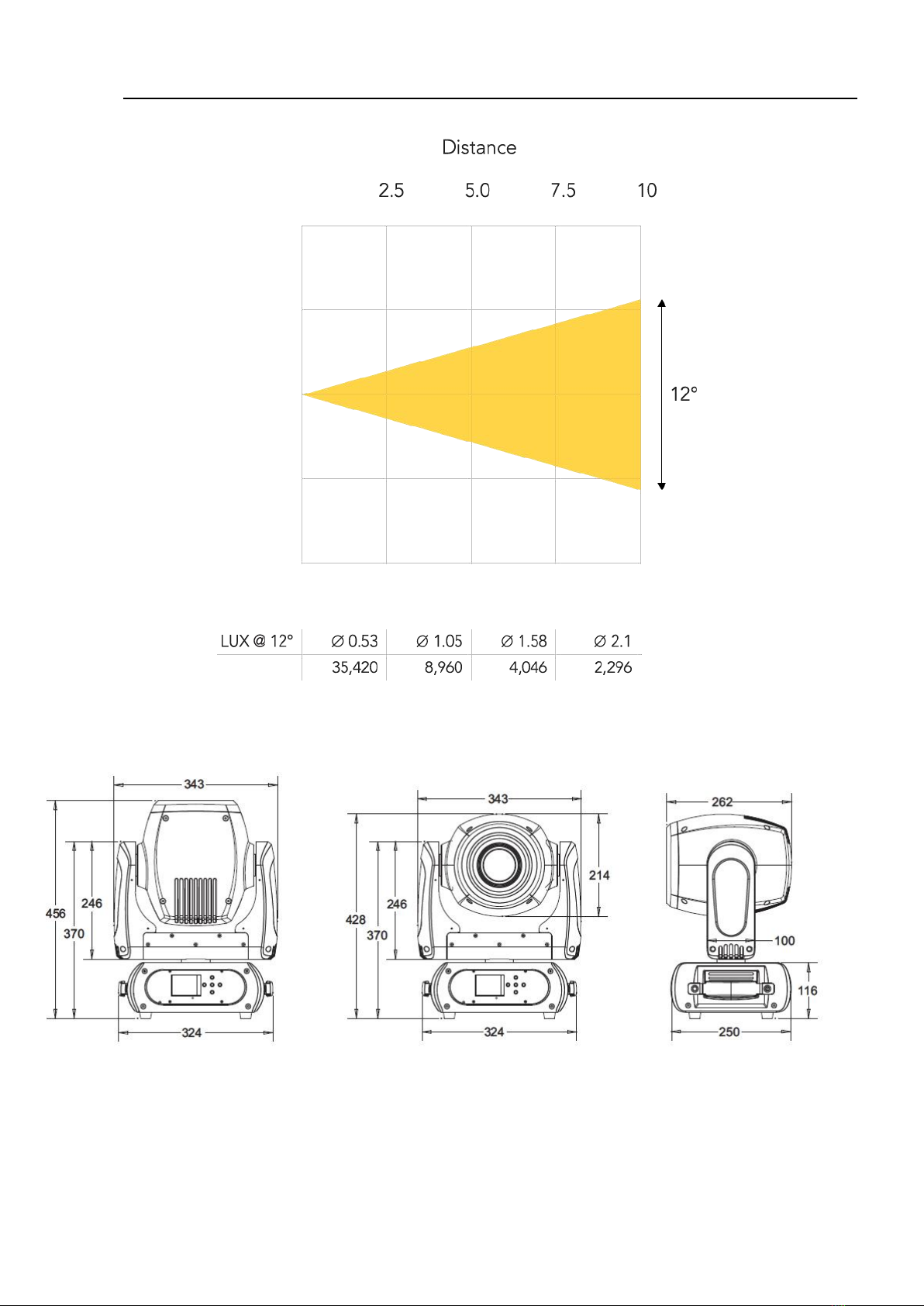

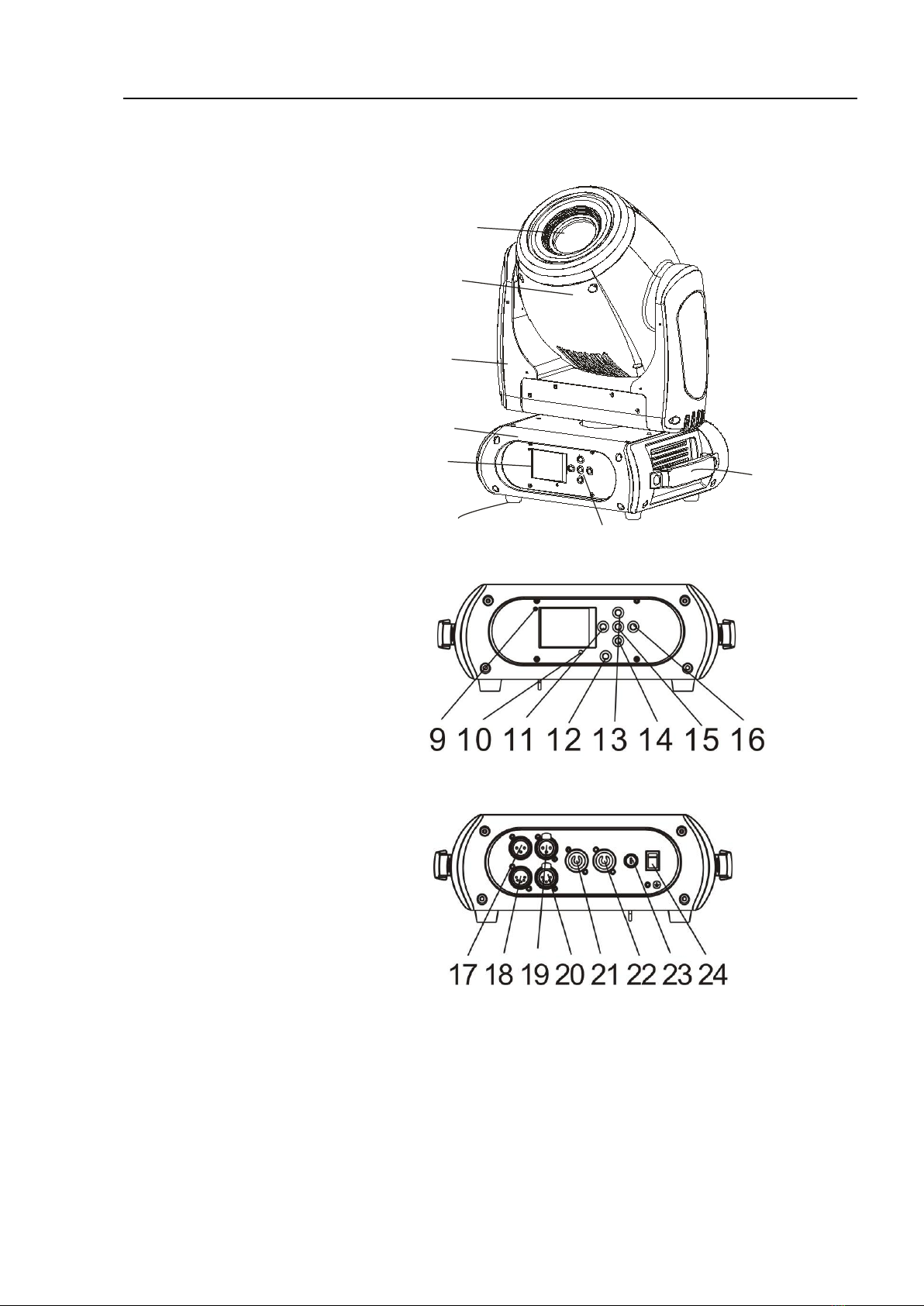

Product appearance, LUX chart, Dimensions
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 3-pin DMX out
19. Powercon in
20. Powercon out
21. Fuse
22. Power switch
1
2
3
4
5
67
8

4
www.event-lighting.com.au

5
www.event-lighting.com.au
Colour wheel
1
Open
2
Magenta
3
Orange
4
Sky blue
5
Pink
6
Yellow
7
Green
8
Blue
9
Red

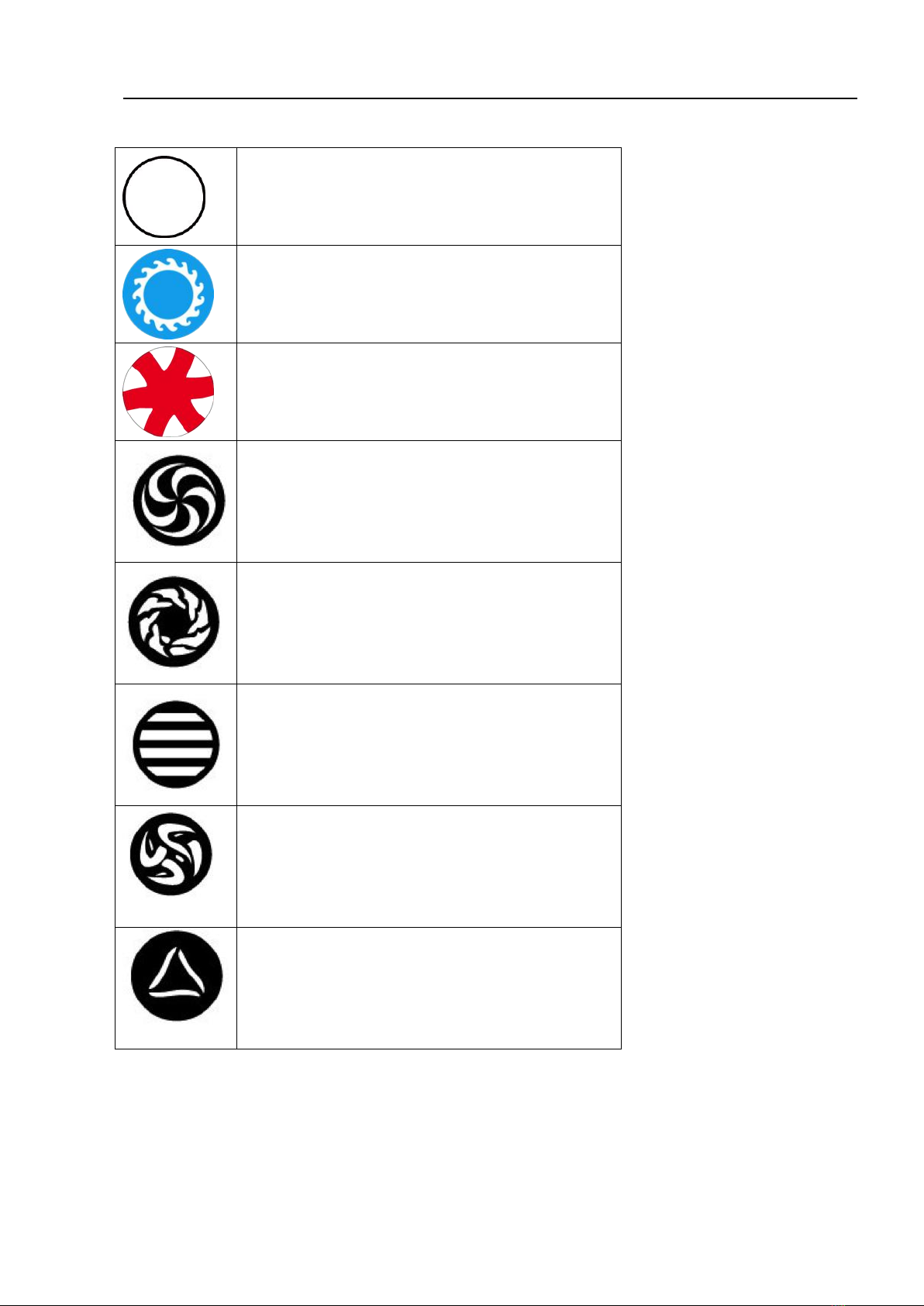

Gobo wheel
Static gobo wheel
Rotating gobo wheel (slot-in-out gobos)

6
www.event-lighting.com.au
Rotating gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8

7
www.event-lighting.com.au
Static gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8

8
www.event-lighting.com.au
Menu operation
Description of icons in the menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
Connect
DMX Address①
XXX
DMX address setting
Wireless①
XXX
Wireless Enabled
Light
Max
Temperature①
80~139℃90℃/176~282℉176℉
Lamp off if temperature
continuously over for 2
minutes
Lamp Adjust①
PAN……
Adjust value of channel
Information
Time Info.
Current XXXX(Hours)
Fixture boot time
Fixture Life XXXX(Hours)
Fixture total run time
Temperature
Near Lamp Temp (depends on fixture)
Temperature Sensors
Fans Speed
Near Lamp Fan (depends on fixture)
Fan speed Sensors
Channel Value
PAN……
Display value of channel
Error Message
Pan, Tilt……
Error channels
Fixture Model
xxxxxxxxxxxx
Display model brand and
model
Software Ver
1U01 V1.0.00……………..
Version of each IC
Set
Reset
All
Reset all
Pan & Tilt
Reset Pan & Tilt
:
:
Movement
Pan Reverse①
ON/OFF
Pan Reverse
Tilt Reverse①
ON/OFF
Tilt Reverse
Pan Degree①
630/540
Choose Pan Degree
Encoders①
ON/OFF
Encoder wheel on/off
Pan/Tilt Mode①
Stand/Smooth
Choose pan/tilt mode
UI Set
Mic Sens. ③
0~99%,(60%)
Sensitivity of Mic
No Signal①
Close/Hold/Auto/Music
Mode when no signal
Temperature. C/F①
Fahrenheit /Celsius
Temperature at ℃/℉
Fans Mode①
Auto Speed /High Speed
Fans mode
Hibernation①
OFF, 01M~99M，(15M)
Sleeping mode
Backlight①
02~60m (02m)
Show backlight time
Flip Display①
ON/OFF
Display 180°reverse
Display Bright③
00~31 (10)
Display Brightness
Brand Show①
ON/OFF
Show brand or not
Key Lock①
ON/OFF
Key lock on/off

9
www.event-lighting.com.au
Language③
En/Fr/Sp/简/繁
Language Select
Fixture Set
Theater Mode
ON/OFF
Theater Mode
Frequency
600Hz---4000KHz
(1200Hz)
Frequency
Users
User Mode①
Standard
Standard mode
Extended
Extended mode
:
:
User
User program mode
Edit User③
Max Channel = XX
Edit users mode
PAN = CH01
:
Calibration③
-Password-
=xxx
Password: 050
Pan
=xxx
Calibrate channel value
:
:
Fixture ID③
Name
Name
Rdm Mode
RDM Mode
-Password-
Password: 050
PID Code
Set PID of RDM
Wireless Set①
DMX On Cable
ON/OFF
DMX On Cable
Reset Connect
ON/OFF
Reset Connect
Reload Default
Basic Reload(①)
ON/OFF
Basic Reload
Program Reload(②)
ON/OFF
Program Reload
---Password---
XXX
Password: 050
Private Reload(③)
ON/OFF
Private Reload
All Reload
ON/OFF
All Reload
Program
Play①
DMX Receive
DMX Receive
Slave Receive
Slave Receive 1,2,3
Choose slave position
Sequence
Master / Alone
Run Sequence
Music
Master / Alone
Music mode
Select Chase②
Chase Part 1
Chase 1 ~ 8 Chase 1
Select and run auto program
Chase Part 2
Chase 1 ~ 8 Chase 2
Chase Part 3
Chase 1 ~ 8 Chase 3
Edit Chase②
Chase 1
Chase Test
Test
:
Step 01
=xxx
Beginning scene
Chase 8
Step 64
=xxx
Ending scene
Edit Scenes②
Edit Scene 001
Pan,Tilt,……
=xxx
Input manual scene
~ Edit Scene 250
--Fade Time--
=xxx
Modify manually fading time
--Secne Time--
=xxx
Modify manually scene time
DMX Input
Input scene from exterior
controller
Scenes Record
ScXX=>ScXX
Auto Input scenes

10
www.event-lighting.com.au
DMX Chart
Channel
name
function
Min
DMX
Max
DMX
St
Ex
Ba1
Ba2
1
1
1
1
Pan
Pan Coarse
0
255
2
2
2
Pan fine
Pan Fine
0
255
3
3
2
3
Tilt
Tilt Coarse
0
255
4
4
4
Tilt fine
Tilt Fine
0
255
5
5
3
5
Movement
Speed
Fastest to Slowest
0
255
6
Movement
Function
Normal
0
15
Movement With Blackout
16
31
TBD
32
255
6
7
Shutter
Function
Normal Shutter Functions
0
15
Pulse-effect Forward
16
31
Pulse-effect Reverse
32
47
Random Strobe
48
63
TBD
64
255
7
8
Shutter
Normal Shutter Functions
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Forward
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Reverse
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Random Strobe
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
4
6
Shutter
Shutter closed
0
31
No function (shutter open)
32
63
Strobe effect slow to fast
64
95
No function (shutter open)
96
127
Pulse-effect in sequences
128
159
No function (shutter open)
160
191
Random strobe effect slow to fast
192
223
No function (shutter open)
224
255
8
9
5
7
Dimmer
Dimmer (Close to Open)
0
255
9
10
Color
Indexed
0
15

11
www.event-lighting.com.au
Function
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
10
11
Color
Indexed & Indexed with Blackout & Color
Bounce
Position 1 (Open)
0
13
Position 2 ~ Position 18
14
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
6
8
Color
Indexed
Position 1 (Open)
0
2
Position 2 ~ Position 18
3
53
Indexed with Blackout
Position 1 (Open)
54
56
Position 2 ~ Position 18
57
106
Indexed With Bounce
Position 1
107
119
Position 2 ~ Position 9
120
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
11
12
Rot Gobo
Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
12
13
Rot Gobo
Indexed & Indexed with Blackout & Shake
Position 1 (Open)
0
31
Position 2 ~ Position 8
32
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous

12
www.event-lighting.com.au
Positioning from 0-360 degrees
0
255
7
9
Rot Gobo
Indexed
Position 1 (Open)
0
5
Position 2 ~ Position 8
6
47
Indexed with Blackout
Position 1 (Open)
48
53
Position 2 ~ Position 8
54
97
Indexed With Shake
Position 2
98
115
Position 3 ~ Position 8
116
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
13
14
Gobo Rot
Function
Continuous
0
15
Forward Spin
16
31
Reverse Spin
32
47
Forward Animate Rotate
48
63
Forward Animate Rotate With Blackout
64
79
Reverse Animate Rotate
80
95
Reverse Animate Rotate With Blackout
96
111
TBD
112
255
14
15
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Forward Animate Rotate & Forward Animate
Rotate with Blackout
Stop to fastest
0
255
Reverse Animate Rotate & Reverse Animate
Rotate with Blackout
Stop to fastest
0
255
8
10
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
191
Forward Animate Rotate
Stop to fastest
192
207
Reverse Animate Rotate
Stop to fastest
208
223
Forward Spin
Stop to fastest
224
239
Reverse Spin
Stop to fastest
240
255

13
www.event-lighting.com.au
15
16
Gobo
Function
Indexed
0
15
Indexed with Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
16
17
Fixed
Gobo
Indexed & Indexed with Blackout & Shake
Position 1 (Open)
0
31
Position 2 ~ Position 8
32
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
9
11
Fixed
Gobo
Indexed
Position 1 (Open)
0
5
Position 2 ~ Position 8
6
47
Indexed with Blackout
Position 1 (Open)
48
53
Position 2 ~ Position 8
54
97
Indexed with Shake
Position 2
98
115
Position 3 ~ Position 8
116
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
17
18
10
12
Prism
Indexed & Indexed with Blackout
Position 1 (Open)
0
63
Position 2
64
127
Position 3
128
191
Position 4
192
255
18
19
11
13
Prism Rot
Forward Spin
Stop to fastest
0
127
Reverse Spin
Stop to fastest
128
255
19
20
Focus
Function
Continuous
0
15
5m Auto Focus
16
31
7.5m Auto Focus
32
47
10m Auto Focus
48
63
15m Auto Focus
64
79
>20m Auto Focus
80
95

14
www.event-lighting.com.au
TBD
96
255
20
21
12
14
Focus
Continuous
Focus In to Focus Out
0
255
Auto Focus
Focus In to Focus Out Fine
0
255
21
22
Iris
Function
Indexed
0
15
Pulse Opening with Forward Blackout
16
31
Pulse Opening with Reverse Blackout
32
47
Pulse Closing with Forward Blackout
48
63
Pulse Closing with Reverse Blackout
64
79
TBD
80
255
22
23
Iris
Indexed
Max. Diameter to Min. Diameter
0
255
Pulse Opening & Pulse Closing
Pulse Slow to Fast
0
255
13
15
Iris
Indexed
0
191
Pulse Opening with Forward Blackout
192
207
Pulse Opening with Reverse Blackout
208
223
Pulse Closing with Forward Blackout
224
239
Pulse Closing with Reverse Blackout
240
255
23
24
14
16
Control
Normal
0
7
Reset All
8
15
Pan & Tilt Reset
16
23
Color Reset
24
31
Gobo Reset
32
39
TBD
40
47
Other Reset
48
55
Display Off
56
63
Display On
64
71
TBD
72
79
TBD
80
87
Hibernation
88
95
TBD
96
255
- The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 21/24/14/16, if we set the mode at standard 23
channels mode, and there are several models need to be independently controlled, we just simply address first
fixture at 1, and second fixture at 24, third one at 47, etc.
- If the devices have the same address, they will behave synchronically.
- Display is flashing when no DMX signal is received.

15
www.event-lighting.com.au
More functions
- RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the
device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as
temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at
manufacture to distinguish from each other. It is not recommended for users to change this code.
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via
a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package,
if need any further assistance please just contact your authorized dealer.
- Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
- Display back-up communication IC. There is a back-up communication IC installed in the display PCB, so users
could replace at once if the original one is broken.
- Display flip. By press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.
Technical Specifications
Power
- Input Voltage: 100~240V AC, 50/60 Hz
- Power Consumption: 270W
- Connection: Neutrik® PowerCON – In / Out
Photometrics
- Light Source: Advanced 8000K 190W White LED Module
- Beam Angle: 12°
- Output: 15,400 lumen, 35,420lux on @2.5M
- PWM: 1,200 Hz
- LED Lifespan: 60,000 hours
Effects
- Dimming: 0 ~ 100%
- Strobe: 0.5 ~26 Hz
- Focus: Electronic Linear
- Prism: 3-facet, 8 facet & Frost
- Iris: Yes
Movement 8 / 16 bit Auto Reposition
- Pan: 630°( 3.2 sec) or 540°( 2.9 sec)
- Tilt: 233°(1.9 sec)
Colour 8 Colours + Open

16
www.event-lighting.com.au
Gobos
- Fixed: 1 x 7 + Open Fixed Gobo Wheel
- Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø22mm).
Control
- Operational Modes: DMX, Auto Program, Sound Active, Master / Slave
- RDM: Yes
- Protocol: DMX512 (W-DMX™ Optional)
- DMX Channels: 23 / 24 / 14 / 16
- Interface: 3-Pin XLR & 5-Pin XLR
- Display: 2.4″ Colour LCD Control Panel with Back-up Power.
- Software Upgrade via DMX: Yes
Housing
- Materials: ABS & Steel
- Finishing: Matte black
- Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan
- IP rating: IP20
- Dimension: 343 x 250 x 456 mm
- Net Weight: 14 kg
- Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks
MISC
- Road case: MCASE2LS
WARRANTY
Please refer to your local dealer or please contact Event Lighting Pty Ltd Website:
www.event-lighting.com.au.
