Event Lighting PAN8X1X30 User manual

LED Pix Panel
PAN8X1X30, PAN4x1x30 ,PAN4x1x15, PAN2x1x30
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 2.0

www.event-lighting.com.au
1
CONTENTS
Safety Instructions
- Power Input & Power Linking
Product Installation
- Fuse replacement
Product appearance
- Lux Chart
- Dimensions
Control Board Operation
- DMX Addressing
- DMX Modes
- Dimmer Speed Setting
- Sound Mode
- Setting Static Colors
- User Mode
- Automatic Mode
DMX Values
Technical Specifications
Warranty

www.event-lighting.com.au
2
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each individual device is secured by the use of correct
mounting bracket.
Use a safety chain when mounting this device overhead.

www.event-lighting.com.au
3

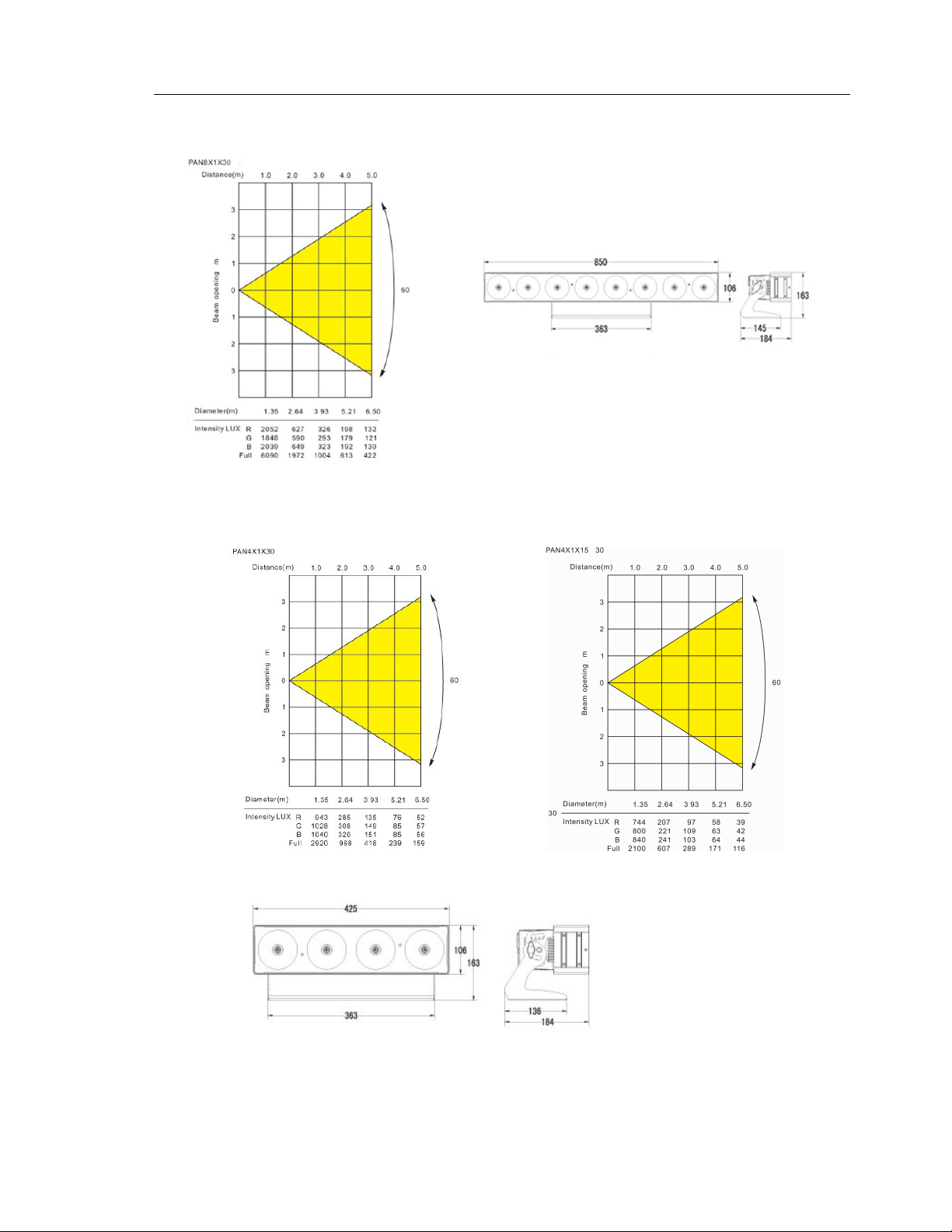

PRODUCT APPEARANCE, LUX CHART, DIMENSIONS

www.event-lighting.com.au
4
CONTROL BOARD OPERATION
Press the Menu until one of the following had been displayed:
Display Function
1.DMX Address To set DMX address
2.DMX Channel To set DMX channel modes:
4x1 Models - CH 03, CH 05, CH 09, CH12, CH17
2x1 Model - CH 03, CH 05, CH 06, CH09, CH11
3.Dimmer Curve To set dimmer speeds: 01, 02, 03, 04, 05
4.Sound Mode To set sound active mode and the sensitivity (Sen 000 ~ Sen100)
5.Static Color To set static colors: R, G, B, RG, GB, RB, RGB
6.Manual Color To set intensity of R, G, B separately for color mixing and strobe rate
7.Auto Program To set built-in automatic programs and speed 000 ~100
8.Master/Slave To set Master/Slave modes
9.Factory Set To recover to manufactory default
Use “Up” and “Down” button to select your desired operation, press “Enter” to set all function
Set DMX address
After select the "DMX Address" and press “Enter”, then use “Up” and “Down” to set the desired DMX address,
press "Enter" again to confirm.
Set DMX modes
After select the "DMX Channel" and press “Enter”, then use “Up” and “Down” to set the desired DMX mode,
press "Enter" again to confirm.
Set Dimmer curve
After select the "Dimmer Curve" and press “Enter”, then use “Up” and “Down” to set the desired dimmer curve,
press "Enter" again to confirm.

www.event-lighting.com.au
5
Sound Mode
After select the "Sound mode", use “Up” and “Down” to set the sound sensitivity Sen 000 ~ Sen 100, press “Enter” to
confirm.
Set Static Colors
Entered "Static Color", you can select the desired solid color via the “Up” or “Down” buttons, then “Enter” to confirm
Mode:
Value: Function:
Static Color
Static color <R> Red
Static color <G> Green
Static color <B> Blue
Static color <RG> Red + Green
Static color <BG> Green + Blue
Static color <RB> Red + Blue
Static color <RGB> Red + Green + Blue
Set manual mode Set up intensity of R, G, B separately for your color mixing and strobe function through control panel.
Entered "Manual color", use “Up” and “Down” to select intensity of R G B, use “Enter” to save your set for each step.
Use “Up” and “Down” to set strobe speed from Sp 000 to Sp 100, (“0” is freeze, “001 – 100” is slow to fast), then press
"Enter" to confirm.
Automatic Mode
Set your built-in automatic program through control panel.
Entered "Auto Program" mode, use “Up” and “Down” to select the built-in auto run programs, press "Enter" to confirm.
Use “Up” and “Down” to select the operating speed of the auto program (Sp 000 ~ Sp100, freeze, slow ~ fast)
PAN2X1X30 PAN4X1X15 & PAN4X1X30 & PAN8X1X30
Pr 01 R G B colors switching R G B colors switching
Pr 02 7 colors switching 7 colors switching
Pr 03 R G B colors fading R G B colors fading
Pr 04 7 colors Fading 7 colors Fading
Pr 05 Color Macros Fading Color Macros Fading
Pr 06 Effect program Effect program 1
Pr 07 Multi fixture chases 1 Effect program 2
Pr 08 Multi fixture chases2 Effect program 3
Pr 09 Multi fixture chases 3 Effect program 4
Pr 10 Multi fixture chases 4 Effect program 5
Pr 11 Multi fixture chases 5 Effect program 6
Pr 12 N/A Effect program 7
Pr 13 N/A Effect program 8
Pr 14 N/A Effect program 9
Pr 15 N/A Effect program 10
Pr 16 N/A Effect program 11
Pr 17 N/A Multi fixture chases 1
Pr 18 N/A Multi fixture chases2
Pr 19 N/A Multi fixture chases 3
Pr 20 N/A Multi fixture chases 4
Pr 21 N/A Multi fixture chases 5

www.event-lighting.com.au
6
To setup multi fixture chases
Before starting, go to each fixture and reset the menu to fixture defaults.
1. On the master unit, setup the DMX address to the total number of fixtures in the string. For example, you may have
a total of 20 par cans including the master, so the DMX address should be set to “20”.
2. On the master unit, go to master/slave menu setting and set the unit to master
3. On the master unit, set the unit to “Auto Mode” “PrXX” which supports multi fixture chases.
4. On each slave unit, setup the DMX address to the fixture position in the string. For example, if this unit is the 2nd
unit in the string including the master, then set the DMX address to 2. If this the last unit of 20, then the DMX address
should be set to 20. It is possible to double up fixture positions as well as fixture 1.
5. On each slave, go to the master/slave menu setting and set it to slave.
Master/Slave Operation
1. Set the master fixture to one of the standalone operating modes: auto, sound, static color or manual color modes
2. Set the slaves, entered “Mas/Sla” mode, set to “s”, press “Enter”
Factory set
To recover factory default, select the "Factory Set" and press “Enter”, then use “Up” and “Down” to choose “Y” (yes),
press "Enter" again to confirm to recover factory default
DMX VALUES
3 channels mode
Channel Value Function
1 000-255 Red: 0% ~ 100%
2 000-255 Green: 0% ~ 100%
3 000-255 Blue: 0% ~ 100%
5 channels mode
Channel Value Function
1 000-255 Red: 0% ~ 100%
2 000-255 Green: 0% ~ 100%
3 000-255 Blue: 0% ~ 100%
4 000-255 Master dimmer 0% ~ 100%
5
000-009 No function
010-255 Strobe : Slow ~ Fast (1~30Hz)

www.event-lighting.com.au
7
6/12/24 channels mode
PAN2X1X30 PAN4X1X30
PAN4X1X15
PAN8X1X30 Value Function
1 1 1 000-255 LED 1 Red: 0% ~ 100%
2 2 2 000-255 LED 1 Green: 0% ~ 100%
3 3 3 000-255 LED 1 Blue: 0% ~ 100%
4 4 4 000-255 LED 2 Red: 0% ~ 100%
5 5 5 000-255 LED 2 Green: 0% ~ 100%
6 6 6 000-255 LED 2 Blue: 0% ~ 100%
7 7 000-255 LED 3 Red: 0% ~ 100%
8 8 000-255 LED 3 Green: 0% ~ 100%
9 9 000-255 LED 3 Blue: 0% ~ 100%
10 10 000-255 LED 4 Red: 0% ~ 100%
11 11 000-255 LED 4 Green: 0% ~ 100%
12 12 000-255 LED 4 Blue: 0% ~ 100%
13 000-255 LED 5 Red: 0% ~ 100%
14 000-255 LED 5 Green: 0% ~ 100%
15 000-255 LED 5 Blue: 0% ~ 100%
16 000-255 LED 6 Red: 0% ~ 100%
17 000-255 LED 6 Green: 0% ~ 100%
18 000-255 LED 6 Blue: 0% ~ 100%
19 000-255 LED 7 Red: 0% ~ 100%
20 000-255 LED 7 Green: 0% ~ 100%
21 000-255 LED 7 Blue: 0% ~ 100%
22 000-255 LED 8 Red: 0% ~ 100%
23 000-255 LED 8 Green: 0% ~ 100%
24 000-255 LED 8 Blue: 0% ~ 100%

www.event-lighting.com.au
8
9 channels mode
PAN2X1X30 PAN4X1X30
PAN4X1X15
PAN8X1X30
Value Function
1 1 000-255 Red: 0% ~ 100%
2 2 000-255 Green: 0% ~ 100%
3 3 000-255 Blue: 0% ~ 100%
4 4 000-255 Master dimmer 0% ~ 100%
5 5 000-009 Strobe OFF
010-255 Strobe (slow-fast 1-30Hz)
6 6
000-019 No Function
020-039 RED 100% / GREEN 0% ~ 100% / BLUE 0%
040-059 RED 100% ~ 0% / GREEN 100% / BLUE 0%
060-079 RED 0% / GREEN 100% / BLUE 0% ~ 100%
080-099 RED 0% / GREEN 100% ~ 0% / BLUE 100%
100-119 RED 0% ~ 100% / GREEN 0% / BLUE 100%
120-139 RED 100% / GREEN 0% / BLUE 100% ~ 0%
140-159 RED 100% / GREEN 0% ~100% / BLUE 0% ~ 100%
160-179 RED 100%~ 0% / GREEN 100% ~ 0% / BLUE 100%
180-200 RED 100% / GREEN 100% / BLUE 100%
201-204 Color Temperature 1
Warm
Cool
205-209 Color Temperature 2
210-214 Color Temperature 3
215-219 Color Temperature 4
220-224 Color Temperature 5
225-229 Color Temperature 6
230-234 Color Temperature 7
235-239 Color Temperature 8
240-244 Color Temperature 9
245-249 Color Temperature 10
250-255 Color Temperature 11
7
000-009 No Function
010-043 R G B W colour switching
044-078 7 colour switching
079-113 R G B W colour fading
114-148 7 colour fading
149-183 Color Macros Fading
184-218 Effect program
214-255 Sound active mode
000-009 No Function
010-023 R G B colors switching
024-038 7 colors switching
039-053 R G B colors fading

www.event-lighting.com.au
9
7 054-068 7 colors Fading
069-083 Color Macros Fading
084-098 Effect program 1
099-113 Effect program 2
114-128 Effect program 3
129-143 Effect program 4
144-158 Effect program 5
159- 173 Effect program 6
174-188 Effect program 7
189-203 Effect program 8
204-218 Effect program 9
219-233 Effect program 10
234-248 Effect program 11
249-255 Sound active mode
8 8 000-255 Speed of auto programs (slow ~ fast) or sound sensitivity
9 9
000-009 Use dimmer curve from setting of control board
010-044 16 bits Linear dimmer 1
045-079 16 bits Non-linear dimmer 2
080-114 16 bits Non-linear dimmer 3
115-149 16 bits Non-linear dimmer 4
150-184 8 bits Linear dimmer 5
185-219 Switch on colour temperature mode
220-255 Switch off colour temperature mode

www.event-lighting.com.au
10
11/17/29 channels mode
PAN2X1X30 PAN4X1X30
PAN4X1X15
PAN8X1X30 Value Function
1 1 1 000-255 LED 1 Red: 0% ~ 100%
2 2 2 000-255 LED 1 Green: 0% ~ 100%
3 3 3 000-255 LED 1 Blue: 0% ~ 100%
4 4 4 000-255 LED 2 Red: 0% ~ 100%
5 5 5 000-255 LED 2 Green: 0% ~ 100%
6 6 6 000-255 LED 2 Blue: 0% ~ 100%
7 7 000-255 LED 3 Red: 0% ~ 100%
8 8 000-255 LED 3 Green: 0% ~ 100%
9 9 000-255 LED 3 Blue: 0% ~ 100%
10 10 000-255 LED 4 Red: 0% ~ 100%
11 11 000-255 LED 4 Green: 0% ~ 100%
12 12 000-255 LED 4 Blue: 0% ~ 100%
13 000-255 LED 5 Red: 0% ~ 100%
14 000-255 LED 5 Green: 0% ~ 100%
15 000-255 LED 5 Blue: 0% ~ 100%
16 000-255 LED 6 Red: 0% ~ 100%
17 000-255 LED 6 Green: 0% ~ 100%
18 000-255 LED 6 Blue: 0% ~ 100%
19 000-255 LED 7 Red: 0% ~ 100%
20 000-255 LED 7 Green: 0% ~ 100%
21 000-255 LED 7 Blue: 0% ~ 100%
22 000-255 LED 8 Red: 0% ~ 100%
23 000-255 LED 8 Green: 0% ~ 100%
24 000-255 LED 8 Blue: 0% ~ 100%
7 13 25 000-255 Master dimmer 0% ~ 100%
8 14 26 000-009 Strobe OFF
010-255 Strobe (slow-fast 1-30Hz)
9
000-009 No Function
010-043 R G B W colour switching
044-078 7 colour switching
079-113 R G B W colour fading
114-148 7 colour fading
149-183 Color Macros Fading
184-218 Effect program
214-255 Sound active mode
000-009 No Function
010-023 R G B colors switching
024-038 7 colors switching
039-053 R G B colors fading

www.event-lighting.com.au
11
15
27
054-068 7 colors Fading
069-083 Color Macros Fading
084-098 Effect program 1
099-113 Effect program 2
114-128 Effect program 3
129-143 Effect program 4
144-158 Effect program 5
159-
173
Effect program 6
174-188 Effect program 7
189-203 Effect program 8
204-218 Effect program 9
219-233 Effect program 10
234-248 Effect program 11
249-255 Sound active mode
10 16 28 000-255 Speed of auto programs (slow ~ fast) or sound sensitivity
11 17
29
000-009 Use dimmer curve from setting of control board
010-044 16 bits Linear dimmer 1
045-079 16 bits Non-linear dimmer 2
080-114 16 bits Non-linear dimmer 3
115-149 16 bits Non-linear dimmer 4
150-184 8 bits Linear dimmer 5
185-219 Switch on colour temperature mode
220-255 Switch off colour temperature mode

www.event-lighting.com.au
12
TECHNICAL SPECIFICATIONS
Model PAN2X1X30 PAN4X1X30 PAN4X1X15 PAN8X1X30
Dimensions and Weight
Overall size LxWxH (mm) 258X161X190 425X184X163 850X184X163
Weight (kg) 2.5 4 6.2
Power
Power Supply 100~240V AC, 50/60 Hz
Power Consumption (w) 50 120 60 200
Fuse T 1 A, 250 V T 2 A, 250 V T 1 A, 250 V T 8 A, 250 V
LED 2pcs 30W RGB
COB LED
4pcs 30W RGB
COB LED
4pcs 15W RGB
COB LED
8pcs 30W RGB COB
LED
Operation Modes DMX, auto run, sound active, master/slave, manual colour control, static colour control
Beam Angle 60°
Refresh Rate 11,700Hz
DMX Channel mode 3/5/9/6/11 3/5/9/12/17 3/5/9/24/29
Power Input IEC
Power Output NO IEC
WARRANTY
Please refer to your local dealer or please contact Event Lighting Pty Ltd
Website: www.event-lighting.com.au.
