Event Lighting M1S180W User manual

SPOT MOVING HEAD
M1S180W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au

2
www.event-lighting.com.au
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.

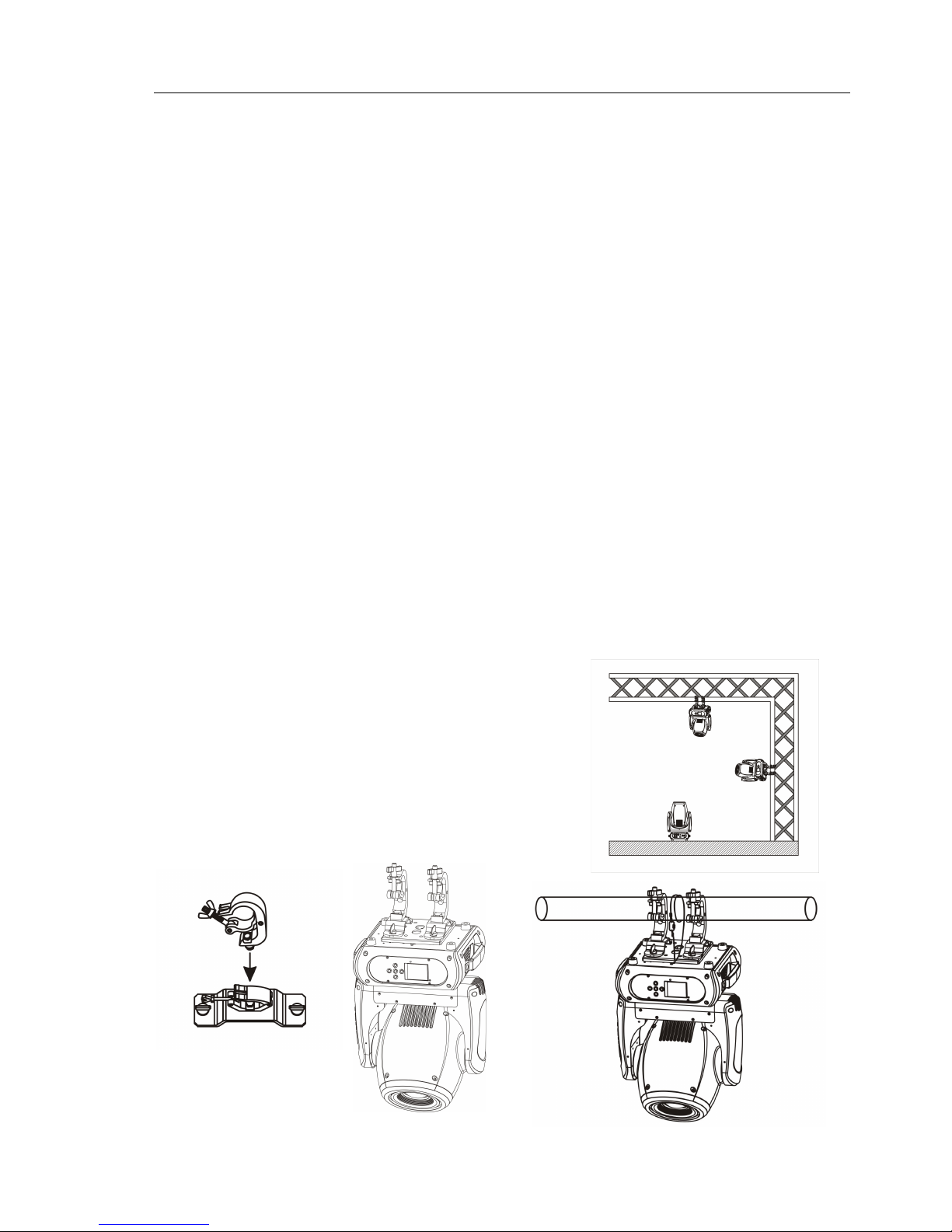

Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.

3
www.event-lighting.com.au
Product appearance, LUX chart, Dimensions
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 3-pin DMX out
19. Powercon in
20. Powercon out
21. Fuse
22. Power switch
1
2
3
4
5
6
7
8
9 10 11 12 13 1415
16
17
18
19
20
21
22

4
www.event-lighting.com.au
Colour wheel
1 Open
2
Magenta
3
Orange
4
Sky blue
5
Pink
6
Yellow
7
Green
8
Blue
9
Red
Gobo wheel
Static gobo wheel Rotating gobo wheel (slot-in-out gobos)

5
www.event-lighting.com.au

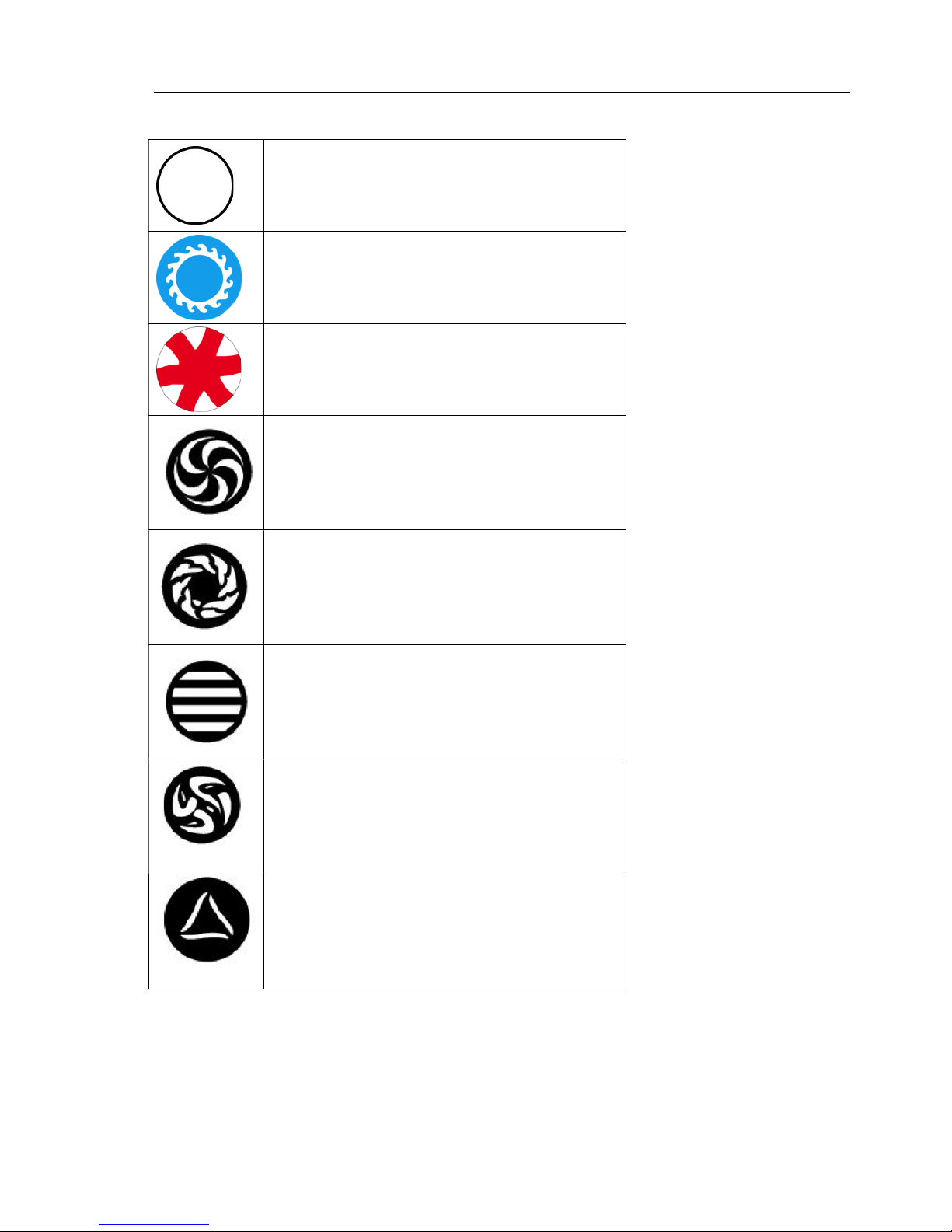

Rotating gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8

6
www.event-lighting.com.au

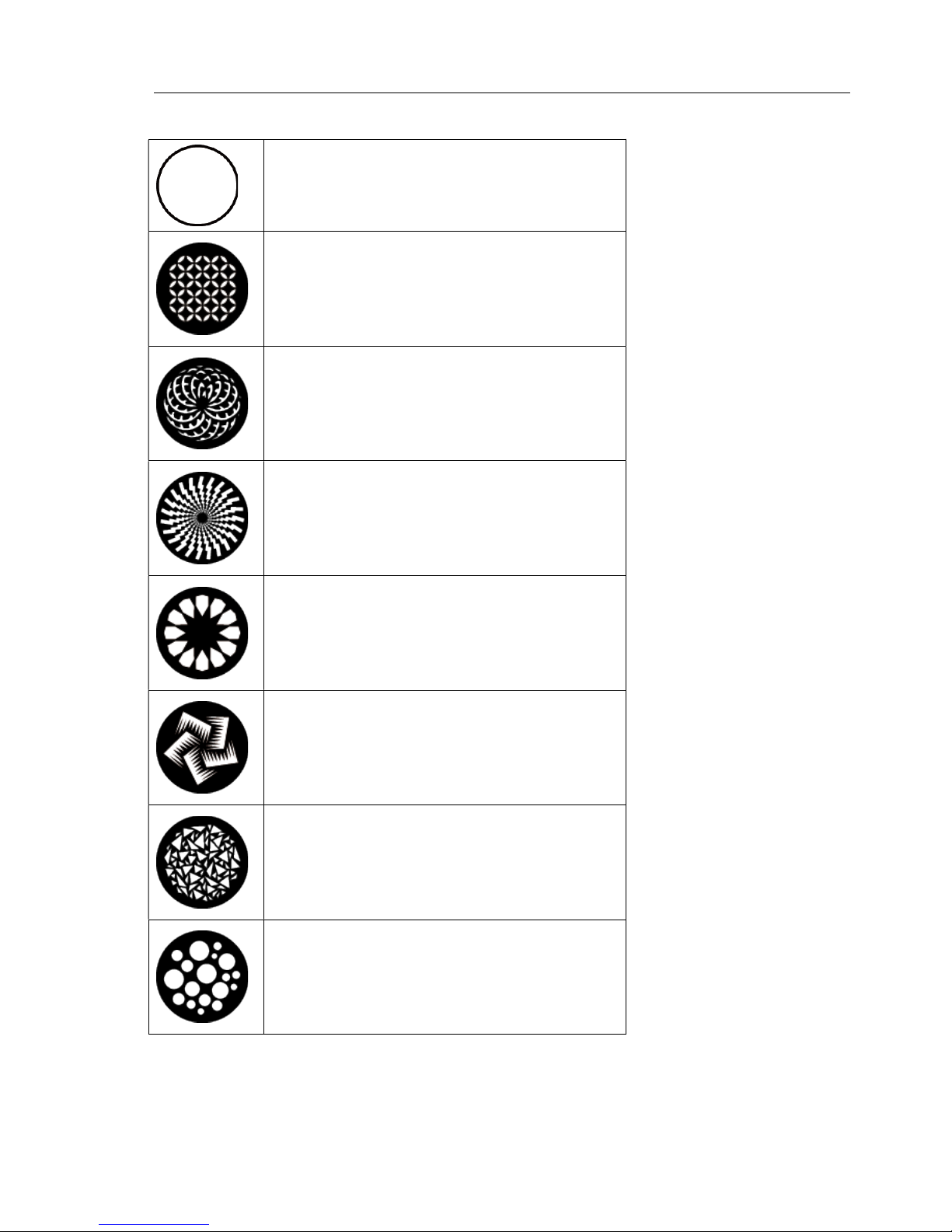

Static gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8

7
www.event-lighting.com.au
Menu operation
Description of icons in the menu
CONNECT LIGHT INFOMATION SET PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded.
Connect
DMX Address① XXX DMX address setting
Wireless① XXX Wireless Enabled
Light
Max
Temperature① 80~139℃ 90℃ /176~282℉ 176℉
Lamp off if temperature
continuously over for 2
minutes
Lamp Adjust① PAN…… Adjust value of channel
Information
Time Info. Current XXXX(Hours) Fixture boot time
Fixture Life XXXX(Hours) Fixture total run time
Temperature Near Lamp Temp (depends on fixture) Temperature Sensors
Fans Speed Near Lamp Fan (depends on fixture) Fan speed Sensors
Channel Value PAN…… Display value of channel
Error Message Pan, Tilt…… Error channels
Fixture Model xxxxxxxxxxxx Display model brand and
model
Software Ver 1U01 V1.0.00…………….. Version of each IC
Set
Reset
All Reset all
Pan & Tilt Reset Pan & Tilt
: :
Movement
Pan Reverse① ON/OFF Pan Reverse
Tilt Reverse① ON/OFF Tilt Reverse
Pan Degree① 630/540 Choose Pan Degree
Encoders① ON/OFF Encoder wheel on/off
Pan/Tilt Mode① Stand/Smooth Choose pan/tilt mode
UI Set
Mic Sens. ③ 0~99%,(60%) Sensitivity of Mic
No Signal① Close/Hold/Auto/Music Mode when no signal
Temperature. C/F① Fahrenheit /Celsius Temperature at ℃/℉
Fans Mode① Auto Speed /High Speed Fans mode
Hibernation① OFF, 01M~99M，(15M) Sleeping mode
Backlight① 02~60m (02m) Show backlight time
Flip Display① ON/OFF Display 180°reverse
Display Bright③ 00~31 (10) Display Brightness
Brand Show① ON/OFF Show brand or not

8
www.event-lighting.com.au
Key Lock① ON/OFF Key lock on/off
Language③ En/Fr/Sp/简/繁 Language Select
Fixture Set
Theater Mode ON/OFF Theater Mode
Frequency 600Hz---4000KHz
(1200Hz) Frequency
Users
User Mode①
Standard Standard mode
Extended Extended mode
: :
User User program mode
Edit User③
Max Channel = XX
Edit users mode
PAN = CH01
:
Calibration③
-Password- =xxx Password: 050
Pan =xxx Calibrate channel value
: :
Fixture ID③
Name Name
Rdm Mode RDM Mode
-Password- Password: 050
PID Code Set PID of RDM
Wireless Set① DMX On Cable ON/OFF DMX On Cable
Reset Connect ON/OFF Reset Connect
Reload Default
Basic Reload(①) ON/OFF Basic Reload
Program Reload(②) ON/OFF Program Reload
---Password--- XXX Password: 050
Private Reload(③) ON/OFF Private Reload
All Reload ON/OFF All Reload
Program
Play①
DMX Receive DMX Receive
Slave Receive Slave Receive 1,2,3 Choose slave position
Sequence Master / Alone Run Sequence
Music Master / Alone Music mode
Select Chase②
Chase Part 1 Chase 1 ~ 8 Chase 1
Select and run auto program Chase Part 2 Chase 1 ~ 8 Chase 2
Chase Part 3 Chase 1 ~ 8 Chase 3
Edit Chase②
Chase 1 Chase Test Test
: Step 01 =xxx Beginning scene
Chase 8 Step 64 =xxx Ending scene
Edit Scenes②
Edit Scene 001 Pan,Tilt,…… =xxx Input manual scene
~ Edit Scene 250 --Fade Time-- =xxx Modify manually fading time
--Secne Time-- =xxx Modify manually scene time
DMX Input Input scene from exterior
controller
Scenes Record ScXX=>ScXX Auto Input scenes

9
www.event-lighting.com.au
DMX Chart
Channel name function Min
DMX
Max
DMX
St Ex Ba1 Ba2
1 1 1 1 Pan Pan Coarse 0 255
2 2 2 Pan fine Pan Fine 0 255
3 3 2 3 Tilt Tilt Coarse 0 255
4 4 4 Tilt fine Tilt Fine 0 255
5 5 3 5 Movement
Speed Fastest to Slowest 0 255
6
Movement
Function
Normal 0 15
Movement With Blackout 16 31
TBD 32 255
6 7
Shutter
Function
Normal Shutter Functions 0 15
Pulse-effect Forward 16 31
Pulse-effect Reverse 32 47
Random Strobe 48 63
TBD 64 255
7 8 Shutter
Normal Shutter Functions
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Forward
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Pulse-effect Reverse
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
Random Strobe
Close 0 31
Strobe Rate (slow to fast) 32 223
Open 224 255
4 6 Shutter
Shutter closed 0 31
No function (shutter open) 32 63
Strobe effect slow to fast 64 95
No function (shutter open) 96 127
Pulse-effect in sequences 128 159
No function (shutter open) 160 191
Random strobe effect slow to fast 192 223
No function (shutter open) 224 255
8 9 5 7 Dimmer Dimmer (Close to Open) 0 255

10
www.event-lighting.com.au
9 10
Color
Function
Indexed 0 15
Indexed With Blackout 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Color Bounce 80 111
TBD 112 255
10 11 Color
Indexed & Indexed with Blackout & Color
Bounce
Position 1 (Open) 0 13
Position 2 ~ Position 18 14 255
Forward Spin
Stop to fastest 0 255
Reverse Spin
Stop to fastest 0 255
Continuous
Positioning from 0-360 degrees 0 255
6 8 Color
Indexed
Position 1 (Open) 0 2
Position 2 ~ Position 18 3 53
Indexed with Blackout
Position 1 (Open) 54 56
Position 2 ~ Position 18 57 106
Indexed With Bounce
Position 1 107 119
Position 2 ~ Position 9 120 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
11 12
Rot Gobo
Function
Indexed 0 15
Indexed With Blackout 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Shake 80 95
TBD 96 255
12 13 Rot Gobo
Indexed & Indexed with Blackout & Shake
Position 1 (Open) 0 31
Position 2 ~ Position 8 32 255
Forward Wheel Spin
Stop to fastest 0 255
Reverse Wheel Spin
Stop to fastest 0 255

11
www.event-lighting.com.au
Continuous
Positioning from 0-360 degrees 0 255
7 9 Rot Gobo
Indexed
Position 1 (Open) 0 5
Position 2 ~ Position 8 6 47
Indexed with Blackout
Position 1 (Open) 48 53
Position 2 ~ Position 8 54 97
Indexed With Shake
Position 2 98 115
Position 3 ~ Position 8 116 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
13 14
Gobo Rot
Function
Continuous 0 15
Forward Spin 16 31
Reverse Spin 32 47
Forward Animate Rotate 48 63
Forward Animate Rotate With Blackout 64 79
Reverse Animate Rotate 80 95
Reverse Animate Rotate With Blackout 96 111
TBD 112 255
14 15 Gobo Rot
Continuous
Positioning from 0-360 degrees 0 255
Forward Spin
Stop to fastest 0 255
Reverse Spin
Stop to fastest 0 255
Forward Animate Rotate & Forward Animate
Rotate with Blackout
Stop to fastest 0 255
Reverse Animate Rotate & Reverse Animate
Rotate with Blackout
Stop to fastest 0 255
8 10 Gobo Rot
Continuous
Positioning from 0-360 degrees 0 191
Forward Animate Rotate
Stop to fastest 192 207
Reverse Animate Rotate
Stop to fastest 208 223
Forward Spin
Stop to fastest 224 239
Reverse Spin

12
www.event-lighting.com.au
Stop to fastest 240 255
15 16
Gobo
Function
Indexed 0 15
Indexed with Blackout 16 31
Forward Spin 32 47
Reverse Spin 48 63
Continuous 64 79
Shake 80 95
TBD 96 255
16 17
Fixed
Gobo
Indexed & Indexed with Blackout & Shake
Position 1 (Open) 0 31
Position 2 ~ Position 8 32 255
Forward Wheel Spin
Stop to fastest 0 255
Reverse Wheel Spin
Stop to fastest 0 255
Continuous
Positioning from 0-360 degrees 0 255
9 11 Fixed
Gobo
Indexed
Position 1 (Open) 0 5
Position 2 ~ Position 8 6 47
Indexed with Blackout
Position 1 (Open) 48 53
Position 2 ~ Position 8 54 97
Indexed with Shake
Position 2 98 115
Position 3 ~ Position 8 116 223
Forward Wheel Spin
Stop to fastest 224 239
Reverse Wheel Spin
Stop to fastest 240 255
17 18 10 12 Prism
Indexed & Indexed with Blackout
Position 1 (Open) 0 63
Position 2 64 127
Position 3 128 191
Position 4 192 255
18 19 11 13 Prism Rot
Forward Spin
Stop to fastest 0 127
Reverse Spin
Stop to fastest 128 255
19 20
Focus
Function
Continuous 0 15
5m Auto Focus 16 31
7.5m Auto Focus 32 47
10m Auto Focus 48 63
15m Auto Focus 64 79

13
www.event-lighting.com.au
>20m Auto Focus 80 95
TBD 96 255
20 21 12 14 Focus
Continuous
Focus In to Focus Out 0 255
Auto Focus
Focus In to Focus Out Fine 0 255
21 22
Iris
Function
Indexed 0 15
Pulse Opening with Forward Blackout 16 31
Pulse Opening with Reverse Blackout 32 47
Pulse Closing with Forward Blackout 48 63
Pulse Closing with Reverse Blackout 64 79
TBD 80 255
22 23 Iris
Indexed
Max. Diameter to Min. Diameter 0 255
Pulse Opening & Pulse Closing
Pulse Slow to Fast 0 255
13 15 Iris
Indexed 0 191
Pulse Opening with Forward Blackout 192 207
Pulse Opening with Reverse Blackout 208 223
Pulse Closing with Forward Blackout 224 239
Pulse Closing with Reverse Blackout 240 255
23 24 14 16 Control
Normal 0 7
Reset All 8 15
Pan & Tilt Reset 16 23
Color Reset 24 31
Gobo Reset 32 39
TBD 40 47
Other Reset 48 55
Display Off 56 63
Display On 64 71
TBD 72 79
TBD 80 87
Hibernation 88 95
TBD 96 255
- The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 21/24/14/16, if we set the mode at standard 23
channels mode, and there are several models need to be independently controlled, we just simply address first
fixture at 1, and second fixture at 24, third one at 47, etc.
- If the devices have the same address, they will behave synchronically.
- Display is flashing when no DMX signal is received.

14
www.event-lighting.com.au
More functions
- RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the
device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as
temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at
manufacture to distinguish from each other. It is not recommended for users to change this code.
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via
a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package,
if need any further assistance please just contact your authorized dealer.
- Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
- Display back-up communication IC. There is a back-up communication IC installed in the display PCB, so users
could replace at once if the original one is broken.
- Display flip. By press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.

15
www.event-lighting.com.au
Technical Specifications
- Input Voltages: 100V- 240V AC, 50/60Hz
- Power Consumption: 270W
- Light source: advanced 180W white LED module
- Power Connection: Neutrik® Powercon input and output connection
- LED life: 60,000 hours
- Lux: 11000 lumen, 25,300lux on @2.5M
- Beam angle: 12°
- PWM: 1,200Hz
- Colors: 1 color wheel with 8 colors + open
- Gobos: 1pc 7 + open fixed gobo wheel, 1pc 7 + open interchangeable rotating gobo wheel (outside Ø27mm, inside
Ø22mm).
- Effect: 3 facets, 8 facets prism, frost, fast speed iris
- Dimmer: 0-100% dimmer
- Strobe: 0.5 - 26 Hz
- Focus: linearly focusing controlled by DMX
- Head movement: Pan: 630°(4.0 sec)or 540°(3.58 sec), Tile 265°(2.8 sec).16-bit resolution, auto repositioning
- Control: DMX512, 3-pin XLR interfaces, 21/24/14/16 channel mode
- Other function: W - DMX is optional
- 2.4 inch colour LCD control panel with back-up power.
- Thermostat Controlled, variable speed fan
- RDM and software upgrade via DMX.
- Net weight: 14Kg
- Overall Size: 343x250x456mm
- Rigging: 2pcs omega brackets with 1/4 – turn quick locks
- Road case is available
