Exaco HELIOS/EOS T User manual

ASSEMBLY INSTRUCTIONS
HELIOS/EOS T-model
Version 2022
Note: This is an all-inclusive manual.
It shows optional accessories and customizations that may not
apply to your greenhouse. Direct any questions to Exaco.
Assembly Videos can
be found by scanning
the code to the left
with your
smartphone. www.exaco.com
877-760-8500
Or find the link to our YouTube page at
www.exaco.com. Go to the Victorian
Greenhouse Playlist for all videos.

PRODUCT INFORMATION
Dear customer

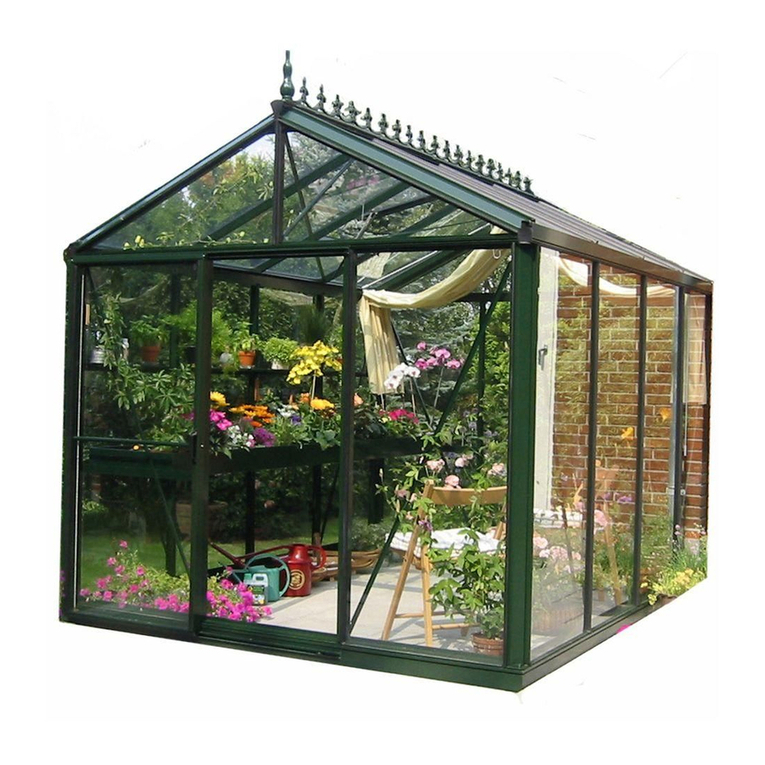

Thank you for buying a high-quality aluminum greenhouse.
REMARKS
In all drawings you find the mounting-instructions for all basic standard-models. However this
manual should be a sufficient guidance for all special-case greenhouses. This greenhouse is designed
for cultivation of plants/flowers. Therefore leakage, water drops and condensation inside the building are
allowed. The building may only be entered by competent persons during cultivation or maintenance.
Aluminium profiles that are not painted may show black stains, these stains are not a production error:
they can be easily removed with a aluminium cleaner available at every good drugstore. The rubber
strips have been treated with oil/silicone on the interior to facilitate the assembly. The building should
be mounted on a solid concrete foundation deep enough to get a solid and frost-free ground. Anchoring
of the foundation should be made by the owner or operator and should be checked periodically. During
winter the roof has to be cleared of snow or supported in a suitable way. The greenhouse should be built
in a location protected from strong winds. Protective gear (such as protective gloves) should be used
during mounting in order to avoid injuries. One should at all times pay attention to the local building
regulations.
ASSEMBLY ORDER
The assembly procedure is the same for all our greenhouses.
-Sorting of the profiles according the model.
-Mounting of the complete aluminum construction.
-Leveling of the construction using a water level.
-Securing the building to the ground
-Glazing.
REQUIRED TOOLS
Socket wrench nr. 10 or spanner nr. 10, water-level, screwdriver, drilling machine + drill 4.2 mm,
scissors (to cut the rubber).
We reserve the right to change the construction without prior notice!

Standard Royal Orangerie
1
2
829mm
3098mm
829mm
3
A
= 1+2+3
43098mm
829mm
5
B
= 4+5
Please call Exaco for measurements if you have a custom greenhouse.
Notes:
Do not set anchors in concrete until the entire greenhouse frame is complete, level
and square. You will need some play to attach the uprights.
It is recommended to build your foundation down to the frost line in your area and/or
consult a local contractor for recommendations.
Greenhouse base frame is 2.25" wide
Corner anchor posts are 1.5" x 1.5". They attach at the interior corners of the base
frame, then extend 12" below ground. Bolts attach to the bottom of the anchor to
be a "catch" in the concrete. We recommend leaving a 4 to 6" hole in your concrete
for the anchor. Do not embed the corner anchors into concrete until the greenhouse
structure is built, leveled and square.
Embedding the corner anchor into concrete is the most secure method, although you
may choose to trim them off, cut in half, and use as L brackets to attach to the
greenhouse and foundation with the appropriate stainless steel screws (i.e. Tap Con
screws for concrete)

Royal Orangerie on a Stem Wall
1
2
829mm
3.098mm
829mm
3
A
= 1+2+3
4
3.098mm
829mm
5
B
= 4+5
HELIOS T MUR + EOS T MUR
A|B
H200 | 400
600 | 1.025
ZDDZAll dimensions are external
dimensions of the aluminum profiles

Binnen-Innen-Inside-Interieure-Insida Buiten-Aussen-Outside-Exterieure-Utsida
RETRO
A
B
A
B
B
