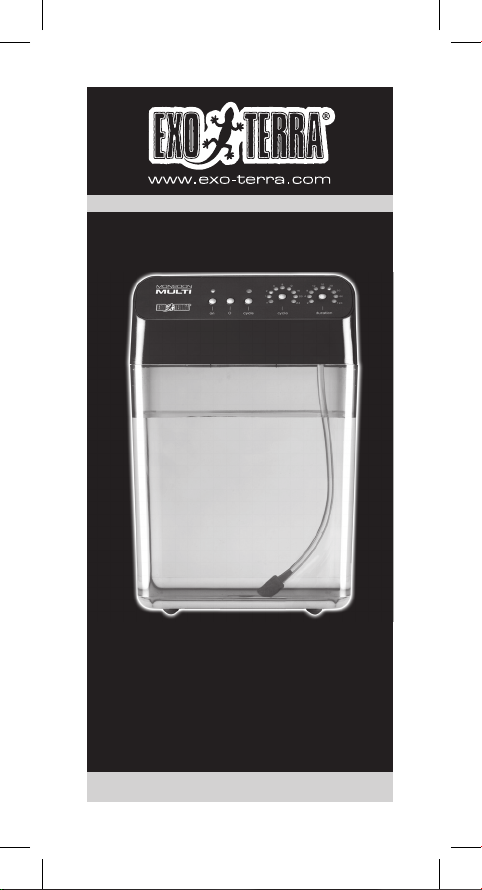

Monsoon MULTI
High-pressure
Misting System
Operating
Instructions
Thank you for purchasing the Exo Terra®Monsoon MULTI – High-
pressure Misting System. Please read this operation manual carefully
before use and operate according to the instructions provided for
maximum safety and performance. We recommend that you keep this
manual handy for future reference.
• Programmable misting unit for terrariums and greenhouses
• Easy to connect and install
• Flexible spray nozzles (up to 6!) can be pointed in
any direction
• Large 8 liter (2 gallon) reservoir
• Easy to refill
Contents:
1 x Monsoon MULTI
1 x Transparent reservoir
1 x Filter with tubing
2 x Support suction cups
2 x Nozzles with suction cups
2 x Replacement Spray heads
1 x Nozzle Tool
2 x 1,5 m (5 ft) Tubing
1 x 1,8 m (6 ft) Tubing
1 x Y-connector
1 x Power adapter
Additional accessories available to extend
the system:
PT2497 – Monsoon Nozzle Extension Kit
PT2498 – Monsoon Y-connector
PT2500 – Monsoon Water Filter
PT2501 – Monsoon Nozzles (2x)
PT2502 – Monsoon Suction Cups (2x)
PT2503 – Monsoon Nozzle Tool
PT2504 – Monsoon Tubing /1.8m / 6ft
Read instructions thoroughly prior to installation and operation.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS
ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS

4
IMPORTANT SAFETY
INSTRUCTIONS
WARNING:
• To guard against injury, basic
precautions should be observed,
including the following.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS and all the important
notices on the product before using.
Failure to do so may result in personal
injury or damage to the product.
DANGER – To avoid possible
electrical shock, special care should be
taken since water is/may be employed
in the use of this product. For each of
the following situations, do not attempt
repairs yourself, return the product to
an authorized service facility for service
if it is still under warranty or discard
the product:
1. Do not operate the appliance if it has
a damaged electrical cord or power
adaptor, or if it is malfunctioning or if it
is dropped or damaged in any manner.
2. The supply cord from the transformer
supplied with this unit is detachable

and must be replaced along with the
power adaptor if damaged.
3. The appliance is only to be used with
the power supply unit provided with the
appliance.
4. The appliance must only be
supplied at safety extra low voltage
corresponding to the marking on the
appliance.
• A “drip loop” shown in the figure
beside, should be arranged by the
user for each
cord connecting
a power adaptor
to the socket. The
“drip loop” is the
part of the cord below the level of
the receptacle, or the connector if
an extension cord is in use. This
prevents water from traveling along
the cord and coming into contact
with the socket or power supply.
If the plug or socket gets wet, DO
NOT unplug the cord. Disconnect the
fuse or circuit breaker that supplies
power to the appliance then unplug
and examine for the presence of
ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS

6
water in the socket.
• To avoid injury, do not contact hot
parts, allow to cool down
before handling.
• CAUTION – Always unplug or
disconnect the appliance from the
outlet before putting on or taking
off parts and while the equipment
is being installed, maintained or
handled. Never yank the cord to pull
the power adaptor from the outlet.
Grasp the power adaptor body and
pull to disconnect. Always unplug an
appliance from an outlet when not in
use. Never lift this product by the
supply cord.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning

and user maintenance shall not
be made by children without
supervision.
• Do not use this appliance for other
than its intended use. The use of
attachments not recommended or
sold by the appliance manufacturer
may cause an unsafe condition.
• Do not install or store the appliance
where it will be exposed to
temperatures below freezing. Do not
expose the unit to direct sunlight.
• Ensure that the appliance is placed
on a flat, even surface. Monitor the
product regularly. Do not leave the
product unattended for extended
periods.
• If an extension cord is necessary,
ensure the connection is watertight
and dust proof. A cord with a proper
rating should be used. A cord rated
for less amperes or watts than the
appliance rating may overheat. Care
should be taken to arrange the cord
so that it will not be tripped over or
pulled.
ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS

8
The connection should be carried
out by a qualified electrical installer.
• Indoor Household Use Only. Not for
commercial use.
• CAUTION – To prevent corrosion or
deterioration of materials that could
lead to electric shock, use only with
fresh water.
• Do not add any chemicals or
medicinal compounds to the water
used in this device.
• IMPORTANT – Pump must not be
allowed to run dry.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Only close adherence to these
installation, electrical and maintenance
guidelines will ensure the safe and
efficient use of this appliance.

Installation – Exo Terra®Natural Terrariums
Follow this installation procedure to install the Exo Terra®Monsoon
MULTI system on any size of Exo Terra®Natural Terrarium. The system
comes with two nozzles, which should be mounted on either glass side
panel of the terrarium as close as possible to the opening front doors.
A
1. Unlock the top screen cover and lift it off the terrarium.
2. Slide the inlet holes (located on the back of the screen top on either
side) to the open position, so the tubing will fit through.
3. Feed the tubing through the first inlet hole on each side on the back
of the terrarium. (fig.A)
ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS
4. Mount the nozzles in position on the glass portion of the terrarium’s
side panels with the suction cups. Make sure that the glass area is
clean and free of any dirt or deposits before mounting the nozzles.
For the best results, mount the nozzles as close as possible to the
front opening windows and the top screen. (fig. B)
5. Direct the nozzle positions inside the terrarium so that the spray
stream will avoid spraying on the terrarium’s front and side panels
when in operation.
6. Use the additional suction cups to neatly guide the tubing along the
side panels to the inlets at the back of the terrarium.
7. Replace the top screen cover and lock it back into position.
B

10
8. Close the remaining inlets by sliding the slider against the tubing
or wires to prevent escape from feeding insects and smaller
animals. (fig. C)
9. Remove any slack in the tubing inside the terrarium. Make sure
there are no kinks in the tubing which would impede water flow to
the nozzles. Verify that the suction cups are properly attached.
C

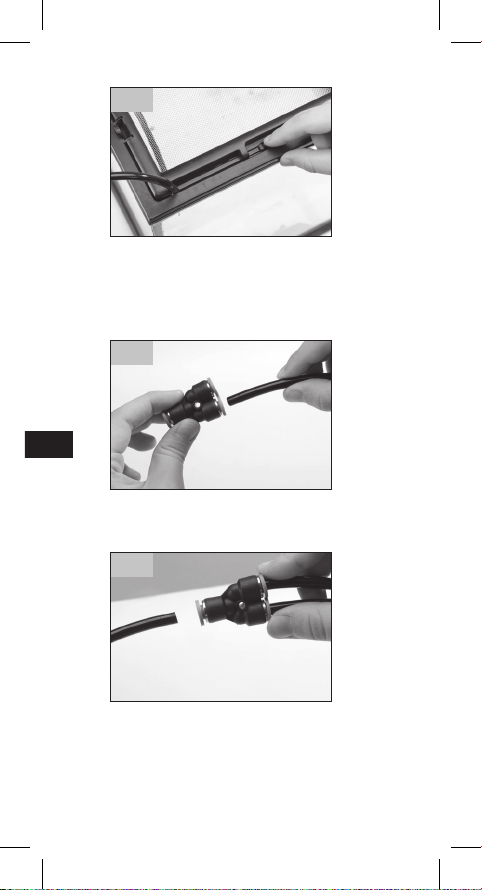

10. Connect the tubing from the nozzles to the Y-connector by pressing
the tubing firmly into one of the side-by-side holes as far as
possible. Connect both nozzles. (fig. D)
D
11. Connect the tubing to the remaining hole of the Y-connector by
pressing it firmly inside as far as possible. (fig. E)
12. Place the Monsoon MULTI unit on a solid, level surface.
E

ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS
F
13. Connect the tubing coming from the Y-connector to the top of the
unit by pressing the tubing firmly into the connector on top of the
control unit. (fig.F)
14. Make sure that the filter is properly connected to the spigot on the
underside of the control unit and placed inside the reservoir.
15. Ensure that the top of the Monsoon MULTI unit fits tightly on top
of the reservoir.
G

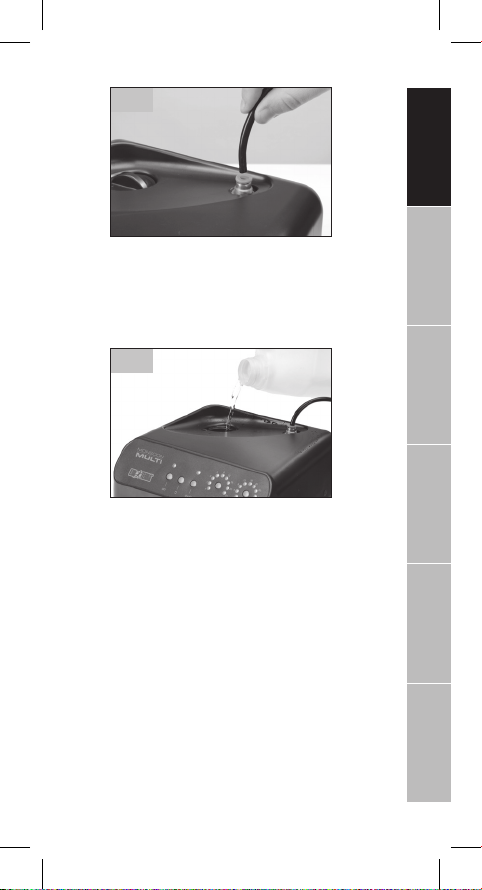

16. Open the small lid on top of the unit, and fill the reservoir with
de-mineralized/distilled water up to a maximum of 2,5 cm (1”) from
the top rim of the transparent reservoir. (Using regular tap water
will cause clogging of the nozzles by mineral deposits!) (fig. G)
17. Close the lid and connect the power supply jack to the back of
the unit.
18. Make sure the unit is in its final operating location, on a solid,
level surface.
19. Plug the power adaptor into the wall socket, your Exo Terra®
Monsoon MULTI High-pressure Misting system is now ready to use.
In order to remove the tubing from either the Y-connector or the
unit, press and hold the blue ring down, while pulling out the tubing.
Please note that nozzles can be mounted in multiple terrariums.

12
Installation – Other Terrarium Models
Refer to your terrarium’s instruction manual for instructions on how to install
equipment, wiring and tubing inside the terrarium.
1. Mount the nozzles in position on the glass portion of the terrarium’s
side panels with the suction cups. Make sure that the glass area is
clean and free of any dirt or deposits before mounting the nozzles.
For the best results, mount the nozzles as close as possible to the
front opening windows and the top screen.
2. Direct the nozzle positions inside the terrarium so that the spray
stream will avoid spraying on the terrarium’s front and side panels
when in operation.
3. Use the additional suction cups to neatly guide the tubing along the
side panels to the inlet location of your terrarium.
4. Connect the tubing from the nozzles to the Y-connector by pressing
the tubing firmly into one of the side-by-side holes as far as
possible. Connect both nozzles.
5. Connect the tubing to the remaining hole of the Y-connector by
pressing it firmly inside as far as possible.
6. Place the Monsoon MULTI unit on a hard, stable, level surface.
7. Connect the tubing coming from the Y-connector to the top of the
unit by pressing the tubing firmly into the opening as far
as possible.
8. Make sure that the filter is properly connected to the spigot on the
underside of the control unit and placed inside the reservoir.
9. Ensure that the top of the Monsoon MULTI unit fits tightly on top
of the reservoir.
10. Open the small lid on top of the unit, and fill the reservoir with de-
mineralized/distilled water up to a maximum of 2,5 cm (1”) from
the top rim of the transparent reservoir. (Using regular tap water
will cause clogging of the nozzles by mineral deposits!)
11. Close the lid and connect the power supply jack to the back of
the unit.
12. Make sure the unit is in its final operating location, standing level
on a hard surface.
13. Plug the power adaptor into the wall socket, your Exo Terra®
Monsoon MULTI High-pressure Misting system is now ready to
use. In order to remove the tubing from either the Y-connector
or the unit, press and hold the blue ring down, while pulling out
the tubing. Please note that nozzles can be mounted in multiple
terrariums.
Operating instructions
Use one of the three operating modes mentioned below to create the
appropriate rain cycle for your animals. You can switch between the
operating modes by pressing one of the three buttons in the center of
the control panel (fig. G):
1. O: The Exo Terra®Monsoon is switched off – No blue LED light is
visible in this mode.
2. ON : The Exo Terra®Monsoon is switched on – the blue LED “ON”
light is illuminated and the unit will operate CONTINUOUSLY. The
blue LED lights that indicate the cycle settings (duration and cycle)
are illuminated and will show which cycle parameters will be
used when the mode is switched to “CYCLE” mode (see below).
PLEASE NOTE THAT IN THIS MODE THE MONSOON WILL NOT
SPRAY ACCORDING TO THESE CYCLE SETTINGS, IT WILL SPRAY

ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS
CONTINUOUSLY REGARDLESS OF THE CYCLE SETTINGS
3. CYCLE : The Exo Terra®Monsoon is in cycle mode – the blue LED
“CYCLE” light is illuminated and the unit will operate according
to the cycle and duration settings.Also the blue LED lights that
indicate the cycle settings (duration and cycle) are illuminated and
show which cycle parameters are currently used.You can alter the
“cycle” and “duration” settings by simply pressing the buttons on
the dials on the left and right side of the control panel.
• The left dial is to set the “cycle” (in hours) of the unit. Press the
button on the dial until the corresponding LED of your preferred
cycle is illuminated. For example, when the LED “4” is illuminated
the unit will operate every 4 hours.
• The dial on the right sets the “duration” of each operating cycle (in
seconds). Press the button on the dial until the corresponding LED
of your preferred duration is illuminated. For example, when the
LED light “30” is illuminated, the unit will operate for 30 seconds.*
• The Exo Terra®Monsoon MULTI should be set according to the
needs of the animals and to the size of the terrarium. Be careful not
to operate the unit too frequently or too long to avoid overflowing
the terrarium! The unit should be set so that water added to the
terrarium from the first operating cycle is allowed to evaporate
before the next operating cycle begins, or at least make sure that
the excess water can be drained out of the terrarium.
• After the unit has been set and the cycle button has been pressed
on (blue cycle LED is illuminated), the unit immediately starts it’s
first cycle.The next cycle will begin depending on hourly setting
of the first dial. If the unit is switched off, the cycle will start again
after the cycle button has been pressed. In the case of a power
failure, the unit will automatically resume in cycle mode. The first
cycle starts as soon as the power comes back on.
• When the reservoir is empty, it is advisable to refill the reservoir
immediately or to switch off the unit. The pump has a built in
safety cut-off that will switch off the pump (not the unit) when
overheated. When the pump cools down, it will automatically
switch on again. This is a safety feature, and one should not rely on
the thermal cut-off.
Adding additional Nozzes to the system
The Exo Terra®Monsoon MULTI can be operated with up to 6 nozzles.
Please note that every additional nozzle will result in less performance
from each nozzle installed. To connect additional nozzles, an extra
nozzle (PT2501) and a Y-connector (PT2498) is needed (sold separately).
Simply cut the tubing where convenient, preferably as close as possible
to the first Y-connector. Make sure the nozzle can easily be mounted in
its intended location without stretching the tubing. Connect the tubing
coming from the unit to the single hole of the Y-connector and the
other end of the tubing to the double hole. Connect the tubing from the
additional nozzle to the other hole of the Y-connector. Please note that
additional nozzles can be mounted in multiple terrariums.
Maintenance
It is advisable to place the unit in a dark location or otherwise shielded
from light to prevent the growth of algae in the reservoir. Should algae
form, just wipe the inside of the reservoir with a damp cloth. Do NOT
use detergent or solvents as it might harm your terrarium animals!
Make sure to discard any dirty water or water containing debris or
particles. Only use de-mineralised/distilled water or debris-free and

14
clean rainwater! Replace the filter regularly, at least every six months
depending on the usage and water quality. If the nozzles are clogged or
if they spray irregularly, place the nozzles overnight in a 50/50 water/
vinegar solution. Rinse thoroughly with clean water before mounting the
nozzles back onto the terrarium. If the problem persists, we recommend
replacing the spray head with the with one of the two replacement spray
heads with the nozzle tool (included). A replacement filter (PT2500) and
other accessories are available at your local Exo Terra®pet retailer.
Troubleshooting
1. There is no LED indicator illuminated on the unit:
• The unit is switched off, press either the “on” button or the
“cycle” button
• If the problem persists, make sure the power adaptor is
correctly inserted into the wall socket.
• That the power supply jack is connected to the unit
2. The tubing is leaking at the connectors:
• Disconnect the tubing from the connector by pressing down and
holding the blue ring while pulling the tubing. Connect the
tubing again by pushing the tubing firmly into the opening
as far as possible.
• If the problem persists, disconnect the tubing and cut off about 1,5
cm (1/2”) as straight as possible and reconnect.
3. The nozzle is leaking at the joints:
• If the nozzles are under pressure, accidental leakage might
occur near the joints. Try to move the nozzle in a slightly different
position. If the leakage occurs near the front joint (octagonal part),
try to tighten the front part.
• If the problem persists, replace the nozzle (available at your local
Exo Terra
®
pet retailer).
4. The nozzle does not spray or sprays irregularly:
• The nozzle may be clogged. Soak the nozzle overnight in a 50/50
solution of water/vinegar (See “Maintenance” section).
• If the problem persists, we recommend replacing the spray head
with one of the two replacement spray heads with
the nozzle tool (included).
• Using de-mineralized/distilled water will prolong the lifespan of the
nozzles. It is not recommended to open the nozzle, as it consists
of very small parts and any tampering will may result in complete
malfunction of the nozzle.
GUARANTEE
This product is guaranteed for defects in material or workmanship for
a period of 2 years from date of purchase. The guarantee is valid with
proof of purchase only. The guarantee is limited to repair or replacement
of the unit only and does not cover consequential loss or damage of
or to animate or inanimate objects. This guarantee is valid only under
normal operating conditions for which the unit is intended. It excludes
any damage caused by unreasonable use, improper installation,
negligence, tampering, or abuse of the unit. The warranty does not cover
commercial use. For guarantee service or spare parts contact your local
pet dealer or write to the representative in your country. This guarantee
does not affect your statutory rights.

ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS
RECYCLING
This item bears the selective sorting symbol for waste
electronic and vvelectrical equipment (WEEE). This means
that the product must be handled pursuant to European
Directive 2012/19/EU in order to be recycled or dismantled
to minimize it’s impact on the environment. For further
information please contact your local or regional Authori-
ties. Electronic products not included in the selective sorting process are
potentially dangerous for the environment and human health due to the
presence of hazardous substances.
SERVICE
If you have any problem or question about the operation of this product,
please consult your Exo Terra®specialist retailer in the first instance.
Most problems can be resolved in store, but in the unlikely event it
cannot, please return the unit with a valid proof of purchase to the
retailer for a replacement under the two year warranty. When you
call (e-mail or write) our Customer Service Department, please have
all relevant information such as model number and/or part numbers
available, as well as the nature of the problem:
Customer Service and Authorized Warranty Repair Service:
U.K.:
Rolf C. Hagen (UK) Ltd.
California Dr. Whitwood Industrial Estate
Castleford, West Yorkshire WF10 5QH
mail to: http://faq.hagencrm.com/?uk
Helpline Number 01977 521015. Between 9:00 AM and 5:00 PM,
Monday to Thursday and 9:00 AM and 4:00 PM on Friday (excluding
Bank Holidays).
France:
Hagen France S.A. PARISUD 4 – Bd. Jean Monnet, F-77388 Combs-
la-Ville.
Service à la clientèle: ([phone]
Du lundi au jeudi : 9H00-12H30 et 13H30 –17H00.
Le vendredi : 9H00-12H30
mail to: Ser[email protected]
Germany:
HAGEN Deutschland GmbH & Co. KG, Lehmweg 99-105, 25488 Holm
Service-Hotline: [phone]
Montag – Freitag von 9:00 – 16:00 Uhr
mail to: kundenser[email protected]
Spain:
Rolf C Hagen España, S.A., P.I. L’Alteró, 46460 Silla (Valencia)
mail to: [e-mail]
Malaysia:
Rolf C.Hagen (Sea) Sdn.Bhd.
Lot 14A, Jalan 3A, Kawasan Perusahaan
Cheras Jaya, Balakong 43200 Cheras, Selangor Darul Ehsan.
Tel: [phone]
Fax: [phone]
mail to: [email protected]

16
For general information on our whole product range, explore our
websites at: www.exo-terra.com or www.hagen.com
Distributed by:
Canada: Rolf C. Hagen Inc., Montreal, QC H9X 0A2
U.K.: Rolf C. Hagen (U.K.), W. Yorkshire WF10 5QH
Germany: HAGEN Deutschland GmbH & Co. KG, 25488 Holm
France : Hagen France S.A. PARISUD, F-77388 Combs-la-Ville
Spain: Rolf C Hagen España, S.A. P.I. L’Alteró, 46060 Silla (Valencia)
Malaysia: Rolf C. Hagen (SEA) SDN, 43200 Cheras, Selangor D.E.

ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS
Monsoon MULTI
Système de brumisation
à haute pression
Mode d’emploi
Nous vous remercions d’avoir acheté le Système de brumisation à haute
pression Monsoon MULTI Exo TerraMD. Veuillez lire attentivement le mode
d’emploi avant d’utiliser l’appareil et suivre les instructions fournies
pour obtenir le meilleur rendement possible, et ce, de la façon la plus
sûre qui soit. Nous vous recommandons de garder ce mode d’emploi à
portée de la main pour consultation ultérieure.
• Système programmable de brumisation pour terrariums
et serres
• Raccordement et installation faciles
• Becs pulvérisateurs flexibles (jusqu’à 6) pouvant être
pointés dans toutes les directions
• Grand réservoir de 8 L (2 gal)
• Remplissage facile
Contenu :
1 Monsoon MULTI
1 réservoir transparent
1 filtre avec tube
2 ventouses servant de support
2 becs pulvérisateurs avec ventouses
2 x têtes de bec pulvérisateur de rechange
1 x Outil pour buses
1 tube de 1,8 m (6 pi)
2 tubes de 1,5 m (5 pi)
1 raccord en Y
1 adaptateur de courant
Accessoires supplémentaires vendus afin d’étendre le système
à plusieurs terrariums :
PT2497 – Ensemble de buse Monsoon avec tuyaux
PT2498 – Raccord en Y Monsoon
PT2500 – Filtre à eau Monsoon
PT2501 – Buses Monsoon (2x)
PT2502 – Ventouses Monsoon (2x)
PT2503 – Outil pour buses Monsoon
PT2504 – Tubes Monsoon, 1,8 m (6 pi)
Lire complètement le mode d’emploi avant d’installer et de faire
fonctionner
INSTRUCTIONS CONCERNANT LES RISQUES D’INCENDIE, DE CHOC
ÉLECTRIQUE ET DE BLESSURES À DES PERSONNES

18
MESURES DE SÉCURITÉ
IMPORTANTES
ATTENTION :
• Pour éviter toute blessure, il
faut observer des précautions
élémentaires de sécurité y compris
les suivantes:
LIRE ET RESPECTER TOUTES LES
CONSIGNES DE SÉCURITÉ
avant usage et tous les avis importants
apparaissant sur l’appareil. Manquer à
ces précautions pourrait entraîner des
blessures ou des dommages à l’appareil.
MISE EN GARDE – Pour éviter tout
risque d’électrocution, une attention
spéciale devrait être portée puisque de
l’eau est utilisée ou peut l’être avec cet
appareil. Dans chacune des situations
suivantes, ne pas essayer de réparer
l’appareil soi-même; le retourner plutôt
à un service de réparations autorisé s’il
est encore sous garantie ou le jeter.
1. Ne pas faire fonctionner un appareil
dont la fiche ou l’adaptateur de courant
est endommagé, qui ne fonctionne pas
correctement ou qui est tombé ou a

été endommagé d’une quelconque
manière.
2. Le cordon d’alimentation de
l’adaptateur de courant fourni avec
cet appareil est détachable et doit être
remplacé de même que l’adaptateur de
courant s’il est endommagé.
3. L’appareil doit fonctionner seulement
avec le bloc d’alimentation fourni.
4. L’appareil ne doit fonctionner qu’à
une très basse tension sûre comme
l’indique le marquage.
• Une « boucle d’égouttement » telle
qu’elle est montrée sur l’illustration
ci-jointe doit
être formée par
l’utilisateur pour
chaque cordon
d’alimentation
raccordant un adaptateur de courant
à la prise. La « boucle d’égouttement
» est la partie du cordon se trouvant
sous la prise de courant ou le
raccord, si une rallonge est utilisée.
Cela empêche l’eau de glisser
le long du cordon et d’entrer en
contact avec la prise de courant ou
ENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO
NEDERLANDS

20
le bloc d’alimentation. Si la fiche ou
la prise de courant sont mouillées,
NE PAS débrancher l’appareil. Mettre
d’abord hors circuit le fusible ou le
disjoncteur qui fournit l’électricité à
l’appareil, le débrancher ensuite et
vérifier qu’il n’y a pas d’eau dans
la prise.
• Pour éviter toute blessure, ne
toucher aucune pièce chaude;
attendre que celles-ci aient refroidi.
• ATTENTION – Toujours débrancher
l’appareil de l’alimentation
électrique avant d’insérer ou de
retirer des pièces et pendant
que l’équipement est installé,
entretenu ou manipulé. Ne jamais
tirer sur le cordon d’alimentation
pour débrancher l’adaptateur
de courant de la prise. Prendre
l’adaptateur de courant et tirer
le cordon d’alimentation pour
débrancher. Toujours débrancher
l’appareil d’une prise de courant
quand il n’est pas utilisé. Ne jamais
soulever cet appareil par le cordon
d’alimentation.
