Expolite TourSpot 300 User manual

EXPOLTTE
TounEipoü
30Ö
(
(
User lvlanual
( ( V @ rreo ,,,Q-'o,*fi t.4olc t.15o,c
KEEP THIS MANUAL FOR FUTURE NEEDS

f, saFETY tusrmucrtous
CAUTION
Becareful rvith your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wiresl
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary forthe userto
follow the safety instructions and warning notes written in this user manual.
IMPORTANT
f)amages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liatrility for any resulting defects or problems.
If the device has been exposed to temperature changes due to environmental changes,
do not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the powp.
cord. (
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 5Ocm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.
(
E UNPAaKING
Thank you for choosing our TourSpot 300 with linear motorized zoom from L2'to
36". For your own safety, please read this manual before installing the device. This
manual covers the important information on installation and applications. Please
install and operate the fixture with following instructions. Meanwhile, please keep
this manual well for future needs.
The TourSpot 300 is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol.lt's available independently controlled and linkable with each
other for operation. And it is applicable for large-scale live performances, theater,
studio, nightclubs and discos.
The TourSpot 300 adopts powerful 300W pure white LED which features high
brightness and stability. Please carefully unpack it when you receive the fixture and
check whether it is damaged during the transportation. And please check whether
the following items are included inside the box:
ri
il
@
4( USAStandard EurcStandard
@ SignalCable
gfl-'re
o
@ PowerOut
i;ig«,&€§i,]§li
@ Safety Cable 1PC
01 .02.

E FEATUREr & sPEctFtcATtoNs
Features
. A 300W single white LED lamp
. 50000 hours life span and low power consumption
. 8/16 bit smooth and precise resolution for PAN/TILT movement
. 540"/630" PAN and 270" TILT movement
. Scan position memory, auto reposition after unexpected movement
. Linear motorized zoom with 12'to 36" beam angle
. Improved optics and flat beam field
- 1 rotatable gobo wheel with 7 rotatable and interchangeable glass gobos plus op
with speed adjustable, stream effect, dithering effect and rotatable clockwise or
anticlockwise
. Gobo indexing
. Gobo size 27.9mm (external dimensions)/23mm (inner dimensions)
. L static Aobo wheel with 9 gobos plus open
. Gobo overlay (gobo morphing)
. 1 color wheel with 7 colors plus open
. Variable direction rainbow effect with speed adjustable
- 2 meter to inf inite electric focus
. Motorized linearIRIS
. 3-facet prism with variable speed and direction
. Variable linear frost filter (Hybrid effect for wash)
. O-LO1o/o linear LED dimmer
- 2OTlse< high speed LED shutter/strobe effect with variable speed
. Preset variable/random strobe and dimming pulse effect
. l7/1,5/17 DMX channels USITT DMX-512
- Customizable DMX channel assignment (17CH)
. DMX512, master-slave, and sound activated controllable or auto operation
(8 built-in programs)
. DMX recorder and edit function integrated
. Blue background LCD display
. Powercon IN/OUT
. 3-pin XLR connectors iN/OUT
. Fan cooling system
. Constant temperature readout and management function
. 45C max ambient temperature
. IP20 protection rating
. 55dB at 3'dB rating
- 2"!/4 turn fastening Omega clamps
Specifications
Input Voltage:
LED Quantities:
Control Signal:
Control Channel:
Power Consumption:
Dimensions:
Packing Dimensions:
Net Weight:
Gross Weight:
AC90-260V 50/60?,2
1*300W white LED lamp
DMX512, master-slave and sound activated or auto operation
77/15/17 DMX channels USITT DMX-512
390W
318(D)"411(W)*628(H)mm
480(D)-610(W)*460(H)mm
21ks
23.5k9
(
__i
120
_T
(( &
@
Rotating gobos
wffi
@@
eo §o
Colors
o
§
@
/-\
/--.\
\:-:./
-,/
,-\
/4\
t:)
\=/
,,.;\
e;e9
\9/
Static Aobos
@@
@@
@@
I'
w
@

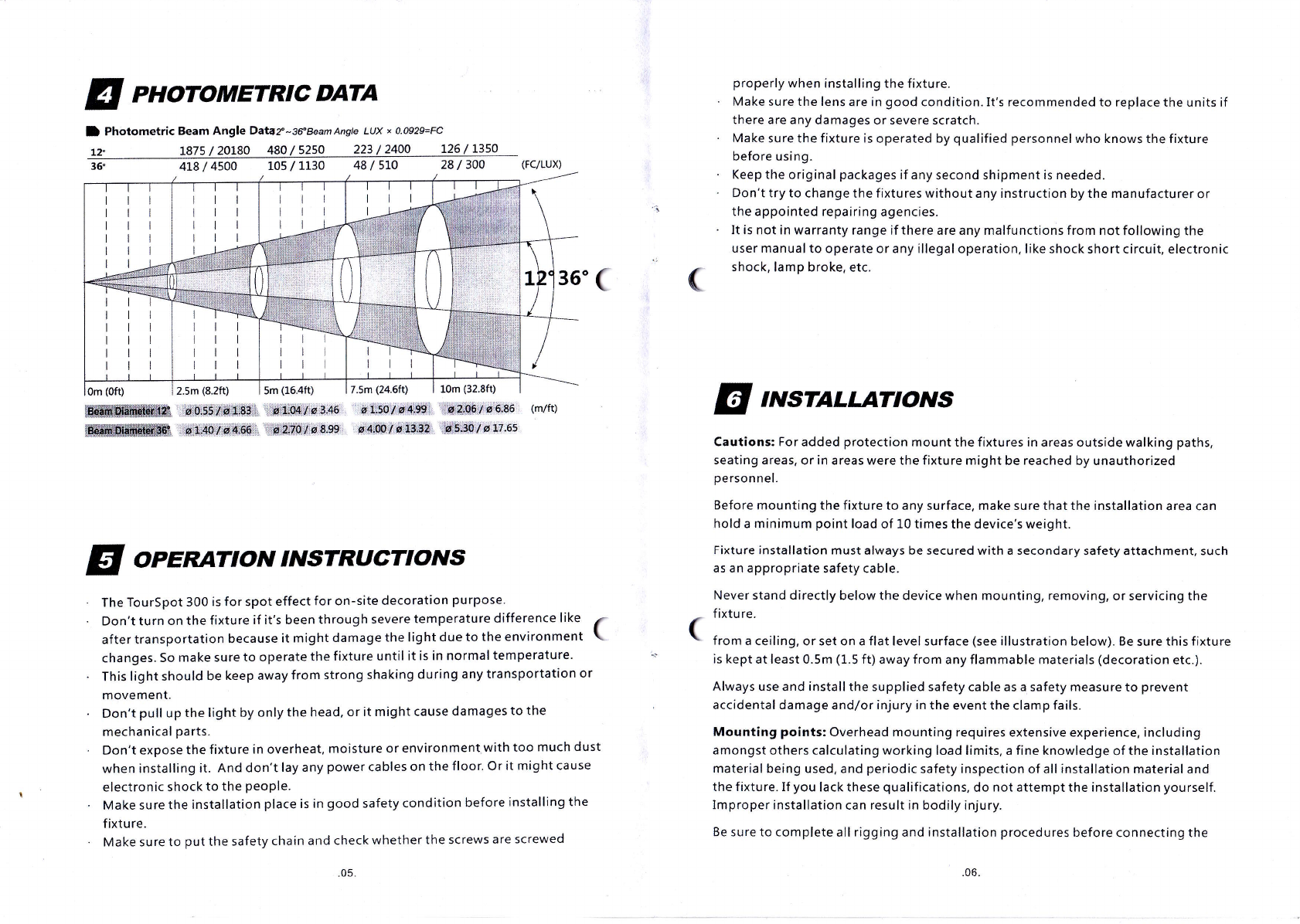

H PHOTOMETRIG DATA
I Photometric Beam Angle Dataz- 36"Beam Angle LUx x 0.0929=Fc
a2" l87s / 2oL80 48o / 5250 223 / 2400 L26 / t3s0
36" 4L8 / 4500 105 / 1130 48 / sLO 28 / 300 (FclLUX)
properly when installing the fixture.
' Make sure the lens are in good condition. It's recommended to replace the units if
there are any damages or severe scratch.
' Make sure the fixture is operated by qualified personnel who knows the fixture
before using.
. Keep the original packages if any second shipment is needed.
. Don't try to change the fixtures without any instruction by the manufacturer or
the appointed repairing agencies.
' It is not in warranty range if there are any malf unctions from not following the
user manual to operate or any illegal operation, like shock short circuit, electronic
f shock, lamp broke, etc.
\
H ,NsTALLATtoNs
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areasi or in areas were the fixture might be reached by unauthorized
pe rsonnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device's weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the
fixtu re.
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the installation
material being used, and periodic safety inspection of all installation material and
the fixture. If you lack these qualifications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the
' ;r,S#i{id§rJffi {$,&, 1*#*l#i*ä,üaer,
ffi j1#ü&q* &,ä*lJ,'Sffil]*iBftd..,ires,,
li:üi$9§l/.,ä l$ifl, 1ifr{äNütirr6l6§S (m/ft)
,rdilffiiiiiäffiüä* :s#*!idßi/i,rli:65
H oPERATtoN INsrRUcrtoNs
The TourSpot 300 is for spot effect for on-site decoration purpose.
Don't turn on the fixture if it's been through severe temperature difference like f
after transportation because it might damage the light due to the environment \
changes. so make sure to operate the fixture until it is in normal temperature.
This light should be keep away from strong shaking during any transportation or
movement.
Don't pull up the light by only the head, or it might cause damages to the
mechanical parts.
DOn't expose the fixture in overheat, moisture or environment with too much du§t
when installing it. And don't lay any power cables on the floor. Or it might cause
electronic shock to the people.
Make sure the installation place is in good safety condition before installing the
fixtu re.
Make sure to put the safety chain and check whether the screws are screwed
(
2.5m (8.2ft) I 5m (15.4ft) 7.5m (24.5ft) I 10m (32.8ft)
.05 _06

main power cord to the appr:opriate wall outlet.
Clamp Mounting: The TourSpot 300 provides two unique mounting bracket
assembly that integrates the bottom of the base, the included "omega Bracket," and
the safety cable rigging point in one unit (see the illustration below). When mounting
this fixture to truss be sure to secure an aPpropriately rated clamp to the included
omega bracket using a M10 screw f itted through the center hole of the "omega
bracket". As an added safety measure be sure to attached at least one properly rated
safety cable to the fixture using on of the safety cable rigging point integrated in the
base assembly.
Regardless of the rigging option you choose for your TourSpot 300, always be sure t7
secure your fixture with a safety cable. The fixture provides a built-in rigging point \
for a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.
O Omega Bracket
@ satety clamp
@ Satety Cable
@ 1/4 Turn Quick-Lock Faslener§
f,l orwx-st2 coNTRoL coNuEcrtous
Connect the provided XLR cable to the female 3-pin XLR output of your controller
and the other side to the male 3-pin XLR input of the moving head. You can chain
multiple Moving head together through serial linking. The cable needed should be
two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
1
I
I
l
l
')t
\ll
\
III
i( DMX IN
DMX OUT
Fuse
POWER
DMX
POWER IN
POWER OUT
Power Switch
COMMON
DMX+
DMX.
Or
Oso2
(
(Important Notes:
l. PIEase do not link more than 5PCS TourSpot 300 at AC220V voltage!
2. Please do not link more than 2PCS TourSpot 300 at ACt 10V voltage!
i
E@E ,f
)
1:Ground
2:Data(-)
3:Data(+)
DMX512 OUT
3.PIN XLR DMXs12IN
3-PIN XLR
.07.
DMX Output DMX lnPut
3-Pin XLR Socket 3-Pin XLR Socket

For installations where the DMX cable has to run a long
distance or is in an electrically noisy environment, such as t20 o I
in a discotheque, it is recommended to use a DMX -45-1 f l
terminator. This helps in preventing corruption of the t I ^1',1,
digital control signal by electrical noise. The DMX ,,A$\ llllll
terminatorissimplyanXLRplugwith al.2oQresistor (6?1») ä
connected between pins 2 and 3,which is then plugged \--l U\tL r,ru
into the output XLR socket of the last fixture in the chain. \- plt't2
Please see illustrations below.
tr DMx aHANNELr
((
tr MENU oPERATtoNs
Up
Mode
MIC
(
LCD DISPLAY
Down
Enter
DMXAddress I A001-AXXX
'AUI9Ptäy' '. l
rjl::.r.: -f..:,,.,rt,t:!tr. ;r.!,!rittu AutoRüiiil . :: r
..,....:.i#
l\iusicüä6üä#bl ' l,Maqtpf/Alone ' .t. . Itn"=tEt A,lar" -,,
Reset OnlOff
ilrigM.$I§itllil
Reverse Tilt On/Off
§§ri§ütirifitrli{,1 ,§ilt$lli;tlllrltrlr
Special Reset Default On/Off
Calibration Code(Code:088)
PAN, TILT, Color Wheel, Gob
Wheel 1, Gobo Wheel 2,
Focus, Prism
Temperature XXX'C/'F
Manual Control PAN=XXX..
Signal Set Wire DMX
Wireless DMX
Act WDMX & Out
§t$ljit{lril*§8jl',l:i:i,r.'r rrllir
Mode of
channel Standard Mode
Basic Mode
Extended Mode
168 8B DE
11Pan 0-255 PAN Movement
22Pan Fine o-255 Fine control of Pan movement
323Titt o-255 Tilt Movement
44Tilt Fine o-255 Fine control of Tilt movement
535Color
(Mode 1)
0-015 Open/White
0't 6-031 Color 1
032-047 Color 2
048-063 Color 3
064-079 Color 4
080-095 Color 5
096-11'l Color 6
112-127 Color 7
128-189 Forwards rainbow effect from fast to slow
190-'t 93 Color rotation stop
194-255 Backwards rainbow effect from slow to fast
535Color
(Mode 2)
0-007 Open / White
008-01 5White + Color 1
0 1 6-023 Color 1
o24-O31 Colorl +Color2
032-039 Color 2
040-047 Color2+Color3
048-055 Color 3
056-063 Color3+Color4
064-071 Color 4
072-079 Color4+ColorS
080-087 Color 5
088-095 Color5+Color6
096-1 03 Color 6
o4-111 Color6+ColorT
12-119 Color 7
2A-127 Color 7 + White
28-'t89 Forwards rainbow effect from fast to slow
90-1 93 Color rotation stop
94-255 Backwards rainbow effecl from slow to fasl
646Gobo 1
0-009 Open
010-019 Gobo 1
020-029 Gobo 2
030-039 Gobo 3
10

040-049 Gobo 4
0s0-059 Gobo 5
060-069 Gobo 6
070-079 Gobo 7
080-099 Gobo 1 shake slow to fast
100-119 Gobo 2 shake slow to fast
1 20-1 39 Gobo 3 shake slow to fast
1 40-1 59 Gobo 4 shake slow to fast
1 60-1 79 Gobo 5 shake slow to fast
180-t99 Gobo 6 shake slow to fast
200-219 Gobo 7 shake slow to fast
220-255 Rot. qobo wheel cont. rotation slow to fast
757Gobo 1
Rot.
0-127 Gobo indexinq
'128- t 89 Forwards oobo rotation from fast to slow
'190-193 Gobo rotation stoo
194-255 Backwards oobo rotation from slow to fast
B68Gobo 2
0-009 Open/white
010-019 Gobo 1
420-029 Gobo 2
030-039 Gobo 3
040-049 Gobo 4
050-059 Gobo 5
060-069 Gobo 6
070-079 Gobo 7
080-089 Gobo 8
090-099 Gobo 9
100-111 Gobo 1 shake slow to fast
'112-123 Gobo 2 shake slow to fast
124-135 Gobo 3 shake slow to fast
136-147 Gobo 4 shake slow to fast
1 48-1 59 Gobo 5 shake slow to fast
160-171 Gobo 6 shake slow to fas
172-183 Gobo 7 shake slow to fast
1 84-1 95 Gobo 8 shake slow to fas
196-207 Gobo 9 shake slow to fast
208-255 Gobo wheel rotation from slow to fast
o7IShutter
0-031 Shutter closed
032-063 shutter open
064-095 Strobe effect slow to fast
096-127 Shutter open
128-',159 Pulse-effect in sequences
1 60-1 91 Shutter open
192-223 Random strobe effect slow to fast
11 .
(
224-255 Shutter open
'10 810 Dimmer 0-255 0-100% Linear dimmer
11 o11 Focus 0-255 ln(near) to out(far)
12 10 12 Zoom 0-255 ln(near, 12") to out(far, 36")
13 't1 IJ
Rotating
Prism 0-005 OFF 406-127 ON
1 28-1 89 Forwards rotation from fast to slow
1 90-1 93 Prism rotation stop
1 93-255 Backwards rotation from slow to fast
't4 12 14 lris 0-1 91 Max. diameter to Min.diameter
192-223 Pulse opening fast to slow
224-2s5 Pulse closinq slow to fast
15 13 15 Frost 0-1 91 Frost 0-1 00%
't92-223 Pulse ooenino fast to slow
224-254 Pulse closinq slow to fast
255 Max. Frost
16 14 16 Speed of
Pan/Tilt
0-225 Max to min soeed
226-235 Blackout bv movemenl
236-245 Blackout by all wheel changing
246-255 No function
17 17 17 Special
0-019 No function
020-029 No function
030-039 No function
040-079 No function
080-099 Motor reset
100-119 nternal program 1
1 20-1 39 nternal program 2
140-1 59 nternal program 3
160-'t 79 nternal program 4
180-'t99 nternal program 5
200-219 nternal program 6
220-239 nternal program 7
240-255 nternal program B
(

@ MNNTENANaE AND cLEANtNo
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances. ,)
4) The electric power supply cables must not show any damage, material fatigue or
sed iments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
CAUTION
Discon[ect from mains before starting naintenance operation.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
L) Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, ,"n" )
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please referto the instructions
under "Installation instructions".
Should you need any spare parts, please order genuine parts from your local dealer.
