i20T
IP Voice Access User Manual

[䬂ܹ᭛ᄫ]
Safety Notices
1. Please use the specified power adapter. If special circumstances need to use the power adapter
provided by other manufacturers, please make sure the voltage and current provided in accordance
with the requirements of this product, meanwhile, please use the safety certificated products,
otherwise may cause fire or get an electric shock.
2. When using this product, please do not damage the power cord, or forcefully twist itǃStretch pull or
banding, and not to be under heavy pressure or between items, Otherwise may cause the power cord
damage, thus lead to fire or get an electric shock.
3. Before use, please confirm the temperature and environment humidity suitable for the product work.
(Move the product from air conditioning room to natural temperature, which may cause this product
surface or internal components produce condense water vapor, please open power use it after waiting
for this product is natural drying).
4. Non-technical staff not remove or repair, improper repair or may cause electric shock, fire or
malfunction, etcˈWhich can lead to injury accident, and also can cause your product damage.
5. Do not use fingers, pins, wire and other metal objects, foreign body into the vents and gaps. It may
cause current through the metal or foreign body, which even cause electric shock and injury accident.
If any foreign body or objection falls into the product please stop usage.
6. Please do not discard the packing bags or stored in places where children could reach, if children
trap his head with it, may cause nose and mouth blocked, and even lead to suffocation.
7. Please use this product with normal usage and operating, in bad posture for a long time to use this
product may affect your health.
8. Please read the above safety notices before installing or using this phone. They are crucial for the safe
and reliable operation of the device.

[䬂ܹ᭛ᄫ]
Directory
A. PRODUCT INTRODUCTION ............................................................................................................ 5
1. APPEARANCE OF THE PRODUCT .............................................................................................................. 5
2. BUTTON DESCRIPTION ......................................................................................................................... 5
B. START USING.................................................................................................................................... 6
1. CONNECTING THE POWER SUPPLY AND THE NETWORK .................................................................................. 6
1) Connecting network .................................................................................................................. 6
2) Connecting power supply........................................................................................................... 7
3) Electric Lock Connection Driver Option ...................................................................................... 7
4) Wiring instructions .................................................................................................................... 7
2. QUICK SETTING ................................................................................................................................. 9
C. BASIC OPERATION ............................................................................................................................ 9
1. ANSWER A CALL ................................................................................................................................ 9
2. CALL .............................................................................................................................................. 9
3. END CALL....................................................................................................................................... 10
4. CALL RECORD.................................................................................................................................. 10
5. OPEN THE DOOR OPERATION............................................................................................................... 10
D. PAGE SETTINGS........................................................................................................................... 11
1. BROWSER CONFIGURATION ................................................................................................................ 11
2. PASSWORD CONFIGURATION .............................................................................................................. 11
3. CONFIGURATION VIA WEB................................................................................................................. 12
(1) BASIC ................................................................................................................................... 12
a) STATUS ................................................................................................................................. 12
b) WIZARD ............................................................................................................................... 13
c) CALL LOG.............................................................................................................................. 15
(2) NETWORK ............................................................................................................................ 16
a) WAN .................................................................................................................................... 16
b) QoS&VLAN........................................................................................................................... 18
c) SERVICE PORT ...................................................................................................................... 20
d) TIME&DATE.......................................................................................................................... 22
(3) VOIP..................................................................................................................................... 23
a) SIP ....................................................................................................................................... 23
b) STUN.................................................................................................................................... 28
c) DIAL PEER............................................................................................................................. 29
(4) PHONE ................................................................................................................................. 33

[䬂ܹ᭛ᄫ]
a) AUDIO.................................................................................................................................. 33
b) FEATURE .............................................................................................................................. 34
d) MCAST ................................................................................................................................. 37
(5) DOOR PHONE....................................................................................................................... 40
a) FUNCTION KEY ..................................................................................................................... 40
b) DOOR PHONE....................................................................................................................... 42
c) DOOR CARD ......................................................................................................................... 46
d) DOOR LOG ........................................................................................................................... 48
(6) MAINTENANCE..................................................................................................................... 49
a) AUTO PROVISION ................................................................................................................. 49
b) SYSLOG ................................................................................................................................ 51
c) CONFIG ................................................................................................................................ 52
d) UPADTE................................................................................................................................ 53
e) ACCESS................................................................................................................................. 54
f) REBOOT ............................................................................................................................... 55
(7) SECURITY ............................................................................................................................. 55
a) WEB FILTER .......................................................................................................................... 55
b) FIREWALL............................................................................................................................. 56
c) VPN...................................................................................................................................... 57
d) SECURITY ............................................................................................................................. 59
(8) LOGOUT ............................................................................................................................... 60
E. APPENDIX ...................................................................................................................................... 61
1. TECHNICAL PARAMETERS.................................................................................................................... 61
2. BASIC FUNCTIONS ............................................................................................................................ 62
3. SCHEMATIC DIAGRAM ....................................................................................................................... 62
F. OTHER INSTRUCTIONS.................................................................................................................... 63
1. OPEN THE DOOR MODE ..................................................................................................................... 63
2. MANAGEMENT OF CARD .................................................................................................................... 64

[䬂ܹ᭛ᄫ]
A. Product introduction
Voice Intercom i20T voice entrance guard is a full digital network door phoneˈits core part adopt
mature VoIP solution(Broadcom1190 chipset), stable and reliable performance, Hands-free adopting
digital full-duplex mode, Voice loud and clear, generous appearance, solid durable, easy for
installation, comfortable keypad, low power consumption.
i20T voice entrance guard support entrance guard control, Voice Intercom, ID card and keypad
remote to open the door.

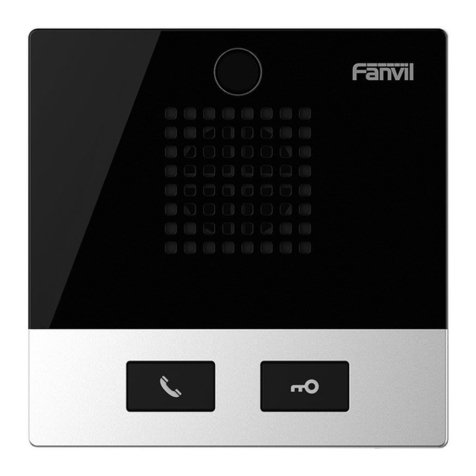

1. Appearance of the product
2. Button description
Buttom
Description
Function
digit keyboard
enter the password to open the door or make a
calling
Programmab
le keyboard
Can be set to a variety of functions, to meet the
needs of different occasions
call status
indicators
standby-light off
ring
-2 sec.glitter
hold/be hold
-1sec. Glitter
communication by telephone
-long bright
power led
(left)
Long bright after
power supply
Network and SIP
status indicator
light
(right)
network failure 1 sec. glitter
network normal light off
registration failure 3 sec. glitter
registration succeed long bright

[䬂ܹ᭛ᄫ]
B. Start Using
Before you start to use equipment, please make the following installation:
1. Connecting the power supply and the network
1) Connecting network
In prior to this step, please check if your network can work normally and have capacity of broadband
internet access.
zBroadband Router
Connect one end of the network cable to the intercom WAN port, the other end is connected to
your broadband router’s LAN port, so that the completion of the network hardware connections. In
most cases, you must configure your network settings to DHCP mode. Please refer to the detailed
setting ways: D, 3, (2), a) WAN.
zNo Broadband Router
Connect one end of the network cable to the intercom WAN port, the other end is connected to
the broadband modem to your LAN port, so that the completion of the network hardware
connections. In most cases, if you are using the cable broadband, you must configure your network
settings to DHCP mode; if you are using the ADSL, you must configure your network settings to PPPoE
mode. Please refer to the detailed setting ways: D, 3, (2), a) WAN.

[䬂ܹ᭛ᄫ]
2) Connecting power supply
i20T voice access can use 12V/DC power supply or an external power supply in POE mode. When
using POE mode, please make sure the network support POE, access network power supply can be
achieved.
CN7
1
2
3
4
5
6
7
+12V
-12V
NC
COM
NO
S_I
S_O
12V 1A/DC
Electric Lock
Indoor switch
3) Electric Lock Connection Driver Option
[Notice]When electric current of the electric lock is lower than 500mA/12V, it uses the internal driven
mode, by the POE or 12V DC to control the electric lock; When the electric current of the electric lock is
higher than 500mA/12V, it uses the external driven mode, use specialized DC power to control the electric
lock.
4) Wiring instructions
Relay connection description
zNO: Under the idle state is disconnected (normally open);
zCOM: Contactor of the Relay (middle);
zNC: Under the idle state is connected (normally close).
Jumper in passive mode
JP1
JP1
Jumper in active mode

[䬂ܹ᭛ᄫ]
Driving Mode
Electric lock
Jumper
Connections
Active
Passive
NO
NC
JP1
√√
√√
√√
√√
√√

[䬂ܹ᭛ᄫ]
2. Quick Setting
The product Provide a complete function and parameter setting, users may need to have the network
and SIP protocol knowledge for understanding the meaning represented by all parameters. In order to let
equipment users can quickly enjoy the high quality speech brought by the IP Phone services and low cost
advantage, we especially lists the basic and must set options in this section, which let users can real-time
started without understanding complex SIP protocols.
In prior to this step, please make sure your broadband Internet online can be normal operation, and
complete the connection of the network hardware. The product factory default network mode is DHCP.
Thus, only connect equipment with DHCP network environment then network can be automatically
connected.
¾A long press # key 3 seconds, automatic voice playing device's IP address, or use the
"iDoorPhoneNetworkScanner.exe " software to find the IP address of the device;
¾Log on to the WEB device configuration;
¾In a SIP page configuration service account, user name, parameters that are required for server
address register;
¾You can settings DSS key in the Webpage(functions key settings -> function key);
¾You can settings function parameters in the Webpage (Intercom-> feature);
C. Basic operation
1. Answer a call
When calling come, the device automatically answer, in cancel automatic answer and settings
automatic answer time, will hear the bell in the set time, automatic answer after a timeout.
2. Call
Configuration shortcut as hot key and setup a number, then press shortcut can call the configured
number immediately.

[䬂ܹ᭛ᄫ]
3. End call
Enable Release key hang up to end call.
4. Call record
The device provides 300 call recording, when the storage space is exhausted, will cover the first call
records. When the device is powered down or reboot, call records will be removed.
You can view the three call records in the Webpage (Basic->call log)
5. Open the door operation
Through the following four ways to open the door:
1) Local open the door on the keyboard input password to open the door.
2) Access to call the owner; enter the remote to open the door by the owner password to open the
door.
3) Owner/call access control of other equipment and enter the access code and press # key to open the
door (access code to be included in the list to access configuration).
4) Through the RFID CARDS to open the door.
Access code input correct prompt sowing sirens prompt access control and the remote user, input error
by short low frequency chirp.
Password successfully by high-frequency sirens sound prompt, input error is short by high frequency
chirp.
When the door opened by playing sirens sound prompt.
