Intended use
The CPX-M-FB20 or FB21 bus node documented in this de-
scription is intended exclusively for use as a participant on
the Interbus.
The CPX terminal must only be used as follows:
– As specified in industrial applications.
– In an original condition, without any modifications by the
user. Only the conversions or modifications described in
the documentation supplied with the product are permitted.
– In perfect technical condition.
The limit values specified for pressures, temperatures, elec-
trical data, torques etc. should be observed.
If conventional accessory components such as sensors and
actuators are connected, the specified limits for pressures,
temperatures, electrical data, torques etc. should be ob-
served.
Comply with the legal rules and regulations and standards,
rules of the testing organisations and insurance companies
and national specifications applicable for the location.
Target group
This manual is intended exclusively for technicians trained in
control and automation technology who have experience in
installing, commissioning, programming and diagnosing pro-
grammable logic controllers (PLC) and the Interbus fieldbus
system.
Service
Please consult your local Festo Service if you have any tech-
nical problems.

Contents and general safety instructions
VI
Festo P.BE-CPX-FB20/21-EN en 1202a
Notesonthismanual

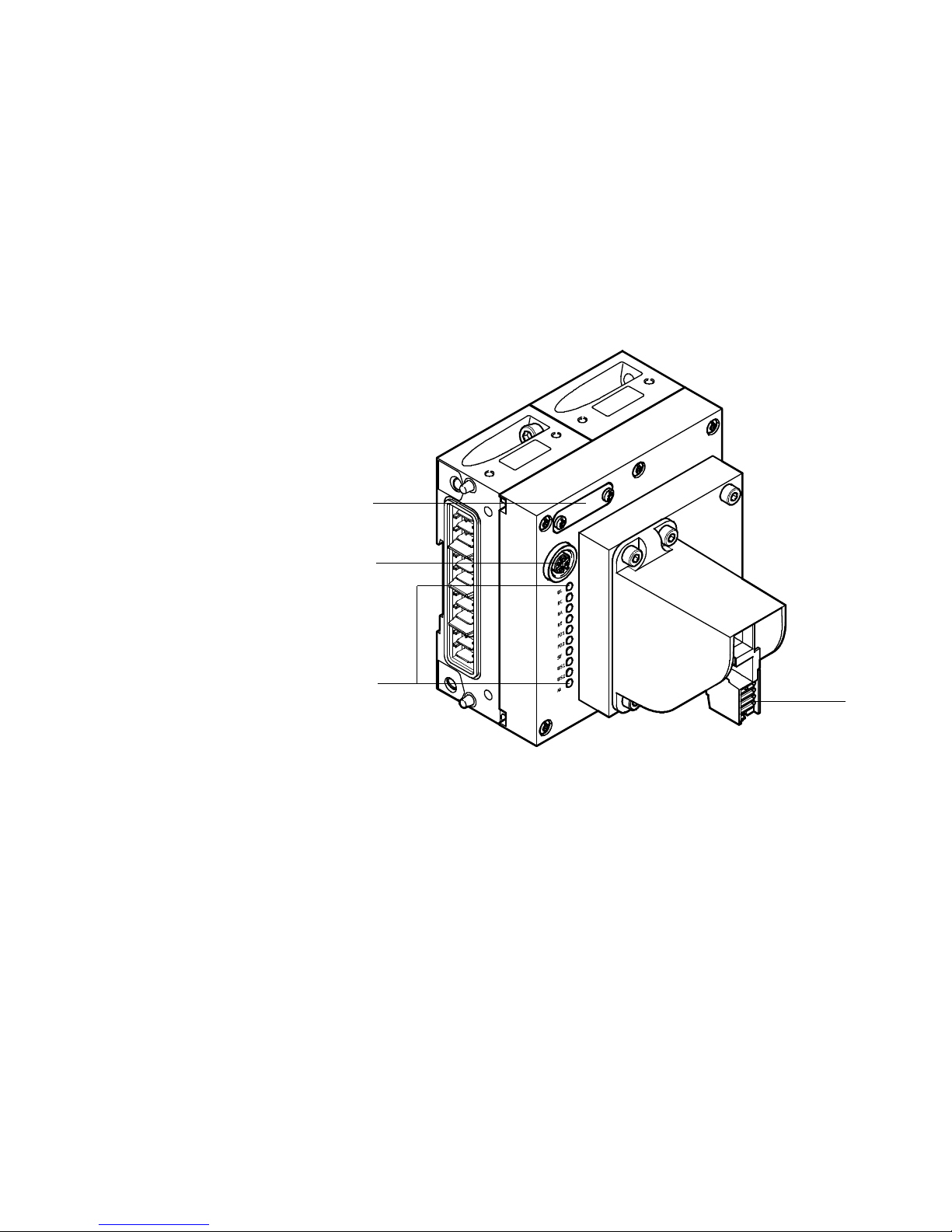

This manual includes information about the following
modules:
CPX bus node Type
designation
Description Connection technology
CPX-M-FB20 CPX bus node for INTERBUS
with fibre optic cable (FOC)
1 Rugged Line socket:
– 1 x fieldbus, incoming
CPX-M-FB21 2 Rugged Line sockets:
– 1 x fieldbus, incoming
– 1 x fieldbus, continuing
Tab. 0/1: Overview of CPX bus node for INTERBUS FOC

Contents and general safety instructions
VII
Festo P.BE-CPX-FB20/21-EN en 1202a
This manual includes information about installation and
configuration of the CPX bus node for INTERBUS with fibre
optic cable (FOC) as well as INTERBUS-specific information
regarding parameterisation, commissioning, programming
and diagnosis of a CPX terminal in an INTERBUS network.
General basic information about the method of operation,
fitting, installation and commissioning of CPX terminals can
be found in the CPX system manual.
Information about further CPX modules can be found in the
manual for the respective module.
An overview of the structure of the CPX terminal user docu-
mentation is contained in the CPX system manual.
Product specific information about the control system can
be found in the manufacturer's product documentation
accompanying the product.

Contents and general safety instructions
VIII
Festo P.BE-CPX-FB20/21-EN en 1202a
Important user instructions
Danger categories
This manual contains instructions on the possible dangers
which can occur if the product is not used correctly. These
instructions are marked (Warning, Caution, etc), printed on a
shaded background and marked additionally with a picto-
gram.
A distinction is made between the following danger warnings:
Warning
... means that failure to observe this instruction may result
in serious personal injury or damage to property.
Caution
... means that failure to observe this instruction may result
in personal injury or damage to property.
Note
... means that failure to observe this instruction may result
in damage to property.
The following pictogram marks passages in the text which
describe activities with electrostatically sensitive devices:
Electrostatic sensitive devices: inappropriate handling can
result in damage to components.

Contents and general safety instructions
IX
Festo P.BE-CPX-FB20/21-EN en 1202a
Identification of specific information
The following pictograms designate texts that contain special
information.
Pictograms
Information:
Recommendations, tips and references to other sources of
information.
Accessories:
Information about necessary or useful accessories for the
Festo product.
Antipollution:
Information about the environmentally-friendly use of Festo
products.
Text designations
• Bullet points indicate activities that may be carried out in
any order.
1. Numerals denote activities which must be carried out in
the numerical order specified.
– Arrowheads indicate general lists.

Contents and general safety instructions
X
Festo P.BE-CPX-FB20/21-EN en 1202a
The following product-specific terms and abbreviations are
used in this manual:
Term/abbreviation Meaning
CPX bus Data bus via which the CPX modules communicate with each other and
are supplied with the necessary operating voltage.
CPX modules Collective term for the various modules which can be integrated in a CPX
terminal.
CPX terminal Modular electric terminal type 50
DIL switch Dual-in-line switches consist of several logic elements with which settings
can be made.
Bus nodes Create the connection to certain networks or fieldbuses, conduct control
signals to the connected modules and monitor their functioning.
Handheld (MMI) Handheld terminal (handheld, CPX-MMI) for CPX modules for
commissioning and service purposes (Man-Machine Interface, MMI).
IDigital input
I/O modules Collective term for the CPX modules which provide digital inputs and
outputs (CPX input modules and CPX output modules).
I/Os Digital inputs and outputs
ODigital output
PLC/IPC Programmable logic controller/industrial PC
Pneumatic interface The pneumatic interface is the interface between the modular electrical
peripherals and the pneumatics.
VTSA… Pneumatic modules/valve terminal type 44/45
Tab. 0/2: CPX-specific terms and abbreviations

Contents and general safety instructions
XI
Festo P.BE-CPX-FB20/21-EN en 1202a
The following Interbus-specific terms and abbreviations are
used in this manual:
Term/abbreviation Meaning
CMD software Parameterisation, commissioning and diagnostic software for slaves on
the Interbus (configuration, monitoring, diagnosis).
FOC Fibre-optic cables
Ident. code By means of the Ident code (in brief: ID code), the module ascertains the
type and the process data length of all the slaves.
Module ThemoduleisthecentraldeviceforcheckingtheInterbusdataring.
It exchanges the data transported serially in the data ring with the
higher-order controller or computer system and the lower-order Interbus
slaves in both directions acyclically or cyclically.
Peripheral fault (PF) Faults in the peripherals of Interbus slaves are shown by means of
peripheral faults (dependent on slave), e.g.
– load voltage failure
– short circuit at the outputs, etc.
The peripheral fault is a common fault message which does not contain
any module-specific information.
Process data I/O data from the Interbus slaves transmitted cyclically via the Interbus,
e.g. for:
– light barriers, sensors
– valves, fuses
– diagnostic I/Os
Remote bus The remote bus bridges long distances within an Interbus system
(main string). With baud rates of 500 kBd and 2 MBd it can be up to
12.8 km long (from the module to the last connected remote bus slave).
Individual segments can be up to 400 m long.
Tab. 0/3: Interbus-specific terms and abbreviations

Contents and general safety instructions
XII
Festo P.BE-CPX-FB20/21-EN en 1202a

Installation
1-1 Festo P.BE-CPX-FB20/21-EN en 1202a
Chapter 1
Installation

1. Installation
1-2
Festo P.BE-CPX-FB20/21-EN en 1202a
Contents
1. Installation 1-1...................................................
1.1 Fibre optic cable (FOC) connection 1-2.................................
1.2 General instructions on installation 1-3................................
1.3 Settings of the DIL switches on the bus node 1-6.........................
1.4 Connecting the fieldbus 1-11..........................................
1.4.1 System structure on the remote bus 1-11........................
1.4.2 Fieldbus interface assignment 1-13.............................
1.4.3 Connecting the fibre optic cable 1-15............................
1.4.4 Fieldbus baud rate and fieldbus length 1-21......................
1.5 Pin assignment of power supply 1-22...................................
1.5.1 Connecting the power supply US1/US2 1-24......................
1.5.2 Sealing unused connections in the Rugged Line plug 1-27..........

1. Installation
1-3
Festo P.BE-CPX-FB20/21-EN en 1202a
1.1 Fibre optic cable (FOC) connection
We recommend fibre optic cable technology for transmission
in environments subjected to heavy interference, as well as
for extending the range when high transmission speeds are
used.
This has the added advantage of high electromagnetic resist-
ance to interference due to the optical transmission of the
signals.

1. Installation
1-4
Festo P.BE-CPX-FB20/21-EN en 1202a
1.2 General instructions on installation
Warning
Before carrying out installation and maintenance work,
switch off the following:
• Compressed air supply
• the operating voltage supply for the electronics/sensors
• the load voltage supply for the outputs and valves
In this way, you can avoid:
– uncontrolled movements of loose tubing
– uncontrolled movements of the connected actuators
– non-defined switching states of the electronic components.
Caution
The CPX bus node for Interbus includes electrostatically
sensitive devices.
• Do not therefore touch any components
• Observe the handling specifications for electrostatically
sensitive devices.
They will help you avoid damage to the electronics.

1. Installation
1-5
Festo P.BE-CPX-FB20/21-EN en 1202a
Electrical connection and display components
The following connection and display components can be
found on the CPX bus node FB20 for the Interbus fibre-optic
cable:
1 Fieldbus
connection IN
(incoming,
Rugged Line
plug)
2 Bus-status-
specific and
CPX-specific LEDs
3 Service interface
for handheld, etc.
4 DIL switch under
cover
3
4
1
2
Fig. 1/1: Connection and display components on the CPX bus node FB20

1. Installation
1-6
Festo P.BE-CPX-FB20/21-EN en 1202a
1 Fieldbus
connection OUT
(continuing,
Rugged Line
plug)
2 Fieldbus
connection IN
(incoming,
Rugged Line
plug)
3 Bus-status-
specific and
CPX-specific LEDs
4 Service interface
for handheld, etc.
5 DILswitchunder
cover
3
4
12
5
Fig. 1/2: Connection and display components on the CPX bus node FB21
