Fiamma F35 Pro Series Operating and maintenance manual

®
®
fiamma.comfiamma.com
MARKISEN
AWNINGS
STORES
TENDALINI
TOLDOS
Montage und
Gebrauchsanleitung
Installation
and use instructions
Instructions de montage
et mode d’emploi
Instrucciones
de montaje y uso
Istruzioni
di montaggio e d’uso
DE
EN
FR
ES
IT
A0_IS_98690-841_rev.A
FIAMMASTORE
“More information https://www.caravansplus.com.au"

2
®
®
Um die Markise optimal nutzen zu k , lesen Sie bitte die Bedienungsan-
leitung aufmerksam durch und bewahren sie zur sp
To use the awning in the best way, read the user’s instructions carefully and
keep them on hand for consultation in the future.
Pour tirer le meilleur parti de votre store, nous vous invitons
d’emploi et les conserver pour toute consultation ult
önnen äteren Verwendung gut auf.
lire attentive-
ment les notices érieure.
à
à
Para usar el toldo en lo mejor de los modos, os invitamos a leer atentamente
las instrucciones de uso, guardandolas en caso de necesidad.
Per utilizzare al meglio il tendalino, vi invitiamo a leggere attentamente le
istruzioni d’uso e a conservarle in caso di necessita’.
DE
EN
FR
ES
IT
VERPACKUNGSINHALT
PACKAGE CONTENTS
CONTENU DE L’EMBALLAGE
CONTENIDO DEL EMBALAJE
CONTENUTO DELL’IMBALLO
DE
EN
FR
ES
IT
4x
1x
1x
®
®
2x 2x
2x 2x 1x
GHL
A
CDEF
1x
M
“More information https://www.caravansplus.com.au"

®
®
3
DE
EN
FR
ES
IT
MONTAGEANLEITUNG
INSTALLATION INSTRUCTION
INSTRUCTIONS DE MONTAGE
INSTRUCCIONES DE MONTAJE
ISTRUZIONI DI MONTAGGIO
Bitte halten Sie sich für die Anbringung der Halterungen an die Gebrauch-sanweisung.
In order to mount the brackets please follow the instructions of the product.
Pour le montage des pattes, faire référence aux instructions indiquées sur le produit.
Per il montaggio delle staffe, attenersi alle istruzioni presenti nel prodotto.
Para fijar los estribos, atenerse a las instrucciones del producto.
DE
EN
FR
ES
IT
DE
EN
FR
ES
IT
Anbringung der Markise auf die Halterungen
Installation of the awning on the brackets
Installation du store sur les pattes
Montaje del toldo sobre los estribos
Montaggio del tendalino sulle staffe
1
E
E
2
3
4
“More information https://www.caravansplus.com.au"

4
®
®
GEBRAUCHSANLEITUNG
INSTRUCTIONS FOR USE
MODE D’EMPLOI
MODO DE EMPLEO
ISTRUZIONI D’USO
DE
EN
FR
ES
IT
WIR EMPFEHLEN, DIE FOLGENDE ABLÄUFE ZU ZWEIT
AUSZUFÜHREN.
WE RECOMMEND THE FOLLOWING OPERATIONS ARE CARRIED
OUT BY 2 PEOPLE.
NOUS VOUS CONSEILLONS D’EFFECTUER LES OPERATIONS
SUIVANTES EN 2 PERSONNES.
ACONSEJAMOS EFECTUAR LAS SIGUIENTES OPERACIONES
EN 2 PERSONAS.
CONSIGLIAMO DI EFFETTUARE LE FASI SEGUENTI IN 2 PERSONE.
DE
EN
FR
ES
IT
1
2
3
“More information https://www.caravansplus.com.au"

®
®
5
4
DE
EN
FR
ES
IT
5
STOP
ES
DE
EN
FR
IT
Das Tuch komplett ausrollen.
Completely unroll the fabric.
Dérouler complètement la toile.
Desenrollar completamente la lona.
Srotolare completamente il telo.
Die Stützfüsse komplett ausziehen und zusammen, durch Drehen des
Stiftes und ohne Kraftaufwand, absenken.
Pull the legs completely out, and, lower them together to the ground
simply by turning on pins and without forcing.
Extraire complètement les pieds d’appui, les baisser en direction du sol
en les faisant tourner simplement sur les pivots, sans forcer.
Extraer las patas completamente y, juntas, bajarlas a la tierra solo
girándolas sobre los pernios sin forzar.
Estrarre le paline completamente e, insieme, abbassarle a terra
ruotandole semplicemente sui perni e senza forzare.
“More information https://www.caravansplus.com.au"

6
®
®
Den Stützfuß A festhalten, dabei den Rafter B anheben und ausziehen, bis das
Rafterende in die Kunststoffauflage (Spannarmauflage) fest aufliegt.
Keeping the leg A still, lift and extend the Rafter B till inserting it in the
plastic housing.
Maintenez immobile le pied A, soulevez et étendez le Rafter B jusqu’à ce
qu’il s’insère dans l’emplacement en plastique
Manteniendo la pata A parada, levantar y extender el Rafter B hasta
introducirlo en el kit soporte rafter de plástico.
Tenendo ferma la palina A, sollevare ed estendere il Rafter B fino
all'inserimento nella sede in plastica.
DE
EN
FR
ES
IT
A
6
B
“More information https://www.caravansplus.com.au"

®
®
7
DE
EN
FR
ES
IT
A
7
DE
EN
FR
ES
IT
8
Den Rafter ausziehen und spannen, bis das Tuch ausreichend gespannt ist.
Tighten the rafter until the fabric is sufficiently taut.
Mettre en tension le rafter jusqu’à ce que la toile soit suffisamment tendue.
Poner en tensión el rafter hasta que la lona esté completamente tendida.
Tensionare il rafter fino a quando il telo è sufficientemente teso.
Den Stützfuß A in der
gewünschten Höhe
ablassen.
Lower the leg A to the
desired height.
Abaisser le pied d’appui
A à la hauteur désirée.
Bajar la pierna A a la
altura deseada.
Abbassare la palina A
alla altezza desiderata.
“More information https://www.caravansplus.com.au"

8
®
®
DE
EN
FR
ES
IT
GHD
MONTAJE DE LOS ACCESORIOS PARA LA TENSION DEL TOLDO
ANBRINGUNG DES ZUBEHÖRS ZUR SPANNUNG DER MARKISE
INSTALLATION OF AWNINGS TENSION ACCESSORIES
INSTALLATION DES ACCESSOIRES POUR UNE TENSION OPTIMALE DU STORE
MONTAGGIO DEGLI ACCESSORI PER IL TENSIONAMENTO DEL TENDALINO
DE
EN
FR
ES
IT
10
Zum Schliessen der Markise die Schritte 1-9 in
entgegengesetzter Reihenfolge wiederholen.
: Bitte vergewissern Sie
sichvor jeder Abfahrt, dass die Markise korrekt
geschlossen ist.
To close the awning, repeat steps 1-9, backwards.
: Before leaving, make
sure the awnings is correctly closed.
Pour fermer le store, répéter les étapes 1-9, en
sens inverse. : Avant de partir‚ vérifier
que le store soit bien fermé.
ACHTUNG SICHERHEIT
ATTENTION SECURITY
ATTENTION SECURITE’
9
Para cerrar el toldo, repetir los pasos 1-9, en sentido contrario.
: Antes que partir, comprobar que el toldo esté
cerrado perfectamente.
Per chiudere il tendalino, ripetere le fasi 1-9, al contrario.
: Prima di partire, verificare che il tendalino sia
chiuso correttamente.
ATTENCIÓN-SEGURIDAD
ATTENZIONE SICUREZZA
“More information https://www.caravansplus.com.au"

®
®
9
C
Ø 10 mm
Sika 252
5x30 mm
MONTAGGIO DEGLI ATTACCHI A PARETE
INSTALLATION OF WALL BRACKETS
INSTALLATION DES PIEDS DE SUPPORT SUR LA PAROI
ANBRINGUNG DER SPANNARMAUFLAGE
MONTAJE DE LOS ENGANCHES PARA LA PARED
DE
EN
FR
ES
IT
1
“More information https://www.caravansplus.com.au"

10
®
®
2
3
STOP

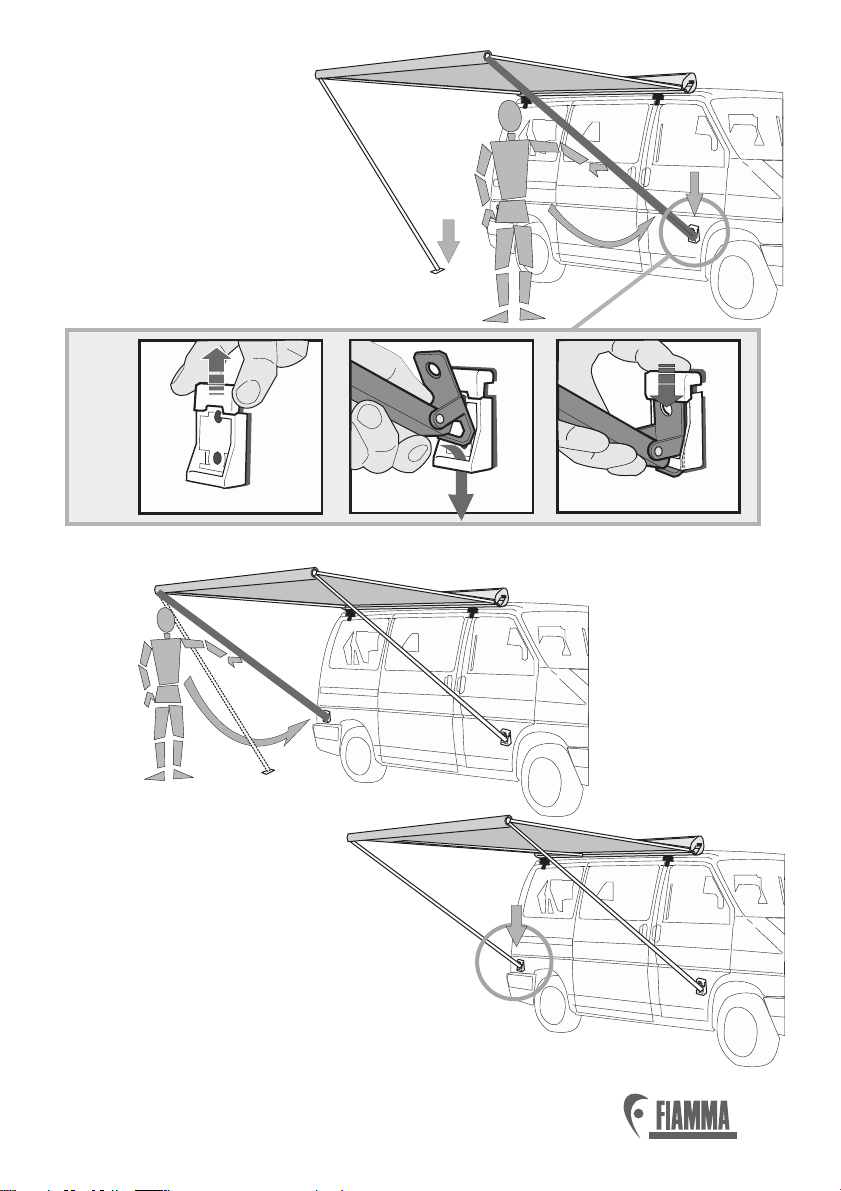

WIR EMPFEHLEN, DIE FOLGENDE ABLÄUFE ZU ZWEIT
AUSZUFÜHREN.
WE RECOMMEND THE FOLLOWING OPERATIONS ARE CARRIED
OUT BY 2 PEOPLE.
NOUS VOUS CONSEILLONS D’EFFECTUER LES OPERATIONS
SUIVANTES EN 2 PERSONNES.
ACONSEJAMOS EFECTUAR LAS SIGUIENTES OPERACIONES
EN 2 PERSONAS.
CONSIGLIAMO DI EFFETTUARE LE FASI SEGUENTI IN 2 PERSONE.
DE
EN
FR
ES
IT
“More information https://www.caravansplus.com.au"

®
®
11
4
1 2 3
5
6
7
“More information https://www.caravansplus.com.au"

12
®
®
OPTIONAL
03888-01-
RAFTER
DE
EN
FR
ES
IT
ANBRINGUNG DER RAFTER FÜR DIE F35
INSTALLATION OF AWNING TENSION RAFTERS FOR F35
INSTALLATION DES TENDEURS DE TOILE POUR LE AUVENT F35
INSTALLACIO DEL RAFTER PARA LA F35
MONTAGGIO DEI RAFTER PER LA F35
Eine Markise ist ein Sonnenschutz, deshalb muss sie bei kräftigem Wind, starkem
Regen oder Schnee, eingefahren werden! Wenn es regnet die Markise neigen
damit das Wasser ablaufen kann und die Spannstange “RAFTER” montieren.
Remember that the awning was designed to protect from the sun, and not from
rain, wind or snow. In these cases, we recommend that it will be rolled up! In case
of moderate rain, incline the awning for the drainage of water and install the
special tension RAFTER.
Un store est conçu pour protéger du soleil et de ce fait il doit être enroulé lors
d’intempéries! En cas de pluie incliner le store afin que l’eau puisse s’écouler et
monter le spécial tendeur de toile “RAFTER”
El toldo ha sido creado para protegerse del sol y no de
la lluvia, en estos casos se aconseja inclinar el toldo
para que el agua fluya y enganchar el rafter. En caso
De lluvia intensa, viento o nieve se aconseja cerrarlo.
Ricordare che il tendalino è stato concepito per ripararsi
dal sole e non dalla pioggia; in questo caso si consiglia di
inclinare il tendalino per favorire il deflusso dell’acqua e
Montare il RAFTER. In caso di forte pioggia, vento o neve si consiglia di chiuderlo.
IMPORTANT WICHTIG CUIDADO IMPORTANTE
DE
EN
FR
ES
IT
RAFTER
“More information https://www.caravansplus.com.au"

®
®
13
ANBRINGUNG DES SICHERHEITSGURTES
INSTALLATION OF THE SECURITY STRAP
MONTAGE DE LA SANGLE DE SECURETE
MONTAGGIO DELLA CINGHIA DI SICUREZZA
INSTALACION DE LA CORREA DE SEGURIDAD
1
2
L
M
L
M
4 mm
Einstellungsmöglichkeiten der
Frontleiste beim Öffnen.
Front cover adjustement.
Possibilités de regulation du boîter
frontal en ouvrant et en fermant le store.
Possibilità di regolazione del frontale.
Posibilidad de regulación del frontal.
F
DE
EN
FR
ES
IT
DE
EN
FR
ES
IT
“More information https://www.caravansplus.com.au"

16
®
®
MAINTENANCE INSTRUCTIONS
EN
All our awnings ‘Made in Italy’ and manufactured following high standards.
Apart from our strict quality controls, we also have our fabrics continuously controlled
by inependent institutes to ensure that the fabric is tear resistant, they can hold the
weight of water, the colours don’t fade and it is resistent against atmospheric agents. In
order to enjoy your awning for a long time, even for many years after the purchase
date, we ask you to take note of and follow the simple advices below:
The awnings are made with precision, but some of the characteristics of the materials
, which could be interpreted as defects, derive from the
materials and from the specific work processes, and these characteristics occur even
though Fiamma uses advanced and innovative machines production techniques.
Make sure that your awning is completely dry and clean before closing it.
The remaining humidity could cause stains. If however you have no choice but closing
the awning when it is still wet, make sure to open it for drying within 12 hours
maximum.Most of the dirt is superficial and can be removed with clean water and a
cloth or a brush. If the fabric is very dirty, add some light cleaning detergent. Be aware
never to use any aggressive chemical substances and never to clean the fabric with a
high pressure machine. We recommend not to use the awning at a temperature below
0°C.
To guarantee a perfect quality, the fabrics are waxed or laminated several times.
During this operation, single coloured pigments could move and thus create small
bright spots in the material, which are only irregularities that are technically inevitable
to avoid, but do not influence the impermeability of the fabric.
During the production of the material, small creases could form, which especially on
bright fabric in backlight could seem dark. Bright stripes (the so called white crease) are
inevitable with these materials.
With time the influence of weather could cause change in colour.
MAINTENANCE INSTRUCTIONS
(as little imperfections on paint or linearity of aluminium profiles; little marks or light
deformations of plastic parts)
·
·
·
· All Fiamma fabrics are soldered on the front bar for a high resistance to water : in case
of rain little drops of water may form near the front bar and this may happen when the
awning is open as well, this doesn’t compromise awning’s functionality.
OF FABRIC.
The fabric is therefore completely hermetic, also in these spots.
“More information https://www.caravansplus.com.au"

®
®
17
WARRANTY FIAMMA
EN
1
2
3
4
5
6
. FIAMMA products have a guarantee of 24 months from the date the product is
purchased by the final consumer.
.
FIAMMA warranty covers claims for damages that are due to defective material or
production failures.
. The warranty is not valid under the following circumstances: natural wear of the
product, if proper installation instructions have not been followed, in cases of
negligence or improper use, if non original FIAMMA spare parts have been used, if the
damage comes from transporting the product with improper packaging not authorised
by FIAMMA, in case of intervention by a non qualified person, or when the final user or
anyone else has modified the product without the proper authorisation of FIAMMA.
. If the claim is covered under warranty, FIAMMA reserves the right to decide
whether to repair or replace the defective part(s).
. The claim should be submitted to the supplier, from which the product was originally
purchased. It is vital to always provide the following information: serial number of the
product, proof of purchase (FIAMMA could ask for a copy) and a precise description of
the damage (together with some digital photos to help substantiate the claim). In case
of false or incomplete information, FIAMMA reserves the right to refuse the claim.
. FIAMMA reserves the right to ask for return of the products in order to verify the
warranty claim. The cost and risks/insurance of transportation is to be paid by the client.
If the warranty request is then verified, FIAMMA will pay for the transport, i.e. cost of
sending and returning the part, as well as costs for repairing/replacing the part. If the
warranty claim is not accepted, the cost of repair and replacement of the part or
product, as indicated beforehand by the client, will be paid by the client.
The warranty covers only the product, and not possible damages caused by an
improper use.
“More information https://www.caravansplus.com.au"

24
®
®
RECAMBIOS
ERSATZTEIL
SPARE PARTS
DE
EN
FR
ES IT RICAMBI
PIECES DETACHEES
013
180-220-250
“More information https://www.caravansplus.com.au"

®
®
25

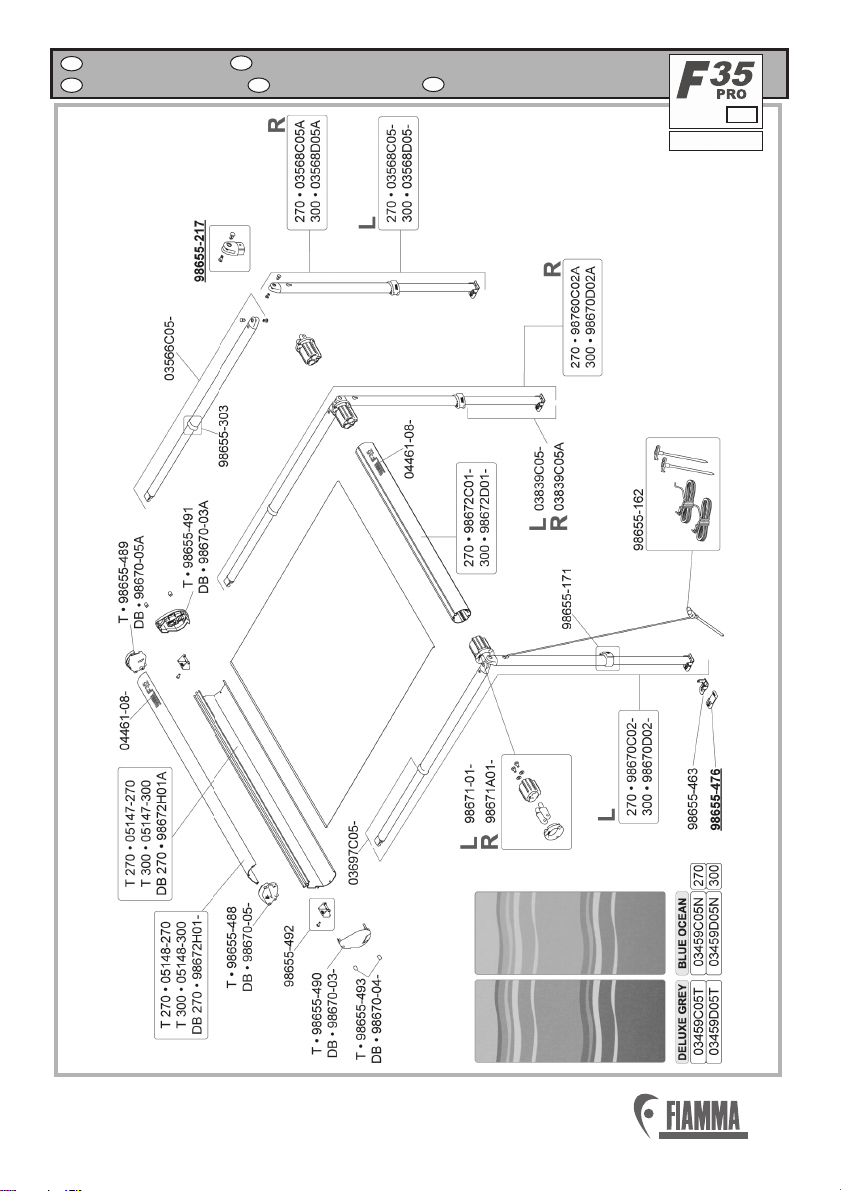

RECAMBIOS
ERSATZTEIL
SPARE PARTS
DE
EN
FR
ES IT RICAMBI
PIECES DETACHEES
013
270-300
“More information https://www.caravansplus.com.au"

26
®
®
DE
EN
FR
ES
IT
INFORMATIONEN ZUM UMWELTSCHUTZ.
INFORMATION ABOUT THE ENVIRONMENTAL PROTECTION.
CONSEILS POUR LA PROTECTION DE L’ENVIRONNEMENT.
INFORMACIONES PARA LA PROTECCION DEL AMBIENTE.
CONSIGLI PER LA SALVAGUARDIA DELL’AMBIENTE.
ENTSORGUNG VON VERPACKUNGSMATERIALIEN
DISPOSAL OF PACKAGING MATERIALS
ÉLIMINATION DES EMBALLAGES
ELIMINACION DEL EMBALAJE
SMALTIMENTO IMBALLAGGIO
Das Verpackungmaterial ist zu 100 % wiederverwertbar.
Werfen Sie das Verpackungsmaterial deshalb nicht einfacht fort,
sondern entsorgen Sie es so, wie es die verantwortlichen
Stellen vorschlagen.
The packaging material is 100% recyclable. Therefore packing
materials should not be dissipated in the environment but disposed
of as directed by local authorities.
Les matériaux d’emballage sont entièrement recyclables.
Ne les jetez donc jamais dans la nature mais conformez-vous
aux réglementations locales en vigueur en matière d’élimination
des déchets.
El material de embalaje es reciclable al 100%.
Las diferentes partes del embalaje no tienen que dispersarse en
en el ambiente, sino tienen que ser eliminadas en conformidad
con las normas establecidas por las autoridades locales.
Il materiale di imballaggio è riciclabile al 100%.
Le diverse parti dell’imballaggio non devono quindi essere
disperse nell’ambiente, ma smaltite in conformità alle norme
stabilite dalle autorità locali.
DE
EN
FR
ES
IT
“More information https://www.caravansplus.com.au"

A
B
9,5cm
7,4 cm
BA
270 254 cm 225 cm
300 284 cm 225 cm
180 162 cm 180 cm
250 232 cm 225 cm
220 202 cm 225 cm
S/N : 9000000
F 701991
A01
F35 PRO
DELUXE GREY
Im Notfall bitte folgende Nummer angeben.
In case of problems, please give this number.
En cas de problème, merci de communiquer les donnés présentes sur l’étiquette.
En caso de problemas, comunicar los datos, sobre la etiqueta.
In caso di problemi, comunicare sempre i dati riportati sulla targhetta.
DE
EN
FR
ES
IT
8.5
Kg
10.5
11.5
13.0
14.0
®
®
27
MAßE
DIMENSIONS
DIMENSIONS
TAMAÑOS
MISURE D NGOMBRO
’I
DE
EN
FR
ES
IT
013
“More information https://www.caravansplus.com.au"

01 2013
FIAMMASTORE
MADE IN ITALY
All rights reserved. Fiamma S.p.A. reserves the right to modify at any time, without
notice, prices, materials, specifications and models or to cease production of any model
FIAMMA S.p.A. - Via San Rocco, 56 21010 Cardano al Campo - ITALY fiamma.com
®
®
“More information https://www.caravansplus.com.au"
