Fiamma F35 Pro Series Setup guide

fiamma.com
Fiammastore
Markisen DE Montage und
Gebrauchsanleitung
Awnings EN Installation and
usage instructions
Stores FR Instructions de montage et
mode d’emploi
Toldos ES Instrucciones de montaje y uso
Tendalini IT Istruzioni di montaggio e uso
TITANIUM
DEEP BLACK

Fiammastore
2
DE Verpackungsinhalt
FR Contenu de l’emballage
IT Contenuto dell’imballo
EN Package contents
ES Contenido del embalaje
EN Goods receipt inspection
ES Control al recibimiento
DE Kontrolle bei der Übernahme
FR Contrôle à la réception
IT Controllo al ricevimento
fiamma.com
Fiammastore
Markisen
DE
Montage und
Gebrauchsanleitung
Awnings
EN
Installation and
use instructions
Stores
FR
Instructions de montage et
mode d’emploi
Toldos
ES
Instrucciones de montaje y uso
Tendalini
IT
Istruzioni di montaggio e uso
TITANIUM
DEEP BLACK
x1
DE
Bitte kontrollieren Sie, ob alle Einzelteile einwandfrei sind oder eventuell während dem
Transport beschädigt wurden. Wenden Sie sich in diesem Falle bitte an den Händler.
EN
Check that nothing has been damaged or deformed during transport.
In case of damage please contact the dealer.
FR
Contrôler qu’aucune pièce ne soit cassée ou déformée suite au transport.
En cas contraire, contacter le revendeur.
ES
Controlar que ningún detalle se haya roto o deformado durante el transporte.
En este caso contactar al revendedor.
IT
Controllare che nessun particolare sia rotto o deformato a causa di errori di
trasporto. In questo caso contattare il rivenditore.
DE
Um die Markise optimal nutzen zu können, lesen Sie bitte die Bedienungsanleitung
aufmerksam durch und bewahren Sie sie zur späteren Verwendung gut auf.
EN
To use the awning in the best way, read the user’s instructions carefully and
keep them on hand for future reference.
FR
Pour tirer le meilleur parti de votre store, nous vous invitons à lire attentivement
les notices d’emploi et à les conserver pour toute consultation ultérieure.
ES
Para usar el toldo en lo mejor de los modos, os invitamos a leer atentamente
las instrucciones de uso, guardandolas en caso de necesidad.
IT
Per utilizzare al meglio il tendalino, vi invitiamo a leggere attentamente le
istruzioni d’uso e a conservarle in caso di necessità.
C G
DH E F
x2 x2
x4 x2 x2 x1
A

Fiammastore 3
DE Montageanleitung
FR Instructions de montage
IT Istruzioni di montaggio
EN Installation instructions
ES Instrucciones de montaje
3
4
2
DE Anbringung der Markise auf die Halterungen
EN Installation of the awning on the brackets
FR Installation du store sur les pattes
ES Fijación del toldo sobre los estribos
IT Montaggio del tendalino sulle staffe
DE Bitte halten Sie sich für die Anbringung der Halterungen an die Gebrauchsanweisung.
EN In order to mount the brackets please follow the instructions of the product.
FR Pour le montage des pattes, faire référence aux instructions indiquées sur le produit.
ES Para fijar los estribos, atenerse a las instrucciones del producto.
IT Per il montaggio delle staffe, attenersi alle istruzioni presenti nel prodotto.
1
E

Fiammastore
4
DE Montageanleitung
FR Instructions de montage
IT Istruzioni di montaggio
EN Installation instructions
ES Instrucciones de montaje
1
2
3
DE
Wir empfehlen, die folgende Abläufe zu zweit auszuführen.
EN
We recommend the following operations are carried out by
2 people.
FR
Nous vous conseillons d’effectuer les operations suivantes en
2 personnes.
ES
Aconsejamos efectuar las siguientes operaciones en
2 personas.
IT
Consigliamo di effettuare le fasi seguenti in 2 persone.

Fiammastore 5
DE Montageanleitung
FR Instructions de montage
IT Istruzioni di montaggio
EN Installation instructions
ES Instrucciones de montaje
STOP
DE Das Tuch komplett ausrollen.
EN Completely unroll the fabric.
FR Dérouler complètement la toile.
ES Desenrollar completamente la lona.
IT Srotolare completamente il telo.
4
5
DE
Die Stützfüsse komplett ausziehen und zusammen, durch Drehen des Stiftes und ohne
Kraftaufwand, absenken.
EN
Pull the legs completely out, and, lower them together to the ground simply by turning
on pins and without forcing.
FR
Extraire complètement les pieds d’appui, les baisser en direction du sol en les faisant
tourner simplement sur les pivots, sans forcer.
ES
Extraer las patas completamente y, juntas, bajarlas a la tierra solo girándolas sobre los
pernios sin forzar.
IT
Estrarre le paline completamente e, insieme, abbassarle a terra ruotandole
semplicemente sui perni e senza forzare.

Fiammastore
6
DE Montageanleitung
FR Instructions de montage
IT Istruzioni di montaggio
EN Installation instructions
ES Instrucciones de montaje
A
B
6
DE
Den Stützfuß A festhalten, dabei den Rafter B anheben und ausziehen, bis das
Rafterende in die Kunststoffauflage (Spannarmauflage) fest aufliegt.
EN
Keeping the leg A still, lift and extend the Rafter B till inserting it in the plastic housing.
FR
Maintenez immobile le pied A, soulevez et étendez le Rafter B jusqu’à ce qu’il s’insère
dans l’emplacement en plastique.
ES
Manteniendo la pata A parada, levantar y extender el Rafter B hasta introducirlo en el
kit soporte rafter de plástico.
IT
Tenendo ferma la palina A, sollevare ed estendere il Rafter B fino all’inserimento nella
sede in plastica.

Fiammastore 7
DE Montageanleitung
FR Instructions de montage
IT Istruzioni di montaggio
EN Installation instructions
ES Instrucciones de montaje
A
7
8
DE
Den Rafter ausziehen und spannen, bis das Tuch ausreichend gespannt ist.
EN
Tighten the rafter until the fabric is sufficiently taut.
FR
Mettre en tension le rafter jusqu’à ce que la toile soit suffisamment tendue.
ES
Poner en tensión el rafter hasta que la lona esté completamente tendida.
IT
Tensionare il rafter fino a quando il telo è sufficientemente teso.
DE
Den Stützfuß A in der
gewünschten Höhe
ablassen.
EN
Lower the leg A to the
desired height.
FR
Abaisser le pied d’appui
A à la hauteur désirée.
ES
Bajar la pierna A a la
altura deseada.
IT
Abbassare la palina A
alla altezza desiderata.

Fiammastore
8
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso
9

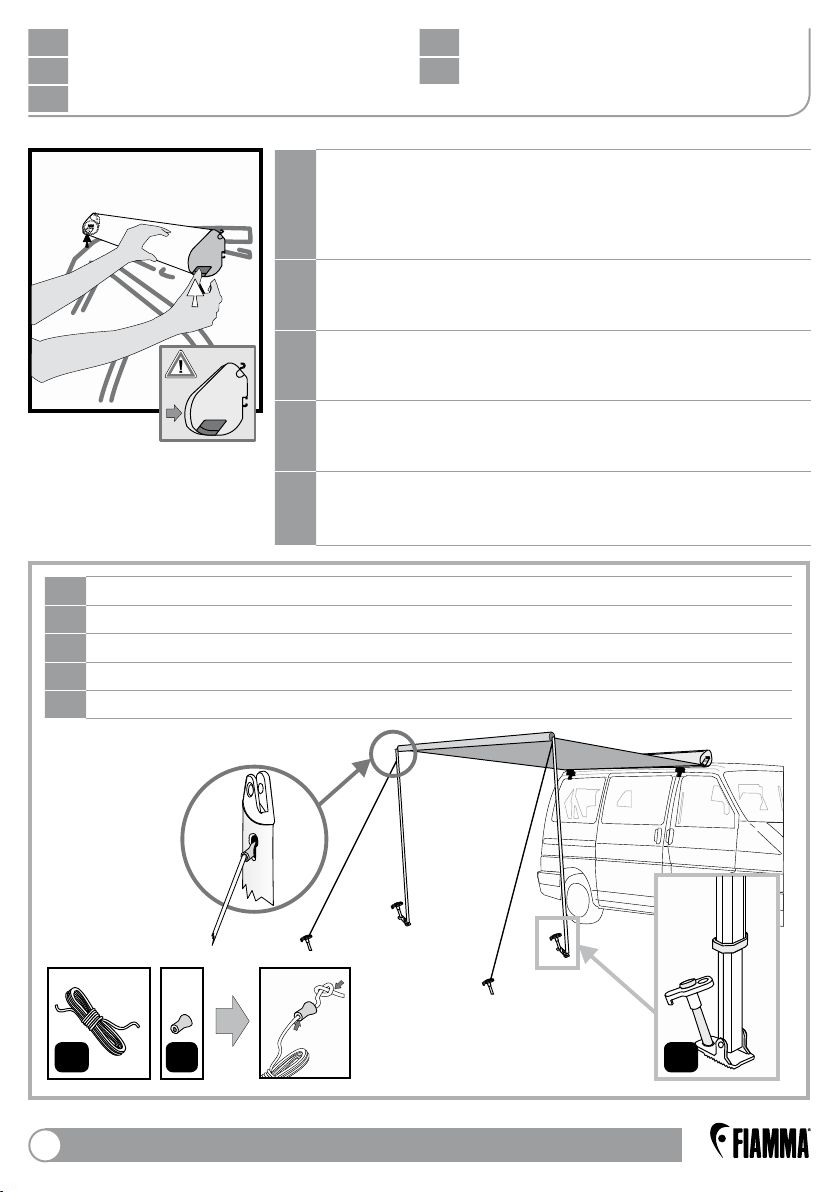

DE
ANBRINGUNG DES ZUBEHÖRS ZUR SPANNUNG DER MARKISE
EN
INSTALLATION OF AWNING TENSION ACCESSORIES
FR
INSTALLATION DES ACCESSOIRES POUR UNE TENSION OPTIMALE DU STORE
ES
MONTAJE DE LOS ACCESORIOS PARA LA TENSION DEL TOLDO
IT
MONTAGGIO DEGLI ACCESSORI PER IL TENSIONAMENTO DEL TENDALINO
DE
Zum Schliessen der Markise die Schritte 1-9 in
entgegengesetzter Reihenfolge wiederholen.
ACHTUNG SICHERHEIT: Bitte vergewissern Sie
sich vor jeder Abfahrt, dass die Markise korrekt
geschlossen ist.
EN
To close the awning, repeat steps 1-9, backwards.
ATTENTION SECURITY: Before leaving, make
sure the awning is correctly closed.
FR
Pour fermer le store, répéter les étapes 1-9, en sens
inverse. ATTENTION SECURITE’: Avant de partir‚
vérifier que le store soit bien fermé.
ES
Para cerrar el toldo, repetir los pasos 1-9, en sentido
contrario. ATTENCIÓN SEGURIDAD: Antes que partir,
comprobar que el toldo esté cerrado perfectamente.
IT
Per chiudere il tendalino, ripetere le fasi 1-9, al contrario.
ATTENZIONE SICUREZZA: Prima di partire, verificare
che il tendalino sia chiuso correttamente.
10
G DH

Fiammastore 9
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso
Ø 10 mm
Sika 252
5x30 mm
1
C
DE ANBRINGUNG DER SPANNARMAUFLAGE
EN INSTALLATION OF WALL BRACKETS
FR INSTALLATION DES PIEDS DE SUPPORT SUR LA PAROI
ES INSTALACION DE LOS ENGANCHES EN LA PARED
IT MONTAGGIO DEGLI ATTACCHI A PARETE

Fiammastore
10
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso

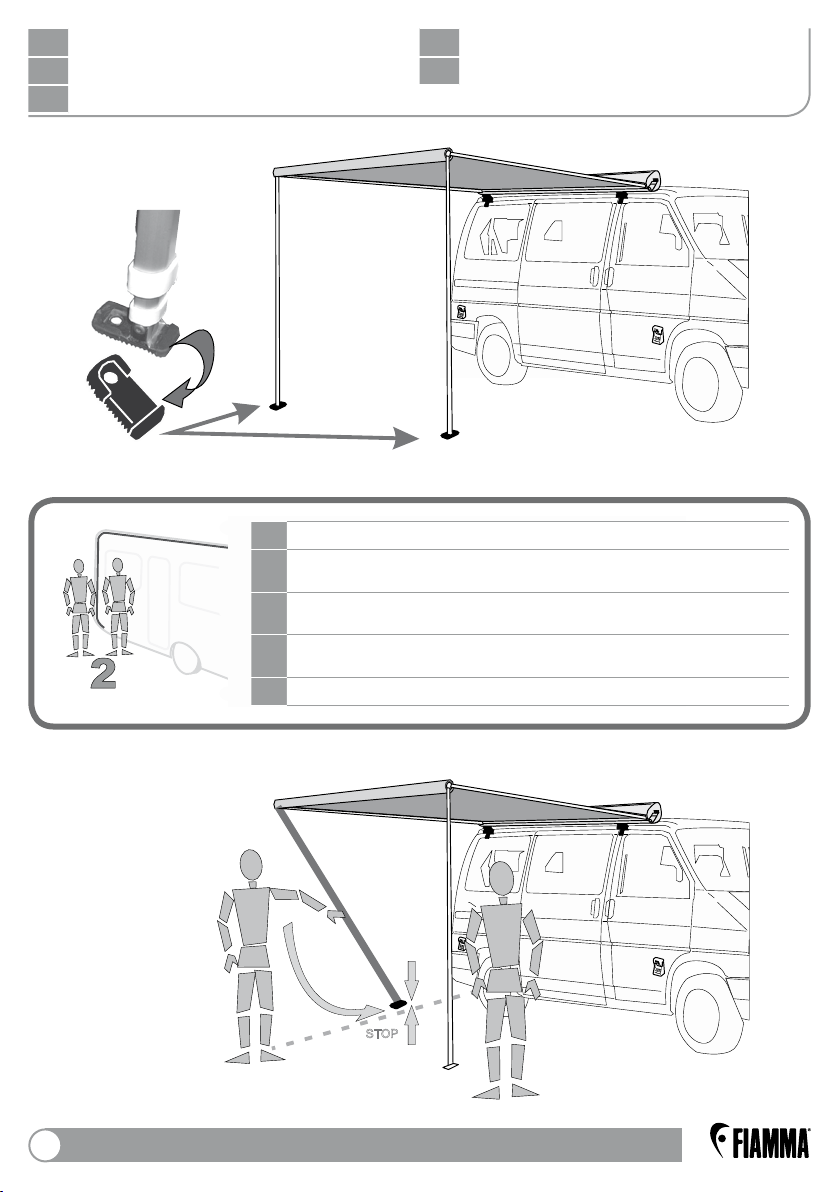

STOP
2
3
DE
Wir empfehlen, die folgende Abläufe zu zweit auszuführen.
EN
We recommend the following operations are carried out by 2
people.
FR
Nous vous conseillons d’effectuer les operations suivantes en
2 personnes.
ES
Aconsejamos efectuar las siguientes operaciones en 2
personas.
IT
Consigliamo di effettuare le fasi seguenti in 2 persone.

Fiammastore 11
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso
1 2 3
4
5
6
7

Fiammastore
12
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso

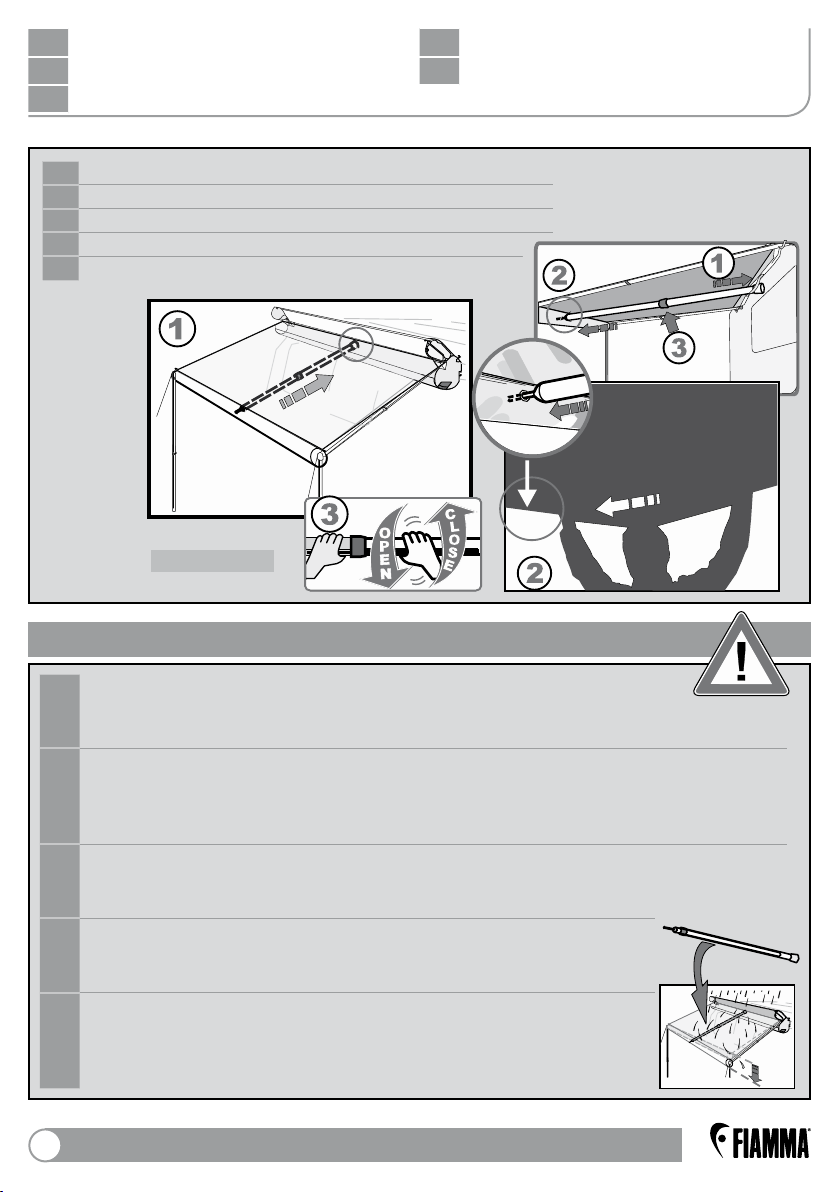

DE ANBRINGUNG DER SPANNSTANGE FÜR DIE MARKISE F35
EN INSTALLATION OF AWNING TENSION RAFTER FOR F35
FR INSTALLATION DU TENDEUR DE TOILE POUR LE STORE F35
ES INSTALLACIO DEL RAFTER PARA EL TOLDO F35
IT MONTAGGIO DEL RAFTER PER IL TENDALINO F35
IMPORTANT WICHTIG CUIDADO IMPORTANTE
DE
Eine Markise ist ein Sonnenschutz, deshalb muss sie bei kräftigem Wind,
starkem Regen oder Schnee, eingefahren werden! Wenn es regnet die Markise neigen
damit das Wasser ablaufen kann und die Spannstange “RAFTER” montieren.
EN
Remember that the awning was designed to protect from the sun, and not from
rain, wind or snow. In these cases, we recommend that it will be rolled up! In case of
moderate rain, incline the awning for the drainage of water and install the special tension
RAFTER.
FR
Un store est conçu pour protéger du soleil et de ce fait il doit être enroulé lors
d’intempéries! En cas de pluie incliner le store afin que l’eau puisse s’écouler et monter
le spécial tendeur de toile “RAFTER”.
ES
El toldo ha sido creado para protegerse del sol y no de la lluvia, en estos
casos se aconseja inclinar el toldo para que el agua fluya y enganchar el
rafter. En caso de lluvia intensa, viento o nieve se aconseja cerrarlo.
IT
Ricordare che il tendalino è stato concepito per ripararsi dal sole e non
dalla pioggia; in questo caso si consiglia di inclinare il tendalino per
favorire il deflusso dell’acqua e montare il RAFTER. In caso di forte
pioggia, vento o neve si consiglia di chiuderlo.
RAFTER
OPTIONAL
03888-01-
RAFTER

Fiammastore 13
EN Instructions for use
ES Instrucciones de montaje
DE Gebrauchsanleitung
FR Mode d’emploi
IT Istruzioni d’uso
1
2
L
M
L
M
4 mm
F
DE
Einstellungsmöglichkeiten der Frontleiste
beim Öffnen.
EN
Front cover adjustement.
FR
Possibilités de regulation du bandeau
frontal.
ES
Posibilidad de regulación del frontal.
IT
Possibilità di regolazione del frontale.
LM
OPTIONAL
DE
ANBRINGUNG DES SICHERHEITSGURTES
EN
INSTALLATION OF THE SECURITY STRAP
FR
MONTAGE DE LA SANGLE DE SECURETE
ES
INSTALACION DE LA CORREA DE SEGURIDAD
IT
MONTAGGIO DELLA CINGHIA DI SICUREZZA

Fiammastore
16
DE
Gebrauchsanweisungen und Ratschläge
FR Instructions et conseils
IT Avvertenze e suggerimenti
EN Maintenance instructions
ES Recomendaciones
All our awnings ‘Made in Italy’ and manufactured following high standards.
The awnings are made with precision, but some of the characteristics of the materials
(as little imperfections on paint or linearity of aluminium profiles; little marks or light
deformations of plastic parts), which could be interpreted as defects, derive from the
materials and from the specific work processes, and these characteristics occur even
though Fiamma uses advanced and innovative machine production techniques.
Apart from our strict quality controls, we also have our fabrics continuously controlled
by independent institutes to ensure that the fabric is tear resistant, they can hold the
weight of water, the colours don’t fade and it is resistent against atmospheric agents. In
order to enjoy your awning for a long time, even for many years after the purchase
date, we ask you to take note of and follow the simple advices below:
MAINTENANCE INSTRUCTIONS OF FABRIC
Make sure that your awning is completely dry and clean before closing it.
The remaining humidity could cause stains. If however you have no choice but closing
the awning when it is still wet, make sure to open it for drying within 12 hours maximum.
Most of the dirt is superficial and can be removed with clean water and a cloth or a brush.
If the fabric is very dirty, add some light cleaning detergent.
Be aware never to use any aggressive chemical substances and never to clean the fabric
with a high pressure machine. We recommend not to use the awning at a temperature
below 0°C.
· To guarantee a perfect quality, the fabrics are waxed or laminated several times.
During this operation, single coloured pigments could move and thus create small
bright spots in the material, which are only irregularities that are technically inevitable
to avoid, but do not influence the impermeability of the fabric.
The fabric is therefore completely sealed, also in these spots.
· During the production of the material, small creases could form, which especially on
bright fabric in backlight could seem dark. Bright stripes (the so called white crease) are
inevitable with these materials.
· With time the influence of weather could cause change in colour.
· All Fiamma fabrics are soldered on the front bar for a high resistance to water : in case
of rain little drops of water may form near the front bar and this may happen when the
awning is open as well, this doesn’t compromise the awning’s functionality.

Fiammastore 17
DE Garantie Fiamma
FR Garantie Fiamma
IT Garanzia Fiamma
EN Warranty Fiamma
ES Garantía Fiamma
1. FIAMMA products have a guarantee of 24 months from the date the product is
purchased by the final consumer.
2. The FIAMMA warranty covers claims for damages that are due to defective material or
production failures.
3. The warranty is not valid under the following circumstances: natural wear of the
product, if proper installation instructions have not been followed, in cases of negligence
or improper use, if non original FIAMMA spare parts have been used, if the damage comes
from transporting the product with improper packaging not authorised by FIAMMA, in the
case of intervention by a non qualified person, or when the final user or anyone else has
modified the product without the proper authorisation of FIAMMA.
4. If the claim is covered under warranty, FIAMMA reserves the right to decide whether to
repair or replace the covered part(s) determined to be defective.
5. The claim should be submitted to the supplier, from which the product was originally
purchased. It is vital to always provide the following information: serial number of the
product, proof of purchase (FIAMMA could ask for a copy) and a precise description of the
damage (together with some digital photos to help substantiate the claim). In the case of
false or incomplete information, FIAMMA reserves the right to refuse the claim.
6. FIAMMA reserves the right to ask for return of the products in order to verify the
warranty claim. The cost and risks/insurance of transportation is to be paid by the client. If
the warranty request is then verified, FIAMMA will pay for the transport, i.e. cost of sending
and returning the part, as well as costs for repairing/replacing the part. If the warranty claim
is not accepted, the cost of repair and replacement of the part or product, as indicated
beforehand by the client, will be paid by the client.

DE Ersatzteile
FR Pièces détachées
IT Ricambi
EN Spare parts
ES Recambios
Fiammastore
24
DE Ersatzteile
FR Pièces détachées
IT Ricambi

Fiammastore 25
DE Ersatzteile
FR Pièces détachées
IT Ricambi
EN Spare parts
ES Recambios

Fiammastore
26
EN Dimensions
ES Tamaños
DE Maße
FR Dimensions
IT Misure d’ingombro
A
B
9,5cm
7,4 cm
S/N:9000000
F 701991
A01
F35 PRO
DELUXE GREY
180 162 cm 180 cm 8,5
220 202 cm 225 cm 10,5
250 232 cm 225 cm 11,5
270 254 cm 225 cm 13
300 284 cm 225 cm 14
A B Kg
DE Im Notfall bitte folgende Seriennummer angeben.
EN In case of trouble, please give this Serial Number.
FR En cas de problème, merci de communiquer ce numéro de référence.
ES En caso de problemas, comunicar los datos, sobre la etiqueta.
IT In caso di problemi, comunicare sempre i dati riportati sulla targhetta.
A
B
9,5cm
7,4 cm
S/N:9000000
F 701991
A01
F35 PRO
DELUXE GREY
A
B
9,5cm
7,4 cm
S/N:9000000
F 701991
A01
F35 PRO
DELUXE GREY
A
B
9,5cm
7,4 cm
S/N:9000000
F 701991
A01
F35 PRO
DELUXE GREY

Fiammastore 27
DE Informationen zum umweltschutz
FR Conseils pour la protection de
l’environnement
IT Consigli per la salvaguardia
dell’ambiente
EN Safe guarding the environment
ES Informaciones para la proteccion
del ambiente
DE
ENTSORGUNG VON VERPACKUNGSMATERIALIEN
Das Verpackungmaterial ist zu 100% wiederverwertbar.
Werfen Sie das Verpackungsmaterial deshalb nicht einfacht fort, sondern entsorgen
Sie es so, wie es die verantwortlichen Stellen vorschlagen.
EN
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable Packing materials should therefore
not be thrown away with household rubbish but disposed of as directed by local
authorities.
FR
ÉLIMINATION DES EMBALLAGES
Les matériaux d’emballage sont entièrement recyclables.
Par conséquent, ne les jetez rien dans la nature mais conformez-vous aux
réglementations locales en vigueur en matière d’élimination des déchets.
ES
ELIMINACION DEL EMBALAJE
El material del embalaje es reciclable al 100%. Las diferentes partes del embalaje
no tienen que dispersarse en el ambiente, sino tienen que ser eliminadas en
conformidad con las normas establecidas por las autoridades locales.
IT
SMALTIMENTO IMBALLAGGIO
Il materiale di imballaggio è riciclabile al 100%. Le diverse parti dell’imballaggio non
devono quindi essere disperse nell’ambiente, ma smaltite in conformità alle norme
stabilite dalle autorità locali.

fiamma.com
Fiamma SpA - Italy
Via San Rocco, 56
21010 Cardano al Campo (VA)
All rights reserved.
Fiamma S.p.A. reserves the right to
modify at any time, without notice, prices,
materials, specifications and models or
to cease production of any model.
A0_IS_98690-841_rev.D
Fiammastore
