Fisher-Price T2065 User manual

T2065
IMPORTANT! KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING
www.fisher-price.co.uk

2
To prevent serious injury or death
from falls and being strangled in the
restraint system:
• Always use the restraint system.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 Kg/20 lbs).
• Never leave child unattended.
• It is dangerous to use this product on
an elevated surface.
• Never use toy bar as a handle.
• Please read these instructions before assembly and use of
this product.
• Adult assembly is required.
• Tools required for assembly: Allen wrench (included) and Phillips
screwdriver (not included).
• Requires four “C” (LR14) alkaline batteries for swing/sounds
operation and one “D” (LR20) alkaline battery for vibration unit
operation. Batteries not included.
IMPORTANT! The weight limit for this product is 9 kg (20lbs).
If your child weighs less than 9 kg (20lbs), but is really active
and appears to be able to climb out of the swing, immediately
discontinue its use.
• Product features and decoration may vary from the photographs.
WARNING
Consumer Information
This product contains small parts in
its unassembled state. Adult assembly
is required.
CAUTION
Great Britain: Vanwall Business Park, Maidenhead SL6 4UB.
Helpline: 01628 500303. www.service.mattel.com/uk.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland.
Asia: Mattel East Asia Ltd, Room 1106, South Tower, World Finance
Centre, Harbour City, Tsimshatsui, HK, China.
Malaysia: Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd.
(993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran
Tropicana Golf Country Resort, 47410 PJ. Tel: [phone].
Mattel Europa, B.V., Gondel 1, 1186 MJ Amstelveen, Nederland.
Assembled Parts
IMPORTANT! Please remove all parts from the package and identify
them before assembly. Some parts may be packed in the pad.
Both Shown Actual Size
Note: Tighten all assembled screws with the enclosed
Allen wrench.
2 Swing Housings
Seat Bottom
Seat Back
2 Side Rails
Seat Pad
Toy Bar
Allen Wrench
Base
Hinge Rod
Frame
M6 x 25 mm Screw – 2 #8 x 2,5 cm Screw – 7

3
Assembly
2

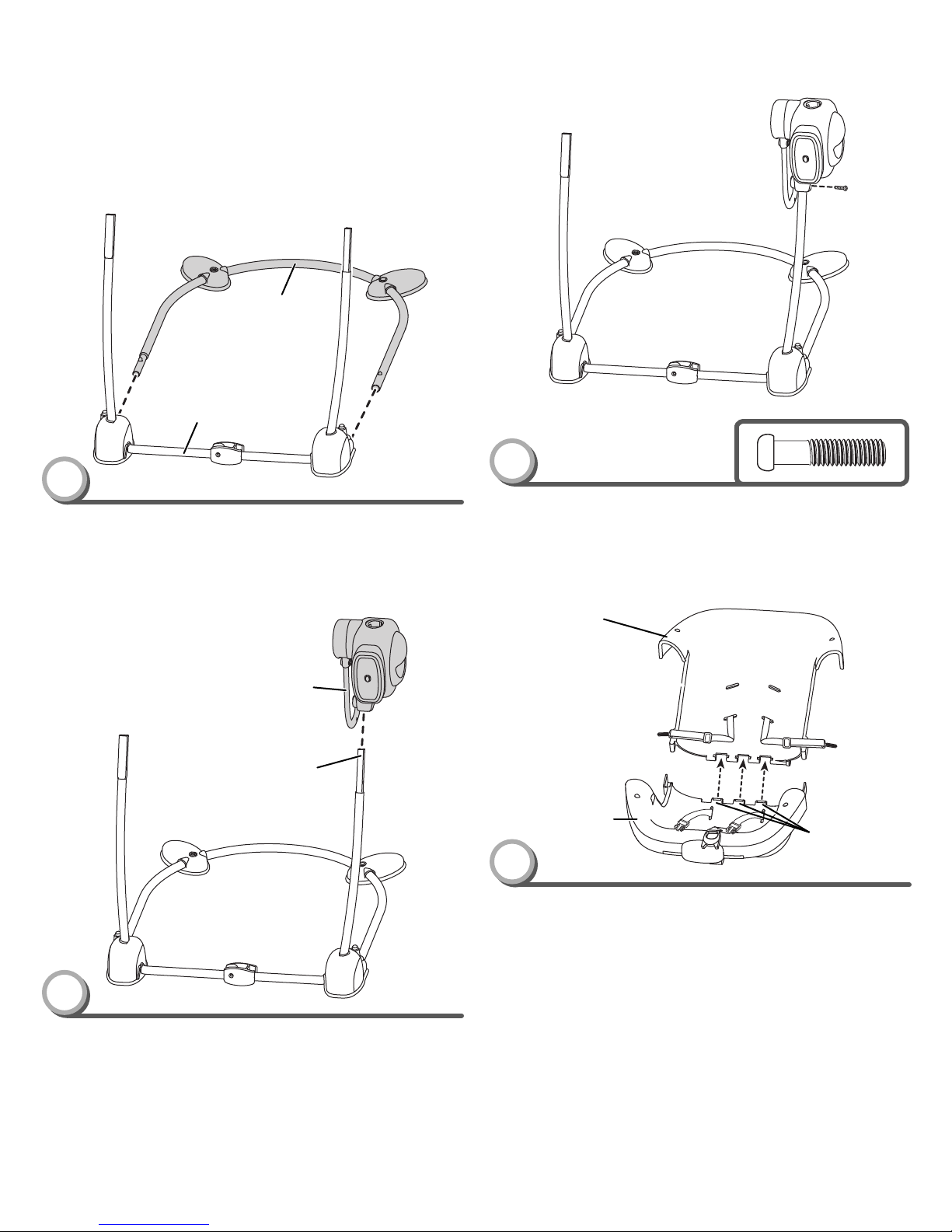

• Position one of the swing housings so that the swing arm is
facing the inside of the assembly.
• Fit the swing housing onto the frame tube.
Hint: The swing housing is designed to fit one way. If it does not
seem to fit, try assembling it to the other frame tube.
Swing Arm
Frame Tube
1
• Insert and “snap” the base into the sockets in each side of the
frame, as shown.
Hint: The base is designed to fit one way. If it does not seem to fit,
turn it around and try again.
Base
Frame
IMPORTANT! Before assembly and each use, inspect this product
for damaged hardware, loose joints, missing parts or sharp
edges. DO NOT use if any parts are missing or broken. Contact
Fisher-Price®for replacement parts and instructions if needed.
Never substitute parts.
4
• Insert an M6 x 25 mm screw into the hole in the swing housing.
Fully tighten the screw with the Allen wrench.
• Repeat this procedure to assemble the remaining swing housing
to the other frame tube.

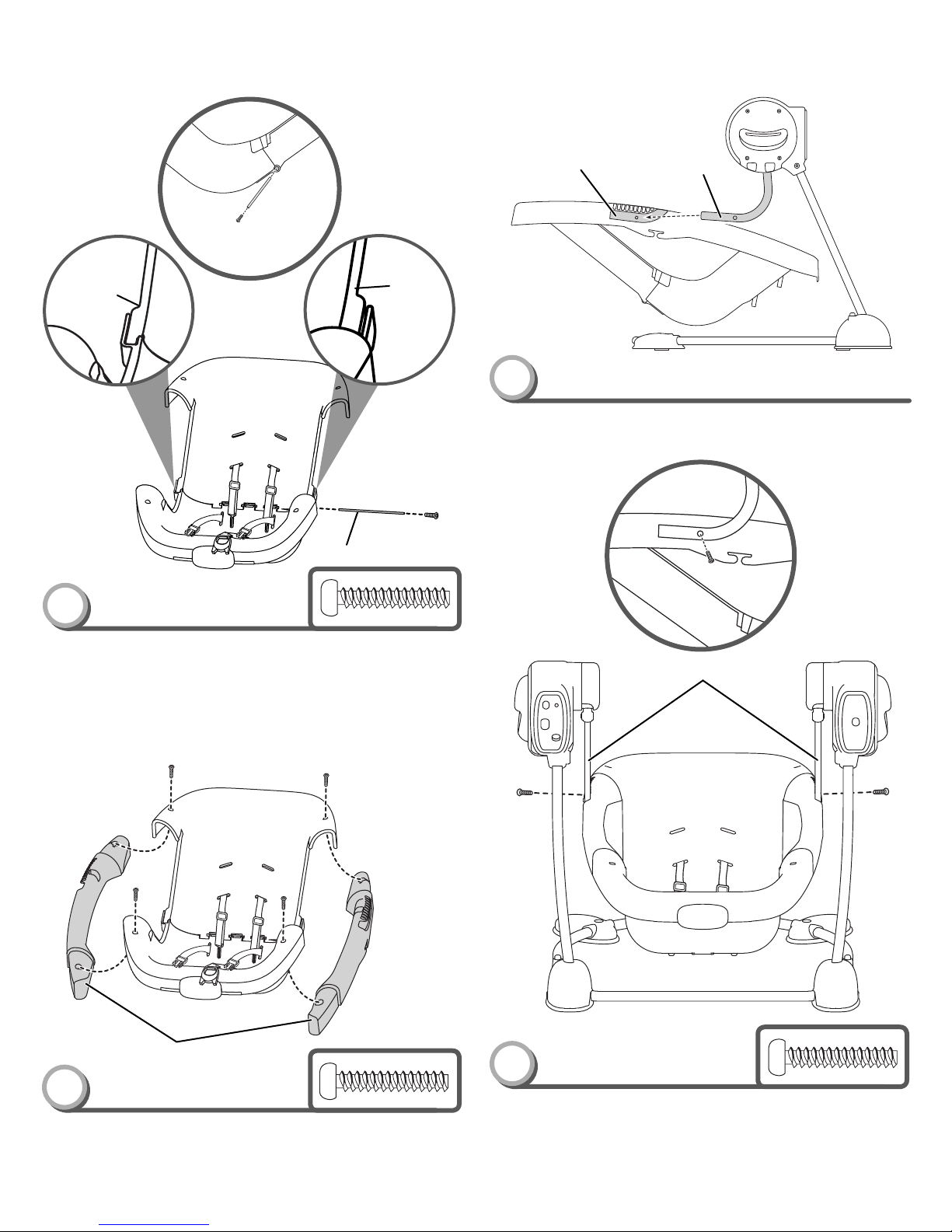

• Fit the tabs on the seat bottom into the slots in the seat back.
3
Seat Back
Tabs
Seat Bottom

4
Assembly
7
• Fit the end of each swing arm into the grooves in the seat.
Swing Arm
Groove
Side View
Side View
• Fit the side rails under the grooved areas under the seat, as shown.
• Insert four #8 x 2,5 cm screws into the holes in the seat.
• Tighten the screws with the Allen wrench.
Side Rails
6
• Make sure the tab on each side of the seat back is fitted inside
the socket on each side of the seat bottom.
• Insert the hinge rod through the hinge on the seat assembly.
• Insert a #8 x 2,5 cm screw into the end of the hinge rod.
Tighten the screw with the Allen wrench.
Hinge Rod
Side View
Side View
5
Tab Tab
• Insert a #8 x 2,5 cm screw into each swing arm. Tighten the
screws with the Allen wrench.
IMPORTANT! Push down on the seat assembly to be sure it’s
secure to the swing arms.
Swing Arms
Side View
Side View
8

5
Assembly
9
10

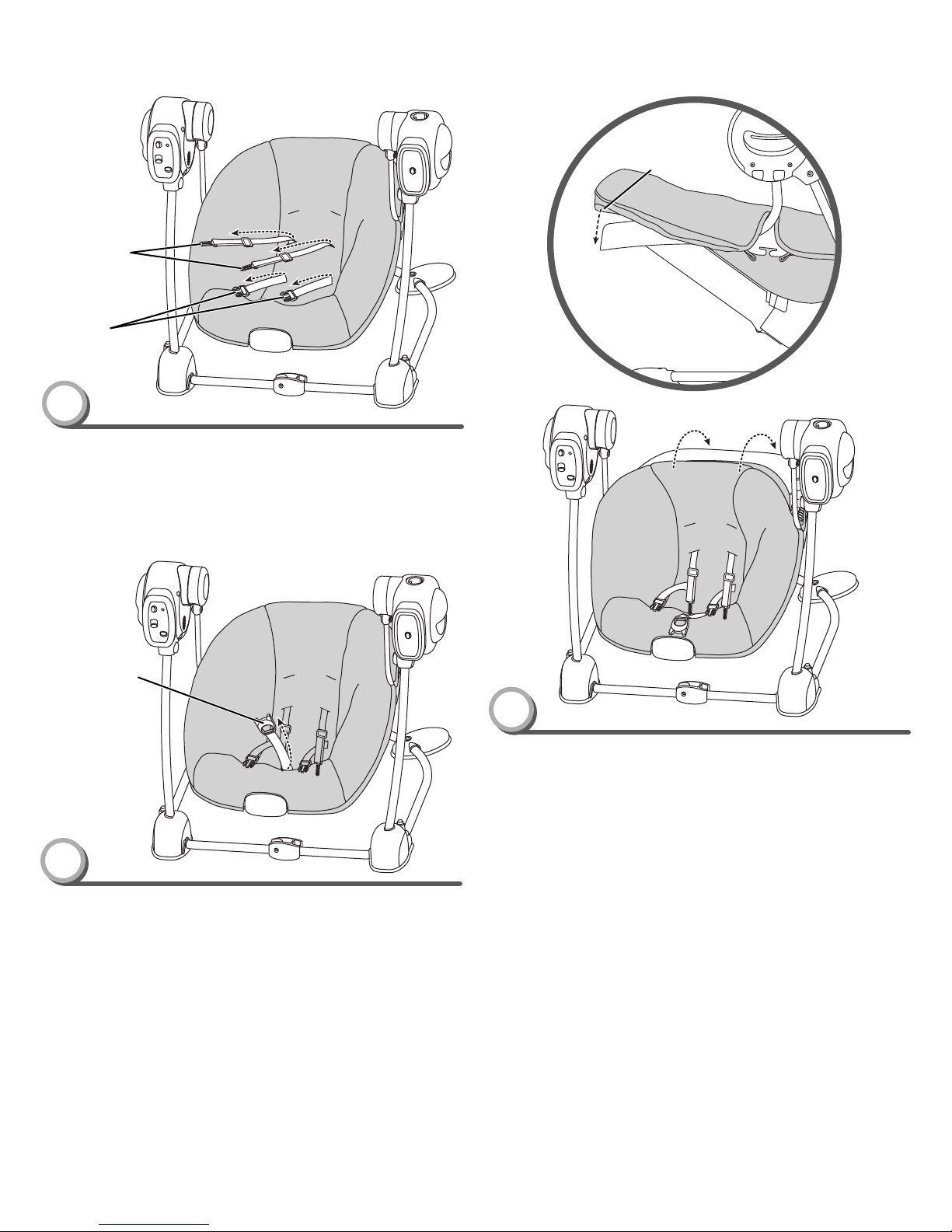

• Insert the shoulder and waist restraint belts through the slots in
the seat pad.
Hint: The shoulder belts come assembled to the seat back in the
lower slots for a smaller child. To change to the upper slots for
a larger child, refer to page 10.
• Insert the crotch restraint belt up through the slot in the seat pad.
• Insertar el cinturón de la entrepierna en la ranura de la almohadilla.
• Faire passer la courroie d’entrejambe dans la fente du coussin.
Crotch Restraint
Crotch Restraint
Waist
Waist
Restraints
Restraints
Shoulder
Shoulder
Restraints
Restraints
11

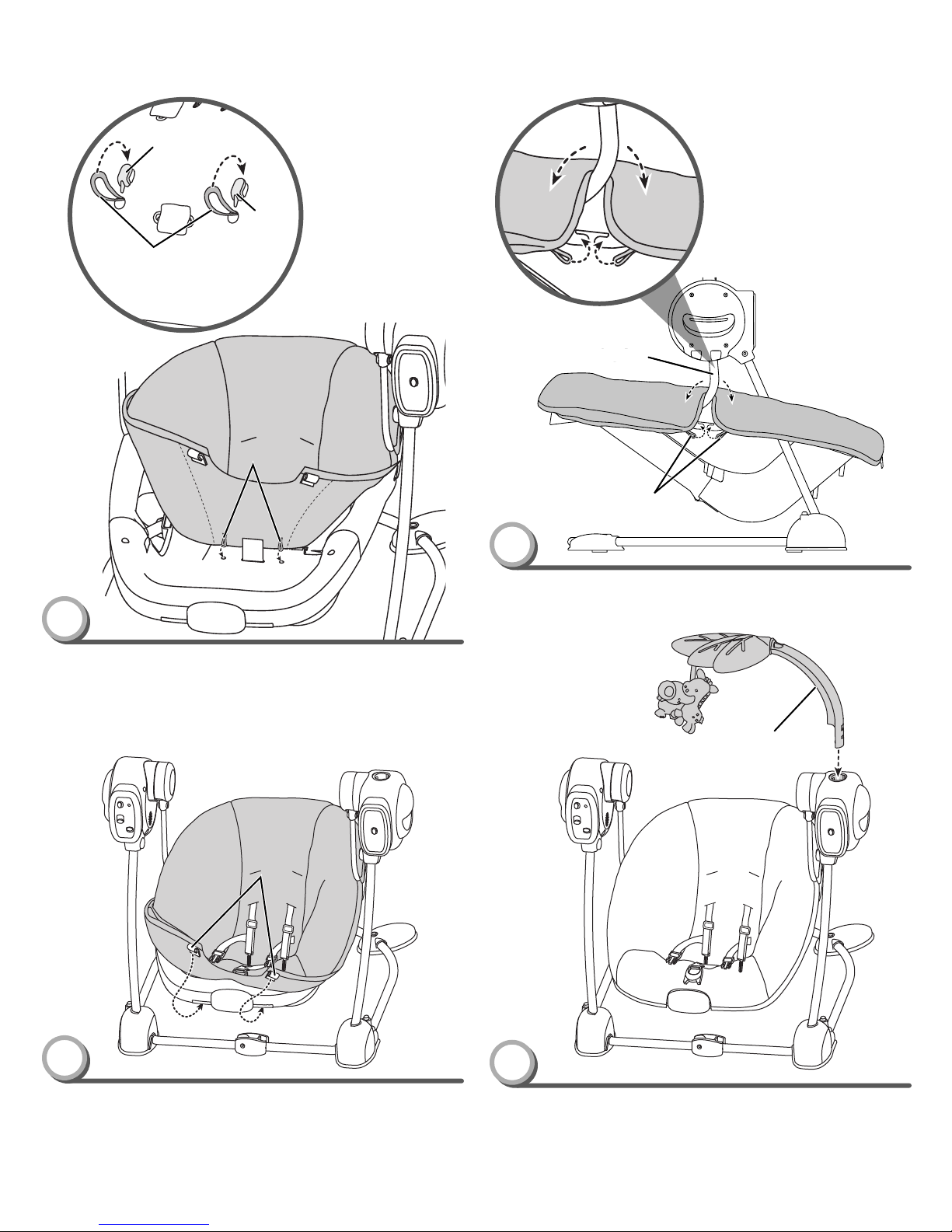

• Fit the pocket on the back of the seat pad onto the seat back.
Side View
Side View
Pocket
Pocket

6
Assembly
Elastic Loops
Elastic Loops
Elastic Loops
Elastic Loops
Tab
Tab
Tab
Tab
13
• Fit the clips on the front edge of the seat pad to the front edge of
the seat bottom.
Clips
Clips
Bottom View
Bottom View
12
• Lift the front edge of the seat pad and insert both elastic loops
on the seat pad through the holes in the seat bottom.
• From the bottom of the seat, hook the elastic loops to the tabs
on the seat.
14
• Fit the notch in the seat pad around each swing arm.
• Hook the seat pad elastic loops to the tabs on the seat.
Swing Arm
Elastic Loops
Elastic Loops
wing Armwing Arm
15

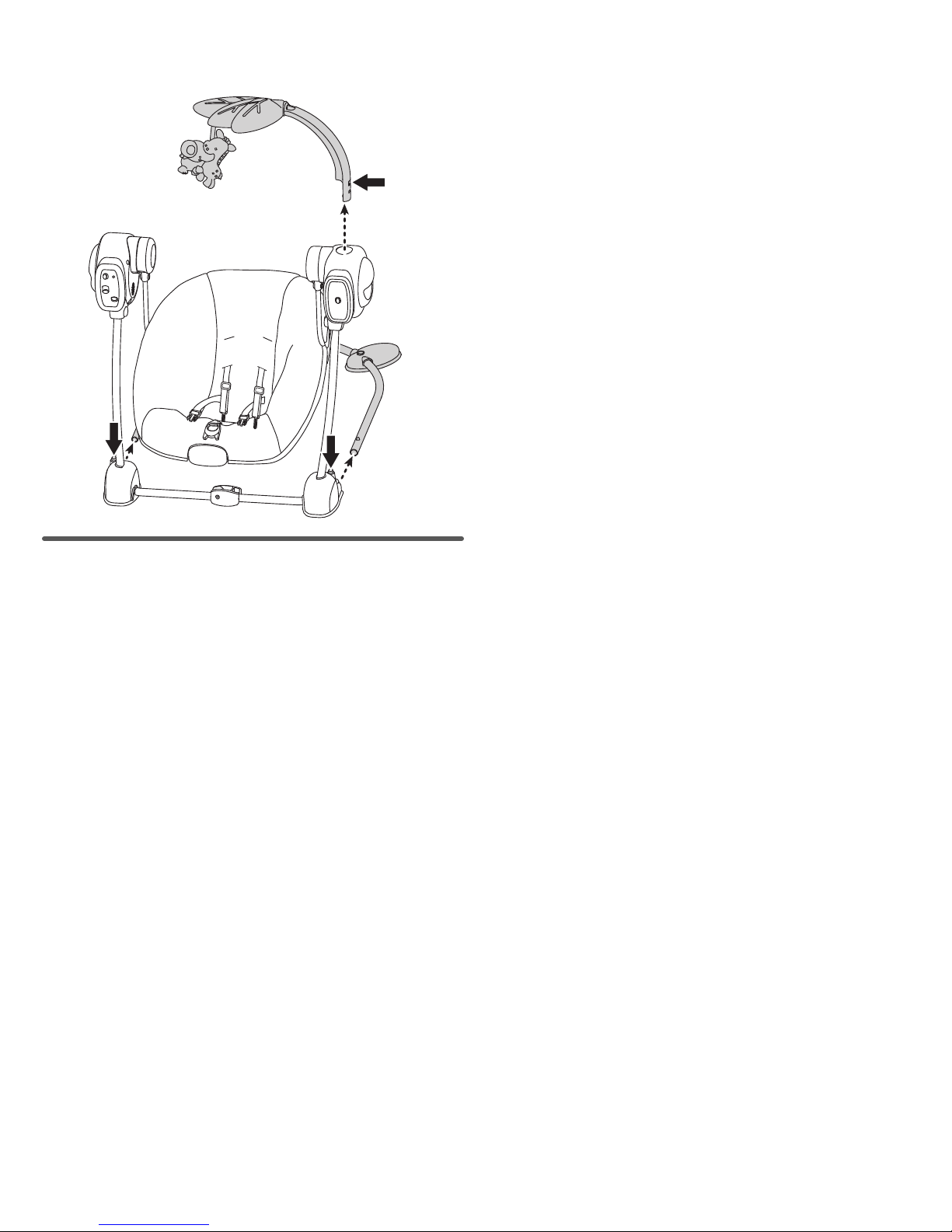

• Insert the end of the toy bar into the socket in the swing housing.
Hint: The toy bar only fits one way. If it does not seam to fit, turn it
around and try again.
Toy Bar
Toy Bar
Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. T2065pr-0726
©2009 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. PRINTED IN CHINA

7
Battery Installation
Hint: We recommend using alkaline batteries for longer battery life.

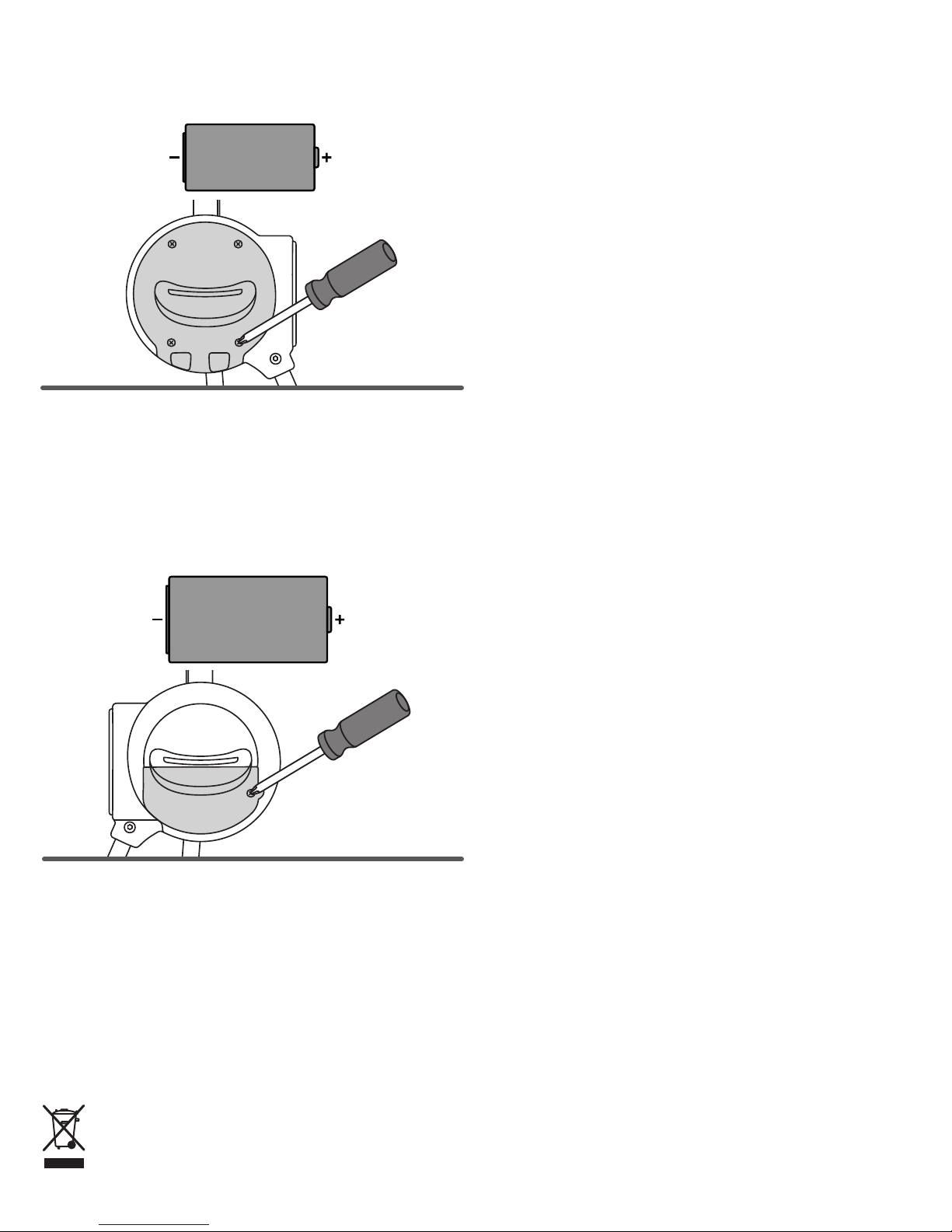

Swing/Sounds Battery Installation
• Locate the swing/sounds battery compartment on a swing housing.
• Loosen the screws in the battery compartment door with a Phillips
screwdriver. Remove the battery compartment door.
• Insert four “C” (LR14) alkaline batteries into the battery
compartment.
• Replace the battery compartment door and tighten the screws
with a Phillips screwdriver.
1,5V x 4
“C” (LR14)
• Protect the environment by not disposing of this product
with household waste (2002/96/EC). Check your local
authority for recycling advice and facilities (Europe only).
Vibration Battery Installation
• Locate the vibration battery compartment on a swing housing.
• Loosen the screw in the battery compartment door with a
Phillips screwdriver. Remove the battery compartment door.
• Insert one “D” (LR20) alkaline battery into the battery
compartment.
• Replace the battery compartment door and tighten the screw
with a Phillips screwdriver.
• If this product begins to operate erratically, you may need to
reset the electronics. Turn the power off and then back on.
• When motion or sounds from the product become slow/faint
or stop, replace the batteries.
1,5V x 1
“D” (LR20)
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product. To avoid
battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose of
batteries safely. Do not dispose of product in a fire. The batteries
inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type as
recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.
Battery Safety Information

8
1
Securing Your Child
Restraint System
• Place your child in the seat.
• Insert the ends of the waist belts through the slots in the
shoulder belts.
• Pull the crotch belt up between your child’s legs and fasten both
waist/shoulder belts to the crotch belt. Make sure you hear a
“click” on both sides.
Waist/Shoulder Belts
Waist/Shoulder Belts
Crotch Belt
Crotch Belt
• Tighten each waist belt and shoulder belt so that the restraint
system is snug against your child. Please refer to the next
section for instructions to tighten these belts.
2
• To tighten the waist belts: Feed the anchored end of the waist
belt up through the buckle to form a loop A. Pull the free end of
the waist belt B.
• To tighten the shoulder belts: Hold the adjuster and pull the
shoulder belt down C.
• To loosen the waist belts: Feed the free end of the waist belt up
through the buckle to form a loop A. Enlarge the loop by pulling
on the end of the loop toward the buckle.
• Pull the anchored end of the waist belt to shorten the free end of
the waist belt B.
• To loosen the shoulder belts: Pull the adjuster down C.
Note: After adjusting the restraint system to fit your child, make
sure you pull on it to be sure it is securely fastened.
3
TIGHTEN LOOSEN
Adjuster
Adjuster
Adjuster
Adjuster
To prevent serious injury or death
from falls and being strangled in the
restraint system:
• Always use the restraint system.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 Kg/20 lbs).
• Never leave child unattended.
• It is dangerous to use this product on
an elevated surface.
• Never use toy bar as a handle.
WARNING

9
Securing Your Child
Larger Baby
• Insert the ends of the shoulder belts through the upper slots in
the pad.
6
Push to remove the shoulder belts from the seat back.•
5
Shoulder Belts
Shoulder Belts
Upper Slots for Larger Baby
Upper Slots for Larger Baby
Smaller Baby
• Insert the ends of the shoulder belts through the lower slots in
the pad.
7
Lower Slots for Smaller Baby
Lower Slots for Smaller Baby
To adjust the restraint height for baby, unbuckle the restraint system.•
4

10

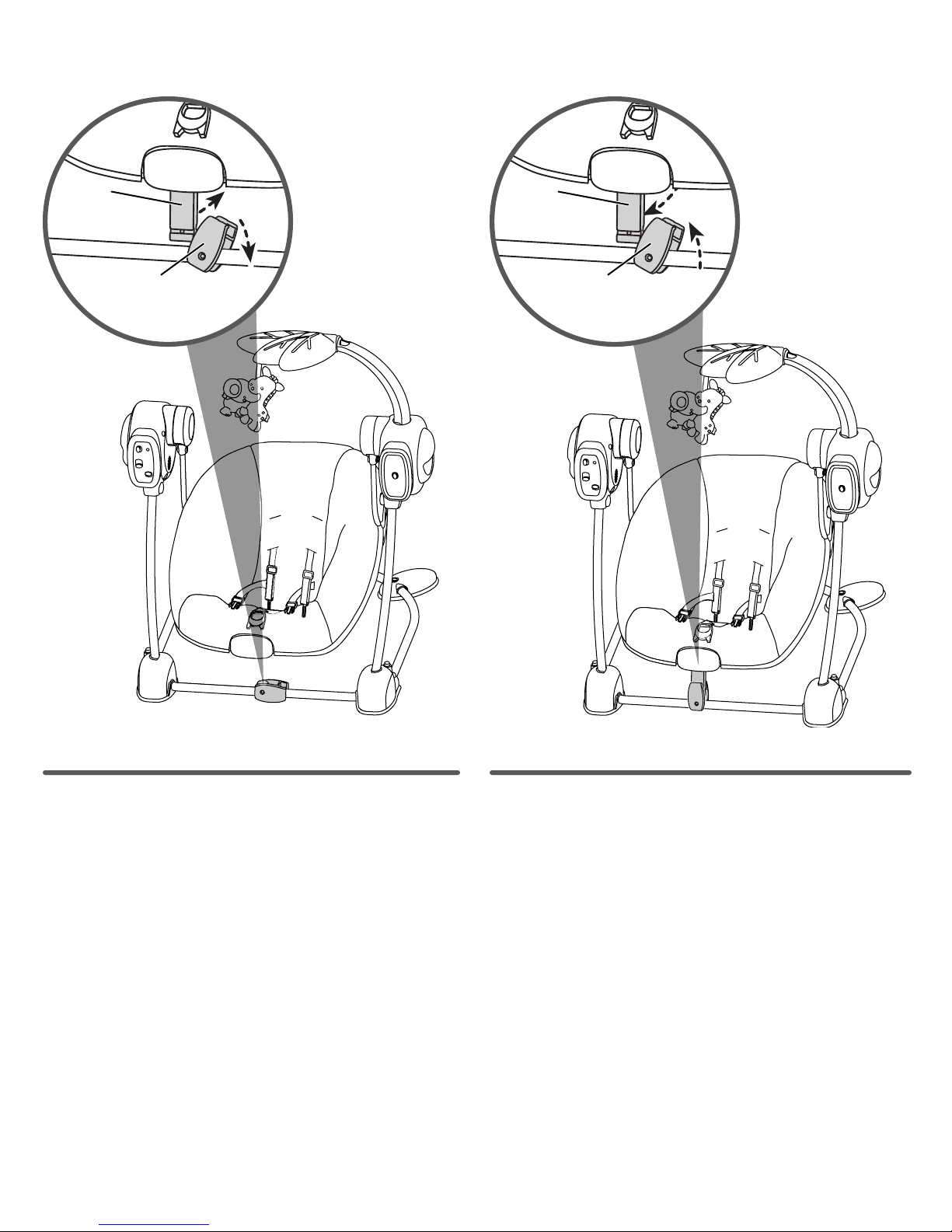

Easy Conversion
• Lower the seat post on the seat bottom.
• While holding the seat post, lift the seat latch. Slide the seat latch
over the seat post.
• Pull and slide the seat latch off of the seat post.
Seat Mode
Seat ModeSwing Mode
Seat Post
Seat Post
Seat Latch
Seat Latch
Seat Post
Seat Post
Seat Latch
Seat Latch

11
Swinging Motion, Soothing Sounds and Calming Vibrations
Swing Mode
• Place your child in the seat and secure properly.
Hint: You can turn the toy bar back when placing baby in the seat .
• Slide the main power switch ON. The power L.E.D. turns ON .
• Slide the swing speed/power switch ON .
• Give the seat a light push to start the swinging motion.
• Adjust the swing speed/power switch to the desired swing motion
setting.
Hints:
- After turning on power, this product may not swing unless
there is a child in the seat.
- As with most battery-power swings, a heavier child will reduce
the amount of swinging motion on all settings. In most cases,
the low setting works best for a smaller child while the higher
setting works best for a heavier child.
- If the low setting provides too much swinging motion for your
child, try placing one end of a blanket underneath your child
and let the other end of the blanket drape down while swinging.
- If swinging stops while using a lower setting, try a higher
setting. Give the seat a light push to start the swinging
motion again.
- Vibrations will not work in swing mode. To use calming
vibrations, follow the instructions in the previous section to
convert the product to seat mode.
• To turn off swinging, slide the swing speed/power switch off .
Music
• Slide the music/volume switch to ON with low volume , ON with
high volume or OFF .
Swing and Music
• To turn off swinging and music, slide the main power switch
OFF . The power L.E.D. turns OFF.
Main Power Switch
Main Power Switch
Swing Speed/Power Switch
Swing Speed/Power Switch
Music/Volume Switch
Music/Volume Switch
Seat Mode
• Place your child in the seat and secure properly.
• Slide the vibration switch ON or OFF .

12
CareStorage
• The pad is machine washable. Wash it separately in cold water on
the gentle cycle. Do not use bleach. Tumble dry separately on low
heat and remove promptly.
• The frame and mobile may be wiped clean using a mild cleaning
solution and a damp cloth. Do not use bleach. Do not use harsh
or abrasive cleaners. Rinse clean with water to remove residue.
To remove the pad:
• Unbuckle the restraints.
• Lift the bottom of the pad from the seat bottom.
• Remove the pad elastic loops from the pegs on the sides and
bottom of the seat.
• Pull the restraints through the slots in the pad.
• Remove the pad from the seat.
To re-assemble the pad:
• Refer to assembly steps 9-14.
• Press the button on each end of the frame and remove the base.
• Press the tab on the toy bar and lift to remove.
• Store the base and the toy bar in a safe place for future use.
