fisher-price.com
Y5708

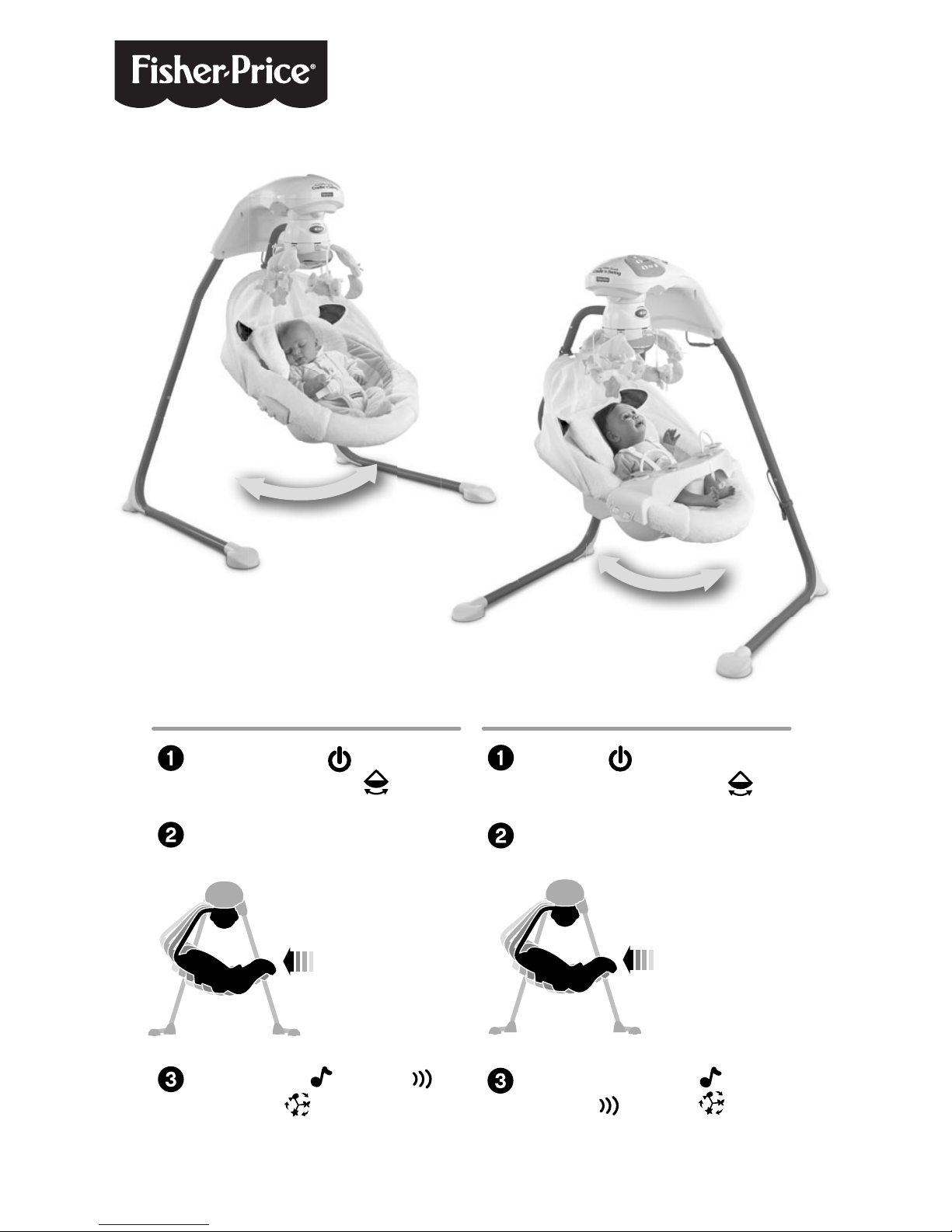

Quick Start
Turn power on and
select swing speed
Push seat to
start swinging
Select music , sounds
or mobile
PUSH
Inicio rápido
Encender y seleccionar la
velocidad del columpio
Empujar la silla para
empezar el movimiento
Seleccionar música ,
sonidos o móvil
EMPUJAR
2
Consumer Information
Información para el consumidor
To prevent serious injury or death from falls and being strangled in the
restraint system:
• Always use the restraint system.
• Never rely on tray to restrain child
• Never use with an active child who may be able to climb out of the product.
• Never use the upright seat position with a child unable to hold head up unassisted.
• This product is not intended to replace a crib or bassinet for prolonged periods
of sleep.
• Never leave child unattended.
Para evitar lesiones o la muerte como resultado de caídas y quedar
estrangulado en el sistema de sujeción:
• Siempre usar el sistema de sujeción.
• La bandeja no está diseñada para sujetar al niño.
• No usar con niños activos que pueden salirse del producto.
• No usar la posición de asiento vertical con niños que no pueden mantener la
cabeza derecha por sí solos.
• Este producto no está diseñado para reemplazar una cuna o moisés por periodos
prolongados de sueño.
• Nunca dejar al niño sin supervisión.
WARNING
ADVERTENCIA
IMPORTANT! Please keep these instructions for future reference.
IMPORTANT! Before each use or assembly, inspect this product for damaged hardware, loose joints,
missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price®
for replacement parts and instructions if needed. Never substitute parts.
• Please read these instructions before assembly and use of this product.
• Adult assembly is required.
• Tools needed for assembly: Allen Wrench (included) and Phillips screwdriver (not included).
• Requires four “D” (LR20) alkaline batteries for operation (not included).

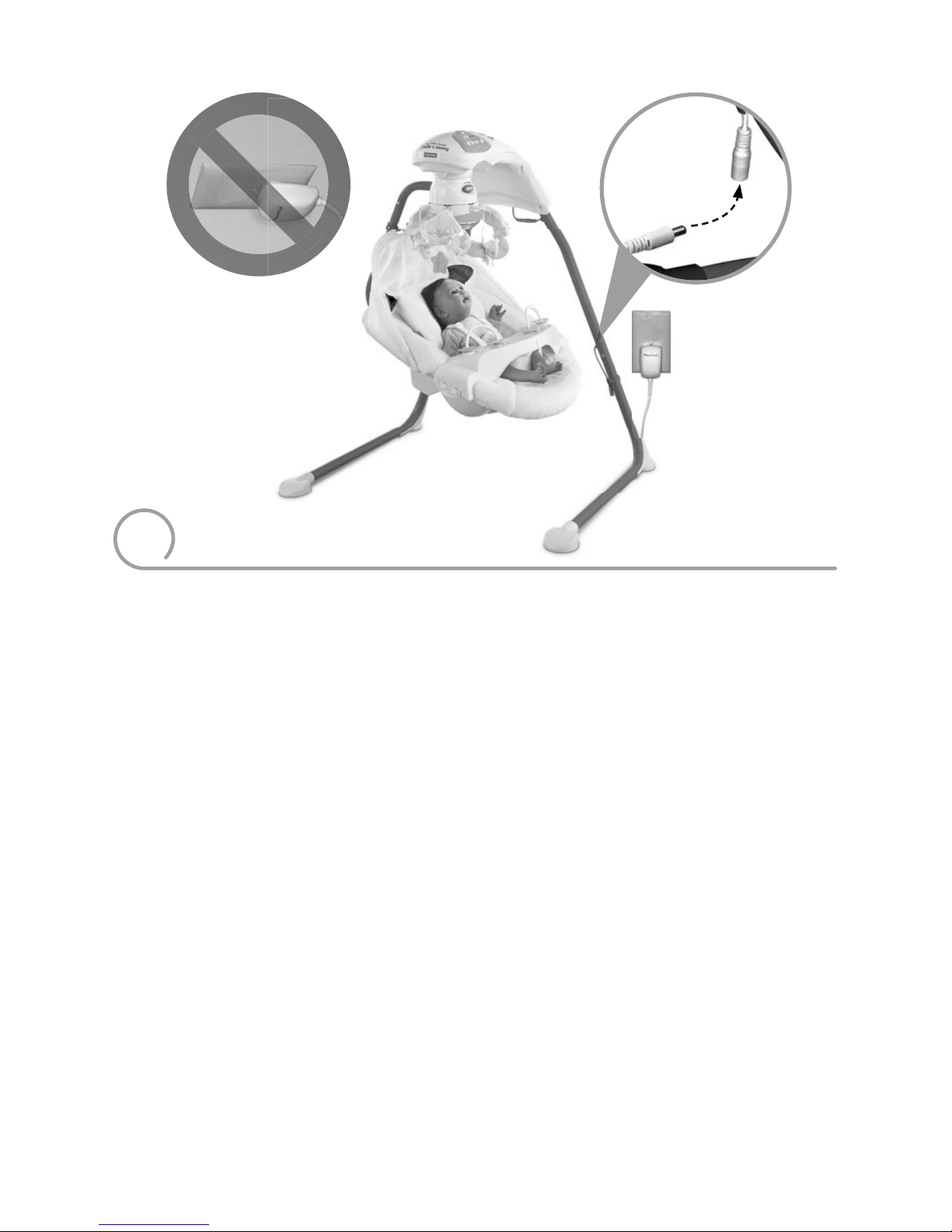

• Requires an AC adaptor (input 120 - 240 VAC, 50 - 60Hz, with an output of 6 VDC) for
operation (included).
• Always use the swing where there is adequate ventilation. To prevent overheating, keep the swing
away from heat sources such as radiators, heat registers, direct sunlight, stoves, amplifiers, or
other appliances which produce heat.
• Never use extension cords with the AC adaptor.
• Never use the swing near water (ie.: bathtub, sink, laundry tub or wet basement, etc.).
3
Consumer Information
Información para el consumidor
• Adults Note: If you use this product with the AC adaptor, periodically examine the AC adaptor for
damage to the cord, housing or other parts that may result in the risk of fire, electric shock or
injury. If the AC adaptor is damaged, do not use the product with the AC adaptor. Use batteries as
the power source.
• Do not connect to more than the recommended number of power supplies.
• The product must only be used with the recommended AC adaptor.
• The AC adaptor is not a toy.
• Disconnect the AC adaptor from the swing before cleaning.
IMPORTANT! Maximum weight limit: 25 lbs (11.3 kg). If your child weighs less than 25 lbs (11.3 kg),
but is really active and appears to be able to climb out of the swing, immediately discontinue its use.
• Product features and decorations may vary from photographs.
¡IMPORTANTE! Guardar estas instrucciones para futura referencia.
¡IMPORTANTE! Antes de cada uso o montaje, inspeccionar este producto para verificar que no tenga
piezas dañadas, conexiones sueltas, piezas faltantes o bordes filosos. NO usar el producto si falta
o está rota alguna pieza. Ponerse en contacto con la oficina Mattel más próxima a su localidad para
obtener piezas de repuesto e instrucciones, de ser necesario. No usar piezas de otras marcas.
• Leer estas instrucciones antes de ensamblar y usar este producto.
• Requiere montaje por un adulto.
• Herramientas necesarias: llave hexagonal (incluida) y desatornillador de cruz (no incluida).
• Funciona con cuatro pilas alcalinas tipo 4 x “D” (LR20) x 1,5V (no incluidas).
• Funciona con un adaptador de corriente alterna (entrada de 120 - 240 V~, 50 - 60 Hz con una
salida de 6 Vcc) (incluido).
• Siempre usar el columpio donde haya ventilación adecuada. Para evitar sobrecalentamiento,
mantener el columpio lejos de fuentes de calor tales como radiadores, registradoras de calor,
contacto directo con el sol, estufas, amplificadores y demás equipo que genere calor.
• Nunca usar extensiones de cables eléctricos con el adaptador de corriente alterna.
• Nunca usar el columpio cerca de agua (p. ej.: bañera, lavabo, fregadero, sótano mojado, etc.).
• Atención padres: si el producto se va a usar con un adaptador de corriente alterna, revisar
periódicamente que el adaptador no tenga daños en el cable, compartimento y demás piezas que
puedan dar como resultado incendios, descargas eléctricas o lesiones. Si el adaptador de corriente
alterna está dañado, no usar el producto con el adaptador. Usar pilas como fuente de alimentación.
• No conectar a más suministros eléctricos de los recomendados.
• Solo usar el producto con el adaptador de corriente alterna recomendado.
• El adaptador de corriente alterna no es un juguete.
• Desconectar el adaptador de corriente alterna del columpio antes de limpiarlo.
• LEA LAS INSTRUCCIONES ANTES DE USAR ESTE PRODUCTO.
¡IMPORTANTE! Capacidad máxima: 11,3 kg (25 lb). Si su hijo pesa menos de 11,3 kg pero es muy
activo y parece poder salirse del columpio, descontinuar el uso del producto inmediatamente.
• Las características y decoración del producto pueden variar de las mostradas.
4
2 Feet
2 extremidades
Parts Piezas
All Shown Actual Size
Se muestran a tamaño real
Tighten and loosen the screws with the enclosed
Allen wrench or a Phillips screwdriver.
Apretar o aflojar los tornillos con la llave
hexagonal incluida o un desatornillador de cruz.
M4,5 x ¾" (1,9 cm) Screw - 4
Tornillo M4,5 x 1,9 cm - 4
#8 x ¾" (1,9 cm) Screw - 2
Tornillo №8 x 1,9 cm - 2
2 Lower Legs
2 patas inferiores
Motorized Frame
Armazón motorizado
Pad with Headrest and Canopy
Almohadilla con cabezal
2 Side Rails
2 rieles
laterales
Seat with Restraint System
Asiento con sistema de sujeción
Tray
Bandeja
2 Upper Legs
2 patas superiores
Lower Seat Tube
Tubo de
asiento inferior
Allen Wrench
Llave hexagonal
AC Adaptor
Adaptador de
corriente alterna
M5 x 40 mm Bolt - 2
Perno M5 de 40 mm - 2
5
• Position a lower leg so that it stands on a flat surface, as shown.
• Fit a foot onto the end of the lower leg.
• Insert a #8 x ¾" (1,9 cm) screw through the bottom of the foot and into the lower leg. Fully tighten
the screw with the Allen wrench.
• Repeat this procedure to assemble the other foot to the other lower leg.
• Colocar una pata inferior de modo que quede sobre una superficie plana, como se muestra.
• Ajustar una extremidad en el extremo de la pata inferior.
• Introducir un tornillo №8 x 1,9 cm en la parte inferior de la extremidad y en la pata
inferior. Apretar bien el tornillo con la llave hexagonal.
• Repetir este procedimiento para ensamblar la otra extremidad en la otra pata inferior.
Lower Leg
Pata inferior
Foot
Extremidad
Assembly Montaje
1
• While pressing the button on the lower leg, insert the lower leg into an upper leg. Make sure the
button on the lower leg “snaps” into the hole in the upper leg.
• Repeat this procedure to assemble the other upper leg to the other lower leg.
• Fit the power cord into the retainer on the lower leg.
• Mientras presiona el botón de la pata inferior, introducir la pata inferior en una pata superior.
Cerciorarse de que el botón de la pata inferior se “encaje” en el orificio de la pata superior.
• Repetir este procedimiento para montar la otra pata superior en la otra pata inferior.
• Ajustar el cable eléctrico en el sujetador de la pata inferior.
Lower Leg
Pata inferior
PRESS
PRESIONAR
Upper Leg
Pata superior
2
6
Assembly Montaje
3

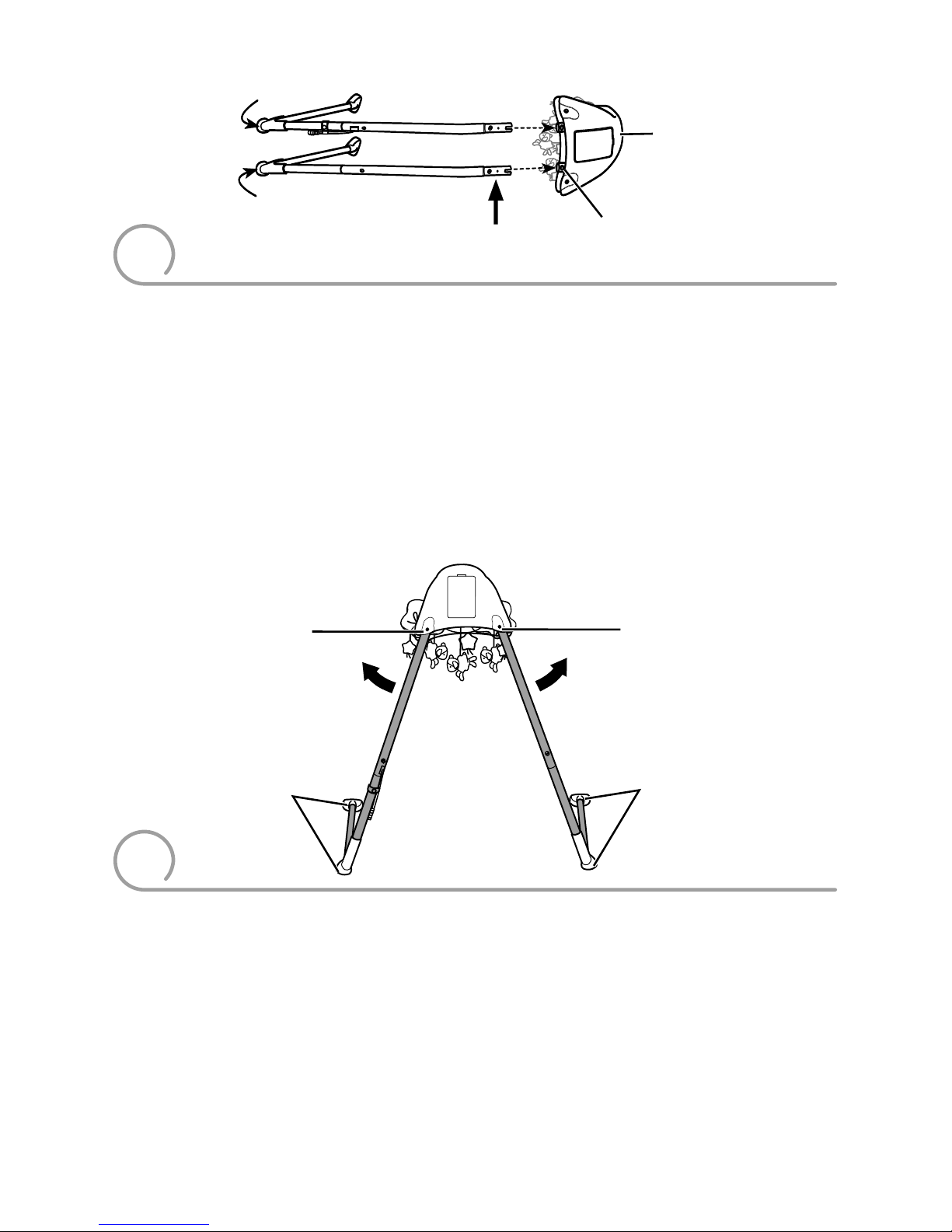

• Locate the Rand Lon the underside of each elbow foot. The Rindicates the right leg. The L
indicates the left leg.
• While pressing the upper button on the right leg, fit it into the tube in the motorized frame. Make
sure the upper button on the right leg “snaps” into the hole in the tube.
• Repeat this procedure to assemble the left leg to the motorized frame.
• Localizar la Ry la Len la parte inferior de cada base esquinada. La Rcorresponde a la pata
derecha y la La la pata izquierda.
• Mientras oprime el botón superior de la pata derecha, introducirla en el tubo del armazón motorizado.
Cerciorarse de que el botón superior de la pata derecha se ajuste en el orificio del tubo.
• Repetir este procedimiento para ensamblar la pata izquierda en el armazón motorizado.
L
R
PRESS
PRESIONAR
Button
Botón
Button
Botón
Feet
Extremidades

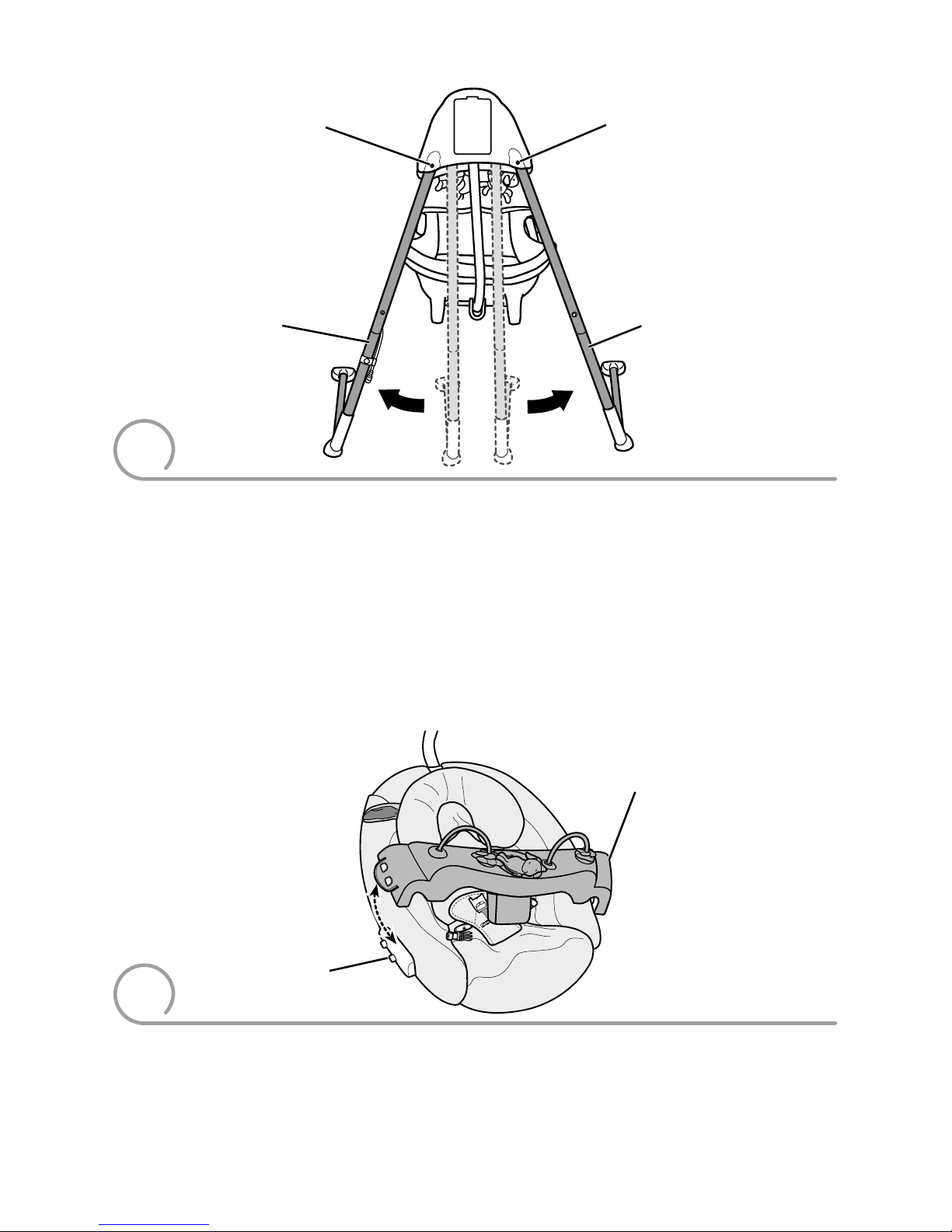

• Stand the assembly upright.
• Pull the legs out so that the buttons “snap” into the holes in the motorized frame.
• When standing behind the product, all four feet should be flat upon the floor. And, check for an L
marking on the left foot and an Rmarking on the right foot.
• If the feet are not flat upon the floor, or the left and right feet have been reversed, remove both
lower legs from the upper legs. Replace them onto the opposite upper leg.
• Colocar la unidad en posición vertical.
• Tirar de las patas de modo que los botones se “ajusten” en los orificios del armazón motorizado.
• Al pararse detrás del producto, las cuatro patas deben estar planas contra el piso. Verifique que la
pata izquierda tenga una Ly la pata derecha una R.
• Si las patas no están planas contra el piso, o si las patas izquierda y derecha están en el lugar
equivocado, sacar ambas patas inferiores de las patas superiores. Ahora colóquelas en la pata
superior correspondiente.
LR
Feet
Extremidades
4
Motorized Frame
Armazón motorizado
Tube
Tubo
7
Assembly Montaje
Seat
Asiento
• Fit the side rails to the side tabs on the seat.
• Insert four M4,5 x ¾" (1,9 cm) screws into the side rails.
• Fully tighten the screws with a Phillips scredriver.
• Ajustar los rieles laterales en las lengüetas laterales del asiento.
• Introducir cuatro tornillos M4,5 x 1,9 cm en los rieles laterales.
• Apretar bien el tornillo con un desatornillador de cruz.
Side Rail
Riel lateral
Side Rail
Riel lateral
5
Seat
Asiento
Pad
Almohadilla
Headrest
Cabezal
• Position the seat upright.
• Place the pad onto the seat with the headrest toward the top of the seat.
• Colocar el asiento en posición vertical.
• Poner la almohadilla en el asiento con el cabezal hacia la parte superior del asiento.
6
8
Assembly Montaje
Smaller Baby
• Insert the ends of the shoulder belts through the lower slots in the seat pad back.
Larger Baby
• Insert the shoulder belts through the upper slots in the seat pad back.
Bebé más pequeño
• Insertar los extremos de los cinturones de hombro en las ranuras inferiores de la parte trasera de
la almohadilla.
Bebé más grande
• Insertar los cinturones de hombro en las ranuras superiores de la parte trasera de la almohadilla.
Lower
Slots
Ranuras
inferiores
7
Upper
Upper
Slots
Slots
Ranuras
Ranuras
superiores
superiores
• Insert the waist belts through the slots in the pad. Make sure the waist belts are not twisted.
• Turn the seat face down.
• Hook the two elastic loops at the top of the seat pad around the pegs at the top of the seat.
• Hook the two elastic loops at the bottom of the seat pad around the pegs at the bottom of the seat.
Slots
Ranuras
Waist Belts
Cinturones de la cintura
8
Elastic Loops
Ganchos elásticos
Elastic Loop
Gancho elástico
Elastic Loop
Gancho elástico
Bottom View
Vista inferior
9
Assembly Montaje
• Introducir los cinturones de la cintura en las ranuras de la almohadilla. Verificar que los cinturones
de la cintura no estén torcidos.
• Poner el asiento cara abajo.
• Enganchar los dos ganchos elásticos en la parte superior de la almohadilla alrededor de las
clavijas en la parte de arriba del asiento.
• Enganchar los dos ganchos elásticos de la parte inferior de la almohadilla alrededor de las clavijas
en la parte de abajo del asiento.
• Position the seat upright.
• Fit the pad edges around the rim of the seat.
• Fit the pad around the seat handles.
• Colocar el asiento en posición vertical.
• Ajustar los bordes de la almohadilla alrededor del borde del asiento.
• Ajustar la almohadilla alrededor de las asas del asiento.
Seat Handle
Asa del asiento
Seat Handle
Asa del asiento
9
10

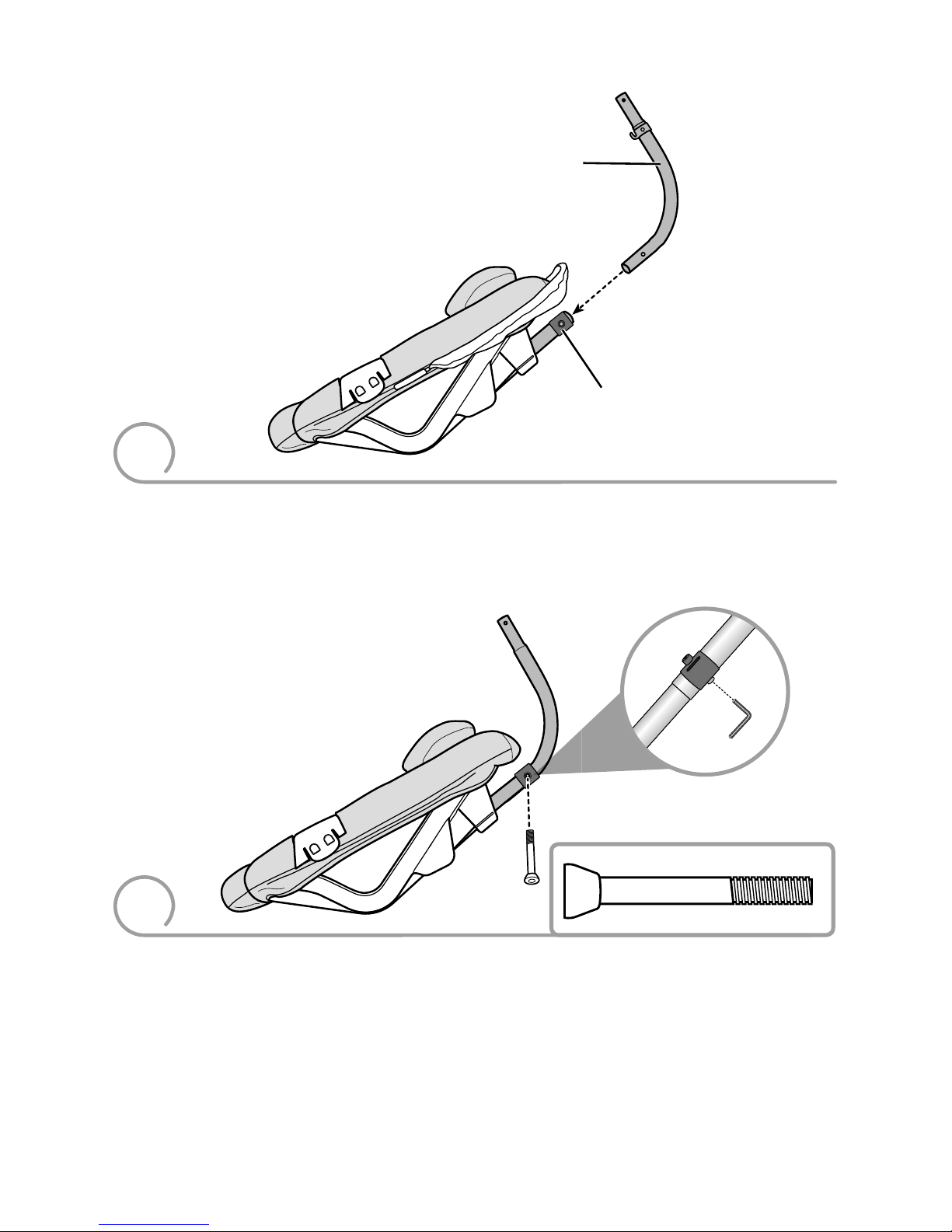

• Insert an M5 x 40 mm bolt into the short tube. Fully tighten the screw with the Allen wrench.
• Insertar un perno M5 x 40 mm en el tubo corto. Apretar bien el perno con la llave hexagonal.
• Fit the lower seat tube into the short tube on the seat back.
• Ajustar el tubo de asiento inferior en el tubo corto del respaldo.
Lower Seat Tube
Tubo de asiento inferior
Short Tube
Tubo corto
Assembly Montaje
10
11
