Fisher-Price M2055 User manual

www.fisher-price.com/uk
M2055

To prevent serious injury or death:
• Fall Hazard - It is dangerous to use
this reclined cradle on an elevated
surface, since child’s movement may
cause product to slide or tip over.
Use only on a floor.
• Suffocation Hazard - Never use on
a soft surface (bed, sofa, cushion)
since the product can tip over and
cause suffocation in soft surfaces.
• Never use the toy bar as a handle.
• Always use the restraint system.
• Never leave child unattended.
• Never use as a car seat.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
WARNING
IMPORTANT! Please keep these instructions for future
reference, as they contain important information.
•Please read these instructions before use of this product.
•Adult assembly is required.Tool needed for assembly:
Phillips Screwdriver (not included).
•Requires three “C” (LR14) alkaline batteries (not included)
for operation.
•Product features and decoration may vary from photos.
CAUTION
This package contains small parts in
its unassembled state. Adult assembly
is required.
2
Consumer Information

Infant Support Butterfly Toy
Seat Back Tube
Seat Pad
Soothing Unit
Base Tube
Front Base
Toy Bar
3

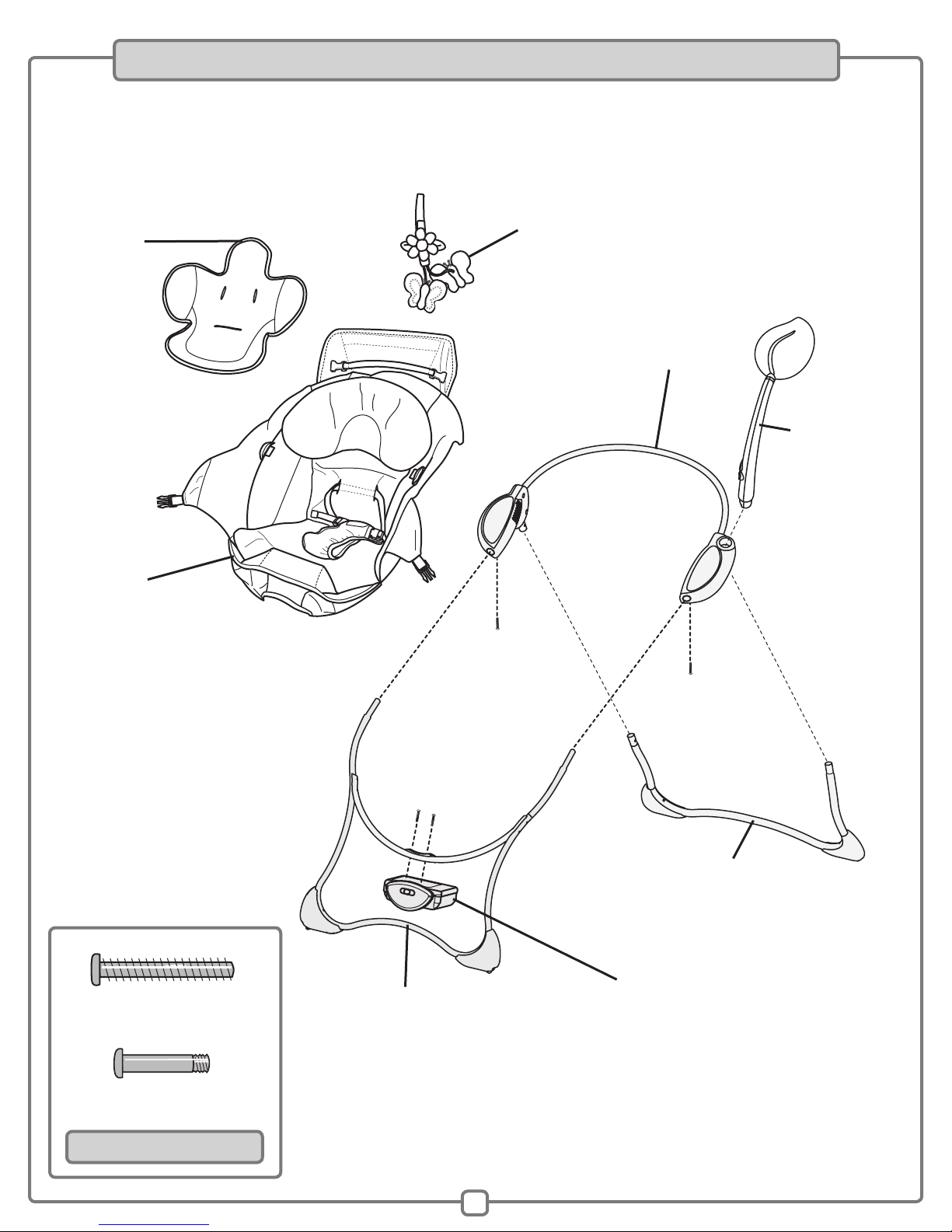

Parts
IMPORTANT! Please remove all parts from the package and identify them before assembly.
Some parts may be packed inside the pad.
4 mm x 30 mm Screw – 2
4 mm x 20 mm Screw – 2
Shown Actual Size

Turn Tube Ends Up
• Place the seat back tube face down, as shown.
• Turn the ends of the tube upright.
Seat Back Tube
IMPORTANT! Before assembly, inspect this product for
damaged hardware, loose joints, missing parts or sharp edges.
DO NOT use if any parts are missing or broken. Contact
Mattel for replacement parts and instructions if needed.
Never substitute parts.
4
Assembly

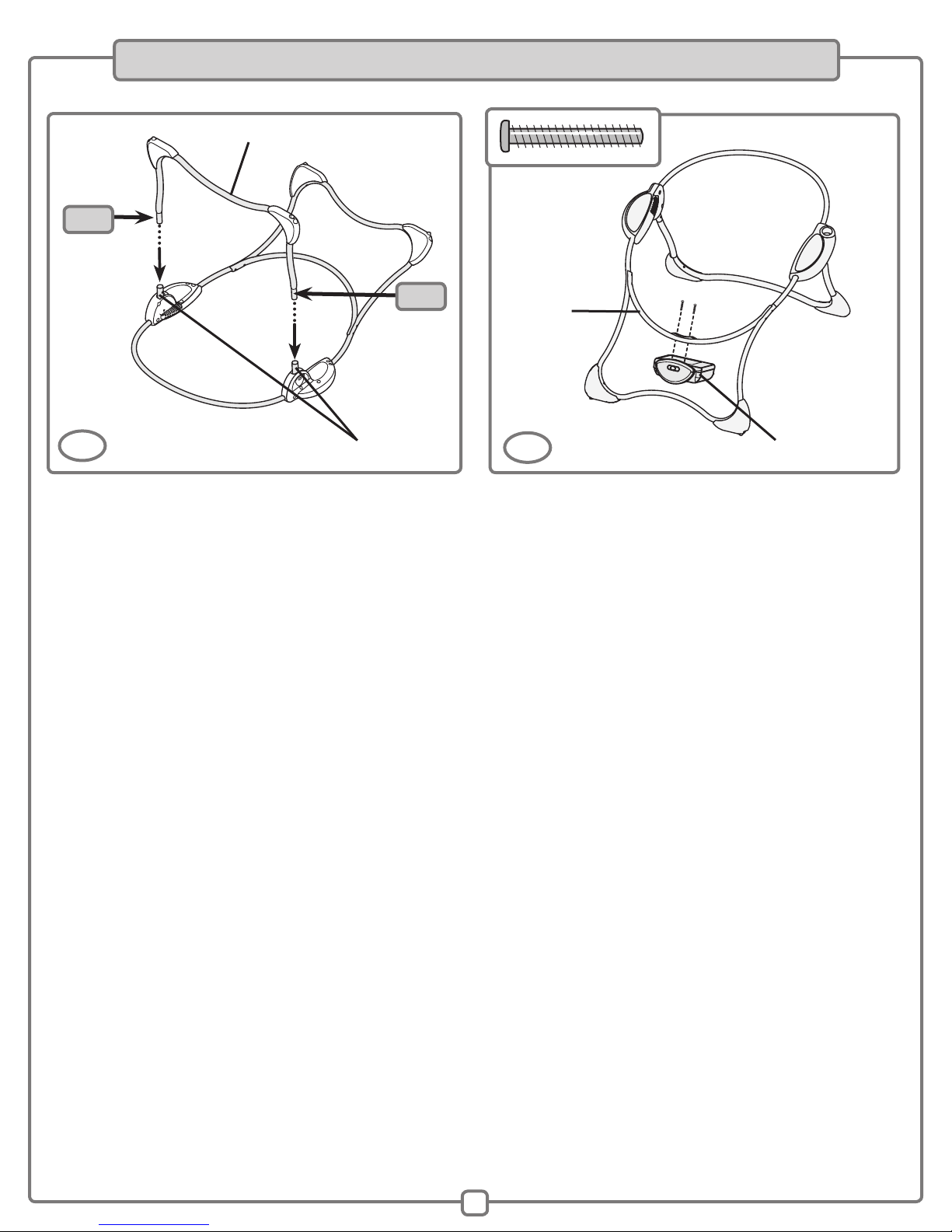

1
• Insert the ends of the front base into the holes in the handles.
Hint: If you cannot insert the front base into the handles,
turn the seat back tube over and try again!
• Insert two 4 mm x 20 mm screws through the hole in the
handles and the ends of the front base.Tighten the screws.
Hint: If the screw does not easily insert through the hole
in the handle and front base, you may not have pushed
the front base completely into the handle. Push the front
base into the handle to align the holes and then insert
the screw.
Seat Back Tube Handles
Front Base
2

Handle Tubes
Back Base
• While pressing the buttons on the ends of the back base,
insert it into the tubes in the handle. Make sure the back
base “snaps” into place.
• Pull the back base to be sure it is secure to the handle tubes.
PRESS
PRESS
• Turn the assembly upright.
• Position the soothing unit upright and fit the groove to the
front base, as shown.
• Insert two 4 mm x 30 mm screws through the front base
and into the soothing unit.Tighten the screws.
Soothing Unit Groove
Front Base
34
5
Assembly

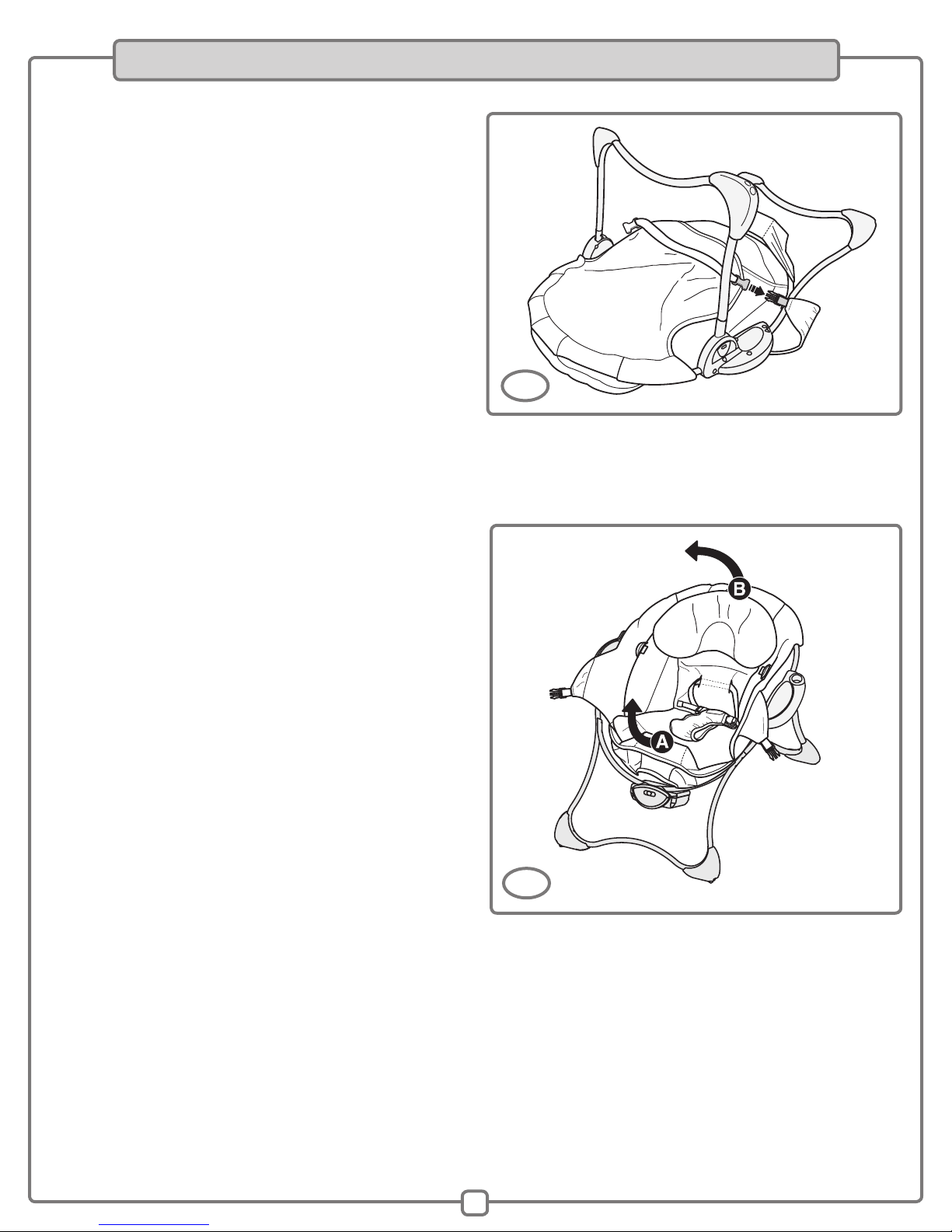

Front Base Lower Pocket
• Fit the pad lower pocket around the front base and
soothing unit.
• Turn the assembly face down.
• Fasten both pad side flaps to the strap on the back of the
pad. Make sure you hear a “snap” on both sides.
Seat Back Tube
Upper Flap
• Fit the upper flap on the pad around the seat back tube.
Assembly
6Side Flap
Strap
5
PRINTED IN CHINA M2055pr-0726

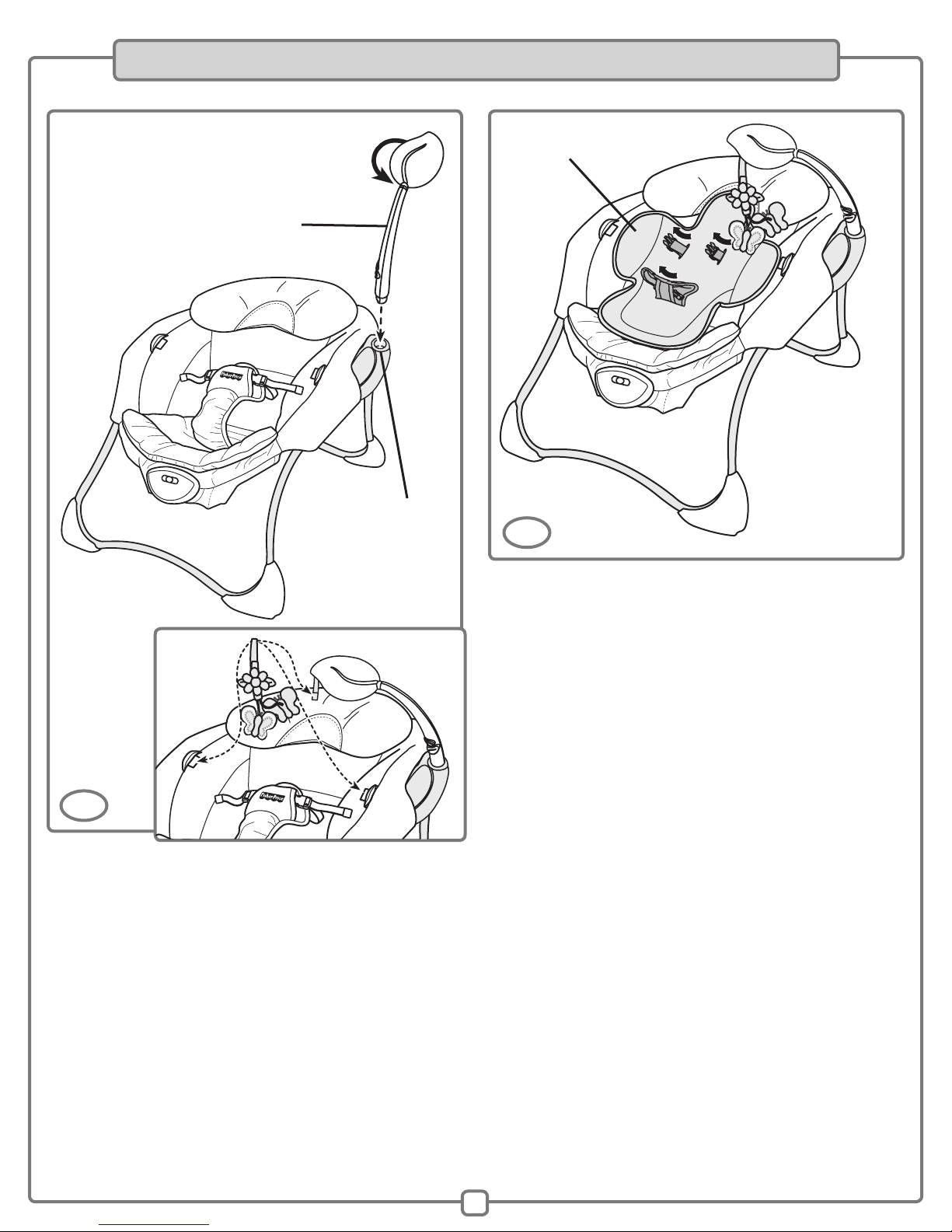

• Fit the toy bar into the socket in the handle A.Turn the
toy bar to secure in place B.
• Attach the butterfly toy to any of the fastener tabs on the
sides of the pad or toy bar, as shown.
7
Assembly
7
• Place the infant support on top of the pad.
• Insert the restraint pad through the slot in the infant
support. Make sure the restraint pad is not twisted.
• Thread the restraint straps through the slots in the
infant support.
Assembly is now complete.
8
Infant Support
Toy Bar
Socket
B
A

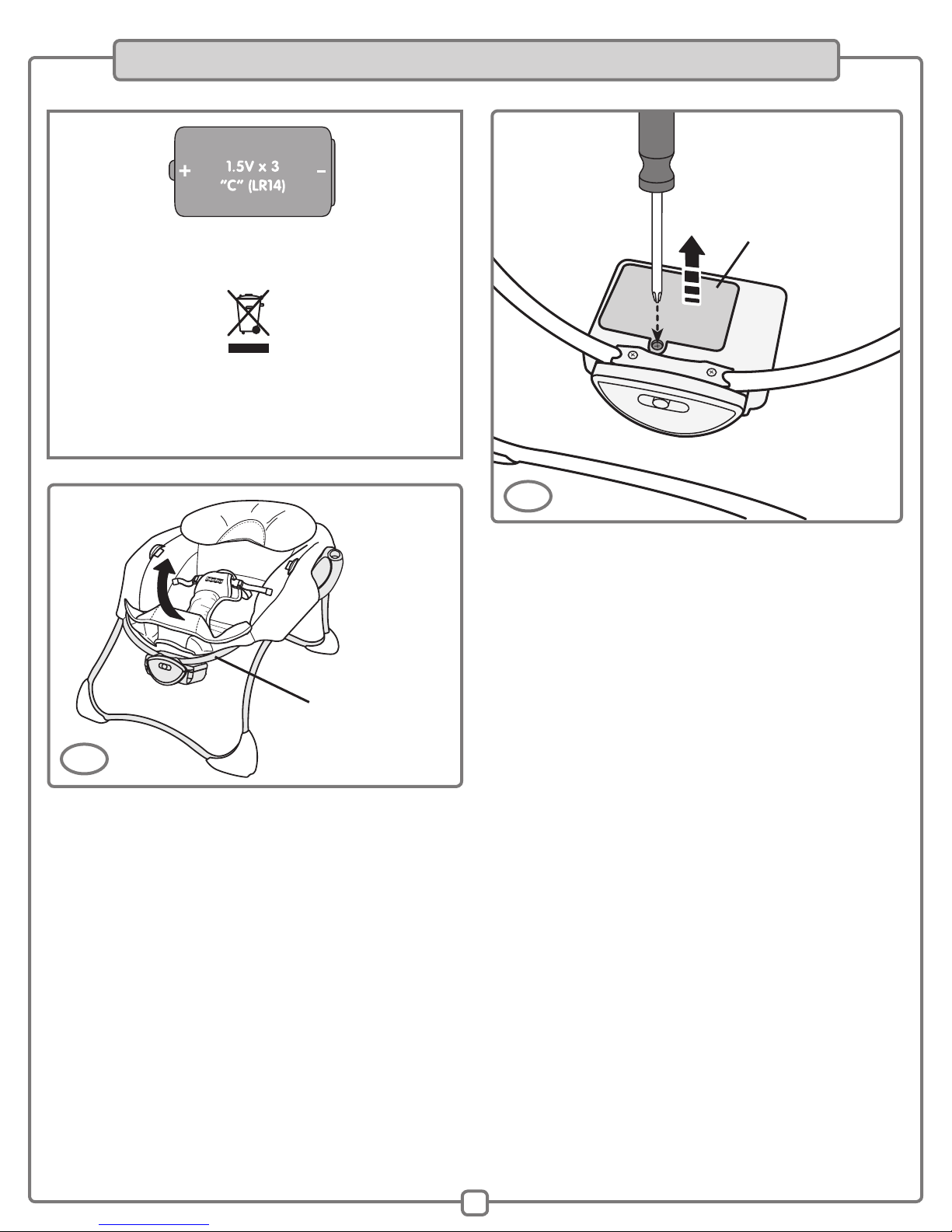

Battery Compartment
Front Tube
• Remove the pad lower pocket from the front tube.
• Loosen the screw in the battery compartment door and
remove the battery compartment door.
• Insert three “C” (LR14) alkaline batteries into the
battery compartment.
Hint: We recommend using alkaline batteries for longer
battery life.
• Replace the battery compartment door and tighten
the screw.
• Fit the pad lower pocket around the front base and
soothing unit.
1
Hint: We recommend using an alkaline batteries
for longer battery life.
• Protect the environment by not disposing of this
product with household waste (2002/96/EC).
Check your local authority for recycling advice
and facilities (Europe only).
1.5Vx 3
“C”(LR14)
8
Battery Installation
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product.To
avoid battery leakage:
• Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use.Always
remove exhausted batteries from the product. Dispose
of batteries safely. Do not dispose of product in a fire.
The batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type
as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product
before charging.
• If removeable, rechargeable batteries are used, they are
only to be charged under adult supervision.
2

Setup and Use
To prevent serious injury or death:
• Fall Hazard - It is dangerous to use
this reclined cradle on an elevated
surface, since child’s movement may
cause product to slide or tip over.
Use only on a floor.
• Suffocation Hazard - Never use on
a soft surface (bed, sofa, cushion)
since the product can tip over and
cause suffocation in soft surfaces.
• Never use the toy bar as a handle.
• Always use the restraint system.
• Never leave child unattended.
• Never use as a car seat.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
WARNING
Restraint Pad
Restraint Straps
Securing your Infant
• Place your child in the seat. Position the restraint pad
between your child’s legs.
• Fasten the restraint straps to the restraint pad. Make sure
you hear a “click” on both sides.
• Check to be sure the restraint system is securely attached
by pulling it away from your child.The restraint system
should remain attached.
1
To tighten the restraint straps:
•Feed the anchored end of the restraint strap up through the
buckle to form a loop A. Pull the free end of the restraint
strap B.
To loosen the restraint straps:
•Feed the free end of the restraint strap up through the
buckle to form a loop A. Enlarge the loop by pulling on the
end of the loop toward the buckle. Pull the anchored end
of the restraint strap to shorten the free end of the restraint
strap B.
Free End
Anchored End
TIGHTEN LOOSEN
2
Anchored End
Free End
9

• Make sure your child is properly secured in the seat.
• Slide the power switch to for music.
• Slide the power switch to for vibrations.
• Slide the power switch to music and vibrations.
• Slide the power switch to off to turn vibrations and
music off.
Hint: Vibrations/Music turn off after approximately
15 minutes.To turn vibrations/music back on, slide
the power switch off and then to the desired on mode.
IMPORTANT! Low battery power causes this product to
operate erratically: no vibrations/music and the product
may not turn off. Remove and discard all three batteries
and replace with three, new “C” alkaline batteries.
10
Soothing Unit Storage
Button
Back Tube
• While pressing the buttons on the handles, push the back
tube towards the front tube.
Hint: To set-up this seat again, simply pull the back tube
back until it “snaps” into place.

• The pad, butterfly and infant support are machine washable.
Wash them separately in cold water on the gentle cycle.
Do not use bleach.
Tumble dry separately on low heat and remove promptly.
•The frame and toy bar may be wiped clean using a mild
cleaning solution and a damp cloth. Do not use bleach. Do
not use harsh or abrasive cleaners. Rinse clean with water
to remove residue.
To remove the pad:
• Place the seat face down on a flat surface.
• Unfasten the side buckles.
1
11
Care
• Turn the seat upright.
• First remove the bottom pocket of the pad A. Then,
remove the upper pad flap B.
To replace the pad, refer to Assembly steps 5 - 6.
2

www.service.fisher-price.com/uk
01628 500303
GREAT BRITAIN
Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500303; www.service.mattel.com/uk.
AUSTRALIA
Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia.
Consumer Advisory Service 1300 135 312.
NEW ZEALAND
16-18 William Pickering Drive, Albany 1331, Auckland.
ASIA
Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China.
MALAYSIA
Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P) Lot 13.5, 13th Floor, Menara Lien Hoe,
Persiaran Tropicana Golf Country Resort, 47410 PJ. Tel: [phone], Fax: [phone].
©2007 Mattel, Inc. All Rights Reserved.
® and ™ designate U.S. trademarks of Mattel, Inc.
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A.
12
