Bouncer
Kick & Play
Model Number: B8865
IMPORTANT! KEEP FOR FUTURE REFERENCE.
Please read these instructions before assembly and use of this product.
Adult assembly is required.
Tool required for assembly: Phillips screwdriver (not included).
Requires one LR20 (“D”) alkaline battery (not included) in the soothing unit.
Requires three LR6 (“AA”) alkaline batteries (not included) in the toy bar.

To prevent serious injury or death:
•It is dangerous to use this reclined cradle on an
elevated surface.
•Never use on a soft surface (bed, sofa, cushion)
since bouncer can tip over and cause suffocation
in soft surfaces.
•Never use as a carrier or lift while child is seated.
•Always use the restraint system.
•Never leave child unattended.
•Never use as a car seat.
•Not recommended for children who can sit up
by themselves (6 months approximately, until
9kg/20 lb).
WARNING
Warning
2
Occasionally a consumer may experience a problem with one of our
products. If this should happen, please call us, rather than return this
product to the store. Usually, we can solve the problem over the
telephone or send you replacement parts. Please call 01628 500303
or write to: Mattel UK Limited
Mattel House
Vanwall Business Park,
Vanwall Road
Maidenhead,Berkshire SL6 4UB
Consumer Information
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. B8865pr-0726
©2003 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Printed in China

Parts
3
Pad
Toy Bar
Removable
Teether Rings
Footrest with
Soothing Unit
2 Retainers
Seat
Back
Tube
Right Base Wire
Left Base Wire
Base
Tube
#8 x 2 cm (3/4") Screw - 2
Shown Actual Size

•Loosen the screw in the soothing unit battery compartment door with a
Phillips screwdriver. Remove the battery compartment door.
•Insert one LR20 (“D”) alkaline battery.
•Replace the battery compartment door.Tighten the screw with a Phillips
screwdriver. Do not over-tighten.
•Loosen the screw in the toy bar battery compartment door with a Phillips
screwdriver. Remove the battery compartment door.
•Insert three LR6 (“AA”) alkaline batteries.
•Replace the battery compartment door.Tighten the screw with a Phillips
screwdriver. Do not over-tighten.
Battery Installation
4
Toy Bar
Soothing Unit

Battery Safety Information
Batteries may leak fluids that can cause a chemical burn injury or ruin your
product. To avoid battery leakage:
•Do not mix old and new batteries or batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium).
•Insert batteries as indicated inside the battery compartment.
•Remove batteries during long periods of non-use. Always remove
exhausted batteries from the product. Dispose of batteries safely.
Do not dispose of batteries in a fire. The batteries may explode or leak.
•Never short-circuit the battery terminals.
•Use only batteries of the same or equivalent type, as recommended.
•Do not charge non-rechargeable batteries.
•Remove rechargeable batteries from the product before charging.
•If removable, rechargeable batteries are used, they are only to be charged
under adult supervision.
5
1.5V
LR20 ("D")
SHOWN ACTUAL SIZE
1.5V x 3
LR6 ("AA")
SHOWN ACTUAL SIZE
+_

Assembly
6
•Place the base tube on a flat surface
as shown.
•Position the left and right base wires as
shown. Note the locations of the coloured
tab on the left and right base wires.
•Fit the left base wire into the base tube.
•Fit the right base wire into the base tube.
•Make sure both coloured tabs on the base wires are visible through
the holes in base tube.
This package contains small parts
in its unassembled state.
Adult assembly is required.
CAUTION
1
Base
Tube
Base
Wire
Coloured Tab
Back View
Base
Tube
Coloured Tabs
Right Base
Wire
Left Base
Wire
IMPORTANT! Before assembly or each use, inspect this product for damaged
hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts
are missing, damaged or broken. Contact Mattel for replacement parts and
instructions if needed. Never substitute parts.

•Position the footrest so that the soothing unit buttons are upright.
•While flexing the base wires toward each other, hook the footrest onto the
ends of the base wires.
•Push the footrest down completely to the tabs on the base wires.
Assembly
7
2
Tabs
Soothing Unit
Footrest Buttons Up
Flex Base
Wires
Inward

Assembly
8

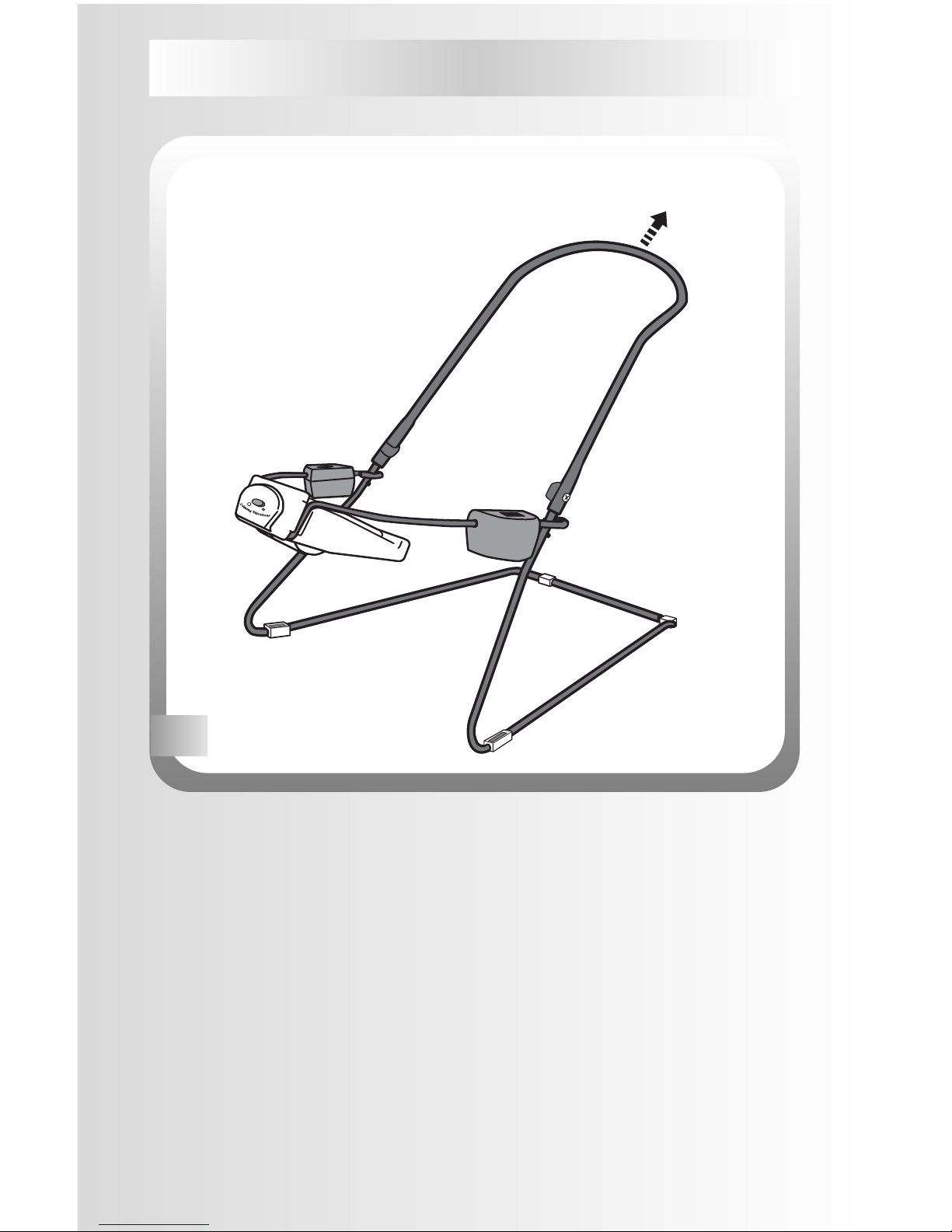

•Position the seat back tube so that it bends backward.
•Fit the seat back tube completely onto the base wires. Make sure the hole
in each end of the seat back tube aligns with the hole in each base wire.
•Fit a retainer (rounded side inward) to one end of the seat back tube.
•Insert a screw through the outside hole in the seat back tube and into
the retainer.
•While holding the retainer in place, tighten the screw with a Phillips screw-
driver. Do not over-tighten.
•Repeat this procedure to secure the other side of the seat back tube to the
base assembly using the remaining retainer and screw.
3
Base
Wire
Base
Wire
Seat Back
Tube Bends
Backward
Retainers

Assembly
9
•Pull up on the seat back tube to be sure it is secure. If you can remove
either end of the seat back tube, you have not assembled it correctly.
Remove the screws and retainers. Re-read and repeat Assembly steps
3 and 4.
4
Pull Up

55
Assembly
10
•Unbuckle the restraint belts from the restraint
pad. Push the restraint belts back through the slots in the pad .
•Fit the pad upper pocket onto the seat back tube .
•Lift the footrest. Fit the pad lower pocket onto the footrest .
Lower the footrest.
B
Seat Back
Tube
Pad
Footrest
B

Assembly

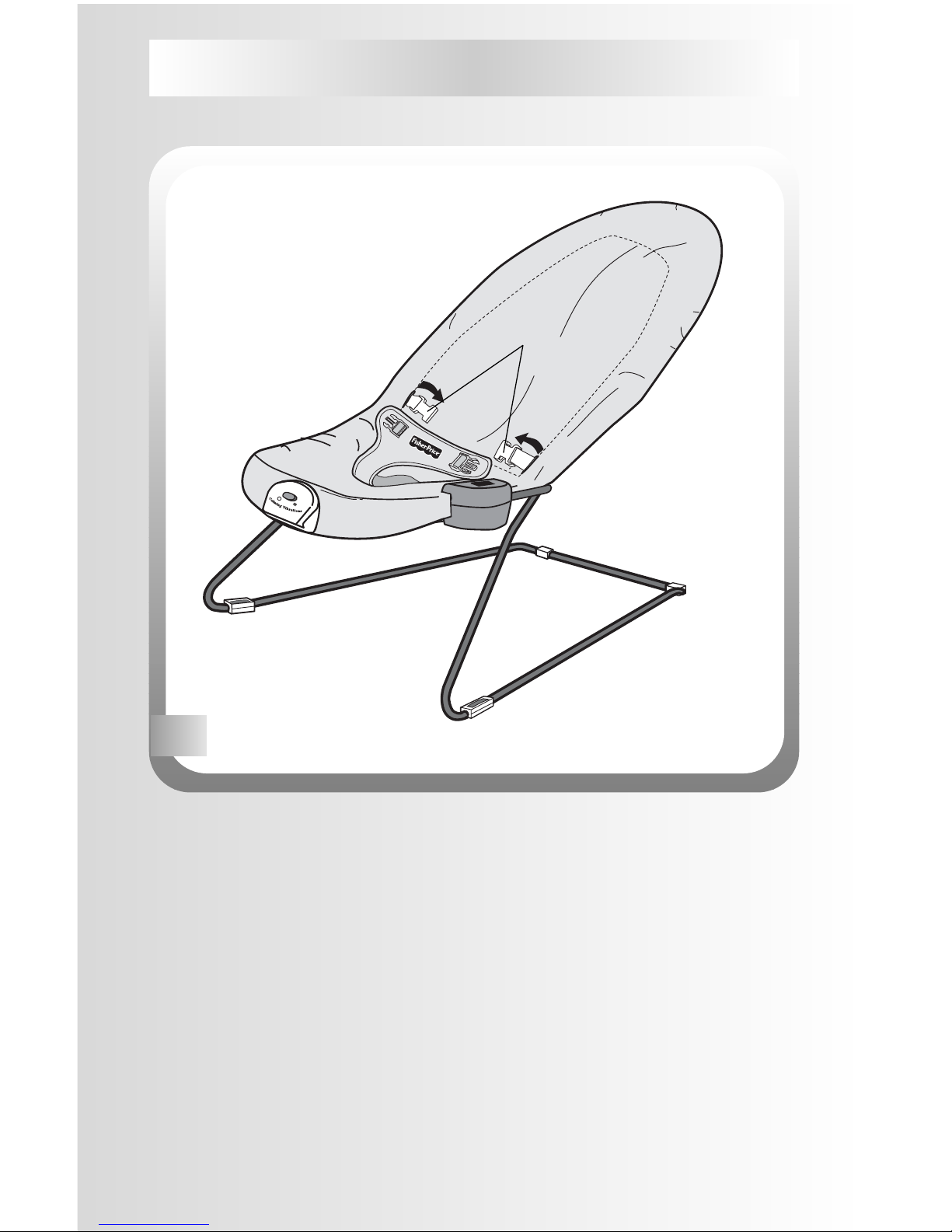

11
•Fit both restraint belts back through the pad slots, as shown.
56
Restraint
Belts

Assembly
12
•Fit the ends of the toy bar into the sockets in the footrest.
Assembly is now complete.
•The toy bar is removable. Simply lift up to remove.
Hint: The square end of the toy bar fits into the square socket and the circular
end of the toy bar fits into the circular socket.
7

Set-Up & Use
13

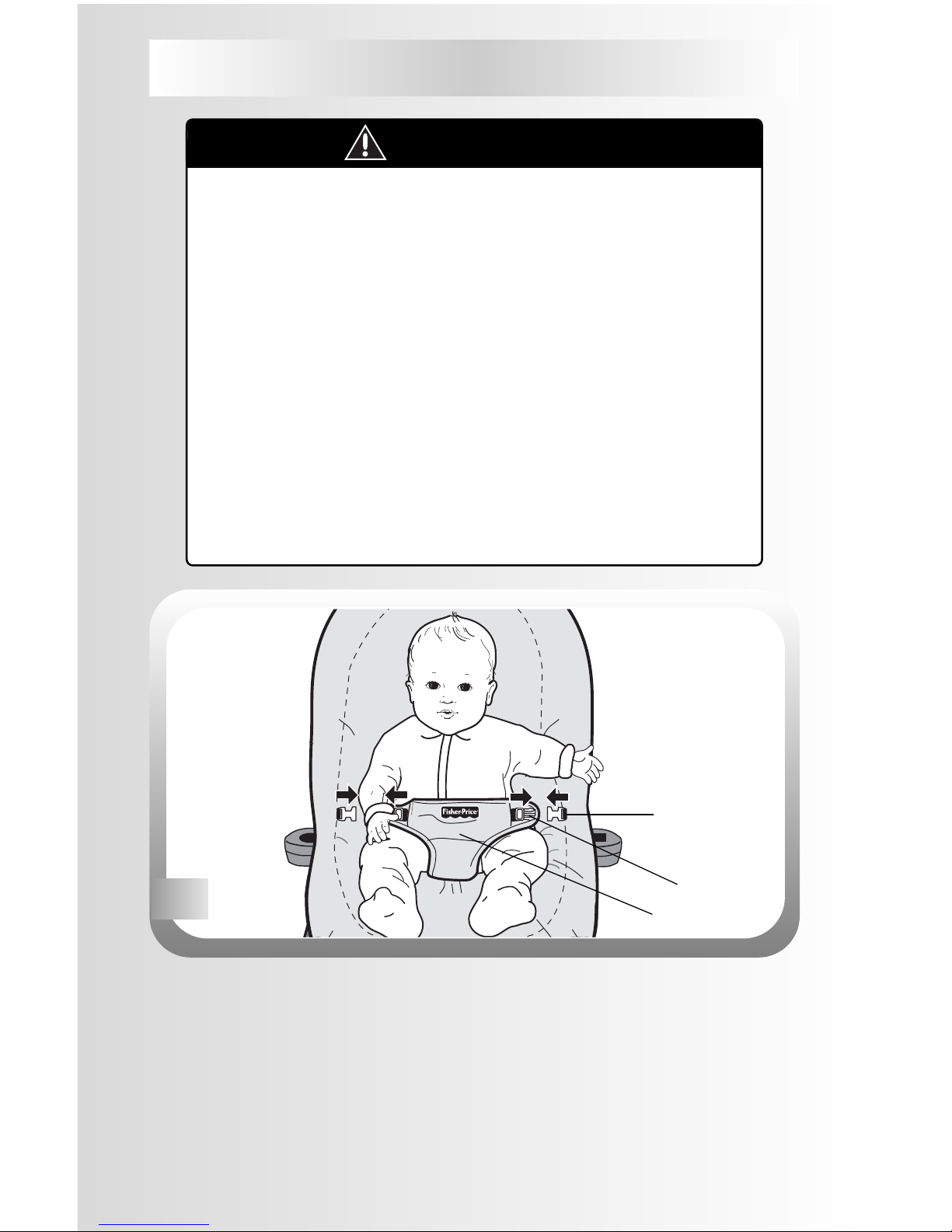

Securing Your Child
•If the toy bar is attached, remove it before placing your child in the seat.
•Place your child in the seat. Position the restraint between your child’s legs.
•Fasten both restraint belts to the buckles on each side of the restraint pad.
Make sure you hear a “click” on both sides.
•Check to be sure the restraint is securely attached by pulling it away from
your child. The restraint should remain attached.
•Attach the toy bar, if desired (see Assembly step 7).
WARNING
1
Restraint
Belt
Buckle
Restraint Pad
To prevent serious injury or death:
•It is dangerous to use this reclined cradle on an
elevated surface.
•Never use on a soft surface (bed, sofa, cushion)
since bouncer can tip over and cause suffocation
in soft surfaces.
•Never use as a carrier or lift while child is seated.
•Always use the restraint system.
•Never leave child unattended.
•Never use as a car seat.
•Not recommended for children who can sit up
by themselves (6 months approximately, until
9kg/20 lb).

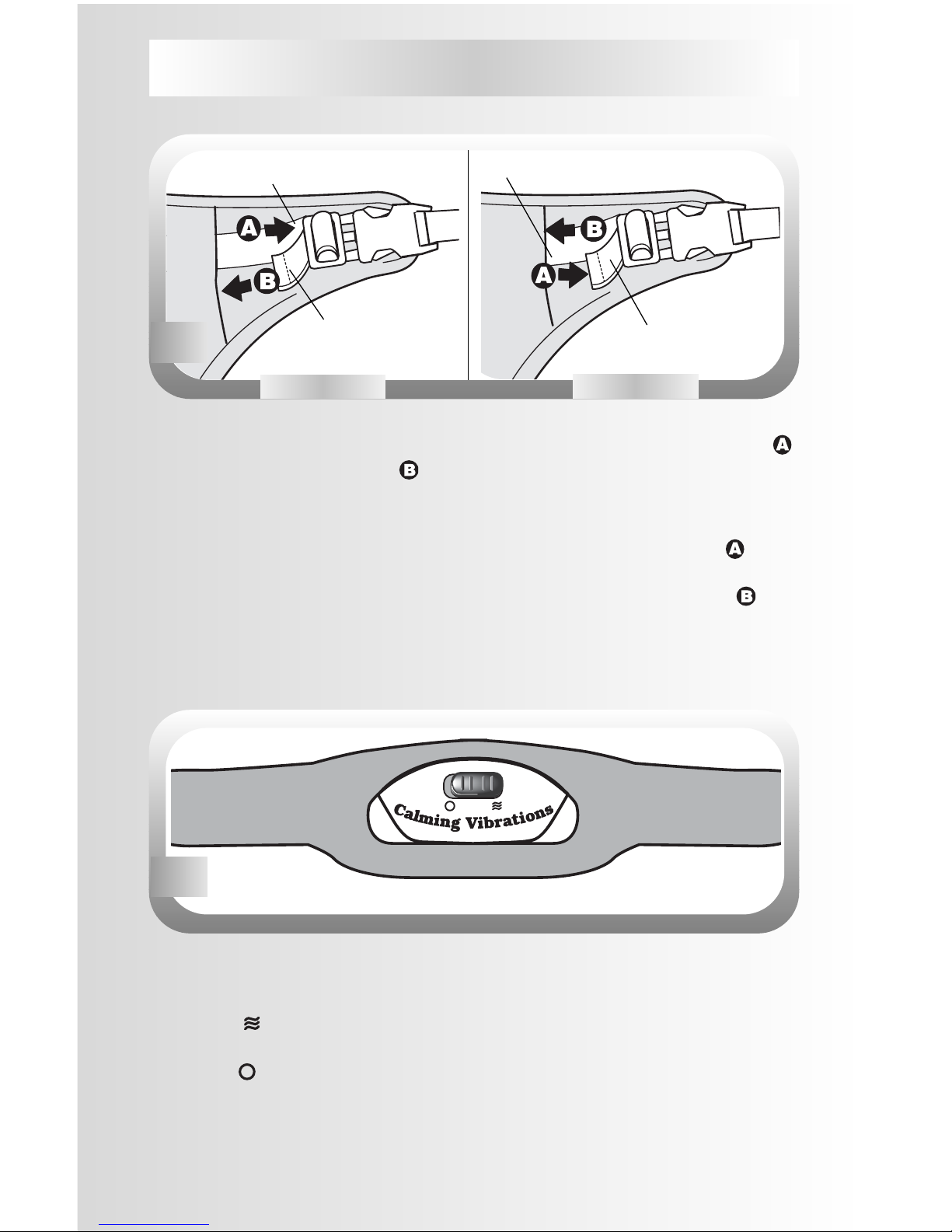

To tighten the belts:
•Feed the anchored end of the belt up through the buckle to form a loop .
•Pull the free end of the belt .
•Repeat this procedure to tighten the other belt.
To loosen the belts:
•Feed the free end of the belt up through the buckle to form a loop .
Enlarge the loop by pulling on the end of the loop toward the buckle.
•Pull the anchored end of the belt to shorten the free end of the belt .
•Repeat this procedure to loosen the other belt.
Please Note: After adjusting the belts to fit your child, make sure you pull on
them to be sure they are securely fastened.
B
B
Set-Up & Use
14
Loosen
B
B
Anchored End
Free End
Tighten
Free End
2
Anchored End
Calming Vibrations
•Make sure your child is properly secured in the seat.
•To turn vibrations on, slide the power switch on the soothing unit to the on
position .
•To turn vibrations off, slide the power switch on the soothing unit to the off
position .
IMPORTANT! If vibrations from the soothing unit become faint, or if there
are no vibrations, remove the battery from the soothing unit and dispose of
it properly. Replace the battery with a new LR20 (“D”) alkaline battery.
3

Baby Activated
•Slide the mode switch to for baby activated mode.
•When baby kicks a footrest button,baby is rewarded with sound effects
and chasing lights. After baby kicks the buttons several times in a row, baby
enjoys a musical tune and twinkling lights.
Parent Activated
•Slide the mode switch to for parent activated mode. Baby enjoys 10
minutes of music and a light show.
Off
•Slide the toy bar switch to to turn off sounds and lights.
•Slide the volume switch to for low volume; for high volume.
IMPORTANT! If lights become dim or sound becomes faint, remove the
batteries from the toy bar and dispose of properly. Replace the batteries
with three, new LR6 (“AA”) alkaline batteries.

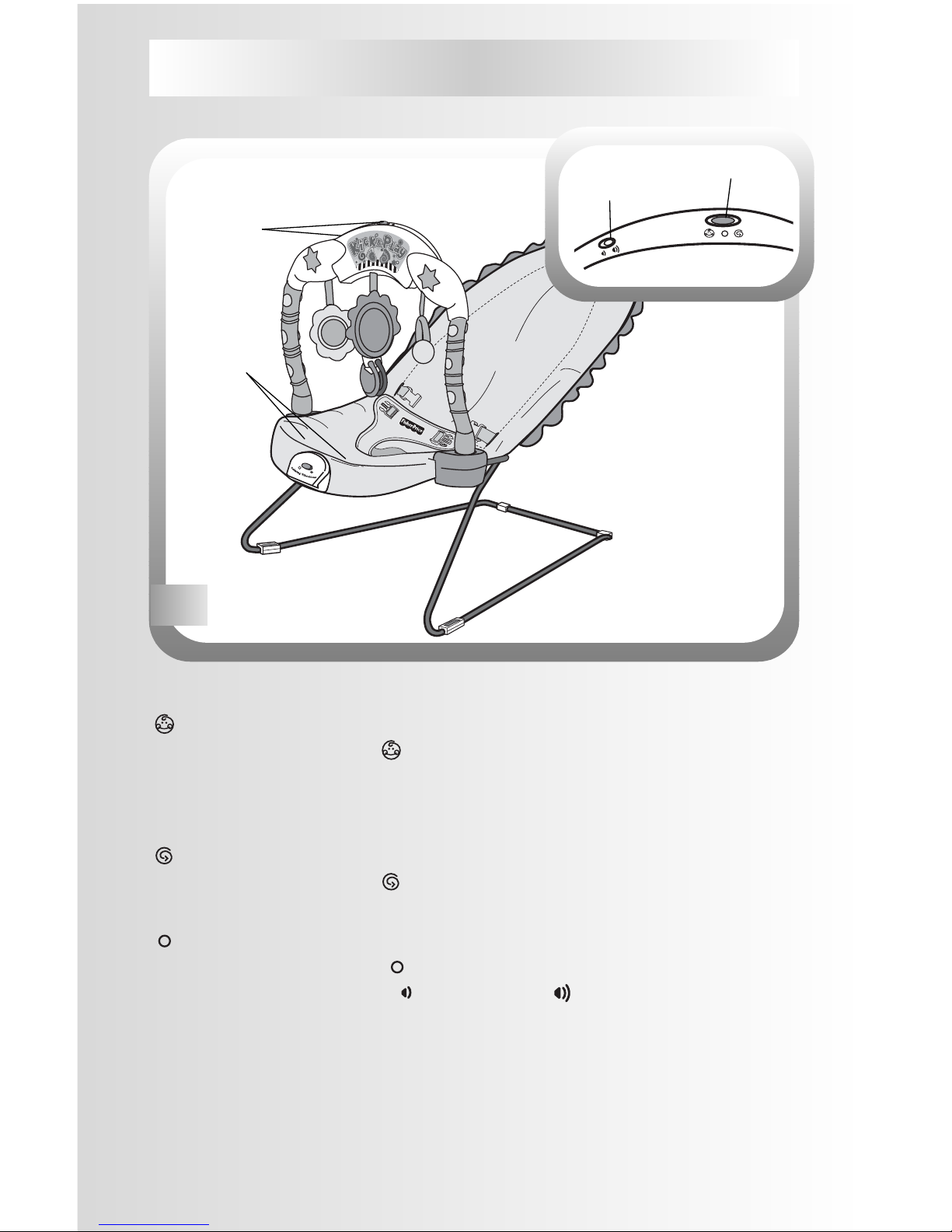

Sounds and Lights
Set-Up & Use
15
4
Footrest
Buttons
(Underneath
Pad)
Mode and
Volume
Switches
Mode Switch
Volume
Switch

Set-Up & Use
16
•The teethers are removable from the toy on the toy bar. Simply twist the
ends of each teether slightly to remove them from the centre toy.
5
Teethers
Care
The pad is machine washable.Wash the pad separately in cold water on the
gentle cycle. Do not use bleach. Line dry only. The frame and toy bar and
teethers can be wiped clean using a mild cleaning solution and a damp cloth.
Do not immerse the soothing unit or toy bar.
To remove the pad:
•Lift the footrest and remove the pad lower pocket
•Push the restraint belts back through the pad.
•Slide the pad upper pocket off the seat back tube.
To re-assemble the pad:
•Refer to assembly steps 5 and 6.
