Fisher-Price FMN39 User manual

1
FMN39
FMN39
fisher-price.co.uk
IMPORTANT! KEEP FOR FUTURE REFERENCE.
• Please read these instructions before
assembly and use of this product.
• Adult assembly is required. Tool needed
for assembly: Phillips screwdriver
(not included).
• Assembly instructions on back side of
this sheet.
• Requires two, C (LR14) alkaline batteries
(not included).
• Maximum weight of child using infant
rocker seat (recline cradle mode): 9 kg.
• Maximum weight of child using toddler
rocker (upright): 18 kg.
• This product does not replace a cot or a bed.
Should your child need to sleep, then it
should be placed in a suitable cot or bed.
• Product features and decorations may vary
from photographs.

2
WARNING
Prevent serious injury or death:
• Never leave the child unattended.
• It is dangerous to use the product on an elevated surface, e.g. a table.
• This product is not intended for prolonged periods of sleeping.
• Suffocation Hazard: Never use on a soft surface (bed, cot, sofa, cushion),
since the product can tip over and cause suffocation in soft surfaces.
• Never use the toy bar to carry the product.
• Never use as a carrier or lift while child is seated.
When used in the recline position (reclined cradle mode):
- Use until child weighs 9 kg or is able to sit up unaided.
- Do not use the reclined cradle once your child can sit unaided.
- Always use the restraint system.
When used in the upright position (toddler mode):
- Use only with a child who is able to sit up unaided and weighs more than 9 kg.
- Always use the restraint system until child can climb in and out of the
product unaided.
Consumer Information
IMPORTANT! Before assembly and each use,
inspect this product for damaged hardware,
loose joints, missing parts or sharp edges.
Do not use the product if any parts are
broken or missing. Do not use accessories or
replacement parts other than those approved
by the manufacturer. Never substitute parts.
• The pad is machine washable. Wash the pad
separately in cold water on the gentle cycle.
Do not use bleach. Tumble dry separately on
low heat and remove promptly.
• The frame, toy bar and toys may be wiped
clean using a mild cleaning solution and
a damp cloth. Do not use bleach. Do not use
harsh or abrasive cleaners. Rinse clean with
water to remove residue. Do not immerse
the frame, toy bar and toys.
To remove the pad:
• Lift to remove the pad pegs from the footrest
and side rails.
• Unfasten the rear strap buckle on the pad.
• Lift to remove the pad.
To replace the pad, fasten the rear
strap buckle on the pad. Then, follow
Assembly steps 8-9.

3
Battery Installation
1,5V x 2
C (LR14)

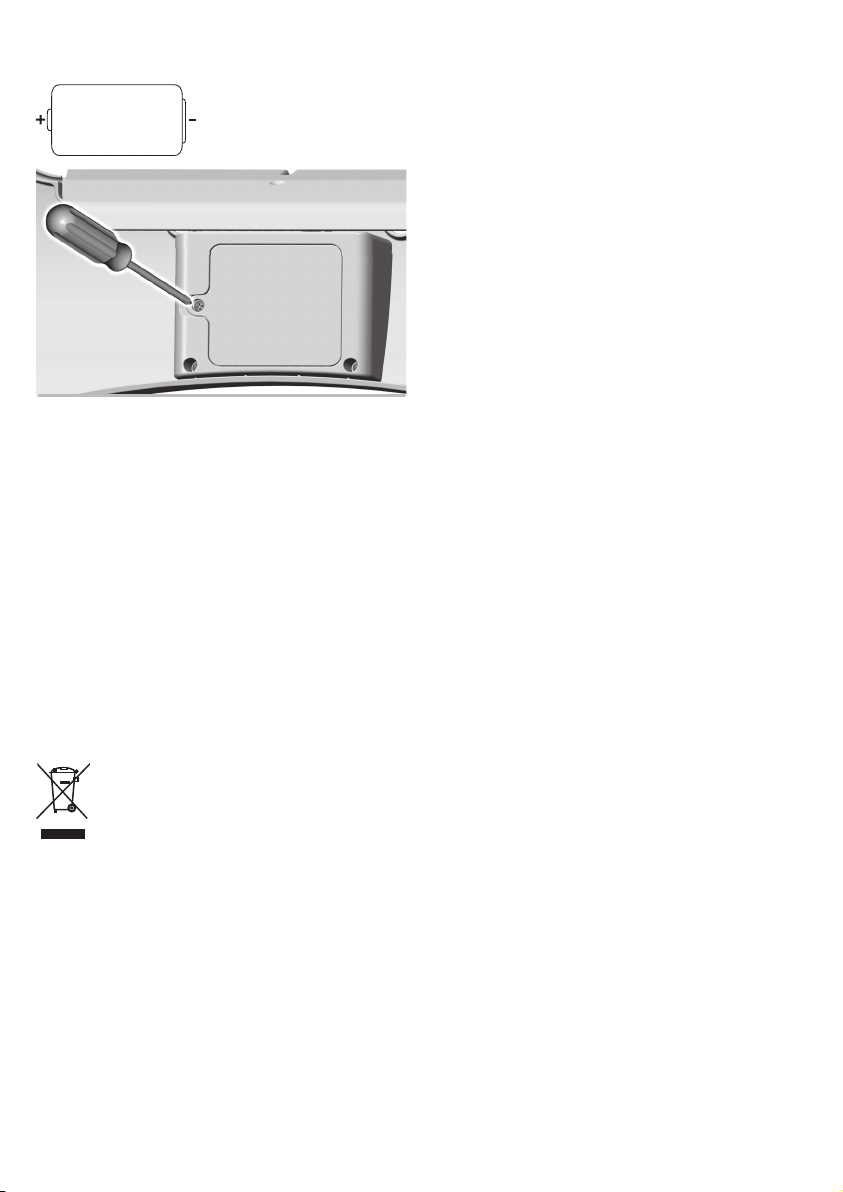

• Locate the battery compartment on the back
of the soothing unit.
• Loosen the screw in the battery compartment
door and remove the door.
• Insert two C (LR14) alkaline batteries.
• Replace the battery compartment door and
tighten the screw.
IMPORTANT! Low battery power or static
electricity may cause this product to operate
erratically: no vibrations and the product may
not turn off. First try to remove and reinstall
batteries. If the product continues to operate
erratically, remove and discard the batteries
and replace with two, new C (LR14)
alkaline batteries.
Battery Safety Information
In exceptional circumstances, batteries may
leak fluids that can cause a chemical burn
injury or ruin your product. To avoid
battery leakage:
• Do not mix old and new batteries or batteries
of different types: alkaline, standard (carbon-
zinc) or rechargeable.
• Insert batteries as indicated inside the
battery compartment.
• Remove batteries during long periods of
non-use. Always remove exhausted batteries
from the product. Dispose of batteries safely.
Do not dispose of this product in a fire. The
batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent
type as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the
product before charging.
• If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
• Protect the environment by not
disposing of this product or any
batteries with household waste. This
symbol indicates that this product
shall not be treated as household
waste. Check your local authority for
recycling advice and facilities.
Use alkaline batteries
for longer battery life.

4
Restraint Pad
Restraint BeltRestraint Belt
1
• Place your child in the seat. Position the
restraint pad between your child’s legs.
• Fasten the restraint belts to each side of the
restraint pad. Make sure you hear a “click”
on both sides.
• Check to be sure the restraint system is
securely attached by pulling it away from
your child. The restraint system should
remain attached.
• Tighten each waist belt so that the restraint
system is snug against your child. Please
refer to the next section for instructions to
tighten the waist belts.
A
B
B
A
2
Free EndFree End
Anchored EndAnchored End
LOOSENTIGHTEN
To tighten the belts:
• Feed the anchored end of the restraint belt
up through the buckle to form a loop A.
Pull the free end of the restraint belt B.
To loosen the belts:
• Feed the free end of the restraint belt up
through the buckle to form a loop A. Enlarge
the loop by pulling on the end of the loop
toward the buckle. Pull the anchored end of
the restraint belt to shorten the free end of
the restraint belt B.
Securing Your Child

5
PRESS
PRESS
PRESS
PRESS
LIFT OR LOWER
LIFT OR LOWER
Upright: While pressing the button on each
side rail, lift the seat back.
Recline: While pressing the button on each
side rail, lower the seat back.
ROTATE OUT OR IN
Seat Position
Kickstand
• Rotate the kickstand out or in.
• Push down on the seat bottom to be sure the
kickstand is in position.
• Press the soother power button to turn
vibrations ON. Press again to turn
vibrations OFF.
Hint: The soothing unit turns off after
approximately 30 minutes. Press the
power button to restart.
Soother
Power Button
Toddler Mode
• Insert the restraint belts back through the
small slots in the pad.
• Insert the restraint pad down through the
large slot in the pad.

6
Kickstand
2 Side Rails
Toy Bar Soothing Unit

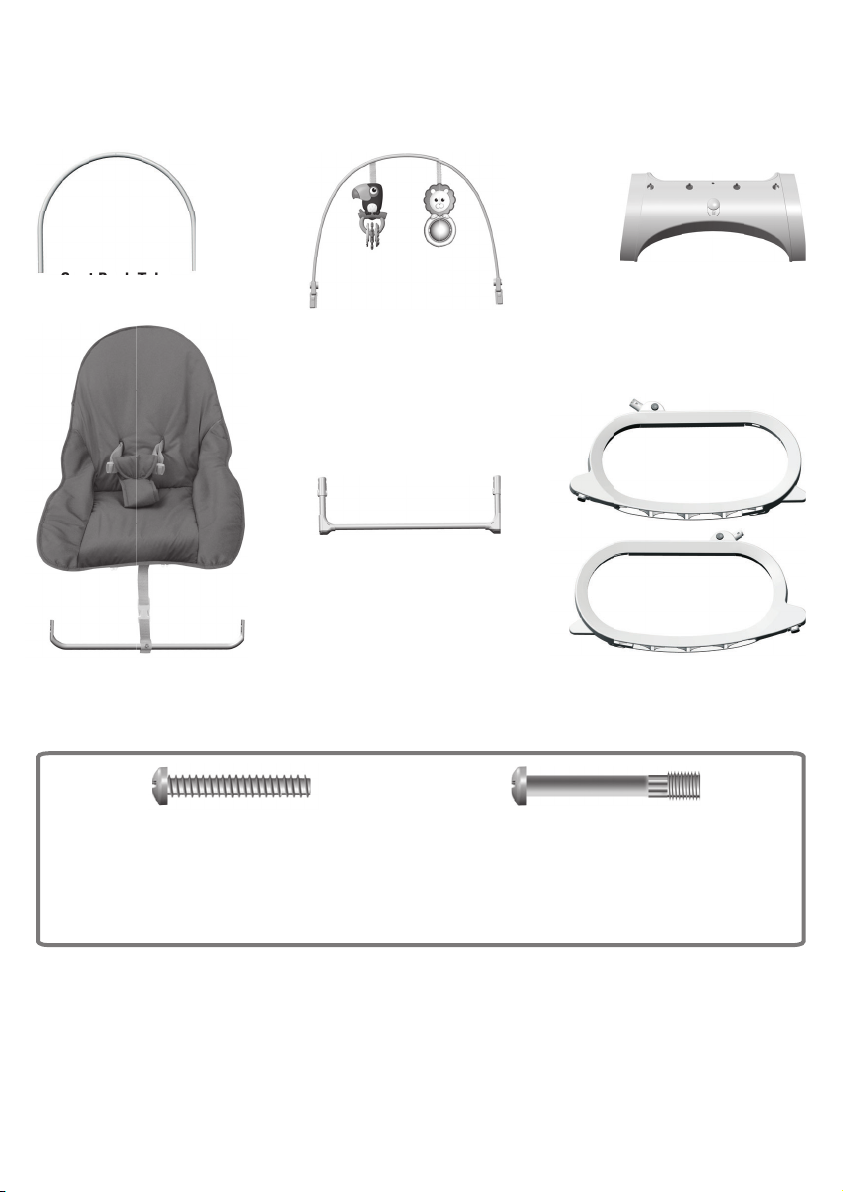

IMPORTANT! Please remove all parts from the package and identify them before assembly.
Some parts may be packed in the pad.
Parts
Seat Back Tube
Note: Tighten or loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
Shown Actual Size
M4,5 x 25 mm Screw - 6 M5 x 30,5 mm Screw - 2
StBkTb
Pad
(Pad includes a tethered brace.)

7
Assembly

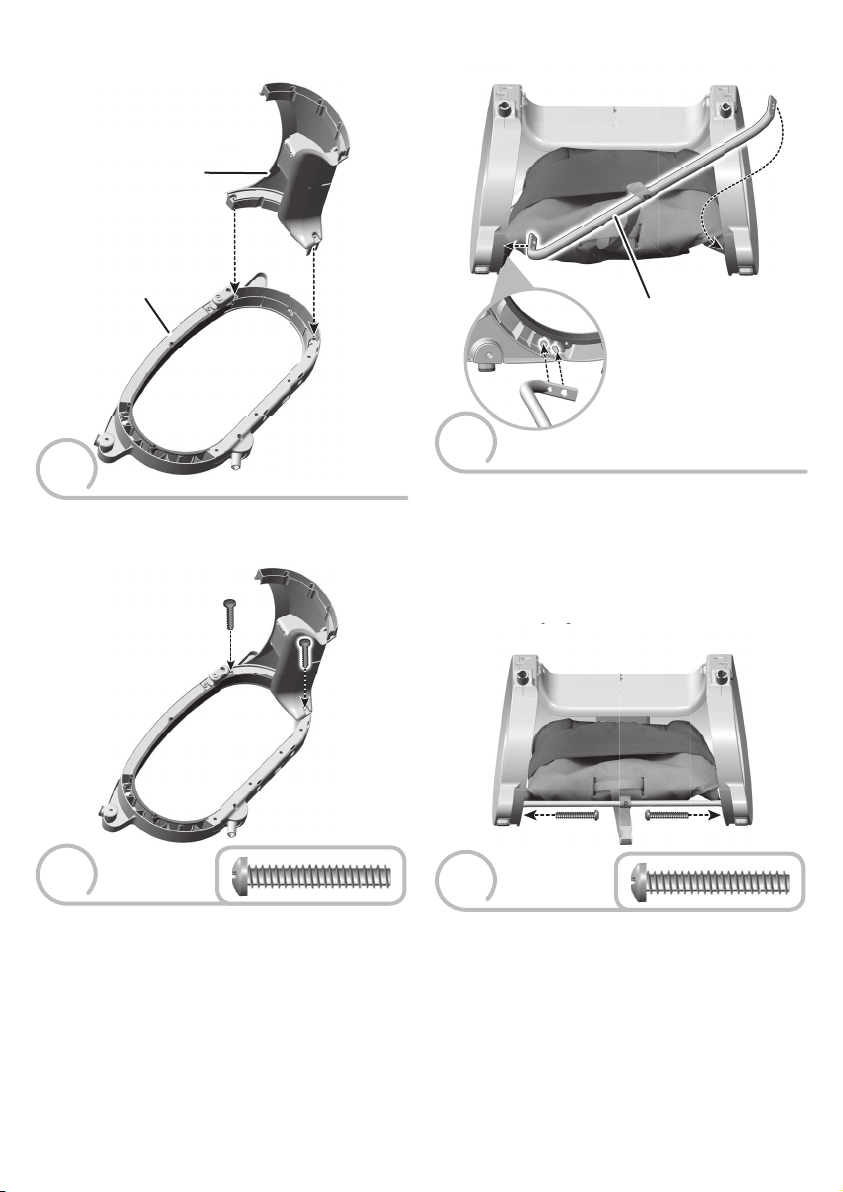

3
• Fit the brace (attached to the pad) between
the side rails.
Hint: Align the holes in the brace with the peg
and hole in side rails. The brace is designed
to fit one way. If it does not seem to fit, turn it
around and try again.
Side Rail
Soothing Unit
Brace
• Fit the soothing unit onto a side rail.
• Insert two M4,5 x 25 mm screws into the
soothing unit and tighten.
• Repeat steps 1 and 2 to assemble the other
side rail to the soothing unit.
2
1
bl
y
BACK VIEW
4
• Insert an M4,5 x 25 mm screw into each end of
the brace and tighten.
Hint: You may want to tip the assembly on its
side to assemble the screws.
yg

8
8
• Turn the assembly upright.
• Fit the upper pocket on the back of the pad
onto the seat back tube.
Pad Upper Pocket
SIDE VIEW
7
• Insert two M5 x 30,5 mm screws into the
kickstand and tighten.
5
Assembly
• Fit the seat back tube into the sockets in
each side rail.
• Push to “snap” in place. Make sure you
hear a “snap” on each side.
• Pull up on the seat back tube to be sure it
is secure.
Seat Back Tube
SIDE VIEW
6
• Turn assembly on its side.
• Fit the kickstand into the sockets in the
bottom of each side rail.
Kickstand
BOTTOM BACK VIEW

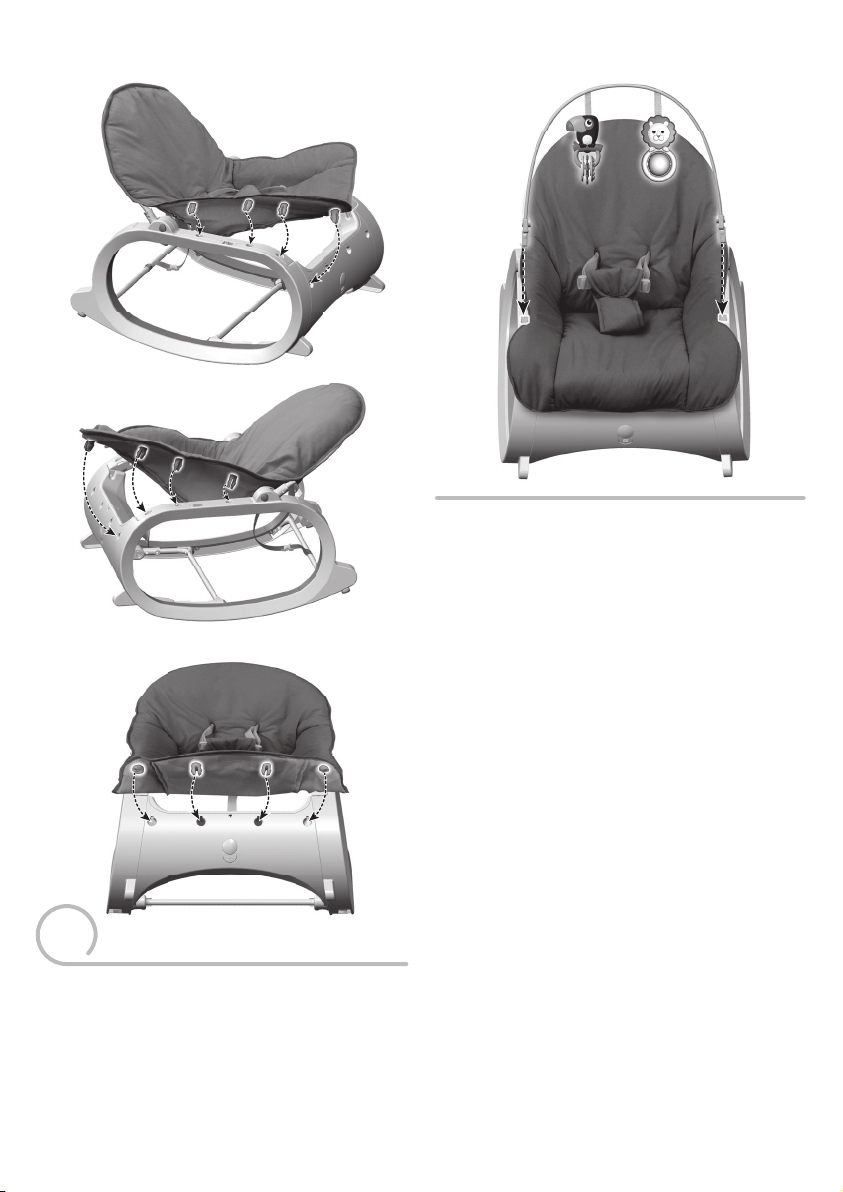

9
9
• Insert and “snap” the pegs on the front
and sides of the pad into the holes in the
soothing unit and side rails.
SIDE VIEW
SIDE VIEW
FRONT VIEW
S
IDE VIEW
SI
DE VIEW
Assembly
• Fit the plugs on each end of the toy bar into
the sockets in each side rail.
Hint: The toy bar is removable. Press the ends
of the latches and lift the toy bar.
Toy Bar

10
