Fisher-Price 79006 User manual

DELUXE SOOTHING
BOUNCER SEAT
Model Number: 79006, 79007
Please save these instructions for future reference.
Adult assembly is required. Tool required for assembly:
Phillips Screwdriver (not included).
Requires one (LR20) alkaline battery (not included).

2
Occasionally a consumer may experience
a problem with one of our products.
If this should happen, please call us toll-free,
rather than return this product to the store.
Usually, we can solve the problem over the telephone
or send you replacement parts.
Please call Fisher-Price® Consumer Affairs,
toll-free at 1-800-432-KIDS,
between 8 AM - 5 PM EST, Monday through Friday.
Hearing-impaired consumers using TTY/TDD equipment,
please call 1-800-382-7470.
Or write to:
Fisher-Price® Consumer Affairs
636 Girard Avenue
East Aurora, New York 14052
CONSUMER INFORMATION
WARNINGS
To prevent serious injury and/or falls:
• Never use on any elevated surface.
• Never use as a carrier or lift while child
is seated.
• Always use the restraint system.
• Never leave child unattended.
• Never use as a car seat.
• Never use with a child able to sit
up, unassisted.
WARNING

3
PARTS
#8 - 32 x 1/2"
Screw - 2
Shown Actual Size
3 Rings
2 Paddles
Mirror
Pad
with
Canopy
Footrest Wire
Seatback
Wire
Right Base
Wire
Left Base
Wire
Base
Connector
#8 - 32 Nut - 2
Shown Actual Size

4
BATTERY INSTALLATION
• Locate the soothing unit on the footrest wire.
• Insert a coin into the battery compartment door and pry the battery
compartment door off.
• Insert one “D” (LR20) alkaline battery, as indicated inside the
battery compartment. Be sure to place the battery on top of the ribbon.
Hints: For easy battery removal, simply lift the ribbon.
• Replace the battery compartment door and be sure it snaps securely closed.
1.5V
“D”, LR20
Battery Tips
• Remove the battery during long periods of non-use. Always remove an
exhausted battery from the product. Battery leakage and corrosion can
damage the product. Dispose of the battery safely.
• Never short circuit the battery terminals.
• A non-rechargeable battery is not to be recharged.
• Only a battery of the same or equivalent type as recommended
in the “Battery Installation” instructions is to be used.
• If a removable rechargeable battery is used, it is only to be charged
under adult supervision.
• A rechargeable battery is to be removed from the product before it is charged.
• If you use a battery charger, it should be examined regularly for damage
to the cord, plug, enclosure and other parts. Do not use a damaged
battery charger until it has been properly repaired.
SHOWN ACTUAL SIZE
+–
Battery Compartment
Door

5
ASSEMBLY
• Place the base connector on a flat surface as shown.
• Position the left and right base wires as shown. Note the locations of the
colored dots on the left and right base wire.
• Fit the left base wire into the base connector.
• Fit the right base wire into the base connector.
•Make sure both colored dots on the base wires are covered by the
base connector.
1
This package contains small parts.
Adult assembly is required.
CAUTION
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
©2000 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
Printed in China 79006a - 0920
Base
Connector
Colored Dots
Right Base
Wire
Left Base
Wire

6
• Position the footrest wire so that the
soothing unit is upright.
• While flexing the base wires toward each
other, hook the footrest wire onto the ends of the base wires.
• Push the footrest wire down completely, below the colored dots on the
base wires.
• Make sure the small tabs on the left and right base wires are secure in
the base connector holes (see inset). If the small tabs are not secure in
the base connector holes, you have assembled the base incorrectly.
Disassemble all parts and refer back to Assembly Step 1.
ASSEMBLY
2
Base Wire
Colored
Dot
Base Wire
Soothing
Unit
Footrest
Wire
Colored
Dot
Back View
Base
Connector
Base
Wire

7
3
• Position the seat back wire with the toy bar sockets upright.
• Fit the seat back wire completely onto the base wires, so that each end
covers the colored dot on each base wire.
•Make sure the plastic covers on the seat back wire cover the col-
ored dots on the base wire.
ASSEMBLY
Colored
Dot Plastic
Cover
Base
Wire
Toy Bar
Socket
Seat Back
Wire

• Fit the nut (so that the protruding side
is facing the seating area) into the
hexagonal opening on the inside of
each plastic cover.
8
ASSEMBLY
• Insert a screw through the outside of each plastic cover and tighten
with a Phillips screwdriver. Do not over-tighten.
• Pull up on the seat back wire to be sure it is secure. If you can remove
either end of the seat back wire, you have not assembled it correctly.
Remove the screws, re-read and repeat Assembly steps 3 and 4.
#8 x 32 Nut
Pull Up
Protruding Side
Plastic
Cover
4

9
ASSEMBLY
• Position the pad with the canopy upright.
• Fit the upper pocket on the back
of the pad onto the seat back wire .
• Lift the foorest wire. Fit the lower pocket
on the back of the pad onto the footrest
wire . Lower the footrest wire.
• Fit the restraint belts through the slots in the pad .
A
B
C
Seat Back
Wire
Slot
Pad with Canopy
Restraint
Belt
A
C
C
B
5

10
ASSEMBLY
• Wrap the elastic straps on the pad flaps
around the outside of each
plastic cover.
• Hook the elastic straps to the peg on the
inside of each plastic cover.
6
Elastic
Strap
Elastic
Strap
Plastic
Cover
Plastic
Cover
Inside View
Elastic
Strap
Plastic
Cover
Peg

11
Hint: Twistthe endsof the rings apart toattachthemto the mirroror paddle.
Assembly is now complete.
• The toy bar is removable. Simply pull up to remove.
• Fit the toy bar plugs into the toy
bar socket in each plastic cover.
• Snap the mirror and the paddles
to the toy bar.
• The rings can be attached to the
mirror and one of the paddles,
as shown.
8
Rings
Plugs
Sockets
Toy Bar
Mirror
Paddle
7
ASSEMBLY

12
SET-UP & USE
Securing Your Child
• If the toy bar is attached, remove it before placing your child in the seat.
• Place your child in the seat. Position the restraint between your child’s legs.
• Fasten both belts to the buckles on each side of the restraint. Make sure
you hear a “click” on both sides.
• Check to be sure the restraint is securely attached by pulling it away from
your child. The restraint should remain attached.
• Attach the toy bar, if desired (see Assembly Step 7).
To prevent serious injury and/or falls:
• Never use on any elevated surface.
• Never use as a carrier or lift while child
is seated.
• Always use the restraint system.
• Never leave child unattended.
• Never use with a child able to sit
up, unassisted.
WARNING
Belt
Buckle
Restraint
1

13
SET-UP & USE
Canopy Adjustment
The canopy can be adjusted down or up:
Down – Remove the canopy straps from the
buttons on the back side of the seat. Push the
canopy down and fit it behind the seat back wire.
Up – Pull and straighten the canopy up. Fasten the
canopy straps to the buttons on the back side of the seat.
3
Canopy Down Canopy Up
Canopy
Straps
To tighten the restraint straps:
• Feed the anchored end of the restraint strap up through the buckle to form
a loop .
• Pull the free end of the restraint strap .
• Repeat this procedure to tighten the other restraint strap.
To loosen the restraint straps:
• Feed the free end of the restraint strap up through the buckle to form a
loop .
• Enlarge the loop by pulling on the end of the loop toward the buckle.
• Pull the anchored end of the restraint strap to shorten the free end of the
restraint strap .
• Repeat this procedure to loosen the other restraint strap.
Please Note: After adjusting the restraint straps to fit your child, make sure
you pull on them to be sure they are securely fastened.
B
B
Loosen
Tighten
B
Anchored End
Free End
Anchored End
Buckle
Free End
Buckle
B
2

14
Seat Back Adjustment
The seat back can be adjusted upright or
reclined for baby’s comfort.
Reclined – Press the button on each plastic
cover to lower the seat back.
Hint: If your child is not seated in the seat, you will need to push the seat
back at the same time you are pressing both buttons on the plastic covers.
Upright – Lift the seat back until it “snaps” into position.
Gently push the seat back to be sure it is securely in position.
SET-UP & USE
Lift for
Upright
Lower for
Recline
Press
Button
Button
4

15
Soothing Vibrations
• Make sure your child is properly secured in the seat.

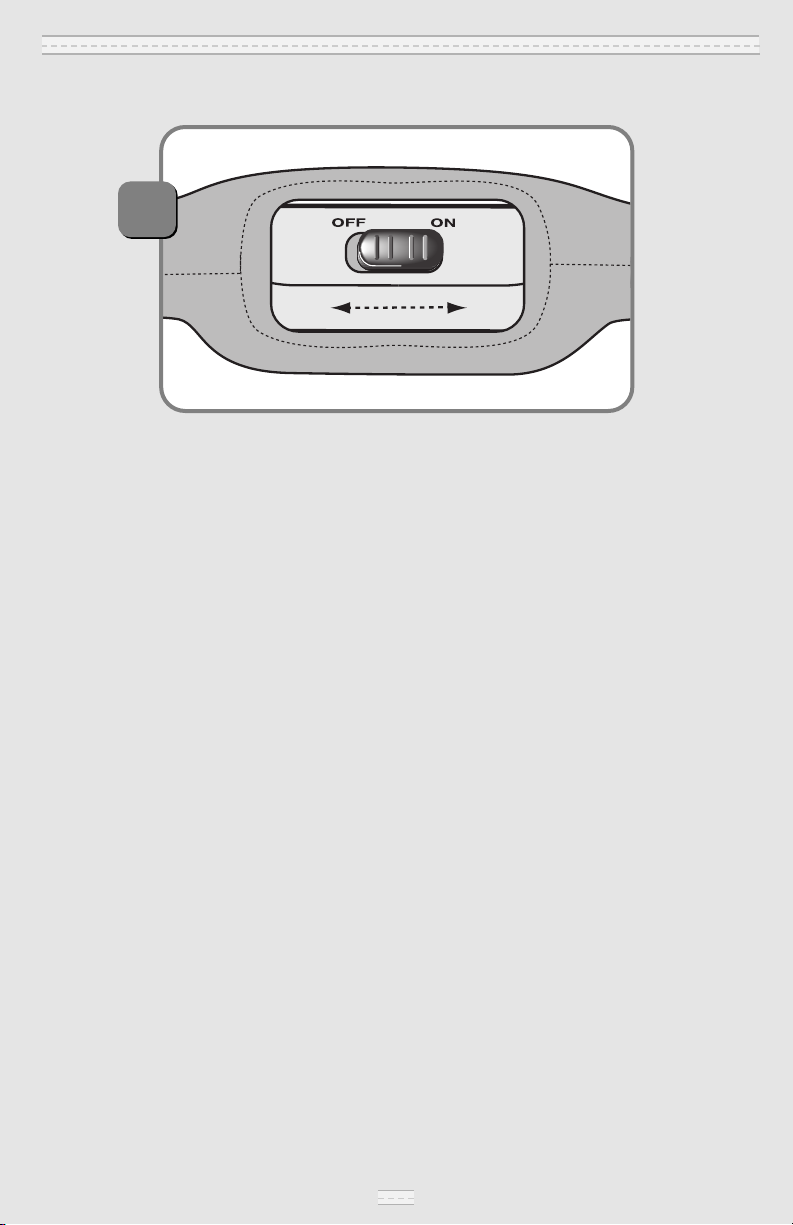

• Slide the ON/OFF switch on the soothing unit to the ON position.
The seat will vibrate.
• Slide the ON/OFF switch on the soothing unit to the OFF position.
The seat will not vibrate.
IMPORTANT! If vibrations from the soothing unit become faint, or if there
are no vibrations, remove the battery from the soothing unit and dispose
of it properly. Replace the battery with a new “D” (LR20) alkaline battery.
SET-UP & USE
5

16
To remove the pad:
• Remove the toy bar.
• Unhook the canopy straps from the
buttons on the back of the product.
• Remove the elastic straps on the pad
side flaps from the pegs on each
plastic cover.
• Remove both canopy stays from the canopy sleeves.
• Lift the footrest wire and remove the pad lower pocket.
• Fit the restraint straps back through the slots in the pad.
• Slide the pad upper pocket off of the seat back wire.
To re-assemble the pad:
• Replace the canopy stays into the canopy sleeves.
• Refer to Assembly steps 5 and 6.
The pad is machine washable. Wash the pad separately
in cold water on the gentle cycle.
Do not use bleach. Tumble dry separately on low heat
and remove promptly. The frame, toy bar,
mirror, paddles and rings may be wiped clean
using a mild cleaning solution and a damp cloth.
Do not immerse the soothing unit.
CARE
Canopy
Sleeves
Canopy
Stays
Canopy
Straps
