Fisher-Price PORTABLE ENTERTAINER 79070 User manual

Model Number: 79070
INSTRUCTIONS
Please read and understand these instructions before assembly and use.
Keep these instructions for future reference.
Tool needed for assembly: Phillips Screwdriver (not included).
Maximum weight limit: 26 lbs.
SOUNDS ‘N LIGHTS
PORTABLE ENTERTAINER™

Occasionally a consumer may experience a problem with one of our products. If this should happen, please call us toll-free, rather than return this
product to the store. Usually we can solve the problem on the telephone or by sending you replacement parts. Please call Fisher-Price® Consumer
Relations, toll-free at 1-800-432-KIDS, 8 AM - 6 PM EST Monday through Friday. Hearing-impaired consumers using TTY/TDD equipment, please
call 1-800-382-7470. Or, write to: Fisher-Price® Consumer Relations, 636 Girard Avenue, East Aurora, New York 14052.
To prevent serious injury or death:
• Use only for a child who is able to hold head upright unassisted and who is
not able to walk.
• Never leave child unattended. Always keep child in view while in product.
• Never use near steps or pools, hot surfaces or areas that may be hazardous
to a child. Product may move during use.
• To avoid tip over, place product on a flat, level surface.
WARNING
2
WARNINGS
CONSUMER INFORMATION

5/8" Screw with Washer Head – 7
SHOWN ACTUAL SIZE
SHOWN ACTUAL SIZE
M5 39/16" Bolt - 2
Seat Ring
Seat Pad
Hub
Hub
Spring
Spring
Button
Button
2 Retainers
4 Toy Rings
Toy Bar
Head
Base
Tray
Base
2 Legs
4 Screws with Washer Heads
3
IMPORTANT! Please remove all parts from
the package and identify them before assembly.
2 M5 Lock Nuts
M5 Bolt M5 Bolt

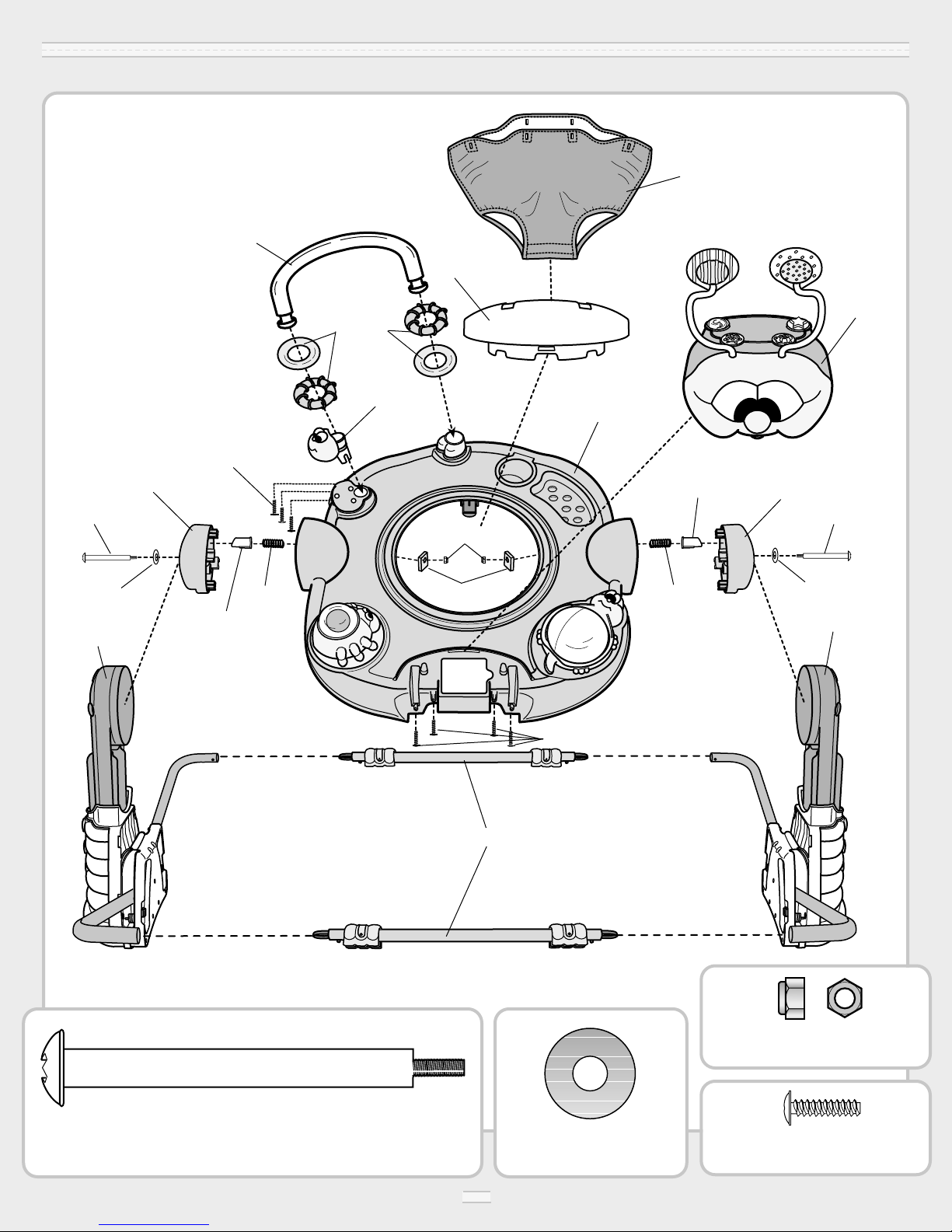

PARTS
Caterpillar
3 Screws with
Washer Heads
5/16" Washer - 2
SHOWN ACTUAL SIZE
M5 Lock Nut - 2
SHOWN ACTUAL SIZE
5/16" Washer 5/16" Washer

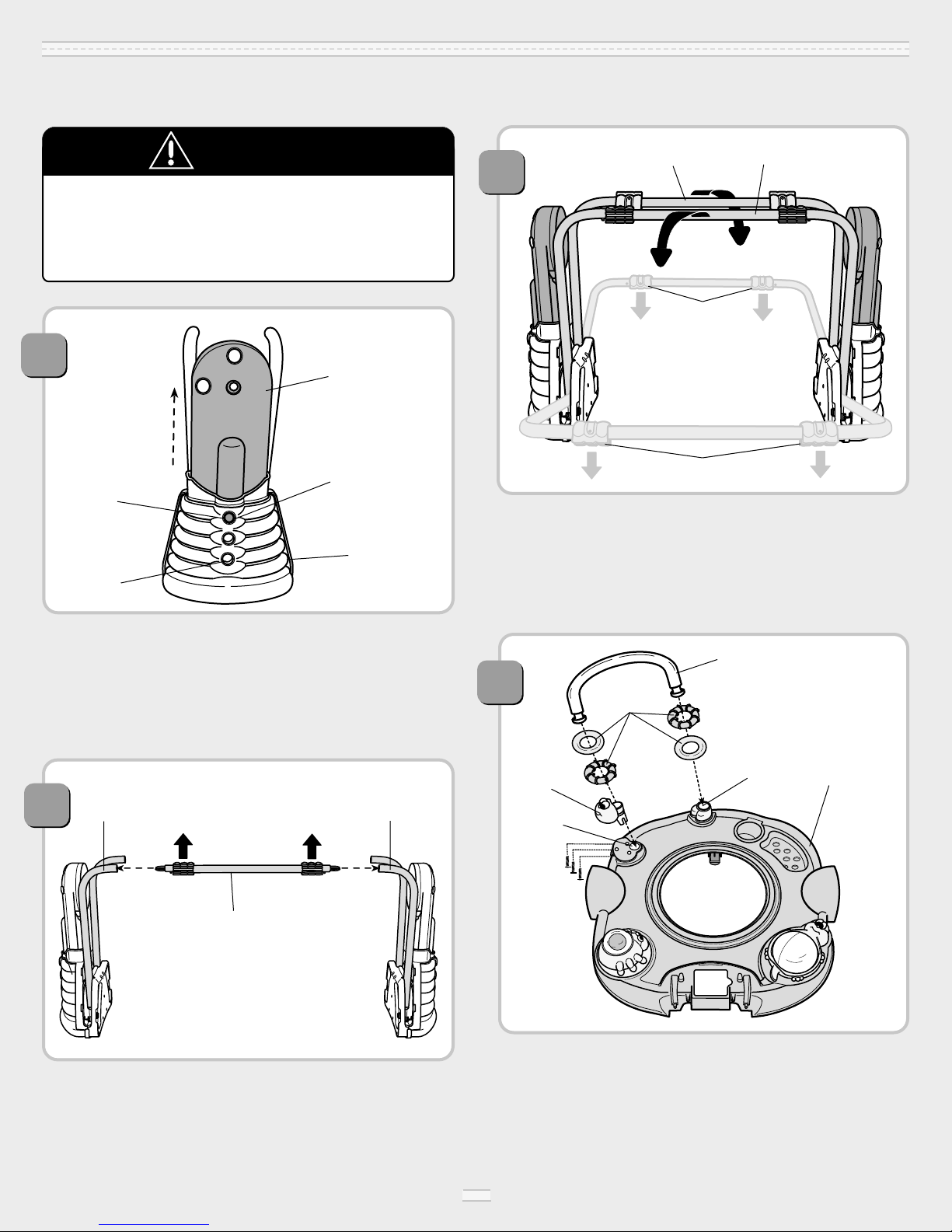

• Rotate the legs down.
• Make sure the treads on all four rubber feet are facing down.
If the treads on all four rubber feet are not facing down, you have
assembled the legs incorrectly. Remove the legs from the curved
tubes (press the buttons on the legs to release them from the
curved tubes) and re-read and repeat step 2.
• Place a base on a flat surface.
• While pressing the button on the side of the base, lift the frame to
the highest position. The button should be in the highest position.
• Repeat this procedure to raise the other frame on the other base to
its highest position.
•Make sure the button on each base is in the highest position.
IMPORTANT! Before each use or assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. Do not use if any
parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions needed. Never substitute parts.
4
1
3
Frame
Base
Button
Highest
Position
Lowest
Position
Leg Leg
• Position a leg so that the buttons are down and the treads on the
rubber feet face up.
• While pressing the buttons on the leg, insert and "snap" the ends
of the leg into the curved tubes on the base.
• Repeat this procedure to attach the other leg to the bases.
2
Treads Up
Leg
Curved
Tube
Curved
Tube
This product contains small parts in
its unassembled state.
Adult assembly is required.
CAUTION
4
• Place the tray upright on a flat surface.
• Fit the caterpillar to the top of the tray. From the bottom of the
tray, insert three 5/8" screws with washer heads through the tray and
into the caterpillar. Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
• Slide the four rings onto the toy bar.
• Insert and "snap" the toy bar into the holes in the tray.
• Pull up on the toy bar to make sure it is secure.
Rings
Tray
Hole
Hole
Toy Bar
Treads Down
Treads Down
ASSEMBLY
Caterpillar

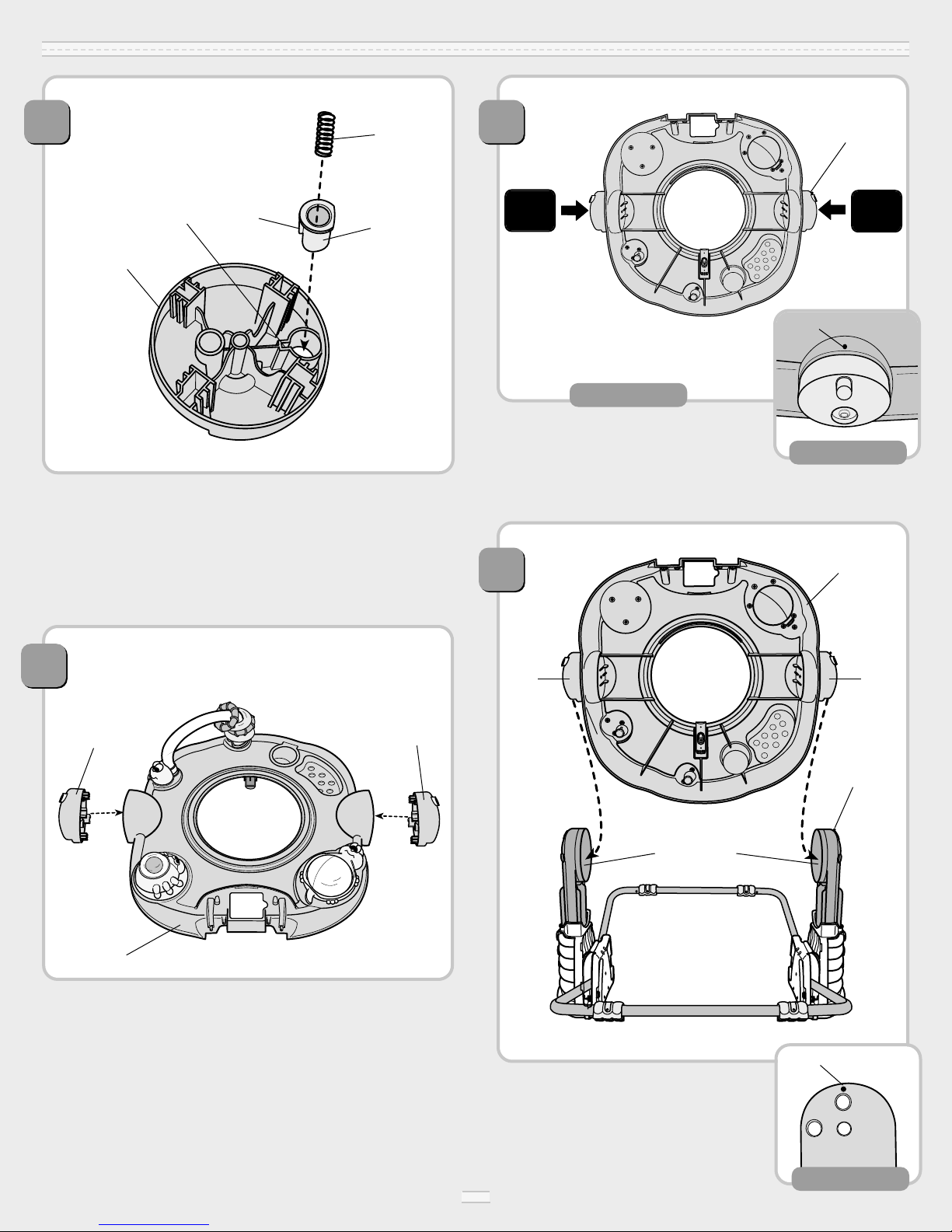

• Fit the hubs to each side of the tray.
• Hold the hubs in place.
6
Tray
Hub Hub
5
• Position the hub with the inside facing up.
• Align the tab on the button with the slot in the hub.
• Fit the button into the hub.
• Place a spring inside the button.
• Repeat this procedure to assemble the other button and spring to
the other hub.
5
Slot Button
Spring
Tab
Hub
• While holding the hubs in place, pick
the tray up and turn it so that the
bottom faces you.
• Locate the raised dot on one side of the tray, near the hub.
7
• Locate the raised dot on one of
the frames.
• Align the raised dot on the tray with
the raised dot on the frame.
• Fit the hubs into the round wells in
the frames.
8
Tray
Round Wells
Hold
Hubs
Hold
Hubs
Raised Dot
Raised Dot
Bottom View
Side View
Raised Dot
Side View
Raised Dot
Hub Hub
ASSEMBLY

6
OFF SP
LP
OFF SP
LP
11
10
• Slide a retainer between the two ribs on one side of the tray,
as shown.
• Fit an M5 lock nut (protruding side facing away from the
retainer) into the hexagonal hole in the retainer.
• Fit a 5/16" washer onto the M5 bolt. Insert the M5 bolt through the
frame, hub, tray and into the retainer. Tighten the bolt with a Phillips
screwdriver. Do not over-tighten.
• Repeat this procedure to fasten the other side of the tray to the
other frame.
Retainer
Rib
Rib
Tray
M5 x 39/16" Bolt
M5 Lock Nut
• Position the head with the face upright.
• Insert and snap the tab on the head into the slot in the tray.
• Insert two 5/8" screws with washer heads through the front holes
in the tray and into the head. Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
• Insert two 5/8" screws with washer heads through the back holes
in the tray and into the head. Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
Head
Tab
Slot
Tray
Protruding
Side
Frame
M5 Lock Nut
ASSEMBLY
5/16" Washer

• While pressing the upper buttons on both sides of the base, rotate
the tray down until it "snaps" into position. Make sure you hear
a "snap".
IMPORTANT! If the tray does not “snap” into position, you
have assembled the tray to the frame backwards. Remove the
M5 bolt, retainer and M5 lock nut from the frame and tray.
Carefully lift the tray from the round wells in the frame.
Re-read and repeat Assembly steps 7-9.
OFF SP
LP
12
Upper
Buttons
• Position the seat ring so that the
inside (ribbed side) is up and the
marking is toward you.
• Position the pad so that the
Fisher-Price® logo is facing you
(although it will be upside down!)
• Fit the red slots on the pad (next
to the Fisher-Price® logo) to the
seat ring pegs on either side of the
marking, as shown.
13
Seat Ring
Ribbed
Side
Marking
Fisher-Price®
Logo
Pegs
Red Slot
Red Slot
Pegs
Tray
7
Press
Upper
Button
Press
Upper
Button
• Pull the pad through the seat ring and wrap the pad around the
outside of the seat ring.
14
Pad
Pad
Seat Ring
Seat Ring
Marking
Top View
ASSEMBLY

• Push the seat lock to the unlocked position.
• Insert and "snap" the seat into the hole in the tray.
IMPORTANT! Assembly is now complete, but you will still need
to properly setup this product for use. Please refer to the
Battery Installation section and the Operation and Use section,
beginning with step 3 for additional instructions.
16
Seat
Tray
8
• Fit the other six slots in the seat pad to the corresponding pegs on
the seat ring.
• Tuck the seat pad behind all four rollers.
15
Peg 3
Peg 5
Peg 6
Peg 1
Peg 2
Roller
Peg 4
Roller
Roller
Roller
Roller
Roller
Roller Roller
Push Seat
Lock In
ASSEMBLY

• Face the front of the product
• While pressing the tray release button (lower button) on each side
of the base, rotate the tray up.
1
Tray
Tray
Release
Button
Tray
Release
Button
Press
Lower
Button
Press
Lower
Button

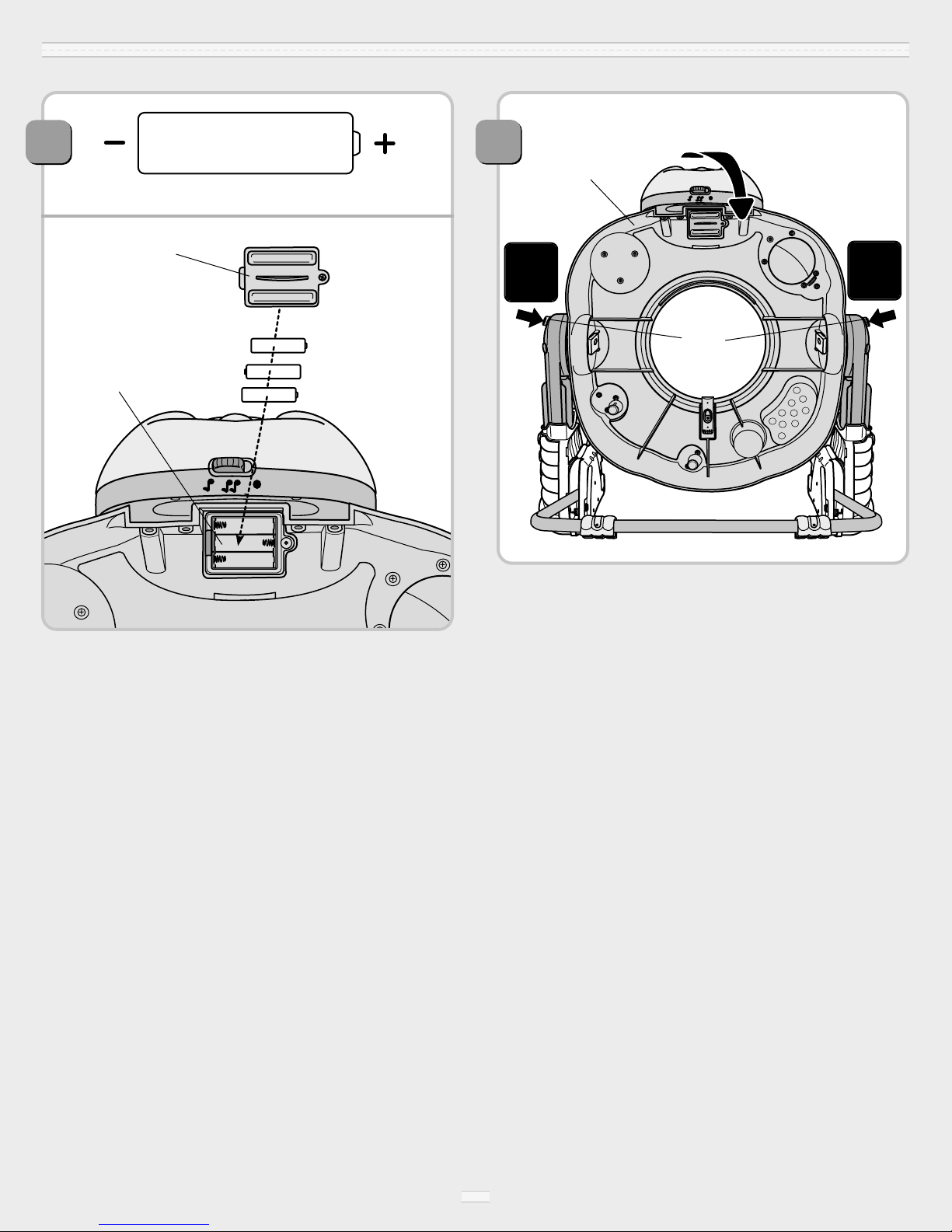

• Locate the battery compartment on the bottom of the tray.
• Loosen the screw in the battery compartment door with a
Phillips screwdriver.
• Remove the battery compartment door.
OFF SP
LP
2
Battery
Compartment
Bottom View
BATTERY INSTALLATION

10
• Face the front of the product
• While pressing the tray release buttons (upper buttons) on both
sides of the base, rotate the tray down until it "snaps" into
position. Make sure you hear a "snap".
4
Upper
Buttons
Tray
Press
Upper
Button
Press
Upper
Button
• Insert three "AA" (LR6) alkaline batteries as shown inside the
battery compartment.
Hint: Use only alkaline batteries for longest battery life.
• Replace the battery compartment door and tighten the screw with
a Phillips screwdriver. Do not over-tighten.
Battery Tips
• Do not mix old and new batteries.
• Do not mix different types of batteries: alkaline, standard (carbon-
zinc) or rechargeable (nickel-cadmium).
• Remove the batteries during long periods of non-use. Always
remove exhausted batteries from the product. Battery leakage and
corrosion can damage this product. Dispose of batteries safely.
• Never short circuit the battery terminals.
• Non-rechargeable batteries are not to be recharged.
• Only batteries of the same or equivalent type as recommended in
the Battery Installation instructions are to be used.
• If removable rechargeable batteries are used, they are only to be
charged under adult supervision.
• Rechargeable batteries are to be removed from the toy before they
are charged.
• If you use a battery charger, it should be examined regularly for
damage to the cord, plug, enclosure and other parts. Do not use a
damaged battery charger until it has been properly repaired.
IMPORTANT! If sounds and/or lights become faint, or there are no
sounds or lights, remove the batteries and dispose of them properly.
Replace the batteries with three, new "AA" (LR6) alkaline batteries.
Battery
Compartment
Battery
Compartment
Door
SHOWN ACTUAL SIZE
1.5 x 3
"AA" (LR6)
3
BATTERY INSTALLATION

To prevent serious injury or death:
• Never use near steps or pools, hot
surfaces or areas that may be
hazardous to a child. Product may
move during use.
• To avoid tip over, place product on
a flat, level surface.
WARNING
11
SSeettuupp
IMPORTANT! Before each use or assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. Do not use if any
parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts.
1
• Place the product on a flat, level surface.
• Rotate the legs down.
IMPORTANT! The legs are not yet locked in place. Please proceed
with setup steps 2-5.
• Face the front of the product.
• While pressing the tray release buttons (upper buttons) on each side
of the base, rotate the tray down until it "snaps" into place. Make
sure you hear a "snap".
OFF SP
LP
2
Tray
Tray Release Button
in Down Position
• Check to be sure the tray is secure. The tray release button should
be in the down position.
3
Press
Upper
Button
Press
Upper
Button
OPERATION AND USE

12
Base
•Push down on both sides of the base to be sure the legs are
locked into place.
5
Push Down on
Both Bases
Leg
Base
Leg
• While lifting the head, pull the leg down until it "snaps" into place.
Make sure you hear a “snap”.
• Repeat this procedure (this time lifting the back of the tray) to lock
the other leg into place on the other side of the base.
4
Head
Pull
Down
Lift
OPERATION AND USE

7
Low
Medium
High
Frame
Height
Adjustment
Button
• You can adjust this product to three different heights for baby's
comfort. Make sure baby’s feet touch the floor.
• While pressing the height adjustment button on the side of the
base, lift or lower the frame to the desired position.
• Be sure to adjust the frame height on the other side of
the base to the same height!
13
AAddjjuussttiinngg tthhee HHeeiigghhtt
8
Lock Bar
• Baby can turn in the seat or you can lock the seat into place.
•To lock the seat: Align a seat notch (located underneath the seat)
with the lock bar and slide the lock bar in.
•To unlock the seat: Slide the lock bar out.
LLoocckkiinngg tthhee SSeeaatt
6
Long-Play Mode
• Slide the power switch to
for long-play mode.
Baby delights to six songs
and light patterns when a
bug button is pressed.
Short-Play Mode
• Slide the power switch to for short-play mode. Baby enjoys one
song and a light pattern when a bug button is pushed.
Off
• Slide the power switch to •to turn off sound and lights.
IMPORTANT! If sounds and/or lights become faint, or there are no
sounds or lights, remove the batteries and dispose of them properly.
Replace the batteries with three, new "AA" (LR6) alkaline batteries.
SSoouunnddss aanndd LLiigghhttss!!
Power Switch
Bug Buttons
OPERATION AND USE

14
SSttoorraaggee
High
Frame
Height
Adjustment
Button
•You must adjust the height to the highest position for storage.
• While pressing the height adjustment button on the side of the
base, lift the frame to the highest position.
• Be sure to adjust the frame height on the other side of the
base to the highest position!
10
Press Tray
Release Button
Base
Tray
• Face the front of the product.
• While pressing the tray release button (lower button) on each side
of the base, rotate the tray up until it "snaps" into place.
11
Base
Leg
• Tip the product on one side
and press the buttons on each
side of the base to release
the leg.
• Lift the leg slightly to the
unlocked position.
12
Leg
Leg
• Rotate the leg up.
• Repeat steps 11 and 12 to unlock and rotate the other leg up to the
storage position.
Leg
Press
Buttons
Press
Button
OPERATION AND USE

TToo RRee--aasssseemmbbllee tthhee PPaadd
• Please refer to the Assembly section, steps 13-16.
15
• Machine wash the pad in cold water and a mild detergent. Do not
use bleach. Tumble dry on low heat and remove promptly.
• Surface wash the base, tray and toys with mild detergent and water.
Do not use bleach. Do not use harsh or abrasive cleaners. Rinse
clean with water to remove residue. Do not immerse the tray.
Lock Bar
• Unlock the seat. Slide the lock bar out.
TToo RReemmoovvee tthhee PPaadd
• While pressing near any notch on
the seat ring, pull the seat ring from
the tray.
1
2
Press Tray
Release Button
Base
Tray
• Face the front of the product.
• While pressing the tray release button (lower button) on each side
of the base, rotate the tray up until it "snaps" into place.
OFF SP
LP
3
Notch
Notch
Notch
Notch
Top View
Bottom View
CARE

16
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. 79070a-0920
©2000 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Printed in China
If you have any questions about this product: In Canada, call 1-800-567-7724, or write to: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2.
In Great Britain, telephone [phone].
In Australia, call the Fisher-Price Australian Consumer Advisory Service toll-free at 1-800-800-812, or write to: Mattel Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond Victoria, 3121 Australia.
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, New York 14052 warrants Sounds ’n Lights Portable Entertainer™ is free from all defects in material and
workmanship when used under normal conditions for a period of one (1) year from the date of purchase.
Should the product fail to perform properly, we will repair or replace it at our option, free of charge. Purchaser is responsible for shipping the product to Consumer
Relations at the address indicated above and for all associated freight and insurance cost. Fisher-Price, Inc. will bear the cost of shipping the repaired or replaced
item to you. This warranty is void if the owner repairs or modifies the product. This warranty excludes any liability other than that expressly stated above including
but not limited to any incidental or consequential damages.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
ONE (1) YEAR LIMITED WARRANTY
