Dear FORA Diamond NEXUS
System Owner:
Thank you for purchasing the FORA Diamond NEXUS
Thermometer. Please read this instruction manual
first so you can use this thermometer safely and
correctly. Please keep this instruction manual for
future reference. This innovative medical device
uses advanced infrared (IR) technology to measure
temperature instantly and accurately on the forehead
or object.
English
IMPORTANT SAFETY INSTRUCTIONS
READ BEFORE USE
The following basic safety precautions should always be
taken.
1. Close supervision is necessary when the thermometer
is used by, on, or near children, handicapped persons
or invalids.
2. Use the thermometer only for the intended use
described in this manual.
3. Do not use the thermometer if it is not working
properly, or if it has suffered any damage.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

4
TABLE OF CONTENTS
BEFORE YOU BEGIN 05
Cautions and Warnings 05
Restrictions of Use 06
Intended Use 06
How does it work 06
Highlighted Features 07
Package Contents 07
Meter Overview 08
Display Screen 08
Display Mode 09
Setting the Thermometer 09
Select the Temperature Unit 10
Replacing the Battery 11
DETAILED INFORMATION 12
About Normal Body Temperature & Fever 12
PERFORM THE TEST 14
Using the Device 14
As a Body Measurement Thermometer 14
As an Object Measurement Thermometer 15
METER MEMORY 17
Recalling the Memory 17
MAINTENANCE 18
Care & Cleaning 18
SYSTEM TROUBLESHOOTING 19
Measurement Result 19
Troubleshooting 20
SYMBOL INFORMATION 22
SPECIFICATIONS 23
DISPOSAL 24
REFERENCE STANDARDS 25
WARRANTY 27

5
BEFORE YOU BEGIN
Cautions and Warnings
●As with any thermometer, proper technique is crucial
to obtaining accurate temperature readings. Please
read this manual thoroughly and carefully
before using.
●Always operate the thermometer in an operating
temperature range 16°C to 40°C (60.8°F to 104°F),
and relative humidity less than 95%.
●Always store the thermometer in a cool and dry place
-25°C to 55°C (-13°F to 131°F) and relative humidity
less than 95%.
●Avoid direct sunlight.
●Avoid dropping the thermometer, if it happens and
you think the thermometer may be damaged, please
contact customer services immediately.
●Do not touch the lens.
●Do not disassemble the thermometer.
●Basic safety precautions should always be observed,
especially when the thermometer is used on or near
children and disabled persons.
●This thermometer is not intended to substitute for a
consultation with your physician.
●This thermometer and the subject must remain in a
stable environment for at least 30 minutes before
measuring the temperature.
●When the measured temperature falls within the fever
temperature range of ≥37.5°C (99.5°F) and <43°C
(109.4°F), as indicated by the red LED on display,
please consult with your physician immediately.

6
Intended Use
FORA Diamond NEXUS Thermometer is intended for the
intermittent measurement and monitoring of human body
temperature from forehead measurement at home.
A control measurement using a conventional thermometer
is recommended in the following cases:
1. If the reading is surprisingly low,
2. For new-born infants up to 100 days old,
3. For children under three years of age who have a
weakened immune system or who react unusually in the
presence or absence of fever.
Restrictions of Use
This thermometer is clinically proven to produce accurate
temperature measurements. However, please be advised
that the accuracy cannot be ensured when the thermometer
is not clean. Check that the probe is clean before taking a
measurement.
How does it work
The thermometer measures the infrared heat generated
by the surface of the skin over the vessel and its
surrounding tissue. The thermometer then converts it into
a temperature value.
NOTE:
The thermometer does not emit any infrared signal.

7
Package Content
Thermometer
Soft Pouch
Userʼs Manual Quick Start
Guide
1.5V AAA
batteries
Highlighted Features
●Non-contact measurement that does not require probe
cover, there by saving cost of replacement.
●Automatically power off if left idle for 10 seconds.
●Memory function allows you to recall previous results up
to 20 previous results.
●Easy to read LCD with white backlight in a dark
environment.
●Color visible indication of alarm (red) and measurement
in progress (blue).
●Button-free power on and auto-sense measurement
within 2 cm.

8
Display

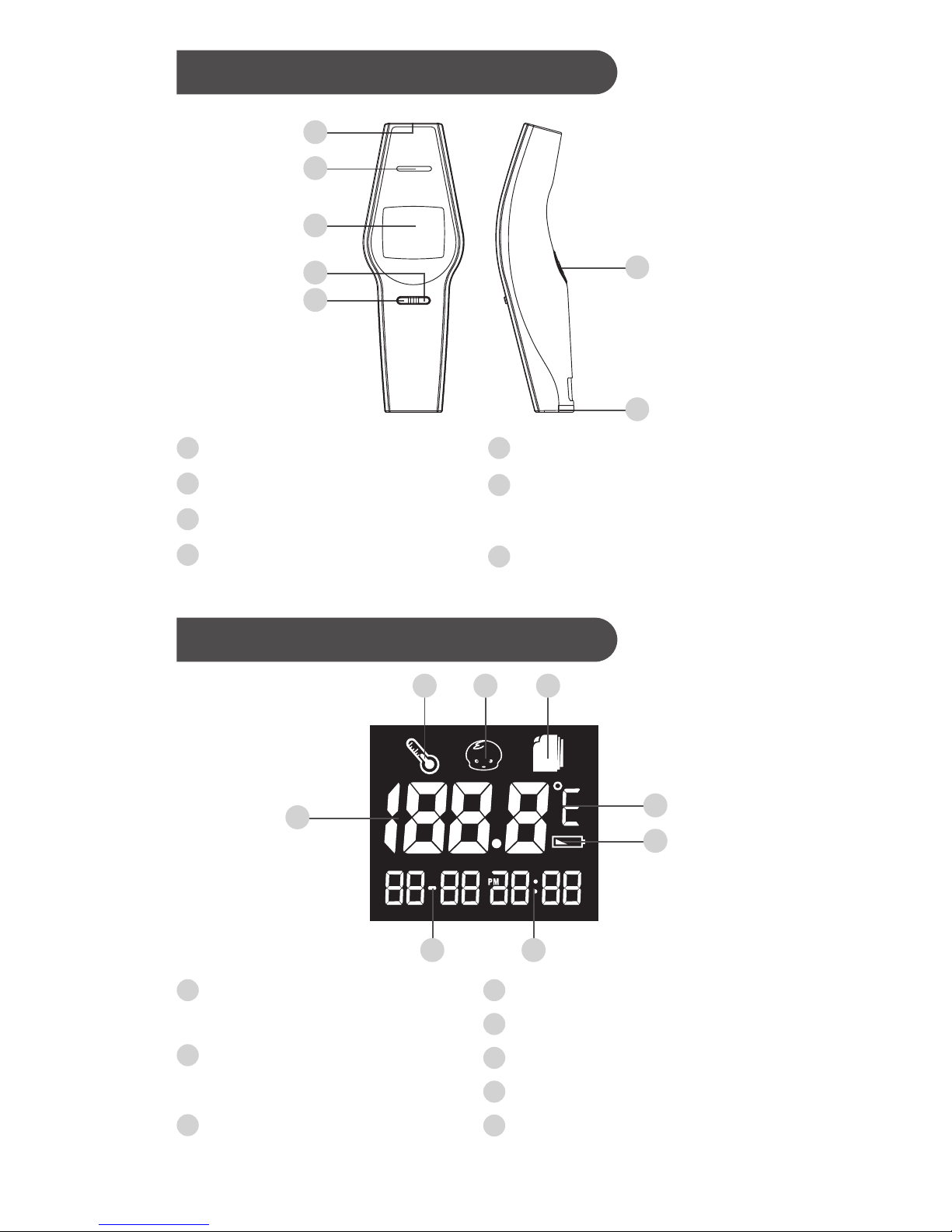

Meter Overview
Auto-sense Probe
3-color LED
Display Screen
Mode/Memory Button
Object temperature
indicator
Body temperature
indicator
Memory mode
C/F, Set Button
Auto-sense Power
Switch
Battery Cover
1
1
5
6
7
8
5
2
2
6
3
3
7
4
4
1
2
3
6
7
4
5
8
1 2 3
7 6
4
5
Temperature unit
Low battery indicator
Time
Date
Temperature reading

9

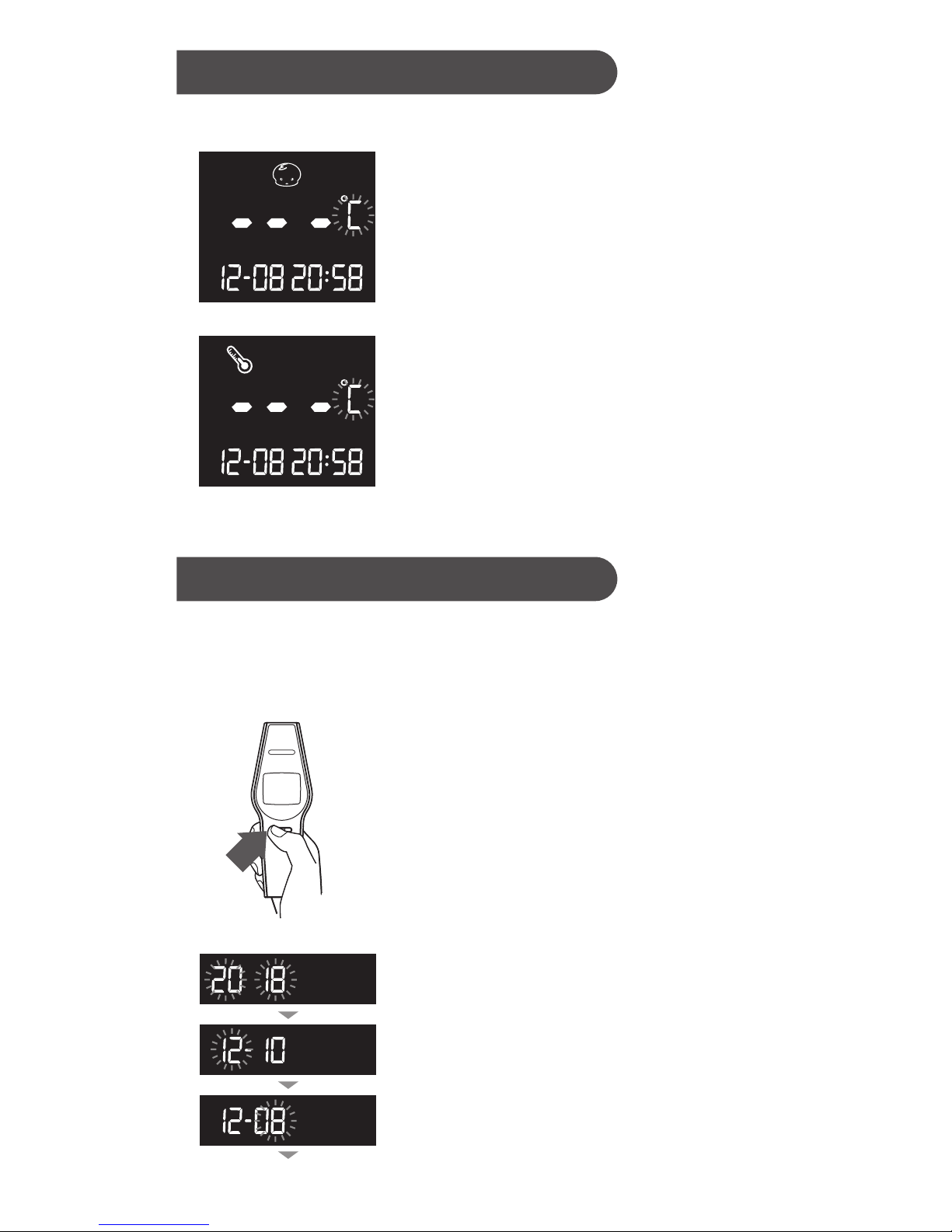

1. Entering the setting mode
Start with the meter off, press Set
Button for 3 seconds to enter the
setting mode.
2. Set the date and time
Press Mode Button to select the
correct year.
Press Set Button to confirm and
move on the next step.
Setting the Thermometer
You will need to set time for first-time use or after
replacing the batteries.
Display Mode
Two modes can be selected.
1. Body Mode
This mode is used to measure the
forehead temperature.
It also provides clock.
2. Object Mode
This mode is used to measure the
object temperature.
It also provides clock.

10

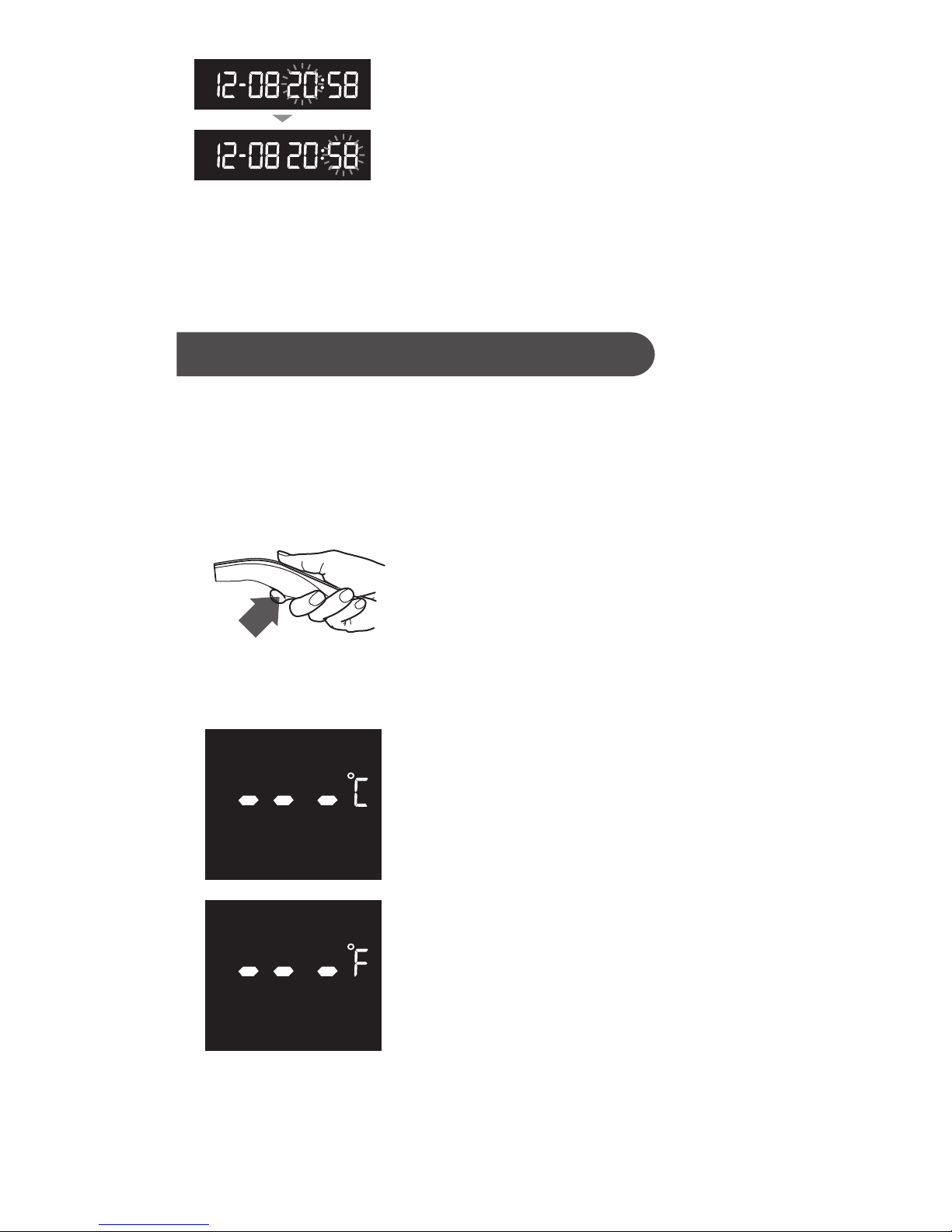

1. Touch Auto-sense Power Switch
for 2 seconds to turn on the
thermometer first.
2. Press C/F button to select. Keep
the meter in idle for 10 seconds to
exit the C/F switching.
Select the Temperature Unit
This meter provides two measurement units used for
indicating the body/object temperature, oC or oF, for your
preferred selection.
Setting is all completed. Press Set Button to exit the
setting mode.
Press Mode Button to select the
correct month/day/hour/minute.

11
NOTE:
1. Although the thermometer works when " " appears,
we still recommend that you change the batteries to
obtain an accurate result.
2. Remove the batteries if stored for a long period of time.
3. The batteries should be kept away out of childʼs reach.
If they are swallowed, promptly see a doctor for help.
Replacing the Battery
The thermometer comes with two 1.5 V AAA alkaline
batteries. The meter will display " " to alert you when
the meter power is getting low, please follow the steps
below to replace new batteries immediately.

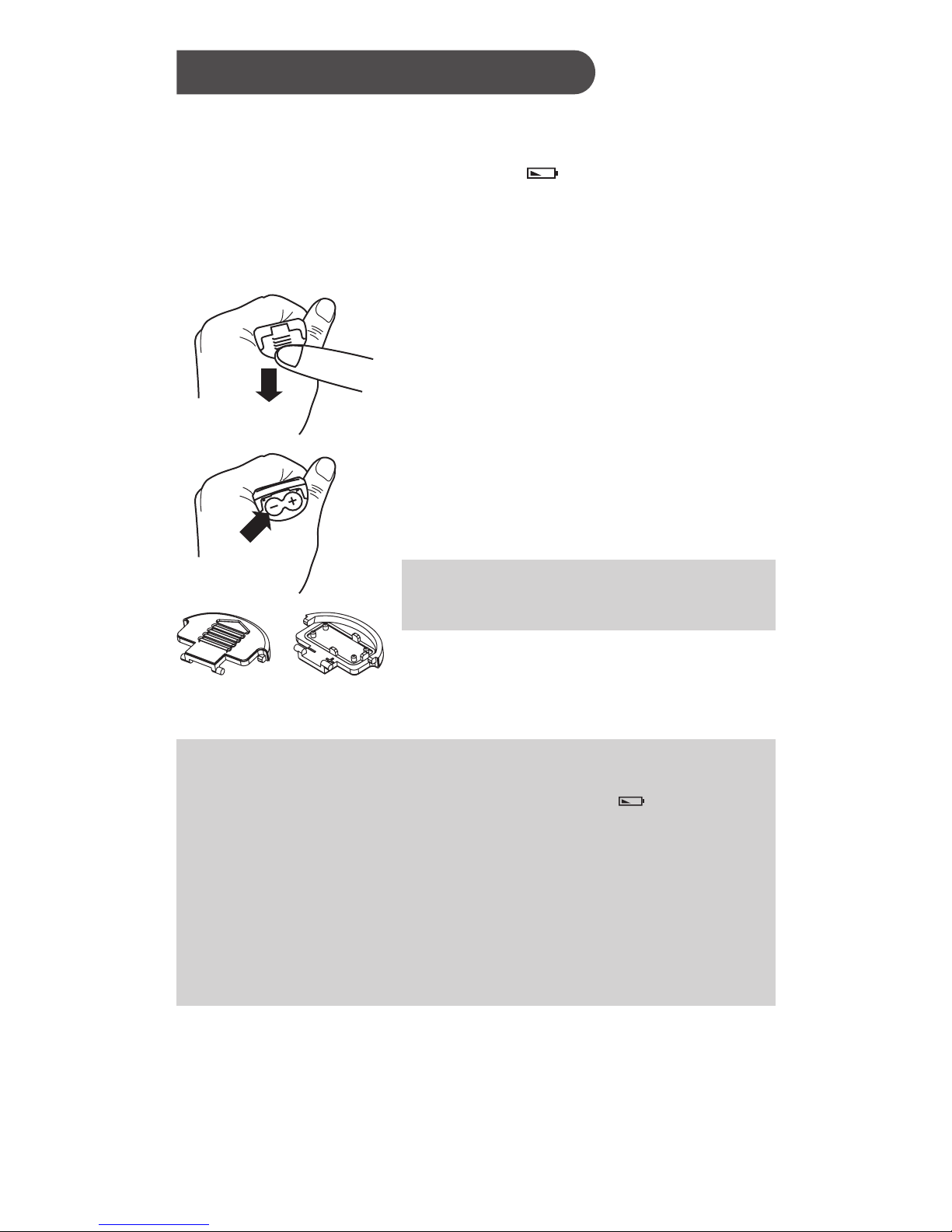

1. Remove the battery cover as the
arrow direction accordingly.
2. Remove the old batteries and
replace with two 1.5V AAA size
alkaline batteries.
Positive ( + ) and Negative ( - ) are
displayed on the back of battery cover.
3. Close the battery cover.

12
About Normal Body Temperature & Fever
The temperature in the forehead and temple area
differs from the internal temperature, which is taken
orally or rectally. Vasoconstriction, an effect which
constricts the blood vessels and cools the skin, can
occur during the early stages of a fever. In this case, the
temperature measured by the FORA Diamond NEXUS
thermometer may be unusually low. If the measurement
therefore does not match the patientʼs own perception
or is unusually low, repeat the measurement every 15
minutes. As a reference, you can also measure the
internal body temperature using a conventional oral or
rectal thermometer.
Body temperature can vary from one individual/person
to next. It also varies by location on the body and time
of day. Below shows the statistical normal ranges from
different sites. Please keep in mind that temperatures
measured from different sites, even at the same time,
should not be directly compared. Fever indicates that
the body temperature is higher than normal. This
symptom may be caused by infection, overdressing
or immunization. Some people may not experience
fever even when they are ill. These include, but are not
limited to, infants younger than 3 months old, persons
with compromised immune systems, persons taking
antibiotics, steroids or antipyretics (aspirin, ibuprofen,
acetaminophen), or persons with certain chronic
illnesses. Please consult your physician when you feel ill
even if you do not have fever.
DETAILED INFORMATION

13
Table*1 Body Site Normal Temperature Range
Oral 0.6°C (1°F) or more above or below
37°C (98.6°F)
Rectal/ear 0.3°C to 0.6°C (0.5°F to 1°F) higher
than oral temperature
Axillary
(armpit)
0.3°C to 0.6°C (0.5°F to 1°F) lower
than oral temperature
*1. Body Temperature at WebMD;
website: http://firstaid.webmd.com/body-temperature
retrieved at 2010 Jan 7.

14
1. Touch Auto-sense Power Switch
for 2 seconds to turn on the
thermometer first.
2. Press the Mode button to
select Body mode.
The temperature unit flashes.
3. Move the probe close to the
forehead.
Make sure the probe is flat and close
to the forehead, not at an angle.
Perform a forehead measurement
with a distance within 2 cm. The
meter will take measurement
automatically with the blue LED
blinks.
4. Read the result.
The measurement result will be
done in 3 seconds.
The reading is shown together with
green LED and three short beeps.

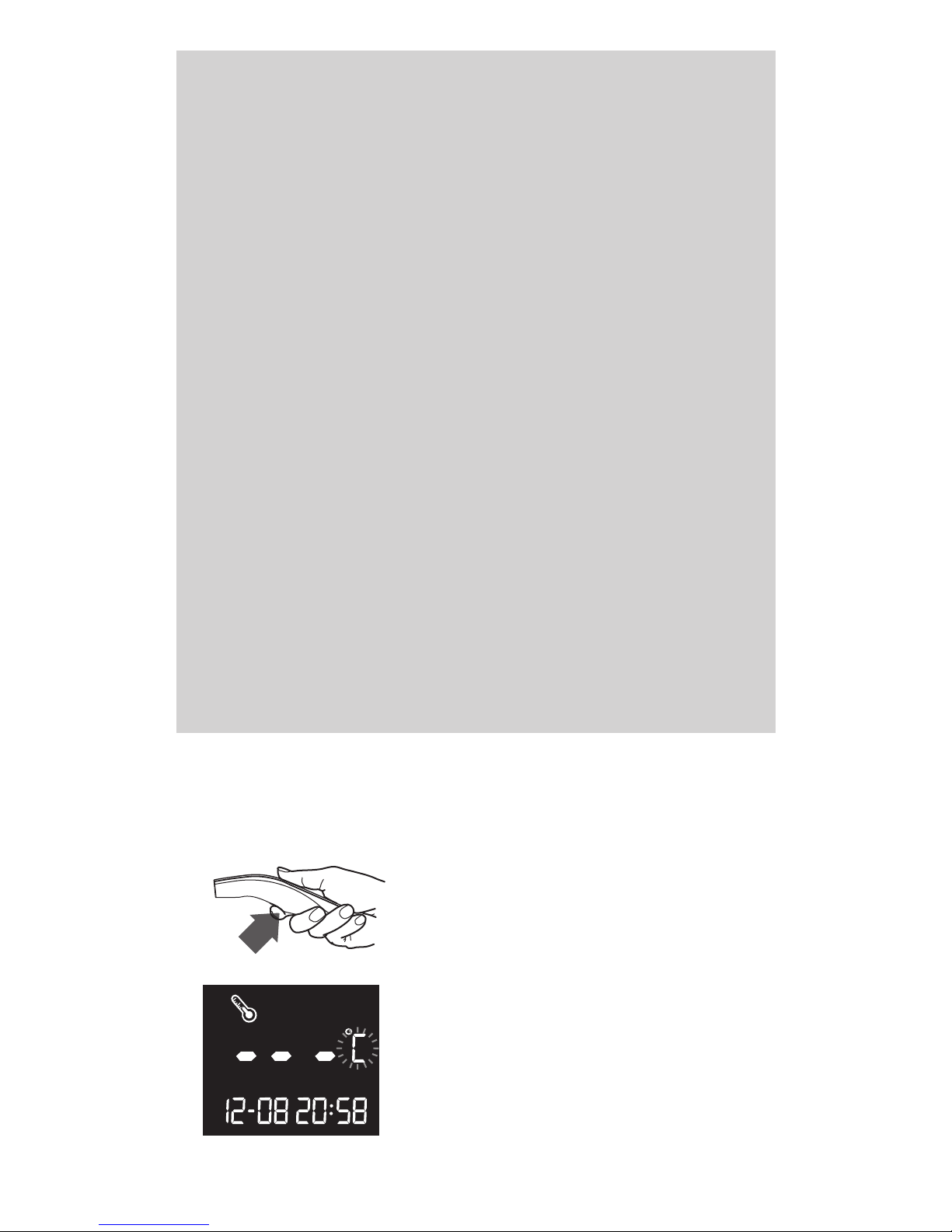

Using the Device

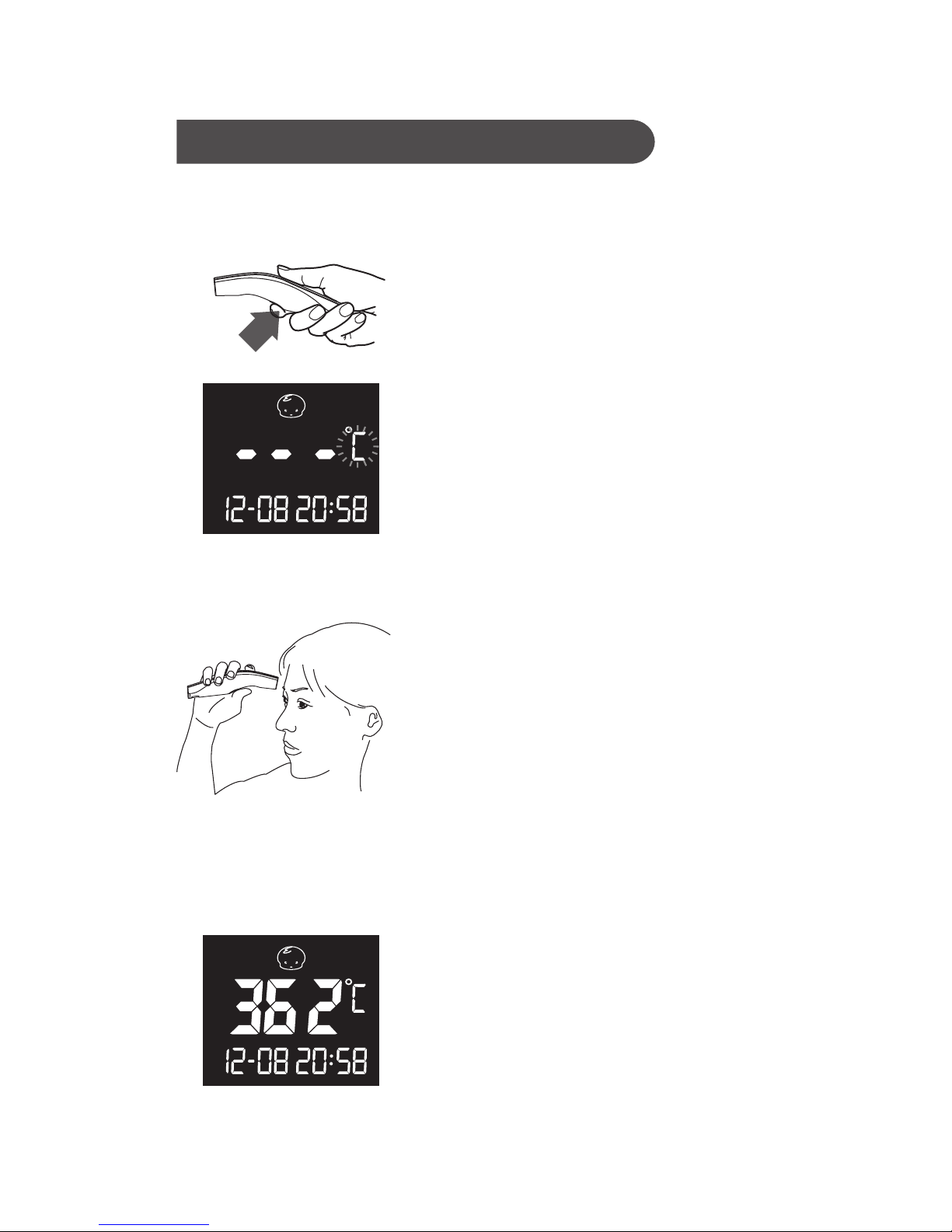

As a Body Measurement Thermometer
PERFORM THE TEST

15
1. Touch Auto-sense Power Switch
for 2 seconds to turn on the
thermometer first.
2. Press the Mode button to
select Object mode.
The temperature unit flashes.
As an Object Measurement Thermometer
NOTE:
•As the forehead measurement temperature is likely
to be affected by sweat, oil and the surroundings, the
reading shall be taken as a reference only.
•If the probe is placed at an angle close to the
forehead measurement, the reading will be affected
by surrounding temperature. Babiesʼskin reacts very
quickly to the ambient temperature. Therefore, do not
take their temperature with the FORA Diamond NEXUS
thermometer during or after breastfeeding, because
the skin temperature may then be lower than the
internal body temperature.

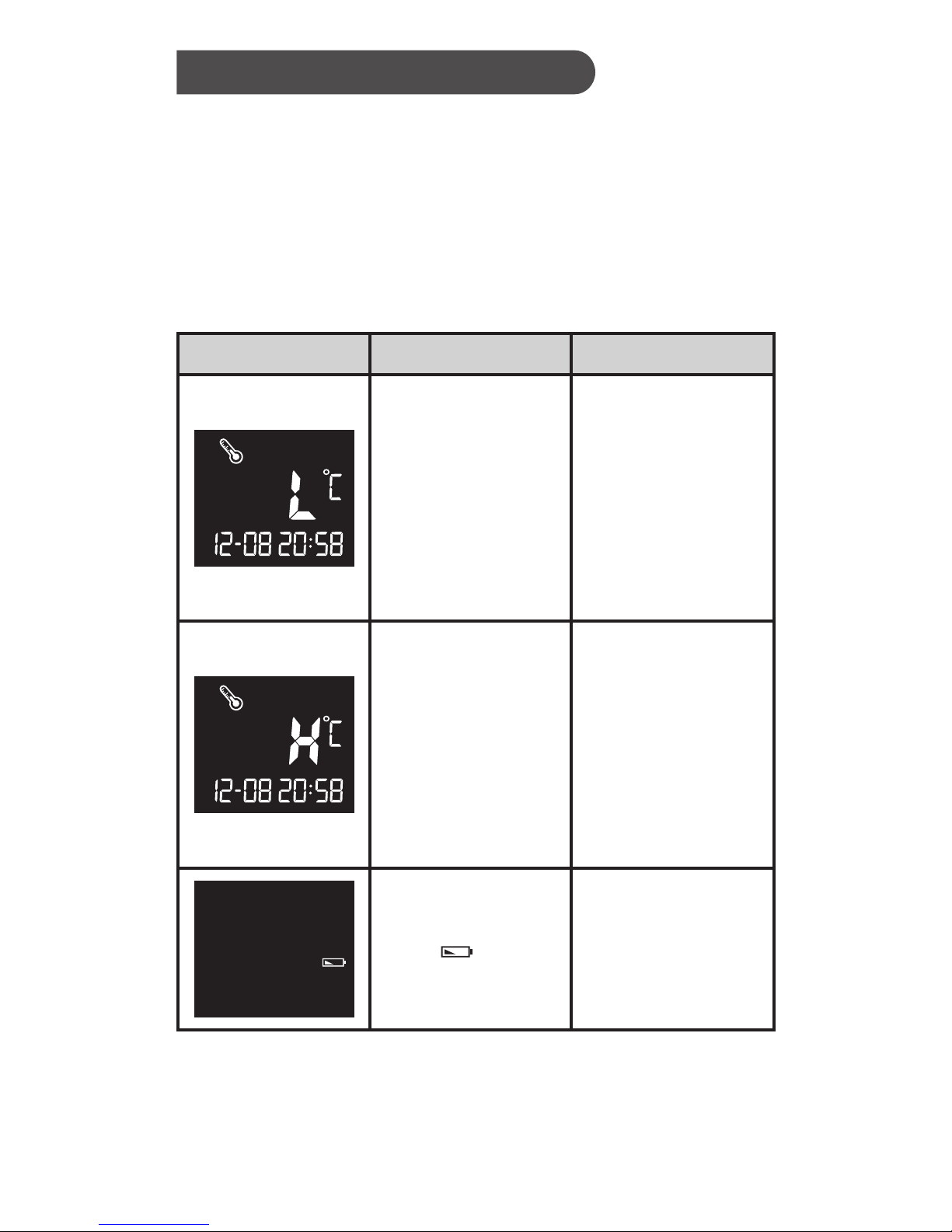

•If the reading is < 32°C (89.6°F), the display will
show together with red LED and three short beeps.
•If the reading is ≥37.5 °C (99.5°F) and < 43°C
(109.4°F), the display will show together with red LED
and ten short beeps.
•The thermometer will automatically turn off if left idle
for 10 seconds.

16

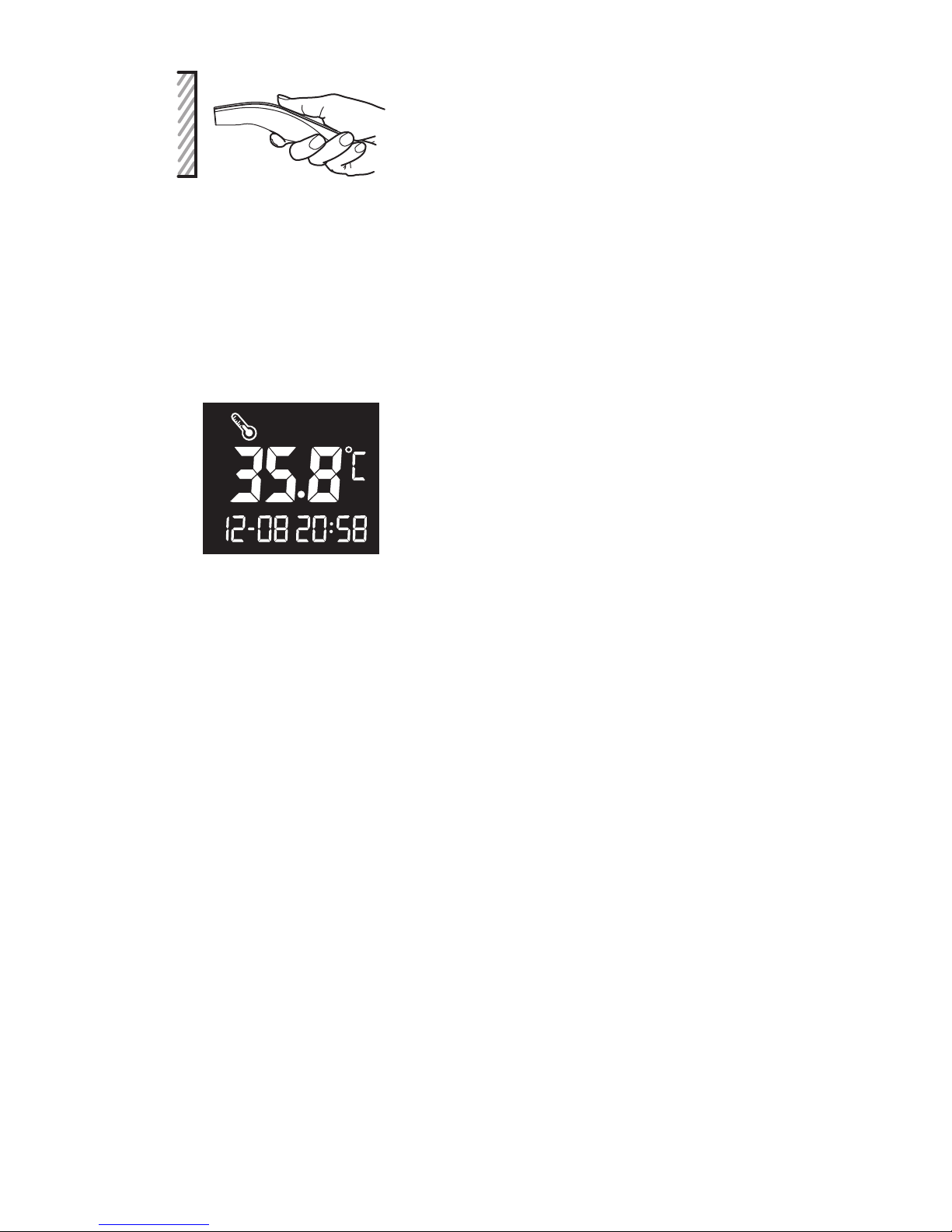

3. Move the probe close to the
object.
Make sure the probe is flat and close
to the object, not at an
angle. Perform an object
measurement with a distance
within 2 cm. The meter will take
measurement automatically with the
blue LED blinks.
4. Read the result.
The measurement result will be
done in 3 seconds.
The reading is shown together with
green LED and three short beeps.

17
1. Be sure the thermometer is OFF
before recalling this memory.
3. Exit the memory.
Press Set Button to exit the
memory or keep the meter in
idle for 10 seconds to switch off
automatically.
2. Press Memory Button to enter
the memory mode.
Each time you press the Memory
Button, a result will be displayed
in the order of dates (latest result
shown first), together with ””
and number ( from 1 to 20 ).
LED in green or red will appear
according to the memory reading.
When the memory is full, the
oldest result is deleted as the new
one added. When the last record
displayed in the Display, press
Memory Button again to return the
first record.
Recalling the Memory
Your thermometer stores 20 most recent readings
METER MEMORY

18
Care & Cleaning
●The probe is not waterproof. Please wipe with a clean
and dry cotton swab to clean the probe on the inside.
●The body of the thermometer is not water-resistant.
Never put the thermometer under a running tap or
submerge it into water. Use a soft and dry cloth to
clean it. Do not use abrasive cleaners.
●Store the thermometer in a cool and dry location. Free
from dust and away from direct sunlight.
MAINTENANCE

19
Measurement Result
MESSAGE WHAT IT MEANS
Measured temperature falls out-
side the displayed temperature
range of 32°C to 43°C (89.6°F
to 109.4°F), is shown on the
display with red LED.
●Hi-temperature ≥43°C
(109.4°F)
●Lo-temperature < 32°C
(89.6°F)
Measured temperature falls in
normal reading, within the range
of 32°C to 37.5°C (89.6°F to
99.5°F), is shown on the display
with green LED.
Measured temperature falls in
fever reading,
≥37.5°C (99.5°F) and
< 43°C (109.4°F), is shown on
the display with red LED.
SYSTEM TROUBLESHOOTING

20
Troubleshooting
The table below shows problems you may encounter.
All error messages below would be shown together with
backlight. Please follow "what to do" to resolve problems.
If the problem still exists, please call your local dealer for
help.
MESSAGE WHAT IT MEANS WHAT TO DO
Appear when
environmental
temperature is
below system
operation range.
Put the
thermometer
under operating
temperature
range of 16°C to
40°C(60.8°F to
104°F)
Appear when
environmental
temperature is
above system
operation range.
Put the
thermometer
under operating
temperature
range of 16°C to
40°C(60.8°F to
104°F)
Battery is low
and " " ap-
pears on display.
Please replace
batteries as
soon as pos-
sible.
