Forest garden FGSLATARCHHD User manual

130mm
750mm
4x50mm Screws
QTY: 16
REMINDER
Always pre-drill before
screwing.
IMPORTANT
Assembly requires 2+
adults.

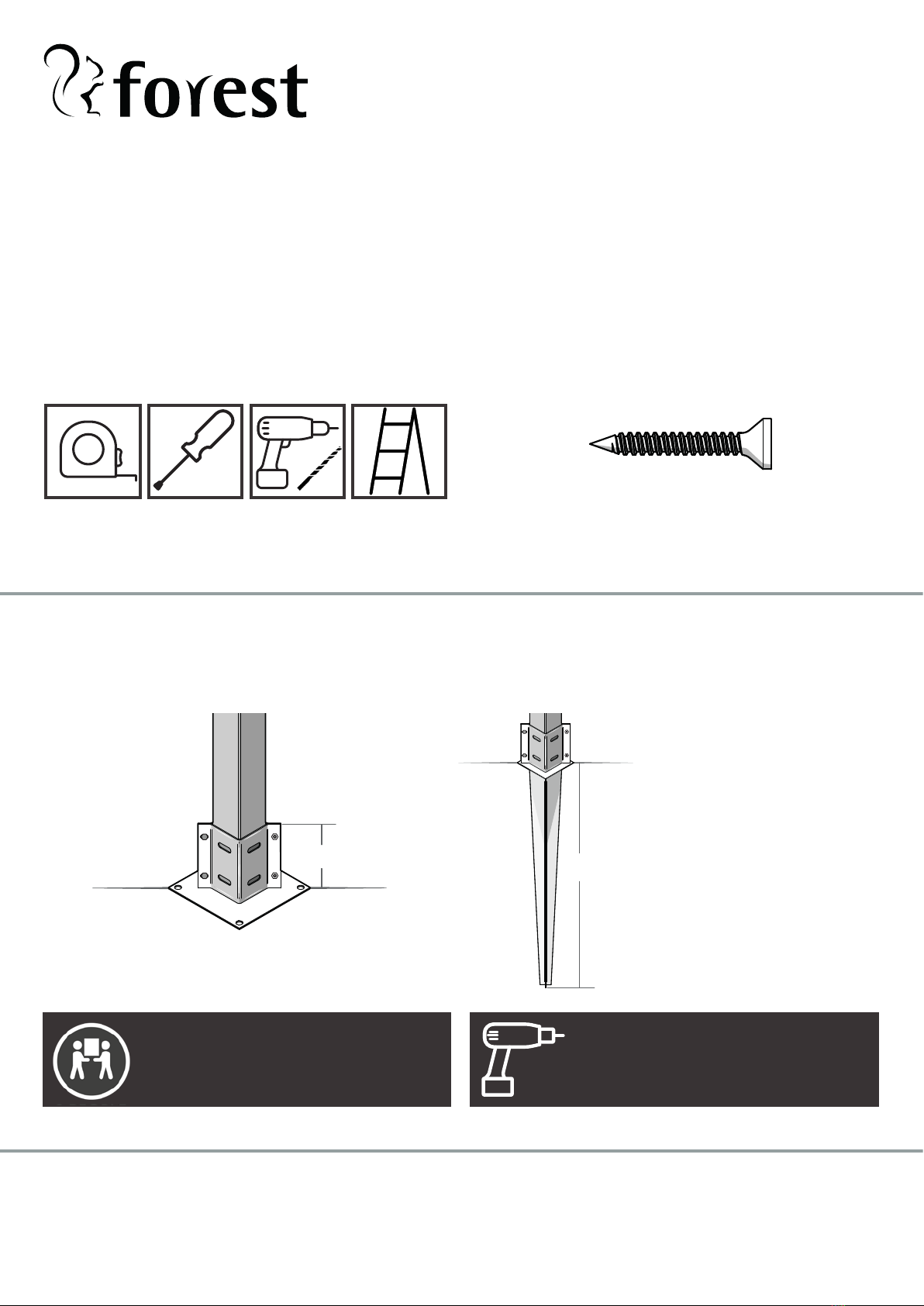

Tape Measure Drill & 2-3mm
Drill Bits
Pozidrive
Screwdriver Ladder
ISSUE: 0122
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
HORIZONTAL SLATTED ARCH
INSTRUCTIONS
It’s vital that you build your new arch on a level ground in your desired location.
We recommend using the following
tools (not supplied):
PLEASE KEEP PLASTIC BAGS AND SMALL PARTS
AWAY FROM CHILDREN
FIXING PACK CONTAINS:
FIXING PACK CODE: SLATARCHFP
CHECK AND TIGHTEN ALL THE FIXINGS APPLIED
TO THIS PRODUCT ON A REGULAR BASIS.
We strongly advise that you anchor your arch down with either xtures shown below to enhance stability. You will need to
purchase these separately. Apply each xture to each leg before fully constructing your arch. 130mm of your post will be supported
within the xture.
PREPARATION
FOR PATIO/DECKING (HARD SURFACES)
Easy-Fit Fencebase - 65mm
(FBEF65)
FOR GRASS/SOIL
(SOFT SURFACES)
Easy-Fit Fencefast
(FEF6575)
Ensure that the spike can be
inserted into the ground by
750mm.
Making British gardens great

1000mm
HEALTH & SAFETY
THE ROOF OF THIS ARCH IS NOT A LOAD BEARING STRUCTURE
DO NOT CLIMB THIS PRODUCT
We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure you are
protected from any potential health and safety risks. Do not exempt yourself from wearing PPE.
SLATTED SIDE
SLATTED TOP
50MM
SCREWS
50MM
SCREWS 50MM SCREWS
BRACE
Position and secure the Slatted Top to the Slatted
Sides. Ensure the Slatted Top is ush both sides before
securing in place.
Lay out and position your Slatted Sides on the oor,
using the measurement provided.
1 2
Turn the arch over onto it’s other side and repeat the
process, positioning and securing the Slatted Top and
Braces.
Position and secure the Braces in each corner as
shown above. Ensure the Brace is positioned centrally
to the framework.
3 4

TREATED TIMBER CONTAINING A BIOCIDAL PRODUCT
CONTROL OF WOOD DESTROYING ORGANISMS
Active Ingredients - Propiconazole, Tebuconazole, IPBC, Permethrine, Benzyl-C12-16-Alkyldimethyl Chlorides. (Dip Treated)
Basic Copper Carbonate, DDA Carbonate, DDA Chloride. (Pressure Treated)
Wear gloves when handling. Avoid inhalation of sawdust. Do not use in contact with drinking water or food. Do not use for animal
bedding or in sh ponds. Dispose of treated wood responsibly.
Use the labelled components to help identify the part code and description.
CHECK YOU HAVE ALL YOUR PARTS PRIOR TO ASSEMBLY.
(The parts do not have codes on them. They are listed below should you need to order one.)
Timber is a natural material of which will shrink and swell as a result of varying moisture content.
Assembly of damaged parts may be deemed to be acceptance and this may affect the remedies you are entitled to. If the product is not constructed
in accordance with the instructions, or is altered in anyway (e.g. painted), the manufacturer cannot be held liable for any resulting damage.
The components provided may be heavy. Please lift with caution and with a minimum of 2 people.
Label Part Code Description No.
ASLATSIDE Slatted Side 740x2200mm 2
BSLATTOP Slatted Top 740x1130mm 1
C45450300AII45PPT Brace 45x45x300mm 4
Horizontal Slatted Arch (SLATARCH)
AB C
