Frico Thermocassette CTS User manual

Thermocassette CTS
Original instructions
.... 7
EN .... 9 SE .... 11
NO .... 13 FR ...15 DE
....17
NL .... 19 ES .... 21 PL .... 23 RU .... 25 FI
.... 27
DK

Thermocassette CTS
2
DE Die Ökodesign-Verordnung (EU) 2015/1188 über Einzelraumheizgeräte trifft nicht auf alle
Anwendungsgebiete zu. Die Verordnung ndet Anwendung, wenn eine Installation dazu bestimmt
ist, innerhalb eines Raumes ein für den Menschen angenehmes Temperaturniveau zu erreichen.
Die Verordnung ndet keine Anwendung auf Heizungsinstallationen technischer Natur, z. B. in Technik-/
Wirtschaftsräumen, bei Produktionsprozessen, für Frostschutz usw. Die Verordnung ndet ebenfalls keine
Anwendung bei Installationen in Fahrzeugen, Offshoreanlagen und Außenbereichen. Der Monteur, der für die
Installation verantwortlich ist, muss beurteilen, ob die Ökodesign-Verordnung anwendbar ist oder nicht.
FI Paikallisia tilalämmittimiä käsittelevä Ecodesign-asetus (EU) 2015/1188 ei kata kaikkia käyttökohteita.
Asetus on voimassa ainoastaan silloin, kun lämmittimellä halutaan parantaa tiloissa olevien ihmisten
lämpömukavuutta. Asetus ei koske teknisempiä lämmitysjärjestelmiä esim. konehuoneissa/
kodinhoitohuoneissa, tuotantoprosesseissa, pakkassuojausta, jne. Asetus ei myöskään koske ajoneuvoissa,
laivoissa ja ulkona käytettäviä järjestelmiä. Asentajan on määritettävä sovelletaanko asennukseen Ecodesign-
asetusta vai ei.
EN
EU-kommissionens Ecodesignförordning (EU) 2015/1188 för rumsvärmare skiljer på användningsområden
för olika installationer. Förordningen gäller då installationen är avsedd att skapa värmekomfort för
människor som vistas i lokalen. Förordningen gäller inte för installationer som är avsedda för värmebehov
av mer teknisk art såsom grundvärme i maskinrum, värmebehov i produktionsprocesser, frostskydd, etc.
Förordningen gäller heller inte installationer i fordon, offshore eller utomhus. Vid installationstillfället är det upp till
ansvarig installatör att bedöma om Ecodesignförordningen är applicerbar eller inte.
SE
NO
Ecodesign Regulation (EU) 2015/1188 concerning local space heaters does not apply to all application areas.
The Regulation applies when an installation is intended to provide thermal comfort for people in the
premises. The Regulation does not apply to heating installations of a more technical nature e.g. in
engineering/utility rooms, in production processes, frost protection, etc. The Regulation also does not apply to
installations in vehicles, offshore or outdoors. It is up to the installer responsible for the installation to assess
whether the Ecodesign Regulation is applicable or not.
Økodesigndirektivet (EU) 2015/1188 som gjelder varmeovner, gjelder ikke alle bruksområder.
Direktivet gjelder når en installasjon har som formål å skape en komfortabel temperatur for personene
på stedet. Direktivet gjelder ikke til oppvarmingsinstallasjoner av det mer tekniske slaget, som i
produktutviklingsrom, bruksområder, i produksjonsprosesser, frostbeskyttelse etc. Direktivet gjelder heller ikke
installasjoner som benner seg i kjøretøy, offshore eller utendørs. Det er opp til installatøren som er ansvarlig for
installasjonen å vurdere hvorvidt Økodesigndirektivet er gjeldende eller ikke.
FR La réglementation relative à l'écoconception (UE) 2015/1188 concernant les dispositifs de chauffage
décentralisés ne s'applique pas à tous les cas. Elle s'applique lorsqu'une installation est destinée à
assurer un confort thermique à des personnes dans les locaux. Elle ne s'applique pas au chauffage
d'installations d'une nature plus technique (salles des machines/de service, processus de production, protection
contre le gel, etc.). Elle ne s'applique pas non plus aux installations qui se trouvent à bord de véhicules, offshore
ou en extérieur. Il appartient à l'installateur de déterminer si la réglementation relative à l'écoconception
s'applique ou non..

Ecodesign-regulativet (EU) 2015/1188 vedrørende produkter til lokal rumopvarmning gælder ikke for
alle anvendelsesområder.
Regulativet gælder, når en installation har til hensigt at give varmekomfort for personer i lokalerne.
Regulativet gælder ikke for varmeinstallationer af en mere teknisk egenskab, f.eks. i teknikrum eller lign.,
i produktionsprocesser, til frostbeskyttelse etc. Regulativet gælder heller ikke for installation i køretøjer,
offshore eller udendørs. Det er op til den installatør, som er ansvarlig for installationen, at vurdere om
Ecodesign-regulativet er gældende eller ej.
Thermocassette CTS
3
DK
ES
PL
NL
Jeśli chodzi o miejscowe ogrzewacze pomieszczeń, Rozporządzenie (UE) 2015/1188 dotyczące ekoprojektu
nie ma zastosowania do wszystkich obszarów zastosowa. Rozporządzenie to ma zastosowanie, kiedy
zadaniem instalacji jest zapewnienie komfortu termicznego dla ludzi przebywających w budynkach.
Rozporządzenie nie ma zastosowania do instalacji grzewczych mających charakter bardziej techniczny, np. w
pomieszczeniach przemysłowych/gospodarczych, w procesach wytwórczych, jako ochrona przed zamarzaniem itp.
Rozporządzenie nie ma również zastosowania do instalacji w pojazdach, morskich lub na zewnątrz. Do instalatora
odpowiedzialnego za instalację należy ocena, czy Rozporządzenie dotyczące ekoprojektu ma zastosowanie
czy nie.
De ecodesignverordening (EU) 2015/1188 betreffende lokale ruimteverwarmers is niet van toepassing
op alle toepassingsgebieden. De verordening is van toepassing in het geval een installatie bedoeld is
om mensen in het pand te voorzien van verwarmingscomfort. De verordening is niet van toepassing op
verwarmingsinstallaties van een meer technische aard, bijv. in machinekamers/bijkeukens, in productieprocessen,
ten behoeve van vorstbeveiliging, enz. De verordening is ook niet van toepassing op installaties in voertuigen,
offshore of buiten. Het is de taak van de installateur die verantwoordelijk is voor de installatie om te
bepalen of de ecodesignverordening wel of niet van toepassing is.
El Reglamento (UE) 2015/1188 sobre diseño ecológico en relación con los aparatos de calefacción local
no se aplica a todas las áreas de aplicación. El Reglamento se aplica cuando una instalación sirve para
proporcionar confort térmico a las personas que están en el interior. El Reglamento no se aplica a
instalaciones de calefacción de naturaleza más técnica, por ejemplo en salas de ingeniería o cuartos de servicio,
en procesos de producción, protección contra heladas, etc. El Reglamento no se aplica a instalaciones en
vehículos, en alta mar o al aire libre. Corresponde al instalador responsable de la instalación evaluar si se
aplica el Reglamento sobre diseño ecológico o no.
RU
Положения требований Экодизайн (EU) 2015/1188 по приборам локального обогрева не охватывают все
возможные области их применения. Требования Экодизайн применяются, когда установка предназначена для
обеспечения теплового комфорта людей в помещениях. Эти Требования не распространяются на установки
и системы обогрева более сложного технического характера, например, при обогреве технических, служебных и
производственных помещений, при организации защиты от замерзания и т. д. Также требования Экодизайн не
применяются в случае установки оборудования в транспортных средствах, сооружениях на море и на открытых
площадках. Ответственность за определение необходимости применения или не применения требований
Экодизайн несет организация, осуществляющая монтаж данного оборудования.

45
75
7
L
7
592
L
[mm]
CTS3 592
CTS6 1192
Thermocassette CTS
4

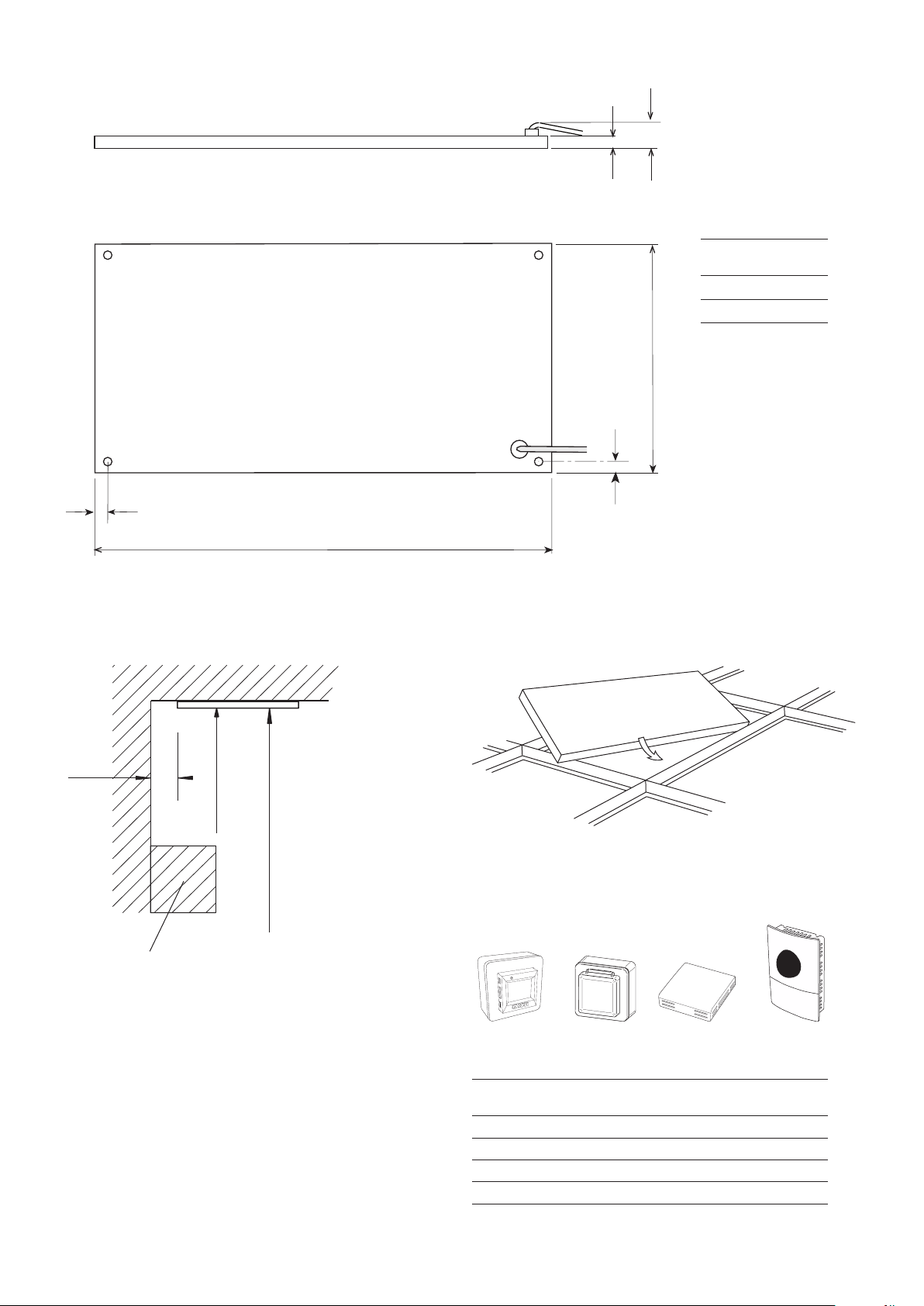

Flammable material
Minimum distances Mounting
50
500
1800
Item
number
Type HxWxD
[mm]
92790 TAP16R 87x87x53
205540 TEP44 87x87x55
93044 RTX54 82x88x25
205550 SKG30 115x85x40
TAP16R TEP44 RTX54 SKG30
Controls
SE: Minimiavstånd, Brännbart material
NO: Minsteavstand, Brennbart materiale
FR: Distances minimales, Matériau inammable
DE: Mindestabstand, Entammbares Material
NL: Minimale afstand, Brandbaar materiaal
ES: Distancias mínimas, Material inamable
PL: Minimalne odległości, Materiał łatwopalny
RU: Минимальные расстояния при установке,
Легковоспламеняемые материалы
FI: Minimietäisyydet, Tulenarka materiaali
DK: Minimumsafstande, Brændbart materiale

Thermocassette CTS
5
EN: Heat output
SE: Värmeeffekt
NO: Varmeeffekt
FR: Puissance
DE: Heizleistung
NL: Verwarmingscapaciteit
ES: Potencia caloríca
PL: Moc grzewcza
RU: Выходная мощность
FI: Lämmitysteho
DK: Varmeeffekt
EN: Voltage
SE: Spänning
NO: Spenning
FR: Tension
DE: Spannung
NL: Voltage
ES: Tensión
PL: Napięcie
RU: Напряжение
FI: Jännite
DK: Spænding
EN: Amperage
SE: Ström
NO: Strøm
FR: Intensité
DE: Stromstärke
NL: Stroomsterkte
ES: Intensidad
PL: Natężenie
RU: Ток
FI: Virta
DK: Strømstyrke
EN: Max. surface temperature
SE: Maximal yttemperatur
NO: Maksimal overatetemp.
FR: Température max. de surface
DE: Max. Oberächentemperatur
NL: Max. oppervlaktetemperatuur
ES: Temperatura supercial máxima
PL: Maksymalna temp. elementu grzejnego
RU: Max. температура поверхности
FI: Suurin pintalämpötila
DK: Maksimal overadetemperatur
EN: Weight
SE: Vikt
NO: Vekt
FR: Poids
DE: Gewicht
NL: Gewicht
ES: Peso
PL: Masa
RU: Вес
FI: Paino
DK: Vægt
Thermocassette CTS (IP20)
Item
number
Type Heat
output
[W]
Voltage
[V]
Amperage
[A]
Max. surface
temperature
[°C]
Dimensions
LxWxH
[mm]
Weight
[kg]
276621 CTS3 300 230V~ 1,30 100 592x592x45 2,0
276622 CTS6 600 230V~ 2,61 100 1192x592x45 4,0
276623 CTSW3* 300 230V~ 1,30 100 592x592x45 2,0
276624 CTSW6* 600 230V~ 2,61 100 1192x592x45 4,0
*) CTSW is equipped with a cable with a Wago plug. Only available for Sweden and Norway.
EN: CTSW is equipped with a cable with a Wago plug. Only available for Sweden and Norway.
SE: CTSW har en kabel med Wago-don. Säljs enbart i Sverige och Norge.
NO: CTSW er utstyrt med en kabel med Wago-støpsel. Bare tilgjengelig for Sverige og Norge.
FR: La CTSW est équipée d’un câble avec une che Wago. Disponible uniquement pour la Suède et la Norvège.
DE: Die CTSW besitzt ein Kabel mit einem Wago-Stecker. Nur verfügbar für Schweden und Norwegen.
NL: De CTSW is voorzien van een kabel met een Wago stekker. Alleen leverbaar in Zweden en Noorwegen.
ES: CTSW incluye un cable con clavija Wago. Solo disponible para Suecia y Noruega.
PL: Model CTSW jest wyposażony w kabel z wtyczką Wago. Dostępny tylko w Szwecji i Norwegii.
RU: CTSW оснащена кабелем и вилкой с клеммником Wago. Доступно только для Швеции и Норвегии.
FI: CTSW on varustettu kaapelilla, jossa on Wago-pistoke. Saatavilla vain Ruotsissa ja Norjassa.
DK: CTSW er udstyret med en ledning med et Wago-stik. Kun tilgængeligt i Sverige og Norge,

Thermocassette CTS
6
Wiring diagrams
LN
230V~
Thermocassette
TAP16R TAP16R
SKG30
Thermocassette Thermocassette
Brown Blue
Brown Blue
LN LN
T2 T1
LOAD LOAD LOAD LOAD
SENSOR SENSOR
SENSOR SENSOR
230V~
230V
~

Thermocassette CTS
7
EN
Installation and operating instructions
Control
When using this product as a local space
heater according to Ecodesign Regulation
(EU) 2015/1188, it must be supplemented with
one of the following approved controls.
• TAP16R, electronic thermostat that includes:
-Electronic room temperature control plus
week timer
-Room temperature control with open
window detection
-Adaptive start control
• TAP16R and SKG30, black bulb sensor that
include:
-Electronic room temperature control plus
week timer
-Room temperature control with open
window detection
-Adaptive start control
-Black bulb sensor
The product can be controlled in a different
way, e.g. by an overall control system (BMS),
but in that case the responsibility lies with the
installer to ensure that the control system is
programmed to make the installation meet
the requirements of Ecodesign Regulation
(EU) 2015/1188.
Maintenance
• The product should always be handled with
clean gloves. Make sure the product is clean
before it is switched on.
• Presence of aerosols, lacquer, solvents,
dust and similar may cause a coating on the
product and discolor them.
• A slight change of colour of the product
over time is normal. Incorrect installation or
uncommonly high ambient temperature can
cause increased discoloration. The output is
not affected.
Packaging
Packaging materials are chosen with
consideration to the environment and are
therefore recyclable.
General Instructions
Read these instructions carefully prior to
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid should the product be used
in the manner intended and in accordance with
the instructions.
Application
Thermocassette CTS is a radiant panel for
recessed mounting in false ceilings. Suited for
total heating as well as for spot heating, CTS
offers discreet heating in for example oces,
entrance halls, school premises, workstations
and store checkouts. Protection class: IP20.
Mounting
Thermocassette CTS is installed horizontally,
recessed in false ceilings. Four hooks are
included. The panel is provided with a nut
in each corner where the hooks or another
fastener can be xed.
Remove the plastic lm from the panel
before mounting.
The heater is placed on the suspended
ceiling framework. See the introduction pages.
1. Place the panel in the required ceiling square.
2. Fix the panel to the building structure, it is
not the false ceiling framework that should
support its weight.
NOTE! Avoid xing vertical bars in the T-prole
where a heating panel is to be installed. The
panel lls out the whole square.
For minimum distance, see diagrams on
introductory pages.
Electrical installation
Thermocassette is intended for permanent
installation. The installation, which should
be preceded by an isolator switch with a
contact separation of at least 3 mm, should
only be wired by a competent electrician and
in accordance with the latest edition of IEE
wiring regulations. The panel is equipped with
a 1,6 meter cable without plug. If the cable is
damaged the unit has to be scrapped.

Thermocassette CTS
8
EN
Handling of product at end of working
life
This product may contain substances necessary
for the functionality of the product but
potentially dangerous for the environment. The
product should not be disposed of mixed with
general household waste but delivered to a
designated collection point for environmental
recycling. Please contact the local authority
for further details of your nearest designated
collection point.
Safety
• For all installations of electrically heated
products a residual current circuit breaker
300 mA for re protection should be used.
• The unit must not be fully or partially covered as
overheating can result in a re risk!
• This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Children of less than 3 years should be kept
away unless continuously supervised.
• Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position and
they have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
• Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
CAUTION — Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.

Main offi ce
Frico AB Tel: [phone]
Industrivägen 41
SE-433 61 Sävedalen [email protected]
Sweden www.frico.net
For latest updated information and information
about your local contact: www.frico.net
2022-01-31 CH
