Fritsch PULVERISETTE 11 User manual

Operang instrucons
KNIFE MILL
PULVERISETTE 11
Read the instrucons prior to performing any task!
Valid starng with: 11.30X0/00001
Translaon of the original operang instrucons

Version 07/2022 Index 014
Fritsch GmbH
Milling and Sizing
Industriestraße 8
D - 55743 Idar-Oberstein
Telephone: [phone]
Email: inf[email protected]
Internet: www.fritsch.de

3
Cercaons and CE conformity
Cercaon
CE Conformity
Cercaons and CE conformity
Fritsch GmbH has been cered by the SGS-TÜV Saar GmbH.
An audit cered that Fritsch GmbH conforms to the requirements of the DIN EN
ISO 9001:2015.
The enclosed Conformity Declaraon lists the guidelines the FRITSCH instrument
conforms to, to be able to bear the CE mark.

4
Table of contents
Table of contents
1 Basic structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2Safety informaon and use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Requirements for the user. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Scope of applicaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 Operang principle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.2 Drive motor and speed regulaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Obligaons of the operator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Informaon on hazards and symbols used in this manual. . . . . . . . . . . . 9
2.5 Device safety informaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.6 Protecve equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6.1 Opening the hood without mains connecon. . . . . . . . . . . . . . . . . . . . 12
2.7 Hazardous points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.8 Electrical safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8.1 General informaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8.2 Protecon against restart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8.3 Overload protecon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.8.4 Operaon on GFCI (Ground-Fault Circuit Interrupters). . . . . . . . . . . . 13
3Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.1 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2 Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Operang noise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.6 Protecon class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.7 Current consumpon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.8 Power consumpon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.9 Electrical fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.10 Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.11 Final neness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4Installaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Seng up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Ambient condions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.6 Electrical connecon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5
Table of contents
5Inial start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Funcon check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 Using the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.1 Installing the cung insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Filling the grinding vessel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2.1 Fill quanty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3 Insert the grinding vessel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4 Close the grinding vessel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4.1 Silicon lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4.2 Vario lid system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4.3 Special lid for cryogenic comminuon. . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5 Closing the hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6 Sengs on the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6.1 Eding SOPs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.6.2 SOP Editor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.6.3 Programming an interval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.7 Comminuon using the cung insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.7.1 Overload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.7.2 Switching o. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.8 Comminuon with liquid nitrogen or dry ice. . . . . . . . . . . . . . . . . . . . . . . 30
7 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1 Oponal accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2 Adapter for employing the single-use grinding containers. . . . . . . . . . . . 33
7.3 Grinding vessel made of glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.1 Comminuon accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.2 Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.1 Knife coupling replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10 Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.1 Error display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.2 Checklist for troubleshoong. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
12 Guarantee terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
13 Exclusion of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
14 Safety logbook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
15 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

6
Basic structure

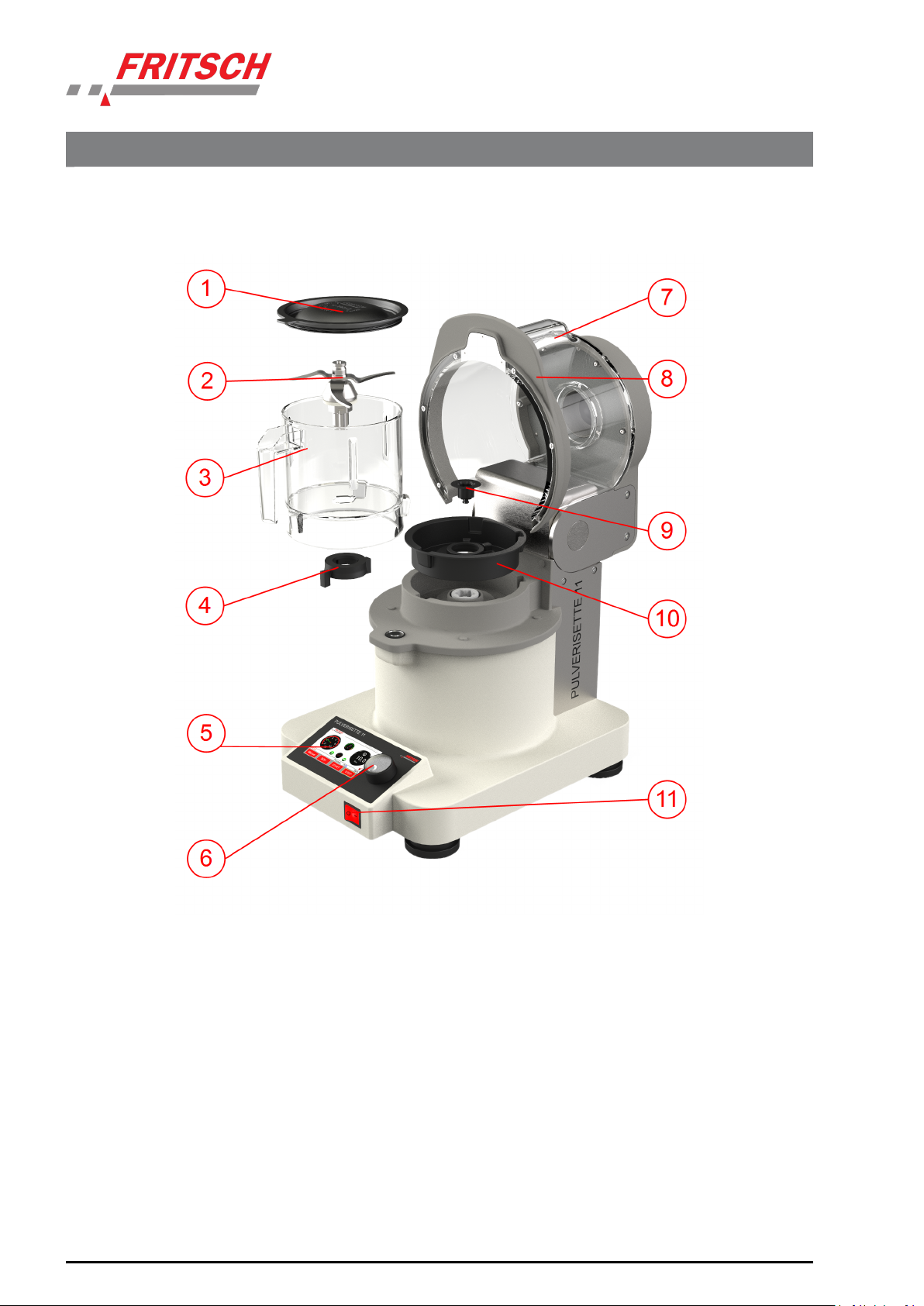

1 Basic structure
1 Silicon lid
2 Knife
3 Grinding vessel
4 Bayonet lock
5 Touchscreen
6 Dial
7 Transparent screen, hood
8 Hood handle
9 Knife coupling
10 Silicon inlay
11 Main switch

7
Safety informaon and use
2 Safety informaon and use
2.1 Requirements for the user
This operang manual is intended for persons assigned with operang and mon-
itoring the Fritsch PULVERISETTE 11. The operang manual and especially its
safety instrucons are to be observed by all persons working on or with this
device. In addion, the applicable rules and regulaons for accident prevenon
at the installaon site are to be observed. Always keep the operang manual at
the installaon site of the PULVERISETTE 11.
People with health problems or under the inuence of medicaon, drugs, alcohol
or exhauson must not operate this device.
The PULVERISETTE 11 may only be operated by authorised persons and serviced
or repaired by trained specialists. All commissioning, maintenance and repair
work may only be carried out by technically qualied personnel. Qualied per-
sonnel are persons who, because of their educaon, experience and training as
well as their knowledge of relevant standards, regulaons, accident prevenon
guidelines and operang condions, are authorised by those responsible for the
safety of the machine to carry out the required work and are able to recognize
and avoid possible hazards as dened for skilled workers in IEC 364.
In order to prevent hazards to users, follow the instrucons in this manual.
Malfuncons that impair the safety of persons, the PULVERISETTE 11 or other
material property must be reced immediately. The following informaon
serves both the personal safety of operang personnel as well as the safety
of the products described and any devices connected to them: All maintenance
and repair work may only be performed by technically qualied personnel.
This operang manual is not a complete technical descripon. Only the details
required for operaon and maintaining usability are described.
Fritsch has prepared and reviewed this operang manual with the greatest care.
However, no guarantee is made for its completeness or accuracy.
Subject to technical modicaons.
2.2 Scope of applicaon
NOTICE
This laboratory instrument is designed for an 8-hour shi oper-
aon at 30 % duty cycle and not for connuous operaon.
The duty cycle is dened as the rao of load duraon to run
me. The run me is dened as load duraon plus pause me.
According to DIN EN 60034-1 (VDE 0530, IEC34-1) a connuous
operaon already takes place aer a standardised run me of
10 minutes. At 30 % duty cycle (DC = rao of load duraon to
run me) a load duraon of 3 minutes and a pause me of 7
minutes would be within standard.
If the standardised run me of 10 minutes is exceeded, then,
by denion, there would be a connuous operaon and
disproporonate temperature increases may occur, possibly
involving increased wear.

8
Safety informaon and use
The Knife Mill PULVERISETTE 11 is universally used for fast and gentle commi-
nuon and homogenisaon of wet, oily, greasy so, medium-hard and brous
samples.
2.2.1 Operang principle
For comminuon with the Knife Mill, the knife is screwed to the grinding vessel
from below and placed in the PULVERISETTE 11. The sample material is lled
into the grinding vessel, which is then closed with a lid. The knife speed can
be adjusted between 2,000 and 10,000 rpm using a dial. A 2-piece knife with
4 stainless steel blades is used for comminuon, or a 2-blade serrated stainless
steel knife for demanding samples.
2.2.2 Drive motor and speed regulaon
A universal AC motor is used as the drive. The speed can be adjusted in incre-
ments of 500 using the dial.
2.3 Obligaons of the operator
Before using the PULVERISETTE 11, this manual is to be carefully read and
understood. The use of the PULVERISETTE 11 requires technical knowledge; only
commercial use is permied.
The operang personnel must be familiar with the content of the operang
manual. For this reason, it is very important that these persons actually receive
the present operang manual. Ensure that the operang manual is always near
the device.
The PULVERISETTE 11 may exclusively be used within the scope of applicaons
set down in this manual and within the framework of guidelines put forth in this
manual. In case of non-compliance or improper use, the customer assumes full
liability for the funconal capability of the PULVERISETTE 11 and for any damage
or injury arising from failure to full this obligaon.
By using the PULVERISETTE 11 the customer agrees with this and recognizes
that defects, malfuncons or errors cannot be completely excluded. To prevent
risk of damage to persons or property or of other direct or indirect damage,
resulng from this or other causes, the customer must implement sucient and
comprehensive safety measures for working with the PULVERISETTE 11.
Neither compliance with this manual nor the condions and methods used
during installaon, operaon, use and maintenance of the PULVERISETTE 11
can be monitored by Fritsch GmbH. Improper execuon of the installaon can
result in property damage and thus endanger persons. Therefore, we assume
absolutely no responsibility or liability for loss, damage or costs that result from
errors at installaon, improper operaon or improper use or improper mainte-
nance or are in any way connected to these.
The applicable accident prevenon guidelines must be complied with.
Generally applicable legal and other obligatory regulaons regarding environ-
mental protecon must be observed.

9
Safety informaon and use
Safety informaon
2.4 Informaon on hazards and symbols used in this manual
Safety informaon in this manual is designated by symbols. Safety informaon is
introduced by keywords that express the extent of the hazard.
DANGER
This symbol and keyword combinaon points out a directly
hazardous situaon that can result in death or serious injury if
not avoided.
WARNING
This symbol and keyword combinaon points out a possibly
hazardous situaon that can result in death or serious injury if
not avoided.
CAUTION
This symbol and keyword combinaon points out a possibly
hazardous situaon that can result in slight or minor injury if
not avoided.
NOTICE
This symbol and keyword combinaon points out a possibly
hazardous situaon that can result in property damage if not
avoided.
Special safety informaon
To call aenon to specic hazards, the following symbols are used in the safety
informaon:
DANGER
This symbol and keyword combinaon points out a directly haz-
ardous situaon due to electrical current. Ignoring informaon
with this designaon will result in serious or fatal injury.
DANGER
This symbol and keyword combinaon designates contents and
instrucons for proper use of the machine in explosive areas
or with explosive substances. Ignoring informaon with this
designaon will result in serious or fatal injury.
DANGER
This symbol and keyword combinaon designates contents
and instrucons for proper use of the machine with combus-
ble substances. Ignoring informaon with this designaon will
result in serious or fatal injury.

10
Safety informaon and use
Please observe!
WARNING
This symbol and keyword combinaon points out a directly
hazardous situaon due to movable parts. Ignoring informaon
with this designaon can result in hand injuries.
WARNING
This symbol and keyword combinaon points out a directly
hazardous situaon due to hot surfaces. Ignoring informaon
with this designaon can result in serious burn injuries due to
skin contact with hot surfaces.
Safety informaon in the procedure instrucons
Safety informaon can refer to specic, individual procedure instrucons. Such
safety informaon is embedded in the procedure instrucons so that the text can
be read without interrupon as the procedure is being carried out. The keywords
described above are used.
Example:
1. Loosen screw.
2. CAUTION
Risk of entrapment at the lid.
Close the lid carefully.
3. Tighten screw.
Tips and recommendaons
This symbol emphasises useful ps and recommendaons as
wells as informaon for ecient operaon without malfunc-
on.
2.5 Device safety informaon
■Only use original accessories and original spare parts. Failure to observe this
instrucon can compromise the safety of the machine.
■Safe conduct must be strictly observed during all work.
■All currently applicable naonal and internaonal accident prevenon guide-
lines must be complied with.
CAUTION
Wear hearing protecon!
If a noise level of 85 dB(A) is reached or exceeded, ear protec-
on should be worn to prevent hearing damage.

11
Safety informaon and use
WARNING
The maximum accepted concentraon (MAC) levels of the rel-
evant safety guidelines must be observed; if necessary, venla‐
on must be provided or the machine must be operated under
an extractor hood.
DANGER
Explosion hazard!
−When Comminuon oxidisable substances, e.g. metal or
coal, there is a risk of spontaneous combuson (dust
explosion) if the proporon of ne parcles exceeds a
certain percentage. When Comminuon these kinds of
substances, special safety measures must be taken and the
work must be supervised by a specialist.
−The device is not explosion-protected and is not suitable
for Comminuon explosive materials.
■Do not remove the informaon signs.
NOTICE
Immediately replace damaged or illegible informaon signs.
■Unauthorised alteraon of the device will void Fritsch's declaraon of con-
formity to European direcves and void the guarantee.
■The PULVERISETTE 11 should only be used when it is in proper working order,
as intended and in a safety- and hazard-conscious manner adhering to the
operang manual. In parcular, immediately recfy any malfuncons that
could pose a safety hazard.
■If, aer reading the operang manual, there are sll quesons or problems,
please do not hesitate to contact our specialised personnel.
■Do not reuse damaged accessories.
■Do not leave the Knife Mill running for several hours without cooling phases.
Risk of overheang!
■The mill must never be le running unsupervised. In certain operang states,
the vibraons may result in a shiing eect on the surface.
2.6 Protecve equipment
Protecve equipment is to be used as intended and may not
be disabled or removed.
All protecve equipment is to be regularly checked for integ-
rity and proper funconing.
For start-up, the hood (3) has to be closed.
The hood (3) is locked:

12
Safety informaon and use
■without mains connecon
■during operaon
The hood (3) can only be opened, if the mill's drive is at
standsll.
2.6.1 Opening the hood without mains connecon
Only open the PULVERISETTE 11 in this way if there are prob-
lems with your mains supply or with the safety lock. Opening
the mill during the grinding process could damage the device.
To open the hood without a mains connecon, proceed as follows:
1. Loosen the four screws on the lower rear panel.
2. Mind the cabling when removing the rear panel.
3. On the right, a cable is aached to the inside that can be used to release
the locking mechanism. Pull it.
🡆The hood is now unlocked!
4. Replace the cable in its provided holder and reinstall the rear panel. The
locking mechanism automacally resets itself correctly when the power
returns.
Follow the following link to view a step-by-step instruconal video on opening
the PULVERISETTE 11 without a mains connecon. ⮫ Click here.
2.7 Hazardous points
CAUTION
Wear safety gloves!
−Crushing hazard when closing the hood!
−The knife may be very hot aer grinding.

13
Safety informaon and use
CAUTION
Crushing hazard!
−Falling accessories during installaon!
Wear safety shoes!
CAUTION
Wear safety gloves!
Mind the knife blades when installing or removing cung tools.
They are very sharp and pose a cung hazard.
2.8 Electrical safety
2.8.1 General informaon
■The main switch (9) separates the device from the mains on two poles.
■Switch o the main switch (9) if the Knife Mill will be idle for an extended
period of me (e.g. overnight).
2.8.2 Protecon against restart
If a power failure occurs during operaon or if the device is switched o with
the main switch (9), the hood is locked. The hood lock is opened when power
returns. For safety reasons, however, the mill does not restart.
2.8.3 Overload protecon
■In the event of overload, the device reduces the power in a controlled
manner. The actual speed may vary depending on the cung material.
■The device switches o if the drive motor becomes too hot.
■The device switches o if the drive is blocked.
2.8.4 Operaon on GFCI (Ground-Fault Circuit Interrupters)
It is possible that the leakage currents will become marginal during operaon.
This may trigger the earth leakage circuit breaker. These values can quickly be
reached when all devices are added to the circuit.
Soluon: Circuit without an earth leakage circuit breaker or, if possible, increase
the earth leakage circuit breaker threshold.

14
Technical data
3 Technical data
3.1 Dimensions
320 x 430 x 480 mm (width x depth x height)
3.2 Weight
Net: 17.6 kg
3.3 Speed
■Speeds between 2,000 - 10,000 rpm can be set in increments of 100 via the
SOP mode. On the home screen you can set it via dial in increments of 500.
■When using the single-use adapter: Speeds between 2,000 - 14,000 rpm can
be set in increments of 100 via the SOP mode. On the home screen you can
set it via dial in increments of 500.
■Turbo funcon with up to 14,000 rpm can be acvated for short periods (not
if using the single-use adapter!)
■2,000 rpm in reverse mode
3.4 Operang noise
CAUTION
The noise level may increase or decrease depending on the
sample material used. Wear hearing protecon during commi-
nuon to prevent hearing damage.
At 10,000 rpm idle speed, a workplace‐specic emission value LpA of 71 dB(A) is
produced.
3.5 Voltage
Single phase alternang current 200 - 240 V
Single phase alternang current 100 - 120 V
3.6 Protecon class
IP 21
3.7 Current consumpon
■200 - 240 V ® 7 A
■100 - 120 V ®10 A
3.8 Power consumpon
Depending on the voltage range, the maximum power consumpon is approx.
1.25 kW.

15
Technical data
3.9 Electrical fuses
2 x 10 AT
1 x 1 AT
3.10 Material
■Maximum feed size 40 mm
■Maximum feed quanty 1300 ml
3.11 Final neness
The nal neness depends highly on the sample and the comminuon parame-
ters.
Depending on the material, a nal neness < 300 µm can be achieved.

16
Installaon
4Installaon
4.1 Transport
DANGER
Do not step under the transport pallet during transport.
■The device is packaged in a wooden crate.
■Reach under the edge of the housing to carry the device.
WARNING
Improper liing can lead to personal injury or property
damage. The machine is only to be lied with suitable equip-
ment and by qualied personnel.
The warranty excludes all claims for damage due to improper transport.
4.2 Unpacking
■Pull out the 4 nails that fasten the lid to the surrounding packaging. (for
delivery in a wooden crate!)
■Remove the lid.
■Take out the accessories and the foam parts.
■Then li the device out of the wooden crate or cardboard box.
■Please store the transport packaging so that it can be reused if you need to
return the product. Fritsch GmbH accepts no liability for damage caused by
improper packaging (packaging that is not from Fritsch).
■Compare the contents of your delivery with your order.
Follow the following link to view a step-by-step instruconal video on unpacking
the PULVERISETTE 11 . ⮫
Click here.
4.3 Seng up
NOTICE
Allow the device to acclimase for two hours before commis-
sioning. High temperature dierences can lead to condensaon
in the device and damage to the electronics aer switching on.
Strong temperature uctuaons can occur during transport or interim storage.
Depending on the temperature dierence between the installaon site and the
transport or storage environment, condensaon can form inside the device. This
can damage the electronics if the devices are switched on too early. Wait for at
least two hours aer setup before switching on the device.

17
Installaon
DANGER
Do not step under the transport pallet during transport.
CAUTION
The knife mill weighs about 17.6 kg.
NOTICE
Never operate the mill while it is standing on the transport
pallet!
4.4 Scope of delivery
Compare the contents of the delivery with your order and the
aached shipping papers.
■PULVERISETTE 11
■Grinding vessel
■Lid for grinding vessel
■Cung tool
■Accessories as ordered
4.5 Ambient condions
WARNING
Mains voltage
−The device may only be operated indoors.
−The surrounding air must not contain any electrically con-
ducve parcles.
−Maximum relave humidity 80% for temperatures up to 31
°C, linearly decreasing down to 50% relave humidity at 40
°C.
■The room temperature should be between 5 and 40 °C.
■Altudes up to 2000 m
■Degree of polluon 2 according to IEC 60664-1:2007.

18
Installaon
4.6 Electrical connecon
DANGER
Provide short-circuit protecon!
Risk of damage due to short-circuits.
−Make sure that the socket is connected to a mains line
protected with a residual current circuit breaker.
DANGER
Mains voltage!
Changes to the connecon line may only be made by a quali-
ed person.
CAUTION
Ignoring the values on the type plate may result in damage to
the electrical and mechanical components.
Before establishing the connecon, compare the voltage and current values
stated on the type plate with the values of the mains system to be used.
1. Plug the supplied power cord into the port on the back of the device.
2. Then connect the device to the mains using the power cord!

19
Inial start-up
5Inial start-up
Perform inial start-up only aer all work as described in ⮫ Chapter 4 ‘Installa-
on’ on page 16 has been carried out.
5.1 Switching on
■Connect the device to the mains.
■Switch on the device with the main switch (9) on the front of the device.
■Display is switched on, the locking mechanism releases with a slight delay.
5.2 Funcon check
■Set the speed to 2000 rpm (see ⮫
Chapter 6.6 ‘Sengs on the control panel’
on page 24 ).
■Clamp the knife with a bayonet lock in the vessel and insert it.
■Close the hood.
■Press START or push the dial.
■Check the set speed and the actual speed.
■To stop the PULVERISETTE 11, release the dial or press the
‘STOP’ buon.

20
Using the device
6 Using the device
CAUTION
If the grinding elements used are not genuine accessories, we
assume no guarantee and exclude all liability for damage to the
device or for personal injury.
DANGER
Explosion hazard!
−When Comminuon oxidisable substances, e.g. metal or
coal, there is a risk of spontaneous combuson (dust
explosion) if the proporon of ne parcles exceeds a
certain percentage. When Comminuon these kinds of
substances, special safety measures must be taken and the
work must be supervised by a specialist.
−The device is not explosion-protected and is not suitable
for Comminuon explosive materials.
NOTICE
Damage to the grinding vessel made of plasc
When grinding materials, make sure that they do not get hoer
than 110° C when using the standard PC plasc grinding vessel.
This can damage the grinding vessel.
The standard grinding vessel made of plasc PC is unsuitable
for samples containing fat or fruit. The acids contained therein
can irreversibly aack the grinding vessel (formaon of micro-
cracks).
NOTICE
The grinding vessel made of Tritan™ is food safe, tasteless, heat
resistant up to 85°C, colour stable, chemical resistant, dish-
washer safe up to max. 80°C (80 cycles, with manual cleaning
up to 300 cycles), free from bisphenol A (BPA) and free from
plascizers.
NOTICE
Due to the high energies and the blade geometry, high temper-
atures (around 60°C) can occur on the material to be ground,
depending on the speed and grinding me. This temperature
can have a strong/irreversible eect on sensive samples! (e.g.
denaturaon of organic samples)
