Fritsch PULVERISETTE 7 premium line User manual

PLANETARY MICRO MILL
PULVERISETTE 7 premium line
Operating instructions
Valid starting with: 07.5000/00100
Read the instructions prior to performing any task!
Translation of the original operating instructions

Version 10/2013 Index 020
Fritsch GmbH
Milling and Sizing
Industriestraße 8
D - 55743 Idar-Oberstein
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Internet: www.fritsch.de

Certifications and CE conformity
Fritsch GmbH has been certified by the TÜV-Zertifizierungsgemeinschaft
e.V.
An audit certified that Fritsch GmbH conforms to the requirements of
the DIN EN ISO 9001:2008.
The enclosed Conformity Declaration lists the guidelines the FRITSCH
instrument conforms to, to be able to bear the CE mark.
Certification
CE Conformity
Certifications and CE conformity
- 3 -

Table of contents
1Safety information and use........................................................... 8
1.1 Requirements for the user..................................................... 8
1.2 Scope of application............................................................... 8

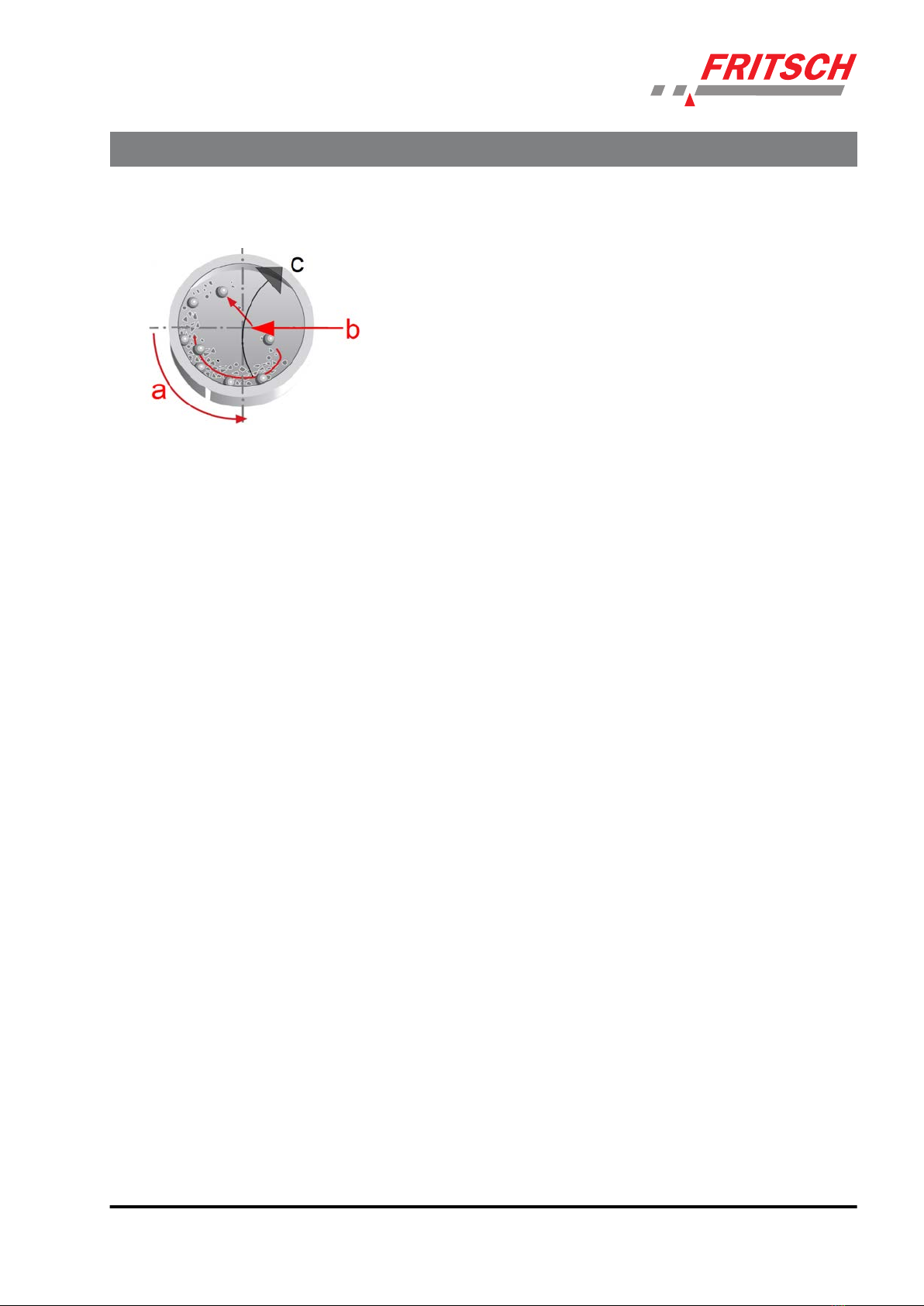

1.2.1 Operating principle............................................................. 9
1.2.2 Drive motor and speed regulation...................................... 9
1.3 Obligations of the operator................................................... 9
1.4 Information on hazards and symbols used in this manual.. 10
1.5 Information on hazards at the device.................................. 13
1.6 Device safety information.................................................... 13
1.7 Protective equipment.......................................................... 15

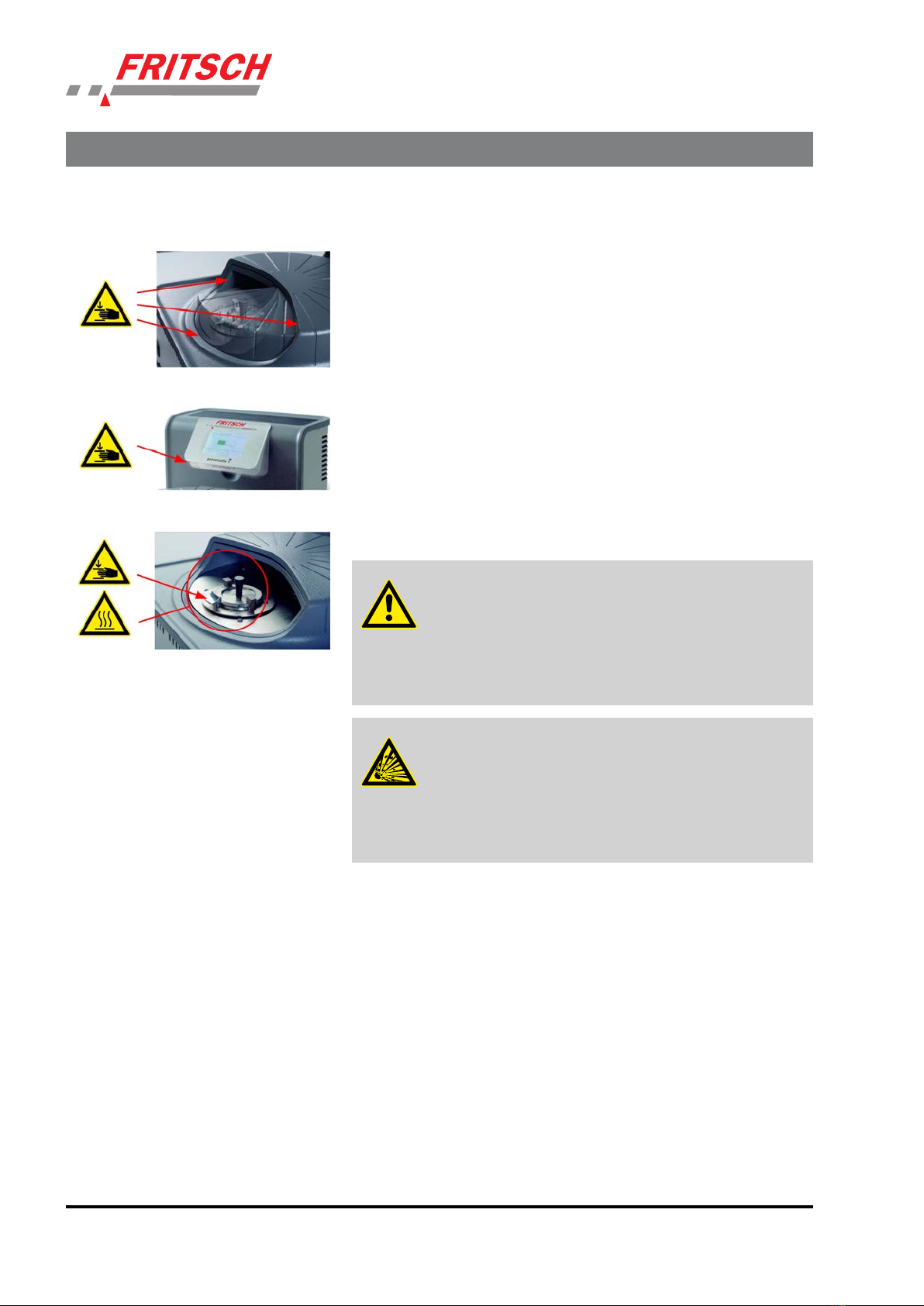

1.8 Hazardous points................................................................. 16
1.9 Electrical safety.................................................................... 16
1.9.1 General information......................................................... 16
1.9.2 Protection against restart................................................. 17
1.9.3 Overload protection.......................................................... 17
1.9.4 Imbalance detection......................................................... 17
2 Technical data.............................................................................. 18
2.1 Dimensions.......................................................................... 18
2.2 Weight.................................................................................. 18
2.3 Operating noise.................................................................... 18
2.4 Voltage................................................................................. 18
2.5 Current consumption........................................................... 18
2.6 Power consumption............................................................. 18
2.7 Electrical fuses..................................................................... 19
2.8 Material................................................................................ 19
2.9 Final fineness....................................................................... 19
3 Installation................................................................................... 20
3.1 Transport............................................................................. 20
3.2 Unpacking............................................................................ 20
3.3 Setting up............................................................................. 21
3.4 Ambient conditions.............................................................. 22
3.5 Electrical connection............................................................ 22
4 Initial start-up.............................................................................. 24
4.1 Switching on......................................................................... 24
4.2 Function check..................................................................... 24
4.3 Switching off........................................................................ 26
5 Using the device........................................................................... 27
5.1 Safety information............................................................... 27
5.1.1 General information......................................................... 28
5.1.2 Overpressure relief of the grinding bowls........................ 29
Table of contents
- 4 -

5.1.3 Grinding bowl lid............................................................... 31
5.2 Choice of grinding bowls and grinding balls........................ 31
5.2.1 Useful capacity of the grinding bowls............................... 33
5.2.2 Size of the grinding balls................................................... 33
5.2.3 Number of balls per grinding bowl (independent of the
material quantity)............................................................. 34
5.2.4 Calculated weight of a ball................................................ 35
5.3 Impact of the ball size and the material during grinding..... 35
5.4 Filling quantities of grinding bowls...................................... 36
5.5 Filling the grinding bowl....................................................... 37
5.6 Factors with an impact on grinding..................................... 37
5.6.1 Running time (grinding duration)..................................... 37
5.6.2 Speed................................................................................ 37
5.6.3 Reverse mode................................................................... 37
5.6.4 Number and size of the balls............................................ 38
5.6.5 Weight of the balls (type of material)............................... 38
5.7 Dry grinding.......................................................................... 38
5.8 Wet grinding (grinding in a suspension).............................. 38
5.8.1 The effect of high temperature........................................ 39
5.8.2 Safety measures against an excessively high pressure..... 40
5.9 Handling the grinding bowl.................................................. 41
5.9.1 Design............................................................................... 41
5.9.2 Opening the grinding bowl after a grinding operation..... 41
5.9.3 Closing the grinding bowl.................................................. 42
5.9.4 Inserting the grinding bowl in the grinding bowl holder.. 45
5.9.5 Removing the grinding bowl............................................. 46
5.10 Mass balance..................................................................... 48
5.11 Grinding duration............................................................... 49
5.12 Conducting a grinding operation....................................... 49
5.12.1 Program sequence after switching on............................ 50
5.12.2 Starting grinding at high speed....................................... 53
5.12.3 Overload......................................................................... 54
5.12.4 "Program" menu item..................................................... 54
5.12.5 Saving the current data................................................... 55
5.12.6 Loading the program....................................................... 55
5.12.7 Setting the time control.................................................. 56
5.12.8 Imbalance check............................................................. 57
5.12.9 Switching off................................................................... 59
5.12.10 Cooling the grinding bowl............................................. 59
6 Accessories................................................................................... 60
6.1 Standard gassing lid for grinding with inert gas................... 60
6.1.1 Scope of delivery............................................................... 60
6.1.2 Fitting the gassing lid on the grinding bowl...................... 61
Table of contents
- 5 -

6.1.3 Hose adapter for grinding bowl gassing............................ 63
6.1.4 Removing the gassing lid in individual steps..................... 64
6.2 Gassing lid with stainless steel, swagelok hose couplings... 66
6.2.1 Scope of delivery / lid design............................................ 67
6.2.2 Fitting the gassing lid on the grinding bowl...................... 67
6.2.3 Hose adapter for grinding bowl gassing............................ 69
6.2.4 Removing the gassing lid in individual steps..................... 70
6.3 EASY GTM Gas Pressure and Temperature Measuring
System.................................................................................. 72
6.3.1 Case contents and system design..................................... 72
6.3.2 Inserting / changing the battery....................................... 73
6.3.3 Configuration of transmitter ID and data transmission
frequency.......................................................................... 75
6.3.4 Installation of the transmission unit on the EASY GTM
bowl.................................................................................. 76
6.3.5 Installation of the receiver board in the P-7 premium
line.................................................................................... 78
6.3.6 Activating EASY GTM......................................................... 79
6.3.7 Entering the temperature limit......................................... 81
6.3.8 Entering the pressure limit............................................... 82
6.3.9 Selecting the operating mode........................................... 83
6.3.10 Deactivating EASY GTM................................................... 83
6.3.11 Cleaning the EASY GTM system...................................... 84
6.3.12 Battery arrangement...................................................... 86
6.4 Special emptying device for grinding bowls......................... 86
6.4.1 Design............................................................................... 87
6.4.2 Handling............................................................................ 87
6.4.3 Cleaning the special emptying device............................... 90
6.5 Compl. counterweight......................................................... 90
6.5.1 Design............................................................................... 91
6.5.2 Handling............................................................................ 91
6.6 Planetary mills - "MillControl" software.............................. 93
7 General and optional settings .................................................... 94
7.1 Standard Operation Procedure............................................ 94
7.1.1 Activating SOP mode......................................................... 95
7.1.2 Deactivating SOP mode..................................................... 95
7.1.3 Deleting SOP mode........................................................... 96
7.2 RFID...................................................................................... 97
7.3 Language change................................................................. 98
7.4 Screen brightness................................................................. 99
7.5 Information........................................................................ 100
7.6 Interfaces........................................................................... 101
7.7 Firmware update................................................................ 102
Table of contents
- 6 -

8 Cleaning...................................................................................... 104
8.1 Grinding elements.............................................................. 104
8.2 Mill..................................................................................... 104
8.2.1 Removing the grinding chamber cover........................... 105
9 Maintenance.............................................................................. 106
10 Guarantee terms........................................................................ 107
11 Exclusion of liability................................................................... 109
12 Safety logbook........................................................................... 111
13 Index........................................................................................... 113
Table of contents
- 7 -

1 Safety information and use
1.1 Requirements for the user
This operating manual is intended for persons assigned with operating
and monitoring the Fritsch of the PULVERISETTE 7 premium line. The
operating manual and especially its safety instructions are to be
observed by all persons working on or with this device. In addition, the
applicable rules and regulations for accident prevention at the installa-
tion site are to be observed. Always keep the operating manual at the
installation site of the of the PULVERISETTE 7 premium line.
People with health problems or under the influence of medication,
drugs, alcohol or exhaustion must not operate this device.
The of the PULVERISETTE 7 premium line may only be operated by
authorised persons and serviced or repaired by trained specialists. All
commissioning, maintenance and repair work may only be carried out by
technically qualified personnel. Qualified personnel are persons who,
because of their education, experience and training as well as their
knowledge of relevant standards, regulations, accident prevention guide-
lines and operating conditions, are authorised by those responsible for
the safety of the machine to carry out the required work and are able to
recognize and avoid possible hazards as defined for skilled workers in IEC
364.
In order to prevent hazards to users, follow the instructions in this
manual.
Malfunctions that impair the safety of persons, the of the PULVERISETTE
7 premium line or other material property must be rectified immedi-
ately. The following information serves both the personal safety of oper-
ating personnel as well as the safety of the products described and any
devices connected to them: All maintenance and repair work may only
be performed by technically qualified personnel.
This operating manual is not a complete technical description. Only the
details required for operation and maintaining usability are described.
Fritsch has prepared and reviewed this operating manual with the
greatest care. However, no guarantee is made for its completeness or
accuracy.
Subject to technical modifications.
1.2 Scope of application
The planetary micro mill, "PULVERISETTE 7 premium line", can be applied
universally for the fast dry or wet grinding of inorganic and organic sam-
ples for analysis, quality inspection or material testing.
During the synthesis, the planetary micro mill is for mixing and homoge-
nising dry samples, emulsions or suspensions.
The planetary micro mill "PULVERISETTE 7 premium line" described here
is an equipment item for use in industrial environments.
The device may be used for these purposes only.
Safety information and use
- 8 -

1.2.1 Operating principle
a Rotation of the grinding bowl
b Centrifugal force
c Rotation of the support disc
The source material is crushed and ground by grinding balls in a grinding
bowl. The centrifugal forces from the rotation of the grinding bowls
around their own axis and from the rotating support disc have an effect
on the contents of the grinding bowl, consisting of material to be ground
and grinding balls.
The grinding bowl and the support disc have opposite directions of rota-
tion, in order that the centrifugal forces alternate in the same direction
and in the opposite direction.
The result is that the grinding balls run down the inside of the bowl's wall
with a friction effect and the grinding balls hit the opposite wall of the
grinding bowl with an impact effect.
1.2.2 Drive motor and speed regulation
A maintenance-free electric motor operated via frequency converter is
used as the drive.
1.3 Obligations of the operator
Before using the of the PULVERISETTE 7 premium line, this manual is to
be carefully read and understood. The use of the of the PULVERISETTE 7
premium line requires technical knowledge; only commercial use is per-
mitted.
The operating personnel must be familiar with the content of the oper-
ating manual. For this reason, it is very important that these persons
actually receive the present operating manual. Ensure that the operating
manual is always near the device.
The of the PULVERISETTE 7 premium line may exclusively be used within
the scope of applications set down in this manual and within the frame-
work of guidelines put forth in this manual. In case of non-compliance or
improper use, the customer assumes full liability for the functional capa-
bility of the PULVERISETTE 7 and for any damage or injury arising from
failure to fulfil this obligation.
By using the of the PULVERISETTE 7 premium line the customer agrees
with this and recognizes that defects, malfunctions or errors cannot be
completely excluded. To prevent risk of damage to persons or property
or of other direct or indirect damage, resulting from this or other causes,
the customer must implement sufficient and comprehensive safety
measures for working with the of the PULVERISETTE 7 premium line.
Safety information and use
- 9 -

Neither compliance with this manual nor the conditions and methods
used during installation, operation, use and maintenance of the of the
PULVERISETTE 7 premium line can be monitored by Fritsch GmbH.
Improper execution of the installation can result in property damage and
thus endanger persons. Therefore, we assume absolutely no responsi-
bility or liability for loss, damage or costs that result from errors at instal-
lation, improper operation or improper use or improper maintenance or
are in any way connected to these.
The applicable accident prevention guidelines must be complied with.
Generally applicable legal and other obligatory regulations regarding
environmental protection must be observed.
1.4 Information on hazards and symbols used in this manual
Safety information in this manual is designated by symbols. Safety infor-
mation is introduced by keywords that express the extent of the hazard.
DANGER!
This symbol and keyword combination points out a directly
hazardous situation that can result in death or serious
injury if not avoided.
WARNING!
This symbol and keyword combination points out a possibly
hazardous situation that can result in death or serious
injury if not avoided.
CAUTION!
This symbol and keyword combination points out a possibly
hazardous situation that can result in slight or minor injury
if not avoided.
NOTICE!
This symbol and keyword combination points out a possibly
hazardous situation that can result in property damage if
not avoided.
To call attention to specific hazards, the following symbols are used in
the safety information:
Safety information
Special safety information
Safety information and use
- 10 -

DANGER!
This symbol and keyword combination points out a directly
hazardous situation due to electrical current. Ignoring infor-
mation with this designation will result in serious or fatal
injury.
DANGER!
This symbol and keyword combination designates contents
and instructions for proper use of the machine in explosive
areas or with explosive substances. Ignoring information
with this designation will result in serious or fatal injury.
DANGER!
This symbol and keyword combination designates contents
and instructions for proper use of the machine with com-
bustible substances. Ignoring information with this designa-
tion will result in serious or fatal injury.
WARNING!
This symbol and keyword combination points out a directly
hazardous situation due to movable parts. Ignoring infor-
mation with this designation can result in hand injuries.
WARNING!
This symbol and keyword combination points out a directly
hazardous situation due to hot surfaces. Ignoring informa-
tion with this designation can result in serious burn injuries
due to skin contact with hot surfaces.
Safety information can refer to specific, individual procedure instruc-
tions. Such safety information is embedded in the procedure instructions
so that the text can be read without interruption as the procedure is
being carried out. The keywords described above are used.
Safety information in the procedure
instructions
Safety information and use
- 11 -

Example:
1. Loosen screw.
2.
CAUTION!
Risk of entrapment at the lid.
Close the lid carefully.
3. Tighten screw.
This symbol emphasises useful tips and recommendations
as wells as information for efficient operation without mal‐
function.
To emphasise procedure instructions, results, lists, references and other
elements, the following designations are used in this manual:
Designation Explanation
1., 2., 3. ...
Step-by-step procedure instructions
ðResults of steps in the procedure
References to sections in this manual and rele-
vant documentation
Lists without a specific order
[Button] Operating elements (e.g. push button, switch),
display elements (e.g. signal lamps)
‘Display’ Screen elements (e.g. buttons, function key
assignment)
Tips and recommendations
Further designations
Safety information and use
- 12 -

1.5 Information on hazards at the device
There is a laser radiation hazard warning on the back of the device.
It is explained below.
Do not remove the information and warning signs.
Caution! Hot surface
Caution! Crushing hazard
1.6 Device safety information
nOnly use genuine accessories and genuine spare parts. Failure to
observe this instruction can compromise the safety of the machine.
nAccident-proof conduct is to be strictly followed during all work.
Safety information and use
- 13 -

DANGER!
Explosion hazard!
– Wear safety goggles. The high temperature or chemical
reactions during the grinding process may result in
overpressure in the grinding bowl. Splashing hazard!
Explosion hazard! Do not fail to observe
Ä ‘Safety
information’ on page 27 and
Ä ‘Safety measures
against an excessively high pressure’ on page 40.
– Never use brute force to open the grinding bowl. Open
the grinding bowl only if you are sure that the internal
pressure has been released completely. Observe the
opening instructions in
Ä ‘Opening the grinding bowl
after a grinding operation’ on page 41 and
Ä ‘Safety
measures against an excessively high pressure’
on page 40.
– The device may only be operated indoors. The sur-
rounding air must not contain any electrically conduc-
tive dust.
– When grinding oxidisable substances (e.g. metal or
coal), there is a risk of spontaneous combustion (dust
explosion) if the proportion of fine particles exceeds a
certain percentage. Chemical reactions are also pos-
sible during wet grinding. When grinding these kinds of
substances, special safety measures (e.g. wet grinding)
must be taken and the work must be supervised by a
specialist.
– The device is not explosion-protected and is not suit-
able for grinding explosive materials.
DANGER!
– Do not reuse damaged accessories.
–If the planetary micro mill or its components are dam-
aged or if its operation is not as described in the oper-
ating manual, the device may not be put into service. In
such a case, consult your Fritsch GmbH representative
or distributor.
WARNING!
The maximum accepted concentration (MAC) levels of the
valid safety regulations must be observed. If necessary,
ventilation must be provided or the machine must be oper-
ated under an extractor hood.
Safety information and use
- 14 -

CAUTION!
– Wear hearing protection! Above a sound level of
90dB(A)
–Wear safety gloves! The grinding bowls may get very
hot. See
Ä ‘Hazardous points’ on page 16, Ä ‘The
effect of high temperature’ on page 39 and
Ä ‘Cooling
the grinding bowl’ on page 59.
– Do not grind with the device for several hours in suc-
cession without cooling phases. Risk of overheating!
– The device may not be run without supervision. In cer-
tain operating states, the vibrations may result in a
shifting effect on the surface.
nDo not remove the information signs.
nUnauthorised alteration of the device will void Fritsch's declaration
of conformity to European directives and void the guarantee.
nIf, after reading the operating manual, there are still questions or
problems, please do not hesitate to contact our specialists.
1.7 Protective equipment
Protective equipment is to be used as intended and may not
be disabled or removed.
All protective equipment is to be regularly checked for
integrity and proper functioning.
DANGER!
– The valves on the grinding bowls may not be repaired.
nEach time before using the planetary micro mill, check that the pro-
tective equipment is not damaged or contaminated (see
Ä ‘Haz‐
ardous points’ on page 16,
Ä ‘Electrical safety’ on page 16 and
Ä ‘Safety information’ on page 27).
nDo not make any changes to the protective equipment, apart from
the maintenance tasks listed in the operating manual.
nThe device's grinding chamber cover can only be opened and closed
by a motor and therefore not without a connection to the power
supply. See
Ä ‘Protection against restart’ on page 17.
nIt can only be opened when the mill comes to a stop.
nThe grinding chamber cover must always be closed during grinding.
nWhen the grinding chamber cover is open, the mill's mechanical unit
is locked mechanically to prevent it from starting.
Safety information and use
- 15 -

1.8 Hazardous points
nCrushing hazard when opening and closing the grinding chamber
cover (the closing force can be adjusted, consult Fritsch GmbH).
nCrushing hazard when adjusting the control display.
nCrushing hazard when using the locking lever.
CAUTION!
Fire hazard at the grinding bowl after grinding and during
the grinding pauses. See
Ä ‘Impact of the ball size and the
material during grinding’ on page 35,
Ä ‘The effect of high
temperature’ on page 39 and
Ä ‘Cooling the grinding bowl’
on page 59.
DANGER!
The grinding bowl may open extremely suddenly if the
internal pressure is too high. Never use brute force to open
the bowl. Do not fail to observe
Ä ‘The effect of high tem‐
perature’ on page 39 and
Ä ‘Safety measures against an
excessively high pressure’ on page 40.
1.9 Electrical safety
1.9.1 General information
nThe main switch separates the device from the power supply with
two poles.
nTurn off the main switch if the planetary micro mill is "out of service"
for prolonged periods (e.g. overnight).
Safety information and use
- 16 -

1.9.2 Protection against restart
In the case of a power failure during operation or after turning the
device off at the main switch, the grinding chamber cover is locked.
When the power supply is restored, the grinding chamber is not opened
until the software detects that the drive is stationary. For safety reasons,
however, the planetary micro mill does not restart.
1.9.3 Overload protection
nIn the event of an overload, the device reduces the speed in a con-
trolled manner. This special operating state is indicated on the dis-
play.
nThe device shuts down if the drive motor becomes too hot.
nThe device shuts down if the drive is blocked.
1.9.4 Imbalance detection
The device shuts down if there is excessive imbalance. See
Ä ‘Using the
device’ on page 27.
Safety information and use
- 17 -

2 Technical data
2.1 Dimensions
360 mm x 400 mm x 580 mm
(height x width x depth)
2.2 Weight
Net: approx. 44 kg
Gross: approx. 61 kg
2.3 Operating noise
The sound level is approx. 74 dB (A). This value fluctuates significantly,
depending on the speed and material to be ground and on the type of
grinding bowl and grinding balls.
The device is rated with IP 20.
2.4 Voltage
The device can be operated in two voltage ranges:
nWide range input 100-240 V ± 10 %.
Transient overvoltage according to overvoltage category II permitted.
If the device is to be operated with two different voltages,
e.g. 115 V or 230 V, it must be disconnected from the power
supply at least 60 seconds before switching over the
voltage.
2.5 Current consumption
The maximum current consumption is approx. 10 A (115 V)
or 5 A (230 V).
2.6 Power consumption
The maximum power consumption is approx. 1100 W.
Technical data
- 18 -

2.7 Electrical fuses
nFuses on the back of device: 2x10 A T
2.8 Material
nMaximum feed amount in the case of hard material approx. 5 mm
nMaximum feed amount 2 x 35 ml
2.9 Final fineness
nDry grinding up to d50 < 20 µm (depending on the material)
nWet grinding up to d50 < 0.1 µm (depending on the material)
Technical data
- 19 -

3 Installation
3.1 Transport
The device is delivered on a transport pallet with a wooden cover. We
recommend using a forklift or pallet truck for transporting the packed
device.
DANGER!
Do not step under the transport pallet during transport.
WARNING!
Improper lifting can lead to personal injury or property
damage. The machine is only to be lifted with suitable
equipment and by qualified personnel.
The guarantee excludes all claims for damage due to improper transport.
3.2 Unpacking
nOpen the straps of the packaging.
nRemove the lid from the crate or open the crate upwards.
nRemove the accessory cardboard pieces and additional padding.
nLift the upper part of the packaging off the transport pallet.
nThe device can now be lifted off the pallet and out of the foam pad-
ding.
CAUTION!
Crushing hazard!
Always lift with 2 persons.
Hold the bottom edge of the housing when lifting.
nCompare the contents of the delivery with your order.
Installation
