Front Runner RRAC189 Quick start guide

RRAC189_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
Fork Mount
Bike Carrier /Power Edition
RRAC189
ENG
1
Thank you for purchasing a Front Runner Fork Mount Bike Carrier / Power Edition.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
front runner

RRAC189_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS 2
TOOLS NEEDED
FIGURE 1.1
CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM
GET ORGANIZED
1
IN THE BOX
3
1 1 X Bike Rear Wheel Holder
2 1 X Thru Axle Bracket (68mm)
3 2 X Quick Release 9mm Insert
4 1 X Fork Mount Holder Quick Release
5 4 X M8 x 20 Hex Head Bolt
6 4 X M8 Nyloc Nut
7 4 X M8 Nut Cap
8 2 X M6 x 16 Button Head Bolt
9 2 X M6 Nyloc Nut
10 2 X M6 Nut Cap
11 1 X Angled Bracket
12 1 X Strap 300mm
4mm
5mm
6
7
5
2
1
12
4
9
10
11
8
8
10 9
10mm
13mm

RRAC189_REV_A00 3
© 2021 FRONT RUNNER VEHICLE OUTFITTERS

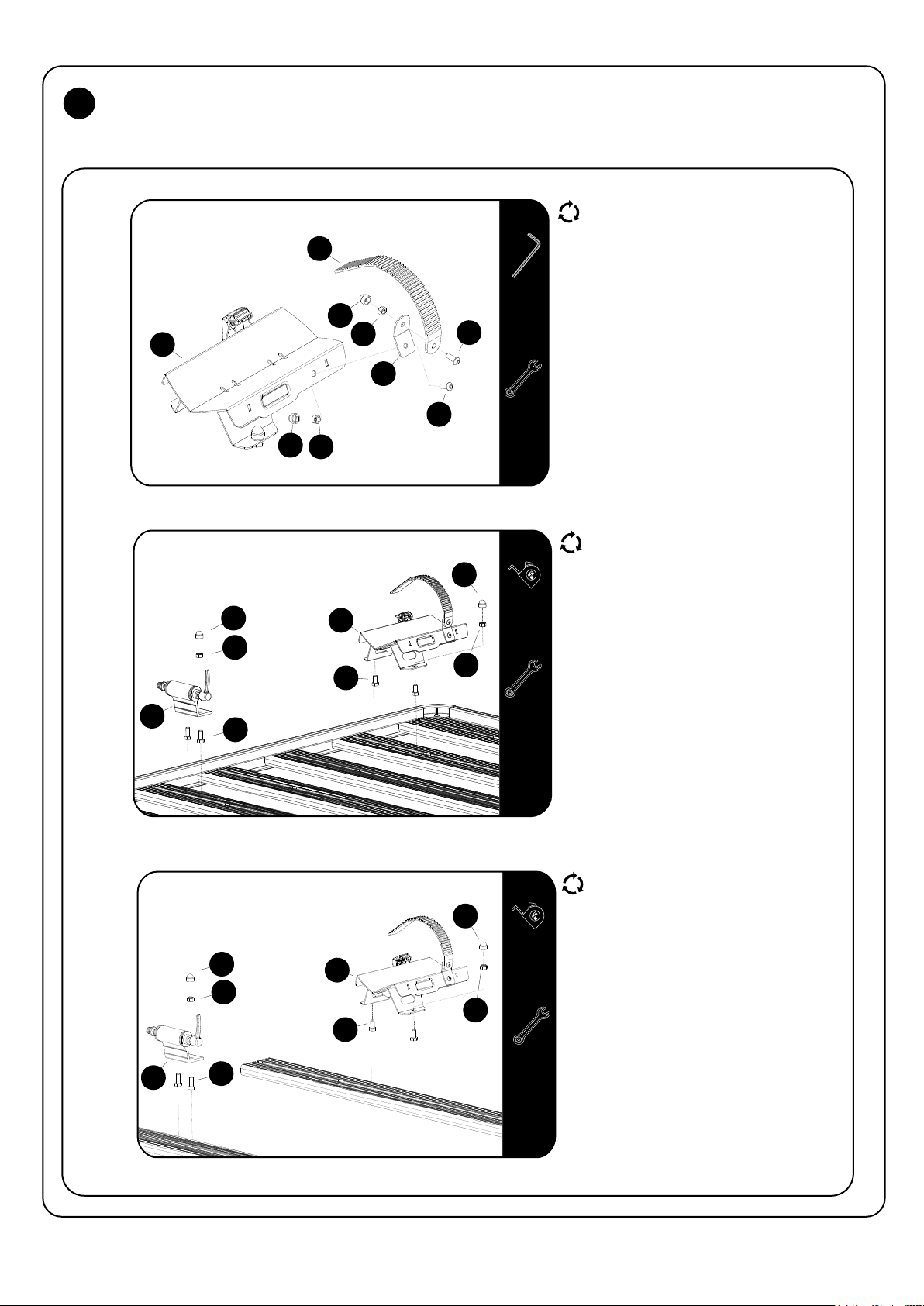

FIT AND SECURE
2
4MM
2.1
2.2
2.3
13MM
13MM
Mounting to a SLII Rack
Mounting to a Load Bar
10MM
8
8
11
9
10
12
1
9
10
Assemble the Quick Release 9mm Insert to
the Thru Axle Bracket (Item 2 & 3) as shown
in fig 1.1. Decide where you want to mount
your bicycle on the rack. Figure out the
correct spacing between the fork and rear
wheel. To fit the Thru Axle Extrusion (Item
2), slide two M8 x 20 Hex Bolts (Item 5) into
the T-slot of the choosen slat. Place the Thru
Axle Bracket (Item 2) over the two Hex bolts
and secure to the rack using two M8 Nyloc
Nuts (Item 6) This will apply to Load Bars
as well. Mount the Rear Wheel Mounting
Bracket (Item 1) to a slat / combined slat as
shown. Slide two M8 x 20 Hex Bolts (Item 5)
into the chosen slat / combined slat. place
the Bracket over the Hex Bolts and line up
the Bracket with the center of the Thru Axle
Bracket. Secure the Rear Wheel Bracket to
the rack using M8 Nyloc Nuts (Item 6). Place
M8 Nut caps over all Hex Bolts.
Assemble the Quick Release 9mm Insert to
the Thru Axle Bracket (Item 2 & 3) as shown
in fig 1.1. Figure out the correct spacing
between the fork and rear wheel. To fit the
Thru Axle Extrusion (Item 2), slide two M8
x 20 Hex Bolts (Item 5) into the T-slot of the
choosen slat. Place the Thru Axle Bracket
(Item 2) over the two Hex bolts and secure
to the Load Bars using two M8 Nyloc Nuts
(Item 6). Mount the Rear Wheel Mounting
Bracket (Item 1) to the rear slat as shown.
Slide two M8 x 20 Hex Bolts (Item 5) into
the front slat. Place the Bracket over the
Hex Bolts and line up the Bracket with the
center of the Thru Axle Bracket. Secure the
Rear Wheel Bracket to the Load Bars using
M8 Nyloc Nuts (Item 6). Place M8 Nut caps
over all Hex Bolts.
If the Strap (Item 12) needs to be length-
ened, use the Angle Bracket (Item 11).
Loosen the Strap and secure the Angle
Bracket to the Rear Wheel Mounting Bracket
(Item 1) using the existing fasteners.
Secure the Strap to the Angle Bracket
(Item 11) using M6 x 16 Button Head and
M6 Nyloc Nut (Items 8 & 9).
Place M6 Nut Caps (Item 10) over all M6
Nyloc Nuts.
5
2
6
7
5
6
7
1
5
2
6
7
5
1
6
7

RRAC189_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS
4
2
6
7
5
7
6
5
1
13MM
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
4
Now's the time to visit your favorite Front Runner dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:
FINISH
3
Congratulations! You did it. Take a step back and admire your work!
Assemble the Quick Release 9mm Insert
to the Thru Axle Bracket (Item 2 & 3) as
shown in fig 1.1. Decide where you want to
mount your bicycle on the rack. Figure out
the correct spacing between the fork and
rear wheel. To fit the Thru Axle Extrusion
(Item 2), slide two M8 x 20 Hex Bolts (Item
5) into the T-slot of the choosen slat. Place
the Thru Axle Bracket (Item 2) over the two
Hex bolts and secure to the rack using two
M8 Nyloc Nuts (Item 6). Mount the Rear
Wheel Mounting Bracket (Item 1) to a slat
as shown. Slide two M8 x 20 Hex Bolts (Item
5) into the chosen slat. place the Bracket
over the Hex Bolts and line up the Bracket
with the center of the Thru Axle Bracket.
Secure the Rear Wheel Bracket to the rack
using M8 Nyloc Nuts (Item 6). Place M8 Nut
caps over all Hex Bolts.
Mounting to a Slimsport Rack
2.4
