Furuno FCV-1100L User manual

COLOR LCD SOUNDER
FCV-1100L

Your Local Agent/DealerYour Local Agent/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a, Ja
p
anNishinomi
y
a, Ja
p
an
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
fa
x
fa
x
0798-65-42000798-65-4200
::
F
IRST EDITION :
F
IRST EDITION :
A
UG.
A
UG. 20012001
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved. C2C2 :: DEC.DEC. 10,200310,2003
PUB.No.PUB.No. IME-23670-C2IME-23670-C2
*00080922000**00080922000*
*00080922000**00080922000*
(( TENITENI )) FCV-1100LFCV-1100L * 0 0 0 8 0 9 2 2 0 0 0 ** 0 0 0 8 0 9 2 2 0 0 0 *
*IME23670C20**IME23670C20*
*IME23670C20**IME23670C20*
* I M E 2 3 6 7 0 C 2 0 ** I M E 2 3 6 7 0 C 2 0 *

i
SAFETY INSTRUCTIONS
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel. Also,
confirm that the transducer will not loosen
by ship's vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Install the transducer according
to the installation instructions.
Failure to install the transducer correctly
may result in water leakage and damage to
the ship's hull.
For wooden or FRP vessel using a steel
tank, attach a zinc plate to the hull to
prevent electrolytic corrosion.
Electrolytic corrosion can, in the worst
case, result in loss of the transducer.

ii
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Ground the equipment to
prevent mutual interference.
Do not allow warm water or any other
liquid other than seawater or freshwater
to contact the transducer.
Damage to the transducer may result.
Do not install the transducer where
noise or air bubbles is present.
Performance will be affected.
CAUTION
The transducer cable must he handled
carefully, following the guidelines
below.
•Keep fuels and oils away from the
cable.
•Locate the cable where it will not be
damaged.
•The cable sheath is made of chloro-
phrene or polychloride vinyl, which
are easily by damaged plastic solvents
such as toulene. Locate the cable
well away from plastic solvents.
Standard
compass
Steering
compass
CV-1100L
0.7 m 0.5 m

iii
TABLE OF CONTENTS
SYSTEM CONFIGURATION................................................................................iv
EQUIPMENT LISTS..............................................................................................v
1. MOUNTING ...................................................................................................1-1
1.1 Display Unit ...............................................................................................................1-1
1.2 Transducer.................................................................................................................1-4
1.3 Water Temperature Sensor (option)...........................................................................1-4
2. WIRING..........................................................................................................2-1
2.1 Wiring Standard Equipment.......................................................................................2-2
2.2 Wiring Optional Equipment........................................................................................2-3
2.3 Input/Output Sentences.............................................................................................2-3
3. INITIAL SETTING..........................................................................................3-1
3.1 Language Setting.......................................................................................................3-1
3.2 Transducer Data........................................................................................................3-2
3.3 Water Temperature Sensor Setting............................................................................3-7
3.4 Nav Data, Heading Sensor Setting ............................................................................3-9
3.5 Propagation Velocity................................................................................................ 3-11
3.6 Demonstration Mode................................................................................................3-12
3.7 Restoring Default Settings.......................................................................................3-13
APPENDIX 1 TRANSDUCER 50BL-12/50BL-24H ........................................AP-1
APPENDIX 2 NEW BLT TRANSDUCERS......................................................AP-2
PACKING LISTS ............................................................................................... A-1
OUTLINE DRAWINGS...................................................................................... D-1
SCHEMATIC DIAGRAM ....................................................................................S-1

iv

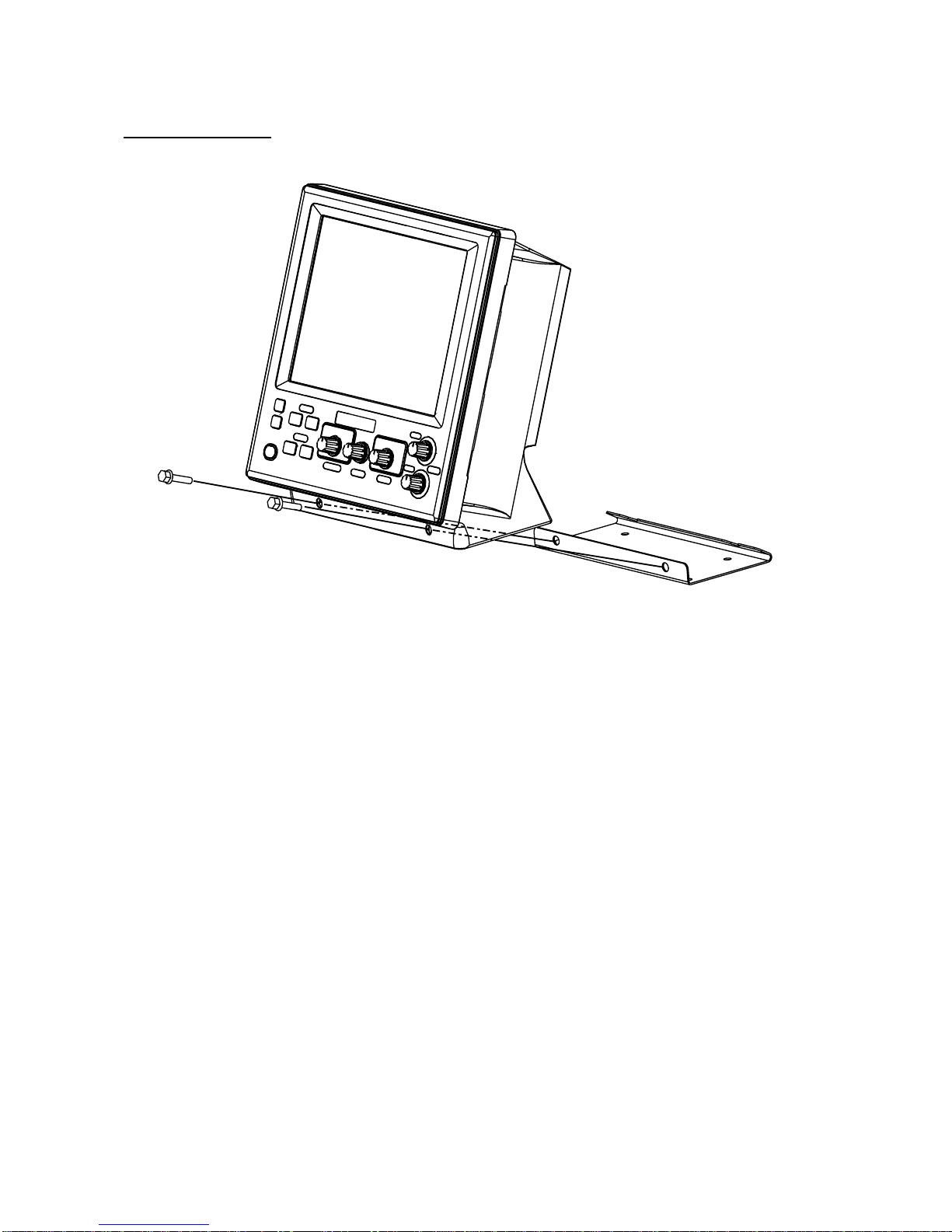

SYSTEM CONFIGURATION

EQUIPMENT LISTS
v
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Display unit CV-1100L - 1
Spare Parts SP02-04401 001-402-100 1 set Fuse
Accessories FP02-05300 000-012-509 1 set Hood
Installation Materials CP02-06900 000-012-508 1 set MJ-A3SPF0013-035 (3.5 m),
CP02-06901
Options
Name Type Code No. Qty Remarks
Transducer Transducer available in 1, 2 and 3 kW models. See page vi – xiii for
details. No selection also available.
MJ-A6SPF0012-050 000-134-424 1
6P-6P, 5m, for
navigator
MJ-A6SPF0012-100 000-133-817 1
6P-6P, 10m, for
navigator
MJ-A6SPF0011-050 000-132-244 1
6P-4P, 5m, for
navigator
MJ-A6SPF0011-100 000-132-336 1
6P-4P, 10m, for
navigator
Cable Assy
NCS255AD-254P-L500 000-142-518 1
For dual –frequency
transducer
T-02MSB 000-040-040 1 Thru-hull mount
T-02MTB 000-040-026 1 Transom mount
Water Temperature
Sensor T-03MSB 000-040-027 1 Thru-hull mount
ST-02MSB 000-137-986 1Speed/Temperature
Sensor ST-02PSB 000-137-987 1
000-013-484 100 VAC
000-013-485 110 VAC*
000-013-486 220 VAC
Rectifier PR-62
000-013-487
1
230 VAC
*: Use this type for 115 VAC.

EQUIPMENT LISTS
vi
Available transducers
1 kW transducer
Frequency
(kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
FRP 28F-8
50B-6/6B - -
Steel TWB-6000 (2) T-656
FRP 28F-8
50B-9/9B - -
Steel - -
28/50
FRP 28F-8
50F-8G - -
Steel - -
28/68 FRP 28F-8
68F-8H - -
Steel TWB-6000 (2) T-657
28/88 FRP 28F-8
88B-8 - -
Steel - -
28/200 FRP 28F-8
200B-5S - -
Steel - -
FRP 50B-6/6B
88B-8 - -
Steel TWB-6000 (2) T-658
FRP 50B-9/9B
88B-8 - -
Steel - -
50/88
FRP 50F-8G
88B-8 - -
Steel - -
FRP 50B-6/6B
200B-5S - -
Steel - -
FRP 50B-9/9B
200B-5S - -
Steel - -
FRP 50F-8G
200B-5S - -
Steel - -
FRP 50/200-1T - -
Steel - -
50/200
FRP 50/200-1ST - -
Steel - -
68/200 FRP 68F-8H
200B-5S - -
Steel - -
88/200 FRP 88B-8
200B-5S - -

EQUIPMENT LISTS
vii
2 kW transducer
Frequency
(kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel TFB-7000 (2) T-634
28/50 FRP 28F-18
50B-12 - -
Steel - -
28/68 FRP 28F-18
68F-30H TRB-1100 (2) T-634-F
Steel TFB-7000 (2) T-636
28/88 FRP 28F- 18
88B-10 TFB-1100 (2) T-636-F
Steel TFB-7000 (2) T-638
28/200 FRP 28F-18
200B-8/8B/8N TFB-1100 (2) T-638-F
Steel TFB-7000 (2) T-643
50/88 FRP 50B-12
200B-8/8B/8N TFB-1100 (2) T-643-F
Steel TFB-7000 (2) T-645
50/200 FRP 50B-12
200B-8/8B/8N - -
Steel TFB-7000 (2) -
68/200 FRP 68F-30H
200B-8/8B/8N TFB-1100 (2) -
Steel TFB-7000 (2) T-649
88/200 FRP 88B-10
200B-8/8B/8N TFB-1100 (2) T-649-F

EQUIPMENT LISTS
viii
3 kW transducer
Frequency
(kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel TFB-7000 (2) T-681
28/50 FRP 28F-24H, 50F-24H TRB-1100 (2) T-681-F
Steel - -
28/68 FRP 28F-24H, 68F-30H - -
Steel TFB-7000 (2) T-682
28/88 FRP 28F-24H, 88F-126H TRB-1100 (2) T-682-F
Steel - -
28/107 FRP 28F-24H, 100B-10R - -
Steel - -
28/150 FRP 50B-6/6B, 88B-8 - -
Steel - -
28/200 FRP 28F-24H, 200B-12H - -
Steel TFB-7000 (2) T-682
50/88 FRP 50F-24H, 88F-126H TRB-1100 (2) T-682-F
Steel - -
50/107 FRP 50F-24H, 100B-10R - -
Steel TFB-7000 (2) T-683
50/150 FRP 50F-24H, 150B-12H TRB-1100 (2) T-683-F
Steel TFB-7000 (2) T-683
50/200 FRP 50F-24H, 200B-12H TFB-1100 (2) T-638-F
Steel - -
68/107 FRP 68F-30H, 100B-10R - -
Steel TFB-7000 (2) T-646
68/150 FRP 68F-30H, 150B-12H TFB-1100 (2) T-646-F
Steel TFB-7000 (2) T-646
68/200 FRP 68F-30H, 200B-12H TFB-1100 (2) T-646F
Steel - -
88/150 FRP 88F-126H, 150B-12H - -
Steel TFB-7000 (2) T-685
88/200 FRP 88F-126H, 200B-12H TFB-1100 (2) T-685-F
Steel TFB-7000 (2) -
107/200 FRP 100B-10R, 200B-12H TFB-1100 (2) -

EQUIPMENT LISTS
ix
1 kW/2 kW transducer
Output
(W) Frequency
(kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
28/50 FRP 28F-8
50B-12 - -
Steel - -
28/68 FRP 28F-8
68F-30H - -
Steel - -
28/88 FRP 28F-8
88B-10 - -
Steel TWB-6000 (2) T-657
28/200 FRP 28F-8
200B-8/8B/8N - -
Steel - -
FRP 50B-6/6B
88B-10 - -
Steel - -
FRP 50B-9/9B
88B-10 - -
Steel TFB-7000 (2) T-636
50/88
FRP 50F-8G
88B-10 TRB-1100 (2) T-636-F
Steel - -
FRP 50B-6/6B
200B-8/8B/8N - -
Steel TWB-6000 (2) T-658
FRP 50B-9
200B-8/8B/8N - -
Steel TFB-7000 (2) T-638
50/200
FRP 50F-8G
200B-8/8B/8N TFB-1100 (2) T-638-F
Steel - -
68/200 FRP 68F-8H
200B-8/8B/8N - -
Steel TWB-6000 (2) T-659
1 k/2 k
88/200 FRP 88B-8
200B-8/8B/8N - -

EQUIPMENT LISTS
x
1 kW/3 kW transducer
Output
(W) Frequency (kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
28/45 FRP 28F-8
45F-12H - -
Steel - -
28/50 FRP 28F-8
50F-24H - -
Steel - -
28/68 FRP 28F-8
68F-30H - -
Steel - -
28/88 FRP 28F-24H,
100B-10R - -
Steel - -
28/150 FRP 28F-8
88F-126H - -
Steel - -
28/107 FRP 28F-8
100B-10R - -
Steel - -
28/150 FRP 28F-8
150B-12H - -
Steel - -
28/200 FRP 28F-8
200B-12H - -
Steel - -
FRP 50B-6/6B
88F-126H - -
Steel - -
FRP 50B-9B
88F-126H - -
Steel - -
50/88
FRP 50F-8G
88F-126H - -
Steel - -
FRP 50B-6/6B
100B-10R - -
Steel - -
FRP 50B-9/9B
100B-10R - -
Steel - -
50/107
FRP 50F-8
100B-10R - -
Steel - -
FRP 50B-6/6B
150B-12H - -
Steel - -
FRP 50B-9/9B
150B-12H - -
Steel - -
1 k/3 k
50/150
FRP 50F-8G
150B-12H - -

EQUIPMENT LISTS
xi
Output
(W) Frequency (kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
FRP 50B-6/6B
200B-12H - -
Steel - -
FRP 50B-9/9B
200B-12H - -
Steel - -
50/200
FRP 50F-8G
200B-12H - -
Steel - -
68/107 FRP 68F-8H
100B-10R - -
Steel - -
68/150 FRP 68F-8H
150B-12H - -
Steel - -
68/200 FRP 68F-8H
200B-12H - -
Steel - -
88/150 FRP 88B-8
150B-12H - -
Steel - -
1 k/3 k
88/200 FRP 88B-8
200B-12H - -

EQUIPMENT LISTS
xii
2 kW/3 kW transducer
Output
(W) Frequency (kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
28/45 FRP 28F-18
45F-12H - -
Steel - -
28/50 FRP 28F-18
50F-24H - -
Steel - -
28/68 FRP 28F-18
68F-30H - -
Steel - -
28/88 FRP 28F-18
88F-126H - -
Steel TFB-7000 (2) T-636
28/107 FRP 28F-18
100B-10R TRB-1100 (2) T-636-F
Steel TFB-7000 (2) T-637
28/150 FRP 28F-18
150B-12H TRB-1100 (2) T-637-F
Steel - -
28/200 FRP 28F-18
200B-12H - -
Steel - -
50/88 FRP 50B-12
88F-126H -
Steel TFB-7000 (2) T-643
50/107 FRP 50B-12
100B-10R TRB-1100 (2) T-643-F
Steel TFB-7000 (2) T-644
50/150 FRP 50B-12
150B-12H TRB-1100 (2) T-644-F
Steel - -
50/200 FRP 50B-12
200B-12H - -
Steel - -
68/107 FRP 68F-30H
100B-10R - -
Steel - -
68/150 FRP 68F-30H
150B-12H - -
Steel - -
68/200 FRP 68F-30H
200B-12H - -
Steel - -
88/150 FRP 88B-10
150B-12H - -
Steel - -
2 k/3 k
88/200 FRP 88B-10
200B-12H - -

EQUIPMENT LISTS
xiii
3 kW/2 kW transducer
Output
(W) Frequency (kHz) Hull Material Transducer Thru-Hull Pipe Tank
Steel - -
28/50 FRP 28F-24H
50B-12 - -
Steel - -
28/68 FRP 28F-24H
68F-30H - -
Steel - -
28/88 FRP 28F-24H
88B-10 - -
Steel - -
28/200 FRP 28F-24H
200B-8/8B/8N - -
Steel - -
50/88 FRP 50F-24H
88B-10 - -
Steel - -
50/200 FRP 50F-24H
200B-8/8B/8N - -
Steel TFB-7000 (2) T-647
68/200 FRP 68F-30H
200B-8/8B/8N TRB-1100 (2) T-645-F
Steel - -
88/200 FRP 88F-126H
200B-8/8B/8N -
Steel TFB-7000 (2) T-649
FRP TRB-1100 (2) T-649-F
3 k/2 k
107/200 FRP
100B-10R
200B-8/8B/8N - -

EQUIPMENT LISTS
xiv
This page is intentionally left blank.

1-1
1. MOUNTING
1.1 Display Unit
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Mounting considerations
• Locate the unit out of direct sunlight.
• The operator should face the bow while viewing the display screen.
• Select a location where the display screen can be easily observed while operating the control
unit.
• Leave sufficient space around the unit for maintenance and servicing. Recommended
maintenance space appears in the outline drawing at the back of this manual.

1. MOUNTING
1-2
Mounting procedure
Desktop mounting
1. Loosen two M6 x 25 bolts at the front of the display unit to remove the mounting base.
M6 x 25 bolts
Removing the display unit from the mounting base
2. Use the four tapping screws (5 x 20, supplied as installation materials) to fasten the
mounting base.
3. Apply grease to the bolts removed at step 1.
4. Lay the display unit on the mounting base. Fasten the display unit to the mounting base
with the two M6 x 25 bolts greased at step 3.

1. MOUNTING
1-3
Flush mounting
1. Make cutout in mounting location referring to the outline drawing show below.
2. Fasten the display unit to the mounting location with four pan head screws.
Flush mounting display unit

1. MOUNTING
1-4
D>50 cm D
5X20
Flush with hull bottom
1.2 Transducer
The performance of the video sounder depends upon the transducer position. A place least
affected by air bubbles should be selected since turbulence blocks the sounding path.
Further, select a place least influenced by engine noise. It is known that air bubbles are
fewest at the place where the bow first falls and the next wave rises, at usual cruising
speed.
Note: The face of the transducer must be facing the sea bottom in normal cruising trim of the
boat.

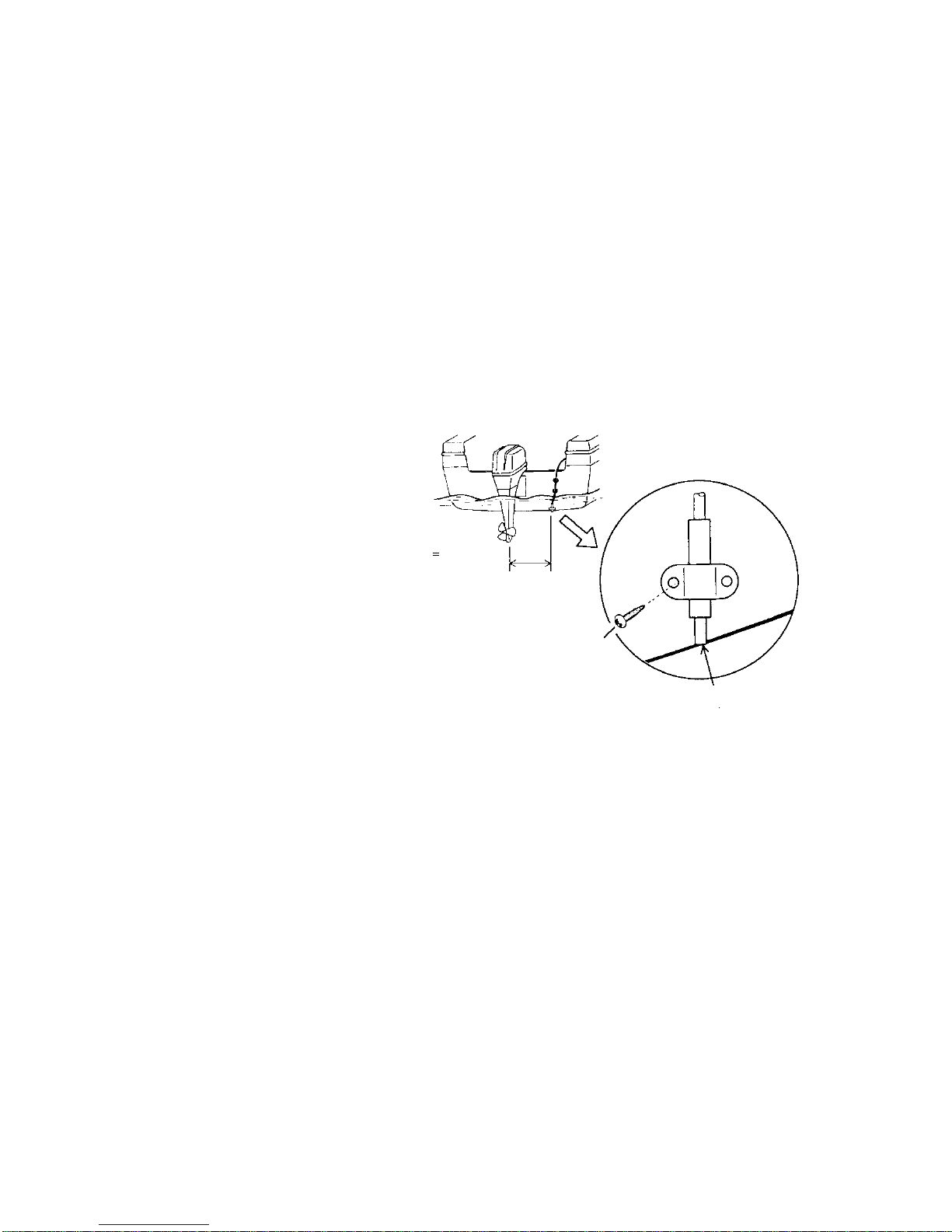

1.3 Water Temperature Sensor (option)
Transom mount water temperature sensor T-02MTB
• Fix the cable at a convenient location
on the transom with the cable clamp.
• When the cable is led through the
transom board, make a hole of
approx. 17 mm in diameter to pass
the connector. After passing the
cable, seal the hole with a sealing
compound.
How to mount transom mount water
temperature sensor T-02MTB
