Furuno FE-700 User manual

Installation Manual
NAVIGATIONAL ECHO SOUNDER
FE-700
SAFETY INSTRUCTIONS .............................................................................i
EQUIPMENT LISTS......................................................................................ii
SYSTEM CONFIGURATION .......................................................................iv
1. MOUNTING...............................................................................................1
1.1 Category of Equipment .......................................................................................................1
1.2 Display Unit.........................................................................................................................1
1.3 Transducer..........................................................................................................................4
1.4 Distribution Box...................................................................................................................6
1.5 Matching Box......................................................................................................................7
1.6 Digital Depth Indicator (option) FE-720...............................................................................7
1.7 Transducer Switch Box (option) EX-8..................................................................................8
2. WIRING .....................................................................................................9
3. CHANGING POWER SPECIFICATIONS...............................................17
4. ADJUSTMENTS......................................................................................19
4.1 Transducer Setting............................................................................................................19
4.2 Setting the Time................................................................................................................20
PACKING LISTS………………………………………………………………A-1
OUTLINE DRAWINGS………………………………………………………..D-1
INTERCONNECTION DIAGRAMS………………………………………….S-1

Your Local Agent/DealerYour Local Agent/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a, Ja
p
anNishinomi
y
a, Ja
p
an
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
faxfax 0798-65-42000798-65-4200
::
F
IRST EDITION :
F
IRST EDITION : JANJAN .. 20002000
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved. P2P2 :: JULJUL .. 05, 200405, 2004
PUB.No.PUB.No. IME-23660-P2IME-23660-P2
*
00080891000
*
*
00080891000
*
*
00080891000
*
*
00080891000
*
(( KAMIKAMI )) FE-700FE-700 * 0 0 0 8 0 8 9 1 0 0 0 ** 0 0 0 8 0 8 9 1 0 0 0 *
*
IME
23660
P
20
*
*
IME
23660
P
20
*
*
IME
23660
P
20
*
*
IME
23660
P
20
*
* I M E 2 3 6 6 0 P 2 0 ** I M E 2 3 6 6 0 P 2 0 *

i
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer mounting location.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship’s vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Display
unit
Standard Steering
compass compass
0.50 m 0.40 m
When handling the transducer cable,
keep in mind following points.
Keep the cable away from oil and
fuel.
Keep the cable away from the
place where it may be damaged
during the installation.
Do not paint the cable.
The sheath of the transducer cable is
made of chlorophrene rubber (or vinyl
chloride). Therefore, do not paint the
sheath with organic liquid (such as
toluene) since it may harm the sheath.
SAFETY INSTRUCTIONS
Distribution
Box 1.90 m 1.15 m
Digital depth
indicator (option) 0.50 m 0.40 m
Matching Box 0.50 m 0.40 m
Transducer
Switch Box
(option)
1.00 m 0.60 m
Junction Box
(option) 0.30 m 0.30 m

ii
EQUIPMENT LISTS
Standard Supply
Name Type Code no. Qty Remarks
Display Unit FE-701 - 1
w/Installation Materials
CP02-06400 (000-015-872)
and Accessories FP02-04800
(000-015-469)
Distribution Box FE-702 - 1
MB-502 000-013-602 For 50B-6B
Matching Box MB-504 000-013-604 1 For 200B-8B
50B-6B - w/15 m or 30 m cable
Transducer 200B-8B - 1 w/15 m, 30 m or 50 m cable
TTF-5600 000-015-586 For 50B-6B
Transducer Tank TTF-2000 000-015-587 1 For 200B-8B
Spare Parts SP02-04101 001-228-890 1 set For distribution box
Installation Materials CP02-06301 001-228-950 1 set For distribution box
Optional Supply
Name Type Code no. Qty Remarks
000-012-179 Flush mount, color specified
000-012-176 Bulkhead mount, color
specified
000-012-183 7.5BG7/2, Flush mount
000-012-182 7.5BG7/2, Bulkhead mount
000-012-180 N.G, Flush mount
Transducer Switch
Box EX-8
000-012-181
1
N.G, Bulkhead mount
Cable Assy. FM-C6FPS003-
020
000-143-821 1 2 m cable w/ a 6P connector
For EX-8
JUNCTION Box JIS F8821-1MO
0-20A3P
000-804-877 1
TTF-5001 000-015-877 For 50B-6B
TTF-2001 000-015-878 For 200B-8B
TTF-5002 000-015-885 For 50B-6B (w/Flange)
Transducer Tank
TTF-2002 000-015-887
1
For 200B-8B (w/Flange)
OP02-78-1 001-229-270 2.5GY5/1.5
Bulkhead Kit OP02-78-2 001-229-280 1 7.5BG7/2
OP02-79-1 001-229-290 N3.0
OP02-79-2 001-229-300 2.5GY5/1.5
Flush Mount Kit (F)
OP02-79-3 001-229-310
1
7.5BG7/2
Flush Mount Kit (S) OP02-80 001-229-320 1
Data Recording
Software for PC 02-522-990 001-229-090 1 For Windows 95/98/NT4.0
Digital Depth
Indicator FE-720 000-029-025 1 set
w/Installation Materials
CP02-06700 (000-029-068)
Spare Parts
SP65-00601 (002-889-730)
Accessories
FP65-00400 (000-029-067)

iii
MF-22L-1-100V 002-316-040 100 VAC-120 VAC,
Flush mount type
MF-22L-1-200V 002-316-100 200 VAC-240 VAC,
Flush mount type
MF-22L-2-100V 002-316-050 100 VAC-120 VAC,
Bulk head type
Dimmer
MF-22L-2-200V 002-316-130
1
200 VAC-240 VAC,
Bulk head type
Terminal Box DS-802 000-029-064 1 set With Installation Materials
CP65-00903 (000-029-064)
EGC Printer PP-505-FE 000-055-892 1 set
GV-50B-6B 000-015-265
Gate Valve GV-200B-8B 000-015-273 1

iv

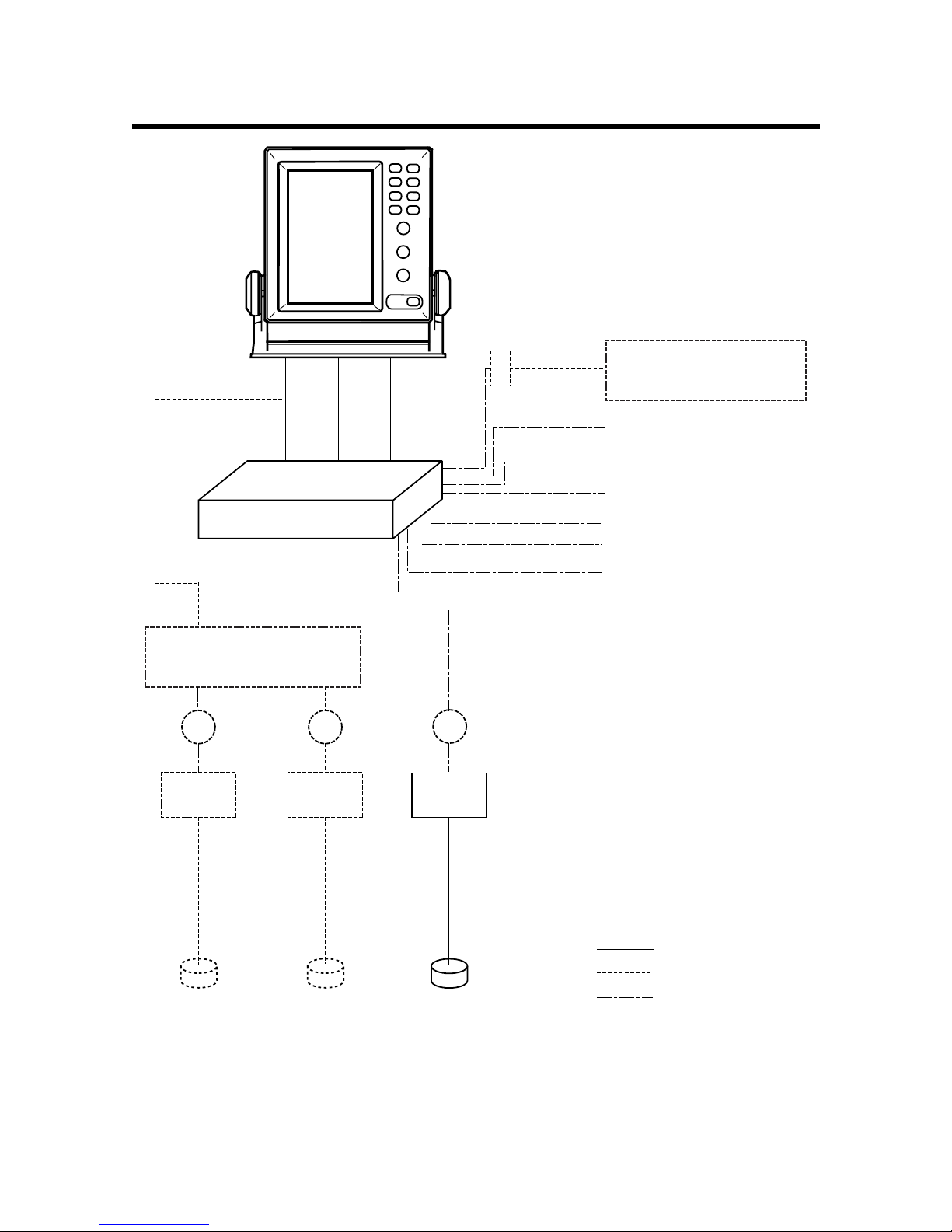

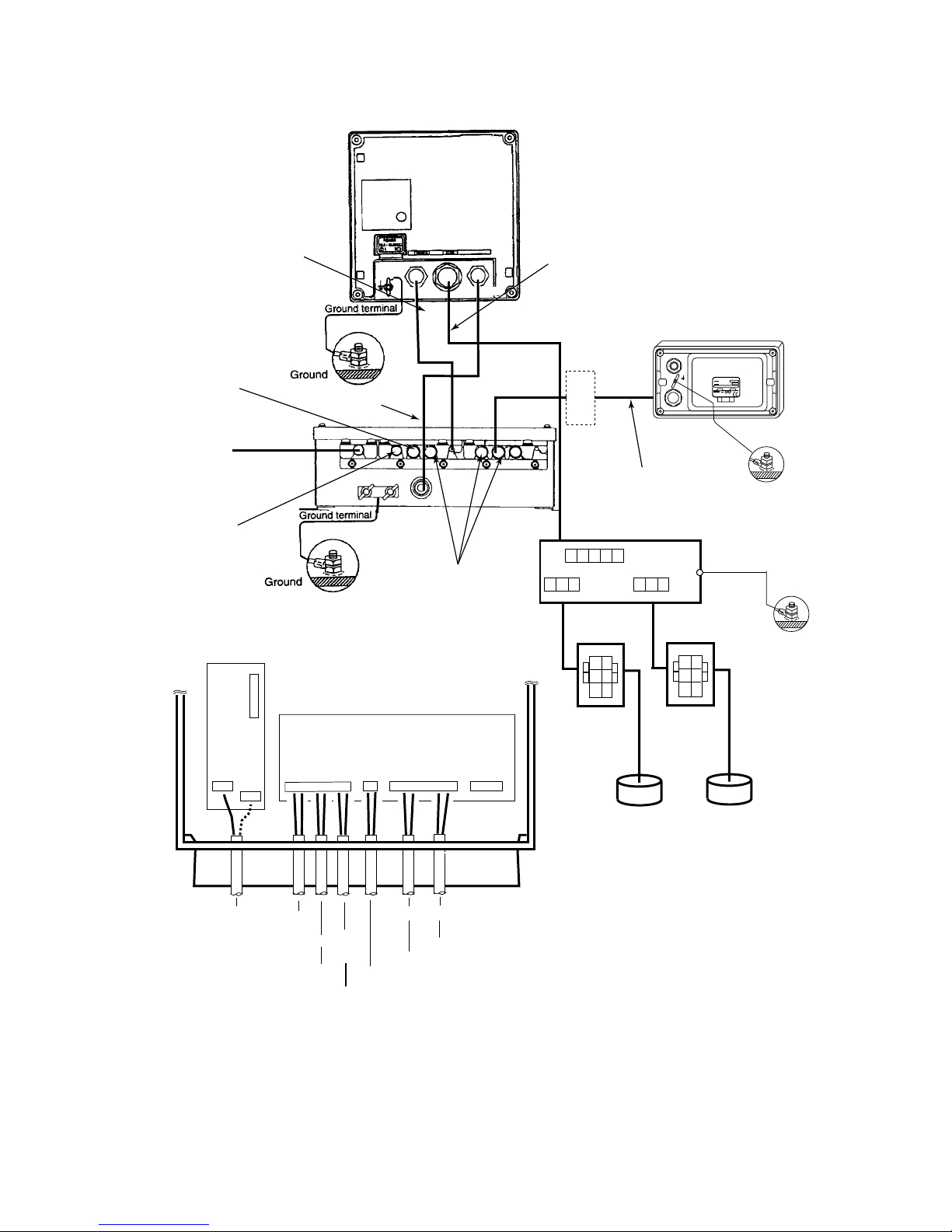

SYSTEM CONFIGURATION
TRANSDUCER
DISTRIBUTION
BOX
FE-702
DISPLAY UNIT
FE-701
JUNCTION BOX
JIS F8821-1 0-20A3P
MATCHING BOX MB-502 (for 50B-6B)
MB-504 (for 200B-8B)
JB
JB
IEC 61162-1
EIA-232C
IEC 61162-1 Navigation Device
Navigation Device
Personal Computer
IEC 61162-1
JB
TRANSDUCER SWITCH BOX
EX-8
DIGITAL DEPTH INDICATOR
FE-720
: Standard Supply
: Optional Supply
Terminal Box
DS-802
: Local Supply
CONTACT CLOSURE Alarm Unit
Ship's mains
100-115 VAC/200-230 VAC
or 24 VDC
DIMMER
Printer

1
1. MOUNTING
1.1 Category of Equipment
Equipment for protected area
• Display Unit
• Distribution Box
• Matching Box
• Transducer Switch Box (option)
• Digital Depth Indicator (option)
Equipment to be submerged
• Transducer
1.2 Display Unit
1.2.1 Mounting consideration
The display unitcan be installed on a desktop,on the overhead, on the bulkhead or flush mounted in
a console or panel.
When selecting a mounting location for the display unit keep the following in mind.
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as motors and
generators.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of the
unit and leave slack in cables.
•A magnetic compass will be affected if placed too close to the display unit. Observe the
following compass safe distances to prevent disturbance to the magnetic compass.

2
Standard compass: 0.50 meters
Steering compass: 0.40 meters
Cover
Desktop Overhead
1.2.2 Removing the cover
While pressing the center of the cover with your thumbs as illustrated, pull the cover towards you to
remove it.

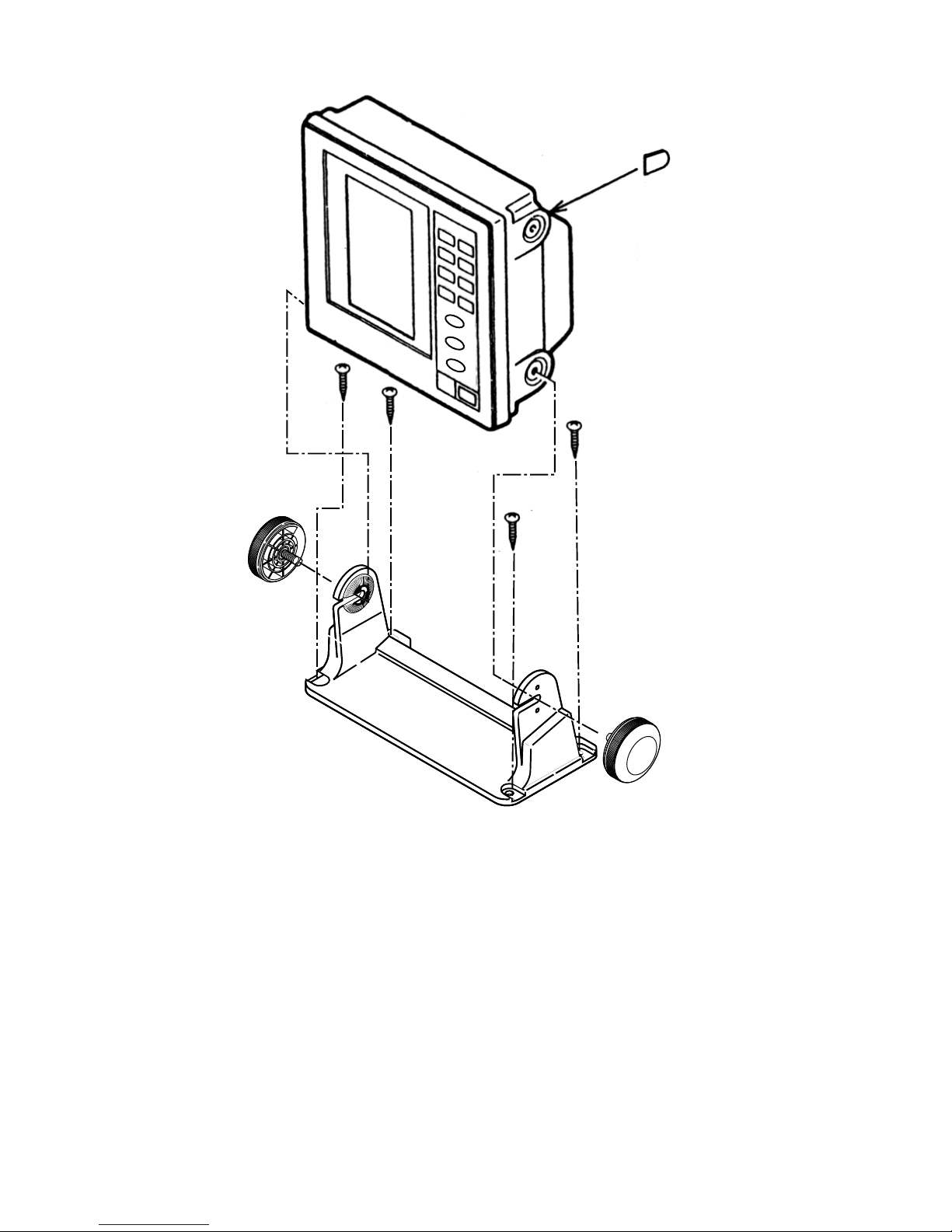

1.2.3 Desktop mounting
1. Fix the hanger with four tapping screws (5x20).
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
3. Attach the dummy covers to the unused holes.

3
Dummy cover
5x20 tapping screws

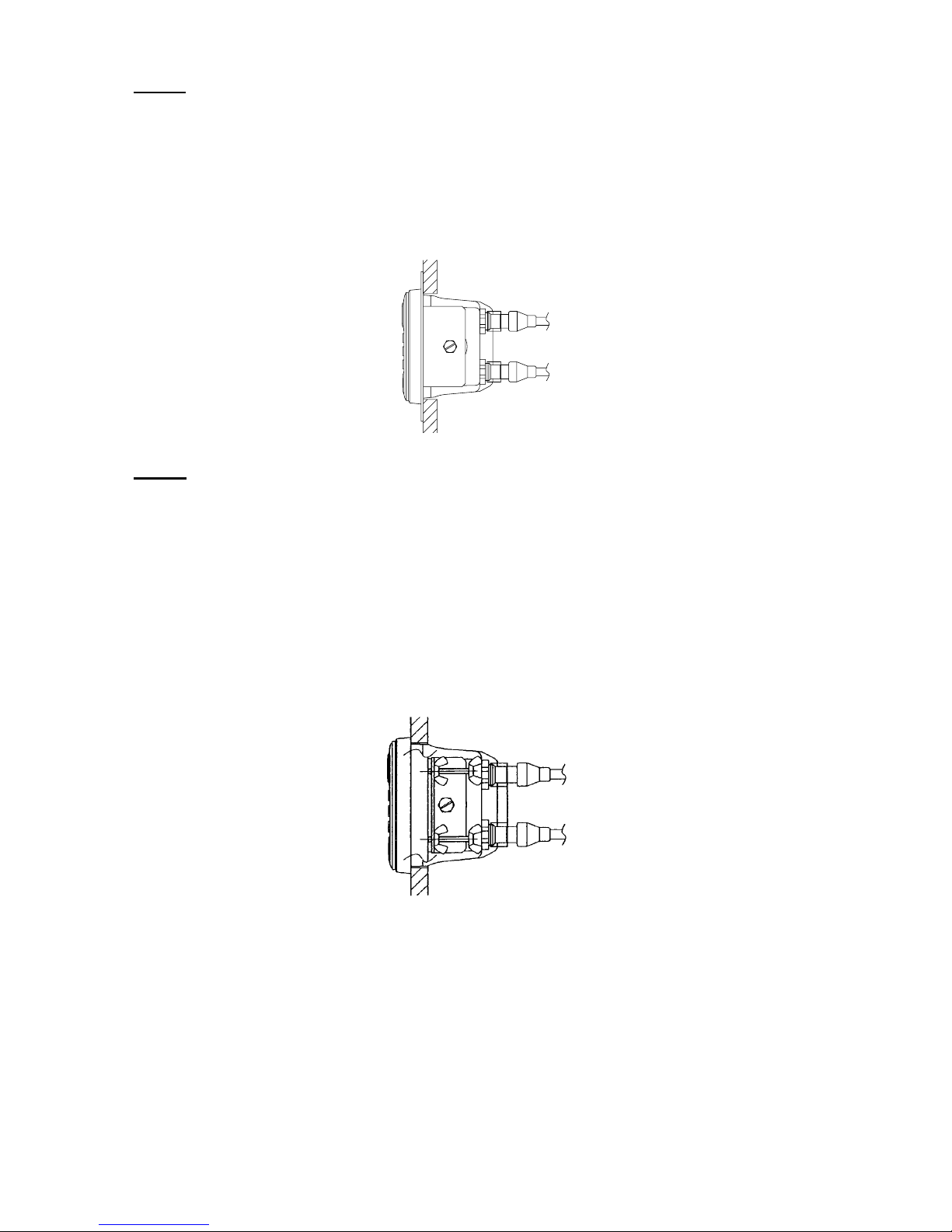

1.2.4 Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the outline diagrams at
the back of this manual.

4
F type
Flush Mount Kit (F): OP02-79-1 (001-229-290)
OP02-79-2 (001-229-300)
OP02-79-3 (001-229-310)
No. Name Type Code no. Qty Remarks
100-279-270 OP02-79-1:N3.0
100-279-280 OP02-79-2:2.5GY5/1.5
1 Cosmetic panel 02-129-1041-0 100-279-290 1 OP02-79-3:7.5GY7/2
2 Hex bolt M6X12 000-862-127 4
3 Spring washer M6 000-864-260 4
1. Prepare a cutout in the mounting location whose dimensions are 210 (W) X 194 (H) mm.
2. Attach the cosmetic panel (02-129-1041-0) to the display unit with four hex bolts (M6X12)
and four spring washers (M6).
3. Fix the display unit to the mounting location with four tapping screws (5X20).
S type
Flush Mount Kit (S): OP02-80 (001-229-320)
No. Name Type Code no. Qty Remarks
1 Fixing plate 02-129-1045-0 100-279-300 2
2 Wing bolt M4X30 000-804-799 6
3 Hex bolt M6X12 000-862-127 4
4 Spring washer M6 000-864-260 4
5 Wing nut M4 000-863-306 6
1. Prepare a cutout in the mounting location whose dimensions are 194 X 194 mm.
2. Insert the display unit to the cutout.
3. Attach two fixing plates (02-129-1045-0) to the display unit with four
hex bolts (M6X12) and spring four washers (M6).
4. Screw six wing bolts (M4X30) to wing nuts (M4).
5. Fasten the display unit with six wing bolts and nuts.
1.3 Transducer
The installation of the transducer and the tank should be accomplished by a dockyard referring to
the installation drawings at the back of this manual. An example of transducer installation method is
also shown in paragraph 1.3.2.
Note: Discussions should take place and agreement reached with the dockyard for sufficient
reinforcement and watertightness of the hull to comply with the regulations concerned.

5
1.3.1 Mounting Location
To decide the location of the transducer, the following points should be taken into account.
• The most important matter is where the transducer is installed. The position should be free
from aeration possibly occurring beneath the hull and also not affected by engine and
propeller noise.
• It is known that air bubble streams start approximately from a quarter length from the bow,
and spreads over the hull bottom approximately to three quarters. Air bubble streams vary in
form and intensity according to ship's speed, draught, trim, shape of bow and hull, as well as
sea state.
• In a laden ship, a position somewhere near a quarter of the ship's length from the stern often
gives satisfactory results. As for vessels such as oil tankers whose fore draught is especially
shallow, an after position about three quarters of ship's length from the stern is often
suitable.
• It is recommended to install the transducer on the keel line or between 600 mm and 900 mm
from the keel to minimize the effect of aerated water.
• Sitting near obstructions such as the forward propeller, bow thruster, water intake pipes and
speed log sensor should be avoided.
• Select a place giving minimum mechanical vibration.
• Do not lay the transducer cable near or in parallel with other electric cables.
1.3.2 Example of Transducer Installation (TTF-5600)
Note: Never fail to remove the transducer and rubber gasket prior to welding the transducer
tank to the hull.
1. Install the transducer tank on the hull. The tank bottom should be flush with the hull
bottom. Feed the transducer cable through the cable gland.
2. Apply sealing tape to the threads of the gland nut for watertightness.
3. Pass the cable thru the gasket, washer and gland nut.
4. Fix the transducer to the tank with the transducer fixing flange.
5. Coat the gland nut with silicone grease.
6. Tighten the gland nut.

6
7. It is recommended to enclose the transducer cable in a conduit pipe for waterproofness
and electrical shielding as well as for protecting the cable from mechanical damage.
The conduit pipe should be fixed to the flange on the transducer tank. The pipe should
be of such a length to clear the water level when the ship is fully loaded. The pipe end
should be finished with filling compound. It is recommended to fill the pipe with sand
between the transducer and the junction box (or matching box). This will protect the
transducer from vibration and damage.
4- 15
FIXING HOLE
SGP 1 /4"
1
JIS B2221 5 -32
K
115
90
154
59 7
FLUSH FINISH
70
190.7+3
HULL PLATE
DOUBLING PLATE
(SHIPPING SUPPLY)
1 Transducer (50B-6B)
2 Transducer Tank
3 Fixing Flange
4 Gland Nut
5 Washer
6 Rubber Gasket
7 Hex. Bolt (M6x25)
8 Spring Washer (For M6)
*Sea water comes into the area marked
with "*" inside the tank.
**
Transducer Tank for 50B-6B Transducer
1.4 Distribution Box
A magnetic compass will be affected if placed too close to the distribution box. Observe the following
compass safe distance to prevent disturbance to the magnetic compass.
Standard compass: 1.90 meters
Steering compass: 1.15 meters
Fasten the distribution box with four tapping screws (6x30) referring to the outline drawing at the end
of this manual.

7
1.5 Matching Box
The matching box should be selected depending on the transducer type;
• 50B-6B transducer: MB-502
• 200B-8B transducer: MB-504
Fasten the matching box with four Trapping screws (6x20: local supply). Compass safe
distances are as follows; standard compass: 0.50 m, Steering compass: 0.40 m.
1.6 Digital Depth Indicator (option) FE-720
The indicator can be installed on a tabletop, on the overhead. Refer to outline drawings at the end of
this manual for installation instructions. When selecting a mounting location, keep in mind the
following points:
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Locate the unit away from equipment which generates electromagnetic fields such as a
motor or generator.
• Allow sufficient maintenance space at the sides and rear of the unit and leave sufficient slack
in cables, to facilitate maintenance and servicing.
• Observe the following compass safe distances to prevent deviation of a magnetic compass.
Standard compass: 0.50 m, Steering compass: 0.40 m.
1. Fasten the hanger with four tapping screws (5x20).
2. Fasten the digital depth indicator to the hanger with two knobs.
Tabletop Overhead
■
■■
■Flush mounting
There are two types of flush mount kits, F type and S type. For details, see the outline diagrams at
the back of this manual.

8
F type
Use the accessories FP65-00401 (See page A-3).
1. Prepare a cutout in the mounting location whose dimensions are 183 (W) X 92 (H) mm.
2. Attach the cosmetic panel (20-016-1051) to the indicator with Two hex bolts (M6X12) and
two spring washers (M6).
3. Fix the indicator to the mounting location with four tapping screws (5X20).
S type
Use the accessories FP65-00402 (See page A-3).
1. Prepare a cutout in the mounting location whose dimensions are 167 (w) X 92 (H) mm.
2. Insert the indicator to the cutout.
3. Attach two fixing plates (20-007-2401) to the indicator with two hex bolts (M6X12) and two
spring washers (M6).
4. Screw four wing bolts (M4X30) to wing nuts (M4).
5. Fasten the indicator with four wing bolts and nuts.
1.7 Transducer Switch Box (option) EX-8
If two transducers are installed, the transducers switch box is required. Locate the transducer switch
box near the display unit considering length of the interconnection cable. Select the bright place
where the panel of equipment can be watched. Use only the screws supplied on the terminal inside
to make connections. Use of other screws may cause a short circuit. Compass safe distances are as
follows; standard compass: 1.00 m, Steering compass: 0.60 m.

9
2. WIRING
Wiring

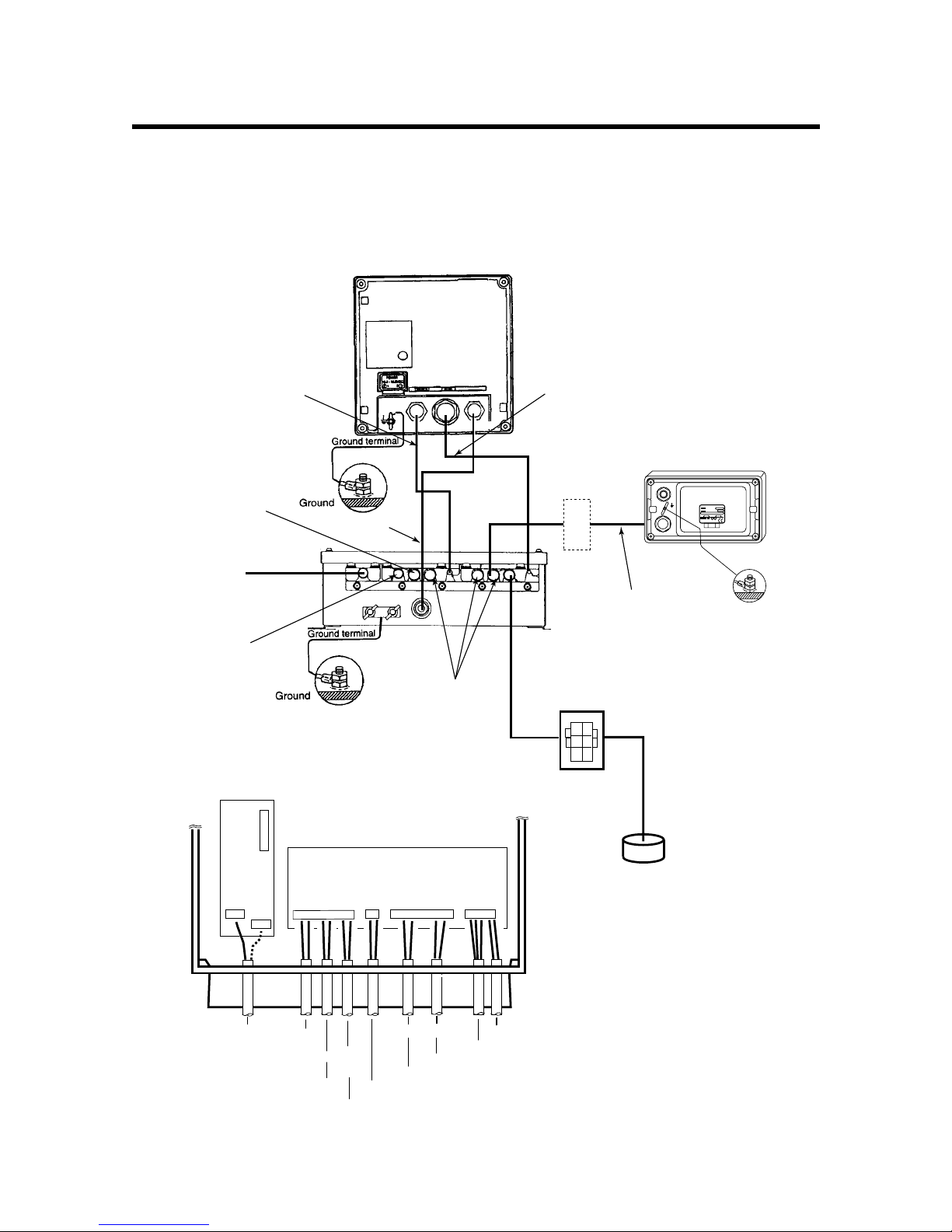

Connect three cable assemblies (supplied) between the display unit and distribution box.
Ship's
mains
Navigation
Device
(IEC 61162-1)
Alarm system
Personal computer
(EIA-232C)
Ground
Digital depth indicator FE-720 (option)
*1 *1
*2
*1: with power
*2: without power
Display unit FE-701 (rear panel)
Distribution box FE-702
When silencing the alarm beep, connect
to *2 connector.
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX1.5
Transducer
Matching box
1.25 sq
DPYCYS-1.5
2.0 sq
2.0 sq
CONE board 02P6283
12345678910 12345678910
12 12345
TB1 TB2 TB3 TB4
123
123
AC
TB5 DC
TB6
TB7
FE-702 Top view
Cable clamp
Ship's
Main
Terminal
Box
TTYCYS-4
DPYCYS-2.5
MJ-A3SPF0015-100
MJ-A7SPF0009-020
02S4169
DPYCYS-2.5
FE-720FE-720
Power
Sours
for FE-701
IEC
61162-1
PC
Alarm
System
TTYCYS-4
TTYCYS-4
TPYCYS-1.5
TTYCYS-4
POWER
XDR NMEA
MJ-A10SPF0002-100
FM-C6FPS002-100

10
When the Transducer Switch Box EX-8 is used, the interconnection diagram is as follows.
12345678910 12345678910
12 12345
TB1 TB2 TB3 TB4
123
123
AC
TB5 DC
TB6
TB7
1 2 3 4 5
TB3
1 2 3
TB1
FORE 1 2 3
TB2
AFT
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX2.5
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX2.5
2.0 sq
Display unit FE-701 (rear panel)
2.0 sq
MJ-A3SPF0015-100
POWER
XDR NMEA
Ship's
mains
Alarm system
Personal computer
(EIA-232C)
DPYCYS-1.5
2.0 sq
Navigation
Device
(IEC 61162-1)
*1 *1
*2
*1: with power
*2: without power
TTYCYS-4
Distribution
box
FE-702 RECORDER
Ground
Digital depth indicator FE-720 (option)
When silencing the alarm beep, connect
to *2 connector.
1.25 sq
Terminal
Box
MJ-A7SPF0009-020
TRANSDUCER SWITCH BOX
EX-8 (option)
Ground
Matching box Matching box
Transducer
FORE Transducer
AFT
Cable clamp
CONE board 02P6283
FE-702 Top view
Ship's
Main FE-720FE-720
Power
Sours
for FE-701
IEC
61162-1
PC
Alarm
System
TTYCYS-4
TTYCYS-4
TPYCYS-1.5
TTYCYS-4
FM-C6FPS002-100
MJ-A10SPF0002-100

11
Cable Fabrication of DPYCYS-2.5, DPYCYS-1.5, MJ-A3SPF0015 ,
FM-C6FPS0002 and TPYCYS-1.5

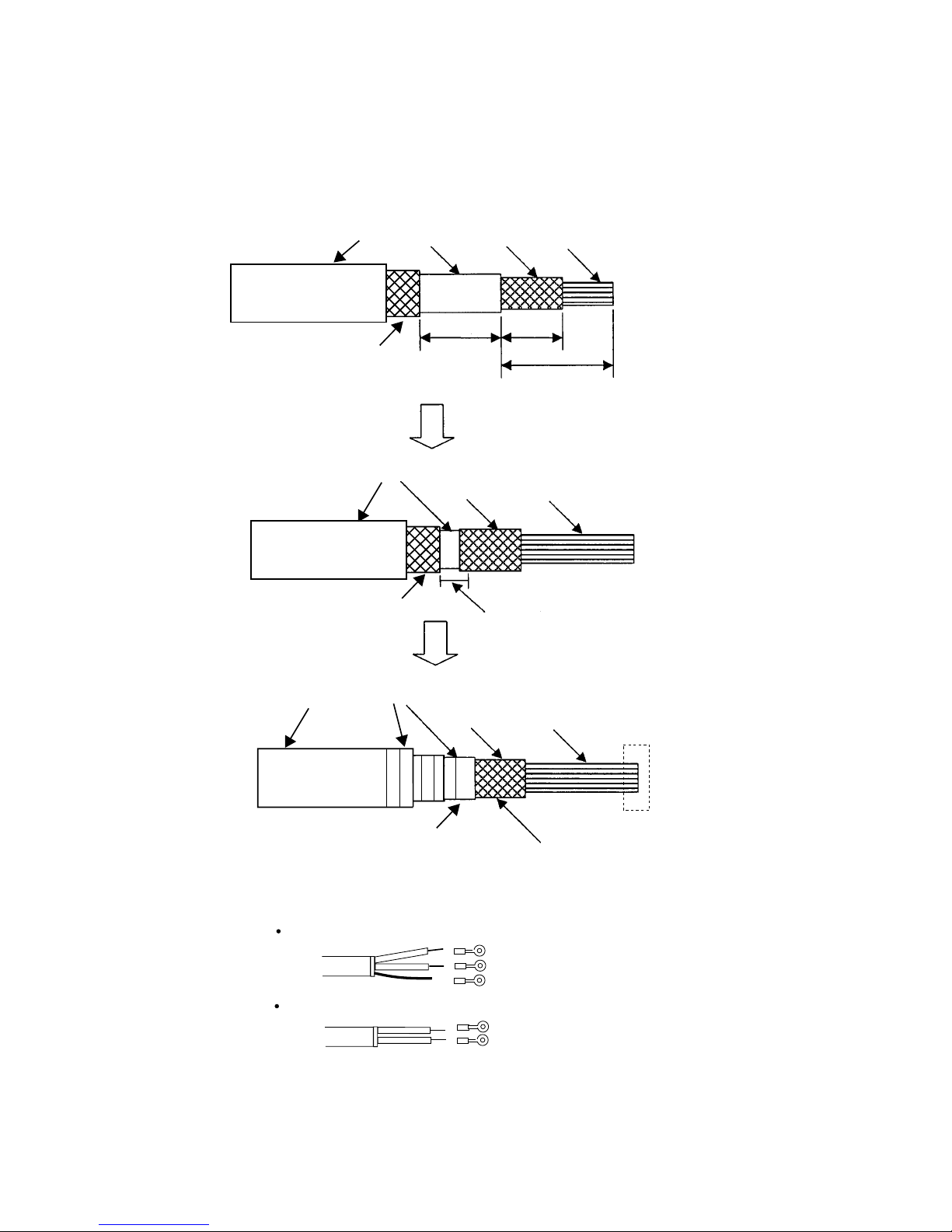

Fabricate the power and other cables as illustrated below to connect them to the Distribution
box.
Armor
Vinyl Sheath Shield Cores
50mm 40mm
Taping
Fold back shield over on vinyl sheath.
Vinyl Sheath
Shield
Fabrication of cables
*: See below
*: Depending on cables, fabrications are as follows.
DPYCYS-2.5, DPYCYS-1.5, TPYCYS-1.5
Others
Crimp-on lug
FV2-S3.3 Blue
Crimp-on lug
FV1.25-3 Red
Clamp here.
100mm
Armor
Vinyl Sheath
Cores
Armor
Vinyl Sheath
Shield Cores

12
Armor
Vinyl sheath
Core
S=1.5 mm
=1.56mm
DPYCYS-1.5 sectional view
Armor
Vinyl sheath
Shield
2
Shield
2

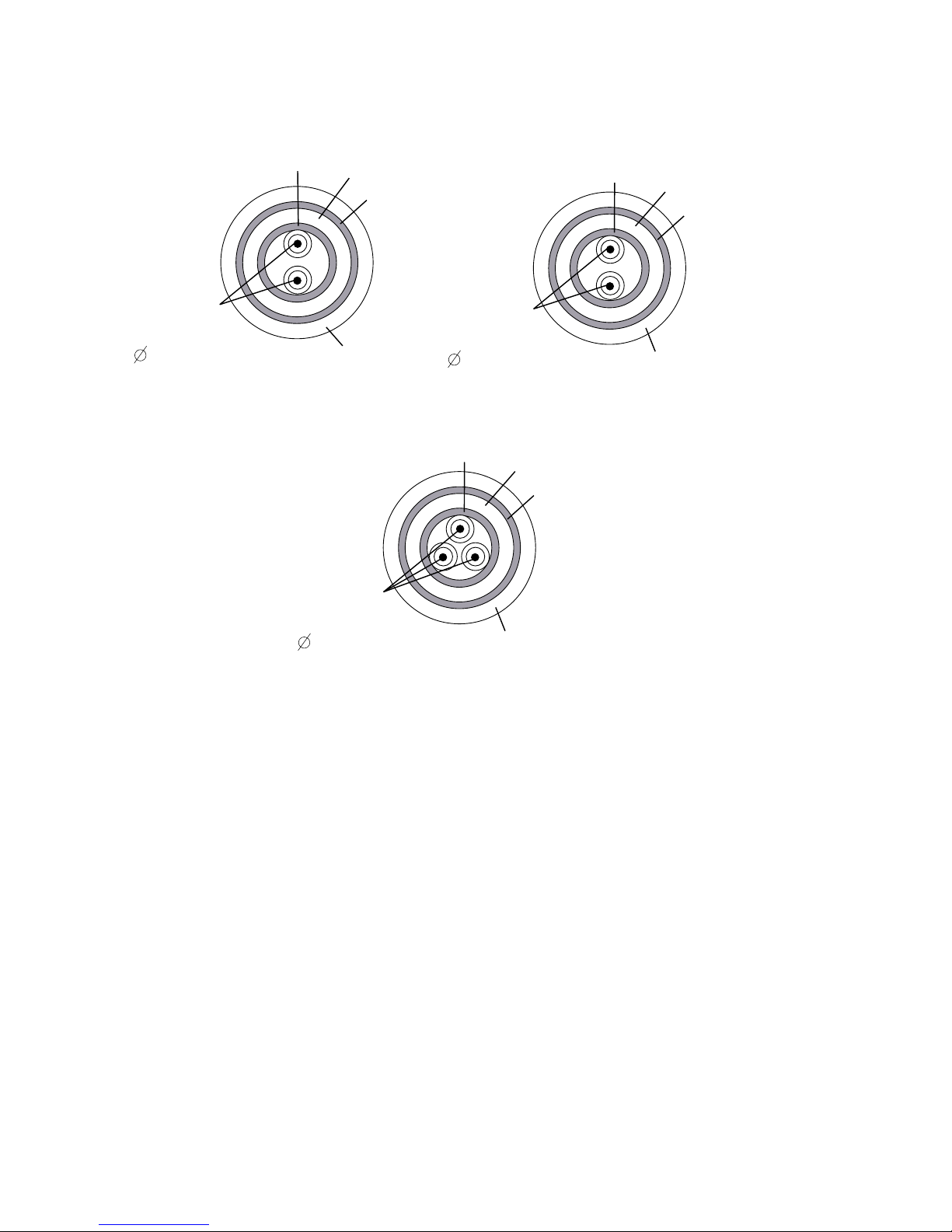

Several cables are required to supply at local.In this manual,JIS (Japan Industrial Standard )
cables are specified.Use equipment cables refering to the figures below.
Sheath
JIS Cables (Cross section)
Sheath
Armor
Vinyl sheath
Shield Sheath
Core
S=2.5 mm
=2.01mm
Core
S=1.5 mm
=1.56mm
2
DPYCYS-2.5 sectional view
TPYCYS-1.5 sectional view

13

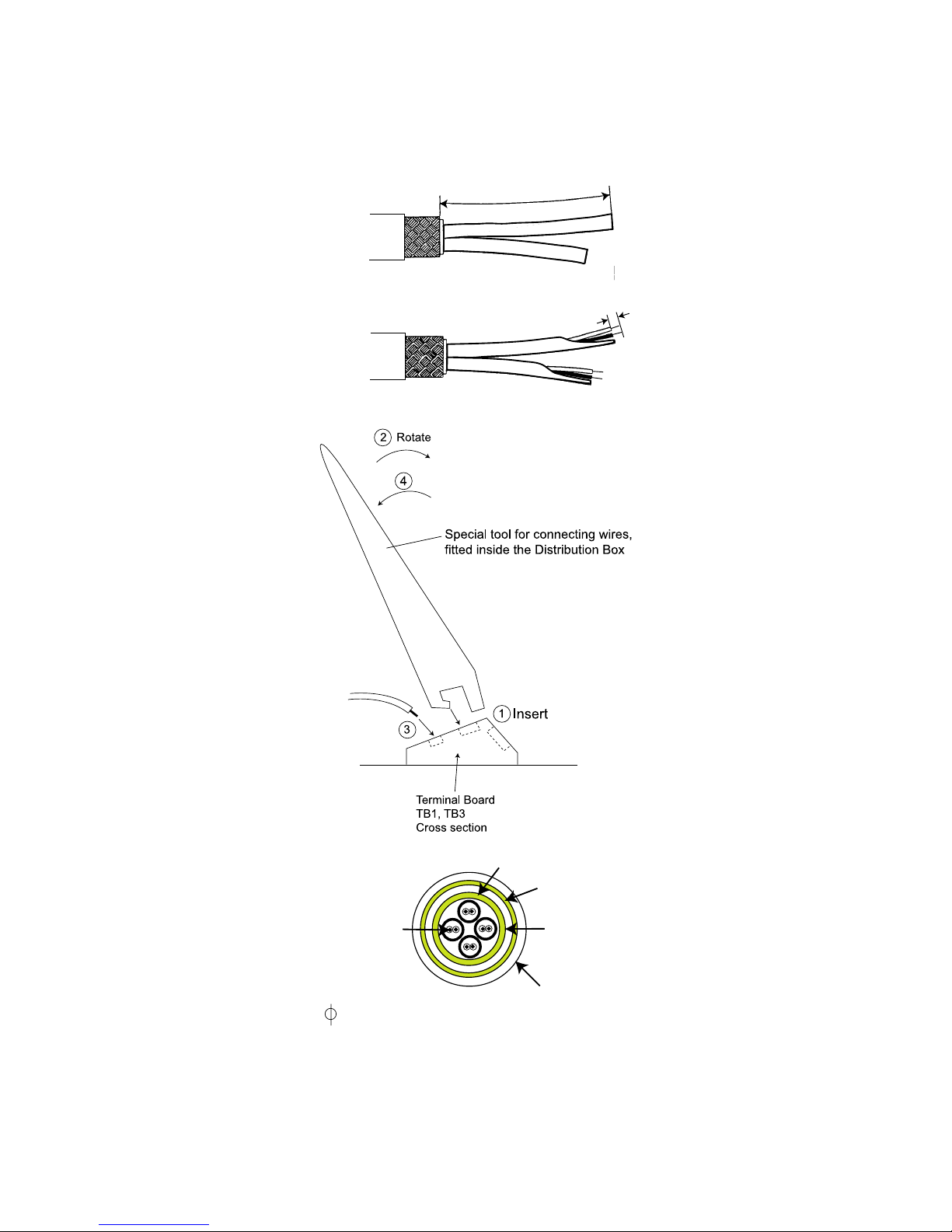

Cable Fabrication of TTYCYS-4
TTYCYS is a Japan Industrial Standard (JIS) cable. Use the equipment one.
100 mm
Anticorrosive
Sheath
3 mm
1
2
Anticorrosive sheath
Armor
(Sectional view)
S =0.75 mm
=1.11 mm
2
Vinyl sheath
Conductor
Shield
Fabrication of cable TTYCYS-4

14
Power Supply Cable from Ship's Mains
If the ship's mains isAC, the power supply cable must be connected to TB5 in the Distribution
Box. In case of DC ship's mains, cable must be connected to TB6 in the Distribution Box. For
further information, refer to page 16.

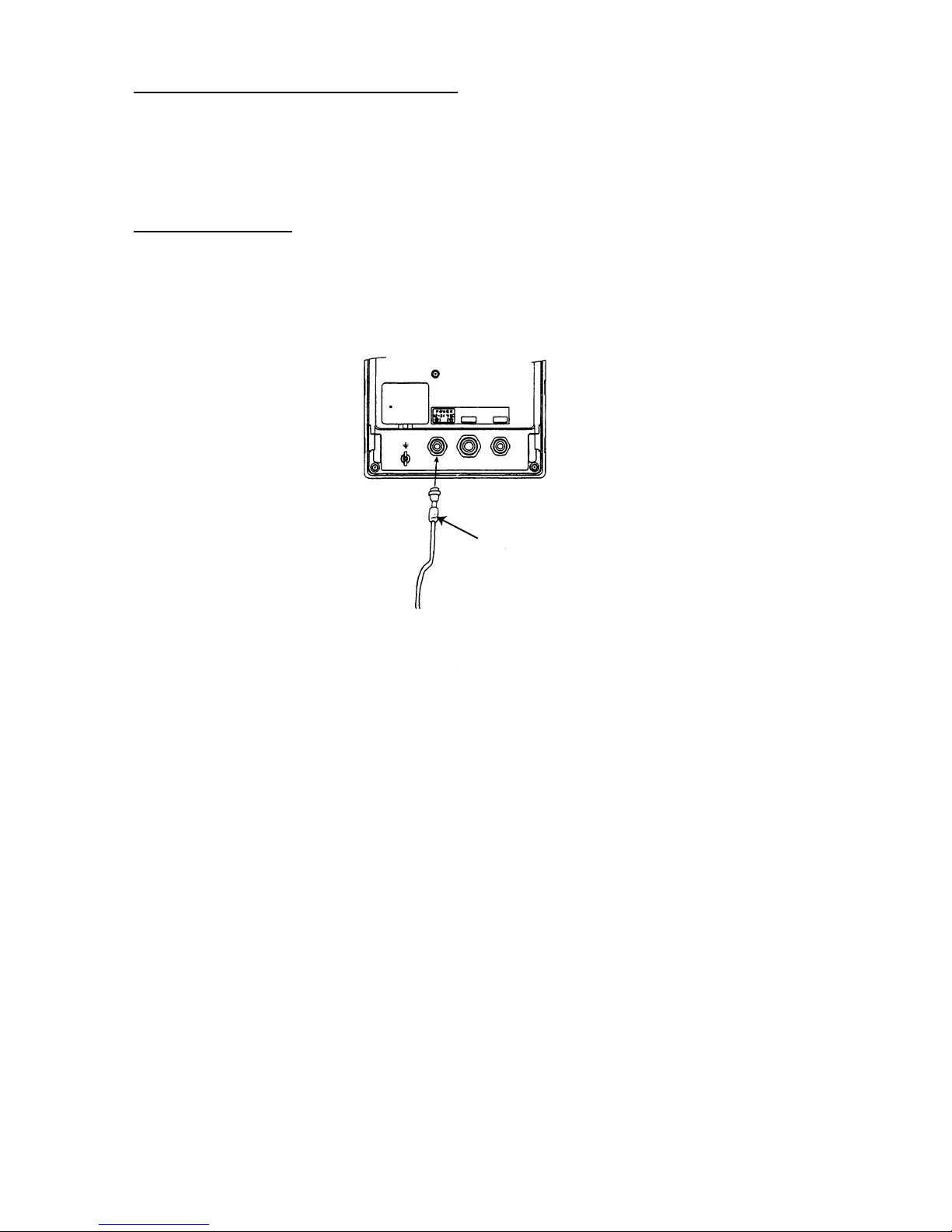

Attaching EMI core
Attach EMI core (supplied) to the power cable to prevent noise.
1. Tape the power cable where the EMI core is to be attached, to hold the core in place.
2. Fasten the core close to the power cable connector.
EMI core
To distribution box
Display unit
Transducer
Connect the transducer cable to the distribution box. If necessary, attach the junction box
between the distribution box and matching box.
Ground
Connect the ground wire (2.0 sq.) from both the display unit and distribution box to ship’s
ground to prevent interference to the picture. Shorten the ground wire as much as possible.
The optional digital depth indicator FE-720 should be grounded by 1.25 sq. wire.
Note 1: Ground the equipment to prevent mutual interference.
Note 2: Use “closed-type” lugs (supplied) to make the ground connection at the display unit and
distribution box. Do not use an “open-type” lugs.
