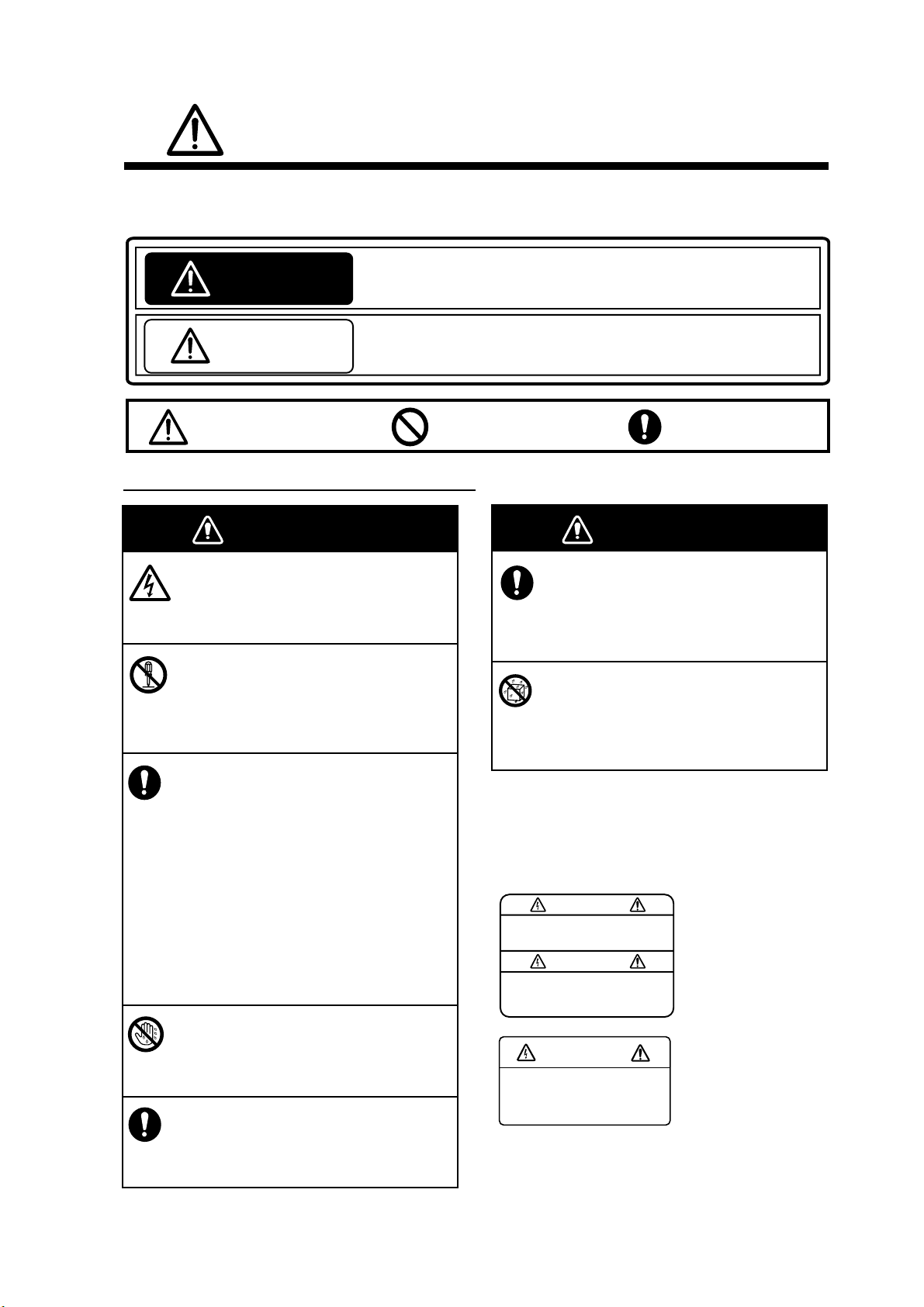

SAFETY INSTRUCTIONS
The operator and installer must read the applicable safety instructions before attempting to
install or operate the equipment.
WARNING
WARNING
Do not open the equipment.
Only qualified personnel should work
inside the equipment.
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Immediately turn off the power at the
power source if

water leaks into the equipment

something is dropped into the
equipment

the equipment is emitting smoke or
is on fire

the equipment is emitting strange
noises
Continued use of the equipment can
cause fire or electrical shock. Contact a
FURUNO dealer or agent for service.
Do not operate the equipment with wet
hands.
Electrical shock can result.
Use the proper fuse.
Use of the wrong fuse can cause fire
or electrical shock.
WARNING
Do not place liquid-filled containers on
the top of the equipment.
Fire or electrical shock can result if a
liquid spills into the equipment.
Make sure no rain or water splash
leaks into the equipment.
Fire or electrical shock can result if water
leaks into the equipment.
.
WARNING
To avoid electrical shock,
do not remove cover. No
user-serviceable parts
Name: Warning Label (1)
Type: 86-003-1011-1
Code No.: 100-236-231
WARNING
To avoid electrical shock,
do not remove cover.
No user-serviceable parts
inside.
Name: Warning Label (2)
Type: 86-129-1001-1
Code No.: 100-236-741
Warning labels are attached to the equipment.
Do not remove these labels. If a label is missing
or illegible, contact a FURUNO agent or dealer
about replacement.
Safety instructions for the operator

iii
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage to the equipment.
Be sure that the power supply is
compatible with the voltage rating of the
equipment.
Connecting an incompatible power supply
can cause fire or damage the equipment.
The voltage rating appears on the inlet
of power.
Standard
compass Steering compass
0.30 m 0.30 m FA-30
WARNING
Safety instructions for the installer

iv
TABLE OF CONTENTS
FOREWORD .........................................................................................................v
SYSTEM CONFIGURATION................................................................................vi
1. INSTALLATION ................................................................................................1
1.1 Equipment Lists ..................................................................................................................1
1.2 AIS Receiver FA-30............................................................................................................2
1.3 Whip Antenna ..................................................................................................................... 3
1.4 Wiring .................................................................................................................................4
2. WEB SOFTWARE SETUP, DATA DISPLAYS .................................................6
2.1 AIS Receiver FA-30............................................................................................................ 6
2.2 COM Port Setup, Network Setup........................................................................................7
2.3 Own Vessel Data Display, Channel Selection..................................................................10
2.4 Sensor Status ...................................................................................................................12
3. MAINTENANCE, TROUBLESHOOTING........................................................13
3.1 Maintenance .....................................................................................................................13
3.2 Replacing the Fuse...........................................................................................................14
3.3 Troubleshooting................................................................................................................14
3.4 Diagnostics .......................................................................................................................15
VHF CHANNEL LIST ......................................................................................AP-1
SPECIFICATIONS...........................................................................................SP-1
OUTLINE DRAWINGS ...................................................................................... D-1
INTERCONNECTION DIAGRAM...................................................................... S-1

v
FOREWORD
A Word to the Owner of the FA-30
Congratulations on your choice of the FURUNO FA-30 AIS Receiver. We are confi-
dent you will see why the FURUNO name has become synonymous with quality and
reliability.
For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for
quality marine electronics equipment. This dedication to excellence is furthered by our
extensive global network of agents and dealers.
This equipment is designed and constructed to meet the rigorous demands of the ma-
rine environment. However, no machine can perform its intended function unless op-
erated and maintained properly. Please carefully read and follow the recommended
procedures for operation and maintenance.
Thank you for considering and purchasing FURUNO equipment.
Features
The FA-30 is a compact and cost effective AIS Receiver that is designed specifically
for small commercial, leisure and fishing boats.
Connected to a VHF antenna it receives AIS data from AIS-equipped vessels, shore
stations and navigational aids (AIS-equipped buoys, etc.). Vessel movement is plotted
on a display connected to the LAN port. Data includes identity (name, call sign and
MMSI), position, speed, heading, etc. of AIS-equipped vessels within VHF range.
Program Version
Item Program No. Version No. Date
FA-30 AIS Receiver Main Program 0550227 01.02 May 2007

vi
SYSTEM CONFIGURATION
AIS RECEIVER
FA-30
HUB
WHIP ANTENNA
SENSOR
OR
12-24 VDC IF-1500AIS
OR
FR-8xx2 SERIES
GPS
SPEED LOG
GYROCOMPASS
SATELLITE COMPASS
NAVNET
RADAR
CHART PLOTTER
ECDIS
PILOT PLUG
PC
w/FAISPC MX
EXTERNAL
DISPLAY
: Standard supply
: Optional supply
: Local supply
NAVNET
EXTERNAL
DISPLAY

1
1. INSTALLATION
1.1 Equipment Lists
Standard supply
Optional supply
Name Type Code No. Qty Remarks
AIS Receiver FA-30 - 1
Installation Materials CP05-11101 001-014-160 1 set Tapping screw
(4x20, 4 pcs.)
AIS Viewer FP05-05910 000-010-938 1 set FAISPC-MX for PC
Spare Parts SP05-05701 001-014-150 1 set 2A fuse, 2 pcs.
Name Type Code No. Qty Remarks
VHF Antenna 150M-W2VN 000-113-498 1
LAN Cable P5E-4PTX-BL 000-164-634-10 1 L=2 m
P5E-4PTX-BL 000-164-637-10 L=10 m

2
1.2 AIS Receiver FA-30
Mounting considerations, mounting
The FA-30 can be mounted on a desktop, deck or on a bulkhead. When selecting a
mounting location, keep the following points in mind:
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as
motors and generators.
• A magnetic compass will be affected if the FA-30 is placed too close to it. Observe
the compass safe distances noted in the safety instructions to prevent disturbance
to the magnetic compass.
• Fix the unit to the mounting location with 4x20 self-tapping screws (supplied).
MORE THAN
70
"A" DETAIL
MORE THAN
70
All dimensions
in millimeters.
MORE THAN 150
