Furuno MFDBB User manual

Installation Manual
Multi Function Display
Model MFDBB
SAFETY INSTRUCTIONS ............................................................................ i
SYSTEM CONFIGURATION ....................................................................... ii
EQUIPMENT LISTS.................................................................................... iii
1. MOUNTING............................................................................................ 1
1.1 Mounting the Control Unit.............................................................................................1
1.2 Mounting the Processor Unit ........................................................................................7
2. WIRING .................................................................................................. 9
2.1 Processor Unit Wiring...................................................................................................9
2.2 Control Unit Wiring .....................................................................................................14
3. SETTING UP THE EQUIPMENT ......................................................... 15
3.1 Setup for Single MFD in the Network .........................................................................16
3.2 Setup for Multiple MFDs in the Network .....................................................................30
PACKING LISTS...................................................................................... A-1
OUTLINE DRAWINGS............................................................................. D-1
INTERCONNECTION DIAGRAM ............................................................ S-1
www.furuno.com
A
ll brand and product names are trademarks, registered trademarks or their respective holder
s.

i
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Warning, Caution
Mandatory Action
Prohibitive Action
SAFETY INSTRUCTIONS
The user and installer must read the appropriate safety instructions before attempting to install
or operate the equipment.
WARNING CAUTION
Ground the equipment to prevent
electrical shock and mutual interference.
Observe the following compass safe distances
to prevent interference to a magnetic compass:
ELECTRICAL SHOCK HAZARD
Do not open the equipment unless
totally familiar with electrical circuits.
Only qualified personnel should work
inside the equipment.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Be sure that the power supply is
compatible with the voltage rating of the
equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
Standard
compass Steering
compass
MPU-001 1.45 m 0.90 m
MCU-001 0.55 m 0.40 m
DCU12 0.70 m 0.45 m
Use the proper fuse.
Use of an incorrect fuse may damage the equipment.

ii

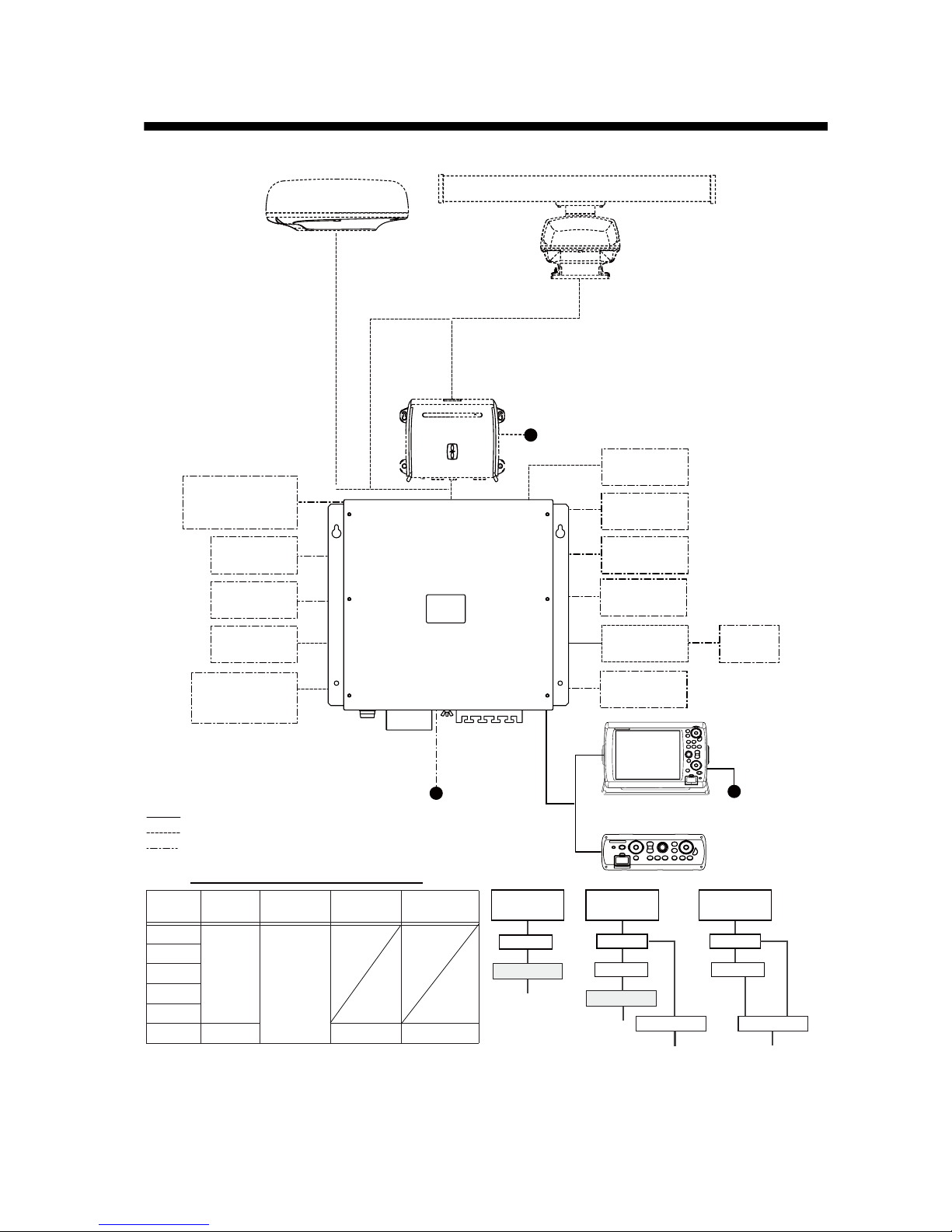

SYSTEM CONFIGURATION
MONITOR
MU-155C/170C, etc.
VIDEO IN (CCD
CAMERA, MAX. 4)
LINE OUT
(SPKR, ETC.)
12-24 VDC*2
DISPLAY CONTRO
L
UNIT DCU12
CONTROL UNIT
MCU-001
AND/OR*3
HUB-101
GPS NAVIGATOR
GP-330B
AIS RECEIVER,
HEADING SENSOR or
EXTERNAL BUZZER
USB DEVICE
(MOUSE, KYBD)
NMEA 2000
(GP-330B, ETC.)
POWER SUPPLY UNIT
PSU-013*1
: Standard Supply
: Optional Supply
: Local Supply
*1 Required with DRS25A
*2 See the table and figure below for
configurations for the PSU and rectifiers.
*3 Max. two units total
PROCESSOR UNIT
MPU-001
RADAR SENSOR
DRS4A/DRS6A/DRS12A/DRS25A
OR
RADAR SENSOR
DRS2D/DRS4D
FISH FINDER
(DFF series, ETR-6/10N,
ETR-30N, FCV-1150)
Matrix for radar model, PSU and rectifiers
DRS2D/4D/
4A/6A/12A
MPU-001
RU-1746B-2
DRS25A
PSU-013
DRS25A
PSU-013
Radar
Model PSU Rectifier for MFDBB Rectifier for PSU Rectifier for MFDBB+PSU
DRS2D Not
required RU-1746B-2
DRS4D
DRS4A
DRS6A
DRS12A
DRS25A PSU-013* RU-1746B-2 RU-3424
* Standard supply with DRS25A.
12-24 VDC*2
RU-1746B-2
12-24 VDC2
LINE IN (MIC,
for future use)
DRS25A
DRS4A
DRS6A
DRS12A
RU-1746B-2 RU-3424
JUNCTION
BOX FI-5002
MPU-001 MPU-001
FAX-30
FA-50

iii
EQUIPMENT LISTS
Standard supply
*See the lists at the back of this manual.
Optional supply
Name Type Code No. Qty Remarks
Processor Unit MPU-001 - 1
Control Unit MCU-001 - 1 Choose one.
Display Control Unit DCU12 - 1
Installation Materials CP19-00600 000-011-664 1 set For MPU-001, Cable, CP19-
00601*
CP19-00700 000-011-663 1 set For MCU-001,
cable, CP19-
00701*
Choose one.
CP19-00800 000-011-662 For DCU12,
cables, CP19-
00801*
Spare Parts SP19-00501 001-023-090 1 set For MPU-001, fuses
SP19-00601 001-023-040 1 set For DCU-001, fuses
Accessories FP19-01201 001-033-760 1 For MCU-001, panel remover
FP19-01101 001-023-060 For DCU12, panel remover
Name Types Code No. Remarks
DVI-D Cable DVI-D/D SINGLELINK 000-149-054-10 5 m
DVI-D/D S-LINK 000-150-200-10 10 m
External Buzzer OP03-136 000-086-443
Rectifier RU-1746B-2 -
Network Hub HUB-101 -
Joint Box TL-CAT-012 000-167-140-10 For LAN cable extension
Junction Box FI-5002 000-010-765 For NMEA 2000
Control Unit MCU-001 -
Display Control
Unit DCU12 -

iv
Cable Assy MJ-A7SPF0007-050C 000-154-028-10 5 m, NMEA0183, w/7P
connector
MJ-A6SPF0016-005C 000-159-689-11 For FAX-30, ETR6N/10N
connection
MOD-Z072-020+ 000-167-175-10 2 m, LAN
MOD-Z072-050+ 000-167-176-10 5 m, LAN
MOD-Z072-100+ 000-167-177-10 10 m, LAN
MOD-Z073-030+ 000-167-171-10 3 m, for PC connection
M12-05BM+05BF-010 000-167-962-10 φ6, 1 m, NMEA 2000
M12-05BM+05BF-020 000-167-963-10 φ6, 2 m, NMEA 2000
M12-05BM+05BF-060 000-167-964-10 φ6, 6 m, NMEA 2000
M12-05BFFM-010 000-167-965-10 φ6, 1 m, NMEA 2000
M12-05BFFM-020 000-167-966-10 φ6, 2 m, NMEA 2000
M12-05BFFM-060 000-167-967-10 φ6, 6 m, NMEA 2000
CB-05PM+05BF-010 000-167-968-10 φ10, 1 m, NMEA 2000
CB-05PM+05BF-020 000-167-969-10 φ10, 2 m, NMEA 2000
CB-05PM+05BF-060 000-167-970-10 φ10, 6 m, NMEA 2000
CB-05BFFM-010 000-167-971-10 φ10, 1 m, NMEA 2000
CB-05BFFM-020 000-167-972-10 φ10, 2 m, NMEA 2000
CB-05BFFM-060 000-167-973-10 φ10, 6 m, NMEA 2000
NMEA connector LTWSS-050505-FMF-
TS001 000-168-603-10 NMEA 2000 distributor (micro style)
LTWMC-05BMMT-
SL8001 000-168-604-10 NMEA 2000 terminator, male (micro style)
LTWMC-05BFFT-
SL8001 000-168-605-10 NMEA 2000 terminator, female (micro style)
LTWNC050505FMF-
TS001 000-160-507-10 NMEA 2000 distributor (mini style)
LTWMN-05AMMT-
SL8001 000-160-508-10 NMEA 2000 terminator, male (mini style)
LTWMN-05AFFT-
SL8001 000-160-509-10 NMEA 2000 terminator, female (mini style)
In-line Terminator FRU-0505-FF-IS 000-172-037-10 NMEA 2000 connector
w/terminator, micro style
Operator’s Manual OME-44460 000-167-217
NMEA 2000 Inter-
face Unit IF-NMEA2K1 -
Name Types Code No. Remarks

1
1. MOUNTING
1.1 Mounting the Control Unit

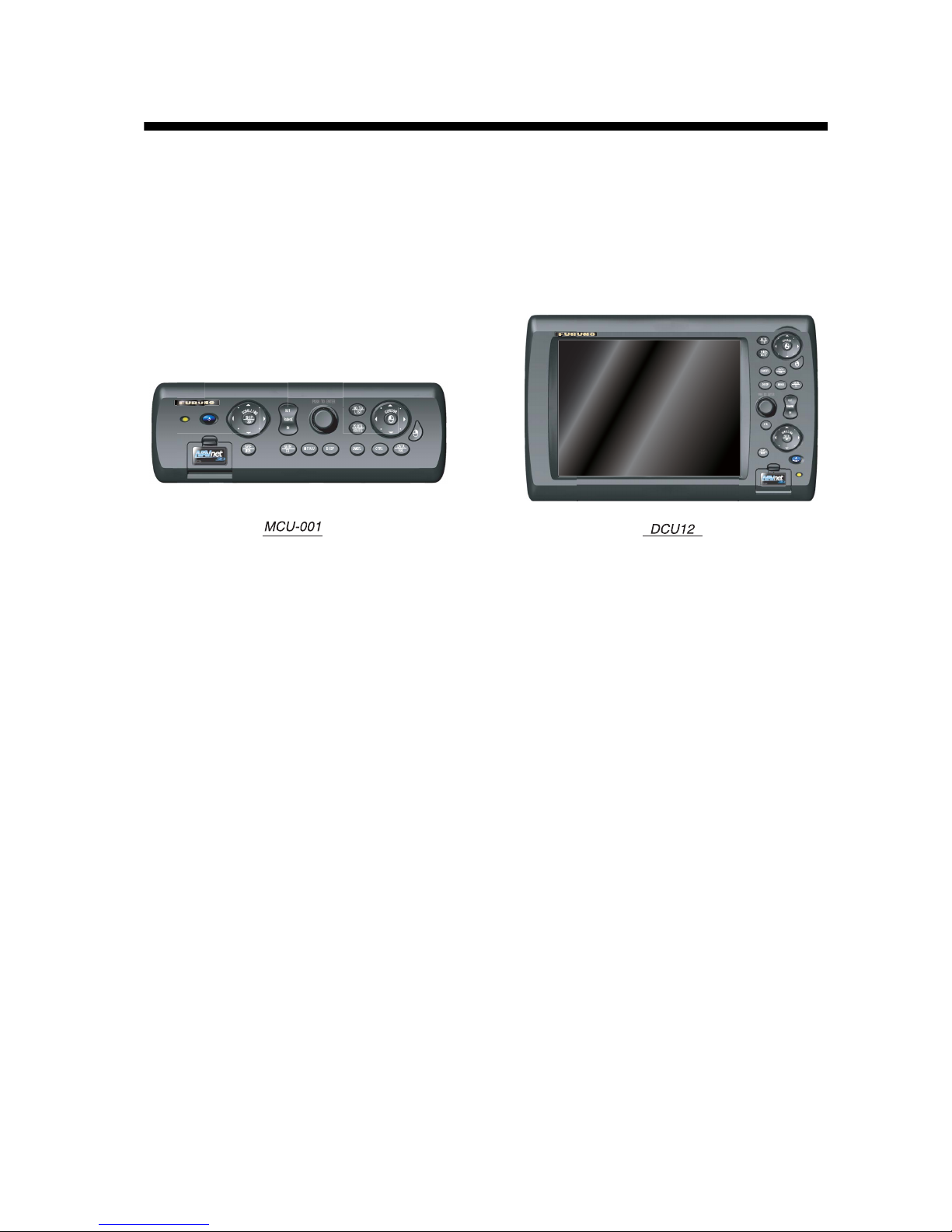

There are two types of control units: Control Unit MCU-001 and Display Control Unit DCU12. The
former is the keyboard type, and the latter has an LCD display and keyboard.
When selecting a mounting location for the control unit, keep the following in mind:
• The temperature and humidity at the mounting location should be moderate and stable.
• Locate the unit away from exhaust pipes and ventilators.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field generating equipment such as motors and gen-
erators.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of the unit
and leave slack in cables. Minimum recommended space is shown on the outline drawing for
the control units.
• Do not mount the DCU12 on the overhead.
• A magnetic compass will be affected if the control unit is placed too close to it. Observe the
compass safe distances shown in the SAFETY INSTRUCTIONS to prevent disturbance to the
magnetic compass.
•For the flush mount, make sure the mounting location is flat.

2
1.1.1 Mounting procedure for control unit MCU-001
The control unit MCU-001 is designed to be flush mounted in a console or panel.
1. Prepare a cutout in the mounting location using the template sheet (supplied) for the MCU-
001.
2. Remove the front panel from the MCU-001 by unfastening the catches at the rear of the panel,
in the order as shown in the figure below.
Note: Detach the panel carefully to prevent breakage of the panel.
3. Attach the mounting sponge to the MCU-001.
4. Fix the MCU-001 by using four self-tapping screws (supplied).
5. Attach the front panel to the MCU-001.
How to detach the front panel from the mounting place
To detach the front panel after mounting the unit, use the remover (supplied) as below. Do not
attempt to remove it by any other method, to prevent damage to the unit.
1. Set the remover to the left-side notch at the bottom of the unit.
Mounting
sponge
MCU-001
Cutout
Self-tapping screws
(4 pcs.)
Front panel
1
2
3
4
5
6
MCU-001, rear view
(Location of catches and order to unfasten them)

3
2. Pull the remover to raise the panel slightly.
3. Similarly use the remover to raise the panel at the right-side notch.
4. Insert the remover to the space at the one end of the unit, and pull it to raise the panel slightly.
Repeat this procedure for the opposite side.
5. Use the remover to raise the panel at the two notches on the upper side of the unit.
6. Use your hands to detach the front panel at both sides of it.

4
1.1.2 Mounting procedure for display control unit DCU12
The Display Control Unit DCU12 can be flush mounted in a console or panel, or mounted on a
desktop or the overhead.
Flush mounting
1. Prepare a cutout in the mounting location using the template sheet (supplied) for the DCU12.
2. Remove the front panel from the DCU12 by unfastening the catches at the rear of he panel, in
the order as shown in the figure below.
Note: Detach the panel carefully to prevent breakage of the panel.
3. Attach the mounting sponge to the DCU12.
4. Fix the DCU12 by using four self-tapping screws (supplied).
5. Attach the front panel to the DCU12.
How to detach the front panel from the mounting place
To detach the front panel after mounting the unit, use the remover (supplied) as below. Note that
the front cover may be damaged if you do not follow the methods below.
1. Set the remover to a notch on the lower side of the unit.
Mounting
sponge
Front panel
Cutout
Display unit
(ex. MFD12)
Self-tapping screws
(4 pcs.)
MFD, rear view
(Location of catches and
order to unfasten them)
1
2
3
4
5
6
7
1
8

5
2. Pull the remover to raise the panel slightly. Do this for all notches on the lower side of the unit.
3. Insert the remover to the space at the one side of the unit, and pull the remover to raise the
panel slightly. Do the same for the opposite side.
4. Use your hands to detach the front panel from the lower side.

6
Desktop mounting
Follow the procedures below to mount the DCU12 on a desktop. This method requires the hanger.
1. Attach a liner to each side of the DCU12.
2. Fix the hanger by using self-tapping screws (supplied).
3. Screw knob bolts into the DCU12, set it to the hanger, and tighten the knob bolts.
DCU12
Hanger
Knob
Liner

7
1.2 Mounting the Processor Unit
The unit can be mounted on the deck, a desktop or on a bulkhead. Select a mounting location
considering the points below.
• Select a location where temperature and humidity are moderate and stable.
• Consider the lengths of the cables connected among the processor unit, radar sensor and con-
trol unit.
• For mounting on a bulkhead, be sure the mounting location is strong enough to support the unit
under the pitching and rolling normally encountered on the vessel.
• Leave sufficient space around the unit for maintenance and servicing. Recommended mainte-
nance space appears in the outline drawing at the back of this manual.
• A magnetic compass will be affected if the processor unit is placed too close to the magnetic
compass. Observe the compass safe distances in SAFETY INSTRUCTIONS to prevent distur-
bance to the magnetic compass.
Desktop or deck mounting
Fasten with four self-tapping screws.
Processor unit, desktop/deck mounting
Self-tapping screw
(6x30, 4 pcs.)

8
Bulkhead mounting
Mark four fixing hole positions on the bulkhead. Screw in two 6x30 self-tapping screws at upper
fixing positions, leaving 5 mm protruding. Set the processor unit to the screws and screw in two
self-tapping screws at lower positions. Tighten all screws.
Processor unit, bulkhead mounting
4 pcs.

9
2. WIRING
2.1 Processor Unit Wiring
For detailed information about NMEA 2000 wiring, see “Furuno CAN bus Network Design Guide”
(TIE-00170) on Tech-Net.
Note: Connect/disconnect cables after turning the power off.

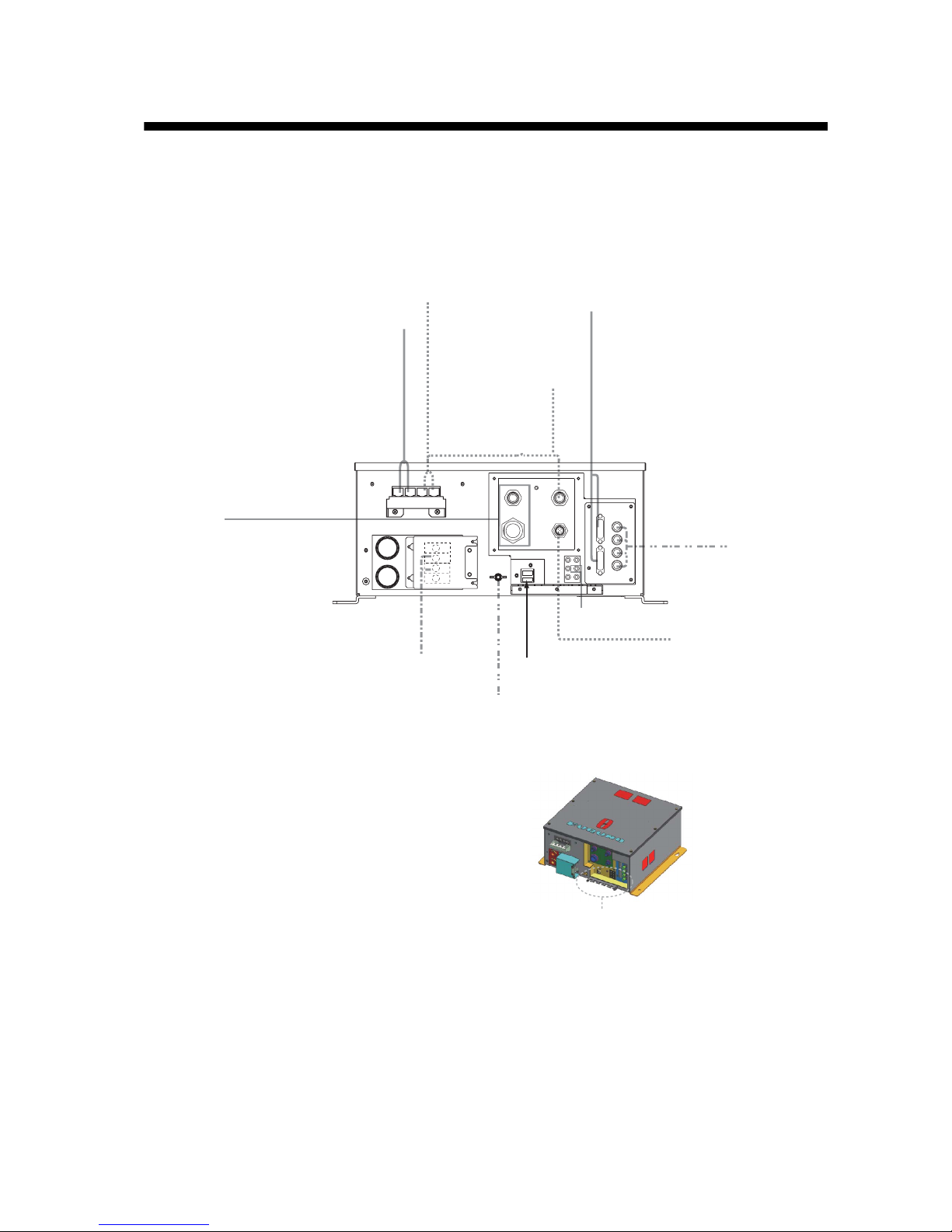

Control Unit
MCU-001 and/or DCU12
12-24 VDC
NMEA 0183
equipments
(ex. GP-320B)
Radar Sensor or
PSU-013
USB port*
(Mouse, keyboard)
Display Control Unit DCU12
or External display
(MU-155C/170C, etc.)
Video interface
devices
External speaker*
NMEA 2000 equipment
(SC-30, FI-50, GP-330B,
etc.)
*: For USB, speaker and microphone connections,
appropriate cables should be fastened to the metal
plate beneath of connectors by the cable tie.
Metal plate
DPYC-6 cable
(within 5 m)
2.5C2V or 3C2V
coaxial cable
DVI-D/D SINGLELINK
5 m: supplied with DCU12
10 m: option
MOD-Z072 cable
5 m: supplied with
MCU
2 m, 10: option
7 pin: MJ-A7SPF0007
(5 m, option)
18 pin: FRUDD-18AFFM
(2 m, supplied)
Ship's ground
Ground cable
IV-8sq.
CB-05BFFM, 1 m/2 m
MOD-ASW
0001 cable
(10, 15, 20,
30 m)
Network sounder,
IP camera, etc.
MOD-WPAS cable (3 m)
(supplied with DCU)
MOD-Z072 cable
(2, 5, 10, 10 m)

10
POWER

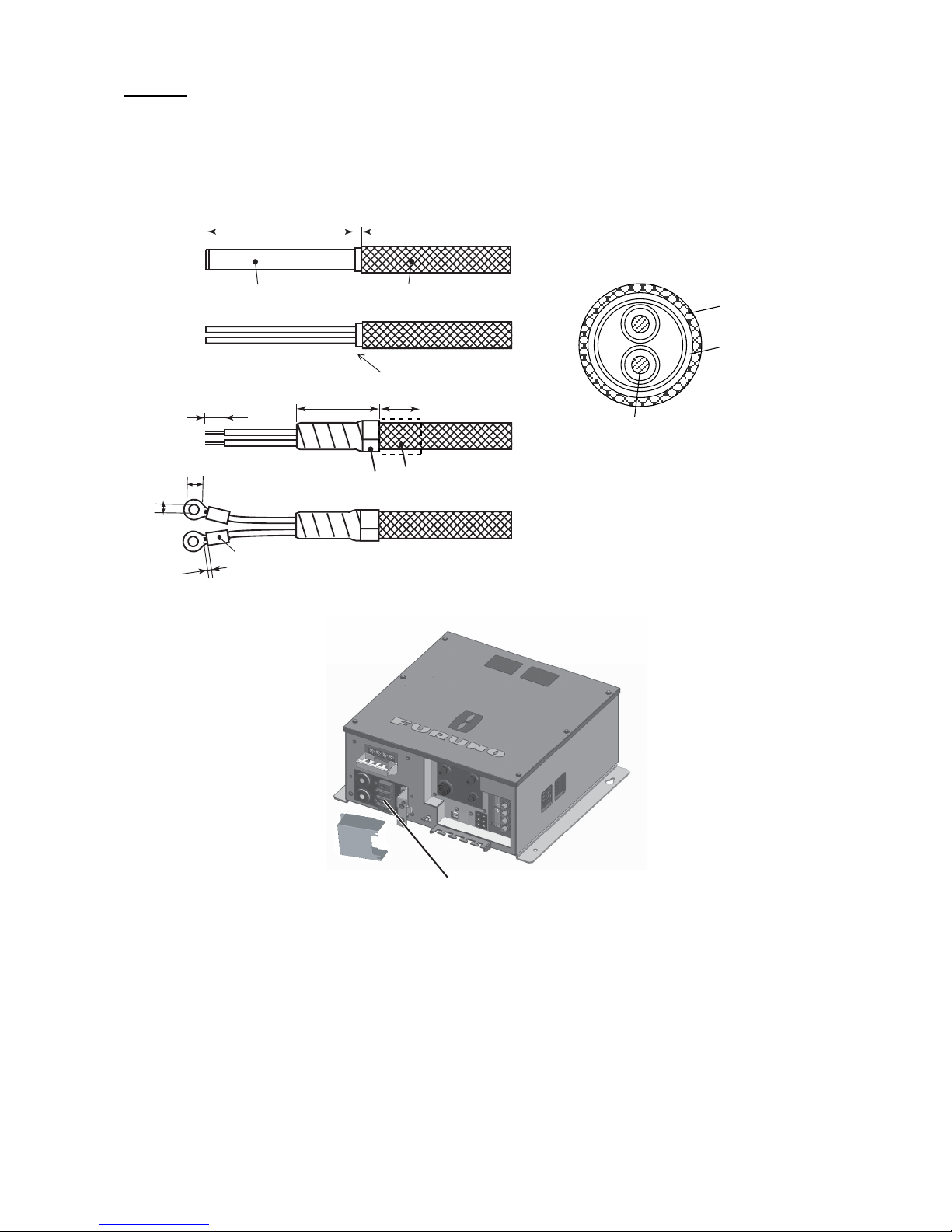

Fabricate the power cable (DPYC-6 or equivalent) as shown below. Unfasten four pan head
screws to remove the power terminal cover, and then connect the power cable DPYC-6 to the
power terminal (upper: +, lower: -). Reattach the cover. The maximum cable length should be with-
in 5 m.
Conductor
S = 6 mm
φ= 3.12 mm
2
DPYC-6
Armor
Sheath
φ = 15.2 mm
47 3
7
Armor
Cut the sheath.
Vinyl tape
Sheath
20
1
Crimp-on lug (local supply)
20
Remove the paint.
5.5
8 to 12
Power terminal
cover Power terminal

11
NETWORK 1 to 4
The DIP switch inside the processor unit functions to enable/disable the network ports. The num-
ber on each DIP switch corresponds to port number. Turn DIP switch #1 (or #2) ON when the LAN
cable for DCU12/MCU-001 is connected to network #1 (or #2).
Note 1: When connecting PC(s) or FAR-2xx7 series radar, confirm that the DIP switch(es) corre-
sponding to the PC port(s) are turned OFF.
Note 2: The MCU-001(s) should be connected to the NETWORK 1 and/or 2 port(s) directly, not
via the HUB-101.
DIP switch
ON
OFF
Front
1 2 3 4
NETWORK 1 2 3 4
ONLY
MCU-001
DCU12
Binding screw
M4x8, 6 pcs.

12
Using DATA2 port (NMEA0183)
To connect multiple NMEA 0183 equipment, use the cable assy FRUDD-18AFFM-L180 supplied.
This cable has an 18P connector. The DATA 2 port on the back of the processor unit. Solder wires
of the FRUDD-18AFFM-L180 and the wires from sensors. The wire arrangement is shown below.

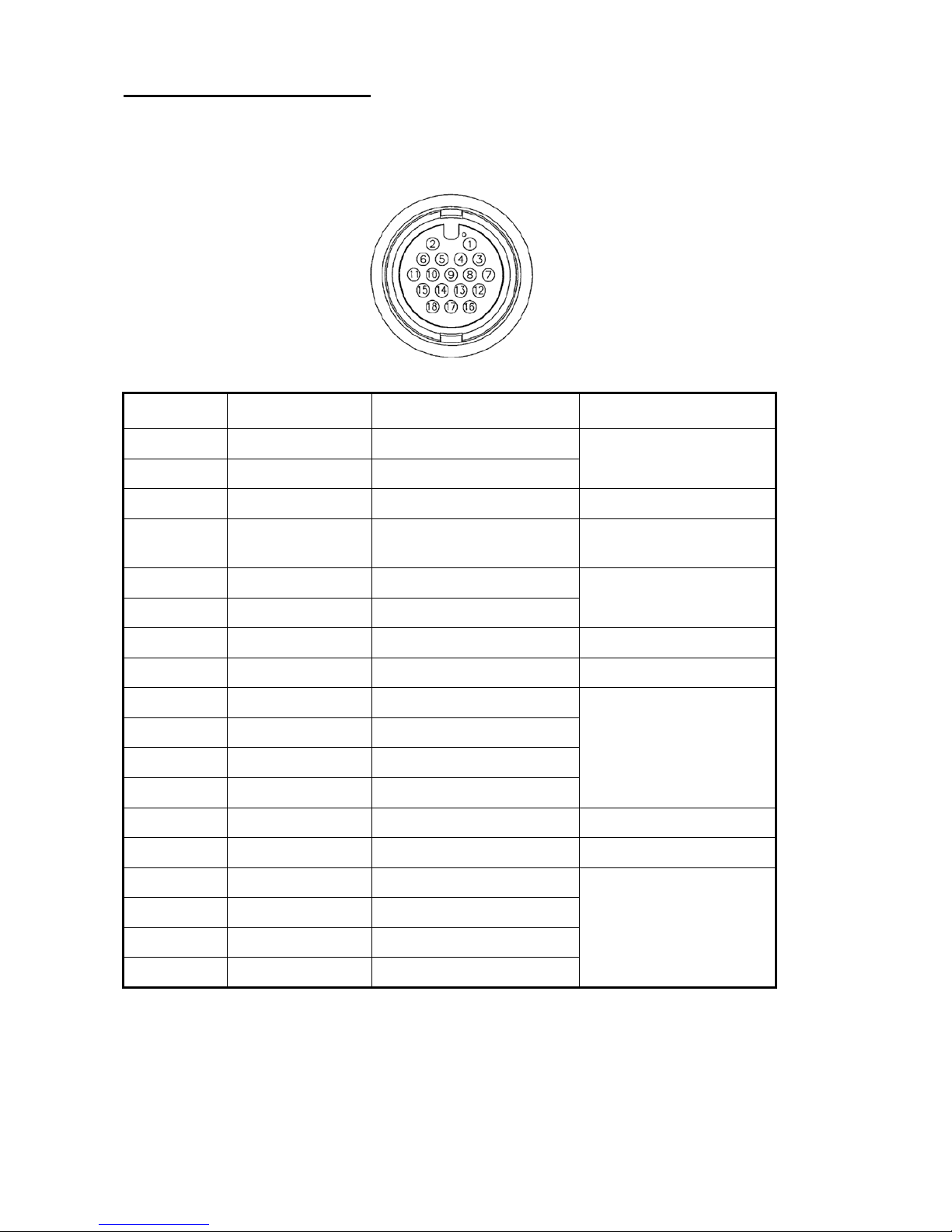

Pin No. Color Function Remark (Port No.)
18 Light green NET-C IN (0V) NMEA 2000 Power
17 Pink NET-S IN (+12V IN)
16 Purple Shield
15 White BUZZER or EVENT IN External buzzer or event
switch
14 Gray SPEED-ALARM C Speed alarm contact
13 Yellow SPEED-ALARM H
12 Black/White +12V External buzzer power
11 Black GND
10 Blue/White RD3-C Port 3
9 Blue RD3-H
8 Green/White TD3-B
7Green TD3-A
6 Orange/White GND
5OrangeGND
4 Brown/White RD2-C Port 2
3 Brown RD2-H
2 Red/White TD2-B
1 Red TD2-A

13
Video interface devices (analog type)
Maximum four camera/video devices can be connected. For this connection, the following cable
is necessary (local supply).
• BNC connector
• 3C2V (Japan Industrial Standard (JIS), or the equivalent) coaxial cable (impedance 75Ω)

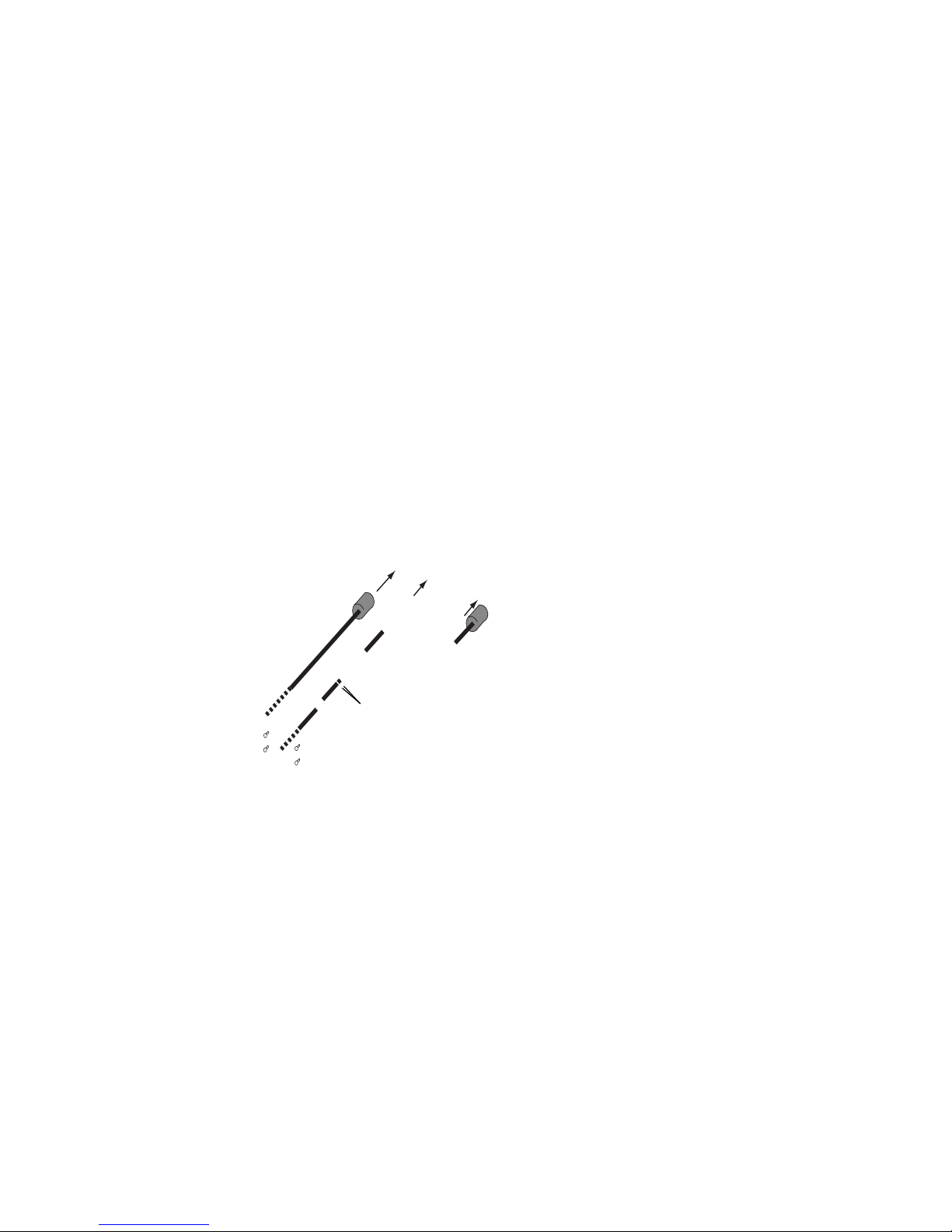

3C-2V cable, sectional view
Video interface devices (digital type)
The NavNet 3D can display digital pictures from IP cameras (AXIS model 212 or 207 only) via
LAN. IP addresses are allocated 172.31.200.003 through 006. For details, see the Operator’s
Manual for model 212 and 207.
Insulator
Shield
Vinyl sheath
Conductor
S = 0.19 mm
= 0.5 mm
2

14
2.2 Display Control Unit Wiring
Connect the MOD-WPAS0001-030+ cable (from the processor unit) to the LAN connector at the
rear of the display control unit. This cable has 3 m in length. If you need longer cable, use the op-
tional joint box TL-CAT-012 and cable assy MOD-Z072 cable (2, 5 or 10 m). For DCU12, the con-
nection of DVI cable is also necessary. When connecting this cable, follow the steps shown below
for waterproofing.
1. Pass the DVI cable through the DVI cover (supplied) and fixing plate (supplied) in that order.
2. Attach the DVI cable to the DVI connector at the rear of the DCU12, and then tighten the
thumbscrews on the connector.
3. Slide the DVI cover so that it covers the connector at the rear of the display control unit.
4. Put the fixing plate over the DVI cover, and then fasten it with four binding screws (supplied).
5. Pass the cable tie (supplied) through two holes on the DVI cap, and fasten it tightly.
MCU-002,
rear view
DVI cable
DVI cover
Fixing plate
Binding screw (M3X10)
MOD-WPAS0001-030+
Pass the cable tie through these holes, and fasten tightly.
MJ-A3SPF0013
(power cable)
