Gamma+ Silhouette Oculus XL Z User manual

Silhouette Oculus XL Z
24x60w RGBW LED Wash with Pixel Mapping
User Manual
Silhouette culus XL Z – GAMMA LED Vision Page 1 of 20

Table of Contents
1. Introduction and Setup.......................................................................................................................................3
Unpacking and In the Box.................................................................................................................................3
Mounting and peration...................................................................................................................................3
Features......................................................................................................................................................................3
Safety Precautions.................................................................................................................................................4
Customer Support.................................................................................................................................................5
2. Setup and peration...........................................................................................................................................6
Using the LCD Menu and Buttons................................................................................................................6
DMX Setup...............................................................................................................................................................8
DMX Basics..........................................................................................................................................................8
DMX Wiring........................................................................................................................................................8
DMX Modes and Configuration...................................................................................................................10
Pixel Layout – 68 Channel Mode:..........................................................................................................14
3. Maintenance..........................................................................................................................................................16
Routine Maintenance........................................................................................................................................16
Troubleshooting Problems.............................................................................................................................16
4. Technical Specifications....................................................................................................................................17
5. Photometrics..........................................................................................................................................................18
Silhouette culus XL Z – GAMMA LED Vision Page 2 of 20

1. Introduction and Setup
Unpacking and In the Bo
Thank you for choosing our Silhouette Oculus XL Z. For your own safety, please read this
manual before installing or using the de ice. This manual co ers the important information on
installation and applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual for future needs.
In the box you will find:
Silhouette Oculus XL Z Fixture 1
Attached, Fold-Down Clamps 2
2m True1 Power Cable 1
DMX 3-Pin Signal Cable 1
Mounting and Operation
Clamp Mounting: The Silhouette Oculus XL Z mo ing head pro ides fold-down clamps
which sit in the base on the unit. The folding clamps can swi el freely, and the swi el is
tightened down ia an allen wrench. The clamps do not ha e to be remo ed for floor-
standing operation.
As an added safety measure be sure to attached at least one properly rated safety cable
to the fixture using on of the safety cable rigging point integrated in the base assembly.
Features
24*60w RGBW LED Wash light
24 Individual Pixel-Mapped Zones
3.5°-45° Motorized Zoom

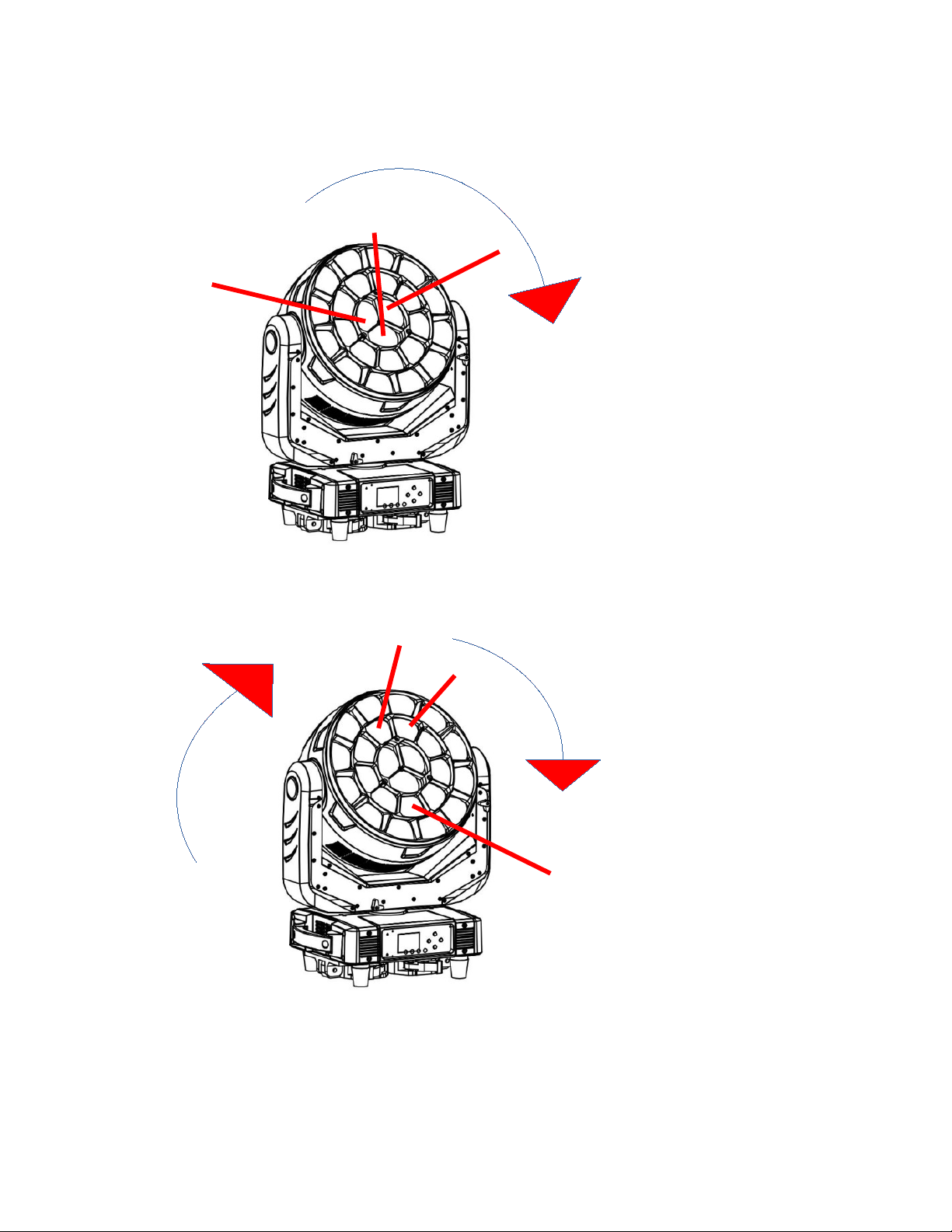

Beam Scatter and Rotation
DMX or Art-Net Control with RDM
Silhouette culus XL Z – GAMMA LED Vision Page 3 of 20

Safety Precautions
Do not expose this fixture to rain or moisture.
Do not spill water or other liquids into or on your unit.
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the de ice’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Ne er stand directly below the de ice when mounting, remo ing, or ser icing the fixture.
From a ceiling, or set on a flat le el surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.), and that .5m is kept
around the fixture for entilation.
Always use and install the supplied safety cable as a safety measure to pre ent accidental
damage and/or injury in the e ent the clamp fails.
∙Don’t try to modify the fixture without any instruction by the manufacturer or the appointed
repairing agencies.
∙Warranty is oided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock short circuit, electronic shock, lamp broken,
etc.
Silhouette culus XL Z – GAMMA LED Vision Page 4 of 20

Customer Support
WARRANTY P LICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects. Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products. GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
utdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
utdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVIS N.C M for complete Limited Warranty terms and
contact information.
Silhouette culus XL Z – GAMMA LED Vision Page 5 of 20

2. Setup and Operation
Using the LCD Menu and Buttons
The culus features Up/Down/Menu/Enter Buttons to navigate the menu. Use “ENTER” to
go into the menu, UP/D WN to make selections, and MENU to go back to a previous
menu.
Menu Structure:
Menu 1. Pan Degree 1. 540°, 2. 360° Sets the pan range, which can be
limited to 360° if desired.
2. Mic Sense 001-100 Sensitivity for Sound-Active Mode
3. Pan Invert N /YES Inverts the Pan Control
4. Tilt Invert N /YES Inverts the Tilt Control
5. No Signal 1. Black ut, 2.
Hold
Sets the behavior on DMX loss.
Black out sets the DMX values to
zero, whereas “Hold” will hold the
last DMX value until DMX is
received again or the fixture is
restarted.
6. Fan Set 1. Auto, 2. Low,
3. High
Sets the fan speed. Warning: Use
with caution, if the light is in a hot
environment and low is selected, it
may shut down due to heat.
7. ArtNet Set ArtNet Enable 1. N, 2. FF Enable or
Disable Art-Net
Control
2. Universe 0-255 Sets the Art-Net
Universe
3. IP Model 1: 2.X.X.X Auto ,
2. 10.X.X.X Auto ,
3. Custom
Sets the IP
address type for
Art-Net
4. Custom Sets the custom IP address.
5. SubNet Mask Sets the Subnet Mask
8. Default YES/N Resets the Fixture to Factory
Silhouette culus XL Z – GAMMA LED Vision Page 6 of 20

Defaults – Warning: Use With
Caution, this will set the unit to
the Chinese language!
9. Adjust Password Entry
Screen
(Up/Down/Up/D
own/Enter)
This menu allows you to calibrate
the maximum value for each
parameter within the light. Use
with Caution, as this can cause
your lights to be inconsistent
across your lighting rig!
Address 001-512 Set the DMX Address
Mode 1. DMX512 Sets the light in DMX mode
2. Auto Sets the light in Auto Program mode.
3. Sound Sets the light in Sound-Active Mode
4. Manual Sets the light in Manual Mode, and offers a menu to
set the values for each parameter.
5. Master or
Alone
Sets the light in Master/Alone mode. When in this
mode, the fixtures may be connected via DMX cable
and multiple fixtures may follow a matching pattern.
Channel 1. 21 CH
2. 25 CH
3. 33 CH
4. 129 CH
5. 106 CH
Sets the DMX channel mode. 106 channel mode not
supported.
Display Pressing the “Display” option will flip the display.
Language English or
Chinese
Sets the display language. Use with Caution!
Reset 1. No, 2. Yes Selecting “Yes” initiates re-homing of the fixture.
Information 1. CH Value Shows active DMX values for all channels
2. Temp Shows Temperature in Celsius
3. Soft VX.X Shows firmware version of light
4. IP Shows IP Address
5. Mask Shows Subnet Mask
Silhouette culus XL Z – GAMMA LED Vision Page 7 of 20

DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. nly 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.
Please refer to the diagram below:
Silhouette culus XL Z – GAMMA LED Vision Page 8 of 20

For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
Silhouette culus XL Z – GAMMA LED Vision Page 9 of 20

DMX Modes and Configuration
The Silhouette culus XL Z has multiple DMX modes, sometimes called “personalities”,
“profiles”, or as we will use here “modes”.
In general, modes with more DMX channels offer a greater level of control or options but
take up more of your output channels on your lighting console or software.
Modes with less DMX channels often offer less control, but may be plenty for your needs.
Depending on your needs and control solution, you may not need channels for
automated programs, strobes, or macros – your console may have great effects! In this
case, you can use a lesser channel mode and fit more lights per DMX universe.
View the DMX mode charts below to find the mode that best suits your needs.
DM Channel Mode Sheet:
See below for the DM channel layouts of the Silhouette Oculus : Z:
21
Chan
nels
25
Chan
nels
33
Chan
nels
129
Chan
nels
Function Channel
Value
Description
1 10 11 11 Red 0-255 Red for Entire Fixture
2 12 12 Red Fine 0-255 Fine Control of Red
3 11 13 13 Green 0-255 Green for Entire Fixture
4 14 14 Green Fine 0-255 Fine Control of Green
5 12 15 15 Blue 0-255 Blue for Entire Fixture
6 16 16 Blue Fine 0-255 Fine Control of Blue
7 13 17 17 White 0-255 White for Entire Fixture
8 18 18 White Fine 0-255 Fine Control of White
9 14 20 20 Virtual Color
Wheel and CTC
0-195 Virtual Color Wheel
196-200 2800k
201-205 3200k
206-210 3800k
211-215 4200k
216-220 4700k
221-225 4800k
226-230 5200k
231-235 5400k
Silhouette culus XL Z – GAMMA LED Vision Page 10 of 20

21
Chan
nels
25
Chan
nels
33
Chan
nels
129
Chan
nels
Function Channel
Value
Description
236-240 5500k
241-245 5600k
246-255 5700k
10 15 21 21 Fixed Color
Macros
0-255 Color Macros on entire front
lens
16 22 22 Static Shapes
Patterns
0-9 No Function
10-12 Monochromatic Pattern 1
(E ery 3 DMX
Values)
E ery 3 Values, a new
monochromatic pattern is
acti ated. So 10-12, 13-15,
etc.
211-213 Mixed Color Pattern 1
(E ery 3 DMX
Values)
E ery 3 Values, a new mixed
color pattern is acti ated,
thru Mixed Color Pattern 15
at 253-255
17 23 23 Dynamic Shapes
Patterns
0-9 No Function
10-14 Monochromatic Pattern 1
(E ery 5 DMX
Values)
E ery 5 Values, a new
monochromatic pattern is
acti ated.
211-213 Mixed Color Pattern 1
(E ery 3 DMX
Values)
E ery 5 Values, a new mixed
color pattern is acti ated.
18 Dynamic Pattern
Speed
0-127 Pattern Speed, Forward
Motion
128-255 Pattern Speed, Re erse
Motion
19 25 25 Dynamic Pattern
Speed II. When
using ch. 17, this
gi es you speed
control of the
secondary
aspect of the
pattern.
0-9 No Function
10-132 Forward, from Fast to Slow
133-255 Backward, Fast to Slow
Silhouette culus XL Z – GAMMA LED Vision Page 11 of 20

21
Chan
nels
25
Chan
nels
33
Chan
nels
129
Chan
nels
Function Channel
Value
Description
27 27 Background
Dimmer
0-255 Intensity control for
background
28 28 Background
Strobe
0-255 Strobe control for
background.
20 29 29 Background Red 0-255 Red Control for Background
of Patterns
21 30 30 Background
Green
0-255 Green Control for
Background of Patterns
22 31 31 Background Blue 0-255 Blue Control for Background
of Patterns
23 32 32 Background
White
0-255 White Control for
Background of Patterns
24 24 Pattern
Translation
0-255 Modify Dynamic Pattern
Scene with Fade Pattern
26 26 Pattern Effect
Fade
0-255 Amount of Pattern Fading
11 8 8 8 Dimmer 0-255 Intensity Control
12 9 9 Dimmer Fine 0-255 Fine Intensity Control
13 9 10 10 Strobe 0-3 Open/ON
4-203 Variable speed strobe, 1Hz-
25Hz
204-255 Random Strobe
14 1 1 1 Pan 0-255 Pan Control
15 2 2 2 Pan Fine 0-255 Fine Pan
16 3 3 3 Tilt 0-255 Tilt Control
17 4 4 4 Tilt Fine 0-255 Fine Tilt
5 5 5 Pan/Tilt Speed 0-255 Speed from Fast to Slow
18 6 6 6 Zoom 0-255 3.5°-45° Zoom, Narrow to
Wide
19 7 7 7 Lens Rotation 0-155 Lens Indexing
156-205 Clockwise Rotation, Fast to
Slow
206-255 Counterclockwise Rotation,
Slow to Fast
Silhouette culus XL Z – GAMMA LED Vision Page 12 of 20

21
Chan
nels
25
Chan
nels
33
Chan
nels
129
Chan
nels
Function Channel
Value
Description
20 24 19 19 Dimming Mode 0-49 Mode 1
50-99 Mode 2
100-149 Mode 3
150-249 Mode 4
21 25 33 33 Reset 1-249 No Function
250-255 Reset
RGB Cell Control Below – in 129 Channel Mode, these repeat every 4 channels
34... Red 0-255 RGBW for each cell from
channels 34-129
35... Green 0-255 RGBW for each cell from
channels 34-129
36... Blue 0-255 RGBW for each cell from
channels 34-129
37... White 0-255 RGBW for each cell from
channels 34-129
Silhouette culus XL Z – GAMMA LED Vision Page 13 of 20

Pi el Layout – 129 Channel Mode:
Center is 1-3, Clockwise
Middle Ring is 4-12, Clockwise:
Silhouette culus XL Z – GAMMA LED Vision Page 14 of 20
1
2
3
4
12
8

uter Ring is 13-24, Clockwise:
E ample:
Here is a photo of pixels 1, 4, 13, in Red, 2, 5, 14 in Green, 3, 6, 15 in Blue, and the rest are
White.
Pan/Tilt Calibration
When creating fixture profiles, it is helpful to know how the pan and tilt operates.
When the Pan and Tilt are at 50%, the yoke is perpendicular to the LCD screen. If you are
standing in front of the unit, sitting on the ground, your shoulders are parallel to the
yoke.
Silhouette culus XL Z – GAMMA LED Vision Page 15 of 20
13
24

As you increase the Pan channel, the fixture moves clockwise.
When Pan is at 50%, and you increase the tilt, the head points away from you.
Silhouette culus XL Z – GAMMA LED Vision Page 16 of 20

3. Maintenance
Routine Maintenance
Fan Cleaning
Periodically do a visual inspection of the fans. If they are dirty, power off the unit and use
a small electronics vacuum to clean the fans out. Do not use a can of C02 or an Air
Compressor. These will simply blow the dust into the unit and may leave other residue.
Front Lens
The front lens should be cleaned so that light output is maintained.
With the light powered off, use a moist, lint-free cloth. Never use alcohol or solvents to
clean the fixture.
Never spray any cleaners on the fixture.
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not light up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good.
Unplug all other lights – does it work?
•Try to use another DMX controller.
Silhouette culus XL Z – GAMMA LED Vision Page 17 of 20

4. Technical Specifications
•24*60w RGBW LED Wash light
•1550w
•24 Individual Pixel-Mapped Cells
•Pan: 540°
•Tilt 270°
•3 and 5 Pin DMX Jacks
•Ethernet input for Art-Net
•True1 Input
•3.5°-45° Motorized Zoom
•Beam Scatter and Rotation
•DMX or Art-Net Control with RDM
•Power Factor greater than or
equal to 0.98
•AC 100-240v, 50/60Hz
•57.2 lbs / 25.94 Kgs
•Dimensions: 13.94”x17.48”x18.78”
354x444x477mm
•Box Dimensions: 19.9”x20.87”x24.01” 485x530x610mm
•Working Temperature -10° C to 45° C
•IP20
Silhouette culus XL Z – GAMMA LED Vision Page 18 of 20

5. Photometrics
Measured Brightness at Center Point:
Full Zoom 45°
Distance in Feet Brightness at Full High CRI Mix Brightness
5 2790 2330
10 700 630
15 330 284
20 200 167
25 161 126
50% Zoom approx 25°
Distance in Feet Brightness at Full High CRI Mix Brightness
5 9270 7200
10 2400 2070
15 1100 968
20 632 581
25 462 421
Narrow Zoom 3.5°
Distance in Feet Brightness at Full High CRI Mix Brightness
5 10500 8230
10 9060 7010
15 6310 5510
20 4970 4030
25 3780 2790
Silhouette culus XL Z – GAMMA LED Vision Page 19 of 20

CRI 84.1 – 8164k
TM-30
Silhouette culus XL Z – GAMMA LED Vision Page 20 of 20
