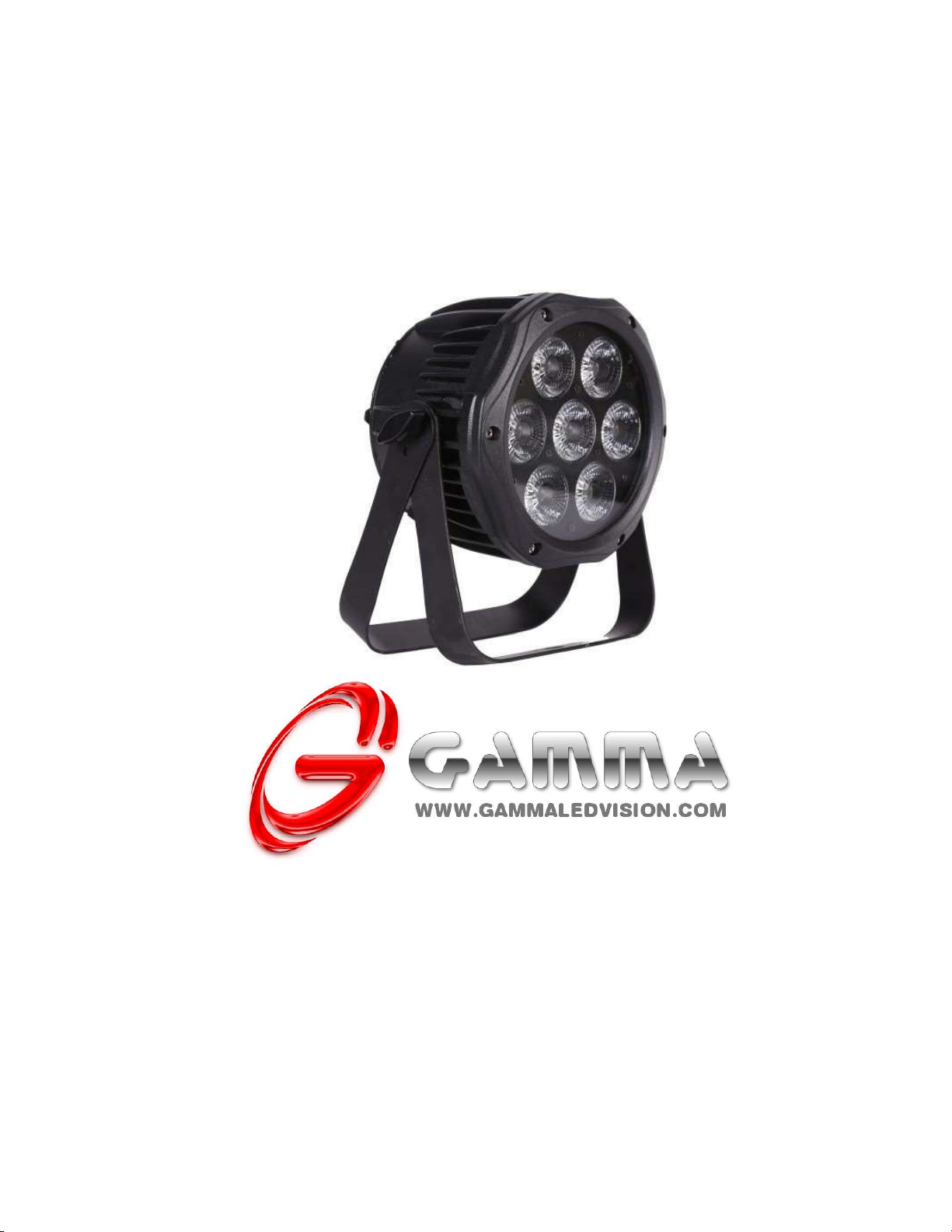

Gamma+ Starburst 7x18w User manual

Starburst 7x18w
7x18w RGBWA+UV LED Par
User Manual
Starburst 7x18w Par – GAMMA LED Vision Page 1 of 11

Table of Contents
1. Introduction and Setup......................................................................................................................3
Unpacking...............................................................................................................................................3
In the Box:..........................................................................................................................................3
Mounting and Operation..................................................................................................................3
Safety Precautions...............................................................................................................................3
Customer Support...............................................................................................................................5
2. Setup and Operation..........................................................................................................................6
Using the LCD Menu and Buttons...............................................................................................6
Menu Operation...................................................................................................................................6
DMX Setup..............................................................................................................................................7
DMX Basics........................................................................................................................................7
DMX Wiring.......................................................................................................................................7
DMX Modes and Configuration.....................................................................................................8
Setting the DMX Address:................................................................................................................9
3. Maintenance.........................................................................................................................................10
Troubleshooting Problems............................................................................................................10
4. Technical Specifications...................................................................................................................11
Photometric Reports........................................................................................................................11
Starburst 7x18w Par – GAMMA LED Vision Page 2 of 11

1. Introduction and Setup
Unpacking
After receiving the device, please check whether any visible damage was caused dur-
ing transport. lf the power cord, housing or the light are damaged, do not operate the
device. Contact your dealer or GAMMA LED Vision immediately.
Thank you for choosing our Starburst Par. This light is designed by high strength die-
casting aluminum which is able to endure high temperatures, and is designed in a
stylish form.
It uses high power Red, Green, Blue, White, Amber, and UV LED’s for, low power con-
sumption, high brightness, and excellent colors. The Starburst par features DMX512
control, standalone, and sound-active modes.
For your own safety, please read this manual before installing or using the device. This
manual covers the important information on installation and applications. Please install
and operate the fixture with following instructions. Meanwhile, please keep this manual
for future needs.
In the Box:
Starburst Par LED - 1 pc
Power Cable - 1 pc
Wireless IR Remote - 1 pc
User Manual - 1 pc
Mounting and Operation
Use a clamp rated for the full weight of the Starburst Par to hang the fixture from the
mount(s) on the fixture’s yoke.
As an added safety measure be sure to attached at least one properly rated safety
cable to the fixture using on of the safety cable rigging point integrated in the base
assembly or on the yoke.
Safety Precautions
Caution: For added protection mount the fixtures in areas outside walking paths, seat-
ing areas, or in areas were the fixture might be reached by unauthorized personnel.
Starburst 7x18w Par – GAMMA LED Vision Page 3 of 11

Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fix-
ture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent acci-
dental damage and/or injury in the event the clamp fails.
∙Don’t try to modify the fixture without any instruction by the manufacturer or the ap-
pointed repairing agencies.
∙Warranty is voided if there are any malfunctions from not following the user manual
while operating or any hazardous operation, like shock short circuit, electronic shock,
lamp broken, etc.
Allow the Starburst Par LED to cool for at least 15 minutes before handling after use.
Starburst 7x18w Par – GAMMA LED Vision Page 4 of 11

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date
of purchase to be free of manufacturer and workmanship defects. Warranty does
not cover normal wear and tear caused by force, negligence or misuse of products.
GAMMA LED Vision is not responsible for any damages or injury caused by misuse
or improper handling of the products and in accordance with instructions and
specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms
and contact information.
Starburst 7x18w Par – GAMMA LED Vision Page 5 of 11

2. Setup and Operation
Using the LCD Menu and Buttons
MENU: Access the menu
DOWN: Lower the selected value.
UP: Increase the selected value
ENTER: Confirm/Store the Current Selection.
Menu Operation
Use the Menu Key to enter the menu. The chart below shows the main options and
explains the settings:
Display Value Function
d001 001- 512 DMX512 address setting for 6-channel mode
A001 001- 512 DMX512 address setting for 10-channel
mode
R255 000-255 Red
G255 000-255 Green
B255 000-255 Blue
W255 000-255 White
A255 000-255 Amber
P255 000-255 UV
FF00 000-255 Strobe: speed from slow to fast
CL01 000-255 15 static color selections
CC01 01-08 Color Change: speed from slow to fast
DE01 01-99 Color Fade: speed from slow to fast
CP01 01-99 Color Pulse: speed from slow to fast
Starburst 7x18w Par – GAMMA LED Vision Page 6 of 11

SU01 00-08 Sound control: Sensitivity from low to high.
09 Sound Color Change
DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are con-
trolled digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light.
This may be a color like red, green or blue, and intensity, strobe, pan/tilt or other
attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX
cable, but through networked DMX (Art-Net or sACN E1.31), many universes can
travel over a network.
DMX Wiring

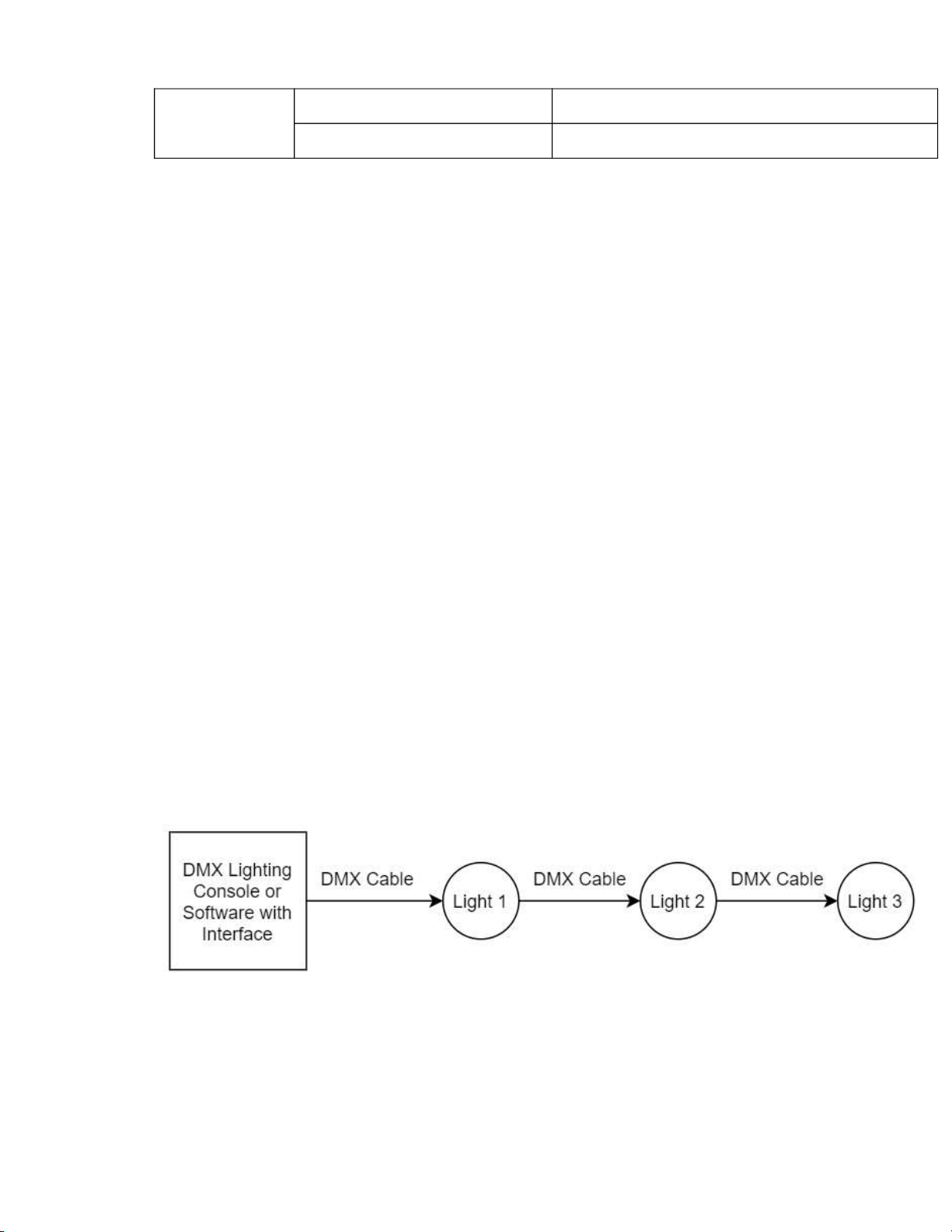

DMX works by connecting 1 or multiple lights to the output of a DMX lighting
console or software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will
plug it’s male DMX connector into the female DMX connector on your lighting
console. The remaining female connector will then connect to the DMX input on
your first light.
You may then connect your next fixture to the output of your first light, and con-
tinue the chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single
daisy chain for signal strength. Sometimes, depending on the fixtures and cable
length, this number is less (or more).
Starburst 7x18w Par – GAMMA LED Vision Page 7 of 11

DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-
pin only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded
cable of at least 110 ohms resistance. Microphone cable is not DMX cable.
Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an elec-
trically noisy environment, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise and
reflections. The DMX terminator is simply an XLR plug with a 120 Ω resistor con-
nected between pins 2 and 3, which is then plugged into the output XLR socket
of the last fixture in the chain. Please see illustrations below:
DMX Modes and Configuration
The Starburst Par has multiple DMX modes, sometimes called “personalities”, “pro-
files”, or as we will use here “modes”.
In general, modes with more DMX channels offer a greater level of control or op-
tions but take up more of your output channels on your lighting console or soft-
ware.
Modes with less DMX channels often offer less control, but may be plenty for your
needs. Depending on your needs and control solution, you may not need chan-
nels for automated programs, strobes, or macros – your console may have great
Starburst 7x18w Par – GAMMA LED Vision Page 8 of 11

effects! In this case, you can use a lesser channel mode and fit more lights per
DMX universe.
View the DMX mode charts below to find the mode that best suits your needs.
DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
6CH
(d001)
10 CH
(a001)
Function Channel Value Description
1 Master Dimmer 0-255 Intensity Control
1 2 Red 0-255 Red Control
2 3 Green 0-255 Green Control
3 4 Blue 0-255 Blue Control
4 5 White 0-255 White Control
5 6 Amber 0-255 Amber Control
6 7 UV 0-255 UV Control
8 Strobe 0-255 Strobe: Slow to Fast
9 Macros 0-50 DMX Mode
51-100 Color Choose
101-150 Color Change
151-200 Color Fade
201-250 Color Pulse
251-255 Sound-Active Mode
10 Macro Speed 0-255 Slow to Fast
Setting the DMX Address:
Choose d001 in the menu for 6-channel mode, choose a001 for 10-channel mode.
Press enter to select and then use the Up and Down keys to set the number for
the DMX address. Press Enter to confirm and save your mode and address.
Starburst 7x18w Par – GAMMA LED Vision Page 9 of 11

3. Maintenance
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here
are some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector.
•Press the menu button to confirm that the unit is powered on. If the screen
does not light up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional.
•Check the DMX address and mode – does it match the address and mode
patched in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is
good. Unplug all other lights – does it work?
•Try to use another DMX controller.
Starburst 7x18w Par – GAMMA LED Vision Page 10 of 11

4. Technical Specifications
Rated voltage: 100V-240VAC, 50/60Hz
Power Consumption:130W
LEDs: 7 * 18 W RGBWA+UV (6 in 1)
Lamp rated life: >50000 Hours
Beam angle: 15 degree
DMX512 Channels: 6 or 10 channel modes.
Strobe: Independent electronic strobe, 0-20 times / second, the speed can be
adjusted
Control Mode: DMX512 control, Auto Run, Master/Slave, Sound-Active
IP Rating: IP 44
Product size: 170x220x205 MM
Net Weight: 2.9 kgs
Certification: CE, RoHS
Photometric Reports
Distance FC at Center
1m 1267
2m 265
3m 122
5m 45
7m 23.2
