Gamma+ Torrent Spot IP User manual

Torrent Spot IP
450w IP65 LED Spot/Beam Moving Light
Torrent Spot IP Page 1 of 19
User Manual

Table of Contents
1 Introduction and Setup 3
Unpacking and In the Box 3
Mounting and Operation 3
Features 3
Safety Precautions 7
Customer Support 8
2 Setup and Operation 9
Using the LCD Menu and Buttons 9
DMX Setup 10
DMX Basics 10
DMX Wiring 10
DMX Modes and Configuration 12
3 Maintenance 16
Routine Maintenance 16
Troubleshooting Problems 16
A The unit does not work: 16
B Not Responding to the DMX Controller 16
4 Technical Specifications 17

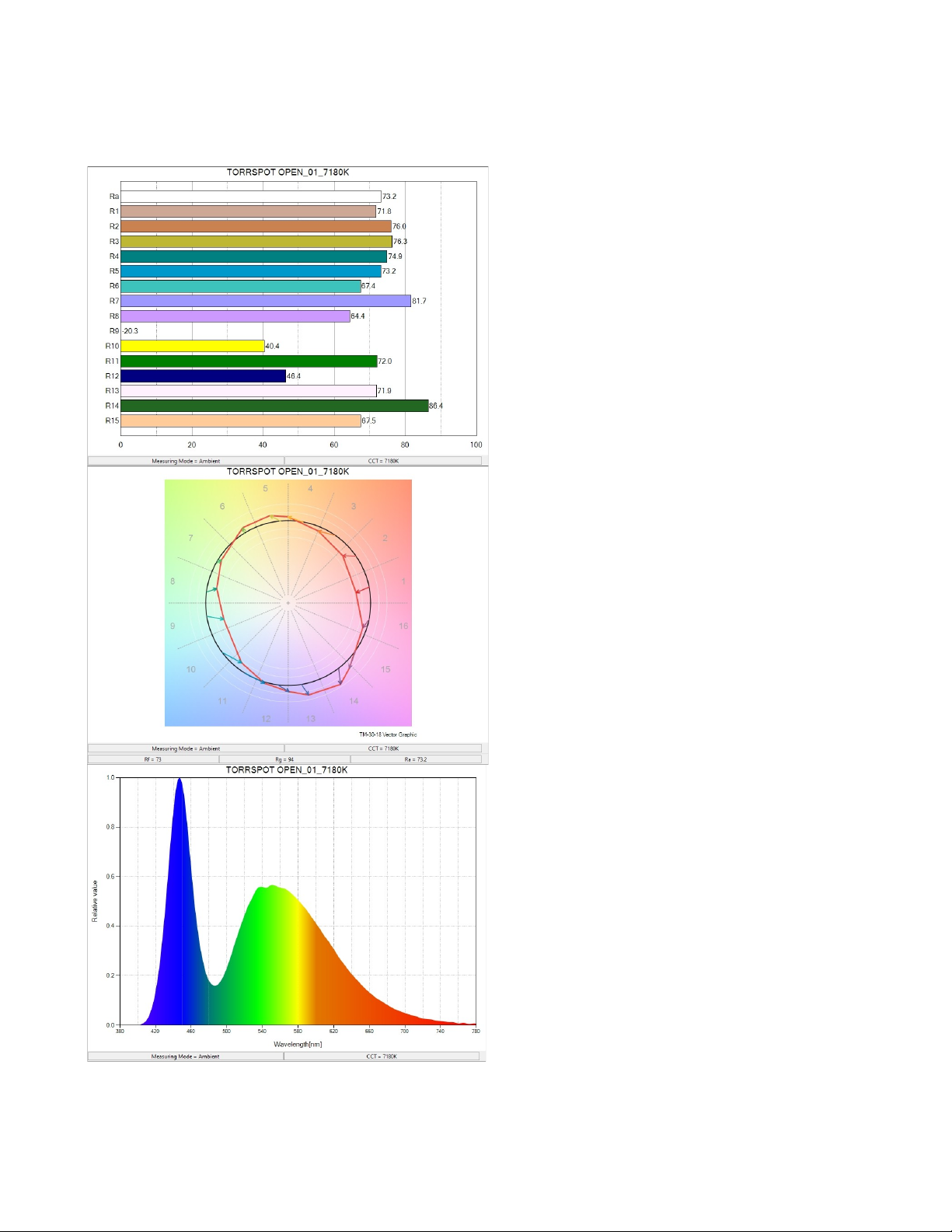

5 Photometrics 18
Torrent Spot IP Page 2 of 19

1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our Torrent Spot IP. For your own safety, please read this manual
before installing or using the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following instructions.
eanwhile, please keep this manual for future needs.
In the box you will find:
•Torrent Spot IP Fixture 1
•Integrated Power and Signal Cables 1
•Swivel-Clamps 2
Mounting and Operation
Clamp ounting: The Torrent Spot IP provides a unique mounting bracket assembly with
integrated clamps in the base of the fixture. The clamps fold flat for table-top operation.
As an added safety measure be sure to attached at least one properly rated safety cable
to the fixture using on of the handles.
eatures
•450w IP65 LED Spot/Beam Moving Head
•Variable Speed Strobe – 0 5hz-25hz
•Motorized Zoom – 1 3º to 23º
•540 Degree Pan, 245 Degree Tilt, 16 Bit Control
•Color Wheel – 10 Colors + Open White
•2 Gobo Wheels – 9 Fixed Gobos and 8 Rotating and Replaceable Gobos
•Prism – 8 Facet Rotating and Indexable Prism
•Motorized Frost Filter
•Motorized Focus
•Variable-Speed Temperature-Controlled Fan Cooling
Torrent Spot IP Page 3 of 19

Color Wheel:
The Torrent Spot IP features 10 colors + Open White:
0 – Open 1 – Red 2 – Yellow 3 – Light Blue 4 – Green 5 – Magenta
6 – Amber 7 – Light
Green
8 – CTO 9 – Violet 10 – Deep
Blue
Colors as shown are representative samples for fixture profiles, but should not be taken as
“exact color” Refer to sample videos for exact color
Torrent Spot IP Page 4 of 19

Gobo Wheel:
The Torrent Beam Features 2 Gobo Wheels
First is the fixed gobo wheel, which features 9 gobos:
0 – Open 1 2 3 4 5
6 7 8 9
Torrent Spot IP Page 5 of 19

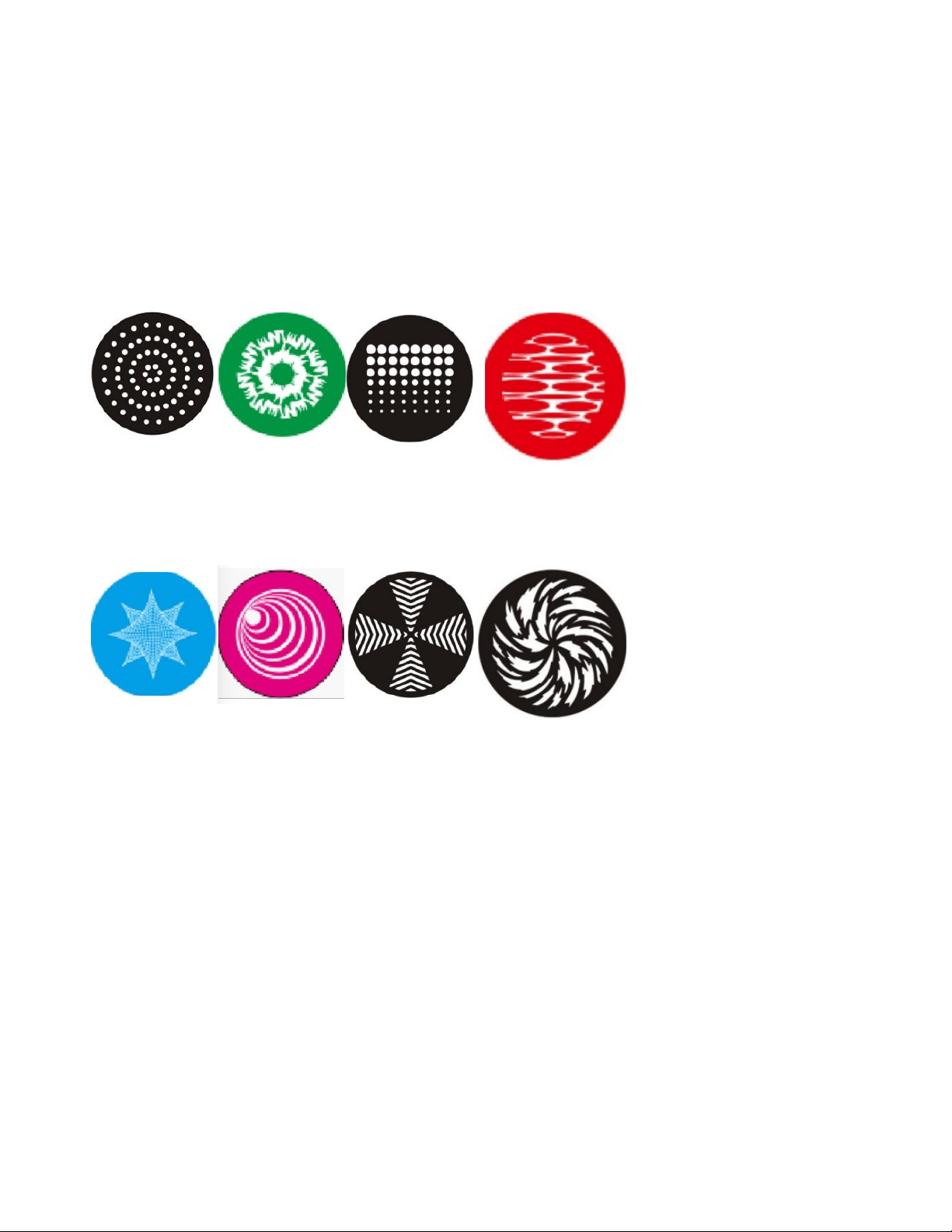

Second is the rotating gobo wheel, which features 8 interchangeable gobos
Gobo Sizing is as follows:
Metal Patterns are OD 15 5mm, ID 12mm
Glass Patterns are OD 15 5mm, ID 11mm
The first 4 gobos are glass, the second 4 are metal:
1 2 3 4
5 6 7 8
Torrent Spot IP Page 6 of 19

Safety Precautions
Please keep this User Guide for future consultation If you sell the unit to another user, be
sure that they also receive this instruction manual
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is voided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock short circuit, electronic shock, lamp broken,
etc.
Torrent Spot IP Page 7 of 19

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GA ALEDVISON.CO for complete Limited Warranty terms and
contact information.
Torrent Spot IP Page 8 of 19

2. Setup and Operation
Using the LCD Menu and Buttons
Turn on the light, press the MENU button to enter the menu mode, use the UP and DOWN
buttons to find the menu item, and ENTER to enter the menu.
When the preset menu is displayed on the display screen, press the ENTER button to
confirm, use the UP and DOWN buttons to select the sub menu, press the ENTER button to
save the settings or automatically return to the previous menu.
Press the MENU button to return, or wait for one minute and then exit the menu mode
automatically. Menu Operation:
MENU Address DMX Address Set DMX Address, 1-512
Work Mode DMX Mode Set the signal mode, the only option is
DMX mode for this fixture
CH Mode Set the DMX
Channel
Mode
24 CH – Default mode
21 CH – Mode2
Test Mode Sets the unit in TEST mode – allowing you to manually
scroll and set values for each parameter of the light
XY Setup Allows you to
invert and
modify the
pan and tilt
X Invert: Inverts the pan of the light
Y Invert: Inverts the tilt of the light
XY Speed: Can be used to slow down the
speed of the light Default is “High”
Signal Allows you to see a readout of the DMX values being
received
System Allows you to
change
system-wide
setttings
Backlight Time
Screen Direction
Language – English or Chinese – CHANGE
WITH CAUTION!
Reset Does a re-homing of the unit
Torrent Spot IP Page 9 of 19

DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512 This means that 512 channels are controlled
digitally through 1 data cable
A channel is a set of 255 steps that are assigned to control attributes in each light This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes
Multiple sets of 512 “universes” may be used Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1 31), many universes can travel over a
network
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface

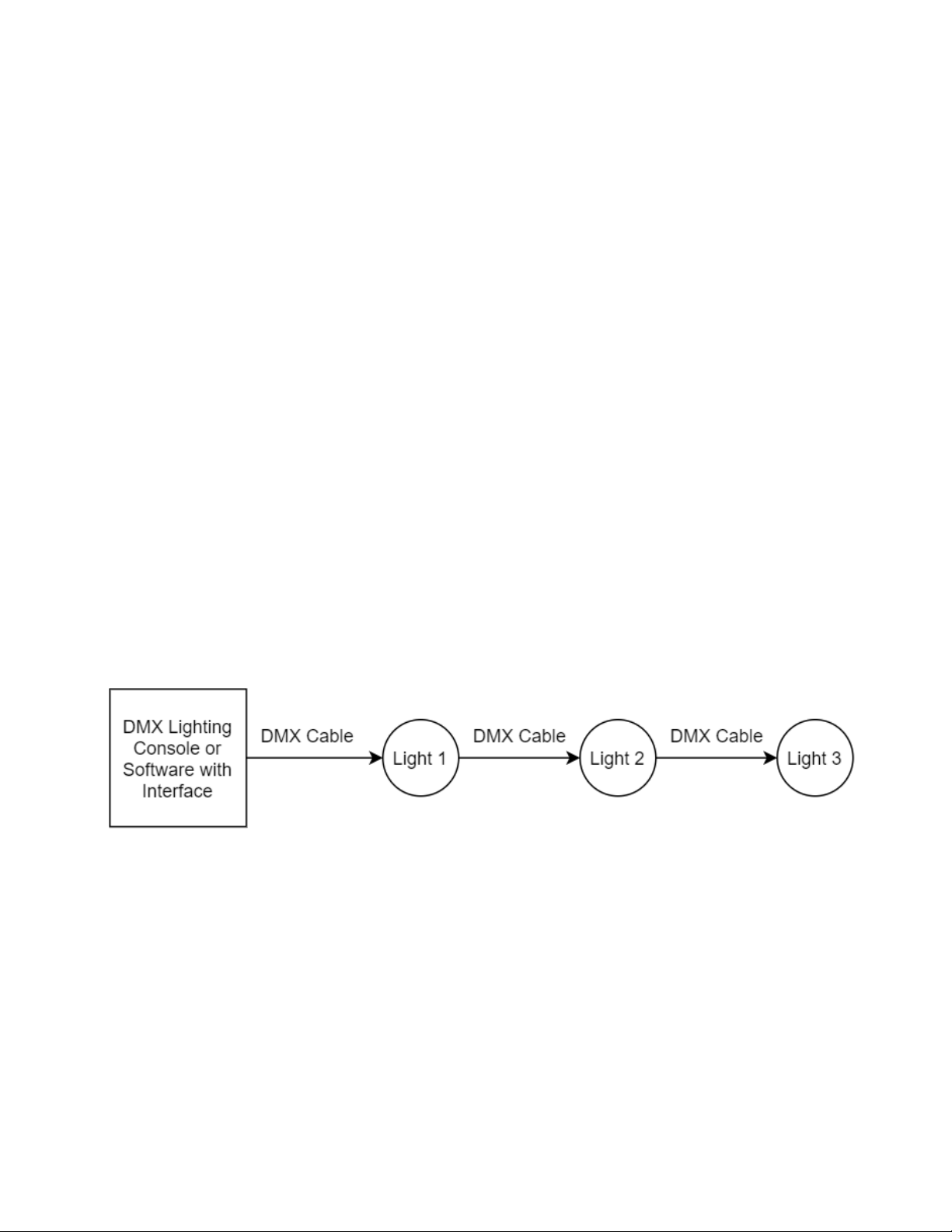

DMX lights connect in what is called a “daisy-chain” Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console The
remaining female connector will then connect to the DMX input on your first light
You may then connect your next fixture to the output of your first light, and continue the
chain
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength Sometimes, depending on the fixtures and cable length, this
number is less (or more)
DMX Cables can be 3-pin or 5-pin These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance Microphone cable is not DMX cable
Please refer to the diagram below:
Torrent Spot IP Page 10 of 19

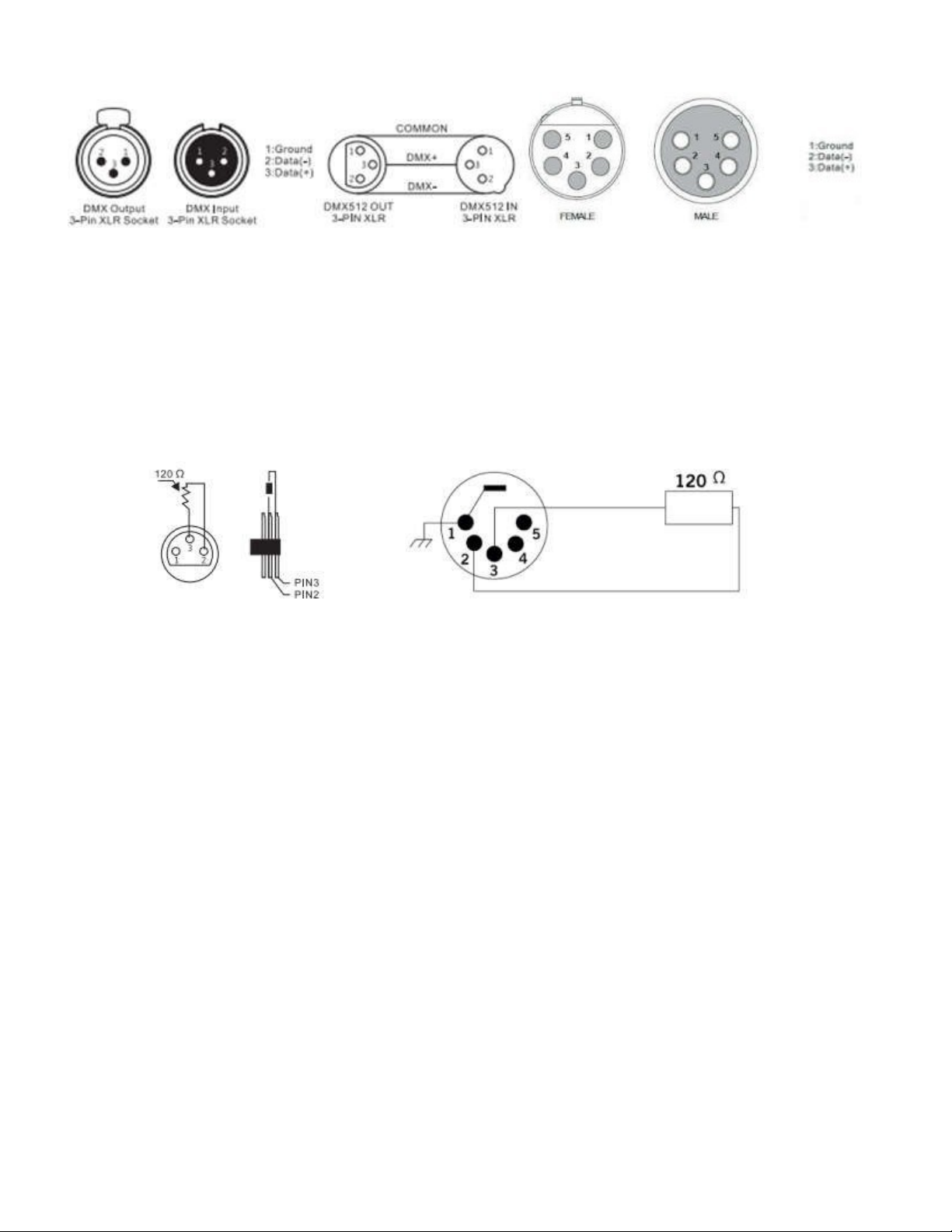

For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator This helps in preventing
corruption of the digital control signal by electrical noise and reflections The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain Please
see illustrations below:
Torrent Spot IP Page 11 of 19

DMX Modes and Configuration
The Torrent Spot IP has multiple DMX modes, sometimes called “personalities”, “profiles”,
or as we will use here “modes”
In general, modes with more DMX channels offer a greater level of control or options but
take up more of your output channels on your lighting console or software
Modes with less DMX channels often offer less control, but may be plenty for your needs
Depending on your needs and control solution, you may not need channels for
automated programs, strobes, or macros – your console may have great effects! In this
case, you can use a lesser channel mode and fit more lights per DMX universe
View the DMX mode charts below to find the mode that best suits your needs
DMX Channel Mode Sheet:
On the le t side o the sheet you will see the di erent modes and which channel
corresponds to each unction listed on the right in the given mode.
24CH
Mode1
21CH
Mode2
Function Channel
Value
Description
1 1 Dimmer 0-255 Intensity, Low to High
2 Dimmer Fine 0-255 Fine Control of Intensity
3 2 Strobe 0-8 Open
9-64 Variable Speed Strobe, Slow to Fast
65-195 Open
196-250 Random Strobe, Slow to Fast
251-255 Open
4 3 Color Wheel 0-5 Open
6-12 Open/Red
13-19 Red
20-26 Red/Yellow
27-33 Yellow
34-40 Yellow//Light Blue
41-47 Light Blue
48-54 Light Blue/Green
Torrent Spot IP Page 12 of 19

55-61 Green
62-68 Green/Magenta
69-76 Magenta
77-83 Magenta/Amber
84-90 Amber
91-97 Amber/Light Green
98-104 Light Green
105-111 Light Green/CTO
112-118 CTO
119-127 CTO/Violet
128-134 Violet
135-141 Voilet/Deep Blue
142-148 Deep Blue
149-155 Deep Blue/Open
156-205 CW Color Scroll, Slow to Fast
206-255 CCW Color Scroll, Fast to Slow
5 4 N/A
6 5 N/A
7 6 N/A
8 7 N/A
9 7 Gobo Wheel 0-3 Open
4-7 Gobo 1
8-11 Gobo 2
12-15 Gobo 3
16-19 Gobo 4
20-23 Gobo 5
24-27 Gobo 6
28-31 Gobo 7
32-35 Gobo 8
36-39 Gobo 9
Torrent Spot IP Page 13 of 19

40-76 CW Gobo Scroll, Slow to Fast
77-84 Open/Stop Rotation
85-121 CCW Gobo Scroll, Slow to Fast
122-137 Gobo 1 Shake, Slow to Fast
138-153 Gobo 2 Shake, Slow to Fast
154-169 Gobo 3 Shake, Slow to Fast
170-185 Gobo 4 Shake, Slow to Fast
186-201 Gobo 5 Shake, Slow to Fast
202-217 Gobo 6 Shake, Slow to Fast
218-223 Gobo 7 Shake, Slow to Fast
224-239 Gobo 8 Shake, Slow to Fast
240-255 Gobo 9 Shake, Slow to Fast
10 8 Rotating
Gobo Wheel
0-2 Open
3-5 Rotating Gobo 1
6-10 Rotating Gobo 2
11-16 Rotating Gobo 3
17-22 Rotating Gobo 4
23-28 Rotating Gobo 5
29-34 Rotating Gobo 6
35-40 Rotating Gobo 7
41-52 Rotating Gobo 8
53-70 Gobo 1 Shake, Slow-Fast
71-88 Gobo 2 Shake, Slow-Fast
89-106 Gobo 3 Shake, Slow-Fast
107-124 Gobo 4 Shake, Slow-Fast
125-142 Gobo 5 Shake, Slow-Fast
143-160 Gobo 6 Shake, Slow-Fast
161-178 Gobo 7 Shake, Slow-Fast
179-196 Gobo 8 Shake, Slow-Fast
197-226 CW Gobo Scroll, Slow to Fast
Torrent Spot IP Page 14 of 19

227-255 CCW Rotation, Slow to Fast
11 9 Gobo
Rotation
0-127 Gobo Indexing
128-191 CW Rotation, Slow to Fast
129-255 CCW Rotation, Fast to Slow
12 Gobo
Rotation Fine
0-255 Fine Control of Gobo Rotation
13 10 Frost 0-127 Open
128-255 Frost Inserted
14 11 Prism 0-127 Open
127-255 Prism Inserted
15 12 Prism Rotate 0-127 Index Prism
128-190 Prism Rotate CW, Fast to Slow
191-194 Stop
195-255 Prism Rotate CCW, Slow to Fast
16 13 Focus 0-255 Focus Control
17 14 Zoom 0-255 Zoom Control, 1 3º to 23º
18 15 Pan 0-255 Pan Control
19 16 Pan Fine 0-255 Pan Control Fine
20 17 Tilt 0-255 Tilt Control
21 18 Tilt Fine 0-255 Tilt Control Fine
22 19 PT Speed 0-128 Fast to Slow
129-170 Slow (1/3 Speed)
171-211 Medium (½ Speed)
212-255 Fast Speed (Full Speed)
23 20 N/A
24 21 Control 0-127 N/A
128-255 Reset ALL
Torrent Spot IP Page 15 of 19

3. Maintenance
Routine Maintenance
The cleaning of lens must be carried out periodically to optimize light output Cleaning
frequency depends on the environment in which the fixture operates: damp, smokey, or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s
optics
• Clean with a damp, soft cloth
• Always dry the parts carefully
• Clean the external optics at least every 20 days in demanding environments
Troubleshooting Problems
The following are a few common problems that may occur during operation Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector
•Press the menu button to confirm that the unit is powered on If the screen does
not light up, the unit has no power
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good
Unplug all other lights – does it work?
•Try to use another DMX controller
Torrent Spot IP Page 16 of 19

4. Technical Specifications
◦Power Supply: AC100-240v 50/60hz Autoranging
◦Power: 500w.
◦SITT DMX 512 Signal with RDM
◦DMX Signal Connection – 3 Pin Input and Output, Fixed Cables
◦Weight – 22kgs / 48.6 Lbs
◦Size (mm) – 304x339x680
Torrent Spot IP Page 17 of 19

5. Photometrics
Zoom In, ocused: 1.3º
Distance in Ft. Full White Intensity in FC
10 10700
15 5920
20 3320
25 2140
50 535
Zoom Out, Focused: 23º
Distance in Ft. Full White Intensity in FC
5 2250
10 552
15 249
20 156
25 100
50 25
Zoom 50%, Focused:8.6º
Distance in Ft. Full White Intensity in FC
5 13900
10 3610
15 1760
20 1040
25 652
50 163
Torrent Spot IP Page 18 of 19

CRI, TM-30, and Spectral Distribution:
7180k Native Color Temperature
Torrent Spot IP Page 19 of 19
