Gamma+ Ditto 8 IP User manual

Ditto 8 IP
User manual

2
TABLE OF CONTENTS
1. Safety Instructions ................................................................................................. 3
2. Technical Specifications ......................................................................................... 5
3. Lux data .................................................................................................................... 6
4. How to control the unit ............................................................................................ 6
5. Control box information ......................................................................................... 9
6. DMX Channel List ................................................................................................. 11
7. Shape ........................................................................................................................ 24
8. Trouble shooting .................................................................................................... 25
9. Fixture Cleaning ..................................................................................................... 26
statement
The product has well capability and intact packing when leave factory.
All of the user should comply with warning item and manual, any misuse cause
of the damages are not included in our guarantee, and also can not be
responsible for any malfunction & problem owing to ignore the manual.

3
1. Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using
the unit.
Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.
the event of serious operating problem, stop using the unit immediately.Never
try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.

4
y DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
y To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
y DO NOT open the unit within five minutes after switching off.
y The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.

5
2. Technical Specifications
Light Sources: 8*60W RGBW 4-in-1 Osram LED
Beam Angle:3.5°- 40°
Power Consumption: 550w
Power Voltage: AC 100-260V, 50/60Hz
Control box weight: 2.59kgs
Single lamp holder weight: 1.88kgs
Single lamp holder with hanger weight: 2.44kg
Single lamp head size: 181x140x140mm
Control
DMX Channel: 23/28/35/43 Channels
Control Modes: DMX512/mater-Slave/Auto Run/Music/Manual/RDM
Construction
Data In socket: waterproof 5-pin XLR sockets(24V power + signal line)
The control box :PowerCon in/out 3-pin
Protection Rating: IP65
Features
1>LED single control
2>One control box (not waterproof) controls eight belts for focusing,which can
be connected in series at 230V, and 2 units can be connected in series at 120V.
3>A control box (not waterproof) controls eight 60W4in1 die-casting heads with
focus and waterproof, supporting point control,Can be installed separately by
hangers, can be assembled in multiple
4>The control line is a 3M long silicone cable, and the Xishang 5-core
waterproof connector (the cable connecting the lamp holder to the control box)
5>High-efficiency optical system ,Super beam effect plus zoom

6

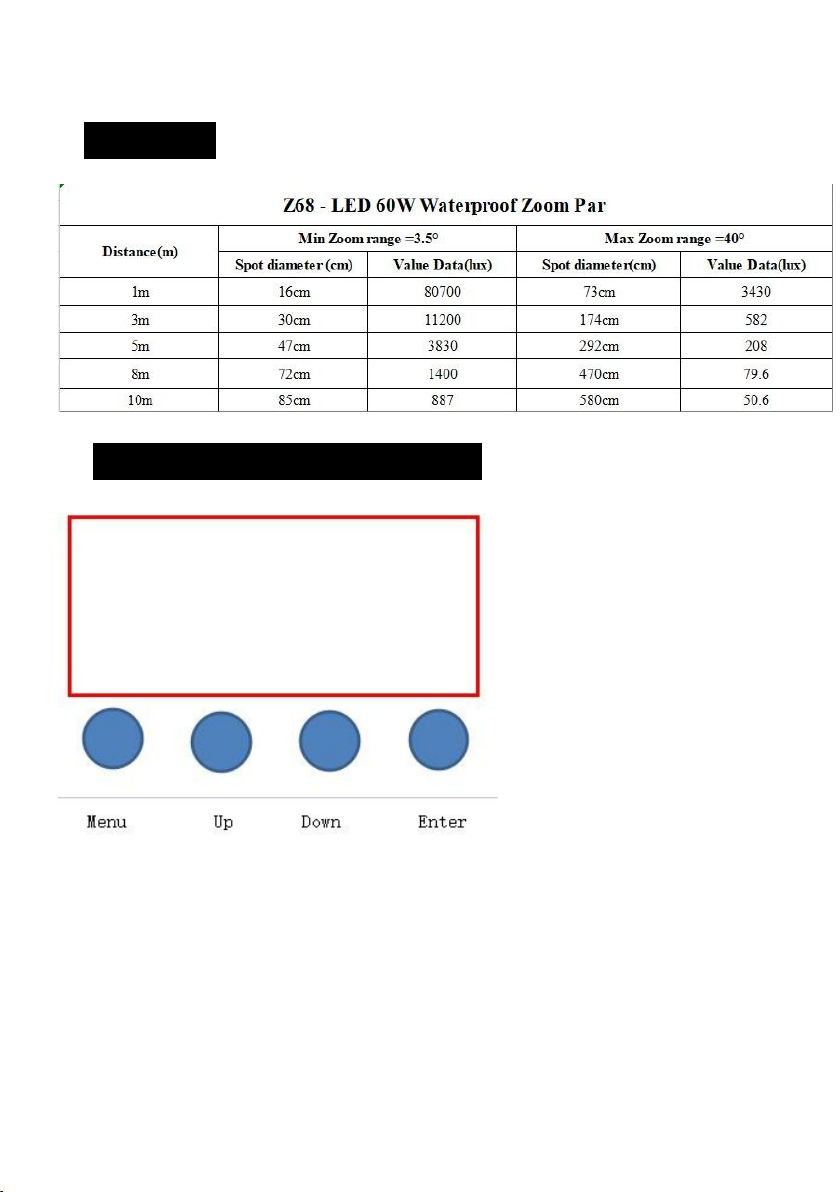

3. Lux Date
4. How To Control The Unit
Display: Connection control box use
MENU To select the programming functions
DOWN To go backward in the selected functions
uP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter

7
into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not
save and Exit
Menu
Mic Sense
001--100
Sound sensitivity
adjustment
Language
English
Select display
language
Chinese
Fan Set
Auto
Select fan speed
Low
High
No Signal
Black Out
Select the state
when the
luminaire has no
signal
Hold
Reset
Yes
Reset
No
Default
Yes
Reset
No
Adjust
Adjust
Pass Word：
up+down+up+do
wn
Change the value
of Pan/Tilt/Focus
to correct the
angle; change the
value of
R/G/B/W to
adjust the white
balance.
1.Red：0--255
Menu
2.Greed：0--255
3.Blue：0--255
Adjust
4.White ：0--255
Address
001--512
Set the address

8
code from
001--512
Reverse
1.Display
1.YES 2.NO
Display font
forward and
reverse
switching
Information
1.CH Value
Show all channel
information
2.Soft V1.0
Program version
number
Mode
DMX512
Set control mode
Auto
1.Master
2.Alone
Sound
1.Master
2.Alone
Manual
1.Master
2.Alone
1.Focus:0--255
Manual control
2.Red：0--255
3.Greed：0--255
4.Blue：0--255
5.White：0--255
6.Strobe：0-255
Channel
1. 23Channels
23 CH
Select channel
mode
2. 28Channels
28CH
3. 35Channels
35CH
4. 43Channels
43CH

9

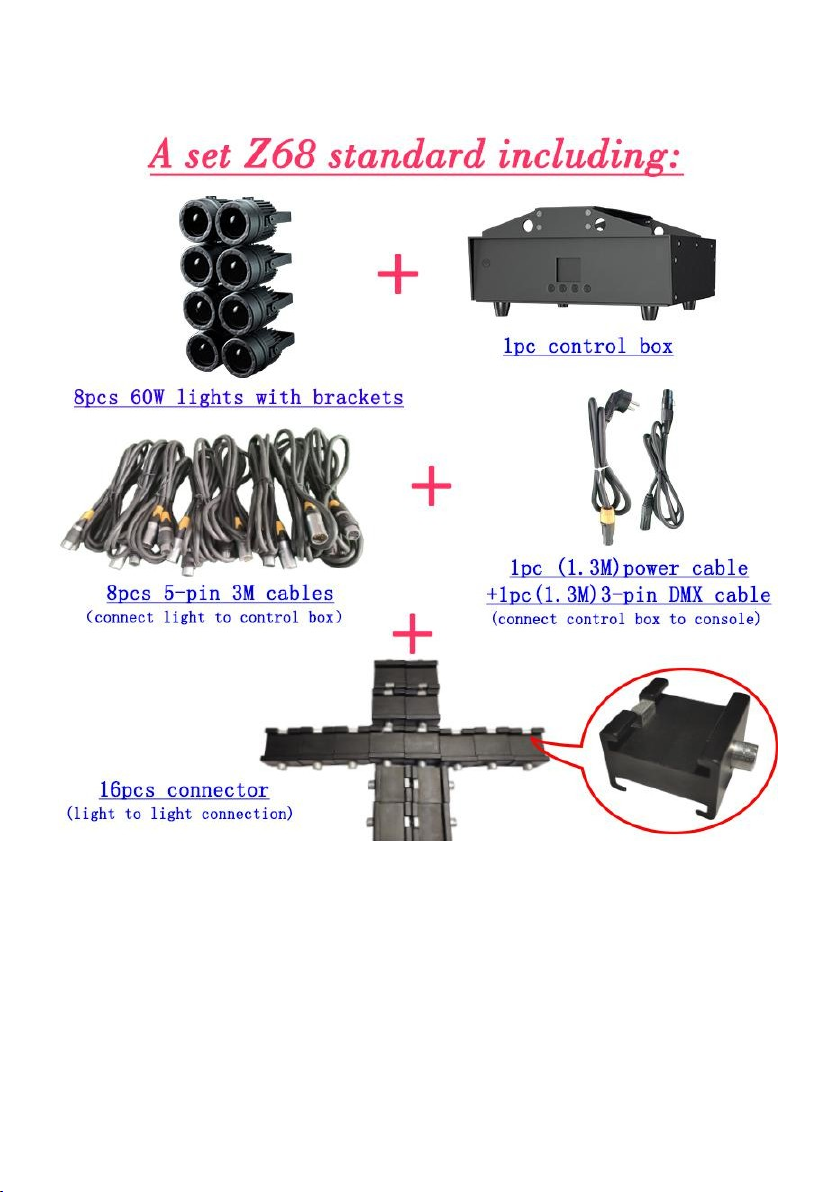

5. Control Box information

10

11
6. DMX Channel List
Model 1 - CH23
Channel
Function
DMX value
Description
CH -1
Focusing 1
0--255
Beam angle from
small to large
CH -2
Focusing 2
CH -3
Focusing 3
CH -4
Focusing 4
CH -5
Focusing 5
CH -6
Focusing 6
CH -7
Focusing 7
CH -8
Focusing 8
CH -9
Dimming
0--255
Linear dimming
dark to light
CH -10
Strobe
0--3
Lighting
4--203
Synchronous
strobe speed
from slow to fast
(1HZ-25HZ)
204--255
Random strobe
CH -11
Red dimming
0--255
Linear dimming
from dark to light
CH -12
Green dimming
CH -13
Blue dimming
CH -14
White dimming
CH -15
Dimming mode
0--49
Mode 1
50--99
Mode 2
100--149
Mode 3
150--255
Mode 4

12
CH -16
Color
temperature
0--15
No effect
16--35
R100%,G
UP,B0%
36--55
R
DOWM,G100%,
B0%
56--75
R0%,G100%,B
UP
76--95
R0%,G
DOWM,B100%
96--115
R
UP,G0%,B100%
116--135
R100%,G0%,B
DOWM
136--155
R100%,G UP,B
UP
156--175
R DOWM,G
DOWM,B100%
176--195
R 100%,G
100%,B100%,W
100%R 100%,G
100%,B100%,W
100%
196--200
2800K
201--205
3200K
206--210
3500K
211--215
4000K
216--220
4500K
221--225
5000K
226--230
5500K

13
CH -16
Color
temperature
231--235
6000K
236--240
6500K
241--245
7000K
246--250
7500K
251--255
8000K
CH -17
Macro color
0--9
No effect
10--19
Macro color 1
20--29
Macro color 2
...(10 numbers)
......
240--249
Macro color 23
250--255
Macro color 24
CH -18
Binary graphics
selection
0--255
Binary graphics
selection
CH -19
Pattern
background R
Pattern effect red
CH -20
Pattern
background G
Pattern effect
green
CH -21
Pattern
background B
Pattern effect
blue
CH -22
Pattern
background W
Pattern effect
white
CH -23
Reset
0--250
No function
251--255
Reset 5s is valid

14
Model 2 - CH28
Channel
Function
DMX value
Description
CH -1
Red
0--255
Red dimming
CH -2
Red trim
Red trim
CH -3
Green
Green dimming
CH -4
Green trim
Green trim
CH -5
Blue
Blue dimming
CH -6
Blue trim
Blue trim
CH -7
White
White dimming
CH -8
White trim
White trim
CH -9
Color
temperature
0--15
No effect
16--35
R100%,G
UP,B0%
36--55
R
DOWM,G100%,B
0%
56--75
R0%,G100%,B
UP
76--95
R0%,G
DOWM,B100%
96--115
R
UP,G0%,B100%
116--135
R100%,G0%,B
DOWM
136--155
R100%,G UP,B
UP
156--175
R DOWM,G

15
CH -9
Color
temperature
DOWM,B100%
176--195
R 100%,G
100%,B100%,W1
00%R 100%,G
100%,B100%,W1
00%
196--200
2800K
201--205
3200K
206--210
3500K
211--215
4000K
216--220
4500K
221--225
5000K
226--230
5500K
Color
temperature
231--235
6000K
236--240
6500K
241--245
7000K
246--250
7500K
251--255
8000K
CH -10
Macro color
0--9
No effect
10--19
Macro color 1
20--29
Macro color 2
...(10
numbers)
......
240--249
Macro color 23
250--255
Macro color 24
CH -11
Strobe
0--3
Lighting
4--203
Synchronous
strobe speed
from slow to fast

16
(1HZ-25HZ)
204--255
Random strobe
CH -12
Dimming
0--255
Linear dimming
dark to light
CH -13
Dimming fine
tuning
0--255
Dimming
fine-tuning control
CH -14
Dimming mode
0--49
Mode 1
50--99
Mode 2
100--149
Mode 3
150--255
Mode 4
CH -15
Zoom
0--255
Zoom
CH -16
Pattern
change(8
effects&
5effects)
0--9
No effect
10--14
Monochrome
dynamic pattern 1
15--19
Monochrome
dynamic pattern 2
...(5 numbers)
.......
80--84
Monochrome
dynamic pattern
15
85--89
Mixed color
dynamic pattern 1
90--94
Mixed color
dynamic pattern 2
...(5 numbers)
.....
115--119
Mixed color
dynamic pattern 7
120--124
Monochrome
dynamic pattern 1
125--129
Monochrome

17
CH -16
dynamic pattern 2
Pattern
change(8
effects&
5effects)
...(5 numbers)
.....
160--164
Monochrome
dynamic pattern 9
165--169
Mixed color
dynamic pattern 1
170--174
Mixed color
dynamic pattern 2
...(5 numbers)
........
180--184
Mixed color
dynamic pattern 4
CH -17
Pattern effect
speed
0--9
No effect
10--132
Forward, from
fast to slow (with
16 channels)
133--255
Reverse, from
slow to fast (with
16 channels)
CH -18
Pattern shift
0--255
Pattern
translation (with
16 channels)
CH -19
Pattern effect
fade
Pattern effect
fade
CH -20
Pattern
background R
Pattern effect red
CH -21
Pattern
background G
Pattern effect
green
CH -22
Pattern
background B
Pattern effect
blue
CH -23
Pattern
Pattern effect

18
background W
white
CH -24
Pattern
dimming
0--255
Pattern 0-100%
dimming
CH -25
Background
dimming
Background
0-100% dimming
CH -26
Strobe in the
foreground
Strobe in the
foreground
CH -27
Background
strobe
Background
strobe
CH -28
Reset
0--250
No function
251--255
Reset 5s is valid
Model 3 - CH35
Channel
Function
DMX value
Description
CH -1
Zoom
0--255
Beam angle from
small to large
CH -2
Dimming
0--255
Linear dimming
dark to light
CH -3
Strobe
0--3
Lighting
4--203
Synchronous
strobe speed
from slow to fast
(1HZ-25HZ)
204--255
Random strobe
CH -4
Red dimming
0--255
Linear dimming
from dark to light
CH -5
Green dimming
CH -6
Blue dimming

19
CH -7
White dimming
CH -8
Dimming mode
0--49
Mode 1
50--99
Mode 2
100--149
Mode 3
150--255
Mode 4
CH -9
Color
temperature
0--15
No effect
16--35
R100%,G
UP,B0%
36--55
R
DOWM,G100%,
B0%
56--75
R0%,G100%,B
UP
76--95
R0%,G
DOWM,B100%
96--115
R
UP,G0%,B100%
116--135
R100%,G0%,B
DOWM
136--155
R100%,G UP,B
UP
156--175
R DOWM,G
DOWM,B100%
176--195
R 100%,G
100%,B100%,W
100%R 100%,G
100%,B100%,W
100%
196--200
2800K
201--205
3200K

20
CH -9
206--210
3500K
211--215
4000K
216--220
4500K
221--225
5000K
226--230
5500K
Color
temperature
231--235
6000K
236--240
6500K
241--245
7000K
246--250
7500K
251--255
8000K
CH -10
Macro color
0--9
No effect
10--19
Macro color 1
20--29
Macro color 2
...(10
numbers)
......
240--249
Macro color 23
250--255
Macro color 24
CH -11
R1LED dimming
0--255
R1LED dimming
CH -12
G1LED dimming
G1LED dimming
CH -13
B1LED dimming
B1LED dimming
CH -14
R2LED dimming
R2LED dimming
CH -15
G2LED dimming
G2LED dimming
CH -16
B2LED dimming
B2LED dimming
……
……
……
……
CH -32
R8LED dimming
0--255
R12LED dimmer
CH -33
G8LED dimming
G12LED dimmer
CH -34
B8LED dimming
B12LED dimmer
CH -35
Reset
0--250
No function
251--255
Reset 5s is valid
