Gamma+ Starburst User manual

Starburst 18x10– GAMMA LED Vision Page 1 of 16
Starburst 18x10

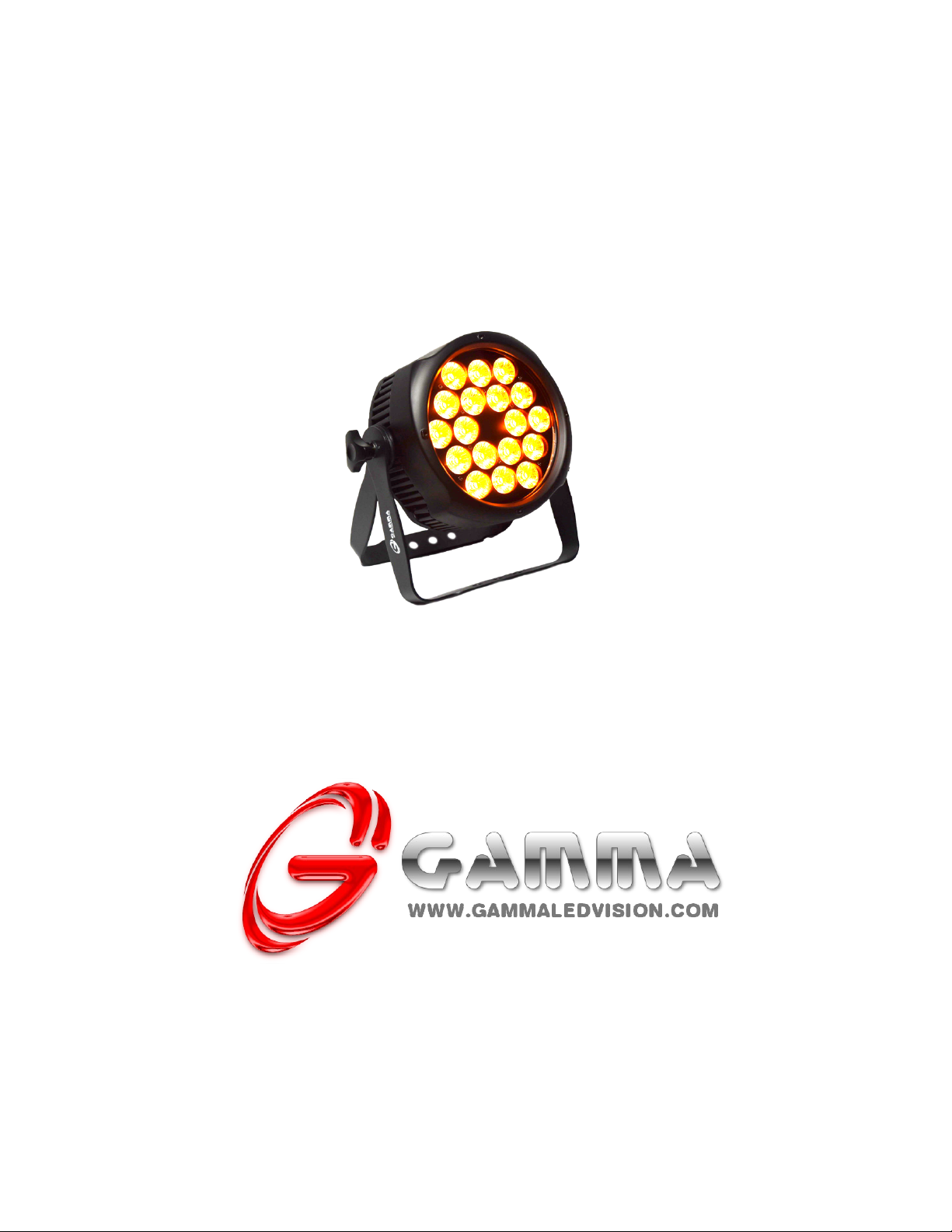

18x10w RGBWA+UV LED PAR

Starburst 18x10– GAMMA LED Vision Page 2 of 16
Table of Contents
1. Introduction and Setup ..................................................................................................................................... 3
Unpacking and In the Box ............................................................................................................................... 3
Features .................................................................................................................................................................... 3
Safety Precautions ............................................................................................................................................... 3
Customer Support……………………………………………………………………………………………………………….5
Setup & Operation…………………………………………………………………………………………………………………..6
Using the LCD Screen………………………………………………………………………………………………………….6
Menu Operation…………………………………………………………………………………………………………………..7
DMX Setup……………………………………………………………………………………………………………………….8-9
DMX Basics………………………………………………………………………………………………………………………8
DMX Wiring……………………………………………………………………………………………………………………..9
DMX Modes………………………………………………………………………………………………………………….10-13
Maintenance…………………………………………………………………………………………………………………………..14
Technical Specifiactions………………………………………………………………………………………………………….15
Photometrics…………………………………………………………………………………………………………………………..16

Starburst 18x10– GAMMA LED Vision Page 3 of 16
1.#Introduction*and*Setup*Unpacking)
After&receiving&the&device,&please&check&whether&any&visible&damage&was&caused&during&transport.&
If&the&power&cord,&housing&or&the&light&are&damaged,&do&not&operate&the&device.&Contact&your&
dealer&or&GAMMA&LED&Vision&immediately.&
Thank&you&for&choosing&our&Starburst&Par.&This&light&is&designed&by&high&strength&die-&casting&
aluminum&which&is&able&to&endure&high&temperatures,&and&is&designed&in&a&stylish&form.&
It&uses&high&power&Red,&Green,&Blue,&White,&Amber,&and&UV&LED’s&for,&low&power&consumption,&
high&brightness,&and&excellent&colors.&The&Starburst&par&features&DMX512&control,&standalone,&
and&sound-active&modes.&
For&your&own&safety,&please&read&this&manual&before&installing&or&using&the&device.&This&manual&
covers&the&important&information&on&installation&and&applications.&Please&install&and&operate&the&
fixture&with&following&instructions.&Meanwhile,&please&keep&this&manual&for&future&needs.&
In#the#Box:#
Starburst&Par&LED&-&Power&Cable&-&User&Manual&-&
1&pc&1&pc&1&pc&
Mounting)and)Operation)
Use&a&clamp&rated&for&the&full&weight&of&the&Starburst&Par&to&hang&the&fixture&from&the&mount(s)&on&
the&fixture’s&yoke.&
As&an&added&safety&measure&be&sure&to&attached&at&least&one&properly&rated&safety&cable&to&the&
fixture&using&on&of&the&safety&cable&rigging&point&integrated&in&the&base&assembly&or&on&the&yoke.&
Safety)Precautions)
Caution:&For&added&protection&mount&the&fixtures&in&areas&outside&walking&paths,&seating&areas,&or&
in&areas&were&the&fixture&might&be&reached&by&unauthorized&personnel.&
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.

Starburst 18x10– GAMMA LED Vision Page 4 of 16
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is voided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock short circuit, electronic shock, lamp broken,
etc.

Starburst 18x10– GAMMA LED Vision Page 5 of 16
Customer)Support)
WARRANTY&POLICY&
GAMMA&LED&Vision&warrants&its&products&for&the&periods&set&below&from&the&date&of&purchase&to&
be&free&of&manufacturer&and&workmanship&defects.&Warranty&does&not&cover&normal&wear&and&
tear&caused&by&force,&negligence&or&misuse&of&products.&GAMMA&LED&Vision&is&not&responsible&for&
any&damages&or&injury&caused&by&misuse&or&improper&handling&of&the&products&and&in&accordance&
with&instructions&and&specifications&of&manual.&
Warranty&terms&are&as&follows:&
LED&Fixtures:&
Indoor:&2&Years&
Outdoor&(IP&54&or&higher):&1&Year&
Lamp&Fixtures:&1&year&/&excludes&the&lamp&LED&Video&Products:&
Indoor:&2&Years&
Outdoor&(IP&54&or&higher):&1&Year&
Controllers:&2&years&
Batteries:&6&months&
All&Trussing&Related&Products&and&Accessories:&1&Year&
Please&visit&WWW.GAMMALEDVISON.COM&for&complete&Limited&Warranty&terms&and&contact&
information.&

Starburst 18x10– GAMMA LED Vision Page 6 of 16
2. Setup and Operation
Using the LCD Menu and Buttons
Turn on the light, press the MENU button to enter the menu mode, use the UP and DOWN
buttons to find the menu,
When the preset menu is displayed on the display screen, press the ENTER button to
confirm, use the UP and DOWN buttons to select the sub menu, press the ENTER button to
save the settings or automatically return to the previous menu.
Press the MENU button to return, or wait for one minute and then exit the menu mode
automatically. When there is no power connection, press the UP button for 1 minute to enter
the menu mode. After setting, press MENU button or wait for 1 minute to exit the power-off
setting function automatically.
There are also various status LED’s on the Starburst to show if DMX is active, if the unit is in
Master, Slave, or Sound-Active mode.
1. DMX means the light is in “DMX mode”. Similarly, SLAVE means the light is in the
“Slave mode”.
2. The color of the point shows the condition of signal transmission. Green represents
good condition, while red represents the signal is interrupted.
3. The display shows the working temperature of the light. When temperature are
exceeded, the letters will turn yellow.

Starburst 18x10– GAMMA LED Vision Page 7 of 16
Menu Operation
AMENU
DMX Address
Address
1-512
Channel
Mode
CH Mode
3CH
6CH
8CH
12CH
DMX Mode
DMX Hold
Blackout
Manual Mode
Manual
R (0-255)
G (0-255)
B (0-255)
W (0-255)
A (0-255)
UV (0-255)
Color: 1-70
Strobe: 0-20
Auto Mode
Speed: 01-31
Auto: 01-15
Slave Mode
Slave
Custom Mode
01-11
Info
Working Time
Software Version
Hardware Version

Starburst 18x10– GAMMA LED Vision Page 8 of 16
DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain

Starburst 18x10– GAMMA LED Vision Page 9 of 16
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.

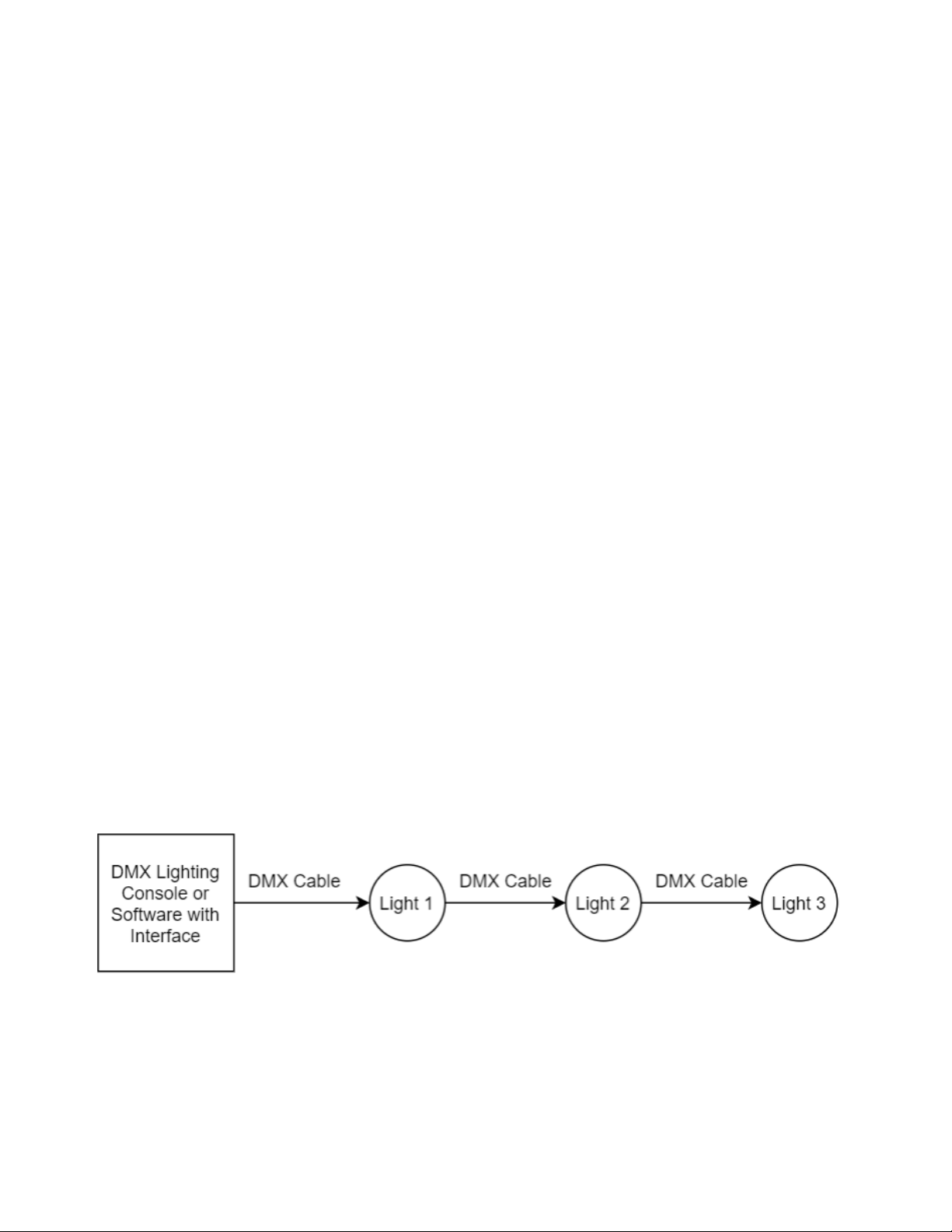

Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:

Starburst 18x10– GAMMA LED Vision Page 10 of 16
DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
3 Channel
Value
Function
1
0-255
Hue
2
0-255
Saturation
3
0-255
Value (Brightness)
6 Channel
Value
Function
1
0-255
Red Dimmer
2
0-255
Green Dimmer
3
0-255
Blue Dimmer
4
0-255
White Dimmer
5
0-255
Amber Dimmer
6
0-255
UV Dimmer
8 Channel
Value
Function
1
0-255
Master Dimmer
2
0-255
Strobe Speed
3
0-255
Red Dimmer
4
0-255
Green Dimmer
5
0-255
Blue Dimmer
6
0-255
White Dimmer
7
0-255
Amber Dimmer
8
0-255
UV Dimmer

Starburst 18x10– GAMMA LED Vision Page 11 of 16
12 Channel
Value
Function
1
0-255
Master Dimmer
2
0-9
10-255
No Fuction
Strobe (Min-Max)
3
0-255
Red Dimmer
4
0-255
Green Dimmer
5
0-255
Blue Dimmer
6
0-255
White Dimmer
7
0-255
Amber Dimmer
8
0-255
UV Dimmer
9
0-10
11-20
21-30
31-40
41-50
51-60
61-70
71-80
81-90
91-100
101-110
111-120
121-130
131-140
141-150
No Function
R100%/Gup/B0%/W0%
Rdown/G100%/B0%/W0%
R0%/G100%/Bup/W0%
Rup/Gdown/B100%/W0%
Rup/G0%/B100%/W0%
R100%/G0%/Bdown/W0%
R100%/G0%/B0%/Wup
R100%/G0%/B0%/Wdown
Combo 1
Combo 2
Combo 3
Combo 4
Combo 5
Combo 6

Starburst 18x10– GAMMA LED Vision Page 12 of 16
151-160
161-170
171-180
181-190
191-200
201-205
206-210
211-215
216-220
221-225
226-230
231-235
236-240
241-245
246-250
251-255
Combo 7
Combo 8
Combo 9
Combo 10
RGBW
White 1
White 2
White 3
White 4
White 5
White 6
White 7
White 8
White 9
White 10
White 11
10
0-7
8-17
18-27
28-37
38-47
48-57
58-67
68-77
78-87
Default
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8

Starburst 18x10– GAMMA LED Vision Page 13 of 16
88-97
98-107
108-117
118-127
128-137
138-147
148-157
158-167
168-177
178-187
188-197
198-207
208-255
Auto 9
Auto 10
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
Custom 11
11
0-255
Speed when Auto is
enabled
12
0-255
ID address set

Starburst 18x10– GAMMA LED Vision Page 14 of 16
3.#Maintenance#!"#$%&'()##*+,-./"#%&'0(.
The$following$are$a$few$common$problems$that$may$occur$during$operation.$
Here$are$some$suggestions$for$easy$troubleshooting:$
12.!)'.$,+*.3#'(.,#*.4#"56.
• Check$that$the$unit$is$plugged$in$to$a$working$power$connector.$$
• Press$the$menu$button$to$confirm$that$the$unit$is$powered$on.$If$the$
screen$$
does$not$light$up,$the$unit$has$no$power.$$
72.8#*.9'(:#,3+,-.*#.*)'.;<=.>#,*"#&&'".$
• Check$DMX$cables$to$verify$that$they$are$plugged$in$and$functional.$$
• Check$the$DMX$address$and$mode$–$does$it$match$the$address$and$mode$$
patched$in$the$lighting$console$or$software?$$
• Plug$the$light$directly$into$the$DMX$controller$with$a$cable$that$you$
know$is$good.$Unplug$all$other$lights$–$does$it$work?$$
• Try$to$use$another$DMX$controller.$$

Starburst 18x10– GAMMA LED Vision Page 15 of 16
4. Technical Specifications
o Input Voltage: 100-240V, 50/60Hz
o Total Power consumption: 120w
o LEDs: 18*10 W RGBWA+UV (6in1)
o Lamp rated life: >50000 Hours
o Beam Angle: 25 degree
o DMX512 Channels: 3/6/8/12 Channels
o Strobe
:
Independent electronic strobe, 0-20
times/second, the speed can be adjusted
o Control Mode: DMX512 control, Auto Run, Master/Slave, Sound-Active
o IP Rating
:
IP 44
o Product size: 280.32 x 142.56 x 288.28mm
o New Weight: 5 kgs
o Certification: CE, RoHS

Starburst 18x10– GAMMA LED Vision Page 16 of 16
Photometric Reports
25°
1
ux(R)
lux(G)
lux(B)
lux(W)
lux(A)
lux(UV)
lux(RGBWAUV)
Beam opening
0
Ø 0
Distance(m)
Diameter(m)
839
1054
50
1149
565
75
3679
2
Ø 0.28
228
315
14
325
162
20
983
4
Ø 0.56
105
147
8
145
68
10
468
6
Ø 0.84
271
8
Ø 1.12
176
10
Ø 1.14
0
1
AH043A
