Gamma+ Torrent Wash IP User manual

Torrent Wash IP
480w IP65 LED Wash Light
GAMMA LED Vision – Torrent Wash IP Page 1 of 16
User Manual

Table of Contents
1 Introduction and Setup 3
Unpacking and In the Box 3
Mounting and Operation 3
Features 3
Safety Precautions 4
Customer Support 5
2 Setup and Operation 6
Using the LCD Menu and Buttons 6
Menu Operation 7
DMX Setup 7
DMX Basics 7
DMX Wiring 8
DMX Modes and Configuration 9
3 Maintenance 11
Routine Maintenance 11
Troubleshooting Problems 11
A The unit does not work: 11
B Not Responding to the DMX Controller 11
4 Technical Specifications 12

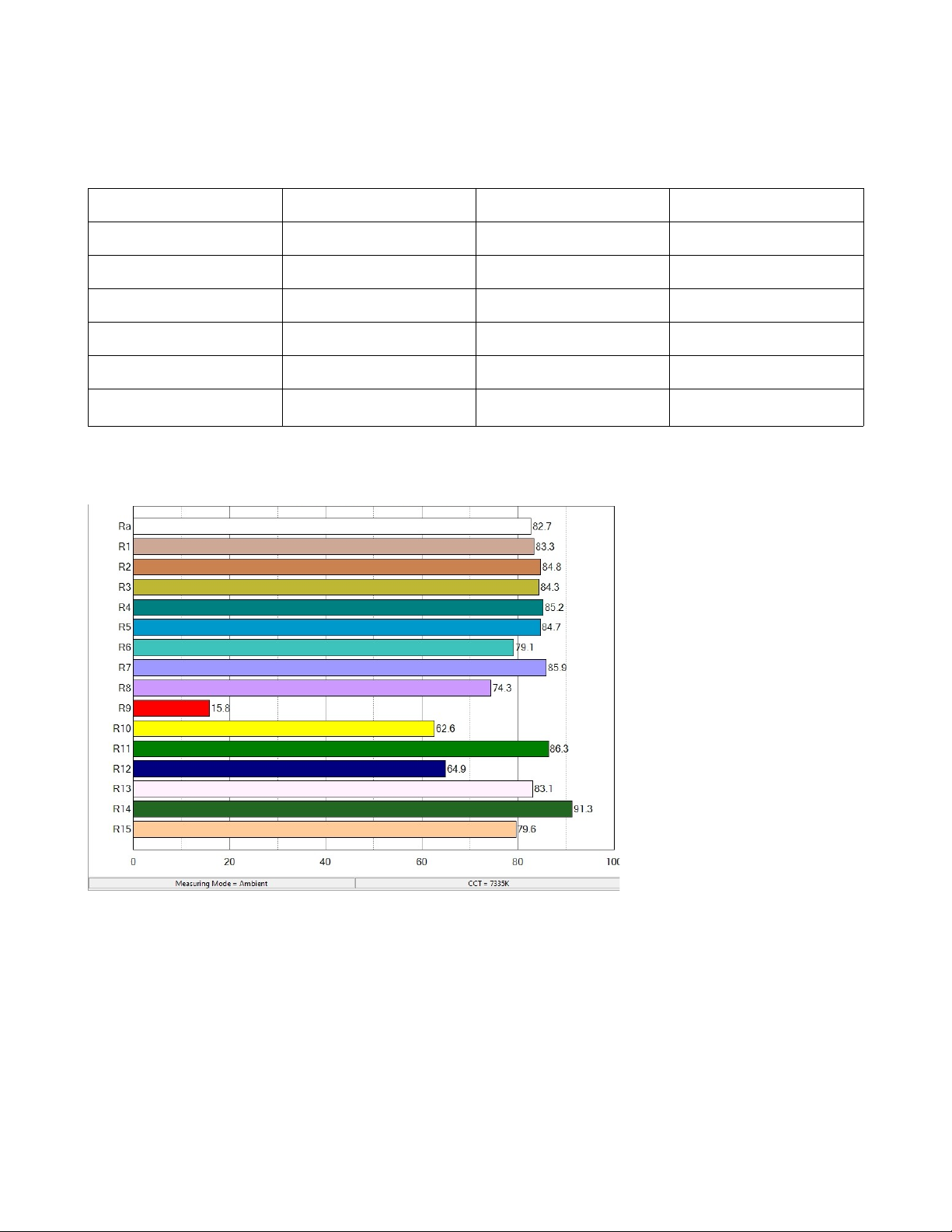

5 Photometrics 14
GAMMA LED Vision – Torrent Wash IP Page 2 of 16

1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing or Torrent Wash IP. For your own safety, please read this manual
before installing or using the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following instructions.
eanwhile, please keep this manual for future needs.
In the box you will find:
•Torrent Wash IP Fixture 1
•D X 3 Pin to IP Plug Adapters 2
•Integrated Power and Signal Cables (1.4m)
•Integrated Swivel-Clamps 2
Mounting and peration
Clamp ounting: The Torrent Wash IP provides a unique mounting bracket assembly with
integrated clamps in the base of the fixture. The clamps fold flat for table-top operation.
As an added safety measure be sure to attach at least one properly rated safety cable to
the fixture using on of the handles.
Features
•12 x 40w RGBW LED’s
•5°~50° Motorized Zoom
•Pan: 540°, 16 Bit
•Tilt: 245°, 16 Bit
•Dimmer: 16 Bit
•Supports RDM addressing
•Variable-speed cooling fans
•3 pin XLR input and output cords
•13 3kg / 29lbs
GAMMA LED Vision – Torrent Wash IP Page 3 of 16

Safety Precautions
Please keep this User Guide for future consultation If you sell the unit to another user, be
sure that they also receive this instruction manual
Always release pan and tilt locks before operating
Do NOT operate if the fixture is not capable of a full range of unrestricted motion.
ove any objects away from the unit, do not allow the moving head to hit any objects. Always
clear snow from the path of movement before powering on. Failure to do so may cause
damage outside of scope of the warranty.
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Don’t try to modify the fixture without any instruction by the manufacturer.
Warranty is voided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock, short circuit, electronic shock, etc.
Fixture must be 1’ from any flammable materials. Do not light any flammable objects closer
than 6.5 feet.
Do not allow other fixtures to shine a focused beam upon the display of this fixture.
GAMMA LED Vision – Torrent Wash IP Page 4 of 16

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual
Always release all pan and tilt locks before operating and ensure fixture is able to
move through it’s full range of motion unrestricted.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW GAMMALEDVISON COM for complete Limited Warranty terms and
contact information
GAMMA LED Vision – Torrent Wash IP Page 5 of 16

2. Setup and peration
Using the LCD Menu and Buttons
Turn on the light, press the MENU button to enter the menu mode, use the UP and D WN
buttons to find the menu item, and ENTER to enter the menu.
When the preset menu is displayed on the display screen, press the ENTER button to
confirm, use the UP and D WN buttons to select the sub menu, press the ENTER button to
save the settings or automatically return to the previous menu.
Press the MENU button to return, or wait for one minute to exit the menu mode automatically.
GAMMA LED Vision – Torrent Wash IP Page 6 of 16

Menu peration
MENU Address DMX Address Set DMX Address, 1-512
Work Mode DMX Mode Set the signal mode, the only option is
DMX mode for this fixture
CH Mode Set the DMX
Channel
Mode
14 CH – Default mode for xLights Model
Supplied
17 CH – 16 bit mode, good for use with
stage lighting consoles
Test Mode Sets the unit in TEST mode – allowing you to manually
scroll and set values for each parameter of the light
XY Setup Allows you to
invert and
modify the
pan and tilt
X Invert: Inverts the pan of the light
Y Invert: Inverts the tilt of the light
XY Speed: Can be used to slow down the
speed of the light Default is “High”
Signal Allows you to see a readout of the DMX values being
received
System Allows you to
change
system-wide
setttings
Backlight Time
Screen Direction
Language – English or Chinese – CHANGE
WITH CAUTION!
Reset Does a re-homing of the unit
DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512 This means that 512 channels are controlled
digitally through 1 data cable
A channel is a set of 255 steps that are assigned to control attributes in each light This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes
GAMMA LED Vision – Torrent Wash IP Page 7 of 16

Multiple sets of 512 “universes” may be used Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1 31), many universes can travel over a
network
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface
DMX lights connect in what is called a “daisy-chain” Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console The
remaining female connector will then connect to the DMX input on your first light
You may then connect your next fixture to the output of your first light, and continue the
chain
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength Sometimes, depending on the fixtures and cable length, this
number is less (or more)
DMX Cables can be 3-pin or 5-pin These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance Microphone cable is not DMX cable

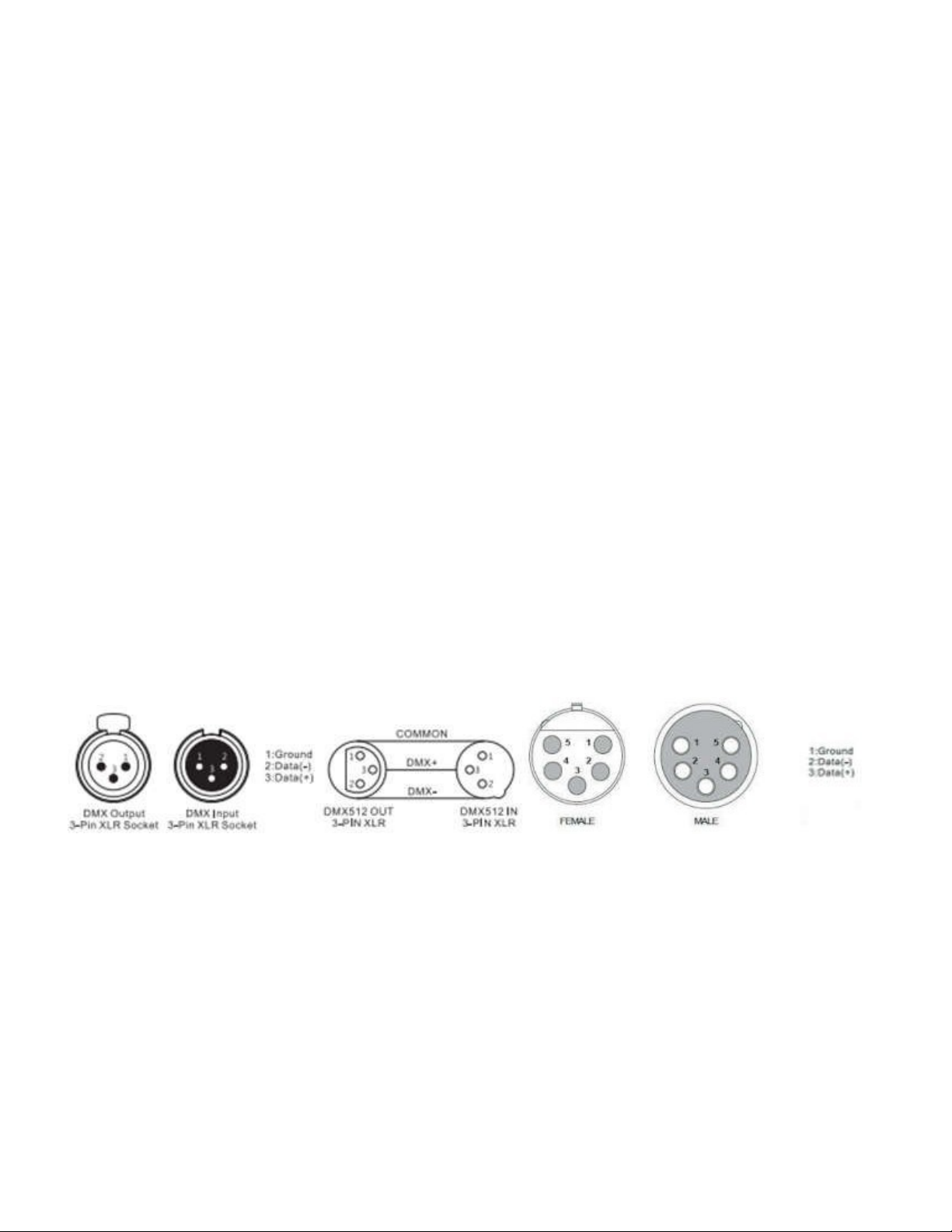

Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator This helps in preventing
corruption of the digital control signal by electrical noise and reflections The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain Please
see illustrations below:
GAMMA LED Vision – Torrent Wash IP Page 8 of 16

DMX Modes and Configuration
The Torrent Wash IP has multiple DMX modes, sometimes called “personalities”, “profiles”,
or as we will use here “modes”
In general, modes with more DMX channels offer a greater level of control or options but
take up more of your output channels on your lighting console or software
Modes with less DMX channels often offer less control, but may be plenty for your needs
Depending on your needs and control solution, you may not need channels for
automated programs, strobes, or macros – your console may have great effects! In this
case, you can use a lesser channel mode and fit more lights per DMX universe
View the DMX mode charts below to find the mode that best suits your needs
MX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
16CH Mode 1 20CH Mode 2 Function Channel Value escription
1 1 Dimmer 0-255 Intensity, Low to High
2 2 Strobe 0-5 Open
6-64 Variable Speed Strobe,
Slow to Fast
65-195 Open
196-249 Random Strobe, Slow to
Fast
250-255 Open
3 3 Red 0-255 Red
4 4 Green 0-255 Green
GAMMA LED Vision – Torrent Wash IP Page 9 of 16

5 5 Blue 0-255 Blue
6 6 White 0-255 White
7 Macro 0-10 No Function
11-41 Macro 1
42-72 Macro 2
73-103 Macro 3
104-134 Macro 4
135-165 Macro 5
166-196 Macro 6
197-227 Macro 7
228-255 Macro 8
8 Macro
Speed
0-255 Macro Speed, Slow to Fast
9 Zoom 0-255 5 to 50° Zoom
10 Reserved – Reserved
11 Pan 0-255
12 Pan Fine
13 Tilt
14 Tilt Fine
15 Pan Tilt
Speed
0-255 Pan Tilt Speed, Fast to
Slow
16 Control 0-231 No Function
232-255 Reset ALL (Hold Value for
Greater than 3s)
GAMMA LED Vision – Torrent Wash IP Page 10 of 16

3. Maintenance
Routine Maintenance
The cleaning of lens must be carried out periodically to optimize light output Cleaning
frequency depends on the environment in which the fixture operates: damp, smokey, or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s
optics
• Clean with a damp, soft cloth
• Always dry the parts carefully
• Clean the external optics at least every 20 days in demanding environments
Troubleshooting Problems
The following are a few common problems that may occur during operation Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector
•Press the menu button to confirm that the unit is powered on If the screen does
not light up, the unit has no power
B. Not Responding to the MX Controller
•Check DMX cables to verify that they are plugged in and functional
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good
Unplug all other lights – does it work?
•Try to use another DMX controller
GAMMA LED Vision – Torrent Wash IP Page 11 of 16

4. Technical Specifications
•Power Supply
•AC 100～240V 50/60Hz
•Input Power: 500W max
Lamp Source
•Type: 12pcs 40W RGBW 4 in 1 LED
•Life expectancy: over 20,000 hours
Effects
•LED control: can control each LED individually for pixel mapping effect .
•Pri m Effect：front len can rotate endle at any zoom cope, look like pri m effect;
•Electronic Linear Zoom: 5°~50°
•Dimmer & Strobe: 0-100% linear electronic dimmer, fast electronic strobe
Control & Programming
•DMX Channels: 17 / 29 / 61CH
•DMX Signal: USITT DMX 512; 3pin XLR input and output
•Pan: 540° 16 Bit
•Tilt: 245° 16 Bit
•Dimmer: 16 Bit
•Support RDM addressing
•Fan speed: intelligent fan speed control
Display
•LCD Display, support Chinese and English
•Weight: 29lbs / 13.3kg
GAMMA LED Vision – Torrent Wash IP Page 12 of 16

Dimensions:
Pan/Tilt Ranges:
GAMMA LED Vision – Torrent Wash IP Page 13 of 16

5. Photometrics
Illuminance in FC, Full White
Zoom 5° Zoom Medium Zoom 50°
5’ 14200 4570 1160
10’ 3760 1260 320
15’ 1320 444 132
20’ 920 253 73
30’ 445 105 34
50’ 154 43 12
CRI 82.7
GAMMA LED Vision – Torrent Wash IP Page 14 of 16

Spectral istribution
Red:
Green:
GAMMA LED Vision – Torrent Wash IP Page 15 of 16

Blue:
Full White:
GAMMA LED Vision – Torrent Wash IP Page 16 of 16
