1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our Cove LED 200. For your own safety, please read this manual
before installing or using the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual for future needs.
Inside the box you will find:
•The Cove LED 200 Fixture – 1
•Power Cable - 1
•DMX Signal Cable - 1
•Owners Manual - 1
Mounting and Operation
Use a clamp rated for the full weight of the LED Cove 200 to hang the fixture from the
mount(s) on the fixture’s yoke.
As an added safety measure be sure to attached at least one properly rated safety
cable to the fixture using on of the safety cable rigging point integrated in the base
assembly or on the yoke.
Features
•Variable white LED par/wash lighting
•200w COB LED for high brightness
•DMX Control and Standalone Modes
Safety Precautions
Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
COVE LED 200 CW/WW – GAMMA LED Vision Page 3 of 12

Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is
kept at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
∙Don’t try to modify the fixture without any instruction by the manufacturer or the
appointed repairing agencies.
∙Warranty is voided if there are any malfunctions from not following the user manual
while operating or any hazardous operation, like shock, short circuit, electronic shock,
lamp broken, etc.
Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects. Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products. GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
COVE LED 200 CW/WW – GAMMA LED Vision Page 4 of 12

Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and
contact information.
COVE LED 200 CW/WW – GAMMA LED Vision Page 5 of 12

2. Setup and Operation
Using the LCD Menu and Buttons

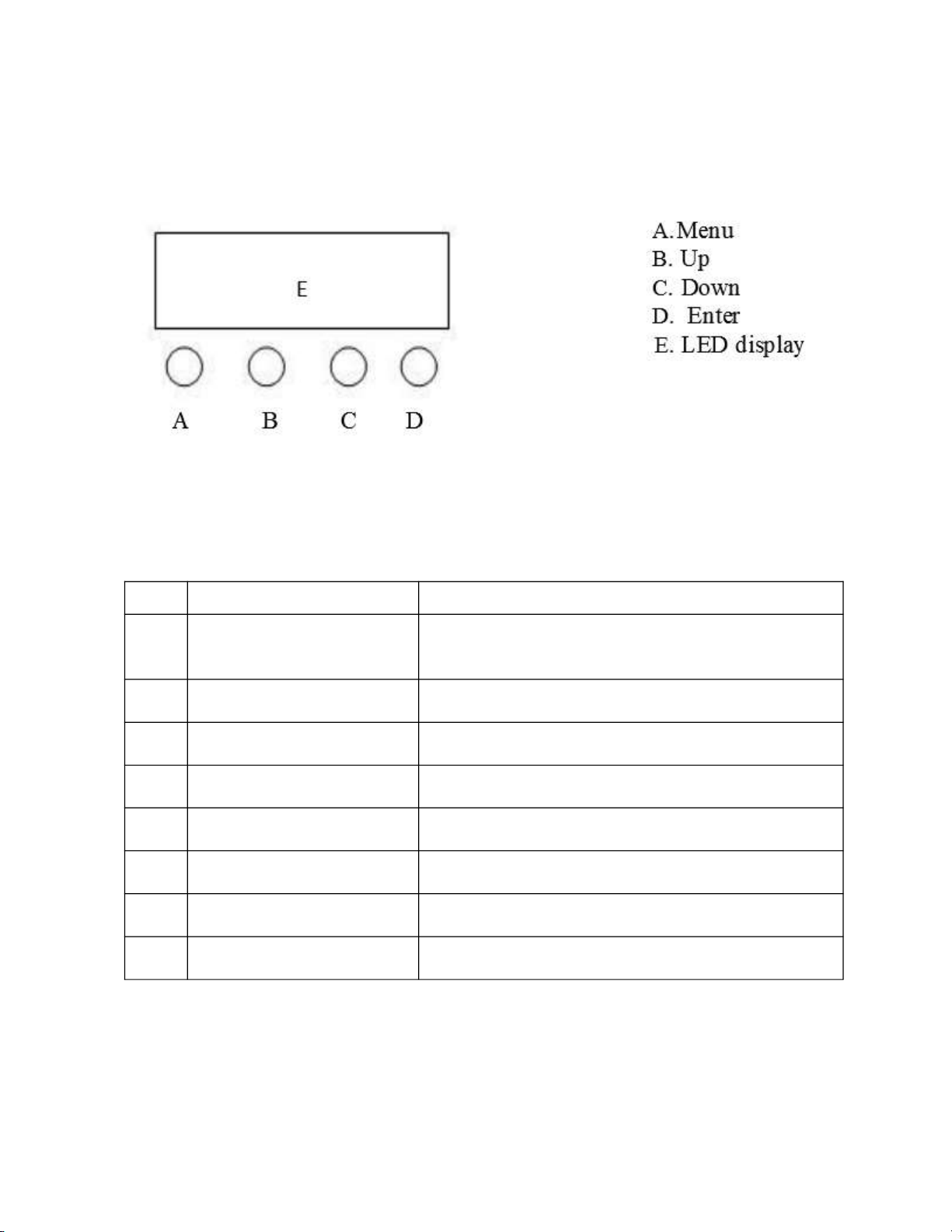

Operation instructions:
Press “Menu” to choose different options.
Press “Up” or “Down” to set the option.
Press “Enter” to confirm and save.
No. Menu Description
1 A001 6CH (A6CH, b6CH)
4CH( A4CH,b4CH)
2CH (A2CH,b2CH)
2 CC00 Chase Mode (00-99)
3 CP00 Fade Mode (00-99)
4 dE00 Pulse Mode (00-99)
5 BebE Sound-Active Mode
6 Y255 Cool White (000—255)
7 o255 Warm White 000—255)
8 On/Off LCD Display on/off when inactive.
COVE LED 200 CW/WW – GAMMA LED Vision Page 6 of 12

DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.
DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.

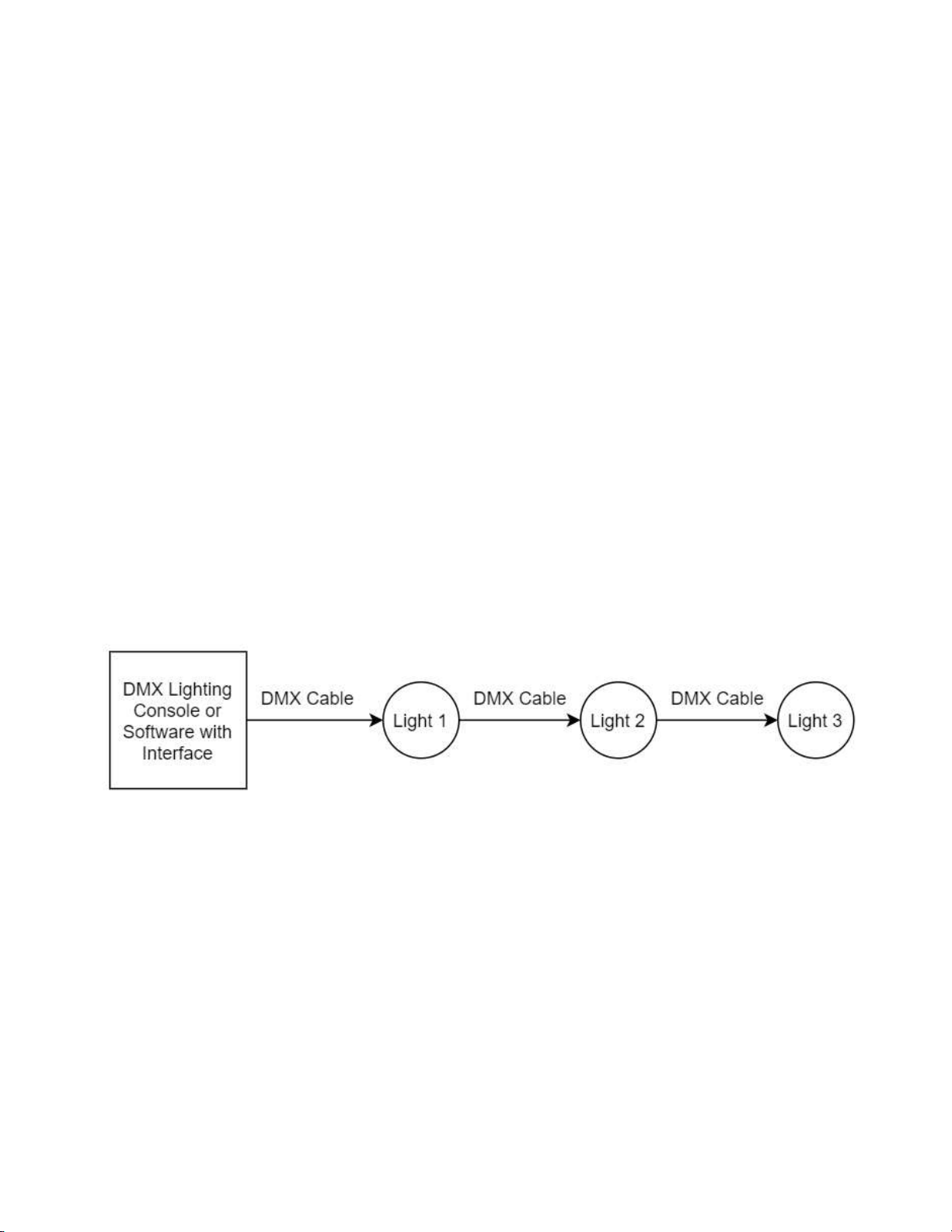

Please refer to the diagram below:
COVE LED 200 CW/WW – GAMMA LED Vision Page 7 of 12

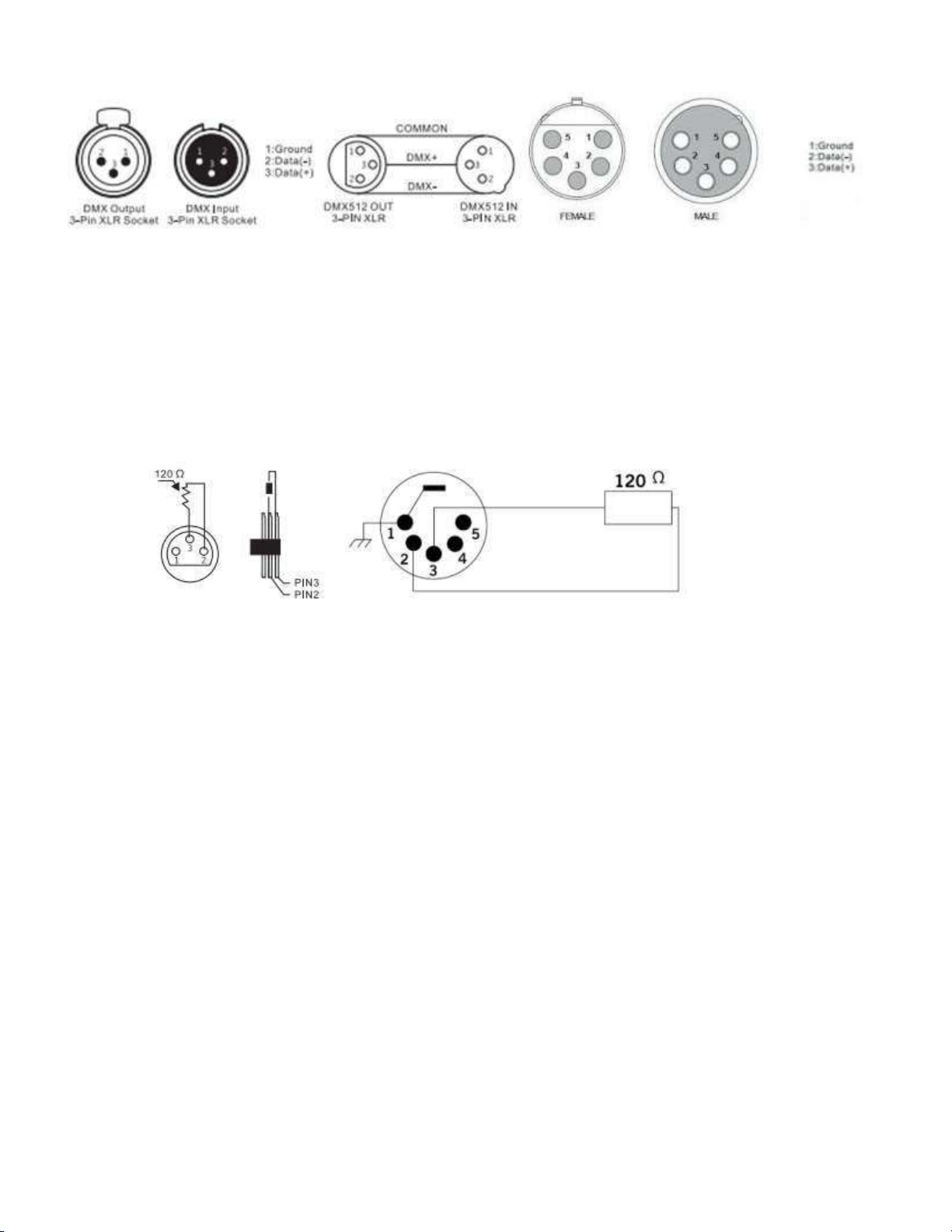

For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
COVE LED 200 CW/WW – GAMMA LED Vision Page 8 of 12

DMX Modes and Configuration
The Cove LED 200 has multiple DMX modes, sometimes called “personalities”, “profiles”,
or as we will use here “modes”.
In general, modes with more DMX channels offer a greater level of control or options but
take up more of your output channels on your lighting console or software.
Modes with less DMX channels often offer less control, but may be plenty for your needs.
Depending on your needs and control solution, you may not need channels for
automated programs, strobes, or macros – your console may have great effects! In this
case, you can use a lesser channel mode and fit more lights per DMX universe.
View the DMX mode charts below to find the mode that best suits your needs.
DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
A2CH
A2CH Function Description
1 Master dimmer Master Dimmer, 0-100%
2 Strobe Master Strobe, Slow to Fast
b2CH
A4CH Function Description
1 Cool White Cool White Dimmer, 0-100%
2 Warm White Warm White Dimmer, 0-100%
A4CH
A4CH Function Description
1 Master dimmer Master Dimmer, 0-100%
2 Cool White Cool White Dimmer, 0-100%
3 Warm White Warm White Dimmer, 0-100%
4 Strobe Master Strobe, Slow to Fast
A6CH
A6CH Function Description
1 Master dimmer Master Dimmer, 0-100%
2 Strobe Master Strobe, Slow to Fast
COVE LED 200 CW/WW – GAMMA LED Vision Page 9 of 12

3 Macros 0-50 DMX Control
51-100 – Chase
101-150 – Fade
151-200 – Color Pulse
201-255 – Sound-Active Mode
4 Macro Speed Macro Speed, Slow to Fast
5 Cool White Cool White Dimmer, 0-100%
6 Warm White Warm White Dimmer, 0-100%
b4CH
b4CH Function Description
1 Master dimmer Master Dimmer, 0-100%
2 Strobe Master Strobe, Slow to Fast
3 Macros 0-50 DMX Control
51-100 – Chase
101-150 – Fade
151-200 – Color Pulse
201-255 – Sound-Active Mode
4 Macro Speed Macro Speed, Slow to Fast
b6CH
b6CH Function Description
1 Master dimmer Master Dimmer, 0-100%
2 Cool White Cool White Dimmer, 0-100%
3 Warm White Warm White Dimmer, 0-100%
4 Strobe Macro Speed, Slow to Fast
5 Macros 0-50 DMX Control
51-100 – Chase
101-150 – Fade
151-200 – Color Pulse
201-255 – Sound-Active Mode
6 Macro Speed Macro Speed, Slow to Fast
COVE LED 200 CW/WW – GAMMA LED Vision Page 10 of 12

3. Maintenance
Routine Maintenance
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not light up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good.
Unplug all other lights – does it work?
•Try to use another DMX controller.
COVE LED 200 CW/WW – GAMMA LED Vision Page 11 of 12

4. Technical Specifications
Voltage: 100-240v AC, 50-60Hz
Light Source: 200w 2-In-1 CW/WW COB LED
DMX Channel Modes: 2/4/6 in A and B Variations
Dimmer: 0-100% Linear
Beam Angle: 38 degrees
Working temperature: -30℃~50℃
Control Modes: DMX512, Auto Run, Master/Slave, Sound-Active
Strobe: Variable Speed, 1-30Hz
Housing: Metal, Black
Data: XLR In/Out, PowerCon In/Out
IP Grade: IP20
Weight: 6.0kg
Photometric Reports
Distance FC at Center, Full White FC at Center, Warm White FC at Center, Cool White
1m 1223 568 599
2m 256 129 138
3m 114 63 60
5m 39.4 19.7 21
7m 19.7 10.6 11.7
