Gamma+ Luxe Toro 600 RGBW User manual

Luxé Toro 600 RGBW
RGBAL 600w LED Spot
User Manual
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 1 of 14

Table of Contents
1. Introduction and Setup.......................................................................................................................................3
Unpackin and In the Box.................................................................................................................................3
Mountin and Operation...................................................................................................................................3
Safety Precautions.................................................................................................................................................3
Customer Support.................................................................................................................................................5
2. Setup and Operation...........................................................................................................................................6
DMX Setup...............................................................................................................................................................8
DMX Basics..........................................................................................................................................................8
DMX Wirin ........................................................................................................................................................8
DMX Modes and Confi uration...................................................................................................................10
3. Maintenance..........................................................................................................................................................12
Routine Maintenance........................................................................................................................................12
Troubleshootin Problems.............................................................................................................................12
4. Technical Specifications....................................................................................................................................13
Photometric Reports..........................................................................................................................................14
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 2 of 14

1. Introduction and Setup
npacking and In the Box
Thank you for choosing our Luxé Toro 600 RGBAL. For your own safety, p ease read this
manua before insta ing or using the device. This manua covers the important information on
insta ation and app ications. P ease insta and operate the fixture with fo owing instructions.
Meanwhi e, p ease keep this manua for future needs.
In the box you wi receive:
•Luxé Toro 600 RGBAL: 1
•5 Pin DMX Cab e: 1
•PowerCon Power Cab e 1m 1
Mounting and Operation
Use a c amp rated for the fu weight of the Luxé Toro 600 RGBAL to hang the fixture from the
mount(s) on the fixture’s yoke.
As an added safety measure be sure to attached at east one proper y rated safety cab e
to the fixture using on of the safety cab e rigging point integrated in the base assemb y or
on the yoke.
Safety Precautions
Caution: For added protection mount the fixtures in areas outside wa king paths, seating ar-
eas, or in areas were the fixture might be reached by unauthorized personne .
Before mounting the fixture to any surface, make sure that the insta ation area can ho d a
minimum point oad of 10 items the device’s weight.
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 3 of 14

Safety Clamp Safety Cable
Fixture insta ation must a ways be secured with a secondary safety attachment, such as an
appropriate safety cab e.
Do not c amp the safety cab e to the U bracket or c amp. That is not a secondary safety point.
A secondary safety point is any point that wi adequate y ho d the ed profi e spot ight if the
c amp fai s.
Then the safety cab e wou d be the backup and stop the fixture from fa ing to the ground. So
do NOT fix the safety cab e to the same p ace that the C-C amp is attached
Never stand direct y be ow the device when mounting, removing, or servicing the fixture.
From a cei ing, or set on a f at eve surface (see i ustration be ow). Be sure this fixture is kept
at east 0.5m (1.5ft) away from any f ammab e materia s (decoration etc.).
A ways use and insta the supp ied safety cab e as a safety measure to prevent accidenta
damage and/or injury in the event the c amp fai s.
∙Don’t try to modify the fixture without any instruction by the manufacturer or the appointed re-
pairing agencies.
∙Warranty is voided if there are any ma functions from not fo owing the user manua whi e op-
erating or any hazardous operation, ike shock short circuit, e ectronic shock, amp broken,
etc.
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 4 of 14

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of pur-
chase to be free of manufacturer and workmanship defects. Warranty does not cover nor-
mal wear and tear caused by force, ne li ence or misuse of products. GAMMA LED Vi-
sion is not responsible for any dama es or injury caused by misuse or improper handlin
of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or hi her): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or hi her): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussin Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and con-
tact information.
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 5 of 14

2. Setup and Operation

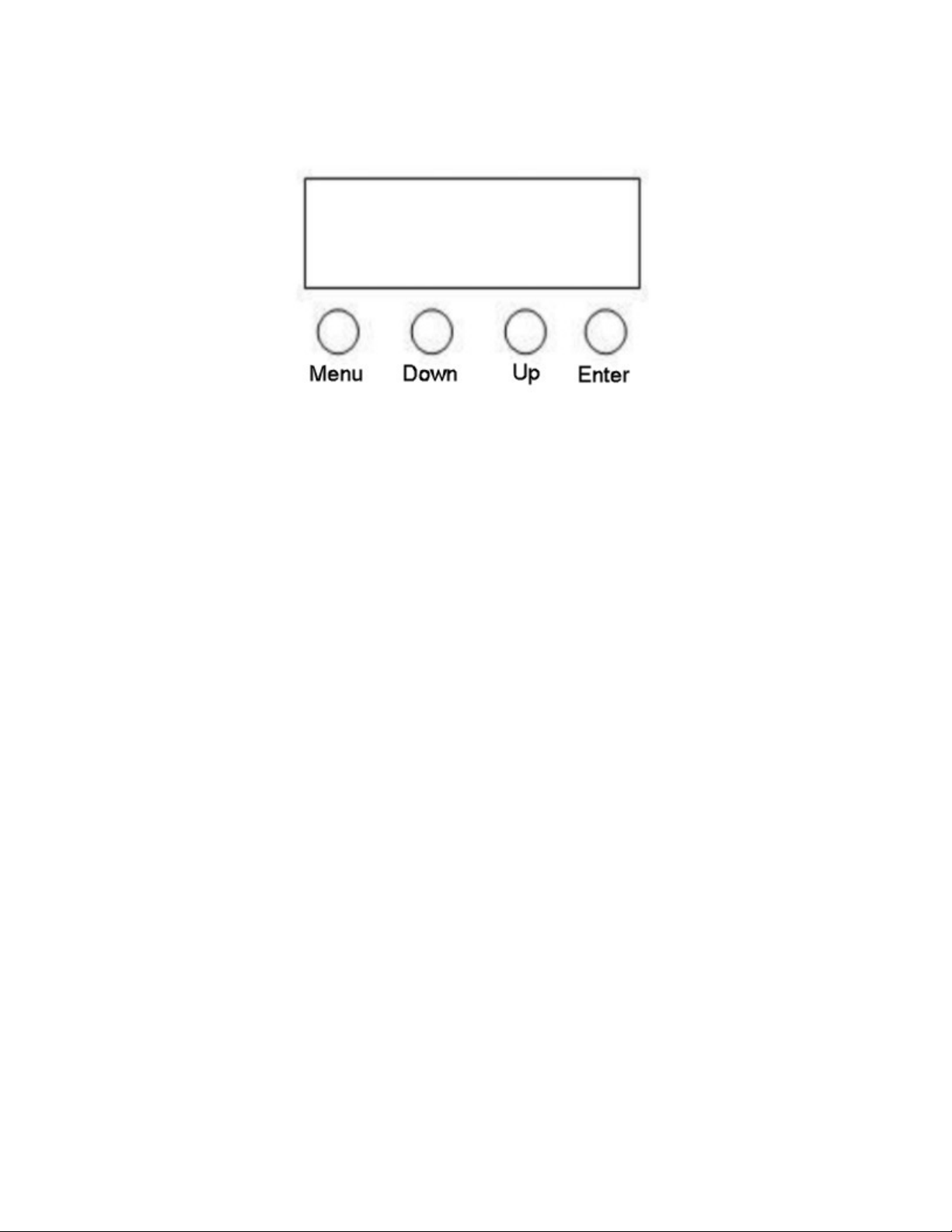

The LCD system includes Menu, Down, Up, and Enter buttons. Press “Menu” to enter the
menu or to o back from a sub-menu. Use “Up”/”Down” to navi ate throu h the choices,
and use “Enter” to save your choices. Note, the options below are numbered, and the
“Up” key brin s you forward in number, which is down on the screen.
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 6 of 14

The menu options are as follows:
Menu Option Second Menu Value Description
1. DMX Addr 001-512 Set the DMX address. Menu
item MUST be selected for
DMX control.
2. Key-CCT (This
mode is a manual,
variable-white
mode
Bri ht 000-255 Set the bri htness
CCT 2700k-
10,000k
Set the Color Temperature
3. Manual ADJ (This
mode is a manual,
full color mode
ALL-DIM 000-255 Full Intensity Control
RED-DIM 000-255 Red Intensity Control
GREEN-DIM 000-255 Green Intensity Control
BLUE-DIM 000-255 Blue Intensity Control
AMBER-DIM 000-255 Amber Intensity Control
LIME-DIM 000-255 Lime Intensity Control
4. Test Mode Pro 01-11 Choose the test pro ram
Pro Speed 01-16 Set the test pro ram speed
Test Auto, Sound Set whether the test pro-
ram runs on auto or
sound-active mode.
5. Settin LCD Inverse OFF/ON Flip the LCD screen for in-
verted han in positions.
Back Li ht OFF/ON “ON” keeps backli ht on
100% of the time, “OFF” sets
backli ht to turn off when
DMX is present.
Lan ua e EN/Chinese Set the menu lan ua e.
Change with caution!
6. System Info View the Serial Number, Firmware Version, Date, Time, and Tem-
perature of the Li ht
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 7 of 14

DMX Setup
DMX Basics
DMX512 stands for di ital multiplex 512. This means that 512 channels are controlled
di itally throu h 1 data cable.
A channel is a set of 255 steps that are assi ned to control attributes in each li ht. This
may be a color like red, reen or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but throu h networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connectin 1 or multiple li hts to the output of a DMX li htin console or
software with a DMX interface.

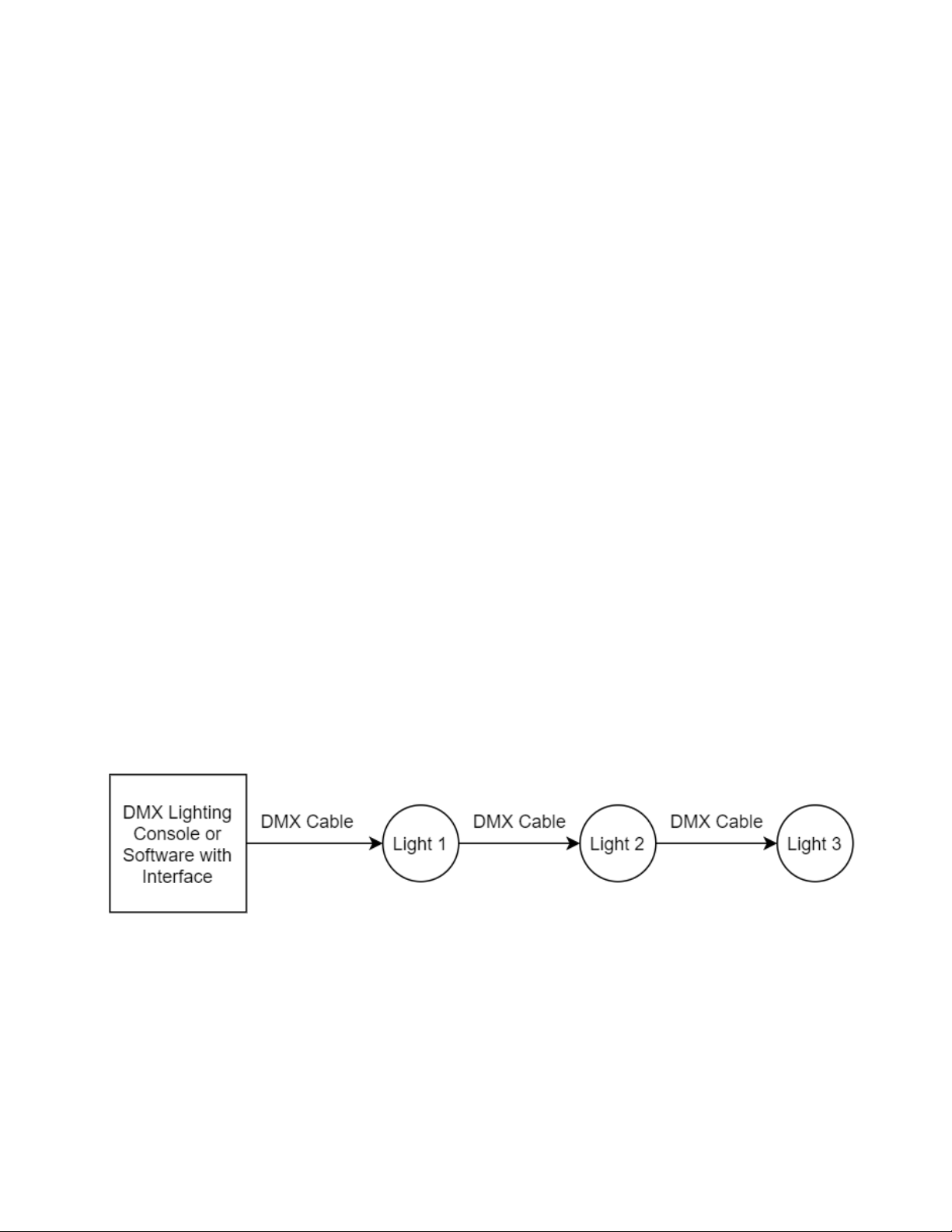

DMX li hts connect in what is called a “daisy-chain”. Your first DMX cable will plu it’s
male DMX connector into the female DMX connector on your li htin console. The re-
mainin female connector will then connect to the DMX input on your first li ht.
You may then connect your next fixture to the output of your first li ht, and continue the
chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a sin le daisy
chain for si nal stren th. Sometimes, dependin on the fixtures and cable len th, this
number is less (or more).
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 8 of 14

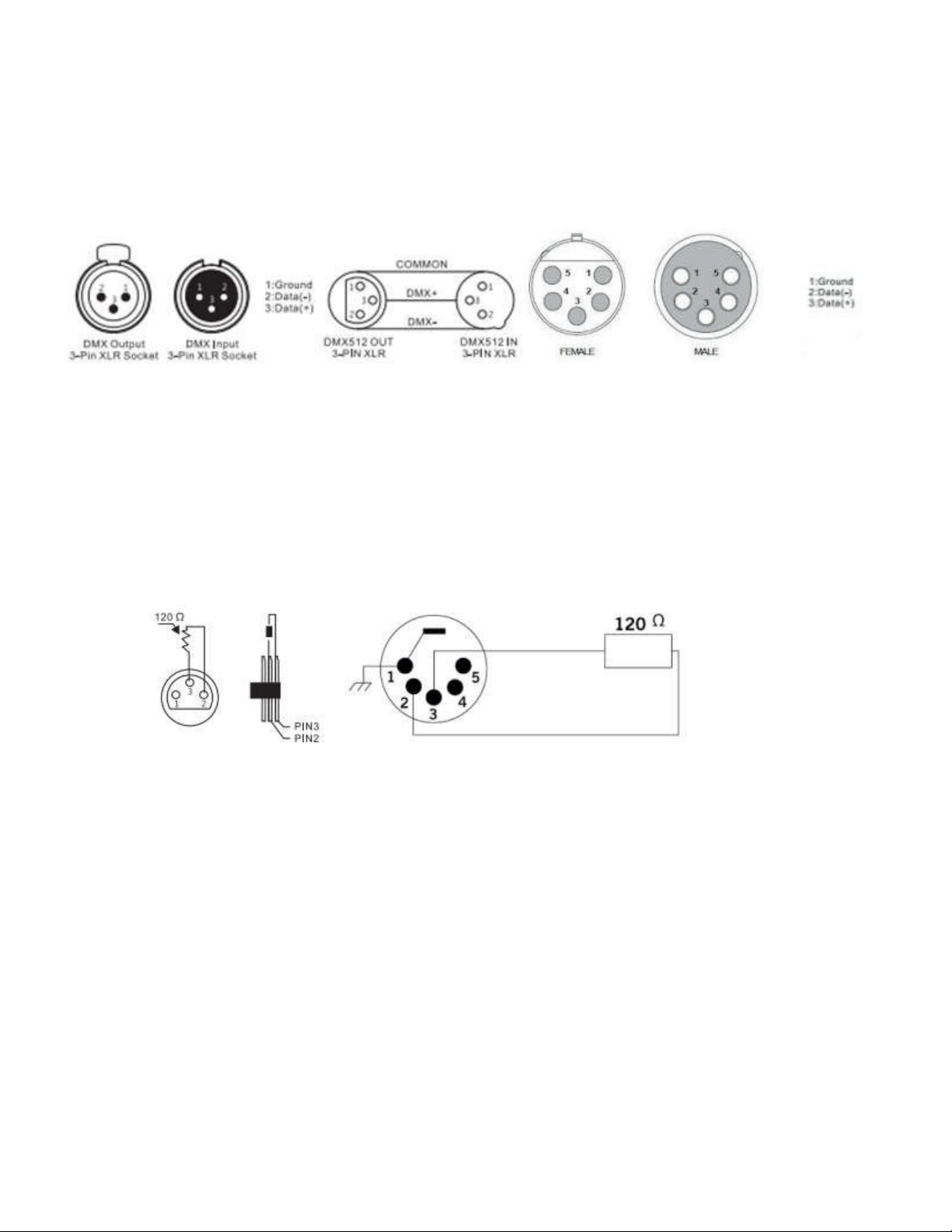

DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.
Please refer to the dia ram below:
For installations where the DMX cable has to run a lon distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventin
corruption of the di ital control si nal by electrical noise and reflections. The DMX ter-
minator is simply an XLR plu with a 120 Ω resistor connected between pins 2 and 3,
which is then plu ed into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 9 of 14

DMX Modes and Configuration
The Luxé Toro 600 RGBAL has a sin le 10CH DMX mode.
On the left side of the sheet you will see the different modes and which channel cor-
responds to each function listed on the right in the given mode.
10CH Function Channel Value Description
1 Dimmer 0-255 Master Dimmer
2 Color Temperature 0-255 Linear Color Temperature
Control, 2700K to 10,000K
3 Color Mode 0-127 Variable White Mode – In
this mode, Channel 2 deter-
mines the color temperature,
individual color channel con-
trol is disabled on channels
4-8.
128-255 Full Control Mode – In this
mode, channel 4-8 provide
RGBAL Control. Channel 2
4 Red 0-255 Red Intensity Control
5 Green 0-255 Green Intensity Control
6 Blue 0-255 Blue Intensity Control
7 Amber 0-255 Amber Intensity Control
8 Lime 0-255 Lime Intensity Control
9 Color Macros 0-20 No Function
21-164 Static Color Macros
165-255 Dynamic Color Macros
10 Macros Speed 0-255 Speed for Dynamic Color
Macros, Fast to Slow
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 10 of 14

3. Maintenance
Routine Maintenance
Fan Cleaning
Periodically do a visual inspection of the fans. If they are dirty, power off the unit and use
a small electronics vacuum to clean the fans out. Do not use a can of C02 or an Air Com-
pressor. These will simply blow the dust into the unit and may leave other residue.
Front Lens and Shutter Blade Cleaning
The front lens should be cleaned so that li ht output is maintained. The shutter blades
may also occasionally need cleanin .
With the li ht powered off, use a moist, lint-free cloth. Never use alcohol of solvents to
clean the fixture.
Never spray any cleaners on the fixture.
Troubleshooting Problems
The followin are a few common problems that may occur durin operation. Here are
some su estions for easy troubleshootin :
A. The unit does not work:
•Check that the unit is plu ed in to a workin power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not li ht up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plu ed in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the li htin console or software?
•Plu the li ht directly into the DMX controller with a cable that you know is ood.
Unplu all other li hts – does it work?
•Try to use another DMX controller.
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 11 of 14

4. Technical Specifications
•1*600w RGBAL LED
•CRI 90
•50,000 hours life and low power consumption
•Lens tube interchan eable with 26° lens (Other lens options available, contact
your dealer for details)
•0-100% Smooth and precise linear dimmer
•9 DMX channel USITT DMX-512
•DMX512 and manual modes.
•4-Button LCD display
•PowerCon connector IN/OUT
•3-Pin XLR connectors IN/OUT
•Low noise fan
•40°C Max ambient temperature
•IP20 protection ratin
•AC100-230V 50-60HZ
• Max. Power: 220W
• Dimensions: 28”x12”x11”
•Net Wei ht: 25lbs
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 12 of 14

Photometric Reports
26 De ree Lens – FC at Center
Distance RGBAL at Full Hi h CRI 90 – See DMX Values used
below
5’ 1050 828
10’ 302 220
15’ 139 120
20’ 79 60
30’ 34 30
40’ 20 15
High CRI DMX Values:
Red – 127
Green – 6
Blue – 5
Amber – 255
Lime - 255
Luxé Toro 600 RGBAL– GAMMA LED Vision Pa e 13 of 14

CRI at 3245k = CRI 90
TM30 at 3245k:
