Gamma+ Rayon User manual

Rayon
6-Head RGB Moving Head Laser Light
Rayon – GAMMA LED Vision Page 1 of 12
User Manual

Table of Contents
1. Introduction and Setup....................................................................................................................................3
Unpacking and In the Box..............................................................................................................................3
Mounting and Operation................................................................................................................................3
Features...................................................................................................................................................................3
Safety Precautions..............................................................................................................................................3
Customer Support..............................................................................................................................................5
2. Setup and Operation.........................................................................................................................................6
Using the LCD Menu and Buttons..............................................................................................................6
Menu Operation..................................................................................................................................................7
DMX Setup............................................................................................................................................................8
DMX Basics.......................................................................................................................................................8
DMX Wiring.....................................................................................................................................................8
DMX Modes and Configuration.................................................................................................................10
3. Maintenance.......................................................................................................................................................12
Routine Maintenance......................................................................................................................................12
Troubleshooting Problems...........................................................................................................................12
A. The unit does not work:..........................................................................................................................12
B. Not Responding to the DMX Controller...........................................................................................12
4. Technical Specifications.................................................................................................................................13
Rayon – GAMMA LED Vision Page 2 of 12

1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our Rayon. For your own safety, please read this manual before
installing or using the device. This manual covers the important information on installation and
applications. Please install and operate the fixture with following instructions. Meanwhile,
please keep this manual for future needs.
In the box you will find:
•Rayon Fixure: 1
•PowerCon Cable: 1
•DMX Signal Cable 1
•Omega Mounting Clamps 2
Mounting and Operation
Clamp Mounting: The Rayon moving head provides a unique mounting bracket assembly
that integrates the bottom of the base, and the safety cable rigging point in one unit.
When mounting this fixture to truss be sure to secure an appropriately rated clamps to the
included omega brackets using a M10 screw fitted through the center hole of the “omega
brackets”.
As an added safety measure be sure to attached at least one properly rated safety cable
to the fixture using on of the safety cable rigging point integrated in the base assembly.
Features
The Rayon laser fixture features 2 sets of Red, Green, and Blue Lasers that can pan
together and tilt independently for dynamic effects.
Safety Precautions
Before connecting or disconnecting the power turn off power of the LASER diode to
avoid any damage to it.
Turn off the system for 25 minutes after running continuously for three hours; ensure
the system is able to cool down in a suitable environment.
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Rayon – GAMMA LED Vision Page 3 of 12

Caution: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
∙Don’t try to modify the fixture without any instruction by the manufacturer.
∙Warranty is voided if there are any malfunctions from not following the user manual while
operating or any hazardous operation, like shock short circuit, electronic shock, lamp broken,
etc.
Rayon – GAMMA LED Vision Page 4 of 12

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of
purchase to be free of manufacturer and workmanship defects. Warranty does not cover
normal wear and tear caused by force, negligence or misuse of products. GAMMA LED
Vision is not responsible for any damages or injury caused by misuse or improper
handling of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or higher): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussing Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and
contact information.
Rayon – GAMMA LED Vision Page 5 of 12

2. Setup and Operation
Using the LCD Menu and Buttons
Turn on the light, press the MENU button to enter the menu
mode, use the UP and DOWN buttons to find the menu,
When the preset menu is displayed on the display screen,
press the ENTER button to confirm, use the UP and DOWN
buttons to select the sub menu, press the ENTER button to
save the settings or automatically return to the previous
menu.
Press the MENU button to return, or wait for one minute and then exit the menu mode
automatically.
Rayon – GAMMA LED Vision Page 6 of 12

Menu Operation
MENU ADDR Address 1-512
SLND, MAST,
SLAV
Mode Standalone, Master and Slave Modes
SHND Sound-active
Mode
SOUND, AUTO
SOUD ON,
OFF
Sound-active
Mode
Sensitivity
0-100
BLND Standby-
Mode
YES, NO
LED ON, OFF Screen On or
OFF
DISP YES, NO Reverse
Display
PAN YES, NO Reverse Pan
1TIL YES, NO Reverse Tilt, Motor 1
2TIL YES, NO Reverse Tilt, Motor 2
3TIL YES, NO Reverse Tilt, Motor 3
4TIL YES, NO Reverse Tilt, Motor 4
5TIL YES, NO Reverse Tilt, Motor 5
6TIL YES, NO Reverse Tilt, Motor 6
TEST - Automatic Fixture Test
HOUR - Number of hours on fixture
VER - Software Version Number
RELD - Restore to Factory Defaults
Rayon – GAMMA LED Vision Page 7 of 12

DMX Setup
DMX Basics
DMX512 stands for digital multiplex 512. This means that 512 channels are controlled
digitally through 1 data cable.
A channel is a set of 255 steps that are assigned to control attributes in each light. This
may be a color like red, green or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but through networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connecting 1 or multiple lights to the output of a DMX lighting console or
software with a DMX interface.

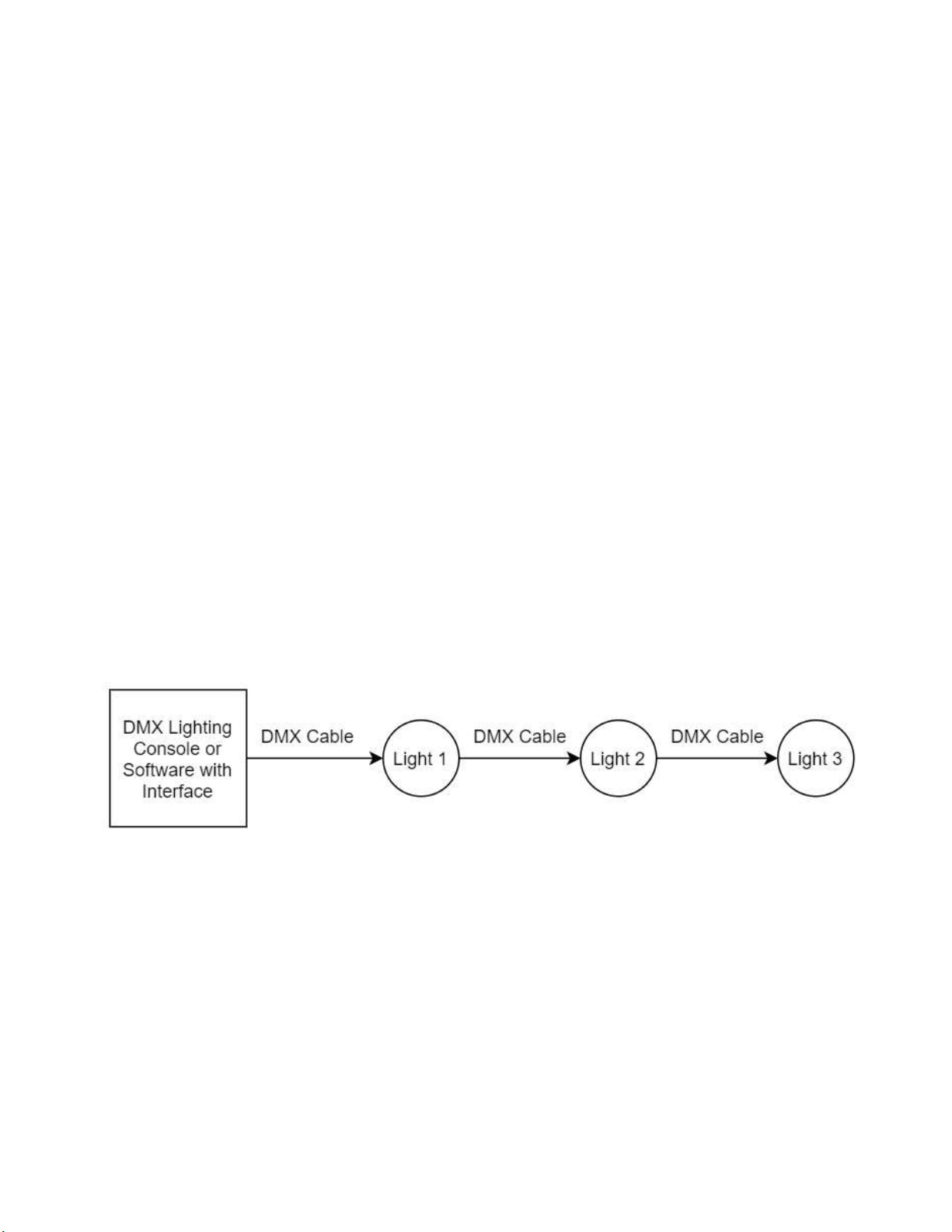

DMX lights connect in what is called a “daisy-chain”. Your first DMX cable will plug it’s
male DMX connector into the female DMX connector on your lighting console. The
remaining female connector will then connect to the DMX input on your first light.
You may then connect your next fixture to the output of your first light, and continue the
chain.
In the case of the PENN Series, we use terminal blocks for ease of connection. To
insert wires, first loosen the screw of the terminal block. Then, insert the wire and
tighten down.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a single daisy
chain for signal strength. Sometimes, depending on the fixtures and cable length, this
number is less (or more).
Rayon – GAMMA LED Vision Page 8 of 12

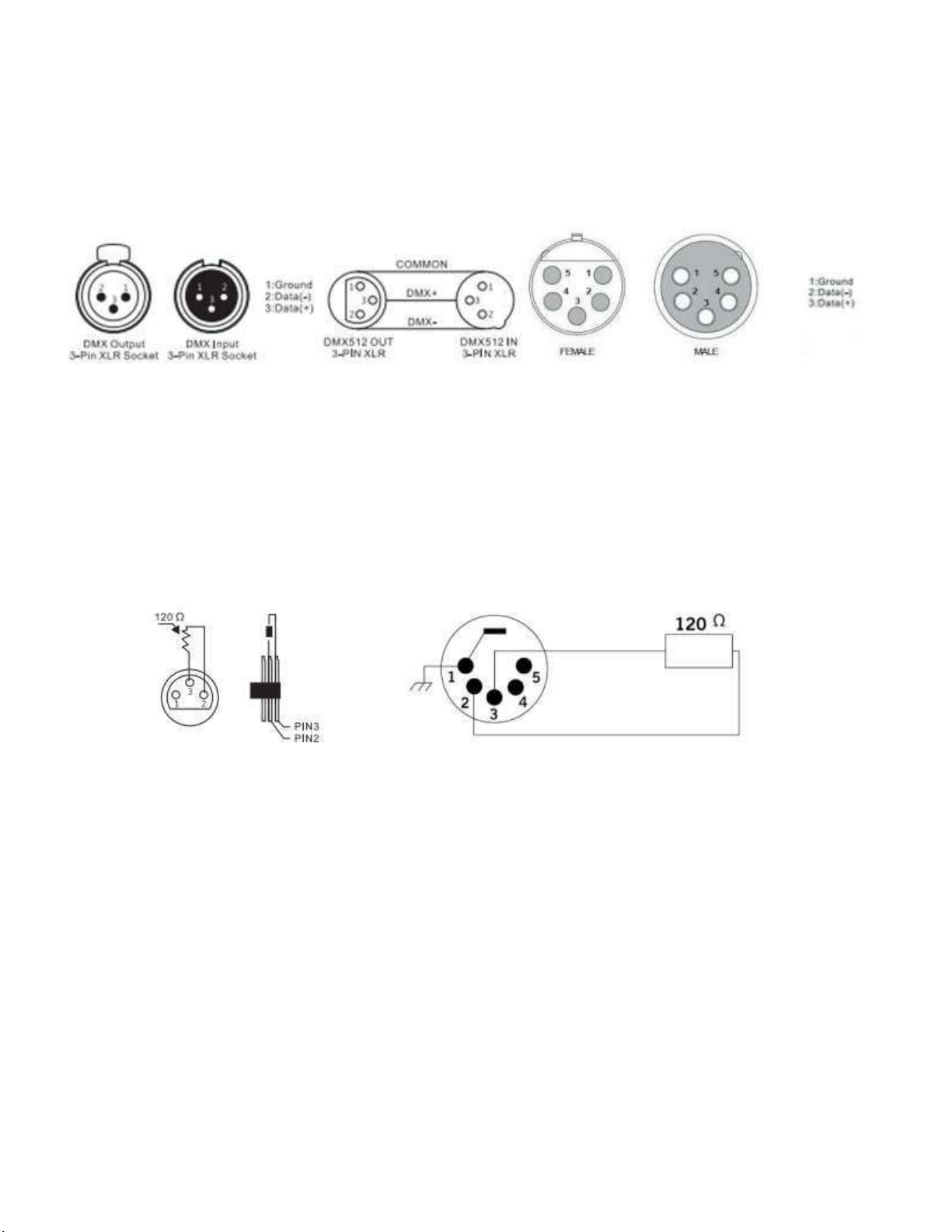

DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.
Please refer to the diagram below:
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise and reflections. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
DMX Modes and Configuration
The Rayon has a single 19-channel DMX mode that allows you to get great control of the
fixutre.
Rayon – GAMMA LED Vision Page 9 of 12

DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel
corresponds to each function listed on the right in the given mode.
19CH Function Channel Value Description
1 Pan 0-255 Pan Entire Head
2 Pan Speed 0-255 Fast to Slow
3 Tilt Head 1 0-255
4 Tilt Head 2 0-255
5 Tilt Head 3 0-255
6 Tilt Head 4 0-255
7 Tilt Head 5 0-255
8 Tilt Head 6 0-255
9
10
11
12 Intensity – Head 1 (Red) 0-255
13 Intensity – Head 2 (Green) 0-255
14 Intensity – Head 3 (Blue) 0-255
15 Intensity – Head 4 (Red) 0-255
16 Intensity – Head 5 (Green) 0-255
17 Intensity – Head 6 (Blue) 0-255
18 Macros 1-55 OFF
56-180 Static Macros
181-205 OFF
206-255 Movement Macros
19 Macro Speed 0-255
Rayon – GAMMA LED Vision Page 10 of 12

3. Maintenance
Routine Maintenance
The cleaning of lens must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smokey, or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s
optics.
• Clean with a damp, soft cloth..
• Always dry the parts carefully.
• Clean the external optics at least every 20 days in demanding environments.
Troubleshooting Problems
The following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work:
•Check that the unit is plugged in to a working power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not light up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plugged in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the lighting console or software?
•Plug the light directly into the DMX controller with a cable that you know is good.
Unplug all other lights – does it work?
•Try to use another DMX controller.
Rayon – GAMMA LED Vision Page 11 of 12

4. Technical Specifications
•Input voltage: 120V-240V
•Total power: 150W
•Control mode: automatic / sound-active / DMX512
•Control channels: 19 channel modes
•Rotation angle:
◦X axis: 270 degrees
◦Y axis 145 degrees
•Dot distance: 15
•Power stability: 5%
•Laser output wavelength (nm):
◦Green 532, Red 638, Blue 447
•Output spot diameter (mm): > 10
•Spot ellipticity: > 0.9
•Preheating time (min): < 15
•Use temperature: -1C to 35C
•Storage temperature: 40C to -10C
•Modulation mode: TTL
•Laser output power 200mW*6PCS (1.2W total)
•Gross (KG): net weight 13KG, gross 15KG
