GAUI X4 Combo User manual

Specification
* Factory configured CNC torque tube and tail boom assembly.
* Indexed holes on Main Shaft Bearing Blocks allow precision fit with minimal freeplay.
* One piece CNC open tail box for maximum gear protection.
* New lightweight push rod control.
* High precision CNC aluminium rotor head assembly for superior 3D performance.
* Precisely tuned servo blocks for various brand of servos.
* New ultra-rigid CF frame assembly. 100% carbon fiber frame plates.
* New CCPM control system for precision accuracy to enhance hovering and 3D flight control.
* Extreme 3D performance with explosive power.
* New high-rigid lightweight brace.
* Streamlined FRP canopy.
* Length (with canopy): 900mm
* Height: 320mm
* Width: 165mm
* Main Blade Length: 425 ~ 460mm
* Tail Blade Length: 70 ~ 77mm
* Main Rotor Diameter: 970 ~1040mm
* Tail Rotor Diameter: 210~222mm
* Weight: 1780g 5% (with engine and electronics)
* Gear Ratio: 6.67: 1: 4.07 (For 18T Pinion)
* Servos: Mini servo
We recommend downloading and using the latest Manual from official GAUI website’s download area.
我們建議您從GAUI官方網站的下載區，下載並使用最新的手冊。 www.gaui.com.tw
V2.0
ELECTRIC HELICOPTER
FBL
MADE IN TAIWAN
© 2013

前言 & 注意事項 Preface & Notice
機身組裝 Frame assembly P.1
機身組裝 & 下側板組裝 Frame assembly & Lower frame assembly P.2
機身組裝 & 尾傳動齒組裝 Frame assembly & tail gears assembly P.3
機身組裝 Frame assembly P.4
機身組裝 Frame assembly P.5
下側板組裝 & 機身組裝 Lower frame assembly & Frame assembly P.6
腳架組裝 & 支撐桿組裝 Landing gear assembly & Tail support rod assembly P.7
齒盤組裝 & 主軸組裝 Gear assembly & Main shaft assembly P.8
主旋翼頭組裝 & 十字盤組裝 Main rotor assembly & Swash plate assembly P.9
旋翼頭總成 Rotor head assembly P.10
旋翼頭總成 & 伺服機組裝 Rotor head assembly & Servo installation P.11
伺服機組裝 & 主旋翼拉桿組裝 Servo installation & Main Rotor push rod assembly P.12
伺服機組裝 & 尾管總成 Servo installation & Tail boom assembly P.13
尾管總成 & 尾殼總成 Tail boom assembly & Tail gear box assembly P.14
尾殼總成 Tail gear box assembly P.15
尾殼總成 & 尾槳組裝 Tail gear box assembly & tail blades assembly P.16
尾拉桿組裝 & 機體組成 Tail push rod assembly & frame assembly P.17
馬達組裝 & 馬達組裝 Tail boom support rod assembly & Motor installation P.18
電裝配置 & 電池固定 Electronics & Battery installation P.19
電池固定 Battery installation P.20
艙罩組裝 & 主槳組裝 Canopy installation & Main Blades installation P.21
零件表 Parts list P.22-23

GAUI TAI SHIH HOBBY CORPORATIONPreface 前言
ThankyouforpurchasingaGAUIHighPerformanceRCHelicopter fromTai Shih
HobbyCorporation(TSH). Wehopeyouwill enjoythejoy offlight.
感謝您購買泰世科技出品的GAUI高性能遙控直升機，我們希望您可以盡情享受
飛行的樂趣。
Inordertounderstandfullassemblysequences,thisinstruction manual shows
the assembly information of this model. Note that some of the componentsare
pre-assembledfromthefactory. Pleaserefertothemanual when carrying out
maintenance or replacing parts.
為了要讓使用者詳細瞭解組裝順序，即使有些部件已經預先組裝完成，本說明書將提
供這台遙控模型的組裝資訊。同時，敬請參閱保養與主要零件更換資訊。
CAUTION: This radio controlled helicopter is not a toy.
警告：這台遙控直升機不是玩具。
SAFETY PRECAUTIONS
Thiskitincludessomepreassembledcomponents.Pleasecheckforany loose
screws and tighten them before you proceed with assembly. You are
responsible for assembly, safe operation, maintenance, inspection and
adjustment of the model. Before beginning assembly,
please read these instructions thoroughly.
Pleasealsoinspectallparts.Ifyoufindanydefectiveormissingparts,
contact yourlocal dealerorGAUITSHdistributor. Beforeyouproceedto
fly your RC helicopter, please check and follow the thoroughly related
regulation of aero modeling in your country/region.
安全資訊與注意事項
這台遙控模型包含預先組合完成的部件。
在進行組裝之前，請仔細檢查這些預先組裝部件上的所有螺絲均有仔細鎖緊。
您有完全的責任對於這台遙控模型的組裝，安全操作，保養，檢查與調整。
請先檢查所有的零件，如果發現任何不良品，遺失品，請向購買的模型店或是
當地的泰世代理商連絡。
在您進行遙控直升機活動時，請先詳細瞭解與遵守當地遙控模型的相關法規。

GAUI TAI SHIH HOBBY CORPORATIONLiability disclaimer 免責聲明
免責聲明
本產品是無線遙控的直升機。
不當的操作，保養或是組裝有可能導致遙控直升機對於人身或是物品造成危險。
包括，但是不局限於對於人體產生嚴重傷害甚至死亡的可能性。
所有的移動部件可能對於操作的使用者，旁人或是這台遙控直升機飛
行場的任何人或物品產生傷害。 未成年的人如果要操作這台遙控直升機
需要父母或是監護人的同意， 並在監督與指導下才能進行操作並遠離周遭障礙物及
人群等，其父母或是監護人需負起所有責任與法律責任。
以下場合與情況禁止操作遙控直升機：居家房屋附近、天候不佳時、非空曠區域、
樹木、電線竿或是人群附近。
製造廠商與其經銷商都不對於所有的傷害，包含但是不局限於偶然或是連續發生
的傷害負擔任何責任。
本產品的使用者要對於正確地或是不正確地操作的結果需負擔所有責任。
本產品一但離開製造廠商的控制範圍外，製造廠商無法對於下列事項保持監督與
控管：組裝，保養，維修與操作這台遙控直升機。
Improper operation, maintenance or assembly can potentially cause the RC
Helicopter to pose a danger to persons or objects including but not limited to
the possibility of causing serious physical injury and even death.
Moving components can present a hazard to operators and anyone or anything
that could be in the flying area of the RC helicopter.
Under no circumstance should a minor be allowed to operate this RC
helicopter without the approval, monitor and direction of his parent or
legal guardian who takes full responsibility for all of the minor's actions.
This product should be operated by an experienced mature radio control
helicopter pilot under controlled safety conditions and on locations
properly authorized and setup for safe flying and away from other people.
Do not operate an RC helicopter within the vicinity of residences, trees,
or electrical power lines during inclement weather or near crowds of people.
The manufacturer and/or its distributors assume no responsibility or liability
whatsoever for any damages including but not limited to ones generated by
incidental or consequential damages. The operator of the helicopter
assumes all responsibility and liability that result from the correct or
incorrect operation of the helicopter.

GAUI TAI SHIH HOBBY CORPORATION
Academy of Model Aeronautics (AMA)
The Academy of Model Aeronautics (AMA) is a national organization
representing modelers in the United States.
Please refer to the National Model Aircraft safety code from AMA Member
Manual for details: http://www.modelaircraft.org/files/memanual.pdf
Partially reprinted rules that are especially pertinent for Radio
Controlled flight:
RADIO CONTROL
1. All pilots shall avoid flying models over unprotected people.
2. I will complete a successful radio equipment ground-range check in
accordance with the manufacturer´s recommendations before the first flight
of a new or repaired aircraft.
3. At all flying sites a safety line or lines must be established, in front of
which all flying takes place. Only personnel associated with flying the
model aircraft are allowed at or in front of the safety line. In the case of
air shows or demonstrations a straight safety line must be established.
An area away from the safety line must be maintained for spectators.
Intentional flying behind the safety line is prohibited.
(See AMA Document #706for Recommended Field Layout.)
4. I will operate my model aircraft using only radio-control frequencies
currently allowed by the Federal Communications Commission (FCC).
Only individuals properly licensed by the FCC are authorized to operate
equipment on Amateur Band frequencies.
5. I will not knowingly operate my model aircraft within three (3) miles of
any preexisting flying site without a frequency-management agreement.
(See AMA Document #922 for Testing for RF Interference.
See AMA Document#923 for Frequency Management Agreement.)
6. With the exception of events flown under official AMA Competition
Regulations rules, excluding takeoff and landing, no powered model may be
flown outdoors closer than 25 feet to any individual, except for the pilot
and the Pilot´s helper(s) located at the flight line.
7. Under no circumstances may a pilot or other person touch a model
aircraft in flight while it is still under power, except to divert it from
striking an individual. This does not apply to model aircraft flown indoors.
8. Radio-controlled night flying requires a lighting system that provides the
pilot with a clear view of the model´s attitude and orientation at all times.
9. The operator of a radio-controlled model aircraft shall control it during
the entire flight, maintaining visual contact without enhancement other than
by corrective lenses that are prescribed for the pilot. First-Person View(FPV)
flying may only be conducted in accordance with the procedures outlined in
AMA Document #550.
These special codes and appropriate documents may be obtained either from the
AMA Web site at www.modelaircraft.org or by contacting AMA.
Academy of Model Aeronautics 5161 East Memorial Drive Muncie, IN 47302
Tel.: [phone]
Fax: [phone]

GAUI TAI SHIH HOBBY CORPORATION
Tools and Equipment for Assembly 自備工具及設備
2.0mm Hexagon screwdriver 3.0mm Hexagon screwdriver 2.5mm Hexagon screwdriver 3.5mm Hexagon screwdriver
2.0mm 六角螺絲起子 3.0mm 六角螺絲起子 2.5mm 六角螺絲起子 3.5mm 六角螺絲起子
Needle-nosed pliers Diagonal cutting plier Ball Link Plier Phillips screwdriver
尖嘴鉗 斜口鉗 拔豆鉗 十字螺絲起子
Scissors High Strength Tape FBL system Transmitter & Receiver (6 channel +)
剪刀 高韌性強力黏著膠帶 陀螺儀 六動以上接收機&發射機
CCPM Mini servo x3pcs Tail Specialized Servo x1pc CA
CCPM伺服機x3個 尾舵伺服機x1個 瞬間膠
General thread lock Anaerobic adhesive Lubricant / one-way bearing grease AB glue
螺絲止鬆劑 特殊型缺氧膠 潤滑油 / 單向軸承油 AB黏著劑
A B
Pillar
P-柱狀體 P(Dia.out)x(Length)
P(外徑)X(長度)X(實心柱)
N-Nut
N-螺母 N(Dia.out)x(Width) L-Lock nut
N(外徑)X(長度)
W-Washer
W-華司 W(Dia.in)xDia.out)x(Thickness)
W(內徑)X(外徑)X(厚度)
P-tube
P-柱狀體 P(Dia.in)x(Dia.out)x(Length)
P(內徑)X(外徑)X(長度)
B-Bearing
B-軸承 B(Dia.in)x(Dia.out)x(Thickness) B(內徑)X(外徑)X(厚度)
Ø-TapScrew
Ø-粗牙螺絲 Ø(Dia.out)x(Length)
Ø(外徑)X(長度)
M-Machine Screw
M-公制螺絲 M(Dia.out)x(Length) M(外徑)X(長度)
一般型止鬆劑
務必鎖緊螺絲並確認上膠
Apply general thread lock.
Be certain to tighten screw and
apply thread lock.
Apply anaerobic adhesive.
使用特殊型缺氧膠。
Apply lubricant
依個人需求使用潤滑油。
危 險: 組裝過程中請小心安裝並注意
此危險程度可能造成安全性漏洞
導致人為傷害。
Danger: High level of attention must be
taken during assembly.
Action during assembly might be hazardous.
Extreme care should be taken to avoid injury.
以上圖示，於組裝時請確實注意，避免組裝後試飛造成失控零件鬆脫等情況發生。
Make sure to assemble the parts as shown in figure above. Incomplete or incorrect assembly may
cause control failure during flight.
Apply anaerobic adhesive.
Be certain to tighten screw and
apply thread lock.
特殊型缺氧膠
務必鎖緊螺絲並確認上膠
一般型止鬆劑
鎖緊螺絲並確認上膠
Apply general thread lock.
Tighten screw and apply thread lock.
Apply general thread lock.
一般型止鬆劑
使用瞬間黏著劑
Apply CA glue
使用AB黏著劑
Apply AB glue 組裝對應號碼 Assembly package
Battery 6S 22.2v 2200~5000mAh
鋰聚電池6S 22.2v 2200~5000mAh

1
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x6........................x2
M3x6........................x2
M3x6........................x2
M3x7........................x4
Bearing 8x16x5.......x2
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
B8x16x5
B8x16x5
上主軸座
Upper Main Shaft Mount
Servo mount
伺服機座
下主軸座
Lower Main Shaft Mount
M3x6
M3x6
M3x7
M3x7
M3x7
M3x7
M3x6
M3x6
M3x6
M3x6
螺絲墊片
Countersunk Washer
電池掛件
先將隔板鎖上電池掛件，再組裝至機身。
Servo mount
伺服機座
伺服機座可配合P.11頁調整左右位置。
Servo base can match P.11 adjustment with
Left & Right positions.
先將伺服機座的M3x7螺絲含上不鎖緊，再配合右圖。
First install servo on servo mount with M3x7 screws
but do not tighten screw, adjust servo placement
according to servo used.
Install center frame to the CNC X4 II Battery Slider Seat
(Center) before installation to side frame.
CNC X4 II Battery Slider Seat (Center)
1
2

2
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
GAUI TAI SHIH HOBBY CORPORATION
Lower frame assembly 下側板組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M2x4.6....................x3
M3x6
M3x6
M3x6
M3x6
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.

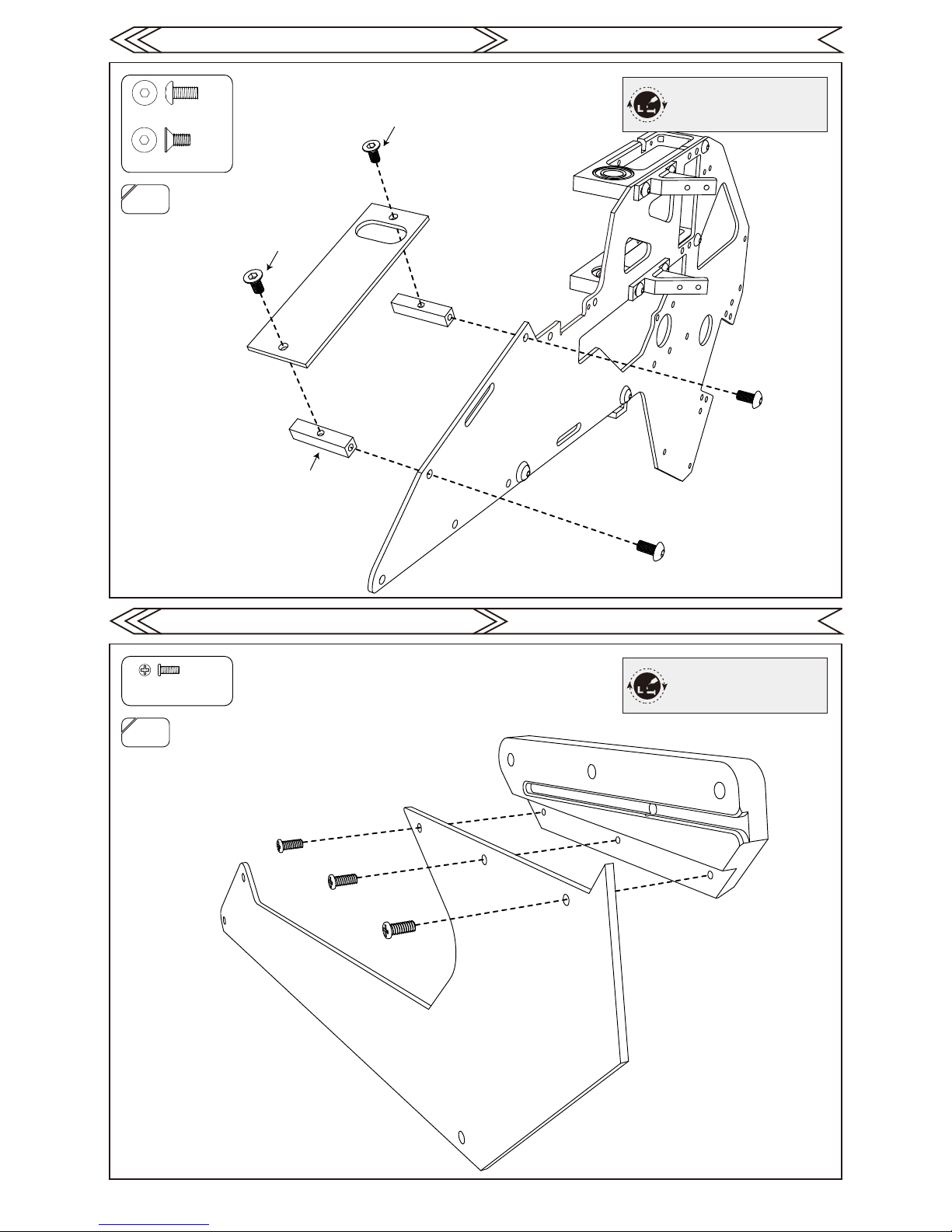

Frame post
方鋁柱(23.5mm) 6pcs
M3x6........................x2
M3x6........................x2
M2x4.6
M2x4.6
M2x4.6
3
4

3
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
GAUI TAI SHIH HOBBY CORPORATION
Tail gears assembly 尾傳動齒組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x22......................x2
M3x25......................x1
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x22
M3x25
M3x22
(23.5mm)
Frame post
圓鋁柱
(10mm)
Frame post
圓鋁柱 組裝(艙罩支柱)時先將M3x25螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
When assembling the canopy posts, fix
the M3x25 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
M3x6
M3x6
M3x6
M3x6
Gear Shaft (15T)
尾前齒軸附鋼齒(15T)
Tail transmission bearing mount
尾傳動軸承座
B5x11x4
B5x11x4
M2x8
Front transmission bevel gear
尾前傳動齒輪
M3x6........................x4
M2x8........................x1
Bearing 5x11x4.......x2
下側板塑膠墊
Lower frame plastic spacer
5
6

4
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
組裝尾管組成時需放鬆螺絲，才可將尾管
組裝至機身。
You must loosen this screw before
inserting and installing the tail boom.
組裝(艙罩支柱)時先將M3x12螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
When assembling the canopy posts, fix
the M3x12 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
含上M3x18螺絲，待P.17組裝完成後
鎖緊螺絲。
Fix the M3x18 screw (don't tighten the
screw yet), wait until the tail set is
assembled (P.17),then tighten the screw.
螺絲墊片
Countersunk Washer
M3x6
M3x18
M3x18
M3x12
M3x6
M3x8
M3x6........................x1
M3x6........................x1
M3x8........................x1
M3x18......................x2
M3x12......................x1
(23.5mm)
Frame post
圓鋁柱
下側板墊片
下側板塑膠墊
M3x22
M3x22......................x1
lower frame plastic spacer
lower frame spacer
7
8

5
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
First install servo on servo mount with M3x7 screws
but do not tighten screw, adjust servo placement
according to servo used. Servo base can adjust L&R, refer to P.11.
M3x6........................x11
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
Servo mount
伺服機座
M3x6
M3x6
M3x7
M3x7
M3x7
M3x7
M3x6........................x2
M3x7........................x4
組裝(艙罩支柱)時先將M3x12螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
When assembling the canopy posts, fix
the M3x12 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
螺絲墊片
Countersunk Washer
M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
M3x12
M3x6
M3x6
M3x6
M3x6
M3x12......................x1
Servo mount
伺服機座
伺服機座可配合P.11頁調整左右位置。先將伺服機座的M3x7螺絲含上不鎖緊，再配合右圖。
9
9

6
GAUI TAI SHIH HOBBY CORPORATION
Lower frame assembly 下側板組裝
GAUI TAI SHIH HOBBY CORPORATION
Frame assembly 機身組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M2x4.6
M2x4.6
M2x4.6
M2x4.6....................x3
組裝(艙罩支柱)時先將M3x25螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
When assembling the canopy posts, fix
the M3x25 screw inside the post, use a
2mm hex screwdriver as a tool to tighten
the canopy posts.
M3x25
M3x22
M3x22
M3x22
下側板塑膠墊
(10mm)
Frame post
圓鋁柱
下側板墊片
M3x22......................x3
M3x25......................x1
Lower frame spacer
Lower frame plastic spacer
10
11

7
GAUI TAI SHIH HOBBY CORPORATION
Landing gear assembly 腳架組裝
GAUI TAI SHIH HOBBY CORPORATION
Tail support rod assembly 支撐桿組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x3........................x2
M3x6........................x1
M3x3........................x2
M3x6........................x1
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x3
M3x3
M3x3
M3x6
M3x6
M3x25
M3x25
M3x10
M3x10
M3x3
M3x25......................x1
M3x25......................x1
M3x10.......................x2
12
12

8
GAUI TAI SHIH HOBBY CORPORATION
Gear assembly 齒盤組裝
GAUI TAI SHIH HOBBY CORPORATION
Main shaft assembly 主軸組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x22......................x1
N3x5.5L...................x1
M3x22
N3X5.5L
M3x7
M3x7
M3x7
M3x7
M3x7
M3x7
M3x7
單向鋼套
One-way sleeve
120T主齒盤
120T main gear
主齒輪轂
Main Gear Hub 61T齒輪
Rear Main Gear(61T)
主齒盤下輪榖
Rear main gear hub
3mm
2mm
M3x7........................x7
齒盤置入後，將主軸穿過上(下)主軸座至
定位，再行鎖附M3x22螺絲。
After positioning the main gear, insert main
shaft the bearing bases, tighten with M3x22
screw & N3x5.5L nut.
13
14

9
GAUI TAI SHIH HOBBY CORPORATION
Main rotor assembly 主旋翼頭組裝
GAUI TAI SHIH HOBBY CORPORATION
Swash plate assembly 十字盤組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
不銹鋼(4.8mm)球頭
Stainless ball (4.8mm)
Long linkage ball (4.8mm)
不銹鋼(4.8mm)球頭滑軌桿
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x10
W6x10x1.5
B6x13x5
Rubber damper 75
or
Rubber damper 95
Rubber damper 75
or
Rubber damper 95
T6x13x3.5
W6.2x7.6x0.5
W4.1x10x1.4
W4.1x10x1.4
B6x13x3.5
M4x10
M3x6
M4x10
W6x10x1.5 B6x13x5
M3x6
T6x13x3.5 B6x13x3.5
W6.2x7.6x0.5

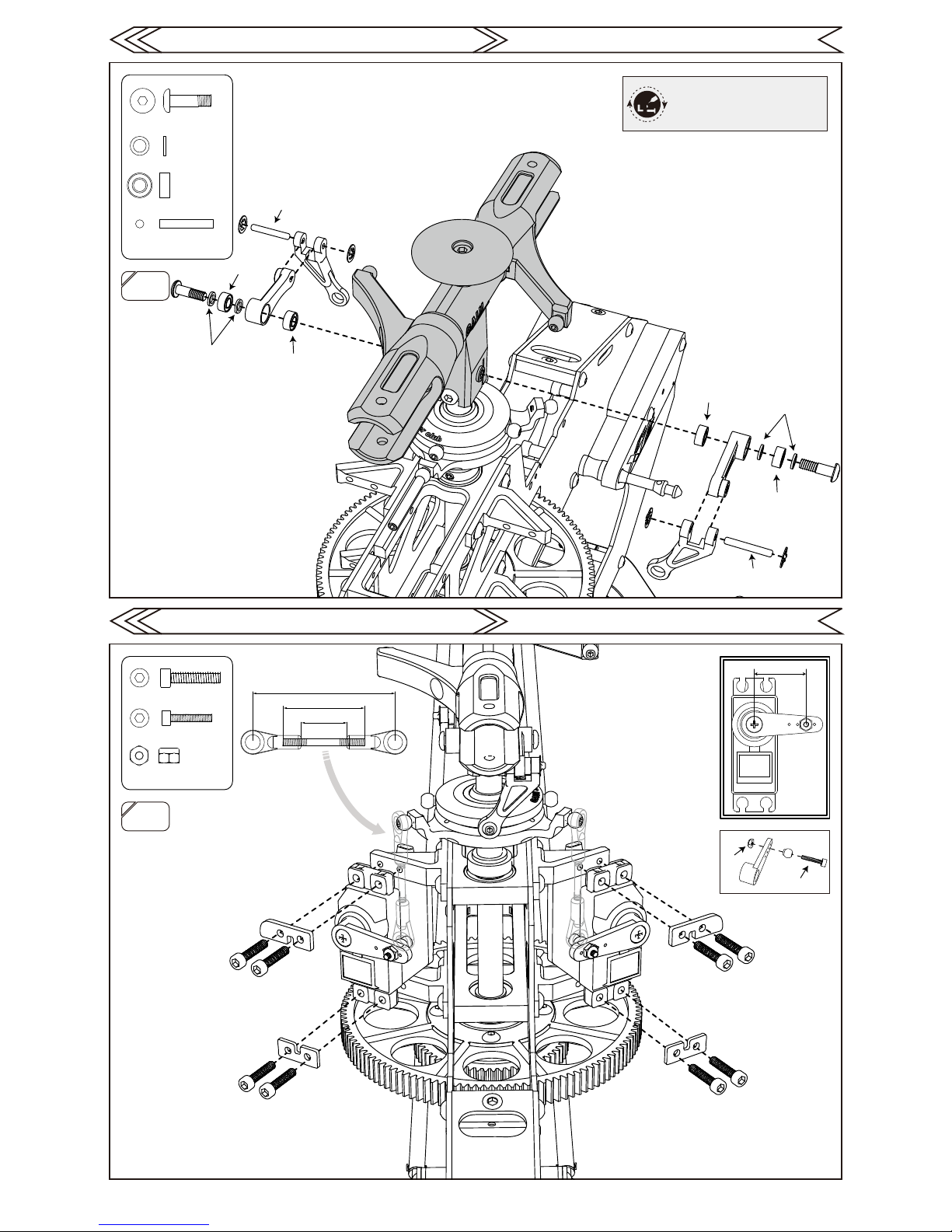

主旋翼夾頭
Main blade grip
主旋翼頭
Main rotor head
不銹鋼(4.8mm)球頭
Stainless ball (4.8mm)
煞車盤
Stop Plate
橫軸
Spindle shaft
主旋翼舵柄組
Main Grip Levers
M4x10.......................x2
M3x10.......................x1
Bearing 6x13x3.5.....x2
T.Bearing 6x13x3.5..x2
Bearing 6x13x5........x2
W6.2x7.6x0.5..........x2
W4.1x10x1.4...........x2
M3x6.........................x2
內徑較大
內徑較小
(L)
(S)
Bigger inner race
Smaller inner race
橫軸橡皮墊(硬度75度)
橫軸橡皮墊(硬度95度)
或
橫軸橡皮墊(硬度75度)
橫軸橡皮墊(硬度95度)
或
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。

10
GAUI TAI SHIH HOBBY CORPORATION
Rotor head assembly 旋翼頭總成
GAUI TAI SHIH HOBBY CORPORATION
Rotor head assembly 旋翼頭總成
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x16
N3X5.5L
M3x16......................x1
N3x5.5L...................x1
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.

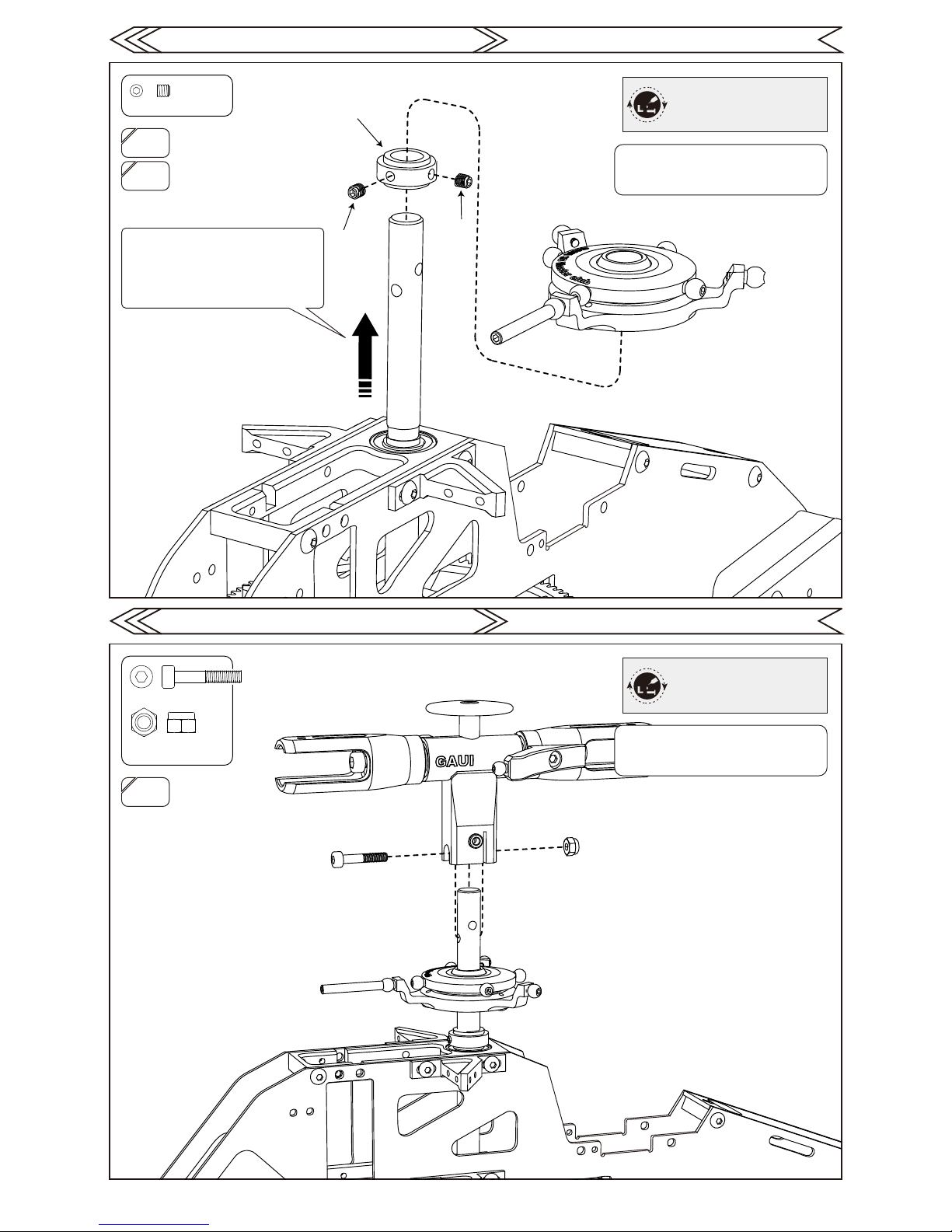

Mast collar
主軸輪擋
M3x3 M3x3
Lift main shaft before installing the
mast collar on the main mast, then
tighten the mast collar securely.
組裝主軸輪檔時請先將主軸上提至底，
在鎖附M3x3螺絲，套入十字盤總成。
M3x3........................x2
14
15
15
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。
Attention: When assembly is complete,
please re-check for correctness.
注意:組裝完成之部分，零件需自行檢查確認。

11
GAUI TAI SHIH HOBBY CORPORATION
Rotor head assembly 旋翼頭總成
GAUI TAI SHIH HOBBY CORPORATION
Servo installation 伺服機組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M3x10
M3x10
P2x13
W3.1x4.6x0.6
B3x6x2.5
B3x6x2.5
P2x13
B3x6x2.5
B3x6x2.5
W3.1x4.6x0.6
M3x10.......................x2
W3.1x4.6x0.6............x4
Bearing 3x6x2.5........x4
Pillar 2x13.................x2
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2.6x10.....................x8
M2x10........................x2
N2x4L........................x2
18mm
41.5mm
23.5mm
11.6mm
M2x10
N2x4L
15
16

12
GAUI TAI SHIH HOBBY CORPORATION
Servo installation 伺服機組裝
GAUI TAI SHIH HOBBY CORPORATION
Main Rotor push rod assembly 主旋翼拉桿組裝
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
49.5mm
31mm
21.5mm
M2.6x6.....................x1
M2.6x6
螺絲均需上止滑劑
All screws on side plates should
be applied with thread lock.
M2x10........................x1
N2x4L........................x1

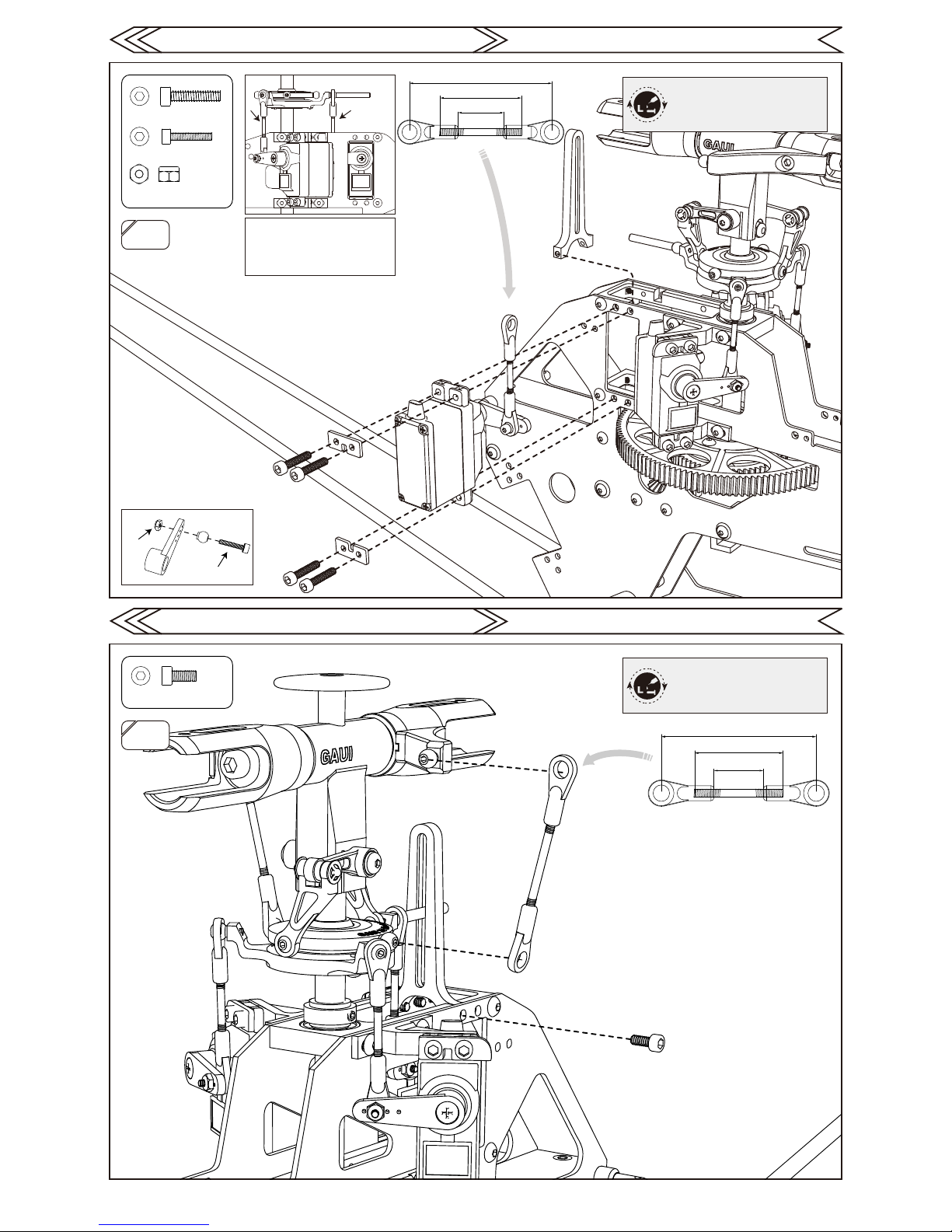

Note: Adjust until linkage
rods are aligned perfectly
vertically.
調整伺服機座至拉桿成垂直。
41.5mm
23.5mm
11.6mm
M2.6x10.....................x4
M2.6x10
M2.6x10
M2.6x10
M2.6x10
M2x10
N2x4L
16
16

13
GAUI TAI SHIH HOBBY CORPORATION
Servo installation 伺服機組裝
GAUI TAI SHIH HOBBY CORPORATION
Tail boom assembly 尾管總成
Ø3x8........................x2
M2.6x10...................x4
M2x10......................x1
N2x4L......................x1

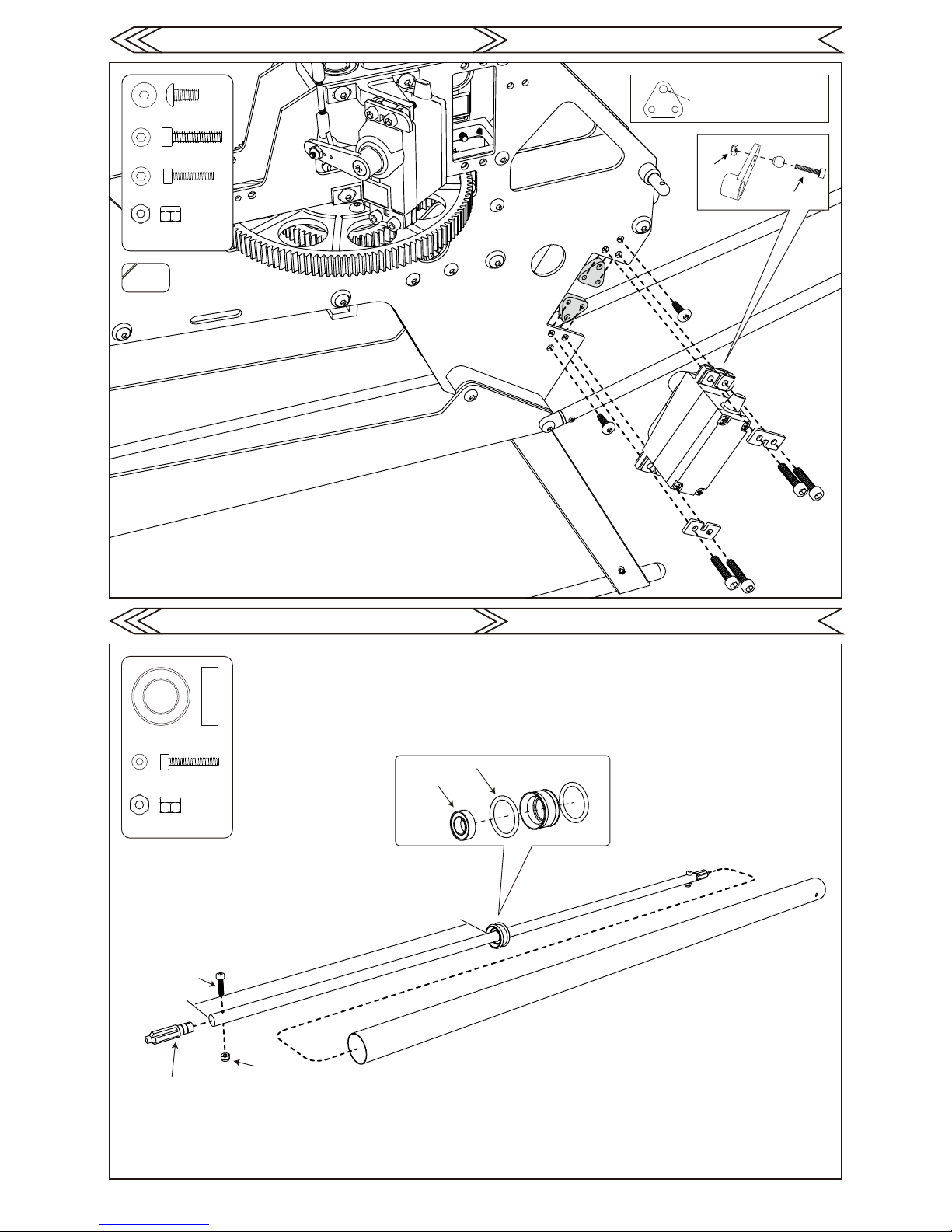

組裝時請注意大洞為Ø3x8螺絲孔。
When installing please notice the
larger hole is Ø3x8 thread hole.
M2x10
N2x4L
Ø3x8
Ø3x8
M2.6x10
M2.6x10
M2.6x10
M2.6x10
N2x4L
Torque tube drive shaft head
M2x12
255 mm
Bearing 8x14x4..........x1
B8x14x4
O-ring
M2x12........................x2
N2x4L........................x2
傳動軸桿頭
16
