GAUI X7 Flybarless User manual

GAUI
MADE IN TAIWAN
INSTRUCTION MANUAL
www.gaui.com.tw
V1.2.1
© 2012
FBL
Recommendation:
We highly suggest using the latest version of the
Assembly Instruction Manual.
To download the latest version, please visit the Ofcial TSH GAUI
web site: www.gaui.com.tw
This product is for a radio controlled (RC) helicopter.
Improper operation, maintenance or assembly can potentially
cause a RC helicopter to pose a danger to persons or
objects including but not limited to thepossibility of
causing serious physical injury and even death.
取得最新的手冊：
我們非常建議您取得最新版本的手冊。
請到泰世網站下載最新的手冊，並且取代目前的手冊。
本產品是無線遙控的直升機。
不當的操作，保養或是組裝有可能導致遙控直升機對於人身或是
物品造成危險。
包括，但是不局限於對於人體產生嚴重傷害甚至死亡的可能性。

Preface 前言 P.1
LIABILITY DISCLAIMER 免責聲明 P.2
Academy of Model Aeronautics (AMA) P.3
Tools and Equipment for Assembly 自備工具及設備 P.4
Symbols for Assembly Notices / Specication 組裝代號說明 / 規格資料 P.5

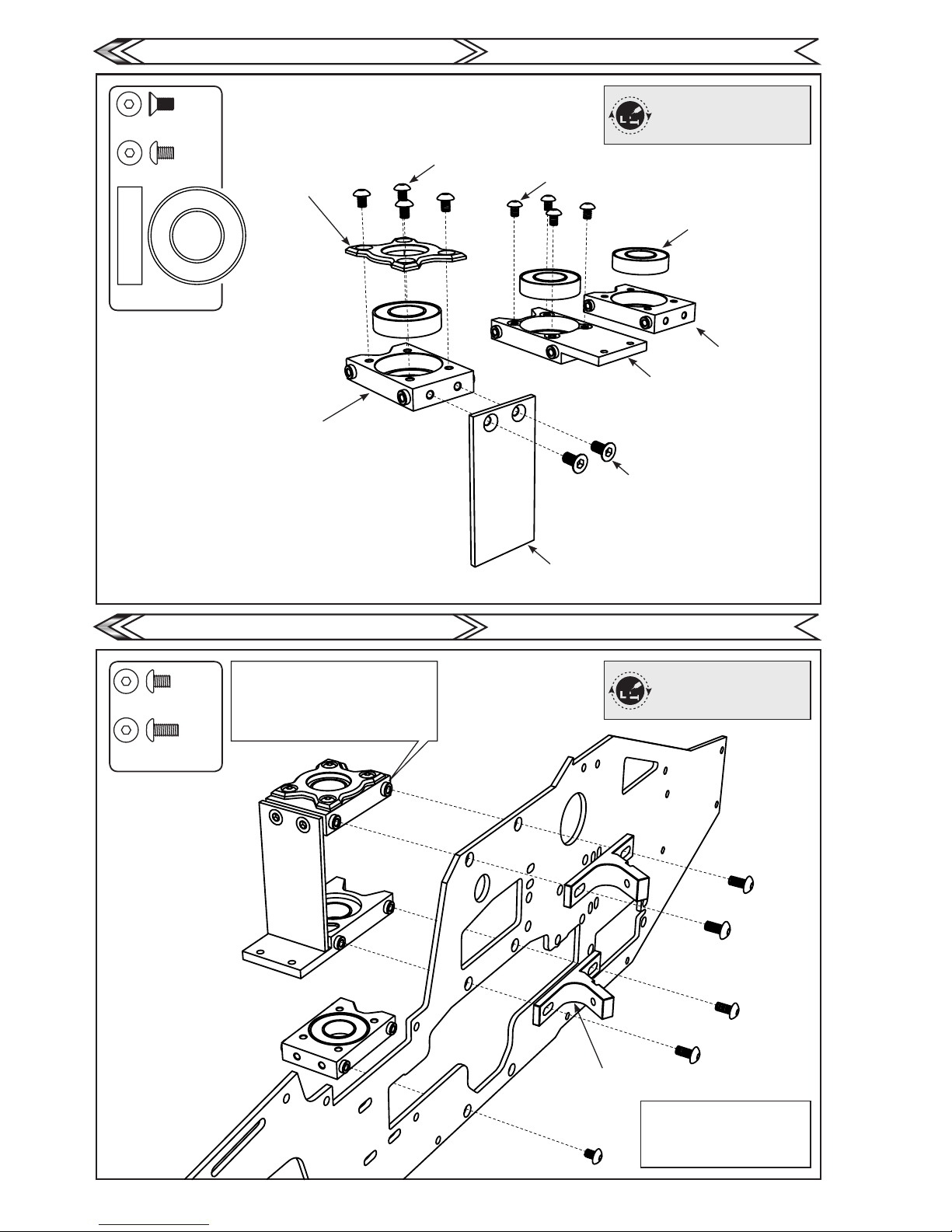

Main Shaft Frame Assembly / Main Frame Assembly (Left)-1 主軸板組裝 / 機體側板組裝(左)-1 P.6
Main Frame Assembly (Left)-2 / Main Frame Assembly (Left)-3 機體側板組裝(左)- 2 / 機體側板組裝(左)- 3 P.7
Main Frame Assembly (Left)-4 / Main Frame Assembly (Left)-5 機體側板組裝(左)- 4 / 機體側板組裝(左)- 5 P.8
Main Frame Assembly (Left)-6 / Main Frame Assembly (Right)-1 機體側板組裝(左)- 6 / 機體側板組裝(右)- 1 P.9
Main Frame Assembly (Right)-2 / Main Frame Assembly (Right)-3 機體側板組裝(右)- 2 / 機體側板組裝(右)- 3 P.10
Main Frame Assembly (Right)-4 / Main Frame Assembly (Right)-5 機體側板組裝(右)- 4 / 機體側板組裝(右)- 5 P.11

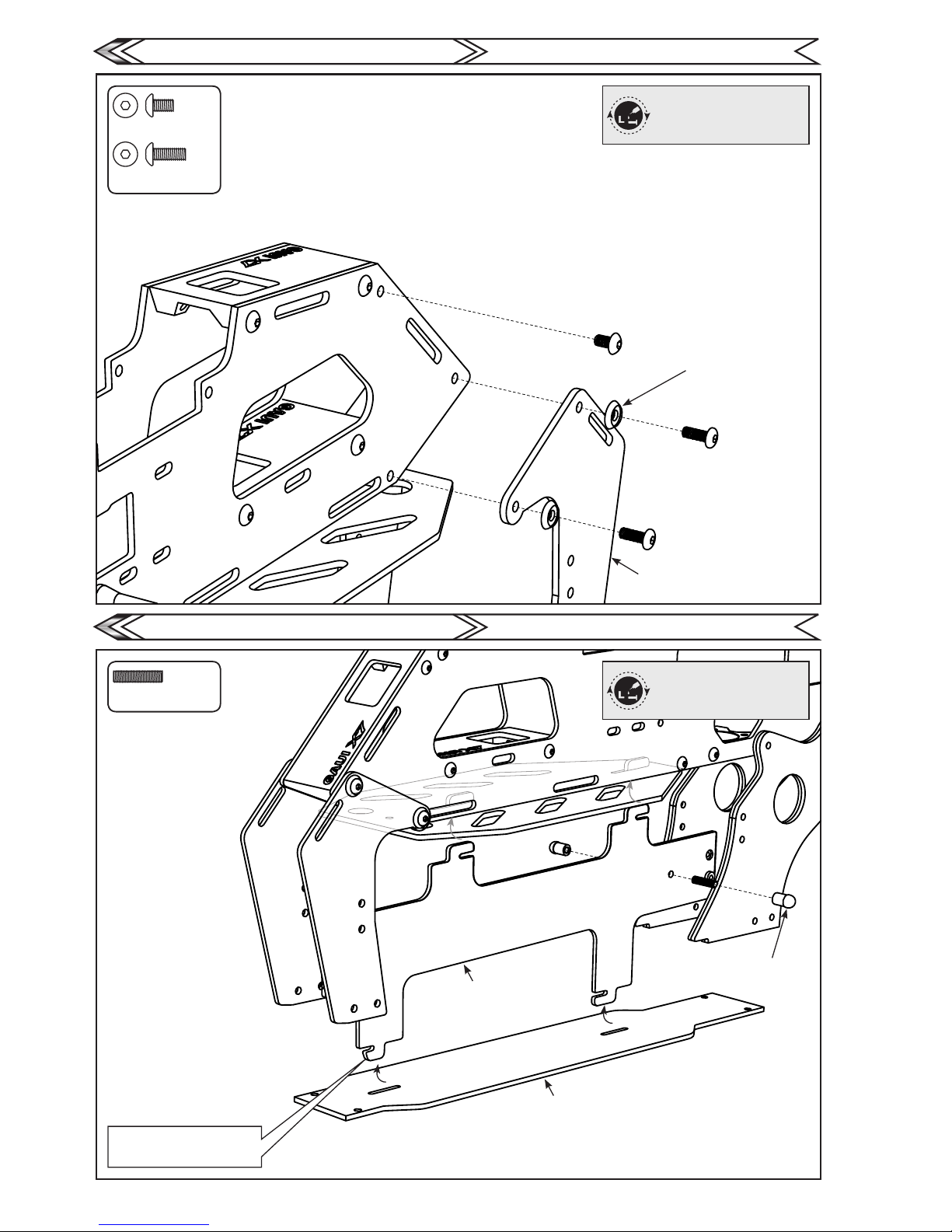

Main Frame Assembly (Right)-6 / CF Bottom Frame Assembly 機體側板組裝(右)- 6 / 機體底板組裝 P.12

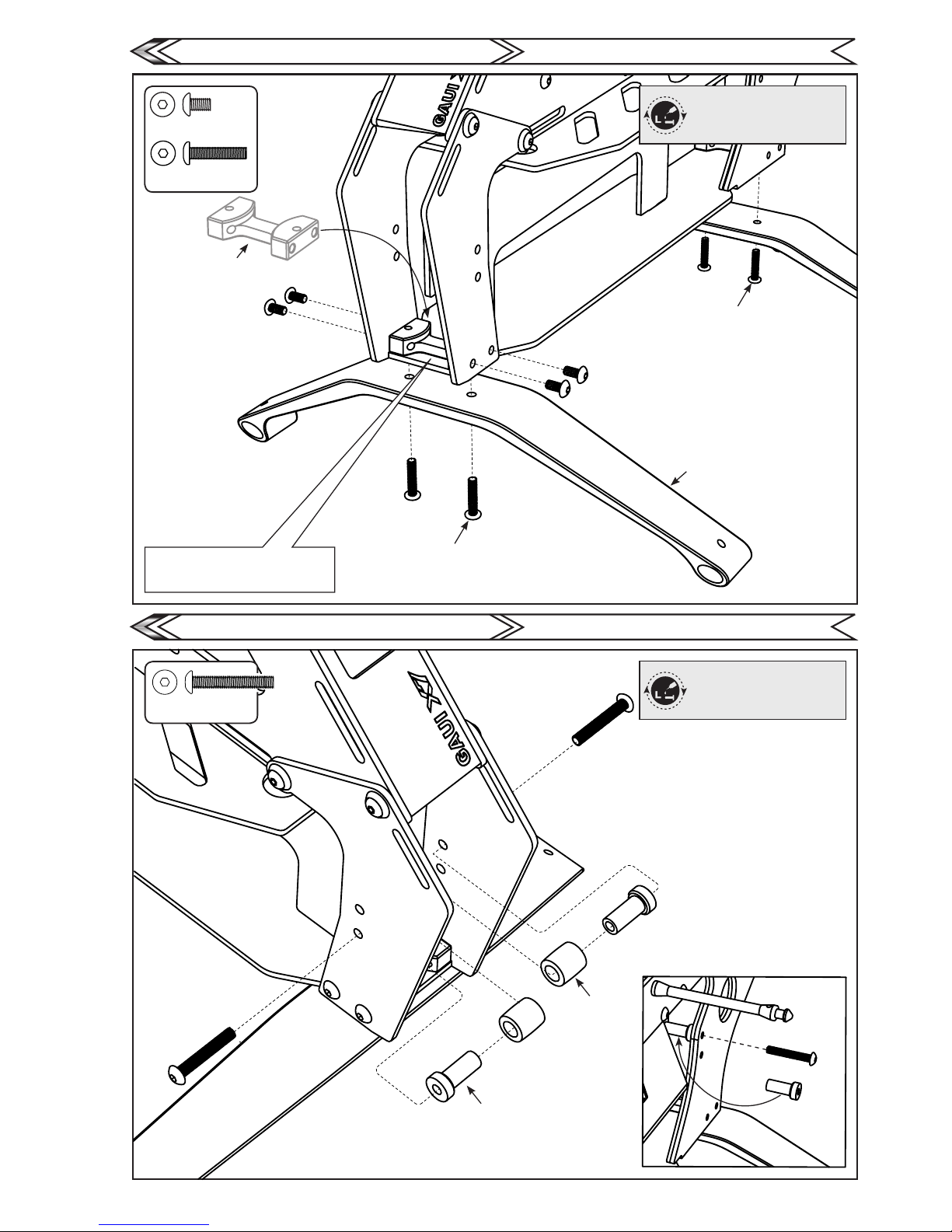

Landing Gear Assembly / Divider Frame Posts Assembly 支撐架組裝 / 隔板鋁柱組裝 P.13
Skid Assembly / Tail Boom Assembly 滑橇組裝 / 尾管組裝 P.14
Torque Tube Assembly / Front Bevel Gear Assembly 傳動軸心組裝 / 尾前傳動齒組裝 P.15
Tail Gear Case Assembly / Tail Rotor Control Arm Assembly 尾殼組裝 / 雙推尾舵組裝 P.16
Tail Pitch Slider Assembly / Tail Rotor Head Assembly 螃蟹夾座組裝 / 尾旋翼夾頭組裝 P.17

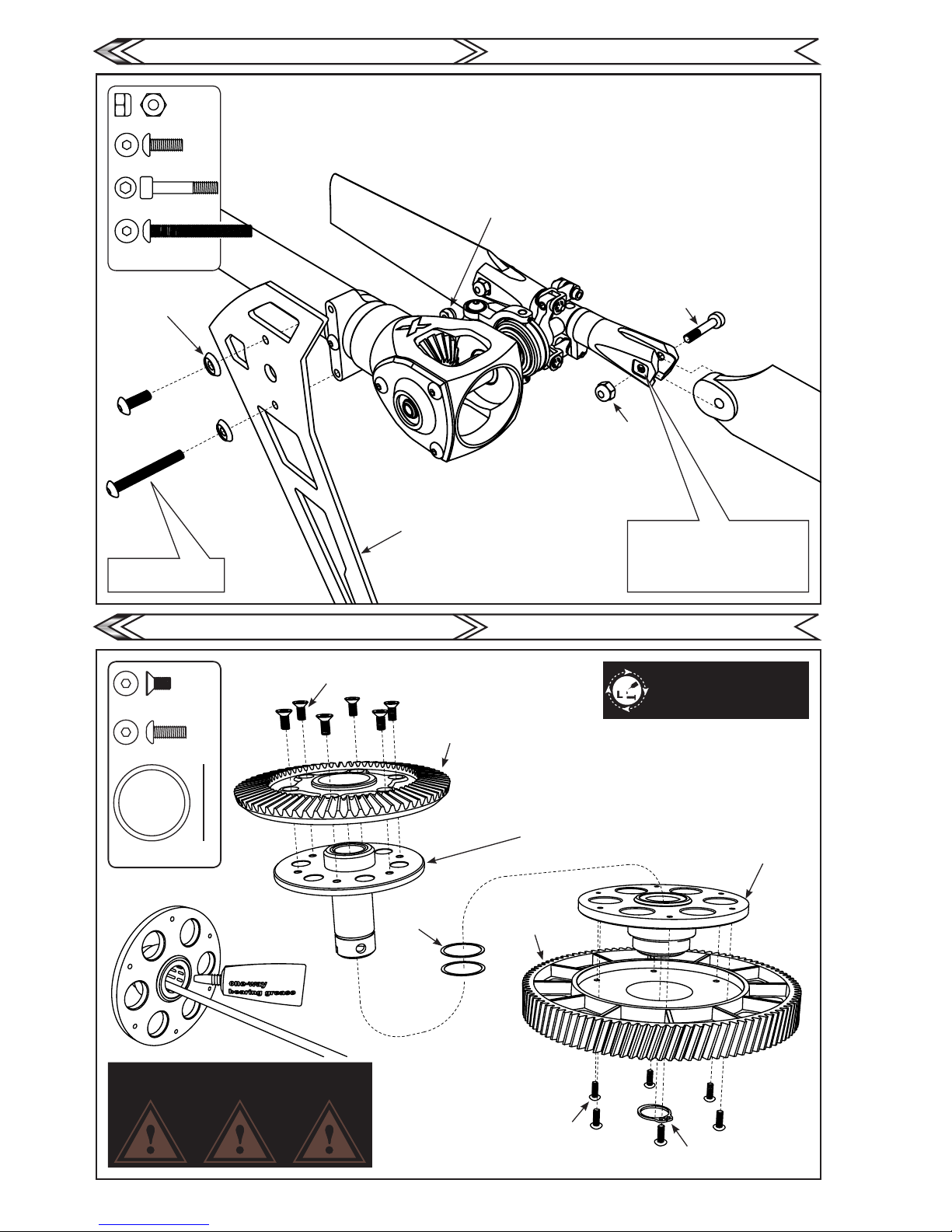

Tail Gear Case Assembly / Main Gear Assembly 垂直尾翼組裝 / 主齒盤組裝 P.18
Main Gear Assembly-1 / Main Gear Assembly-2 主齒盤組裝- 1 / 主齒盤組裝- 2 P.19
Tail Boom Support Assembly / Tail Push Rod Assembly 支撐桿組立 / 尾拉桿組立 P.20
Tail Boom Support Assembly / Tail Fins Assembly 支撐桿組裝 / 水平翼座組裝 P.21
Tail Push Rod Assembly / Reinforced Plate Assembly 尾拉桿安裝 / 機身強化板組裝 P.22
Pinion Gear Assembly / Motor Assembly 馬達齒組裝 / 馬達組裝 P.23
Rotor Head Assembly / Washout Arm Assembly 主旋翼頭組裝 / 定位器組裝 P.24
Swashplate Assembly / Swashplate Assembly 十字內盤組裝 / 十字外盤組裝 P.25
Swashplate Assembly / Rotor Head Assembly 十字盤總成組裝 / 旋翼頭總成組裝 P.26
Main Blade Push Rod Assembly / Servo Setting and Adjustment 主旋翼拉桿組裝 / 伺服器組裝注意事項 P.27
Servo Setting and Adjustment-1 / Servo Setting and Adjustment-2 伺服機組裝- 1 / 伺服機組裝- 2 P.28
Servo Setting and Adjustment-3 / Servo Setting and Adjustment-4 伺服機組裝- 3 / 伺服機組裝- 4 P.29
Heat Sink Assembly / Example for Electronics Assembly 散熱片組裝 / 電裝配置範例 P.30
Gear Ratio Comparison Sheet / Battery Assembly-1 齒輪比配置表 / 電池組立 - 1 P.31
Battery Assembly-2 / Battery Assembly-3 電池組立- 2 / 電池組立- 3 P.32
Main Blades Assembly / Canopy Assembly 主旋翼槳組裝 / 艙罩組裝 P.33
Parts 零件表 P.34~P.35

1
GAUI TAI SHIH HOBBY CORPORATION
Thank you for purchasing GAUI High Performance RC Helicopter from
Tai Shih Hobby Corporation (TSH). We hope you will enjoy the joy of ight.
感謝您購買泰世科技出品的 GAUI 高性能遙控直升機，我們希望您可以盡情
享受飛行的樂趣。
In order to understand full assembly sequences, this instruction manual show the
assembly information of this model, even though some elements are
supplied as pre-assembled. Please refer to it when carrying out maintenance or
replacing parts.
為了要讓使用者詳細瞭解組裝順序，即使有些部件已經預先組裝完成，
本說明書將提供這台遙控模型的組裝資訊。同時，敬請參閱保養與主要零件更換資
訊。
CAUTION: This radio controlled helicopter is not a toy.
The product is not suitable for
children under 14 years of age.
注意：此無線電遙控直升機不是玩具，該產品是不適合14歲以下的兒童。
SAFETY PRECAUTIONS
This kit includes some preassembled components. Please check for any
loose screws and tighten them before you proceed with assembly.
You are responsible for assembly, safe operation, maintenance, inspection and
adjustment of the model.
Before beginning assembly, please read these instructions thoroughly.
Check all parts. If you nd any defective or missing parts, contact your local
dealer or GAUI TSH distributor.
Before you proceed to RC helicopter activity, please check and follow thoroughly
related regulation of aero modeling in your country/region.
安全資訊與注意事項
這台遙控模型包含預先組合完成的部件。
在進行組裝之前，請仔細檢查這些預先組裝部件上的所有螺絲均有仔細鎖緊。
您有完全的責任對於這台遙控模型的組裝，安全操作，保養，檢查與調整。
請先檢查所有的零件，如果發現任何不良品，遺失品，請向模型店或是當地的
泰世代理商連絡。
在您進行遙控直升機活動時，請先詳細瞭解與遵守當地遙控模型的相關法規。
前言
Preface

2
GAUI TAI SHIH HOBBY CORPORATION
LIABILITY DISCLAIMER
This product is for a radio controlled (RC) helicopter.
Improper operation, maintenance or assembly can potentially cause a RC
helicopter to pose a danger to persons or objects including but not limited to
the possibility of causing serious physical injury and even death.
Moving components can present a hazard to operators, and anyone or anything
that could be in the ying area of the RC helicopter.
Under no circumstance should a minor be allowed to operate this RC helicopter
without the approval, monitor and direction of his parent or legal
guardian who takes full responsibility for all of the minor's actions.
This product is intended for being operated by experienced mature radio control
helicopter pilots under controlled safety conditions and on locations
properly authorized and setup for safe ying and away from other people.
Do not operate an RC helicopter within the vicinity of residences, trees, electrical
power lines during inclement weather or near crowds of people.
The manufacturer and/or its distributors assume no responsibility or liability
whatsoever for any damages including but not limited to ones generated
by incidental or consequential damages.
The operator of the helicopter assumes all responsibility and liability that results
from the correct or incorrect operation of the helicopter.
After leaving its facilities, the manufacturer has no way of maintaining control or
monitor over the assembly, maintenance and/or operation of the
helicopter.
免責聲明
本產品是無線遙控的直升機。
不當的操作，保養或是組裝有可能導致遙控直升機對於人身或是物品造成危險。
包括，但是不局限於對於人體產生嚴重傷害甚至死亡的可能性。
所有的移動部件可能對於操作的使用者，旁人或是這台遙控直升機飛行場的
任何人或物品產生傷害。
未成年的人如果要操作這台遙控直升機需要父母或是監護人的同意，
並在監督與指導下才能進行操作並遠離周遭障礙物及人群等，其父母或是監護人
需負起所有責任與法律責任。
以下場合與情況禁止操作遙控直升機：居家房屋附近、天候不佳時、非空曠區域、
樹木、電線竿等場合或是人群附近。
製造廠商與其經銷商都不對於所有的傷害，包含但是不局限於偶然或是連續發生的
傷害負擔任何責任。
本產品的使用者要對於正確地或是不正確地操作的結果需負擔所有責任與法律責任。
本產品一但離開製造廠商的控制範圍外，
製造廠商無法對於下列事項保持監督與控管：
組裝，保養，維修與操作這台遙控直升機。
免責聲明
LIABILITY DISCLAIMER

3
GAUI TAI SHIH HOBBY CORPORATION
For United States market, The Academy of Model Aeronautics (AMA) is
a national organization representing modelers in the United States.
Please refer the National Model Aircraft safety code from Academy of
Model Aeronautics. And we’ve partially reprinted rules that are especially pertinent for
radio controlled ight as below:
RADIO CONTROL
1. All pilots shall avoid ying models over unprotected people.
2. I will complete a successful radio equipment ground-range check in
accordance with the manufacturer’s recommendations before the rst ight of
a new or repaired aircraft.
3. At all ying sites a safety line or lines must be established, in front of which all
ying takes place. Only personnel associated with ying the model
aircraft are allowed at or in front of the safety line.
In the case of air shows or demonstrations a straight safety line must be
established.
An area away from the safety line must be maintained for spectators.
Intentional ying behind the safety line is prohibited. (See AMA Document #706
for Recommended Field Layout.)
4. I will operate my model aircraft using only radio-control frequencies currently
allowed by the Federal Communications Commission (FCC).
Only individuals properly licensed by the FCC are authorized to operate
equipment on Amateur Band frequencies.
5. I will not knowingly operate my model aircraft within three (3) miles of any
preexisting ying site without a frequency-management agreement.
(See AMA Document #922 for Testing for RF Interference. See AMA Document
#923 for Frequency Management Agreement.)
6. With the exception of events own under ofcial AMA Competition Regulations
rules, excluding takeoff and landing, no powered model may be
own outdoors closer than 25 feet to any individual, except for the pilot and the
pilot’s helper(s) located at the ight line.
7. Under no circumstances may a pilot or other person touch a model aircraft in
ight while it is still under power, except to divert it from striking an
individual. This does not apply to model aircraft own indoors.
8. Radio-controlled night ying requires a lighting system that provides the pilot
with a clear view of the model’s attitude and orientation at all times.
9. The operator of a radio-controlled model aircraft shall control it during the
entire ight, maintaining visual contact without enhancement other
than by corrective lenses that are prescribed for the pilot. First-Person View
(FPV) ying may only be conducted in accordance with the
procedures outlined in AMA Document #550.
These special codes and appropriate documents may be obtained either from the
AMA Web site at www.modelaircraft.org or by contacting AMA headquarter.
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
Phone [phone]
Fax [phone]
Academy of Model Aeronautics (AMA)

4
GAUI TAI SHIH HOBBY CORPORATION
自備工具及設備
Tools and Equipment for Assembly
2.0mm Hexagon Screw Driver 3.0mm Hexagon Screw Driver 2.5mm Hexagon Screw Driver 3.5mm Hexagon Screw Driver
2.0mm 六角螺絲起子 3.0mm 六角螺絲起子 2.5mm 六角螺絲起子 3.5mm 六角螺絲起子
Needle-nosed pliers Diagonal cutting plier Ball Link Plier Philips Screw Driver
尖嘴鉗 斜口鉗 拔豆鉗 十字螺絲起子
Scissors Dial Pitch Gauge GYRO Transmitter (6-channel or more,helicoper system)
剪刀 主旋翼螺距規 陀螺儀 六動以上接收機&發射機
CCPM Servo x3pcs Tail Specialized Servo x1pcs Battery 6S 22.2v 3000mAh CA
CCPM伺服機x3個 尾舵伺服機x1個 鋰聚電池6S 22.2v 3000mAh 瞬間膠
General thread lock Anaerobic adhesive Lubricant / one-way bearing grease Apply AB glue
螺絲止鬆劑 特殊型缺氧膠 潤滑油 / 單向軸承油 AB黏著劑
A B

5
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
組裝代號說明
規格資料
危 險: 組裝過程中請小心安裝並注意
此危險程度可能造成安全性漏洞
導致人為傷害。
一般型止鬆劑
鎖緊螺絲並確認上膠
使用瞬間黏著劑
使用AB黏著劑
一般型止鬆劑
務必鎖緊螺絲並確認上膠

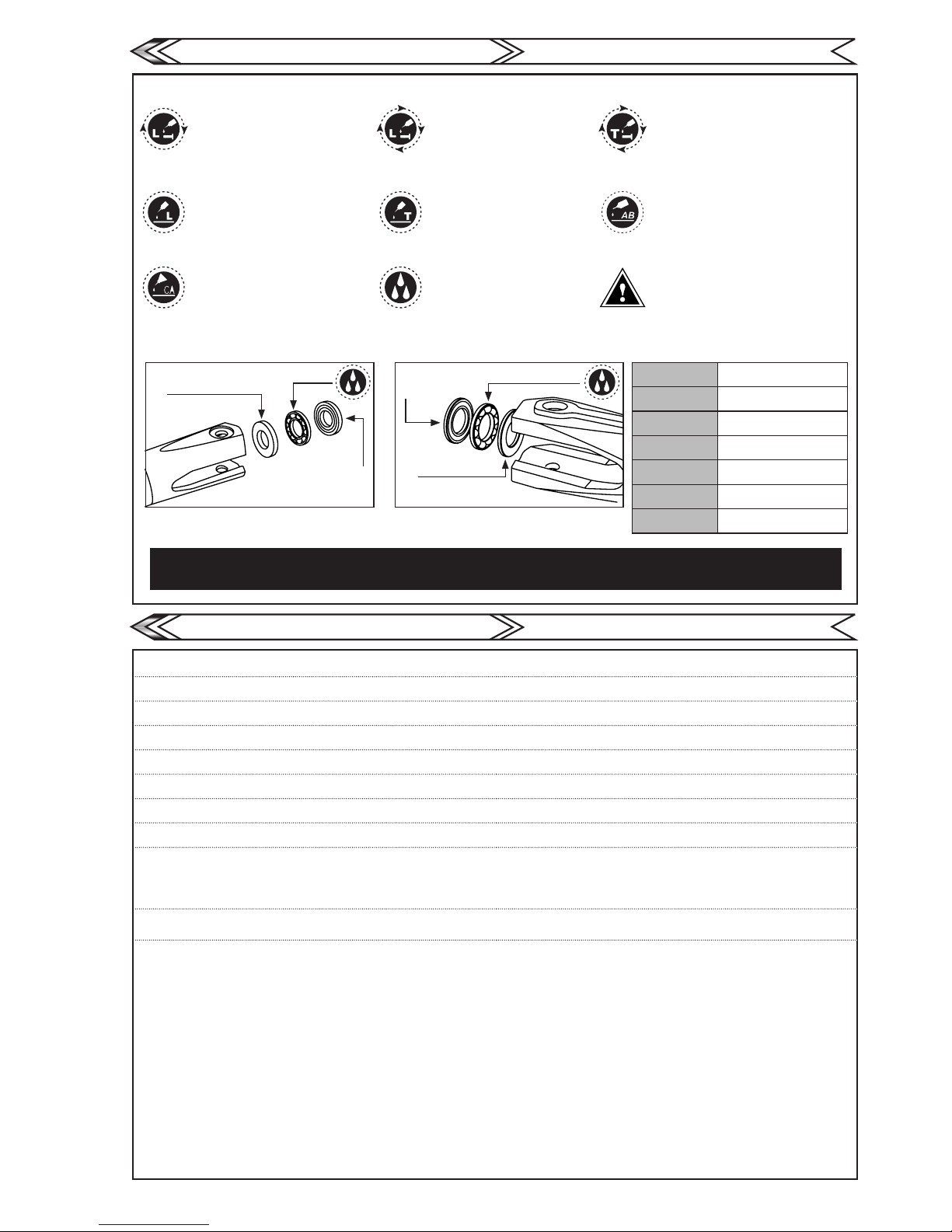

Symbols for Assembly Notices
Apply general thread lock.
To tight screw and apply thread lock.
Danger: High level of attention should be
taken during assembly.
Action during assembly might be hazardous.
Extreme care should be taken to avoid injury.
Apply general thread lock.
Be certain to tight screw and
apply thread lock.
Apply anaerobic adhesive.
Be certain to tight screw and
apply thread lock.
Apply CA glue
Apply AB glue
Apply lubricant
Apply anaerobic adhesive.Apply general thread lock.
Specication
特殊型缺氧膠
務必鎖緊螺絲並確認上膠
依個人需求使用潤滑油。
Pillar
P-柱狀體
P(Dia.out)x(Length)
P(外徑)X(長度)X(實心柱)
N-Nut
N-螺母
N(Dia.out)x(Width) L-Lock nut
N(外徑)X(長度)
W-Washer
W-華司
W(Dia.in)xDia.out)x(Thickness)
W(內徑)X(外徑)X(厚度)
P-tube
P-柱狀體
P(Dia.in)x(Dia.out)x(Length)
P(內徑)X(外徑)X(長度)
B-Bearing
B-軸承
B(Dia.in)x(Dia.out)x(Thickness)
B(內徑)X(外徑)X(厚度)
Ø-TapScrew
Ø-粗牙螺絲
Ø(Dia.out)x(Length)
Ø(外徑)X(長度)
M-Machine Screw
M-公制螺絲
M(Dia.out)x(Length)
M(外徑)X(長度)
Overall Length (with Canopy): 1340Specications 機身長度(含艙罩):1340 mm
Main Rotor Diameter: 1610mm 主旋翼迴轉直徑:1610 mm
Main rotor blades: 720mm 主旋翼長度:720 mm
Overall Height: 370mm 機身高度:370 mm
Overall Width: 200mm 機身寬度:200 mm
Tail Blade Length: 105mm 尾旋翼葉片長度:105 mm
Tail Rotor Diameter: 290mm 尾旋翼迴轉直徑:290 mm
Flying duration: 4~5 minutes 飛行時間:4~5分鐘 (3D飛行)
Power System(Recommended):
Motor: 450kV~500kV
ESC: 120A ESC
6S1P (22.2V/4200mAh ~5500 mAh) x 2pcs
動力系統(原廠建議):
馬達: 450kV~500kV
電子變速器: 120A ESC
使用鋰聚電池: 6S(22.2v / 4200mAh~5500mAh)x2個
Total weight: 2300g ±3% (kit with canopy,
w/o all electronics, blades and batteries.) 全配重量:2300g ±3% (不含電池&電子裝備&主槳&尾槳)
以上圖示，於組裝時請確實注意，避免組裝後試飛造成失控零件鬆脫等情況發生。
Make sure to assemble the parts as shown in gure above. Incomplete or incorrect assembly may cause control failure during ight.
使用特殊型缺氧膠。一般型止鬆劑
內徑較大
內徑較小
(L)
(S)
Bigger inner race
Smaller inner race
內徑較小
內徑較大
(S)
(L)
Smaller inner race
Bigger inner race

6
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
M3x6___________ 2
M3x4___________ 8
Bearing_12x24x6__ 3
B12x24x6
M3x4
M3x6
M3x6
M3x6
M3x6
M3x4
Main shaft upper
bearing mount cap.
Main shaft bearing mount.
Note: When assembling metal parts,
parts with aligning spots must be inserted
into aligning holes on the main frame.
The servo mount is adjustable,
please adjust the push rod while
installing the servo. (P.27)
Main shaft middle bearing mount.
Main shaft bearing mount.
CF divider frame.
Servo mount
Main Shaft Frame Assembly
Main Frame Assembly (Left)-1
M3x4
M3x6
請注意:
安裝機身各金屬件時，有定位凸圓的金屬件
需完全崁合入機身側板內。
伺服機座為可調式，請在P.27組裝
伺服機時調整拉桿垂直度。
主軸板組裝
主軸座
中主軸座
隔板
主軸座
上主軸座蓋
機體側板組裝(左)-1
伺服機座
M3x4___________ 1
M3x6___________ 4
螺絲均需上止滑劑
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
All Screws on side plates should
be applied with thread lock.

7
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M3x5
M3x5
M3x4
M3x4
M3x12
M3x4
M3x20
M3x20
M3x20
M3x20
M3x5
M3x5
Frame post(26.4mm)
Front bevel gear mounting block
Tail boom mount
Divider frame
Main Frame Assembly (Left)-2
Main Frame Assembly (Left)-3
螺絲均需上止滑劑
含上M3x20x螺絲，待P.21組裝完成後
在鎖緊螺絲。
組裝(艙罩支柱B型)時先將M3x12螺絲鎖入
支柱內，在使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
All Screws on side plates should
be applied with thread lock.
Fix the M3x20 screw (don't tighten the
screw yet), wait until the tail set is
assembled (P.21),then tighten the screw.
機體側板組裝(左)-2
隔板
機體側板組裝(左)-3
圓鋁柱(26.4mm)
B4x9x4
前尾管夾座
M3x6
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
M3x4___________ 2
M3x6___________ 2
Bearing_4x9x4____ 1
前傘齒輪固定座
M3x6___________ 3
M3x4___________ 1
M3x5___________ 2
M3x20__________ 4
M3x12__________ 1
組裝尾管夾座時，請將貫穿孔處朝同方向組裝。
When assembling the tail boom clamp, the
holes should be facing the same direction.
When assembling the canopy posts, x
the M3x12 screw inside the post, use a
stick as tool to tighten the canopy posts.

8
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
M3x5___________ 4
M3x8___________ 1
M3x8
M3x10
M3x10
M3x12
M3x5
M3x5
M3x5
M3x5
M3x10__________ 2
機體側板組裝(左)-4
機體側板組裝(左)-5
陀螺儀鋁板
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
M3x12__________ 1圓鋁柱(26.4mm)
CNC隔板組(A型)
後腳板組
組裝(艙罩支柱A型)時先將M3x12螺絲鎖入支柱內，
在使用直徑2以下的圓棒插入孔內並旋緊艙罩支柱。

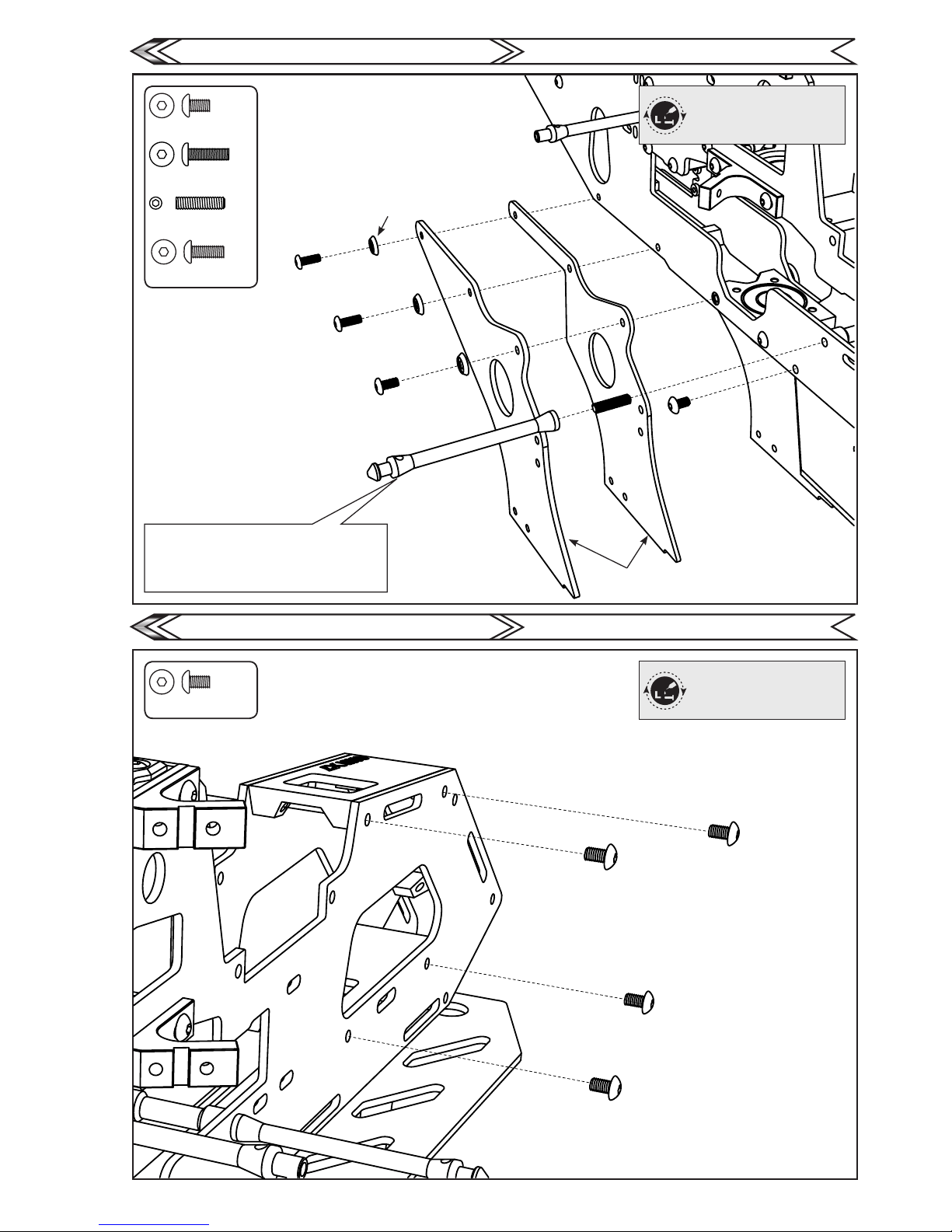

Main Frame Assembly (Left)-4
Main Frame Assembly (Left)-5
CF back brace set
Frame post(26.4mm)
Gyro mounting plate
CNC divider plate
(Type A)
When assembling the canopy posts, x the M3x12
screw inside the post, use a stick as tool to tighten
the canopy posts.
螺絲墊片
Countersunk Washer

9
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M3x6___________ 2
M3x5___________ 2
M3x8___________ 2
M3x8
M3x5
M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
M3x5
M3x8
機體側板組裝(左)-6
機體側板組裝(右)-1
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
M3x4
伺服機座
CNC隔板組(B型)
前腳板
右側板
方鋁柱(26.4mm)
固定板
伺服機座為可調式，請在P.27組裝
伺服機時調整拉桿垂直度。
M3x4___________ 1
M3x6___________ 4

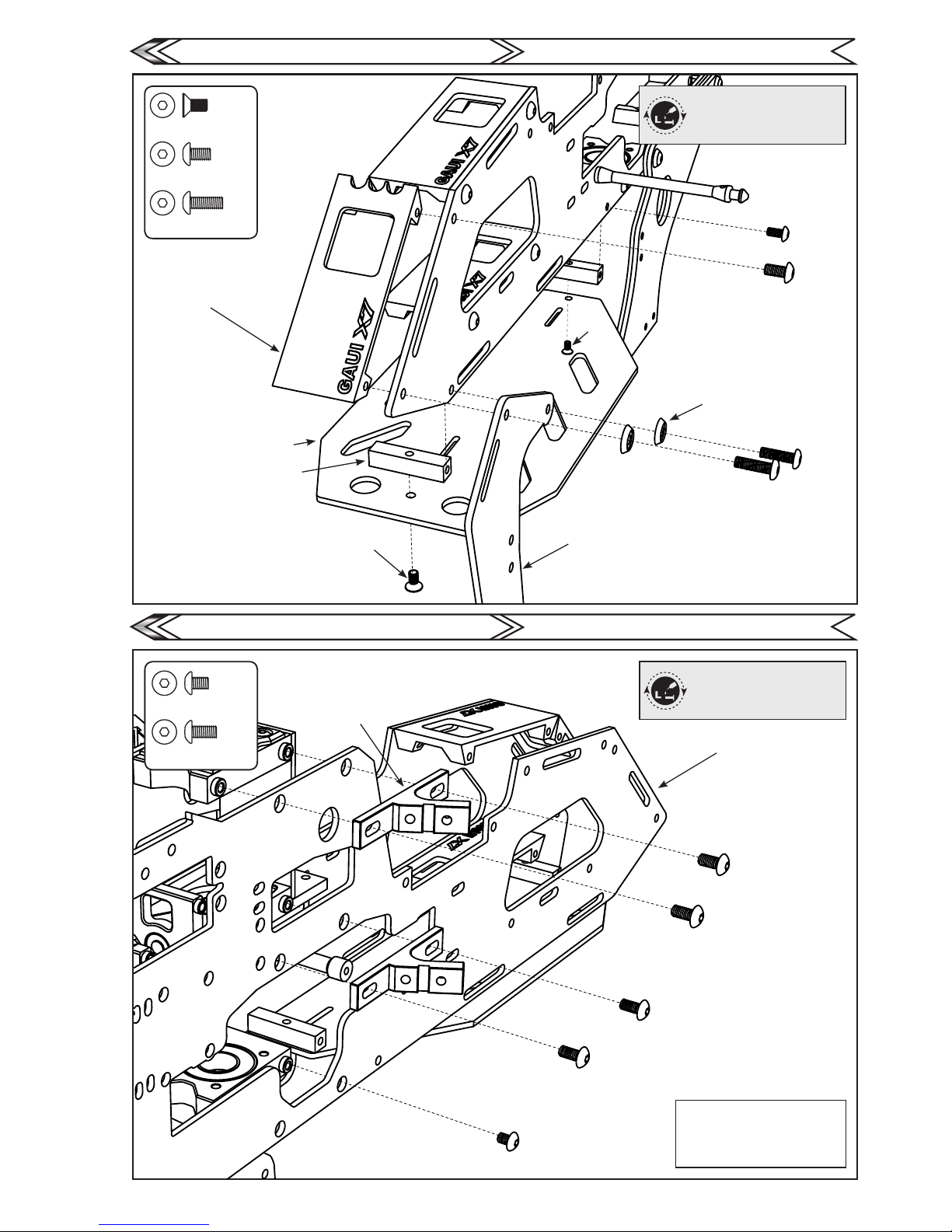

Main Frame Assembly (Left)-6
Main Frame Assembly (Right)-1
CNC divider plate (Type B)
CF anchor frame
Frame post
Front brace set
Servo mount
Main frame (Right)
The servo mount is adjustable,
please adjust the push rod while
installing the servo. (P.27)
螺絲墊片
Countersunk Washer

10
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
M3x4___________ 2
M3x5___________ 2
M3x5
M3x5
M3x4
M3x4
M3x12
M3x5
M3x5
M3x5
M3x5
M3x4
M3x4
M3x4
M3x4___________ 3
M3x5___________ 4
M3x12__________ 1
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
組裝(艙罩支柱B型)時先將M3x12螺絲鎖入支柱內，
在使用直徑2以下的圓棒插入孔內並旋緊艙罩支柱。
機體側板組裝(右)-2
機體側板組裝(右)-3
Main Frame Assembly (Right)-2
Main Frame Assembly (Right)-3
When assembling the canopy posts, x the M3x12
screw inside the post, use a stick as tool to tighten
the canopy posts.

11
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M3x5
組裝(艙罩支柱A型)時可使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
M3x10
M3x10
M3x10
M3x12
M3x5
M3x5
M3x5
M3x5
M3x5___________ 1
M3x5___________ 4
M3x12__________ 1
M3x10__________ 2
螺絲均需上止滑劑
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
All Screws on side plates should
be applied with thread lock.
後腳板組
機體側板組裝(右)-4
機體側板組裝(右)-5
M3x8___________ 1
Main Frame Assembly (Right)-4
Main Frame Assembly (Right)-5
When assembling the canopy posts, x the M3x12
screw inside the post, use a stick as tool to tighten
the canopy posts.
Back brace set
螺絲墊片
Countersunk Washer

12
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
M3x12__________ 1
M3x12
M3x5___________ 1
M3x8___________ 2
M3x8
M3x8
M3x5
前腳板
中隔板
底板
電池固定柱
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
將中隔板崁入固定板與底板。
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
機體側板組裝(右)- 6
機體底板組裝
Main Frame Assembly (Right)-6
CF Bottom Frame Assembly
Front brace set
Frame middle divider
Bottom frame
Battery post
Insert the middle divider into the
anchor frame and bottom frame.
螺絲墊片
Countersunk Washer

13
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M3x5___________ 4
M3x14__________ 4
M3x14
M3x14
M3x5
M3x5
M3x5 M3x5
M3x20
M3x20
M3x20
支撐架
腳架固定座
隔板鋁柱(14.2mm)
減震墊
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
將腳架固定座置入機身並鎖上M3x14螺絲。
M3x20__________ 4
支撐架組裝
隔板鋁柱組裝
Landing Gear Assembly
Divider Frame Posts Assembly
Landing gear mount
Landing gear
Damper
Divider frame post(14.2mm)
Install the landing gear mount inside the
main frame and x the M3x14 screws.

14
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
使用瞬間膠將滑橇蓋黏合。
將拉桿夾座套入尾管。
290mm 220mm 210mm
滑橇組裝
尾管組裝
M3x3
M3x3
M3x3___________ 4
滑橇
尾管
Skid Assembly
Tail Boom Assembly
Skid
Tail boom
Apply CA glue to x it.
Install the tail control
guide to the tail boom.

15
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
將前傘齒輪定位銷4.5mm 處壓入14T前傘齒輪至底。
將軸承置入軸心固定座並點上瞬間膠。
並注意組裝方向
組裝完成後將傳動軸心置入尾管內。
將尾傳動軸承墊圈置入尾傳動軸桿
並以瞬間膠或缺氧膠固定，確認
距離與上圖相同。
Bearing_12x18x4__ 2
Bearing_8x14x4___ 2
M2x12__________ 2
N2X4___________ 2
B12x18x4
B12x18x4
280mm 280mm
B8x14x4
Oring
大洞
M2x12
N2x4L
前傘齒輪定位銷
14T前傳動傘齒輪
尾前傳動齒輪箱
4.5mm
4mm
傳動軸心組裝
尾前傳動齒組裝
尾傳動軸桿組
Torque Tube with bearing
Torque tube head
Front bevel gear case
14T front bevel gear
Front bevel gear xing pin
傳動軸桿頭
Torque Tube Assembly
Front Bevel Gear Assembly
Front
Insert the bearing into the bearing holder and
apply CA glue to x it, pay attention to the
direction of the holder. When torque tube assembly is done,
install the torque tube to the tail boom.
Assemble the bearing and
bearing holder, then install it on
the torque tube, applyCA glue
to x it. Conrm the distance is
as illustrated.
Insert the xing pin (4.5mm side) into the 14T
front bevel gear.

16
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
將P2x10置入尾軸傘齒輪並以M3x3止付螺絲
固定。
將尾傳動傘齒輪置入尾殼總成內並組裝
尾軸。
將M3x6螺絲鎖入尾殼時請確認尾管定位孔
鎖附位置相同。
M3x3___________ 1
M3x6___________ 4
P2x10__________ 1
Bearing_6x13x5___ 2
Bearing_12x21x5__ 2
M3x3
M3x6
M3x6
M3x6
M3x6
定位孔
B6x13x5
B6x13x5
P2x12
B12x21x5
B12x21x5
M3x6
M3x5 B3x7x2
P2.5x5.8
M2x2
W3.1x4.6x1
組裝雙推尾舵M3x5螺絲時請配合P.17組裝。
尾殼組裝
雙推尾舵組裝
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
雙推尾舵
尾舵柄座
W3.1x4.6x1______ 2
Bearing_3x7x2____ 2
M3x5___________ 1
P2.5x5.8________ 2
M2x2___________ 2
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
一體式尾殼
20T尾傘齒輪
20T尾傳動傘齒輪
M3x6___________ 2
請注意:鎖附尾舵柄座時需使用M3x5螺絲。
Tail Gear Case Assembly
Tail Rotor Control Arm Assembly
Install the tail bevel gear into the tail gear
case, and assemble the tail output shaft.
Insert the P2x10 pin into tail driven bevel
gear, x it with M3x3 socket set screw.
Conrm the tail gear case is xed by xing
the M3x6 screw into the aligning hole.
Notice: Fix the tail rotor control arm with
M3x5 screw.
When assembling tail rotor control arm, please
assemble together with tail pitch slider (P.17).
One-piece design tail gear case.
Aligning hole
Tail rotor control arm mount
Tail rotor control arm
20T tail bevel gear
20T tail driven bevel gear

17
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M2x5___________ 2
M2x4.8x6.5______ 1
Bearing_8x12x3.5_ 2
M3x3___________ 2
P2x12__________ 2
M2x5
M2x4.8x6.5
M3x3
P2x12
B8x12x3.5
一般潤滑油
置入雙推螃蟹夾座後如作動不順暢，
請重新調整P.16雙推尾舵的M3x5螺絲。
N3x5.5L_________ 2
Bearing_5x10x4___ 4
W5.1x7x0.7______ 2
T_5x10x4_______ 2
M2x10__________ 2
P2x2.95x4.3_____ 2
M4x4___________ 1
N3x5.5L
B5x10x4
B5x10x4
W5.1x7x0.7
T5x10x4
M4x4
M2x10
P2x2.95x4.3
鎖緊N3x5.5L螺母時勿過分鎖緊需
保持機構順暢。
鎖緊M2x10螺絲時不可過份鎖緊。
內徑較小內徑較大 (S)(L)
Smaller inner raceBigger inner race
Apply thrust bearing grease
止推軸承專用油
螃蟹夾座組裝
尾旋翼夾頭組裝
雙推螃蟹夾座
舵柄
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
尾旋翼夾頭
Tail Pitch Slider Assembly
Tail Rotor Head Assembly
If the tail pitch slider can not move smoothly,
adjust the M3x5 screw on tail control arm
mount.
Do not over tighten the N3x5.5L screw,
make sure the tail rotor head work
smoothly.
Do not over tighten the M2x10 screw.
Tail pitch slider Apply grease
Tail rotor control
arm mount
Tail blade grip

18
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
N3x5.5L_________ 3
M3x10__________ 1
M3x16__________ 2
M3x25__________ 1
M3x25
M3x16
N3x5.5L
N3x5.5L
M3x10
適當鎖緊M3x25螺絲。
上齒盤輪穀含單向鋼套
主齒盤輪穀
100T主齒盤
66T上齒盤
垂直尾翼
M3x6___________ 6
M3x8___________ 6
W16.5x19x0.2____ 2
M3x6
M3x8
W16.5x19x0.2
S扣環
垂直尾翼組裝
主齒盤組裝
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
請注意:非常重要
使用圓棒將單向軸承油，完全擠壓入針腳隙縫內，
使單向軸承完全填滿單向軸承油。
ATTENTION: Very Important!
Use a stick as a tool, squeeze the grease into the
bearing, make sure the needles of the one-way
bearing is completely surrounded with grease.
Tail vertical stabilizer
66T crown gear
Crown gear hub with one way sleeve
100T main gear
Main gear hub
C-clips
Fix it with M3x25 screw.
Tail Gear Case Assembly
Main Gear Assembly
請注意: 當主旋翼轉速低於2300rpm 時，建議使用105mm尾旋翼。
當主旋翼轉速高於2300rpm 時，建議使用95mm尾旋翼
Notice: When head speed is below 2300rpm, use 105mm tail blades.
When head speed is above 2300rpm, use 95mm tail blades.
將N3x5.5L螺母放入尾旋翼夾頭凹槽內
再鎖上M3x16螺絲。
Put the N3x5.5L nylon lock nut inside
the aligning hole, then  x the M3x16
screw.
螺絲墊片
Countersunk Washer
