GBC 930-073 User manual

GeneralBindingCorporation
OneGBCPlaza
Northbrook, IL 60062-4195
SPARTAN LAMINATOR
OPERATION & MAINTENANCE
MANUAL
©2004 GENERAL BINDING CORPORATION. ALL RIGHTS RESERVED.
Do not duplicate without written permission.
READY
U
U
S
G
S
P
R
G
E
A
LAMINAT
E
OAM POUCH
R
E
Part Number: 930-073 Rev: A Rev. Date: 6-9-04

Theinformationin thispublication isprovidedforreferenceand is
believedto be accurate and complete. GBCis not liable for errors inthis
publicationorforincidental orconsequentialdamagein connectionwith
thefurnishingoruseof theinformationinthis publication,including,but
notlimitedto, anyimpliedwarranty offitnessor merchantabilityforany
particularuse.
GBCreserves the right to makechangesto this publication and to
theproductsdescribedin itwithout notice.Allspecificationsand
informationconcerningproductsare subjecttochangewithoutnotice.
Referenceinthis publicationtoinformation orproducts protected
bycopyright or patent doesnot convey any license underthe rights of
GBCor others.GBC assumesnoliability arisingfrom infringements of
patentsor anyother rightsof thirdparties.
Thispublication iscopyrighted ©2004 byGBC. Allrights
reserved.Theinformation containedinthis publication isproprietaryand
maynotbe reproduced,stored, transmitted,or transferred,inwholeorin
part,inanyformwithoutthe priorandexpress writtenpermissionof
GBC.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page I
Table of contents
1.0 Safety
1.1Explanationofsymbols 1-1
1.2 General Rules of safety 1-1
1.3Primaryfunction 1-2
1.4 Safety decals 1-2
Figure1.4.1 Safety labelplacement 1-3
2.0 Warranty
2.1Limitedwarranty 2.1
2.2Exclusionstothewarranty 2-1
3.0 Specifications
3.1Consumable 3-1
3.2Function 3-1
3.3Electrical 3-1
3.4Dimensions and weights 3-1
Figure3.4.1 Dimensions 3-2
4.0 Installation
4.1Pre-installation 4-1
4.2Suggested floor layout 4-2
Figure4.2.1 Suggested floor layoutexample 4-2
4.3Knowyourlaminator 4-3
4.4Unpacking 4-4
5.0 Operations
5.1Controlpanel 5-1
5.2Roller pressure handle 5-2
6.0 Applications
6.1Pouchboards 6-1
6.2Mountingboards 6-2
6.3Laminationpouches 6-3
6.4HelpfulHints 6-4
7.0 Maintenance
7.1Cabinets, cover andstand 7-1
7.2 Rollers 7-1
7.2.1Stains/ dustonrollers 7-1
7.2.2Adhesive on rollers 7-2

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page II

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 1-1
1.0 Safety
CAUTION: Do not attempt to operate your
SPARTANLaminatoruntilyoucompletelyreadand
understand this Operations and Maintenance
Manual.
Your safety, as well as the safety of others, is important to
General Binding Corporation (GBC). This section
contains important safety information which must be
adhered to while operating, cleaning and performing basic
maintenance in and around the machine.
1.1 Explanation of symbols
INFORMATION: [This symbol is used prior to,
during and/ or after a step. Following this symbol is
important information pertaining to current subject.]
CAUTION: [This symbol is used prior to a step. The
information following this symbol is to inform you of
how to avoid harm to you, others around you or to
the equipment.]
WARNING:[This symbol is used prior to a step. The
information following this symbol is to inform you of
how to avoid a dangerous situation.]
ELECTRICALHAZARD:[Thissymbolisusedprior
to a step. The information following this symbol is to
prevent an electrical shock condition that may be
caused by an operator’s action or machine function..]
1.2 General rules of safety
ELECTRICAL HAZARD: Do not operate the
laminatorif power cordis damaged orfrayed.You
can be severely shocked, electrocuted or cause a
fire.
WARNING:Donotoperatethismachineifyourare
notphysically,psychologicallyoremotionallyfit.Do
notoperatethismachineuntilyouhavebeentrained
andhave read thismanual inits entirety.
WARNING: Do not wear ties, loose fitting clothes
ordanglingjewelrywhile operatingorservicingthe
laminator.Theseitemscanget caughtinthenip and
chokeyou oryou can becrushed or burned.
WARNING: Never tamper with the safety devices
toincreasethe laminator’s productioncapacity. In
theeventasafety device should fail, never attempt
to bypass it for operation. Consult a service
representativeimmediately.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 1-2
1.3 Primary function
WARNING: Never use this machine for any other
purposethanits intendeddesignandfunction.
The Spartan laminator is to be used only as a mounting
and laminating machine. Only use acceptable materials
when mounting and laminating with this machine.
All acceptable materials may be purchased from GBC.
For your convenience, acceptable materials are listed
below with product code numbers for fast and easy
ordering.
Pouches ( 25 per box )
Sign 3745595 clear 5 mil (W)18.5 x (L)24.5
Poster 3745596 clear 5 mil (W) 25 x (L) 37
Display 3745597 clear 5 mil (W) 37 x (L) 49
MountingBoards ( 10 per box)
Poster (white) 3745571 (W) 25 x (L) 37
Poster (black) 3745575 (W) 25 x (L) 37
Display (white) 3745572 (W) 37 x (L) 49
Display (black) 3745576 (W) 37 x (L) 49
Pouchboards- clear (10 per box )
Poster (white) 3745579 (W) 25 x (L) 37
Poster (black) 3745583 (W) 25 x (L) 37
Display (white) 3745580 (W) 37 x (L) 49
Display (black) 3745584 (W) 37 x (L) 49
Pouchboards- sand (10 per box)
Poster (white) 3745587 (W) 25 x (L) 37
Poster (black) 3745591 (W) 25 x (L) 37
Display (white) 3745588 (W) 37 x (L) 49
Display (black) 3745592 (W) 37 x (L) 49
INFORMATION: If similar products are used,
results may differ since temperature and speed is
setfor optimalresults using GBCproducts.
1.4 Safety decals
INFORMATION: Always observe all warning
labels placed at various points on the laminator. If
you do not completely understand a label, consult
yourmanager for assistance.
– Electrical Shock: Electrical shock hazard.
Electrical voltage behind panel.
MUCHO
CUIDADO
!
Riesgo de
choque
electrico
No abra
Adentro, no hay
piezas
reparables
para el usuario.
Mantenimiento
solamente para
personal
calificado
MUCHO
CUIDADO
!
Risque de
secousse
electrique.
Ne pas ouvrir.
Pas de pieces
reparables par
l'utilisateur.
Entretien par
personnel
qualifie.
WARNING
!
WAARSCHUWING
!
ATTENZIONE
!
WARNUNG
!
Electrical shock
hazard.
Do not open.
No user
serviceable
parts inside.
Refer servicing to
qualified service
personnel.
Kans op
elektrische
schok.
Niet openen
Bevatgeen door
gebruik te
repareren
onderdelen.
Door bevoegd
service
personeel
laten repareren
Pericolo di
scarica
elettrica.
Nessuna parte
riparabile
dall' utente.
Chiamare un
servizio
di riparazioni
qualificato.
SpannungsfUhren
de
Teile.
Nicht offnen.
Enthalt keine vom
Enduerbraucher zu
wartende Teile.
Fur service bitte an
qualifiziertes
Service-Personal
wenden.
–Roller PinchPoint:Keep hands and fingers
away. You may be crushed and or burned.
CUIDADO
!
ATTENTION
!
CAUTION
!
WARNUNG
!
RODILLOS
CALIENTES.
PUNTO DE
PINCHAMIENTO.
Mantener manos y
ropa a distancia.
ROULEAUX
CHAUDS.
POINT DE
PINCEMENT.
Tenir mains et
vetements a l'ecant.
HOT ROLLS.
PINCH POINT.
Keep hands and
clothing away.
HEISSE
ROLLEN
Klemmgefahr
zwischen Rollen
Hande und
Kleidung ferhalten
– Keep clear/ Hot Surface: Keep hands and
fingers away. You may be crushed and or burned.
Serious injury may result.
Keep hand, clothing and loose
articles away from the rollers
and heaters.
Hot surface
Avoid contact
WARNING
CAUTION
Refer to Figure 1.4.1 Safety Label Placement

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 1-3

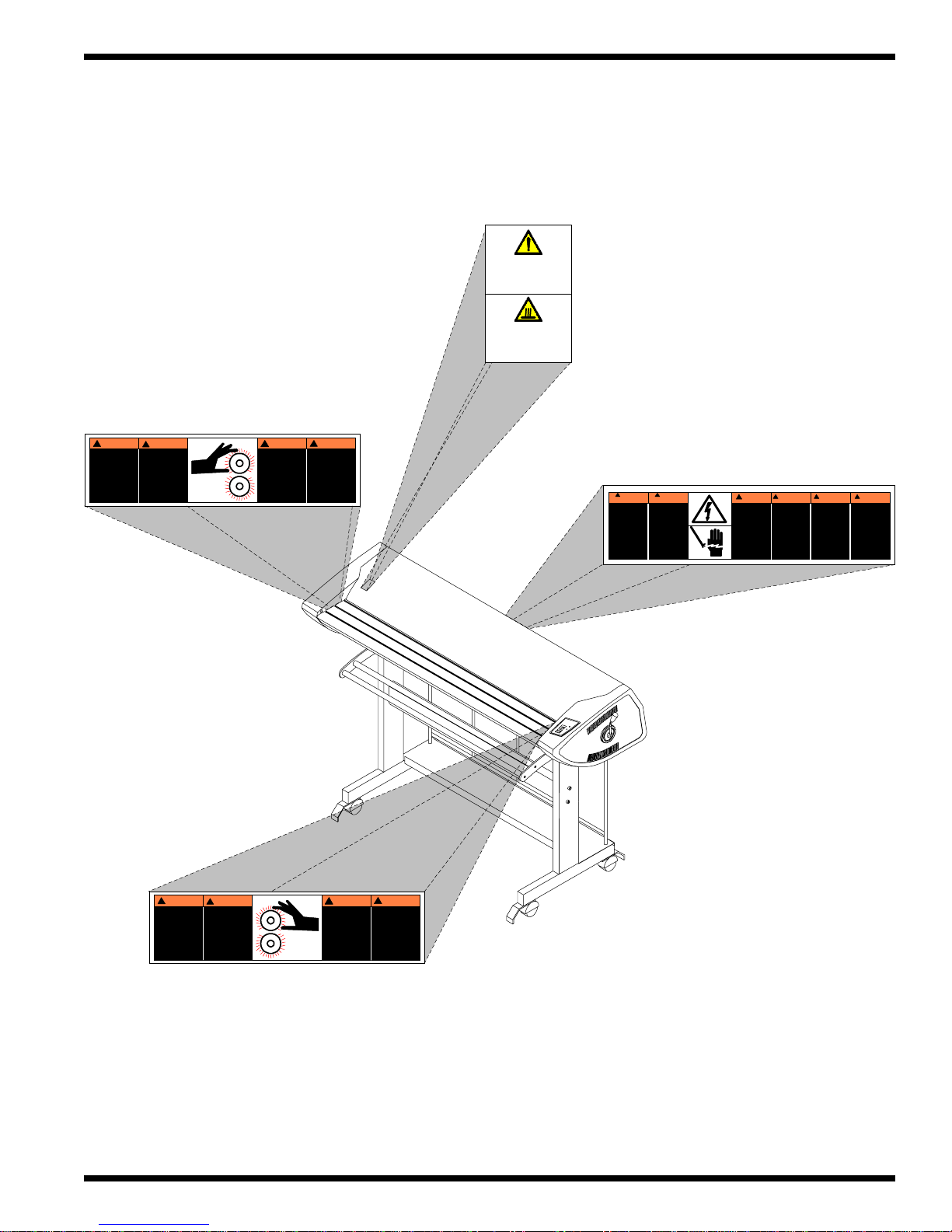

Figure1.4.1 Safety LabelPlacement
REA
DY
U
U
S
G
S
P
R G
E
A
LA
M
I
N
A
T
E
O
A
M
PO
U
CH
R
E
CUIDADO
!ATTENTION
!CAUTION
!WARNUNG
!
RODILLOS
CALIENTES.
PUNTO DE
PI NC HAMI E NTO.
Mantener manos y
ropa a distancia.
ROULEAUX
CHAUDS.
POINT DE
PINCEMENT.
Tenir mains et
vetements a l'ecant.
HOT ROLLS.
PI NC H P OINT .
Keep hands and
clothing away.
HEISS E
ROLLEN
Klemmgefahr
zwischen Rollen
Hande und
Kleidung ferhalten MUCHO
CUIDADO
!
Riesgo de
choque
electrico
No abr a
Adentro, no hay
piezas
reparables
para el usuario.
Mantenimiento
solamente para
personal
calificado
MUCHO
CUIDADO
!
Risque de
secousse
electrique.
Ne pas ouvrir.
Pas de piec es
reparables par
l'utilisateur.
Entretien par
personnel
qualifie.
WARNING
!WAARSCHUWING
!ATTENZIONE !WARNUNG !
Electrical shock
hazard.
Do not open.
No user
serviceable
parts inside.
Refer servicing
to
qualified service
personnel.
Kans op
elektrische
schok.
Niet openen
Bevatgeen door
gebruik te
repareren
onderdelen.
Door bevoegd
service
personeel
laten repareren
Pericolo di
scarica
elettrica.
Nessuna parte
riparabile
dall' utente.
Chiamare un
servizio
di riparazioni
qualificato.
SpannungsfUhren
de
Teile.
Nicht offnen.
Enth alt kei ne vom
Enduerbraucherzu
wartendeTeile.
Fur service bitte an
qualifiziertes
Service-Personal
wend en.
CUIDADO
!ATTENTION
!CAUTION
!WARNUNG
!
RODILLOS
CALIENTES.
PUNTO DE
PI NC HAMI E NTO.
Mantener manos y
ropa a distancia.
ROULEAUX
CHAUDS.
POINT DE
PINCEMENT.
Tenir mains et
vetements a l'ecant.
HOT ROLLS.
PI NC H P OINT .
Keep hands and
clothing away.
HEISS E
ROLLEN
Klemmgefahr
zwischen Rollen
Hande und
Kleidung ferhalten
Serious injury may result.
Keep hand, clothing and loose
articles away from the rollers
and heaters.
Hot surface
Avoid contact
WARNING
CAUTION

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 1-4

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 2-1
2.0 Warranty
GBC Films Group warrants the equipment to be free from
defects in material and workmanship for a period of 90
daysfor partsand laborfrom the date of installation.
This warranty is the only warranty made by GBC Films
Group and cannot be modified or amended.
GBCFilms Group’ssoleand exclusiveliability and
thecustomer’ssoleandexclusiveremedyunderthis
warrantyshallbe, atGBC FilmsGroup’soption,to
repairorreplaceanysuchdefectivepartorproduct.
These remedies are only available if GBC Films
Group’s examination of the product discloses to
GBC Films Group’s satisfaction that such defects
actually exist and were not caused by misuse,
neglect,attempt to repair, unauthorizedalteration
ormodification,incorrectlinevoltage,fire,accident,
floodorotherhazard.
2.1 Limited Warranty
This warranty specifically does not cover damage to the
laminating rollers caused by knives, razor blades, other
sharp objects, failure caused by adhesives or improper
use of the machine. Warranty repair or replacement does
not extend the warranty beyond the initial 90 day period
from the date of installation.
CAUTION:Unauthorizedcustomeralterationswill
voidthiswarranty.
THE WARRANTY MADE HEREIN IS IN LIEU
OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING ANY WARRANTY
ORMERCHANTABILITY ORFITNESSFOR A
PARTICULARPURPOSE.GBC FILMSGROUP
WILL NOT BE LIABLE FOR PROPERTY
DAMAGE OR PERSONAL INJURY ( UNLESS
PRIMARILY CAUSEDBY ITSNEGLIGENCE ),
LOSSOFPROFITOROTHERINCIDENTALOR
CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OR INABILITY TO USE THE
EQUIPMENT.
2.2 Exclusions to the Warranty
Thiswarranty specificallydoes notcover;
1. Damage to the laminating rolls caused by
knives, razor blades, other sharp objects or
failure caused by adhesives.
2. Damage to the machine caused by lifting, tilting
and/or any attempt to position the machine other
than rolling on the installed castors on even
surfaces.
3. Improper use of the machine.
4. Damage due from unqualified person(s) servicing the
machine.
Qualified;
• Any engineer that has experience with electrical
and mechanical design of lamination equipment. The
engineer should be fully aware of all aspects of safety
with regards to lamination equipment.
• Any commissioning or service engineer must be
of competent nature, trained and qualified to GBC Films
Group standards to fulfill that job. This person will have
completed and passed the full service training course from
GBC Films Group.
• Any GBC Technician, GBC Specialist, and / or
GBC Films Group Technician that has been through the
GBC Films Group service training course.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 2-2
This page intentionally left blank.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 3-1
3.0 Specifications
Description:
Entry level laminator for encapsulation and mounting of
poster size prints. The Spartan is a self standing laminating
unit.
Features:
Simple one touch operation
Applications:
Mounting of poster size prints
Encapsulation of poster size prints
3.1 Consumable
Material Types:
Thermal mount boards
Thermal pouch boards
Thermal pouches
Material Widths:
38”maximum
3.2 Function
Speed:
Preset for GBC materials
Motor:
DC gear motor
Heating:
Preset for GBC materials
Controls:
Operations control panel
Roll Design:
High release silicone
3.3 Electrical
Laminator Rating:
240V, 60 Hz, 2500 W
Requirements:
230-240 VAC, 60 Hz, single phase 15 amps.
BTUOutput:
8,535 BTU/Hour
HeaterWattages:
2100 watts
AmperageDraw:
Drive motor: 1 amp
Heaters: 9 amps
DC voltage used:
36 VDC motor voltage
AC voltage used:
230 VAC (minimum)
3.4 Dimensions and weight
Weight:
Out of box: 250 lbs. (114 kg.)
boxed: 260 lbs. (118 kg.)
Dimensions:
Refer to Figure 3.4.1 Dimensions
assembled: 42 in. (H) x 53 in. (W) x 18.5 in. (D)
105 cm (H) x 132 cm (W) x 46 cm (D)
boxed: 18 in. (H) x 60 in. (W) x 25 in. ( D)
45 cm (H) x 150 cm (W) x 62.5 cm (D)
Max Working Nip Opening:
3/16 in. (5 cm)

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 3-2
Figure3.4.1 Dimensions
42 in.
(105 cm)
READY
U
U
S
G
S
P
R
G
E
A
LA
MI
N
A
T
E
O
A
M PO
UCH
R
E
53 in.
(132 cm)
18.5 in.
(46 cm)

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 4-1
4.0 Installation
GBC Films Group is committed to a program of ongoing
product improvement. As a result, we are providing these
instructions so that you can insure that your new Spartan
Laminator is properly and securely unpacked, moved and
installed.
Before a Spartan Laminator can be installed, there are a
few requirements that must be met. Make certain that
each of the requirements listed in the following pre-
installation checklist are met before beginning installation.
CAUTION: Failure to follow the pre-installation
checklist can resultindamageto the laminator.

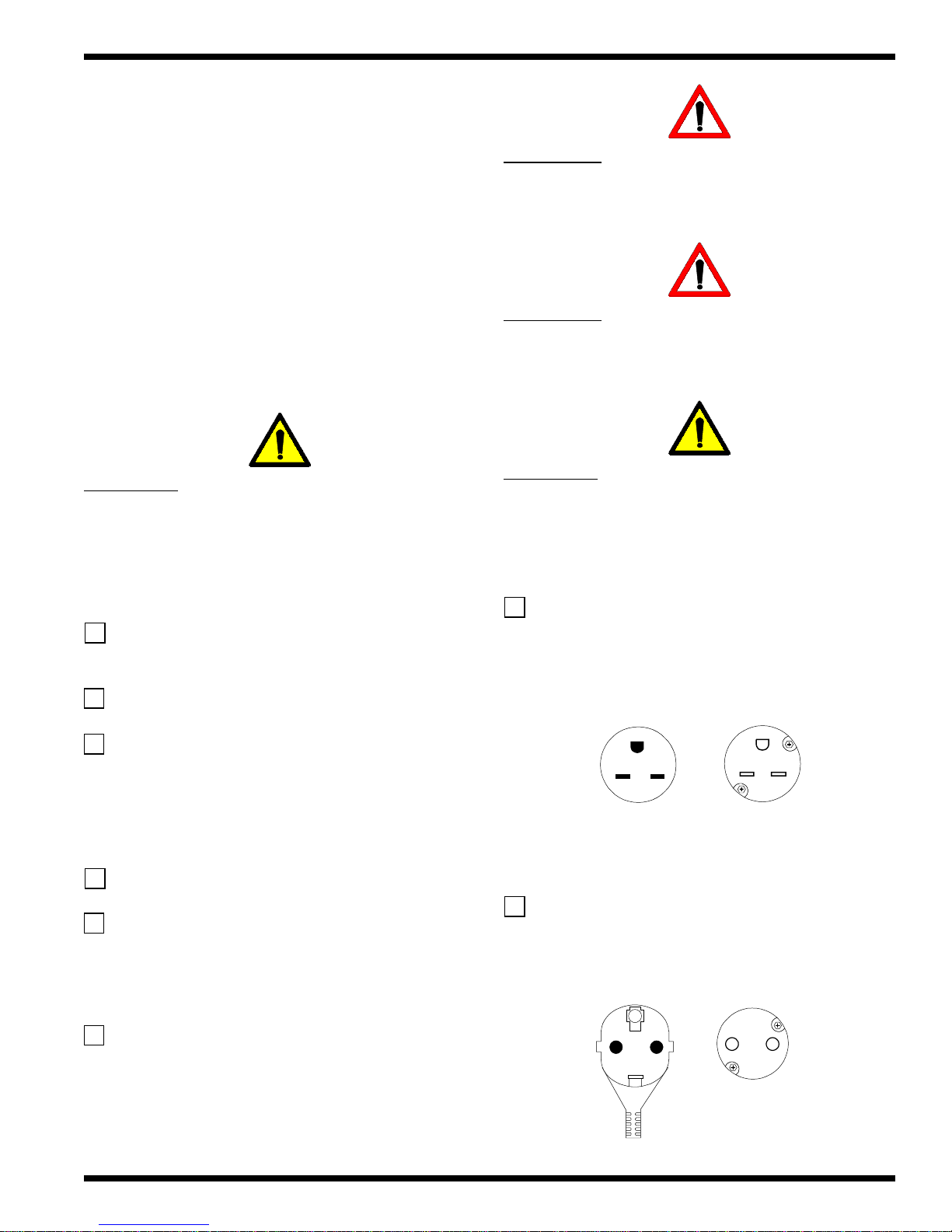

4.1 Pre-installation
Are the doorways and hallways wide enough for
the laminator to be moved to the installation site?
Is there ample room for the laminator?
A work area must be established that allows for
unrestricted movement around the laminator and
provides space for efficient material flow. Figure
4.1.4 and Figure 4.1.5 illustrates a typical machine
area layout.
Is the environment appropriate for the laminator?
The laminator requires a clean, dust and vapor
free environment to operate properly. It must not
be located where there is air blowing directly on
the machine.
Have you contacted a certified electrician to install
a receptacle for the laminator ensuring that
adequate power is being supplied and correct
circuit breaker?
WARNING: The operating environment must be
freeofdust,flammable liquidsand vapors.Youcan
beinjuredbyinhalingchemical vapors.
WARNING: Vapor build up or stored flammable
liquidscan causeafire. Excessivedustcan damage
thelaminator.
CAUTION: Do not locate the laminator where air
canblow directly on the machine. The air flow can
coolthe rollers unevenly andresultin poor quality
output.
US and Canada: The laminator requires 230-
240 vac, 60 Hz, 15 amps, single phase
Figure4.1.1Connections-Spartan US
NEMA 6 - 15RNEMA 6 - 15P
Europe: The laminator requires 230-240, 50 Hz
16 amps, single phase
Figure4.1.2 Connections-SpartanEurope
16 receptacle
16 plug

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 4-2
4.2 Suggested floor layout
A safe work area constitutes enough room to work with
the materials at hand while being free to move around the
laminator without interference from the laminator. Refer
to the figure below for a suggested floor layout example.
Figure4.2.1 Suggest floor layoutexample
18ft.
( 540 ) cm
13 ft
( 390 cm )
3 ft
( 90 cm )
8 ft
( 240 cm )
8 ft
( 240 cm )
4 ft. x 6 ft.
(101.6 x 152 cm)
Work table on wheels
Front
Back
4 ft. x 6 ft.
(101.6 x 152 cm)
Work table on wheels

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 4-3
4.3 Know your laminator
Before performing any procedure within this manual, it is
recommended that you take time to know your laminator.
Sidesof thelaminator
REA
DY
U
U
S
G
S
P
R
G
E
A
LA
MI
N
A
T
E
O
A
M PO
U
CH
R
E
Rear
Front
Control side
Drive side
Partsonthelaminator
REA
DY
U
U
S
G
S
P
R
G
E
A
LA
M
I
N
A
T
E
O
A
M
PO
U
C
H
R
E
Cover
Cabinet
Table
Stand
Pouch rack
Board rack
Castors
Underthe cover
READY
U
U
S
G
S
P
R
G
E
A
LAMINAT
E
OAM POUCH
R
E
Rollers
Cover
raised
Nip
Hin
g
e
Power
switch
Power cable
Top Roll
Sensor
ControlPanel
READY
SPARTAN
GBC
Rollerpressure control
U
U
S
G
S
P
R
G
E
A
LAMINAT
E
R
E
Roller release position
Board mount position
Pouch Position

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 4-4
4.4 Unpacking
INFORMATION: All shipments are ex-works. At
our docks, title passes to the buyer. Please review
your insurance coverage prior to shipment, as you
are responsible for all subsequent freight charges
andrisks.
INFORMATION: BeforesigningtheBillofLading,
be sure to inspect the crate, box and/ or pallet for
signsofdamageormissingitems.Ifapplicable,make
noteof this on the Bill of lading.
1.Inspect the machine for any obvious shipping damages
upon receipt.
2. Carefully unwrap the shrink wrap from around the
laminator.
CAUTION:Donotuseaknifeorothersharpobject
to remove any shrink wrap from around the
laminator.Youcancauseirreparabledamagetothe
rollers!
3.With another person, carefully remove the contents
and assemble the laminator.
4.With assistance, carefully move the laminator to the
desired location.
WARNING:Do not attemptto move thelaminator
acrossanythingotherthanaflatlevelsurfacealone.
Youcanbecrushed orseriously injured.
WARNING:Donotturnthelaminatorsideways,up
sidedownorverticalwhenmoving.Thiswilldisrupt
thealignmentof internalmovingparts.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 5-1
5.0 Operations
WARNING: Do not wear ties, loose fitting clothes
ordanglingjewelrywhile operatingorservicingthe
laminator.Theseitemscanget caughtinthenip and
chokeyou oryou can becrushed or burned.
CAUTION: Do not block the Top Roll Sensor. If
the sensor becomes obstructed, over heating may
occur and cause irreparable damage to the rollers
ora fire.
INFORMATION:Thelaminatorwillonlyrunwhen
theroller cover isin the down (closed)position.
5.1 Control Panel
The control panel is located on the right hand side from
the front operating position of the laminator. From the
control panel, the operator is able to control the motor
run and motor stop function.
Figure5.1.1Control panel
READY
SPARTAN
GBC
Run switch
Stop switch
Run indicator
Ready indicator
RUN –When pressed, engages the motor that
drives the rollers.
INFORMATION: The laminator only operates in
onedirection,forward.Thereisnoreverse function
on this machine. Stop the roller and release roller
pressuretomanuallymovetheproductbackwards.
STOP –When pressed, stops the roller by
removing power to the motor.
READY–When illuminated, represents the rollers
are up to operating temperature.
INFORMATION:DonotrunmaterialuntilREADY
is illuminated. Attempting to run prior to this will
resultinpooroutputquality.
RUN –when illuminated, represents the motor
engaged and the rollers are turning.
INFORMATION: Themotorwillonlyengageifthe
coveris in theloweredposition.
WARNING: Never attempt to bypass the cover
safetyswitchtooperatethelaminator.Thiscanresult
inserious injuryto youorothers.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 5-2
5.2 Roller pressure handle
The roller pressure handle sets the roller nip opening for
the desired application with the material being used.
INFORMATION: Never attempt to alter the
factorypreset settingsfor thenip openingor speed.
Contactyourlocalservicerepresentative ifyou feel
therollerpressure handlerequires calibrating.
Roller release position
–Use this position when the laminator is not in use or no
nip pressure is required. This is the maximum nip opening
position.
Foampouchposition
–Use this position when using board type materials through
the laminator. This nip opening and speed is preset for
GBC materials.
Laminatingposition
–Use this position when running film pouch type materials.
The is the minimum nip opening position. This nip opening
and speed is preset for GBC materials.
5.3 ON/ OFF power switch
The power ON/ OFF turns your laminator on. When the
laminator is on, the rollers begin heating automatically.
(–) This is the ONposition for the laminator.
(O) This is the OFFposition for the laminator.
CAUTION: During long periods of no use, 30
minutesorgreater,youshould turnpowerofftothe
laminator.Thiswillpreventhotspotsfromforming
onthe rollers.

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 6-1
6.0 Applications
The Spartan laminator will accommodate GBC mounting
boards and lamination pouches. This section will describe
how each process is run on the laminator.
INFORMATION: The leading edge will always be
the edge which is sealed. The opposite edge is
referredto as the trailing edge.
CAUTION:Whenchangingfromoneapplicationto
another (example: lamination pouch to pouch
boards),allowthemachinetorunforapprox.20min
after setting pressure handle to let the roller
tempuraturereachcorrect operatingtempurature.
The top roll sensor only reads the top roll and the
bottomrollmay notbethe correcttempurature.

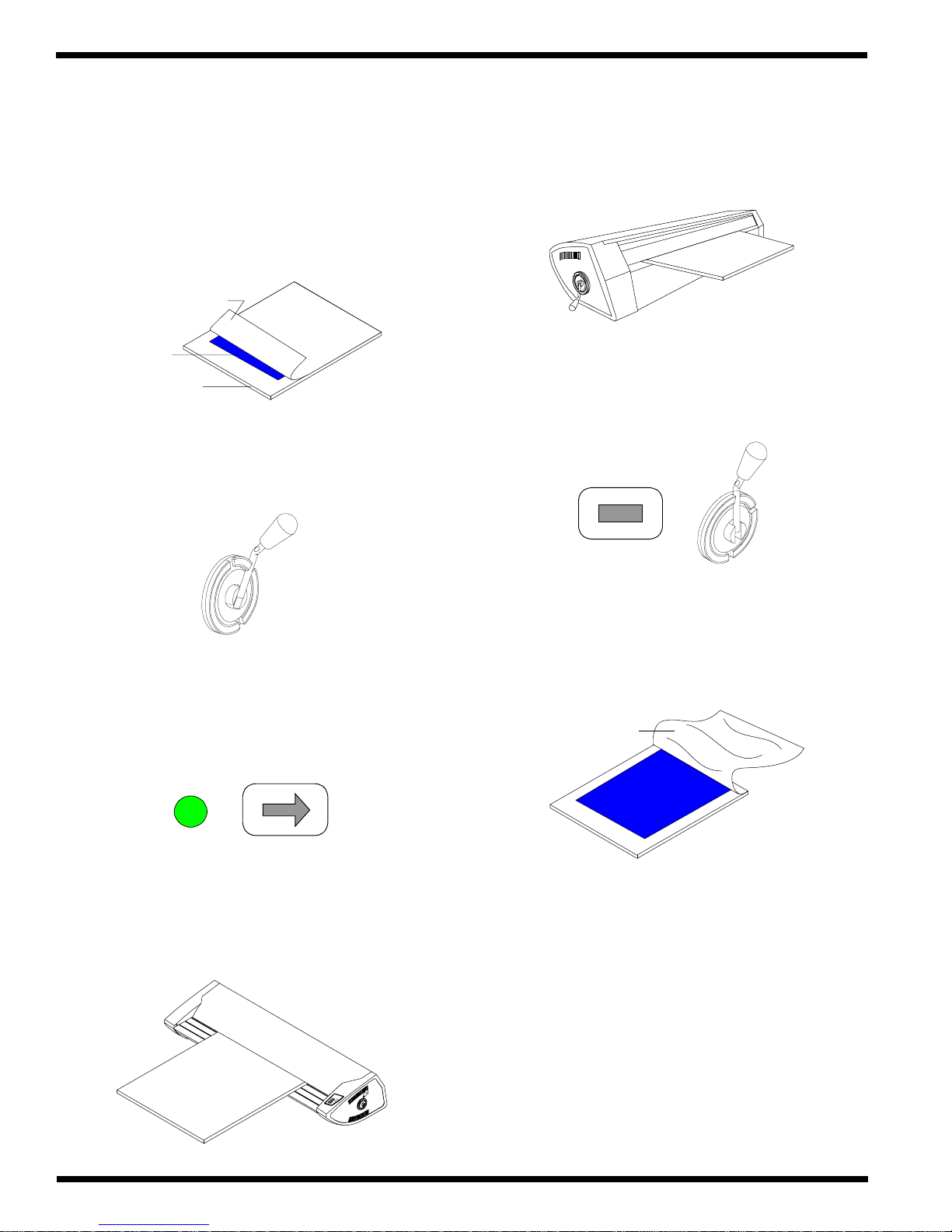

6.1 Pouch boards
1.Turn the laminator on.
2.Center the image on the board under the film.
Film
Board
3.Set the pressure handle to the foam pouch position.
4.Wait for READYto illuminate.
5. Press RUN.
+
6.Align the leading edge of the pouch board slightly off
center of the table.
7.Gently slide the pouch board into the roller nip until
you feel the rollers catch the board.
8.Support the board as it exits the rear of the laminator.
9.Press STOPand set the pressure handle to the roller
release position.
+
10.Peel the clear protective layer off the board and trim
to desired size.
Clear protective layer

© 2004 General Binding Corporation
SpartanOperationand Maintenance Manual
Page 6-2
6.2 Mounting boards
1.Turn the laminator on.
2.Center the image on the board under the protective
sheet.
Protective sheet
Board
3.Set the pressure handle to the foam pouch position.
4.Wait for READYto illuminate.
5. Press RUN.
+
6.Align the leading edge of the mounting board slightly
off center of the table.
7.Gently slide the mounting board into the roller nip until
you feel the rollers catch the board.
8.Support the board as it exits the rear of the laminator.
9.Press STOPand set the pressure handle to the roller
release position.
+
10.Pull the protective layer off the board and trim to
desired size.
Protective layer
