GE TONOPORT V User manual

TONOPORT V
Service Manual
Firmware Versions FW1.4 and FW2.0
Hardware Versions HW1.2 and HW2.0
2001589-023 Revision H

T-2 TONOPORT V Revision H
2001589-023
NOTE: The information in this manual only applies to the product TONOPORT V, Firmware Versions FW1.4 and FW2.0
and Hardware Versions HW1.2 and HW2.0. Due to continuing product innovation, specifications in this manual are subject to
change without notice.
© 2006 General Electric Company. All rights reserved

Revision H TONOPORT V i
2001589-023
Contents
1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.1 Manual Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
1.3 Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
2Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
3Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
4Pin Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
5Instrument Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
6Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
7Firmware Loading Procedure for FW1.4 . . . . . . . . . . . . . .7-1
7.1 Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
7.2 Loading Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4
8Firmware Loading Procedure for FW2.0 . . . . . . . . . . . . . .8-1
8.1 Settings for TONOPORT V Update Program V2.1 for Windows . . . . . . . .8-1
8.2 Loading Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2

ii TONOPORT V Revision H
2001589-023
9Diagnosis Codes / Error Codes . . . . . . . . . . . . . . . . . . . . .9-1
10 Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
10.1 Step-by-Step Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1
10.2 Interior View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2
11 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . .11-1
12 Technical Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1
12.1 Technical Safety Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1
12.2 Technical Inspections of the Measuring System . . . . . . . . . . . . . . . . . . .12-2
13 Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-1
13.1 Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-1
13.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-1
13.3 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-2
13.4 Exchange Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3
14 Appendix: Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-1

Revision H TONOPORT V 1-1
2001589-023
1Introduction
1.1 Manual Information
1.1.1 Revision History
Each page of the document has the document part number and revision letter at the
bottom of the page. The revision letter identifies the document’s update level.
The revision history of this document is summarized in the table below.
1.1.2 Manual Purpose
This manual supplies technical information for service representative and technical
personnel so they can maintain the equipment to the assembly level. Use it as a
guide for maintenance and electrical repairs considered field repairable. Where nec-
essary the manual identifies additional sources of relevant information and or tech-
nical assistance.
See the operator manual for the instructions necessary to operate the equipment
safely in accordance with its function and intended use.
1.1.3 Intended Audience
This manual is intended for the person who uses, maintains, or troubleshoots this
equipment.
Table 1. Revision History PN 2001589-023
Revision Date Comment
A2000-03 Initial release
B2001-01 ECO 066338, update due to release of FW1.1
C2001-04 ECO 066834
D2001-06 ECO 067061, FW1.2
E2001-10 ECO 068207, FW1.3
F2002-07 ECO 071404, FW1.4, HW1.2
G2003-12 ECO 075536
H2006-05 ECO 080491, FW2.0/HW2.0

1-2 TONOPORT V Revision H
2001589-023
Introduction: Safety Information
1.2 Safety Information
1.2.1 Responsibility
GE Medical Systems Information Technologies is responsible for the effects of
safety, reliability, and performance only if:
Assembly operations, extensions, readjustments, modifications, or repairs are
carried out by persons authorized by GE Medical Systems Information
Technologies.
The electrical installation of the relevant room complies with the requirements
of the appropriate regulations.
The equipment is used in accordance with the instructions for use.
The country of manufacture appears on the device label.
1.2.2 General
This device is not intended for home use.
Contact GE Medical Systems Information Technologies for information before con-
necting any devices to the equipment that are not recommended in this manual.
Parts and accessories used must meet the requirements of the applicable IEC 60601
series safety standards, and/or the system configuration must meet the requirements
of the IEC 60601-1-1 medical electrical systems standard.
Periodically, and whenever the integrity of the device is in doubt, test all functions.
The use of ACCESSORY equipment not complying with the equivalent safety
requirements of this equipment may lead to a reduced level of safety of the resulting
system. Consideration relating to the choice shall include:
use of the accessory in the PATIENT VICINITY; and
evidence that the safety certification of the ACCESSORY has been performed
in accordance to the appropriate IEC 60601-1 and/or IEC 60601-1-1
harmonized national standard.
If the installation of the equipment, in the USA, will use 240V rather than 120V, the
source must be a center-tapped, 240V, single-phase circuit.
The authorized representative for GE Medical Systems
Information Technologies Inc. in Europe is :
GE Medical Systems Information Technologies GmbH
Munzinger Strasse 3
D-79111 Freiburg
Germany
Phone [phone]
Fax [phone]

Revision H TONOPORT V 1-3
2001589-023
Introduction: Service Information
1.3 Service Information
1.3.1 Service Requirements
Follow the service requirements listed below.
Refer equipment servicing to GE Medical Systems Information
Technologies’authorized service personnel only.
Any unauthorized attempt to repair equipment under warranty voids that
warranty.
It is the user’s responsibility to report the need for service to GE Medical
Systems Information Technologies or to one of their authorized agents.
Failure on the part of the responsible individual, hospital, or institution using
this equipment to implement a satisfactory maintenance schedule may cause
undue equipment failure and possible health hazards.
Regular maintenance, irrespective of usage, is essential to ensure that the
equipment will always be functional when required.
CAUTION
During repairs/service interventions, observe the protective
measures against damage due to ESD.

1-4 TONOPORT V Revision H
2001589-023
Introduction: Service Information
For your notes

Revision H TONOPORT V 2-1
2001589-023
2Block Diagram
Pump
Display
Keyboard
Power
Management
Digital Part
Cuff
Display
Valve
Pressure Amplifier
Tubing system
electronic part pneumatic part
Jack
RS 232 and
Jack USB
(only
TONOPORT
V, V2.0)
SignalTone
(only
TONOPORT V,
V2.0)

2-2 TONOPORT V Revision H
2001589-023
For your notes

Revision H TONOPORT V 3-1
2001589-023
3Functional Description
Measurement limits
- Max. cuff inflation time = 100 seconds
- Max. measurement time after start of measurement = 180 seconds
Button / Switch Display Button Display Explanation
ON all segments selftest
A100 A=accu
(rechargeable
battery)
100=100%
clock
Info H 1 Start/Start LLLL delete record
Info H 2 Start YYYY
MM
DD
hour
min
date
time
Info H 3 Start/Start
Info LLLL P1 P2
P3
internal programs
Info H 4 Start 50 pressure offset
Start 0calibration mode
(manometer)
Info H 5 Start 20:01 20:= FW2.0
01=German
02=English
03=French
04=Italian
05=Spanish
Info H 6 Start AAAA accu
Info bbbb battery
Info H 7 Start 1111 signal tone ON
(TONOPORT V,
V2.0 only)
Info 0000 signal tone OFF
(TONOPORT V,
V2.0 only)

3-2 TONOPORT V Revision H
2001589-023
For your notes

Revision H TONOPORT V 4-1
2001589-023
4Pin Connections
See diagram
2 = R x D
3 = T x D
5 = Ground
2 3 5 = Ground
T x D R x D
PC 437
9600 Baud / 8 Bit / 1 Stopbit
none Parity
9pin
3 = R x D
20 = DTR
7 = Ground
3 20 7 = Ground
T x D R x D
25pin
Cable RS 232 TONOPORT V - PC
2001589-011
Cable USB TONOPORT V - PC (2001589-040) - not shown
This cable connects the USB port of TONOPORT V, V2.0 (USB B-mini,
male, 5-pin) to the USB port (USB A, male) of the PC.
Cable TONOPORT V - Printer
2001589-012

4-2 TONOPORT V Revision H
2001589-023
For your notes

Revision H TONOPORT V 5-1
2001589-023
5Instrument Versions
The instrument is available in one version only. Five different languages, however,
are available for the direct printout. These languages are:
Old version
New version
Displaying the firmware version and the language for the direct printout
Switch TONOPORT V on and wait until the time appears on the screen
Press INFO five times: Display shows "H 5".
Press START: the firmware version and the language for the direct printout
are now displayed.
From firmware FW1.3 the language can be changed by pressing INFO until the
required language code is displayed. Pressing START terminates the language
selection.
2001589-001 TONOPORT V
2001589-038 TONOPORT V, V2.0
faf a Firmware Version : Language Code Language
10 : 01 German
10 : 02 English
10 : 03 French
10 : 04 Italian
10 : 05 Spanish
faf a Firmware Version : Language Code Language
11 : 01 German
11 : 02 English
11 : 03 French

5-2 TONOPORT V Revision H
2001589-023
Instrument Versions:
11 : 04 Italian
11 : 05 Spanish
12 : 01 German
12 : 02 English
12 : 03 French
12 : 04 Italian
12 : 05 Spanish
13 : 01 German
13 : 02 English
13 : 03 French
13 : 04 Italian
13 : 05 Spanish
14 : 01 German
14 : 02 English
14 : 03 French
14 : 04 Italian
14 : 05 Spanish
20 : 01 German
20 : 02 English
20 : 03 French
20 : 04 Italian
20 : 05 Spanish

Revision H TONOPORT V 6-1
2001589-023
6Pictures

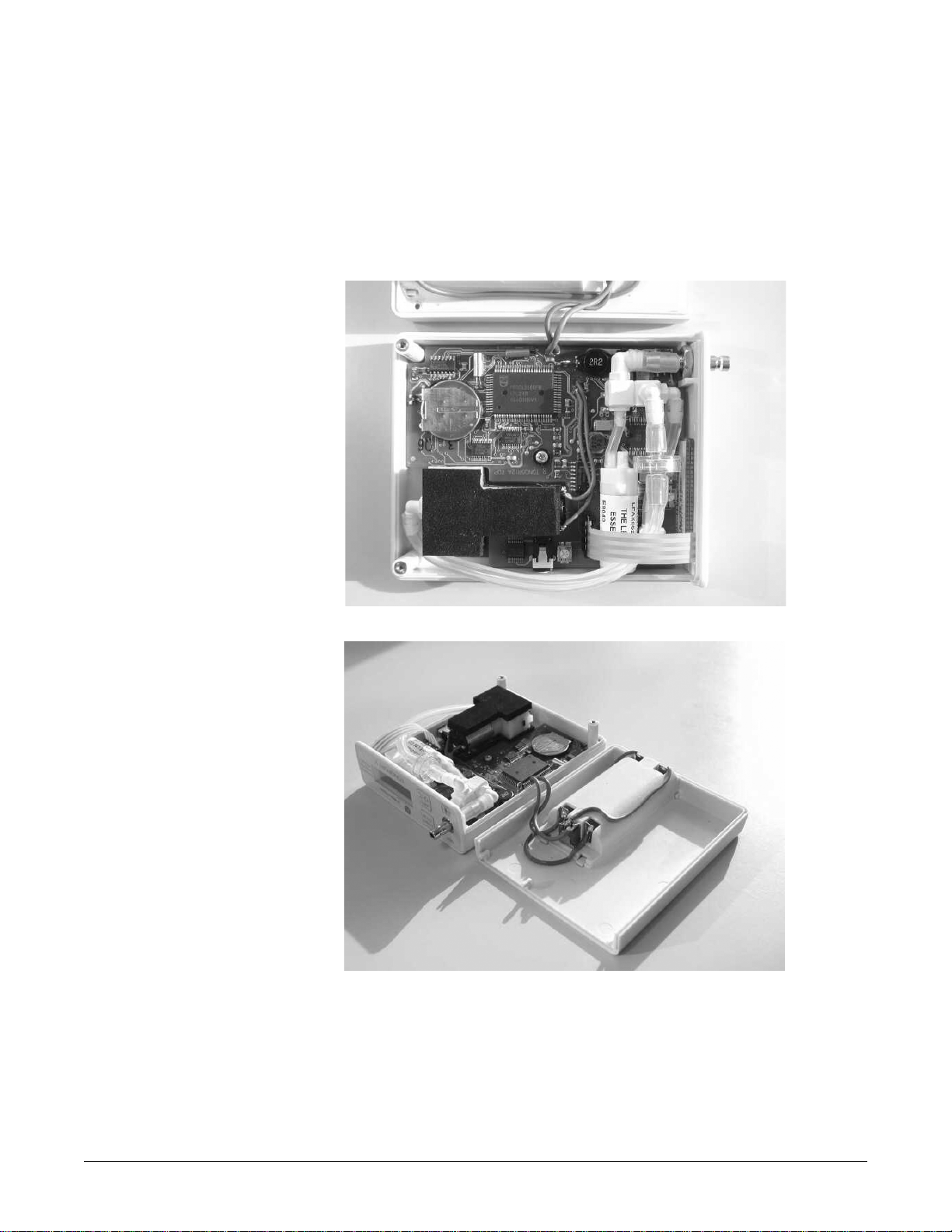

Pictures of TONOPORT V up to version HW1.4

6-2 TONOPORT V Revision H
2001589-023
Pictures:
Pictures of TONOPORT V for version HW2.0

Revision H TONOPORT V 7-1
2001589-023
7Firmware Loading
Procedure for FW1.4
NOTE
To update older TONOPORT V units (HW1.2 and before), use firmware
version FW1.4.
7.1 Preparation
7.1.1 Settings for Hyperterminal under Windows 95/98SE/NT4.0/
2000 (in this example with Windows 95SE)
Start Hypertrm.exe.
Type in the name: TONOPORT V.
Type in any Phone Number and click <OK>.
Go to FILE -> PROPERTIES and make the same configurations as shown in the
pictures.
Go to "Transfer" -> "Send Text File..." to transfer files to TONOPORT.

7-2 TONOPORT V Revision H
2001589-023
Firmware Loading Procedure for FW1.4: Preparation
