Simon XTi Installation Guide
Content
Contact information ................................................................................ 1
Description ................................................................................................... 1
Installation.................................................................................................... 1
Connecting hardwired devices........................................................... 2
Wiring phone lines.................................................................................... 3
Wiring the power transformer............................................................ 4
Resetting memory to factory defaults ............................................ 4
Programming..............................................................................................4
Status & Settings screen........................................................................ 5
Sensors ......................................................................................................... 7
Cleaning the touch screen.................................................................... 9
Disposal ......................................................................................................... 9
Specifications........................................................................................... 10
Regulatory information....................................................................... 10
Contact information
www.utcfireandsecurity.com or www.interlogix.com
For customer support, see www.interlogix.com/customer-support
GE and the GE monogram are trademarks of the General Electric
Company and are under license to UTC Fire & Security, 9 Farm
Springs Road, Farmington, CT 06034-4065
Copyright © 2012 UTC Fire & Security. All rights reserved.
Description
This is the Installation Guide for the Simon XTi system (models 600-
1054-95R-12 and 600-1054-95R-12-CN).
Table 1: Sensors and recommended sensor groups
Device Part number Recommended
sensor group
Indoor motion sensor 60-639-95R, 60-807-95 b 15, 17, 18, 20, 28, or
32
Entry/exit door 60-362N-10-319.5 10
Interior door 60-362N-10-319.5 14
Door/Window sensor 60-362N-10-319.5 13
Smoke sensor TX-6010-01-1 c26
Glassbreak sensor 60-873-95 b 13
Device Part number Recommended
sensor group
4-Button Key fob 600-1064-95R b01
Simon XT Talking Touch
Screen
60-924-3-XT-2WTTS b
60-924-RF-TS d
00, 01, 04, 05, 06, or
07
Simon XT Talking
Touchpad
60-924-3-XT b01
Carbon Monoxide alarm TX-6310-01-1 b, 600-
6520-95 b
34
a. Not certified as a primary protection circuit for UL-listed systems
and is for supplementary use only.
b. Has not been investigated by UL.
c. Required for UL-listed residential fire alarm applications.
d. The TWTTS has been verified for use by ETL. Neither this device
nor other devices that employ the UTCFS 80 Bit Enhanced
Protocol have been investigated for use by UL.
Note: These sensor groups are only recommendations. The installer should
choose the correct sensor group for the application.
Caution: Do not use outdoor motion sensors for intrusion
protection.
Installation
Panel location
Locate the panel where alarm sounds can be heard and where
the panel will be easily accessible for operation. Do not install the
panel near a window or door where it can be reached easily by an
intruder.

Mounting

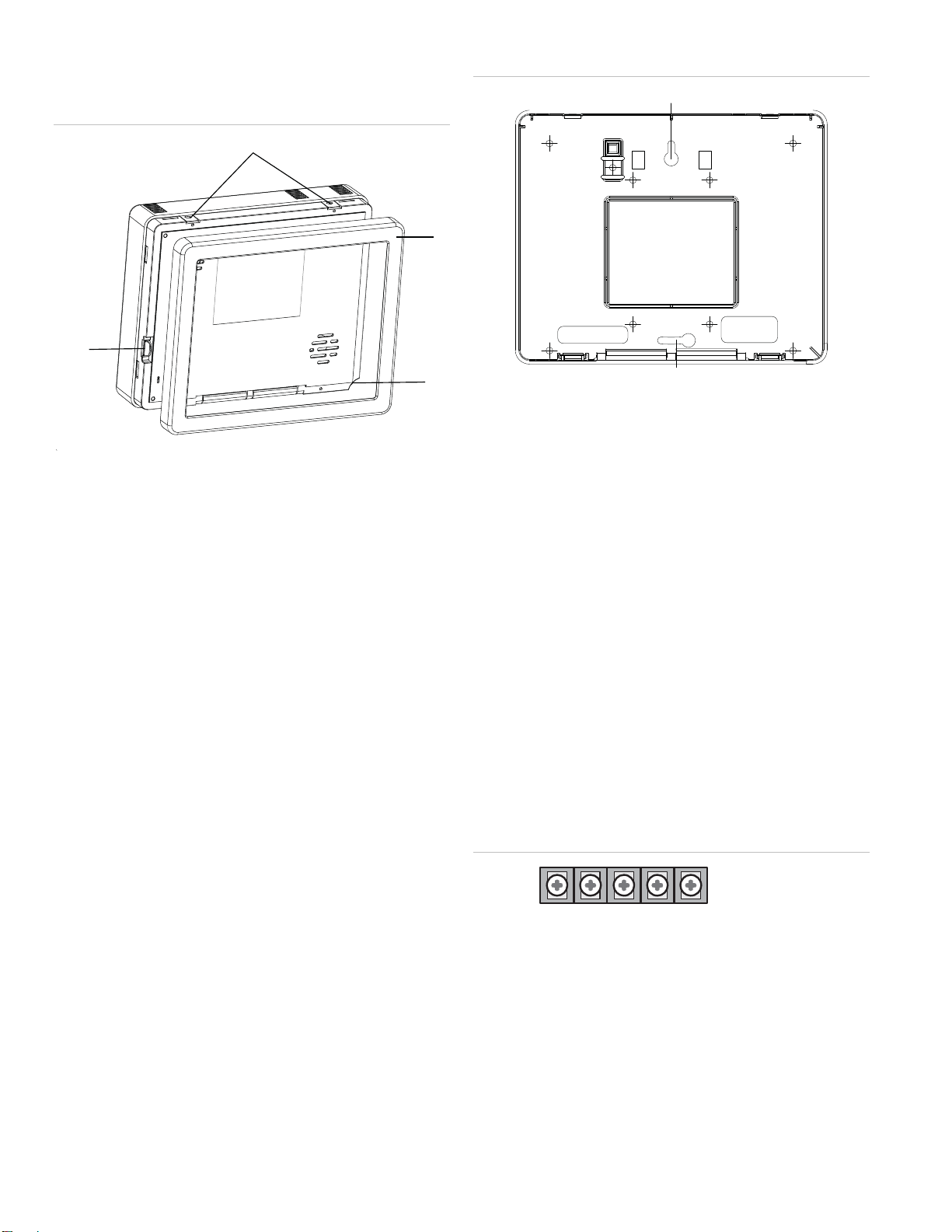

Figure 1: XTi chassis and trim ring
A
B
C
D
To mount the panel on a wall:
1. Lay the panel flat on a table.
2. Remove trim ring (B in Figure 1 above) from panel by lifting at
notch (C in Figure 1 above).
3. Separate the panel chassis from the mounting plate by lifting
up on the tabs (A in Figure 1 above) and swinging the chassis
open.
4. Choose a panel location.
5. Run all necessary power, phone, siren, and hardwired contact
wires to the desired panel location.
When choosing the AC outlet location for the AC power
transformer, make sure the outlet is not controlled by a
switch or that it is not part of a ground fault circuit interrupt
(GFCI).
6. Hold the mounting plate against the wall and mark the
mounting hole locations (Figure 2 below) with a pencil.
Note: Mark both mounting holes in the middle of the
mounting slot. This will allow better adjustment of the panel
before securing it to the wall.
Figure 2: Mounting holes
Wiring knockout
Mounting hole
Mounting hole
7. Secure the mounting screws (provided) to the locations on the
wall marked in step 6. Do not tighten the screws. Leave
enough clearance to mount the mounting plate.
Note: Use wall anchors if no studs are present.
8. Mount the mounting plate to the wall. Insert the top mounting
hole first, then the bottom hole. Adjust the fit to make sure the
mounting plate is level. Hold the mounting plate in place and
tighten the screws.
9. Hang the panel chassis on the mounting plate at the plastic
hinges, swing the chassis up to the mounting plate and
engage at the tabs (A in Figure 1 above).
10. Reattach the trim ring.
Connecting hardwired devices
The panel has five screw terminals, two battery terminals, and two
telephone connections. The screw terminals connect the AC
power, sirens, and/or hardwired detectors.
Figure 3: Wiring terminals
HW1 I/O
HW1&2
DC out
HW2 in
9VACin 9VACin
Program sensors and devices before you install them. Follow the
instructions in “Sensors” on page 7 to add the sensors to panel
memory.
The HW1 I/O terminal is dual purpose and can be used for either
siren or hardwired contact connections. The HW2 in terminal is an
input only.
2 Simon XTi Installation Guide

Interior sirens
From the factory, the HW1 I/O input (terminal 1) is set up for
interior siren operation (status and alarm sounds). The HW1&2 DC
out (terminal 2) provides the positive (+) voltage.
Note: The total current available from the HW1&2 DC out terminal
is 250 mA at up to 120ºF (49ºC). A 24-hour battery standby for UL
requirements will be met with a maximum load of 250 mA.
With Hardwired Siren Supervision turned on, sirens connected to
HW1 I/O are supervised and require a 4.7-kohm resistor in the
circuit. If this terminal is not used, turn Hardwired Siren
Supervision off.
Exterior sirens
For an exterior siren, change the HW1 setting in the System
Options programming menu. See wiring diagram.
Note: Not investigated for and may not be used in a UL Listed
installation.
Hardwired contacts
You can connect hardwired reed switches (normally closed loop
only) to HW1 I/O (if not being used for a hardwired siren) and/or
HW2 in (terminal 3).
Connect only normally closed (NC) reed switches to HW1 I/O
and/or HW2 in. Other types of hardwired detectors should not be
used.
The total resistance of the wired loop must not exceed 3 ohms.
This allows you to use up to 200 ft. (61 m) of two-conductor, 22-
gauge stranded wire.
Connect hardwired reed switches to the panel using a 47-kohm
resistor (not a 4.7-kohm resistor) as shown in Figure 4 below. The
resistor must be connected at the last switch in the circuit.
Figure 4: Normally closed hardwired reed switches
HW1 I/O
47 kohm resistors
HW1&2
DC out
HW2 in
9VACin 9VACin
Note: Do not install the resistor at the panel terminals. This does
not provide supervision of the wire.
Wiring phone lines
You can connect a phone line to the panel for systems monitored
by a central monitoring station or systems that notify users by a
voice event notification.
DSL (digital subscriber line) allows the use of multiple devices on a
single phone line simultaneously. For DSL environments, connect
the panel line-in jack to an available phone jack on the premises.
You might also need an inline filter to ensure panel reporting is
successful.
Note: Avoid connecting the panel to a standard phone (voice) line,
as other devices on the line can prevent reports from going
through.
Full line seizure
Full line seizure allows the panel to take over (seize) the phone line,
even if another device on the line is in use. This method requires
that the panel be wired before all other phones, answering
machines, computers, or other devices on the phone line. You may
need to verify the line seizure for UL installations.
Use the RJ31X (CA-38A) jack when wiring for full line seizure. You
can then quickly and easily disconnect the panel from the phone
line in case the panel disables the phone line due to a malfunction.
To wire full line seizure with an RJ31X:
1. Run a four-conductor cable from the premises Telco block to
the RJ31X.
2. Connect the four-conductor cable wire to the RJ31X.
3. Disconnect the green and red premises phone jack wires
from the Telco block and splice them to the four-conductor
cable black and white (or yellow) wires. Use weatherproof
wire connectors for these splices.
4. Connect the four-conductor cable green and red wires to the
Telco block TIP (+) and red to RING (-) posts.
5. Connect the phone cord included with the panel to the RJ31X
and the panel LINE jack.
Full line seizure wiring with one premises phone
If a single phone is all that exists on the premises, full line seizure
can be accomplished without an RJ31X.
1. Disconnect the phone from the premises phone jack and plug
it into the panel PHONE jack. This jack is disconnected
automatically whenever the panel reports.
2. Connect the included phone cord to the panel LINE jack and
the premises phone jack.
If a customer adds phones or other phone devices to another
phone jack, full line seizure no longer exists. Inform them to
Simon XTi Installation Guide 3

contact you if they want to add a phone or other device so that
you can rewire for full line seizure by adding an RJ31X.
Wiring the power transformer
Connect the power transformer to the two 9 VAC in terminals (4
and 5) on the panel. Do not plug in the transformer at this time.
When applying power to the panel, connect the battery first, and
then plug in the AC power transformer. This sequence prevents a
battery fault condition.
Note: System can only be powered up using AC power, not battery
power. The red battery icon may appear when the system first
powers up and will disappear after some time.
To remove and install the backup battery (6 VDC, 2.1 Ah):
Note: It is recommended that the backup battery be replaced
every 3-5 years.
1. Remove AC power from the panel.
2. Disconnect the existing battery from the battery connector.
3. Remove the existing battery by reaching under the battery
with a finger and pulling up.
Note: Do not try to push the plastic latch back to remove the
battery.
4. Insert the new battery into the battery compartment and
snap into place.
5. Plug the battery connector into the panel.
Caution: Do not connect the battery until you are ready to power
up the panel.
Resetting memory to factory defaults
If you need to reset memory to factory defaults, follow the steps
below.
To reset the panel to factory defaults:
1. Remove the trim ring.
2. Open the panel chassis.
3. Unplug the transformer and disconnect the battery.
4. Press and hold the reset button (D in Figure 1 on page 2) on
the left side of the panel.
5. Plug in the transformer to the panel while holding the reset
button and keeping the panel cover open.
6. Release the button.
7. Plug in the battery and close the panel chassis.
8. Replace the trim ring.
Applying AC power
Make sure the outlet is not controlled by a switch or that it is not
part of a ground fault circuit interrupt (GFCI).
Note: For Canadian installations, plug the transformer into the
wall outlet.
1. Remove the center screw from the outlet cover plate and
hold the cover plate in place.
WARNING: Use extreme caution when securing the
transformer to a metal outlet cover. You could receive a
serious shock if a metal outlet cover drops down onto the
prongs of the plug.
2. Plug the transformer into the lower receptacle of the outlet so
that the hole in the transformer tab lines up with the outlet
cover screw hole.
3. Insert the cover plate screw through the transformer tab and
the outlet cover plate. Tighten the screw.
Note: Upon initial installation, the battery may not be fully
charged for as long as 36 hours. A low battery icon will be
present and trouble beeps will sound until the battery is
sufficiently charged. After the initial charge, should the panel
lose AC Power and experience a low battery condition, the
icon will appear and trouble beeps will sound unless silenced.
You can silence trouble beeps by:
• Arming or disarming the system.
or
• Pressing the STATUS & SETTINGS icon and pressing
LISTEN next to Panel Status.
This will disable the sounder for 4 hours but the trouble
indication will remain until the battery is recharged.
Programming
The control panel provides the main processing unit for all system
functions. The programming of system options and features is
menu-driven.
Table 2 below describes the panel’s programming keys and
features.
Table 2: Simon XTi features and home keys
Item Description
Piezo siren Provides alarm beeps and status beeps. Fire and
intrusion alarm beeps are always played at high
volume, while the volume of status beeps is
programmable.
Touch screen Provides a graphical user interface for
programming and system operation.
Microphone Used to communicate with the central monitoring
station after an alarm.
4 Simon XTi Installation Guide

Item Description
Speaker Provides voice output and sounds key beeps. The
panel speaks arming level change, system status,
and voice chime sensor trips. The panel voice is also
used for voice reporting and remote phone control.
To access the emergency screen and select the
appropriate emergency icon (Panic, Police, or Fire),
press EMERGENCY in the top left corner of the
screen.
Time Displays the current system time.
Depicts the status of the AC power and battery. A
green power cord icon represents AC power to the
system. A red battery icon represents low battery
power to the system. A green battery icon
represents a charged battery.
This will appear on the home screen in the event of
an alarm. Messages will also display on this icon
describing what caused the alarm. Press this icon to
cancel the alarm.
These four icons depict the status of the sensors
installed in your system.
A green check indicates sensors are closed or no
recent activity detected. A red exclamation
indicates sensors are open or recent activity has
been detected.
Pressing these icons will open a new screen to
provide more detail.
If the icon shows N/A, your system is not configured
to support that type of sensor.
Press this icon to access the Arming Screen.
One of these icons will display depending on your
arming level. Press to turn off intrusion/burglary
protection for your system. Only intrusion/burglary
sensors are disarmed. Environmental sensors, such
as smoke and carbon monoxide detectors, stay
active at all times. Enter your code in the keypad
screen that appears. If you enter an incorrect code,
press the Clear icon and enter the correct code.
Press to access the Status & Settings screen.
Arming errors
If you select an arming option on the Arm screen, and there is an
arming problem, an arming error message will appear at the
bottom of the screen, indicating what the problem is and how to
correct it. For example, you might see a message that indicates
that you need to close the front door.
Correct the problem as indicated or press Bypass. You will see the
arming countdown message at the bottom of the screen. You can
touch Cancel and enter your code to stop the arming process.
Status & Settings screen
Entering and exiting the Status & Settings screen
To enter the Status & Settings screen:
Press the Status & Settings icon on the lower right of the
home screen.
To exit the Status & Settings screen:
Press Close to exit the Status & Settings screen and navigate up
one level.
Note: The system will automatically return to the main screen
after a period of inactivity.
A gold icon indicates an option is selected.
A blue icon indicates an option is not selected.
Status & Settings Screen navigation
1. Press the up/down arrows to scroll through the pages. (See
Table 3 below for Settings screen structure).
2. Press an icon to change the value of an option or enter a
subscreen.
3. Press Close to return to the previous screen.
Table 3: Status & Settings screen structure
Option How to view
Event History Press the Show icon to view system events.
Note: If a # appears in the Event History list, the
event was not sent to the central station.
Direct Bypass Press the Select icon to enter the sensor bypass
screen.
Panel Status Press the Listen icon to listen to the status of your
security system. Press Clear to clear the status.
Chime Press the On/Off icon to set the chime feature
On/Off.
Note: This option may or may not appear depending
on panel programming.
Special Chime Press the On/Off icon to set the special chime
feature On/Off.
Note: This option may or may not appear depending
on panel programming.
Lights Press Control to access the Light screen. From there
you can turn On/Off programmed lights.
Note: Has not been investigated by UL.
Door Locks Press Control to access the Door Lock screen. From
there you can lock/unlock programmed door locks.
Note: Has not been investigated by UL.
Voice Volume Press the arrows to adjust the speech volume level.
Beep Volume Press the arrows to adjust the beep volume level.
Brightness Press the arrows to adjust the screen’s brightness.
Simon XTi Installation Guide 5

Option How
to view Option How to view
Default Screen Use this feature to set this panel’s screen saver
mode. Select “Blank” to have the screen and LED go
dark after a period of inactivity. Otherwise, the
default will be the Home screen and the screen will
always be lit. If AC power is lost, the screen will go
blank after 2 minutes of inactivity to maximize
battery life.
Note: The screen will automatically go blank at 2:00
am daily for 60 minutes.
Calibration Press the Show icon to enter the calibration screen.
This screen will allow you to recalibrate the touch
screen.
Help Press the Help icon to access the Help menu.
Set Date/Time Press Enter to set the date and time.
System Tests Press Enter to perform a sensor test or system
download.
Press the Access Codes icon to change existing or
add new access codes.
Press the Security icon to turn downloader enable
on/off and to set the account number.
Press the Phone numbers icon to change existing or
add new phone numbers.
Press the Phone Options icon to access the
following phone options:
• Manual phone test
• Fail to communicate
• DTMF dialing
• 300 BPS enabled
• Ring hang ring
• Dialer delay
• Call waiting code
Press the Sensors icon to access the learn sensor,
edit sensor, and delete sensor options.
Programming
Press the Reporting icon to access the following
reporting options:
• Opening report
• Closing report
• Force armed report
• AC power failure report
• Panel low battery report
• Sensor alarm restoral report
• 24 hour sensor tamper
• Supervisory tamper report
• No usage report
• Swinger shutdown
• Programming report
• Fire alarm verification
Press the Timers icon to access the following timers
options:
• Entry delay
• Exit delay
• No activity timeout
• Audio phone test
• Supervisory time
• Alarm cancel window
• RF timeout
• Fail to open time
• Fail to close time
• Siren timeout
• Unvacated premises
• Smoke supervision
Press the Touchpad Options icon to access the
following options:
• Keyfob no delay
• Panic alarms
• Remote TP arming
Press the System Options icon to access the
following system options:
• RF jam detect
• Demo mode
• HW1 function
• 24 hour clock
Press the Siren Options icon to turn on/off the
following options:
• Panel piezo beeps
• Panel voice
• Panel piezo alarm
• Trouble beeps
• Voice chime
• HW siren supervision
• Silent police panic
• Alarm report verify
Press the Audio Verification icon to access the
following audio verification options:
• Audio mode
• Fire shutdown
• Fire enabled AVM
• Panic talk
• VOX receiver gain
• VOX microphone gain
• VOX microphone gain range
• Manual microphone gain
Press the System Tests icon to perform a sensor
test, communication test, or system download test.
Version Displays the system’s firmware version, touch
screen version, and copyright information.
Access Programming screen
1. From the Status & Settings screen, press the down arrow to
scroll to the Programming option.
6 Simon XTi Installation Guide

2. Press Enter.
3. Enter the dealer or installer code (see Table 4 below) and
press OK.
Note: You have four seconds between number presses to
enter the code or you will be returned to the home screen.
Note: Do not remove the panel power within 30 seconds of exiting
program mode.
Table 4: Simon XTi programming codes
Code Description
Dealer
code
You can use the dealer code to program all system functions,
including high-security options that are not accessible with the
installer code if it is different from the dealer code. Depending
on how the access code is set, the default dealer access code
is 654321, 54321, 4321 (factory default), or 321. This code can
be used for all programming.
Installer
code
Depending on how the access code is set, the default installer
code is 654321, 54321, 4321 (factory default), or 321. This code
is limited to changing all but the following: Dealer code, code
length, downloader code, phone lock, phone #1, phone #2,
phone 1 report mode, phone 2 report mode, HW1 function.
Access codes
Table 5 below describes the Access code menu programming
options.
Table 5: Access codes
Function Default Description
Dealer
code
4321 You can use the dealer code to program all
system options, including high-security options
that are not accessible with the installer code if
it is different from the dealer code. Changing the
dealer code to differ from the installer code will
prevent the installer from viewing certain fields.
If you change the dealer code and enter
program mode with the installer code, the
installer will no longer be able to see the
following: code length, downloader code, phone
lock, phone #1, phone #2, phone 1 report mode,
phone 2 report mode, HW1 function.
Installer
code
4321 You can use the installer code to program most
installer options, except for high-security dealer
options.
Master
code
1234 You can use the master code to arm/disarm the
system and to enter user programming and
bypass sensors.
User
codes 1 to
8
Blank You can use the user codes to arm/disarm the
system.
Duress
code
Blank You can use the duress code in place of the
master or user code to cause a silent alarm.
Code
length
Four digits Codes can be three to six digits long.
Sensors
These instructions describe how to add (learn) sensors, touchpads,
and other system devices into panel memory. The panel
recognizes a sensor when you press a sensor program icon, press
and release a tamper switch, press a sensor test button, or put a
sensor into alarm. Table 6 below describes the programming
method for each device.
Note: If you are installing a sensor on a gun case, jewelry box, or a
similar case, and the sensor is active in level one, you must direct
bypass the sensor to avoid putting the panel into alarm when the
sensor and the magnet are separated.
Mounting Recommendations:
•Where possible, install sensors within 100 feet (30 m) of the
receiver. While a transmitter and receiver combination may
have an open-air range of 500 feet (152 m) or more, the
environment at the installation site may have a significant
effect on operational range. Changing a sensor or receiver
location can improve wireless communication.
• Avoid mounting sensors or receivers in areas where they will
be exposed to moisture or where the operating temperature
range will exceed the specified range (10 to 120 °F).
• Avoid mounting the sensor or receiver in areas with a large
quantity of metal or electrical wiring. For example: within 1
meter of AC distribution panel (fuse box), HVAC duct work
• Avoid mounting the sensor or receiver directly on metal.
• The Simon XTi system should not be mounted within 3 meters
of any other RF equipment (RF music system transmitter,
wireless router/modem, etc.).
Note: Refer to specific sensor installation instructions for complete
operation and testing details.
Table 6: Device programming
Device To program
Door/window
sensor
Press the button on the top of the sensor (cover
removed) or trip the tamper.
Motion sensor Press the button on the back of the sensor (mounting
plate removed) or trip the tamper.
Smoke detector Trip the tamper, press the test button, remove the
detector from its base, or put the smoke detector into
alarm.
Hardwired sensor Separate the sensor from its magnet.
CO alarm Trip the wall tamper by removing the sensor body from
the mounting plate.
Simon XT talking
touch screen
1. Press the Settings icon.
2. Press the Down arrow until the Clear and Enroll icon
appears.
3. Press the Clear and Enroll icon. The touch screen
should indicate it is waiting for enrollment.
Simon XTi Installation Guide 7

Device To
program
Simon XT talking
touchpad
Press the Lights off button on the touchpad six times in
rapid succession. On the sixth press, the touchpad
makes a longer beep.
Key fob Press the lock and unlock buttons at the same time.
To learn (program) a sensor:
1. From the Programming screen, enter the access code from
the codes listed in Table 5 on page 7. The display shows each
entered access code digit as a dot.
2. Press OK. You are now in the programming screen.
3. Press Sensors.
4. Press Learn Sensor.
5. Trip the sensor (see Table 6 on page 7). The Edit Sensor screen
will appear. If no further action is required (change sensor
name, number, or group) proceed to step 8. To exit, press
Close repeatedly.
6. To change the sensor name, number, or sensor group press
the appropriate Edit icon and modify the value. To change
the sensor text, press the appropriate Edit icon, then choose
the item you would like to change.
7. Press Save to keep the new sensor, or Cancel to abort
learning this sensor into the system (both of these choices will
return you to step 5).
8. To exit, press Close repeatedly.
Sensor Naming
Please use the following guide when naming sensors:
• Sensor names must have the word “window” or “door” from
the text library to interact with the touch screen Door and
Windows icons on the Main screen.
• On the Edit Sensor name screen in programming, default the
screen to list and not keypad. This gives the user the list of
possible sensor names.
• The Motion icon is controlled by sensors that are
programmed into the following groups: 15, 17, 18, 20, 28, or
32.
• The Property icon is controlled by the following sensors:
• All sensors learned into Group 43.
• Sensors that are not named “window” or “door”.
• Sensors not learned into the Motion groups.
• Sensors that are named keyfob, keychain or touchpad.
Sensor Testing
Test the sensors after all programming is completed and
whenever a sensor-related problem occurs.
Note: While the sensor test is a valuable installation and service
tool, it only tests sensor operation for the current conditions. You
should perform a sensor test after any change in environment,
equipment, or programming.
Notify the central station you will be performing a test prior to
starting the test.
To test the sensors:
1. Place all sensors in their secured (non alarm) state.
2. Access the System Test screen through the Programming
Screen, and then press OK.
3. Enter the dealer or installer code and press OK.
4. Press Sensor Test.
5. All learned in sensors will be displayed on this screen. Press
the arrows to scroll through the pages.
Test your sensors by tripping them one at a time. The panel
will display the number of transmissions received from
sensors you trip. See Table 7 below for specific instructions on
how to trip each sensor type.
The panel sounds beeps, and the display identifies the tripped
sensor and the number of RF packets received. Each beep
represents one RF packet. Count the number of beeps and
refer to Table 7 below for minimum requirements. The panel
displays Sn #, Name, and Rounds Detected (Packets). Scroll
through to make sure all sensor have been tested.
Table 7: Sensor tripping instructions
Sensor Instructions Minimum
packets required
Hardwire contact Open the hardwire contact. 1
Door/window Open the secured door or
window.
6 of 8
Carbon
monoxide alarm
Press and hold the Test/Hush
button (approximately 5 seconds)
until the unit beeps two times,
and then release the button.
6 of 8
Glassbreak Test with an appropriate glass
break sensor tester.
6 of 8
Motion sensor Avoid the motion sensor field of
view for 5 minutes, and then
enter its view.
6 of 8
Smoke Press and hold the test button
until the system sounds
transmission beeps.
6 of 8
Key fob Press and hold the Lock and
Unlock buttons simultaneously
for 3 seconds.
6 of 8
Simon XT talking
touchpad
Press and hold the two
Emergency buttons
simultaneously for 3 seconds.
6 of 8
8 Simon XTi Installation Guide

Sensor Instructions Minimum
packets required
Simon XT talking
touch screen
For sensor testing a 1.0. touch
screen, press and hold the
Emergency icon for 5 seconds.
For sensor testing a 1.1 or greater
touch screen, press the Settings
(gear) icon, scroll down, and then
press the RF Test icon.
6 of 8
6. Press Close repeatedly to exit.
Sensor Test Failure
If sirens do not beep when a sensor is tripped, use an RF Sniffer
(60-401) test tool to verify that the sensor is transmitting. Constant
beeps from the RF Sniffer indicate a faulty sensor. Replace the
sensor.
If possible, locate sensors within 100 ft. (30 m) of the panel. While a
sensor may have a range of 500 ft. (152 m) or more out in the
open, the environment at the installation site can have a
significant effect on transmitter range. A change in sensor location
may help overcome adverse wireless conditions and can
potentially be accomplished by the following:
• Reposition the sensor
• Relocate the sensor
• If necessary, replace the sensor
To reposition a sensor:
1. Rotate the sensor and test for improved sensor
communications at 90 and 180 degrees from original
position.
2. If poor communication persists, relocate the sensor.
To relocate a sensor:
1. Test the sensor a few inches from the original position.
2. Increase the distance from the original position and retest
until an acceptable location is found.
3. Mount the sensor in the new location.
4. If no location is acceptable, replace the sensor.
To replace a sensor:
1. Test a known good sensor at the same location.
2. If the transmission beeps remain below the minimum level,
avoid mounting a sensor at that location.
3. If the known-good sensor functions, contact UTC Fire &
Security for repair or replacement of the problem sensor.
Sensor Testing Notes:
•Conduct sensor test in all possible environmental conditions
(For example: interior doors open and closed, HVAC system
on and off, wireless music system turned on and off).
• Conduct sensor test whenever changes are made to the
installation environment that may impact RF performance
(For example: mirrors installed, metal backed wall paper,
addition of other RF equipment).
• Sensor testing should be done before and after permanent
mounting.
Comm Testing
If Comm Test is not finished, it will continue to run even if you exit
program mode.
Note: Complete panel programming before performing comm
testing.
To perform a comm test:
1. Enter the Status & Settings menu.
2. Scroll until System Tests is listed, Press Enter.
3. Enter your master code and press OK.
4. Press Comm Test.
The panel displays if the comm test was successful or not.
Central station communication
After performing sensor tests, check that the system is reporting
alarms successfully to the central station.
Note: The communication with the central station test must be
done while NOT in programming mode.
To verify alarm reporting:
1. Call the central station and tell the operator that you will be
testing the system.
2. Arm the system.
3. Test an emergency panic icon and trip at least one sensor of
each type (fire, intrusion, etc.) to verify that the appropriate
alarms are working correctly. There is a 30 second delay.
4. When you finish testing the system, call the central station to
verify that the alarms were received.
Cleaning the touch screen
If necessary, use a soft cloth to clear smudges on the touch
screen. Do not use glass cleaner on the touch screen.
Disposal
Dispose of all equipment is accordance with local requirements.
Simon XTi Installation Guide 9

Specifications
Power 9 VAC, 60 Hz, 25 VA transformer minimum
Rechargeable battery: 6.0 VDC, 2.1 Ah NIMH.
Maximum battery charging current is 120 mA.
Once the battery reaches a low battery condition,
a trouble signal will be annunciated, indicating
that the battery may no longer support a full
alarm load.
When fully charged, the battery will operate the
panel without AC power for 24 hours with the
panel in a normal, standby condition, followed by
5 minutes in full alarm condition (including the
maximum specified auxiliary load of 250 mA).
Radio frequency 319.5 MHz
Storage temperature -29 to 140ºF (-34 to 60ºC) without battery
14 to 86ºF (-10 to 30ºC) with battery one year
shelf life
Operating
temperature
32 to 120ºF (0 to 49ºC)
Maximum humidity 85% relative humidity, noncondensing
Auxiliary power Unregulated 4.0 to 12.3 VDC, with a maximum of
250 mA
Regulatory information
Some installation may require configurations dictated by
city/state codes, insurance, or Underwriter’s Laboratories (UL). This
section describes the various component and configuration
listings.
Basic system:
• Control panel: Backup battery 6 V 2.1 Ah (34-070)
• Standard Class 2, 9 VAC, 25 VA power transformer (UTC Fire &
Security part 22-155) or Standard, Class 2, 9 VAC, 30 VA (UTC
Fire & Security part 22-153).
• Hardwired siren (13-374)
Household burglary alarm system unit (UL 1023), basic system
plus the following:
• Hardwired magnetic contact (1038T) or wireless learn mode
door/window sensor (60-670-95R or
60-362N-10-319.5 or 60-362N-11-319.5)
• Panel piezo beeps set to on
• Entry delay set to 45 seconds or less
• Exit delay set to 60 seconds or less
• RF time-out set to 24 hours
• Control panel alarms turned on
• Auto arm set to on
• Siren timeout set to 5 minutes or more
• Trouble beeps set to on
• RF jam detect set to on
• Hardwired siren supervision set to on
• Exit extension set to off
• Quick exit set to off
Household fire warning system (UL 985), basic system plus the
following:
• Wireless smoke sensor 60-848-02-95, TX-6010-01-1 learned
into sensor group 26.
• Panel piezo beeps turned on
• Control panel alarms set to on
• Siren timeout set to 4 minutes or more
• Trouble beeps set to on
• RF jam detect set to on
• Hardwired siren supervision set to on
• Smoke supervision set to on
UL 1635 digital alarm communicator system the following settings
are required only if the system is set up for central station
reporting:
• Phone mode 1 set to “All SIA” or “All CID”
• Automatic phone test set to 001
• RF timeout set to 4 hours
• AC power failure report set to on
• CPU low battery report set to on
• Fail to communicate set to on
• Entry delay plus the dialer delay must not exceed 60 seconds
SIA system requirements
Verified to SIA CP-01-2007 by ETL, basic system, plus if multiple
annunciations are required, use hardwired siren 13-046.
Note: For UL 1635 installations, entry delay plus dialer abort delay
must not exceed 60 seconds.
Table 8 below describes programming requirements to meet
ANSI-SIA CP-01.
Table 8: SIA setting requirements
Function Default setting Required setting
Entry delay 30 seconds 30 to 240 seconds
Exit delay 60 seconds 45 to 240 seconds
Dialer delay 30 seconds 15 to 45 seconds
Auto arm On On
Unvacated premises On On
Call waiting Off On if reporting to
central station and
customer has call
waiting service
Alarm cancel window 6 minutes 6 to 255 minutes, Off
System test Enabled Enabled
Communication test Enabled Enabled
Exit extension On On
Swinger shutdown On (one trip) On (one trip)
Fire alarm verify Off On
10 Simon XTi Installation Guide

Simon XTi Installation Guide 11
Function Default setting Required setting
Duress/panic code Disabled Disabled
Cross zone Disabled Disabled for zones with
high probability of false
alarms
Table 9 below describes nonprogrammable (hard-coded) system
operation, as required to meet ANSI-SIA CP-01.
Table 9: Nonprogrammable system operation
Function Operation
Silent exit All annunciators enabled
Remote arming exit time and
progress annunciation
All annunciators enabled
Abort annunciation Enabled
Cancel report annunciation Enabled
Recent closing Enabled (2-minute window)
Exit error Enabled
Restoration of power Panel resumes operation in same
arming state and disregards alarm
signals from sensors for the first 60
seconds after power restoration
Cancel alarm Enter code only
Central station reporting
Note: The panel shall not be set or programmed to place a call to
a police station number that has not been specifically assigned by
that police station for such service.
Caution: If call waiting is used on a non-call waiting line,
successful connection to the central station may be prevented.
The panel has been tested with the following central station
receivers using SIA and Contact ID reporting formats:
Before beginning installation, installers must verify that the central
station is equipped with the following receivers:
• Radionics D6600 central station receiver
• Sur-Gard central station receiver with models SG-DRL2A and
SG-CPM2
• CS5000 digital alarm communicator receiver
UL Canada listed installations
This section describes the requirements for CUL (UL Canada) listed
installations.
Canadian standards CSA certified accessories:
• Standard Class 2, 9 VAC, 30 VA power transformer (UTC Fire &
Security model 22-153-CN) or Standard Class 2, 9 VAC, 25 VA,
(UTC Fire & Security model 22-155-CN).
Residential burglary alarm system unit (ORD-C1023-1974): basic
system as described for UL 1023 listed installations plus:
• Hardwired magnetic contact (1038T) or wireless learn mode
door/window sensor (60-670)
• Siren timeout set to six minutes or more
Residential fire warning system control unit (ULC-S545-M89): basic
system as described for UL 985 listed installations plus:
• Wireless smoke sensor 60-848-02-95, TX-6010-01-1 learned
into sensor group 26
• Siren timeout set to six minutes or more
FCC compliance
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC Part 15 registration number: B4Z-910C-SIMON
IC: 1175C-910CSIMO
This Class B digital apparatus complies with Canadian ICES-001.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Part 68. This equipment complies with Part 68 of the FCC rules and
the requirements adopted by ACTA.
FCC registration number: US: B4ZAK02B55910
Canada: 1175C-910CSIXT
Ranger Equivalence 0.2B
Load Number 0.2
